Notice

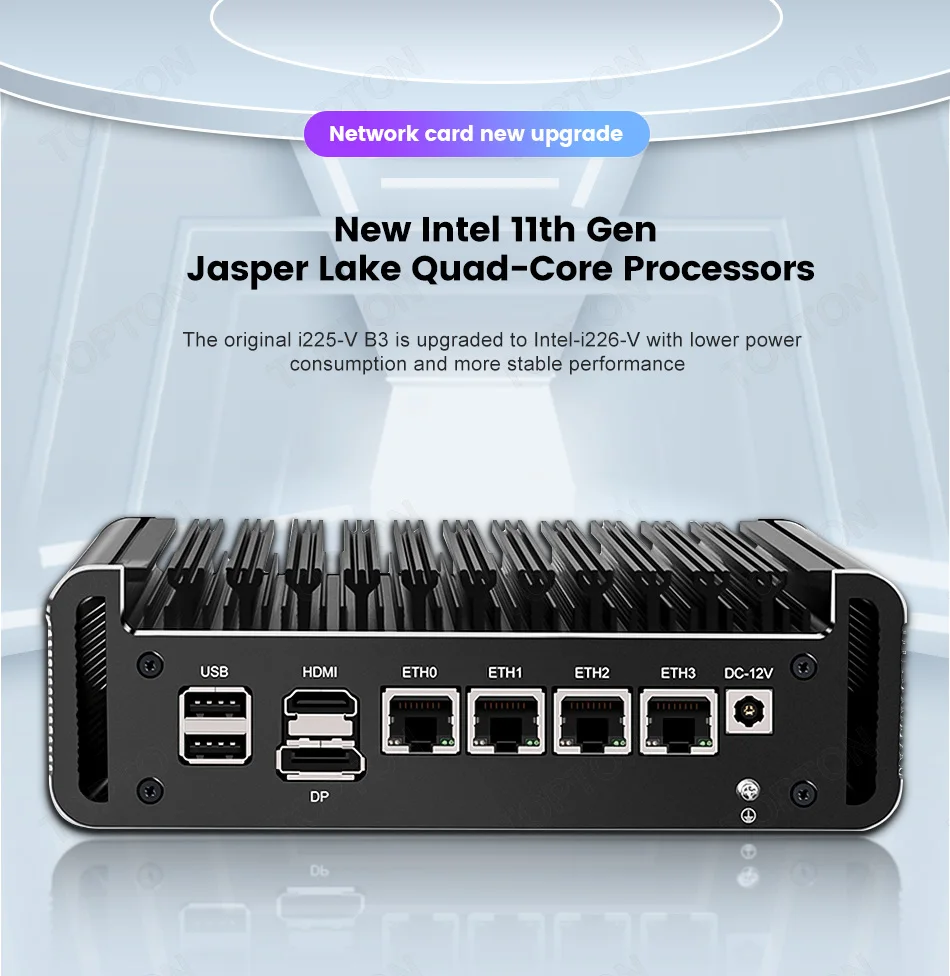

Intel i226-V is a new network card, pfSense, ROS etc system maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying, DO NOT open dispute because of system issue.

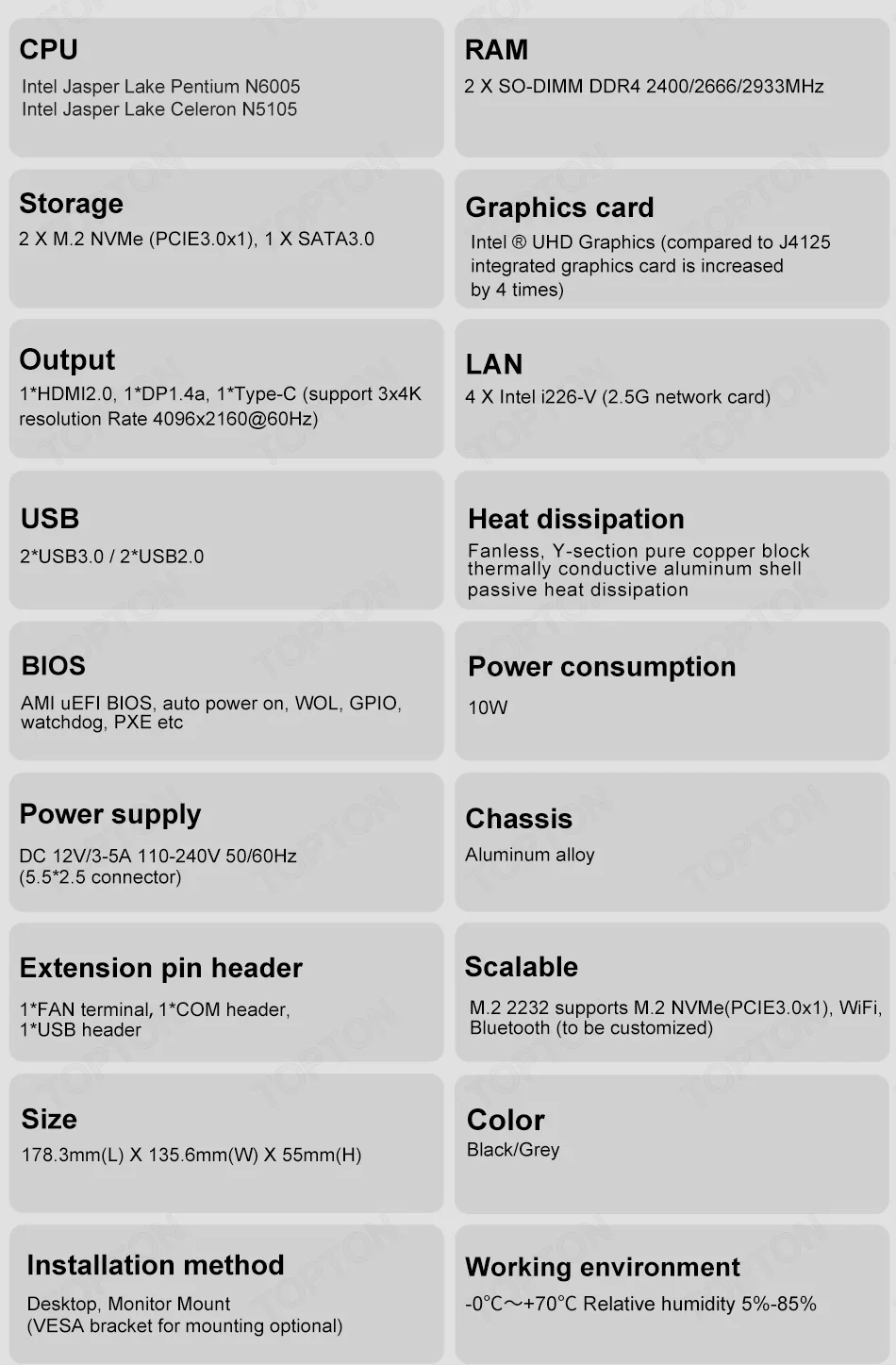

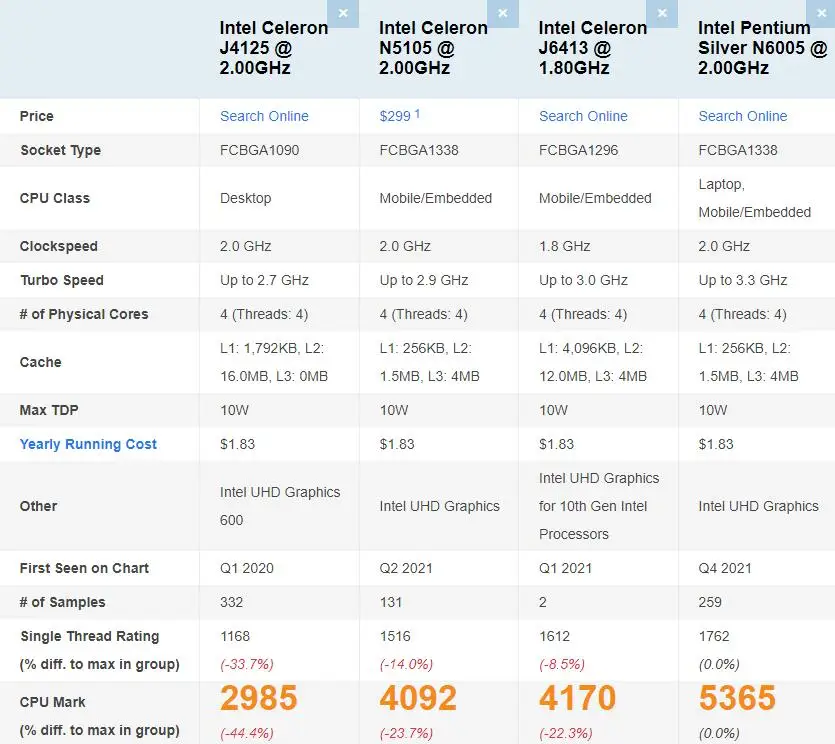

Processor parameter for referance onlyProcessors
Cores & Threads
L3 Cache
Base Frequency
Max Turbo Frequency
Graphics
Celeron N5105
4 cores, 4 threads
4M
2.00 GHz
2.90 GHz
Intel UHD Graphics 450MHz-800MHz
Pentium Silver N6005
4 cores, 4 threads
4M
2.00 GHz
3.30 GHz
Intel UHD Graphics 450MHz-900MHz

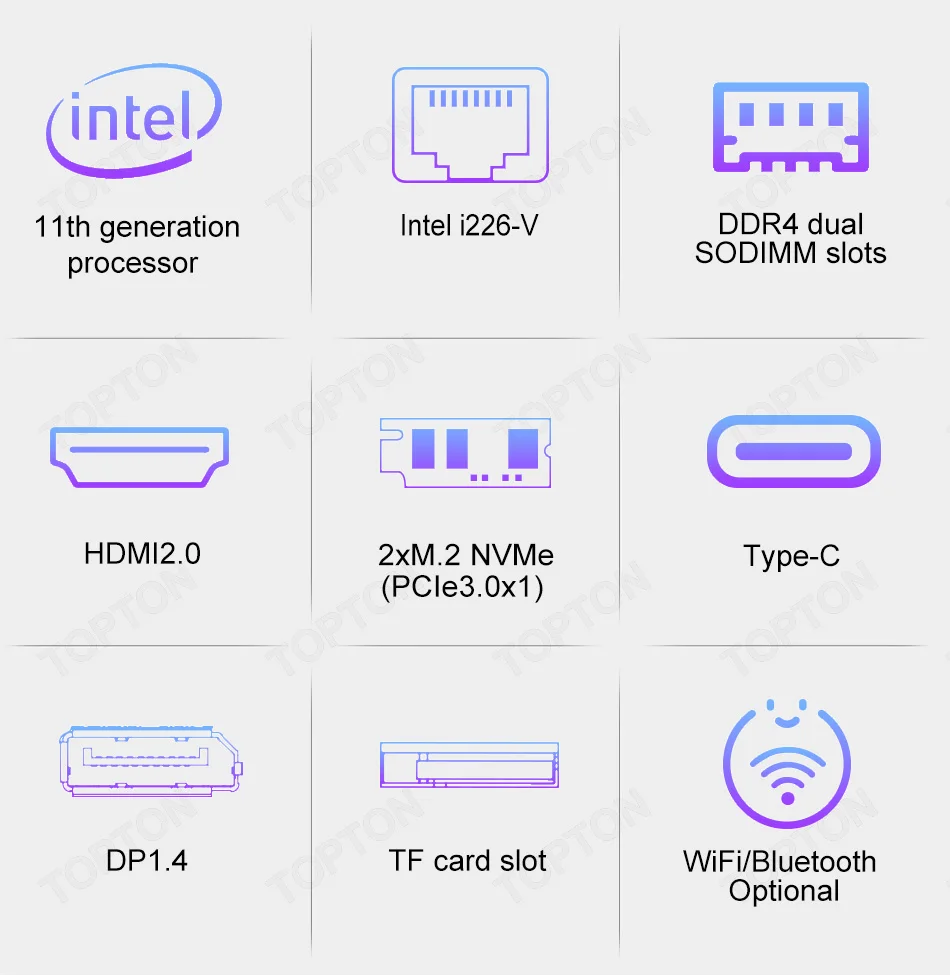

Product Highlight

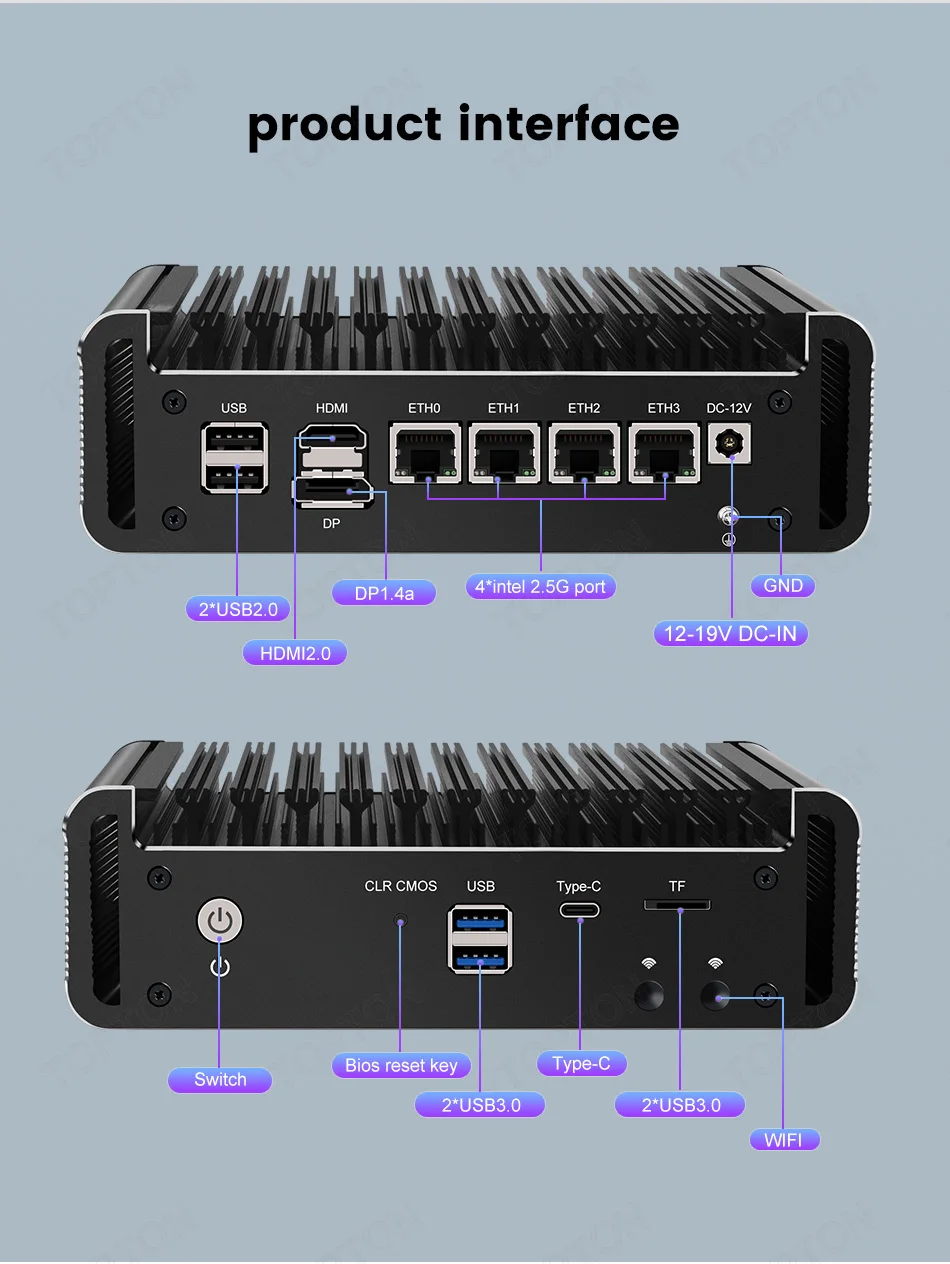

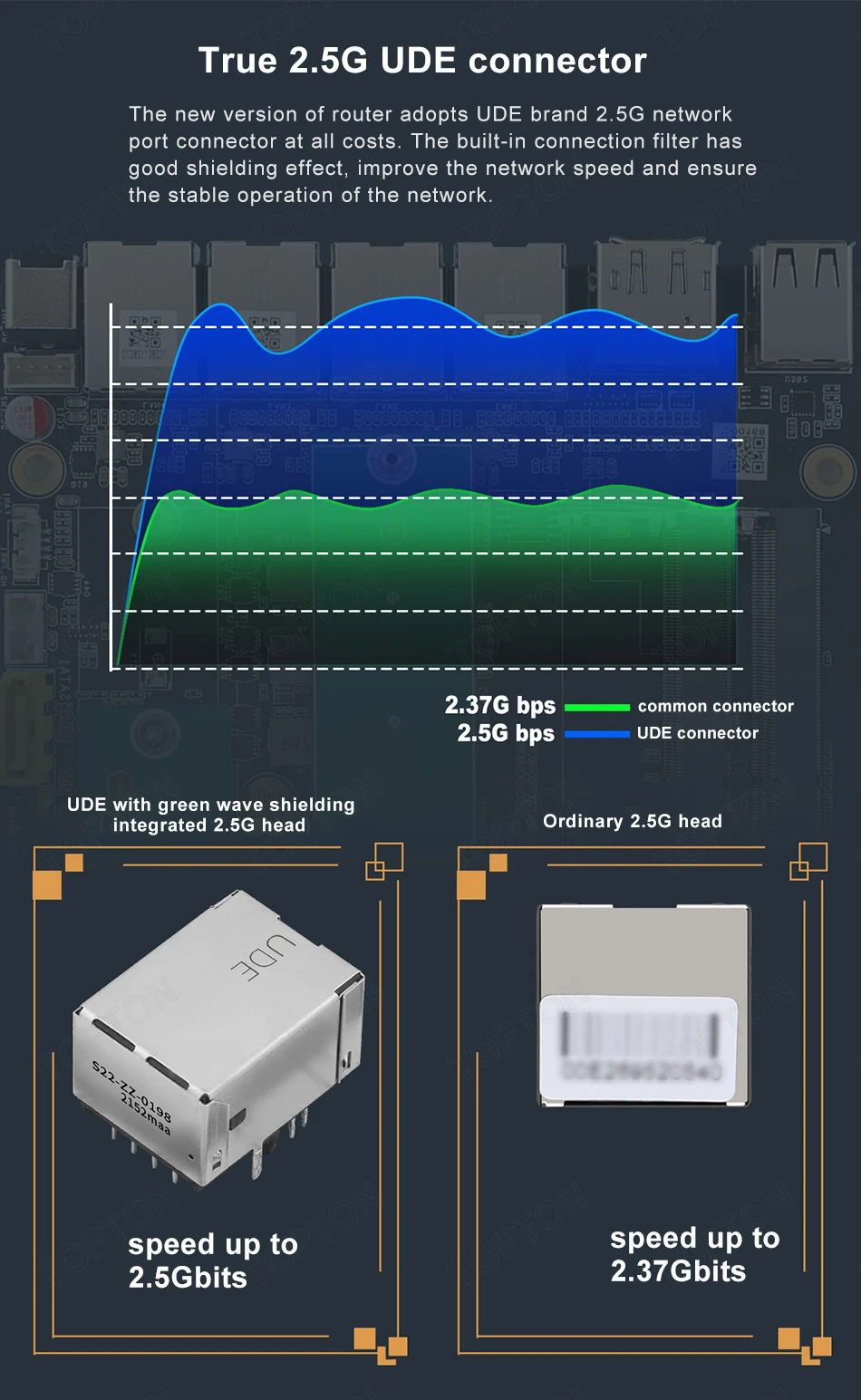

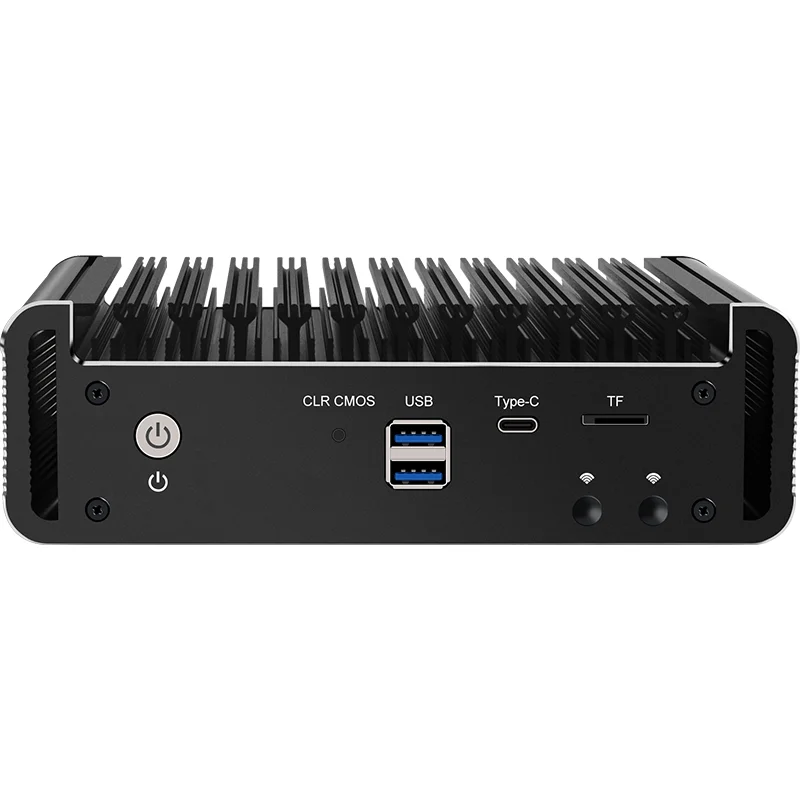

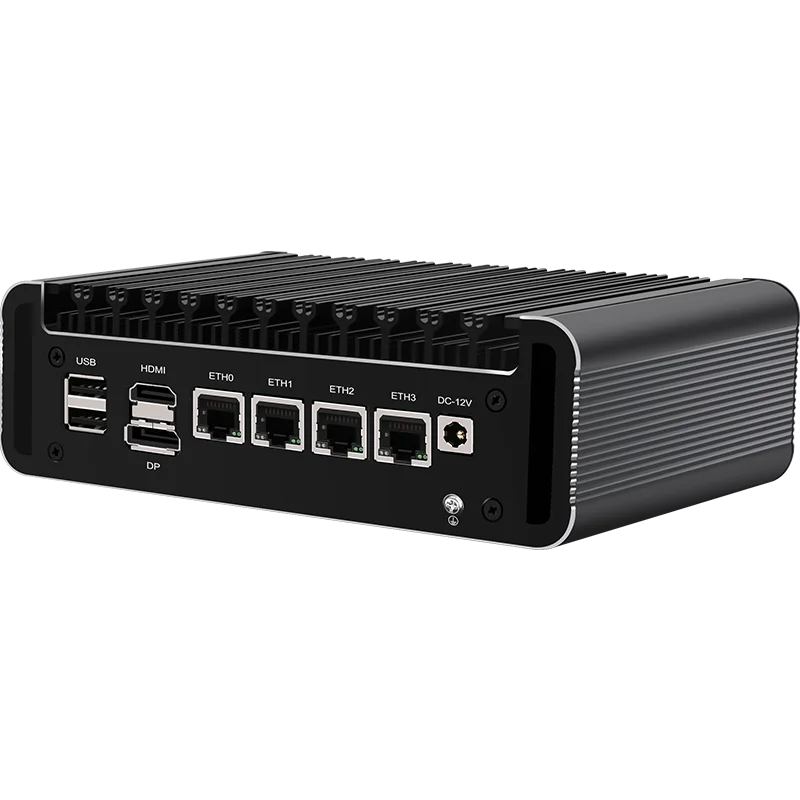

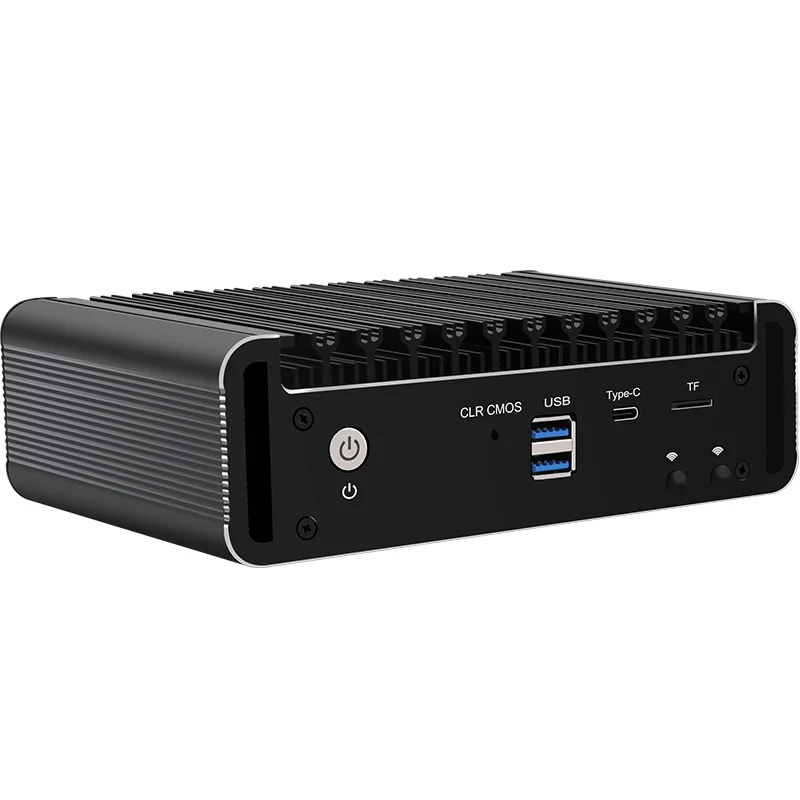

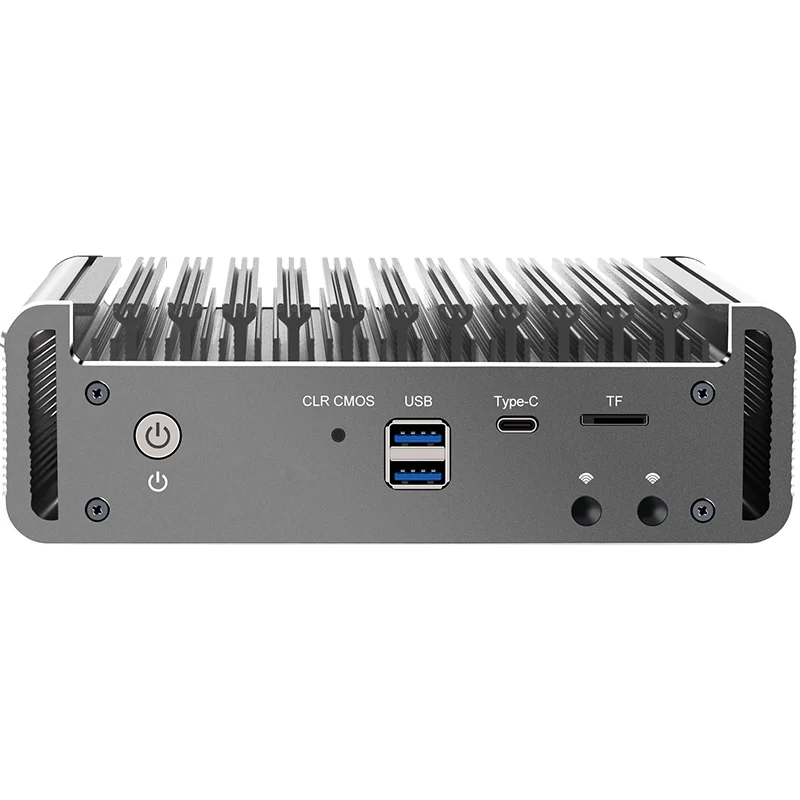

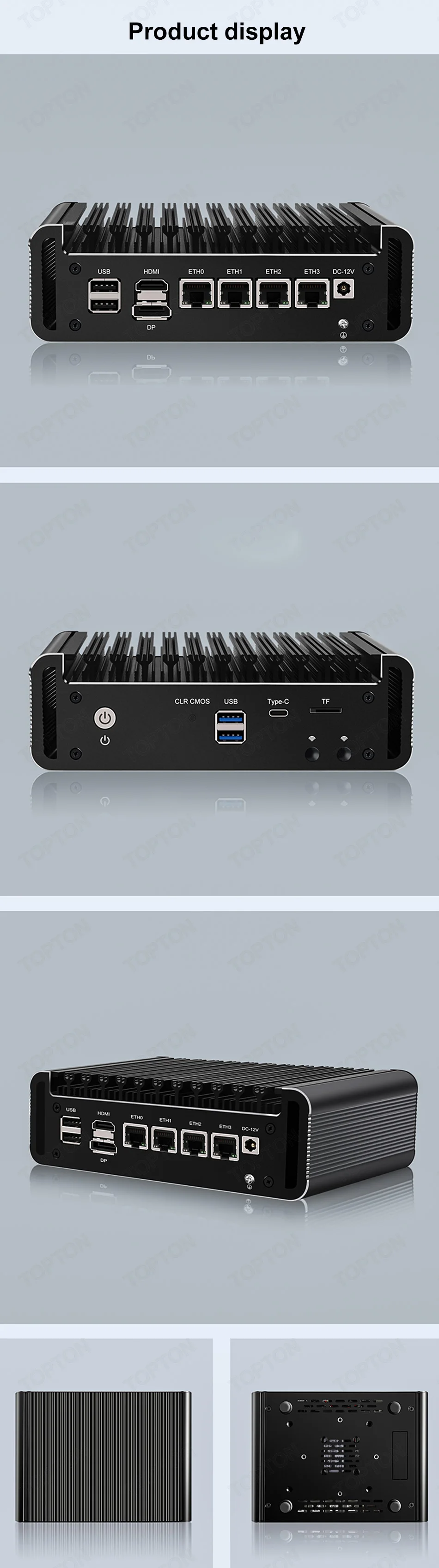

-4xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
-2xDDR4 SODIMM non-ecc ram slot, support 2400/2666/2933MHz.

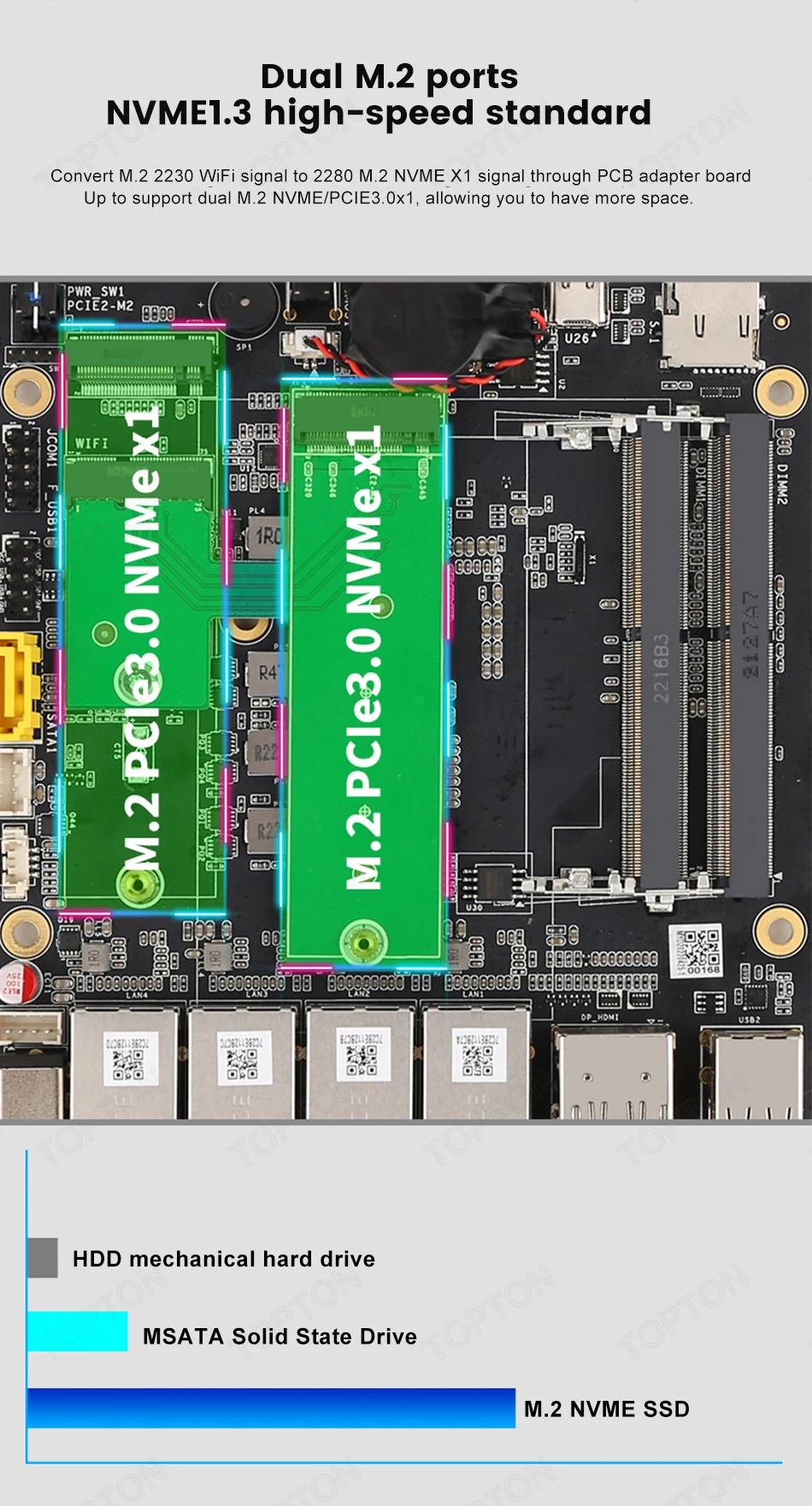

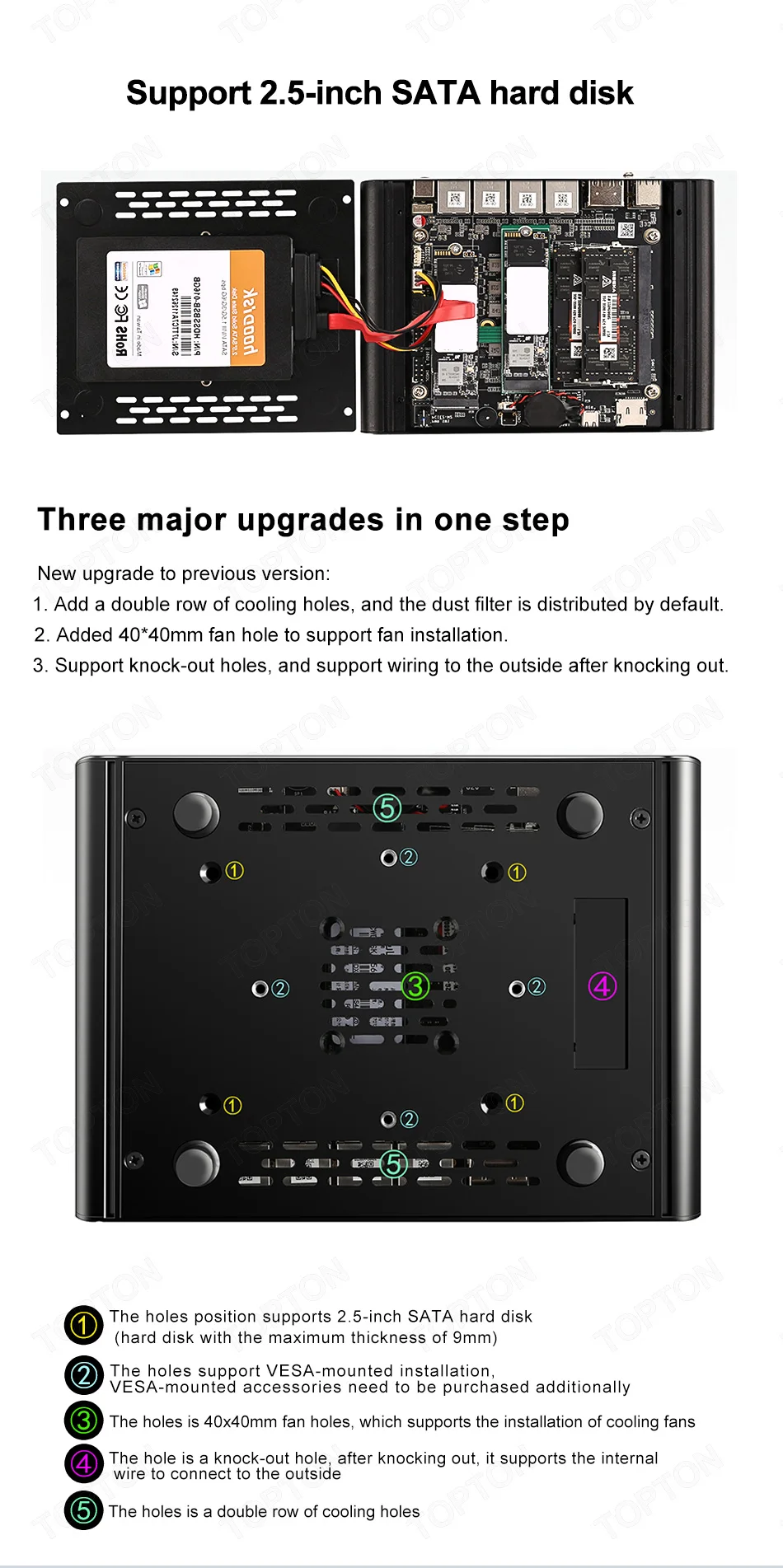

-Support triple storage: 2xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA SSD/HDD.
-1xM.2 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x1 2280 SSD with PCB adapter board.
-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

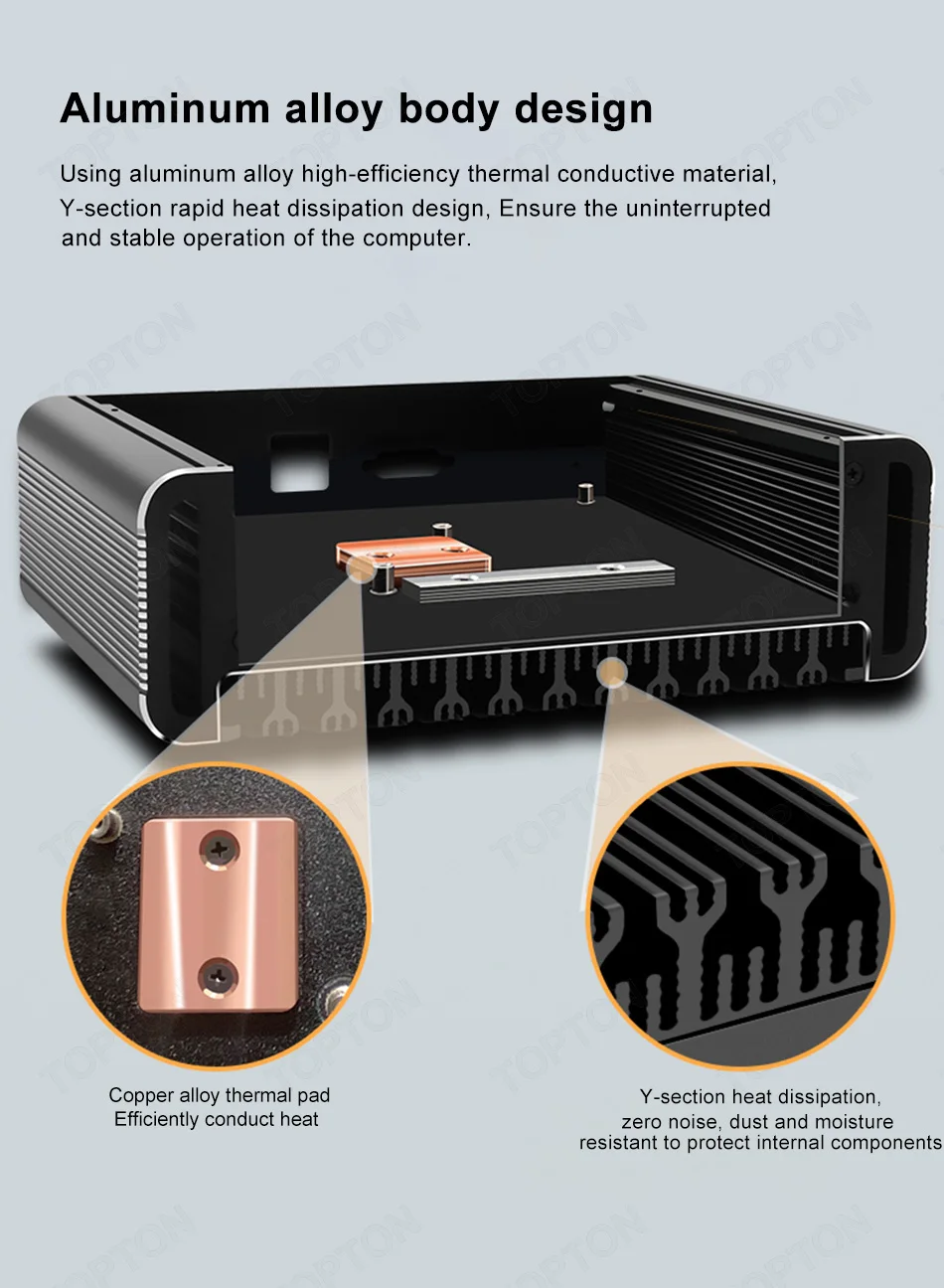

-Full Aluminum Alloy high quality solid-built shell with three-sided Y-section ice thorns, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

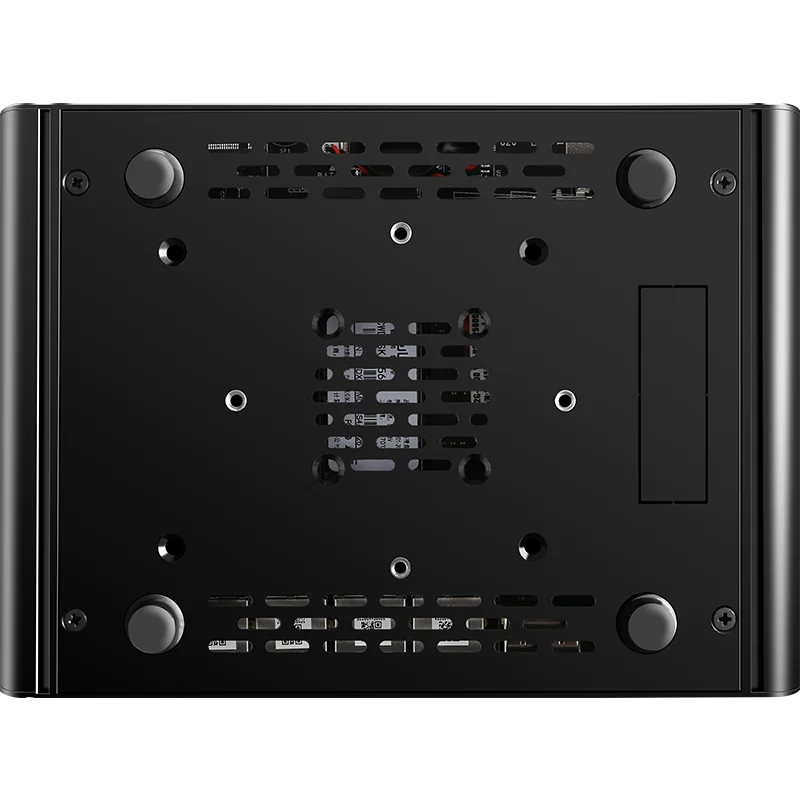

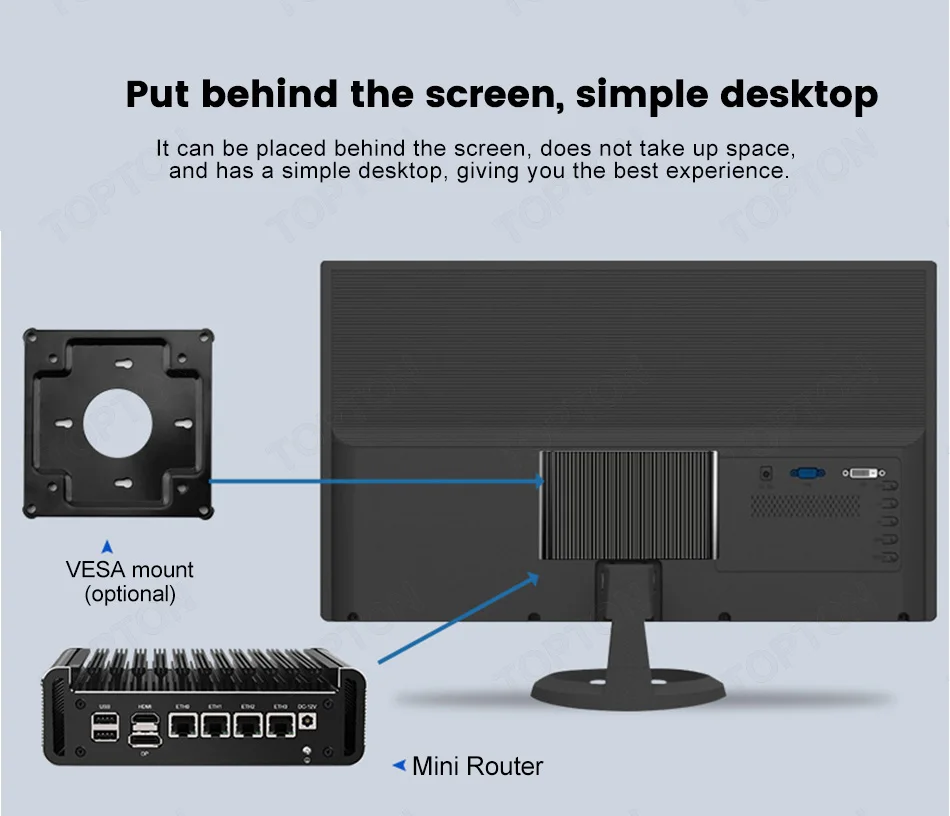

-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30, Internal 4010/8010 cooling FAN cost US $9. If you need, pay at.
DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage.
Welcome to click the picture of VESA Bracket to order together if you need:
500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.
Upgrading link:
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
