Color
Bundle (Pack)
Descripción
Processors
Intel Core i5-7200U Processor,3M Cache, up to 3.10 GHz,2 Core 4 threads,TDP:15W
Intel Core i7-7500U Processor,4M Cache, up to 3.50 GHz,2 Core 4 threads,TDP:15W
Intel Core i5-8250U Processor,6M Cache, up to 3.40 GHz,4 Core 8 threads,TDP:15W
Intel Core i7-8550Uprocesoor, 8M cache, up to 4.0GHz, 4 core 8 threads, TDP 15W
Display
GPU: Intel HD Graphics 620
VGA:Maximum resolution 1920*1080@60Hz
HDMI:Maximum resolution 4096*2304@24Hz

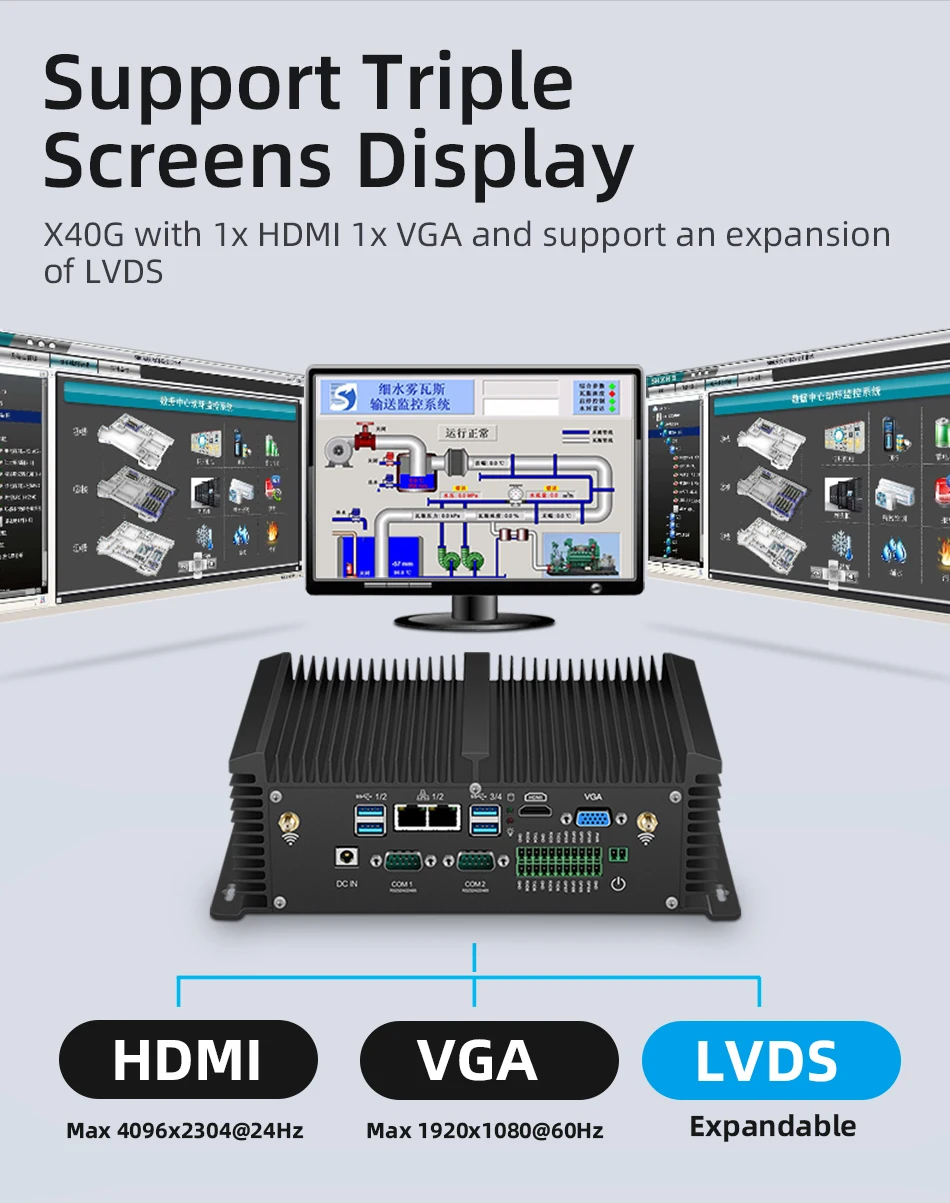

Dual display:VGA + HDMI,support for Synchronous or Asynchronous Display

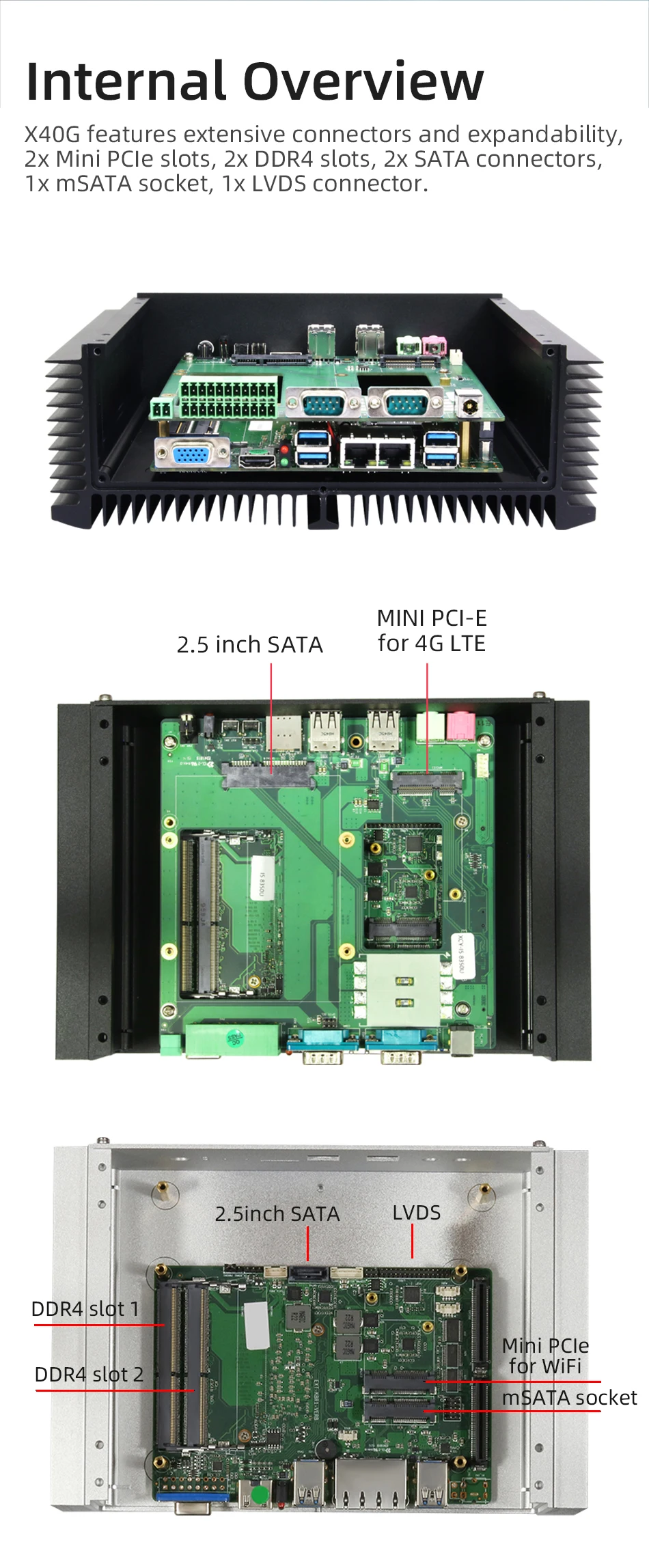

Memory
DDR4 2133/2400/2666MHz 1.35V

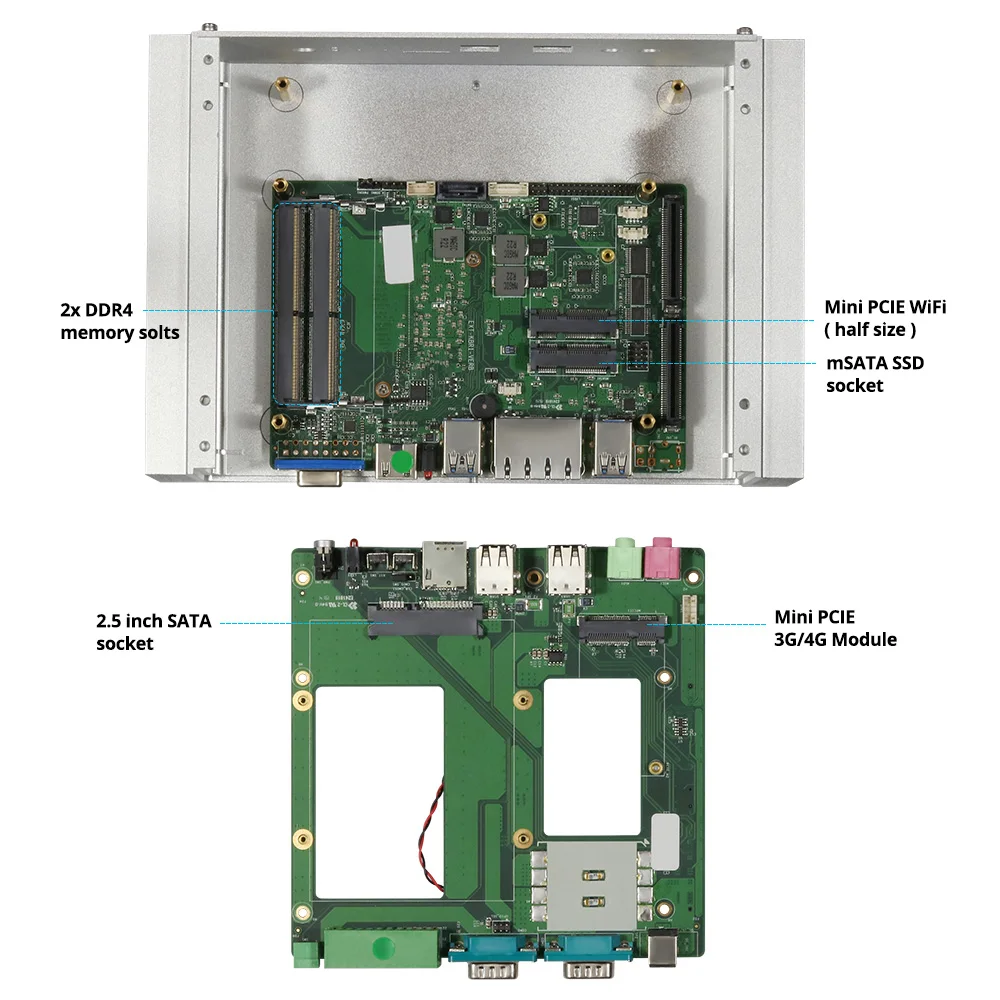

2x SO-DIMM slots
Maximum capacity: 32G
Hard Disk
1x mSATA SSD socket
Support OS
Win8 Win10, ubuntu/LINUX/CENTOS

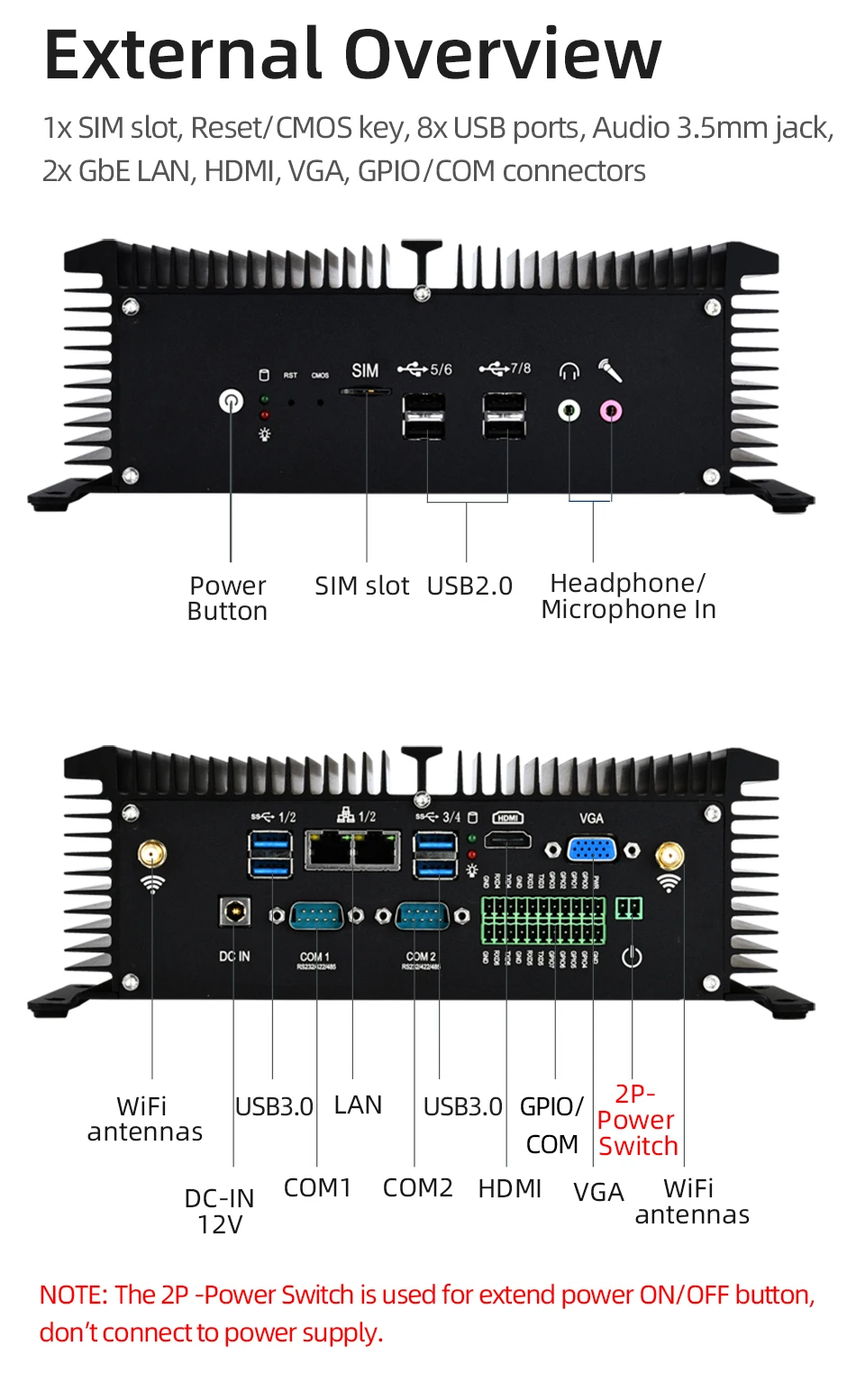

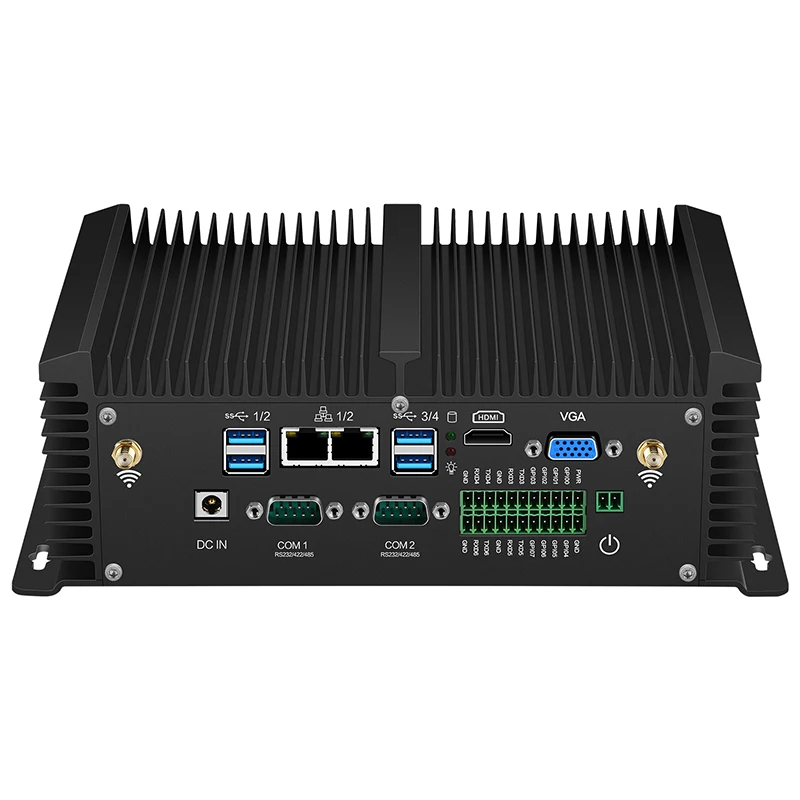

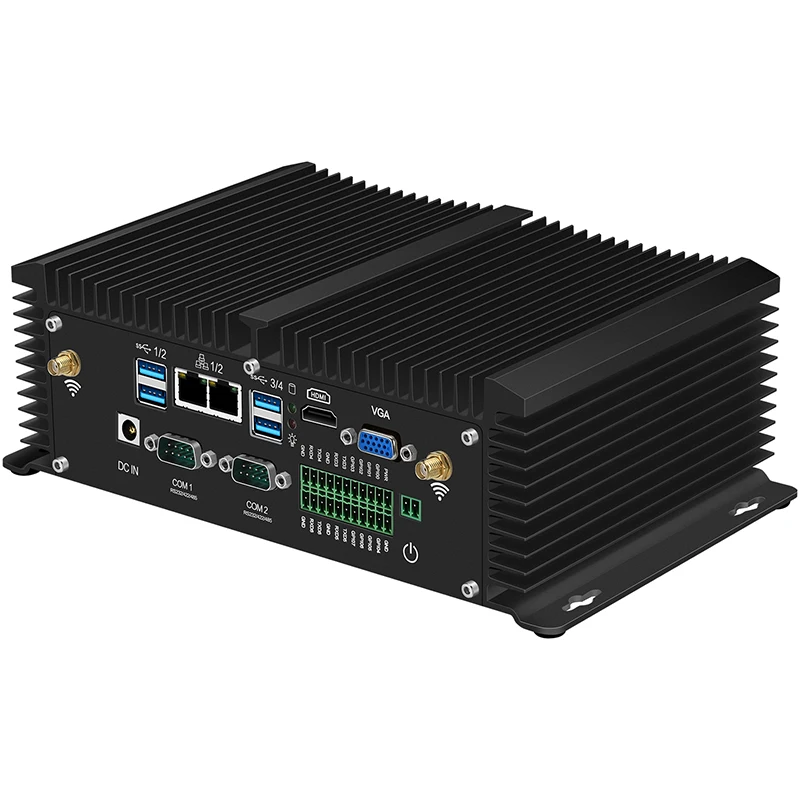

I/OPorts
4x USB2.0
4x USB3.0
1x VGA
1x HDMI

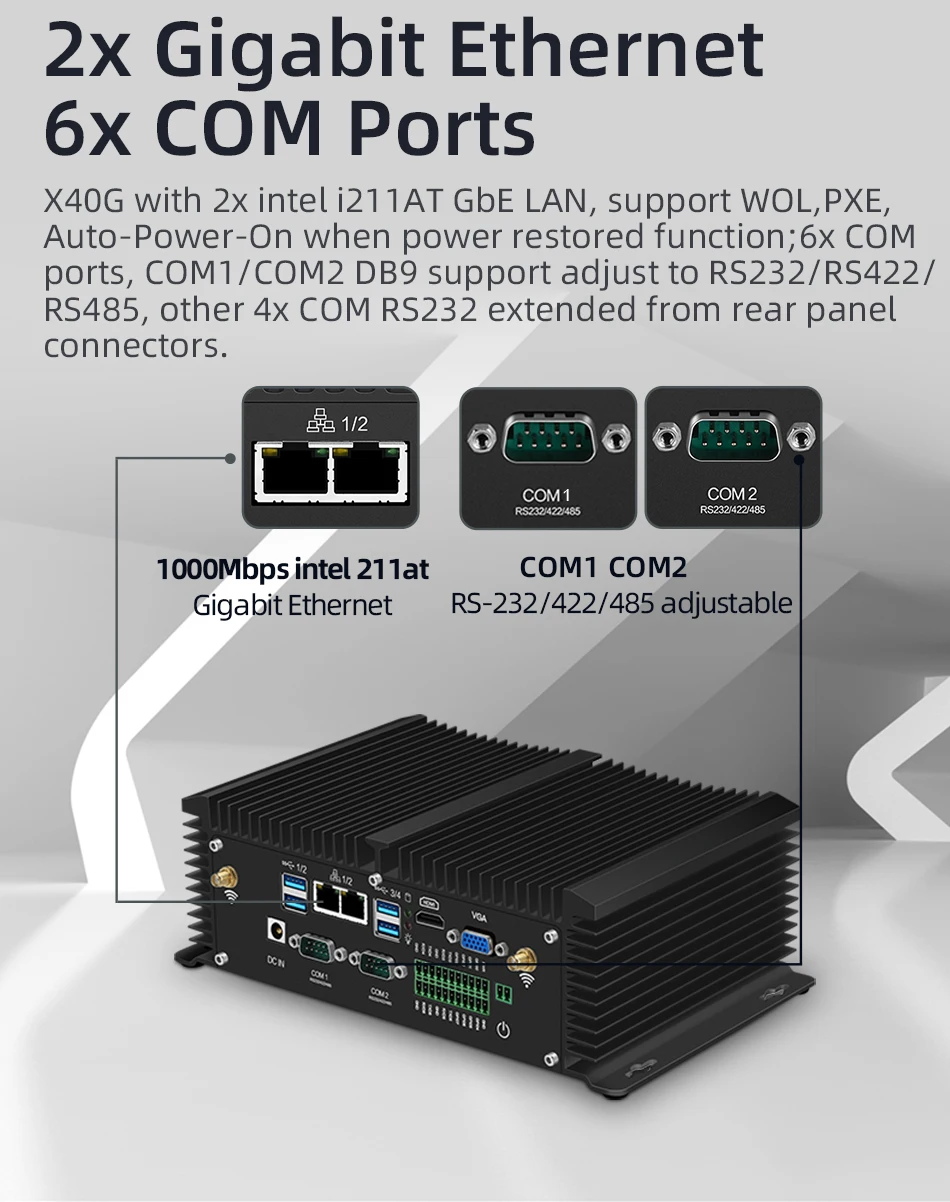

2x LAN（Intel i211AT Gigabit Ethernet）
1x MIC/SPK 3.5mm audio

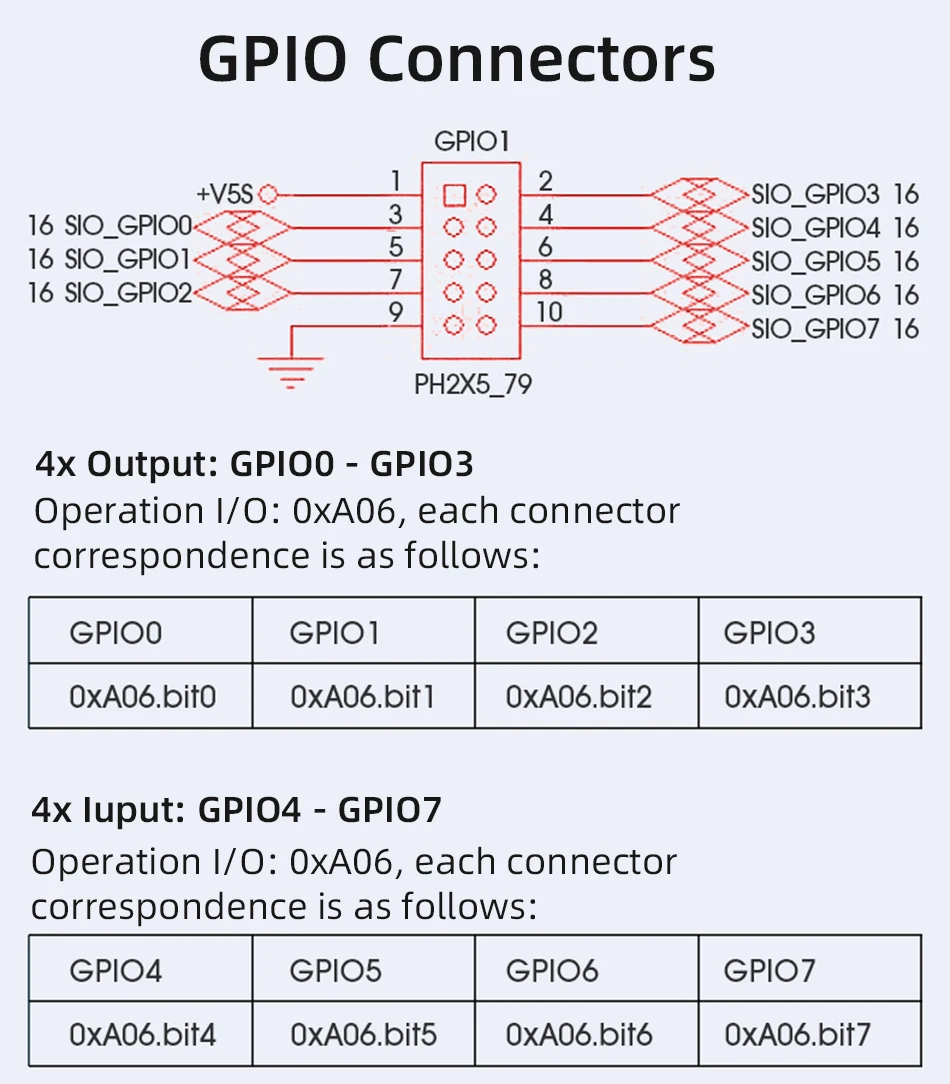

8x GPIO,4 input,4 output
Power switch 2-pins

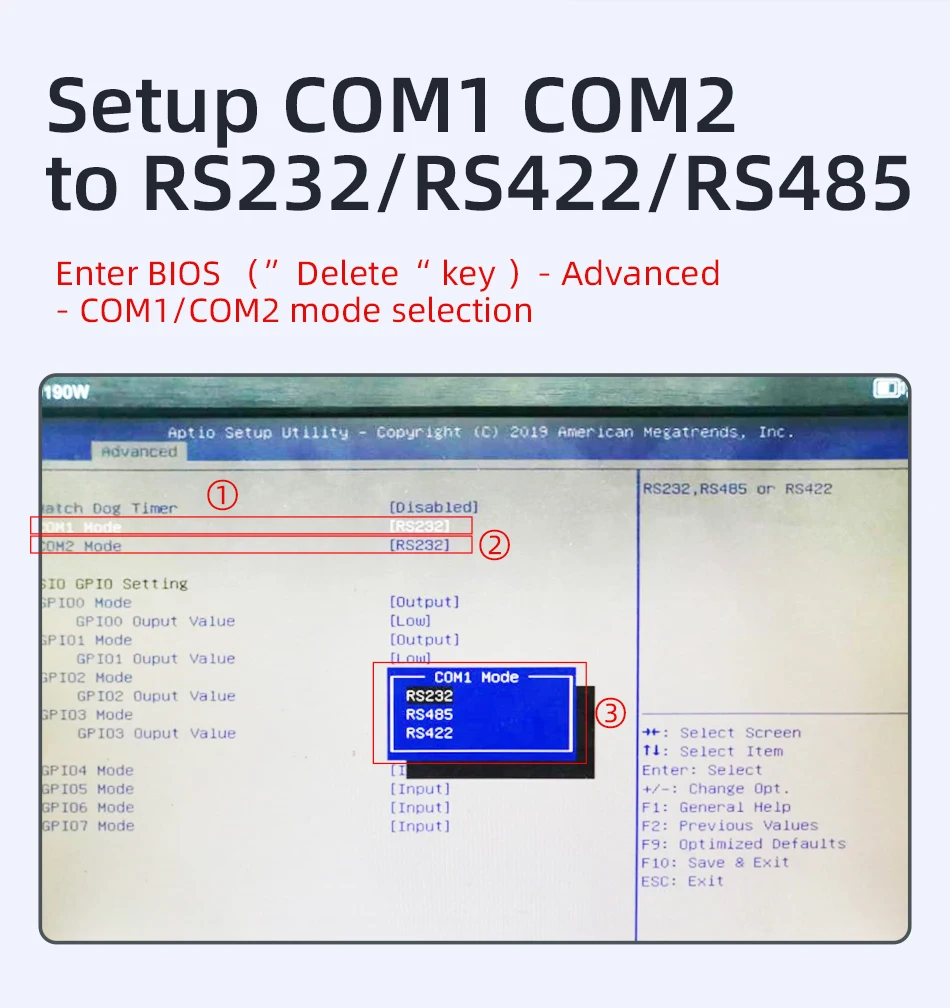

COM1 /COM2: RS232/RS485/RS422 serial ports, adjustable in BIOS

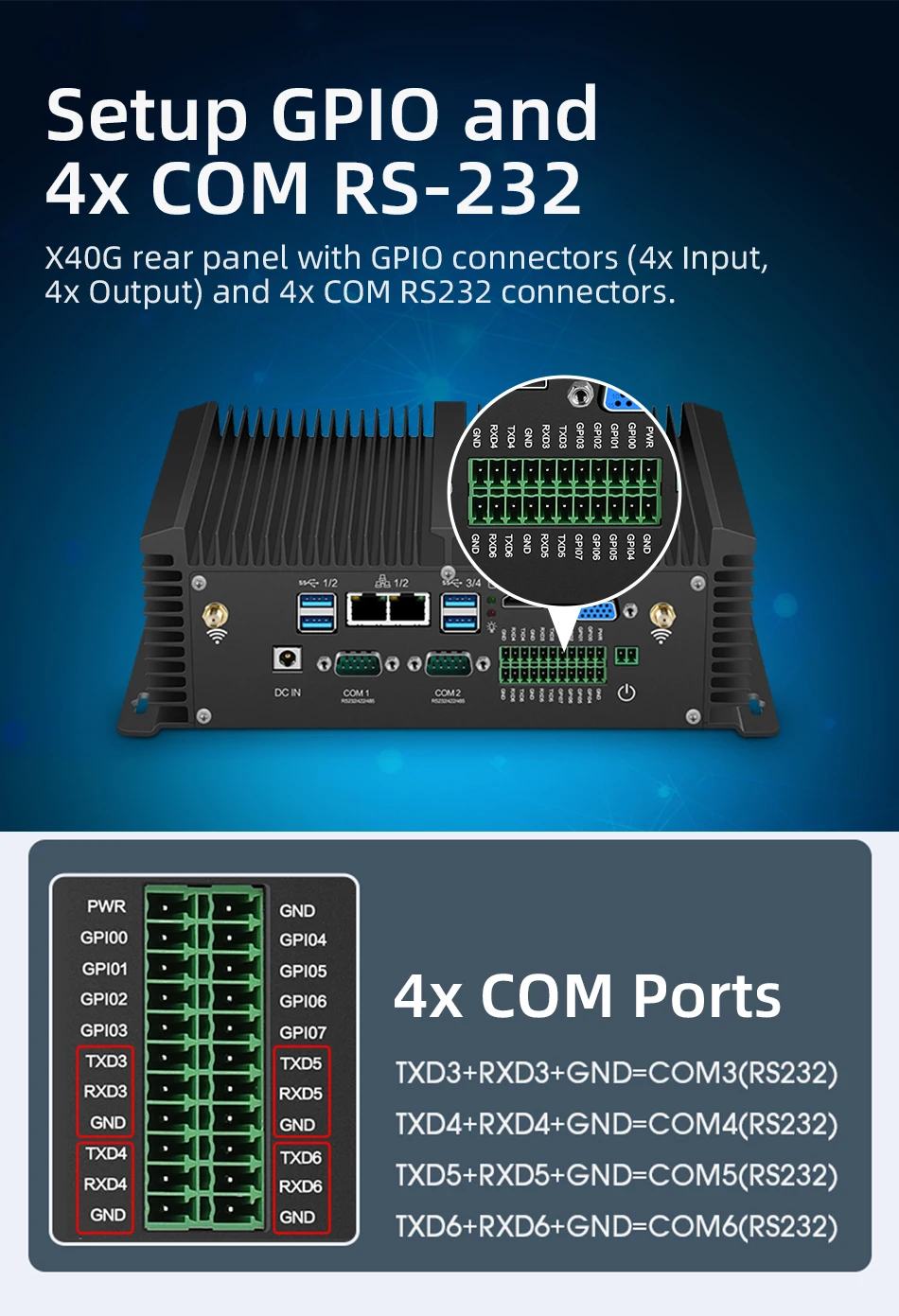

4x RS232
1x SIM Card Slot
Audio
Indicators
Power LED, HDD LED
Extension

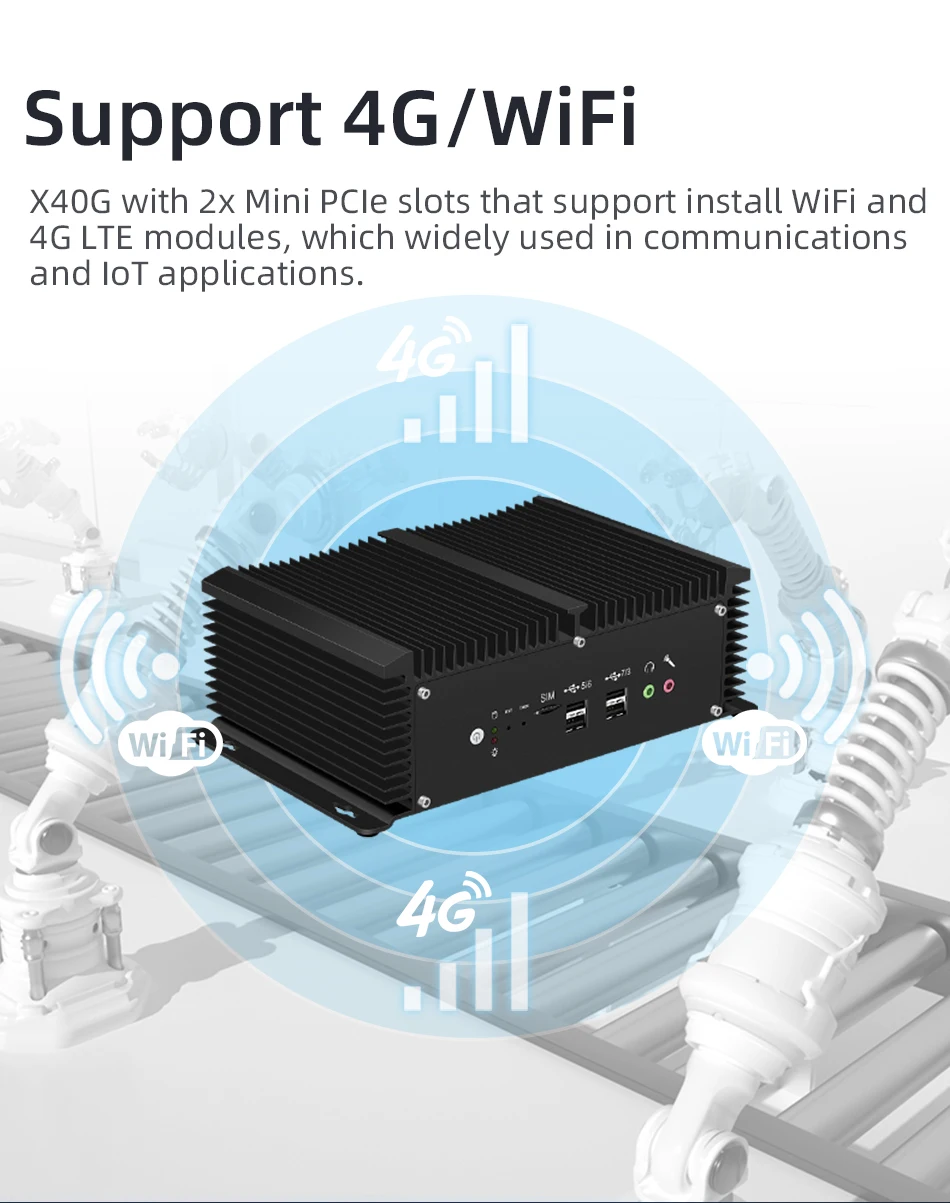

2× Mini PCIE,1 half height size,support WiFi/BT,1 full height size,support 3G/4G module
Functions
Support Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore on AC power loss.
Power Requirement
Power Supply:DC 12V 5A
Working Environment

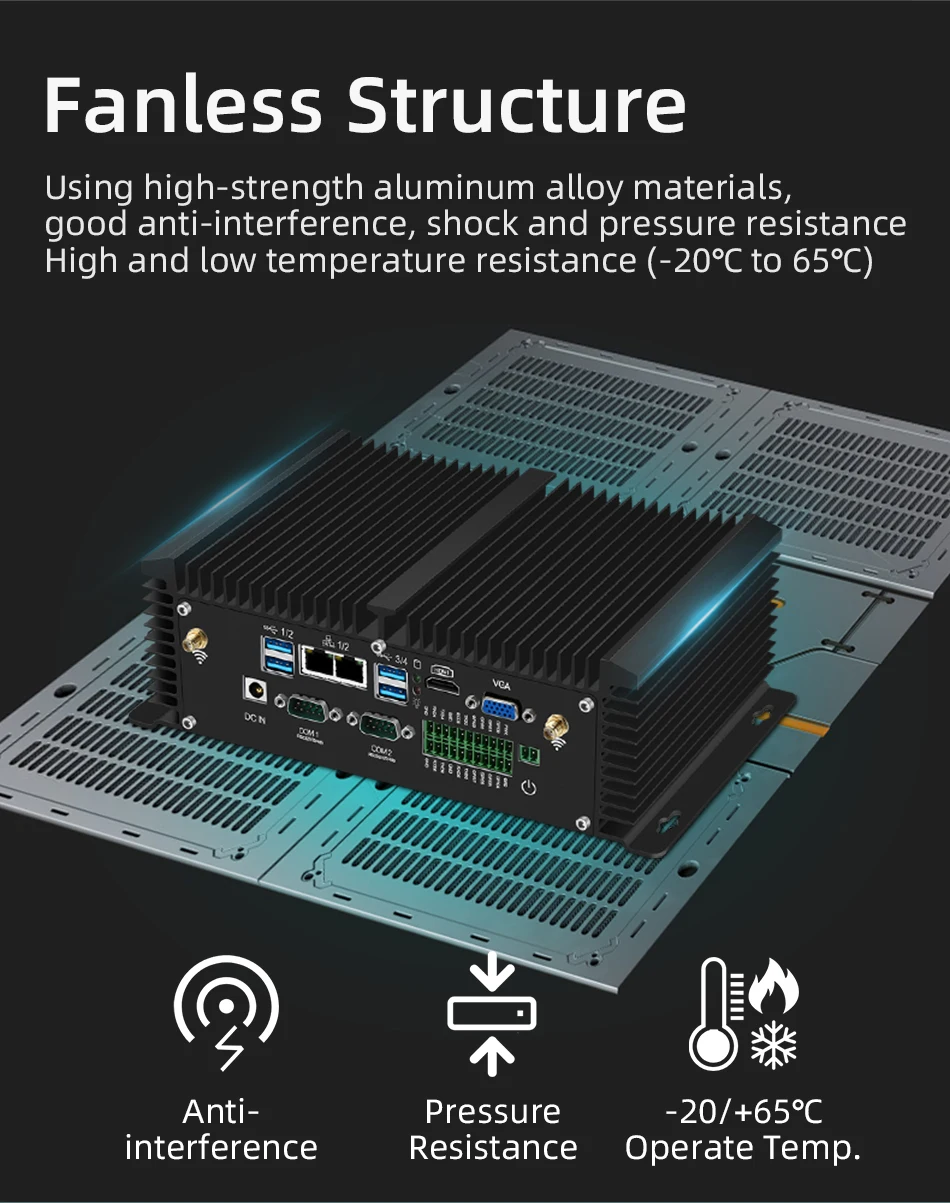

Operating Temperature ‘-20-65℃
Storage Temperature 15℃-35℃
Relative Humidity 5%~95% (non-condensing)

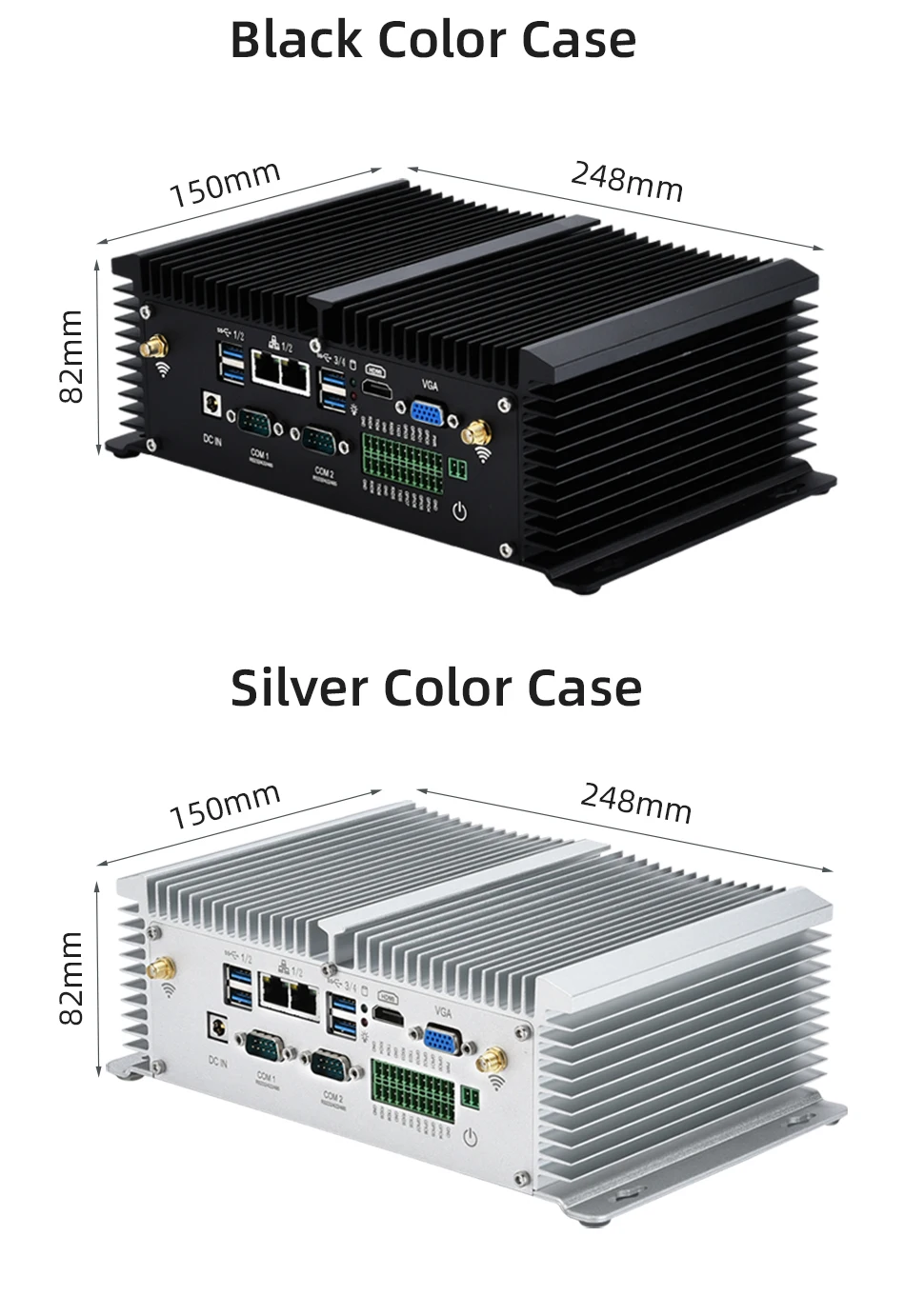

Dimension
248x 150x 82MM
Package Contents
1 x Mini PC
1 x Power Cord (we send power plug type according to buyer's address )
1 x AC adapter
1 x User manual
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need.
