Descripción

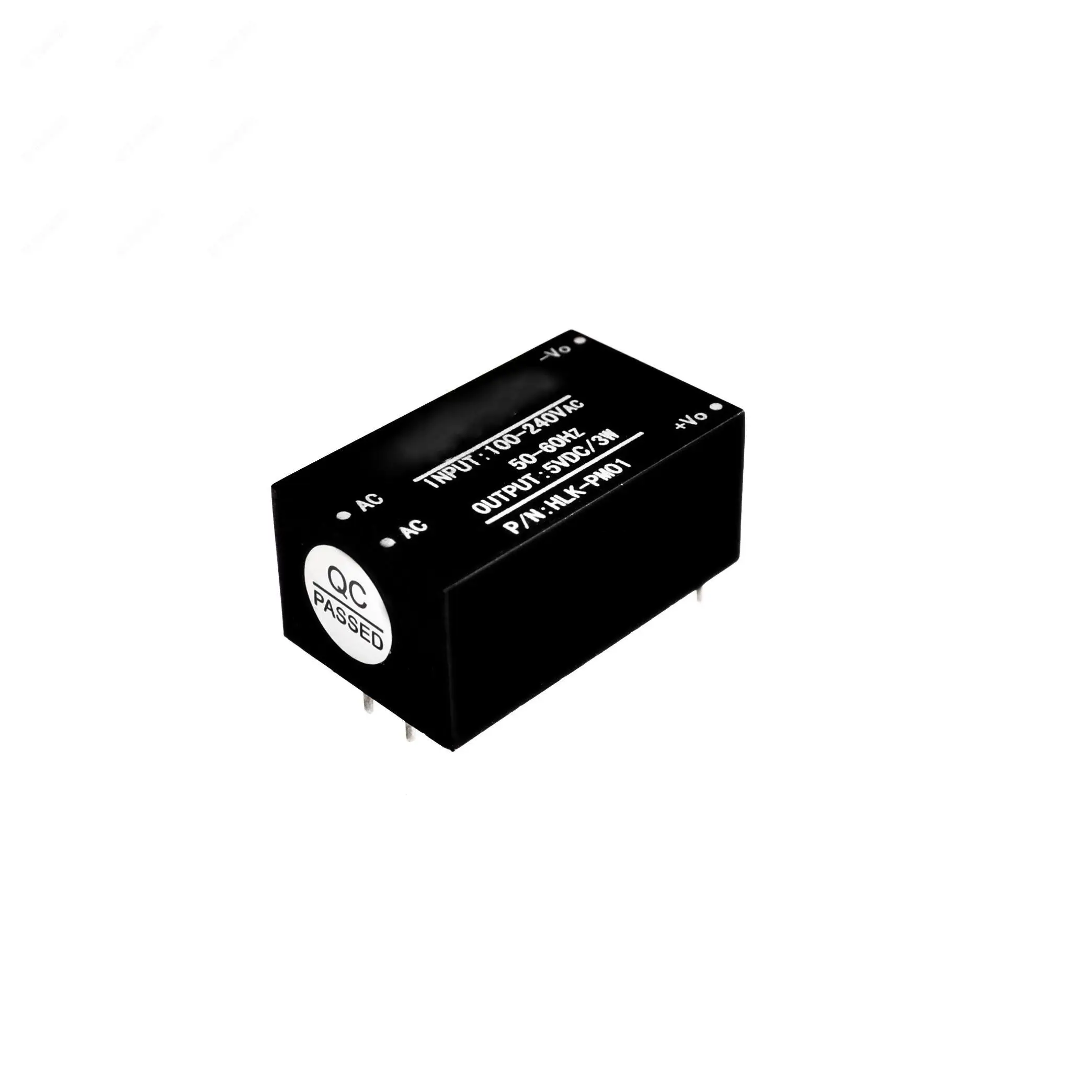

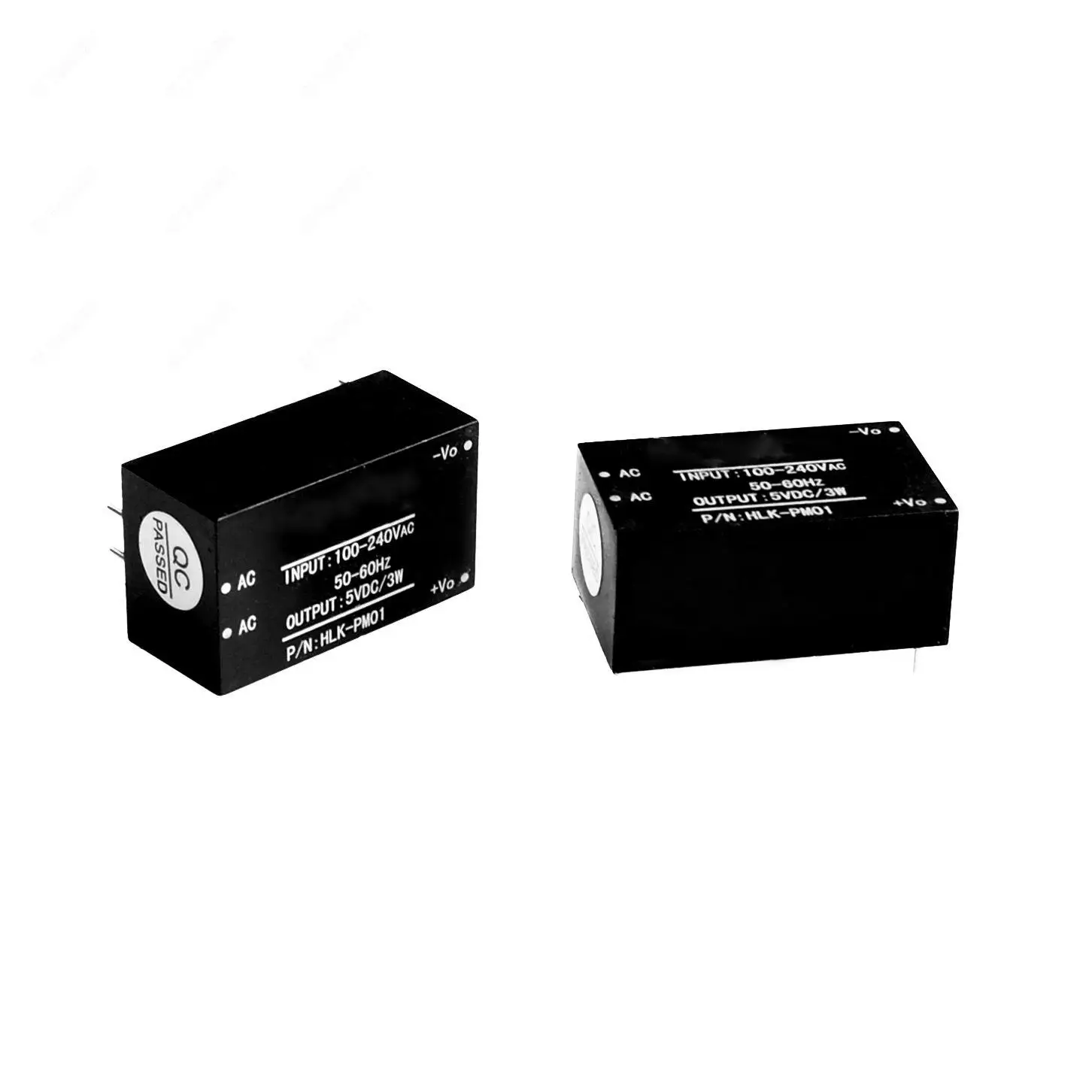

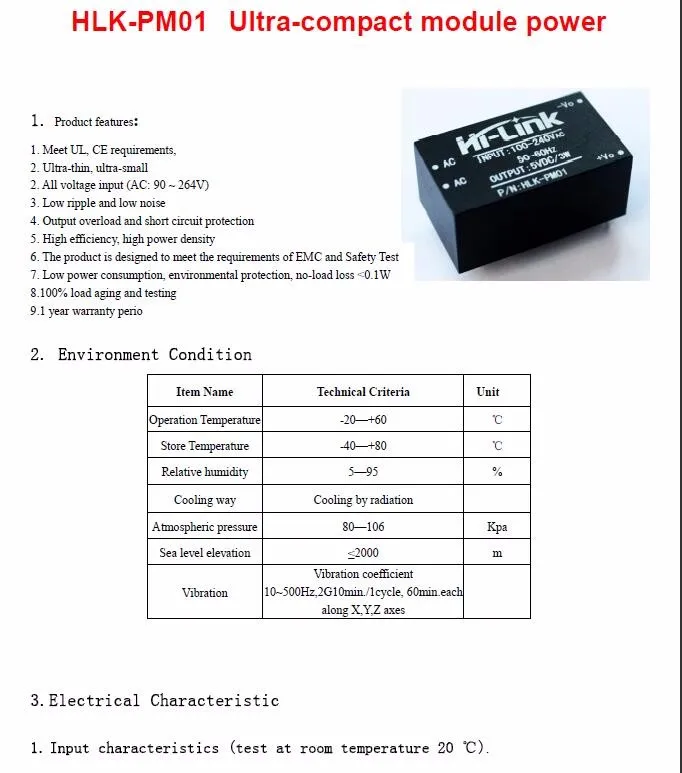

1). The ultra-thin, subminiature2). The full voltage input (90 ~ 264 Vac)3). Low ripple and low noise4). Output overload short circuit protection function5). High efficiency and power density6). Product design to meet the EMC and safety testing requirements7). Low power consumption, green environmental protection, no-load loss 0.1 W8). 100% load test9). Meet the requirements of UL, CE,2. Environmental Conditions 1). Working temperature: -20- + 60 Celsius2). Storage temperature: -40- + 80 Celsius3). Relative Humidity: 5-95%4). Cooling: natural cooling5). Atmospheric pressure: 80-106 Kpa6). Altitude: ≤2000m7). Vibration: Vibration coefficient 10 ~ 500Hz, 2G10min / 1cycle, 60min.each along X, Y, Z axes3.Electrical Characteristics (at ambient temperature test)1). Rated input voltage: 100-240 VAc2). Input voltage range: 90-264VAc3). Maximum input current: ≤0.2A4). Input current surge: ≤10A5). Maximum input voltage: ≤270VAc6). Enter slow start: ≤50mS7). Input Low Voltage Efficiency: Vin=110VAc, full load ≥69%8). Input High Voltage Efficiency: Vin=220VAc, full load ≥70%9). Long-term reliability: MTBF≥100,000h10). Load rated output voltage: + 5 ± 0.1VDc11). Full rated output voltage: + 5 ± 0.2VDc12). Short-term maximum output current: ≥1000mA13). Maximum output current for a long time: ≥600mA14). Voltage Regulation: ± 0.2%15). Load regulation: ± 0.5%16). Output ripple and noise (mVp-p): ≤5017). Switch overshoot amplitude: ( rated input voltage, output load plus 10%) ≤5% VO18). Output over-current protection: output maximum load of 150-200% A
