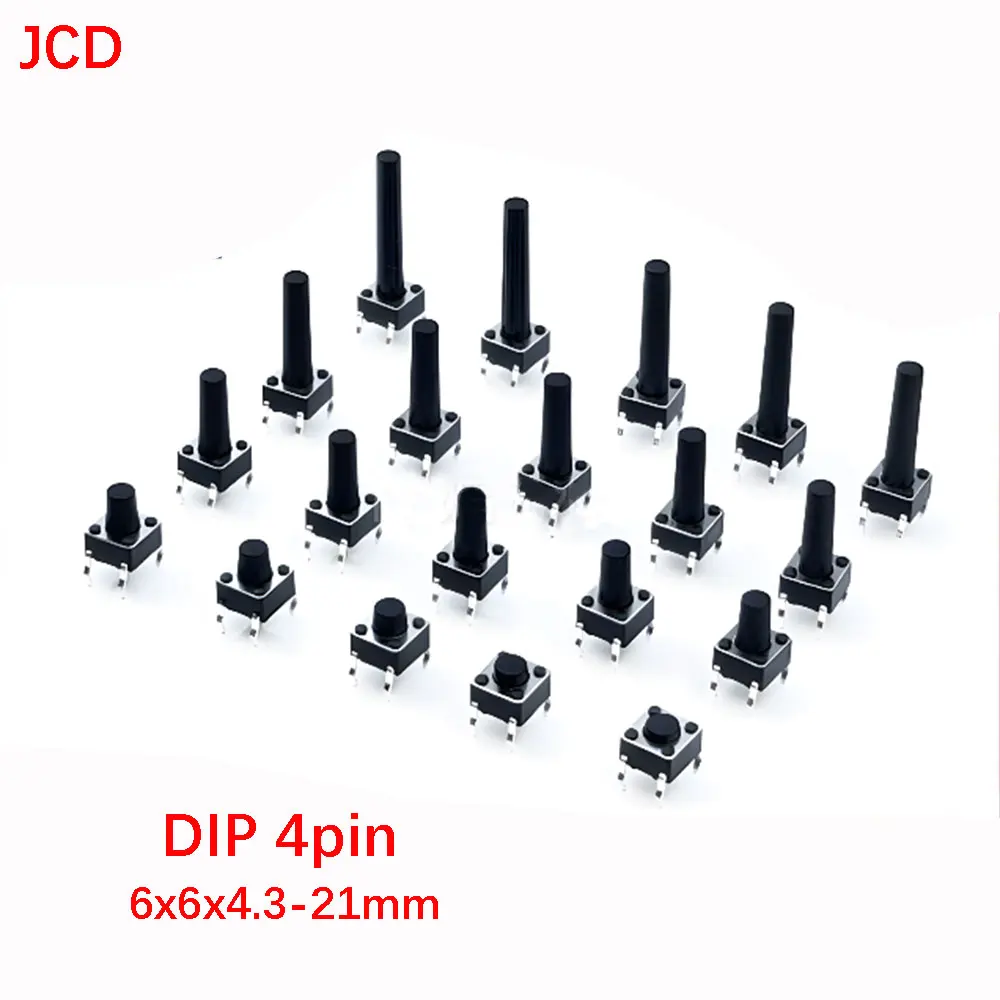

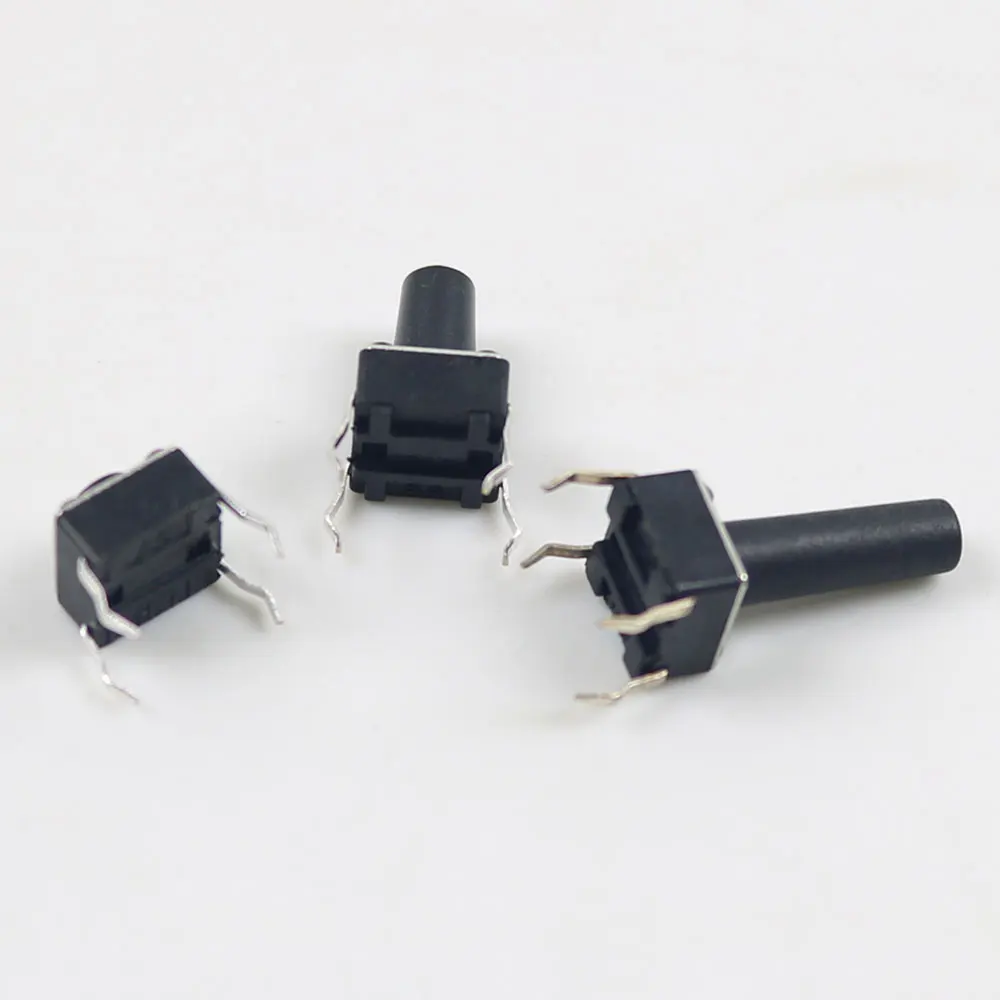

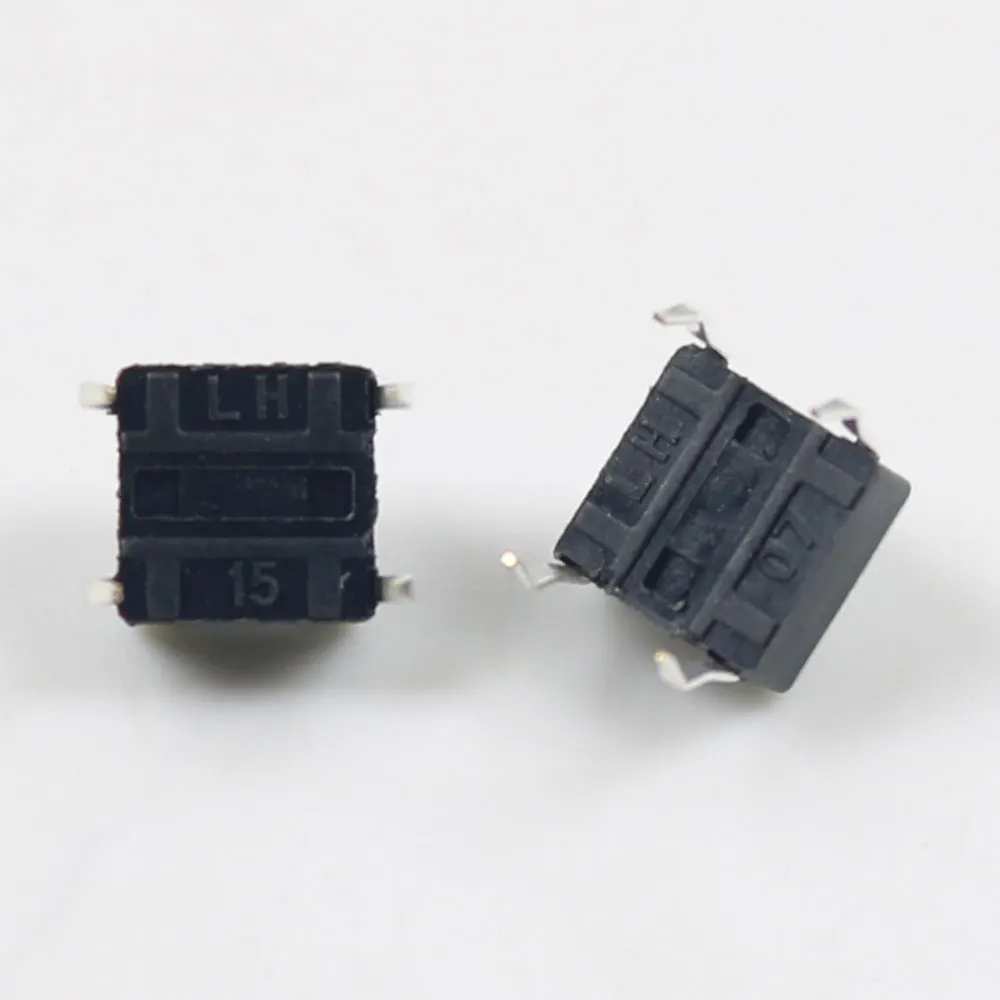

Mini interruptor de botón táctil momentáneo PCB, Panel de 6x6mm, DIP, 4 pines, 6x6x4 3/5/6/7-21 MM 6x6x4,3 MM 5MM 6MM 7MM 8MM - 21 MM
1,64 €
Con la garantía de
Selección del modelo
Color
Tamaño
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.
Tips:

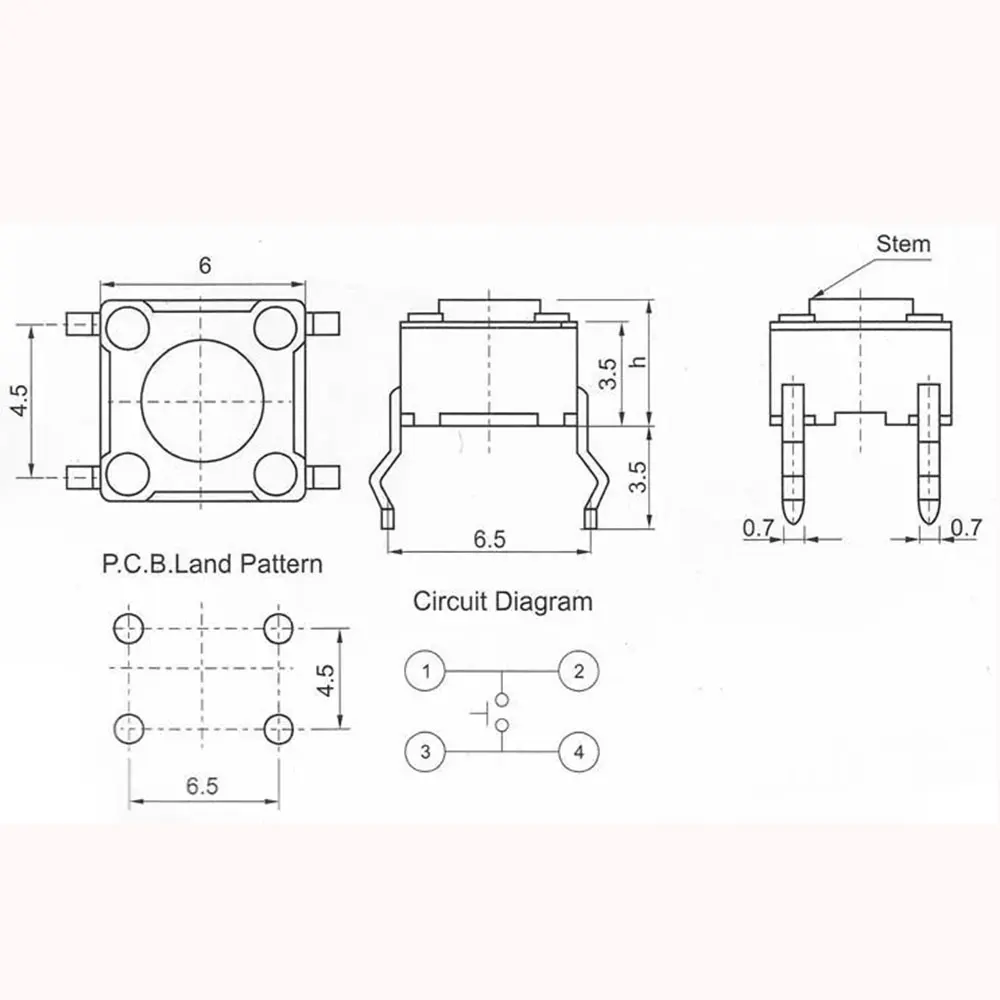

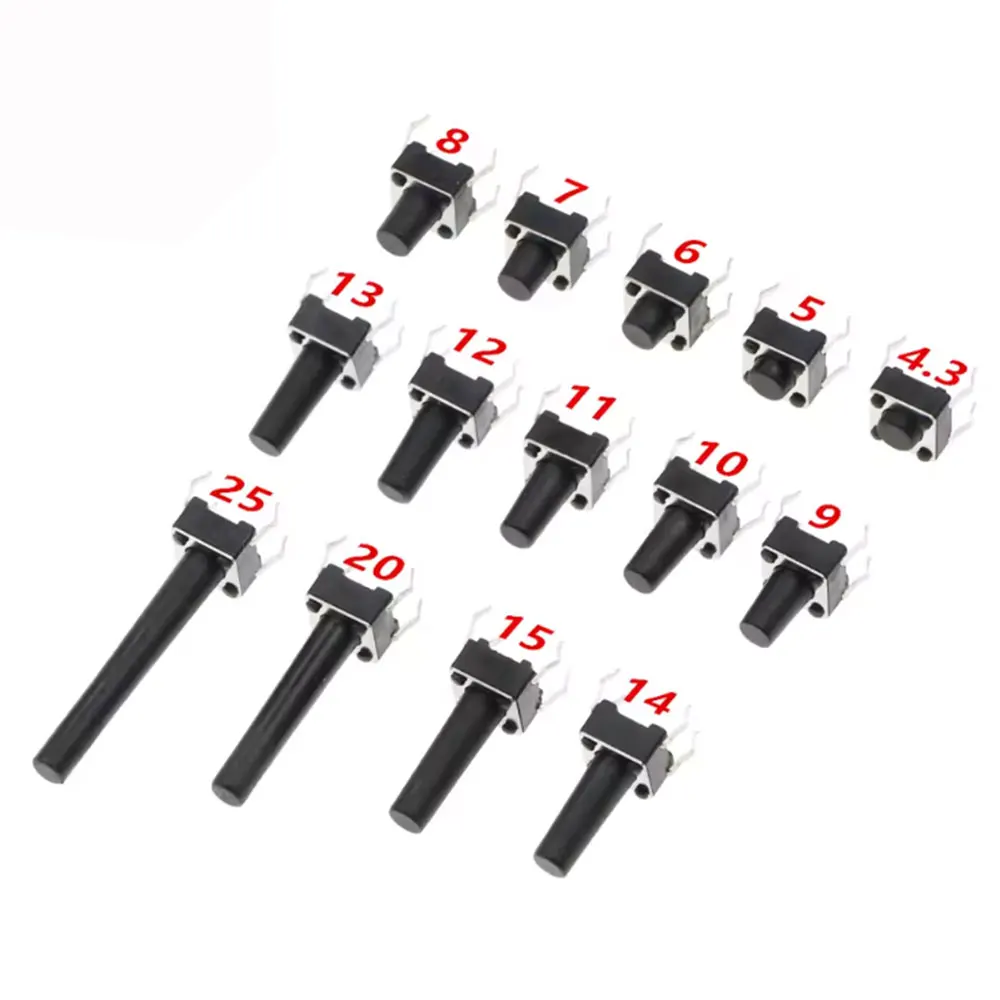

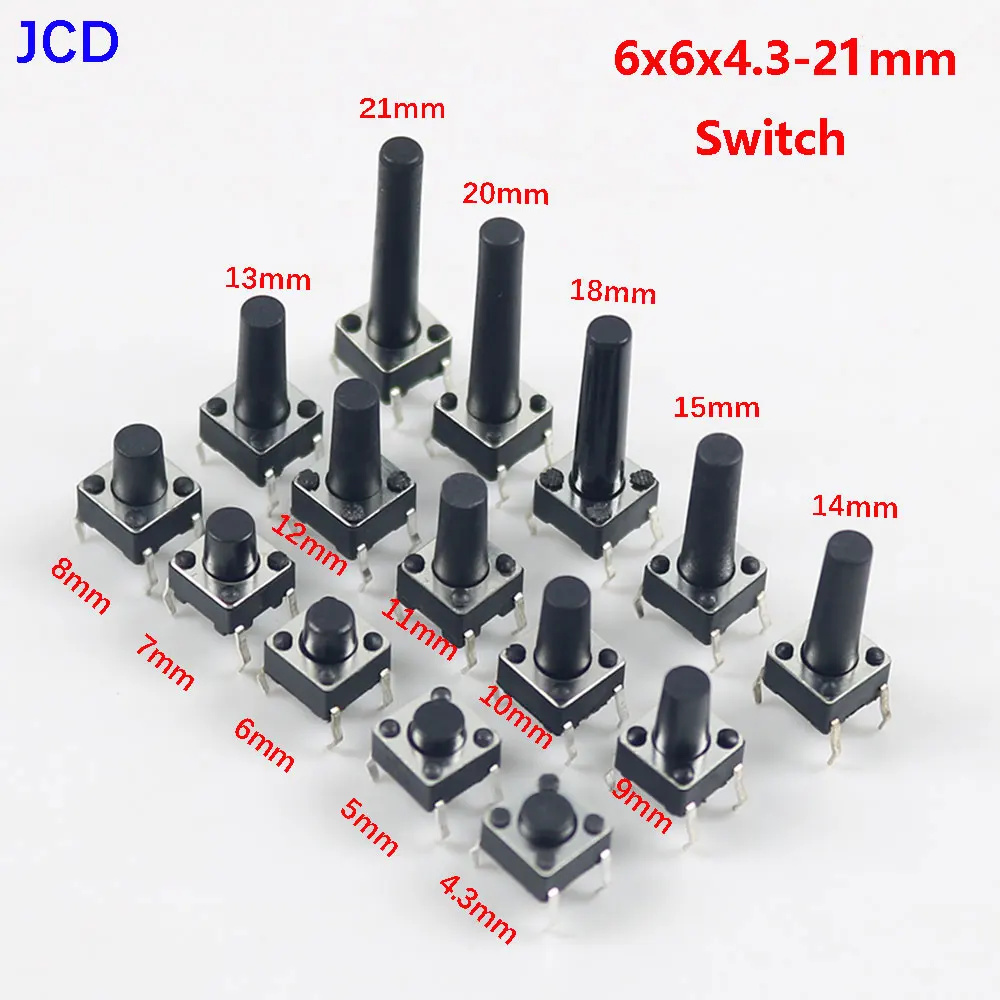

There are many specifications for the height of the item
Special note: The height does not include the height of the bow foot as a whole
Height=switch handle + total height of the base (base height is 3.5mm)
For example, the model is: 6x6x5
mm
Then the meaning of this model is
Length 6mm*Width 6mm*Height 5mm (base 3.5mm + switch handle 1.5mm)
, If it is 6x6x12
mm
Then the meaning of this model is
Length 6mm*Width 6mm*Height 12mm (base 3.5mm + switch handle 8.5mm)
Comprar Mini interruptor de botón táctil momentáneo PCB, Panel de 6x6mm, DIP, 4 pines, 6x6x4 3/5/6/7-21 MM 6x6x4,3 MM 5MM 6MM 7MM 8MM - 21 MM
