Descripción
computer case only, not computer

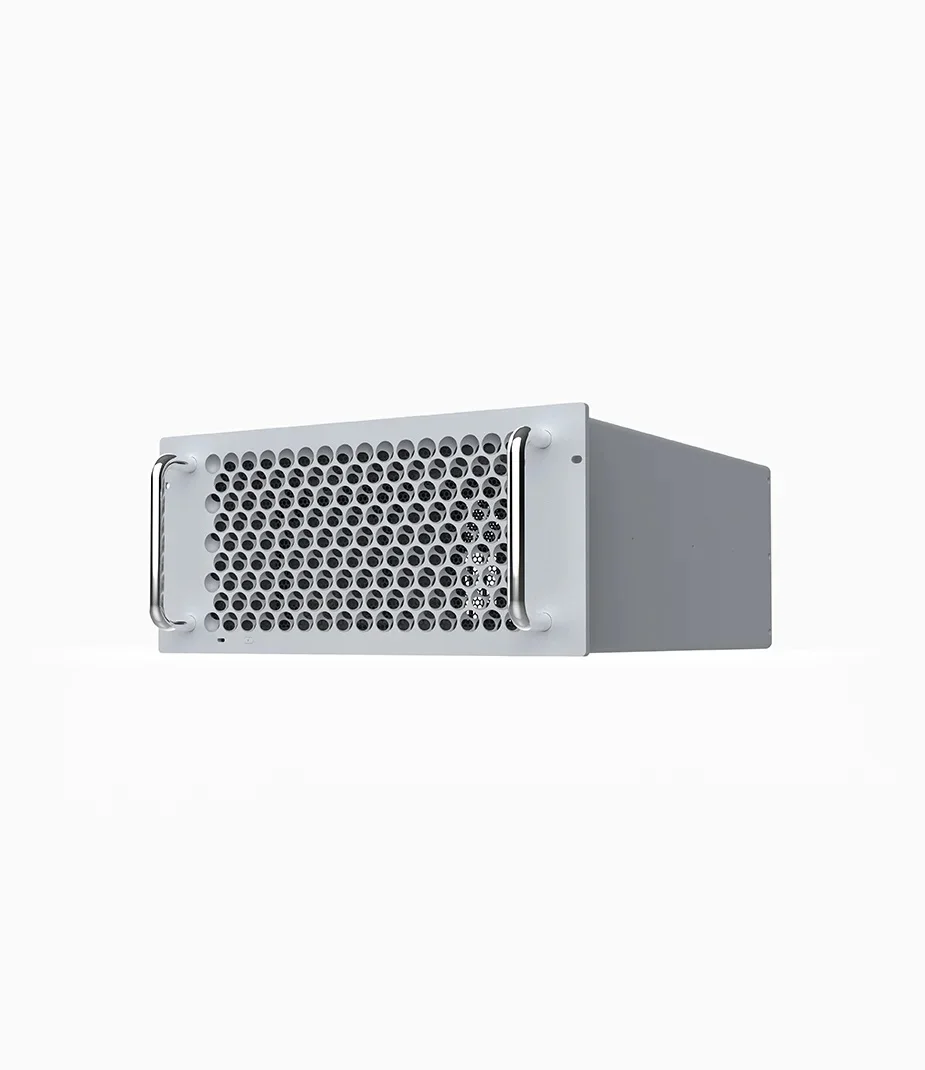

MCPRUE Apollo R V2
A new dawn for rack-mount cases
Perfect for first-time builders. Apollo R’s exceptionally simple and approachable design combined with watercooling support makes the ideal mix for any build situation.
Made out of CNC 4mm aluminum panels. Apollo R was made from the highest quality materials, with precision engineering.
Supporting up to three 140mm or two 180mm front fans and one 140mm rear fan, along with Apollo R’s support for air coolers up to 190mm, results in excellent active airflow and water cooling.
Expandable to match your needs.

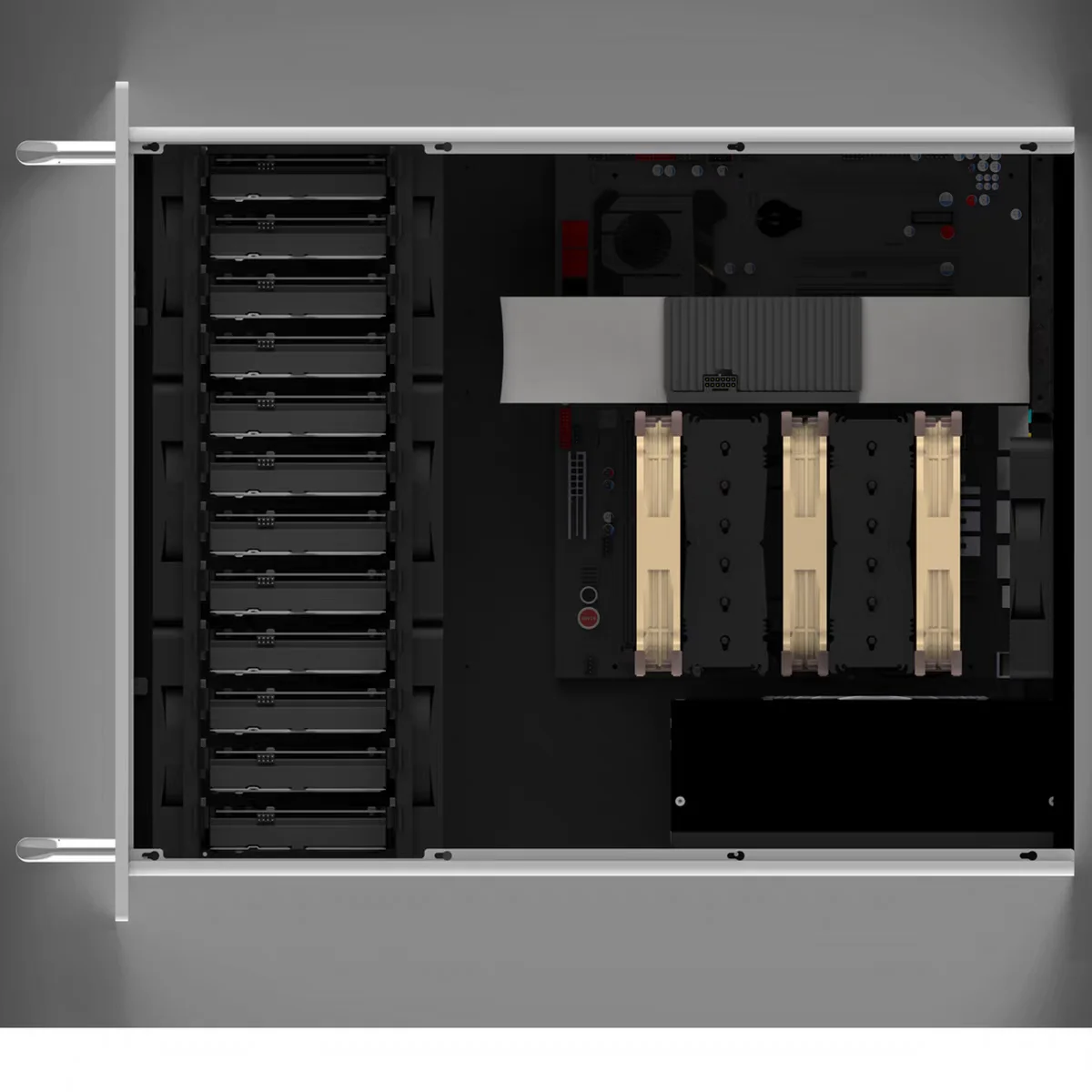

Apollo R is a powerhouse that supports up to 12 3.5-inch disks, will not let you down when it comes to storage.
The Apollo R V2 ‘s 7 PCIe slots, in addition to support for PCIE cards up to 380mm or 360mm in length with drive bracket, providing interoperability unlike anything else in the Apollo family.
Dimensions
220 mm x 482 mm x 550.5 mm (5U)
Weight
14kg (Up to 23kg when it gets prepared for shipping.)
External dimensions
rack-mounted chassis
Material
Aluminum T6063 Stainless Steel Handles & Feet
Motherboard Support
E-ATX / ATX / Micro ATX / ITX
Top I/O
USB3.2 Type-C (USB3 20 Pin), Start button

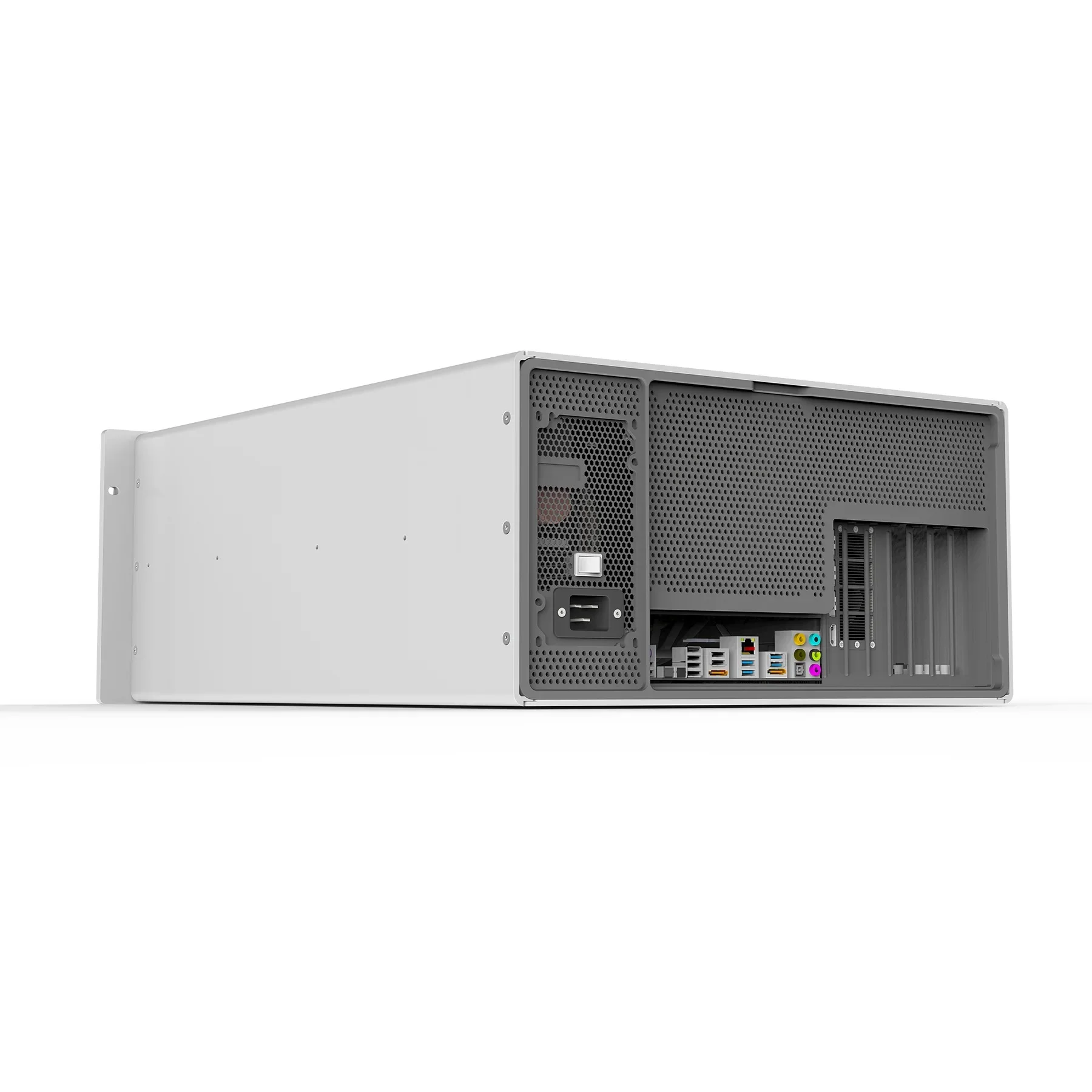

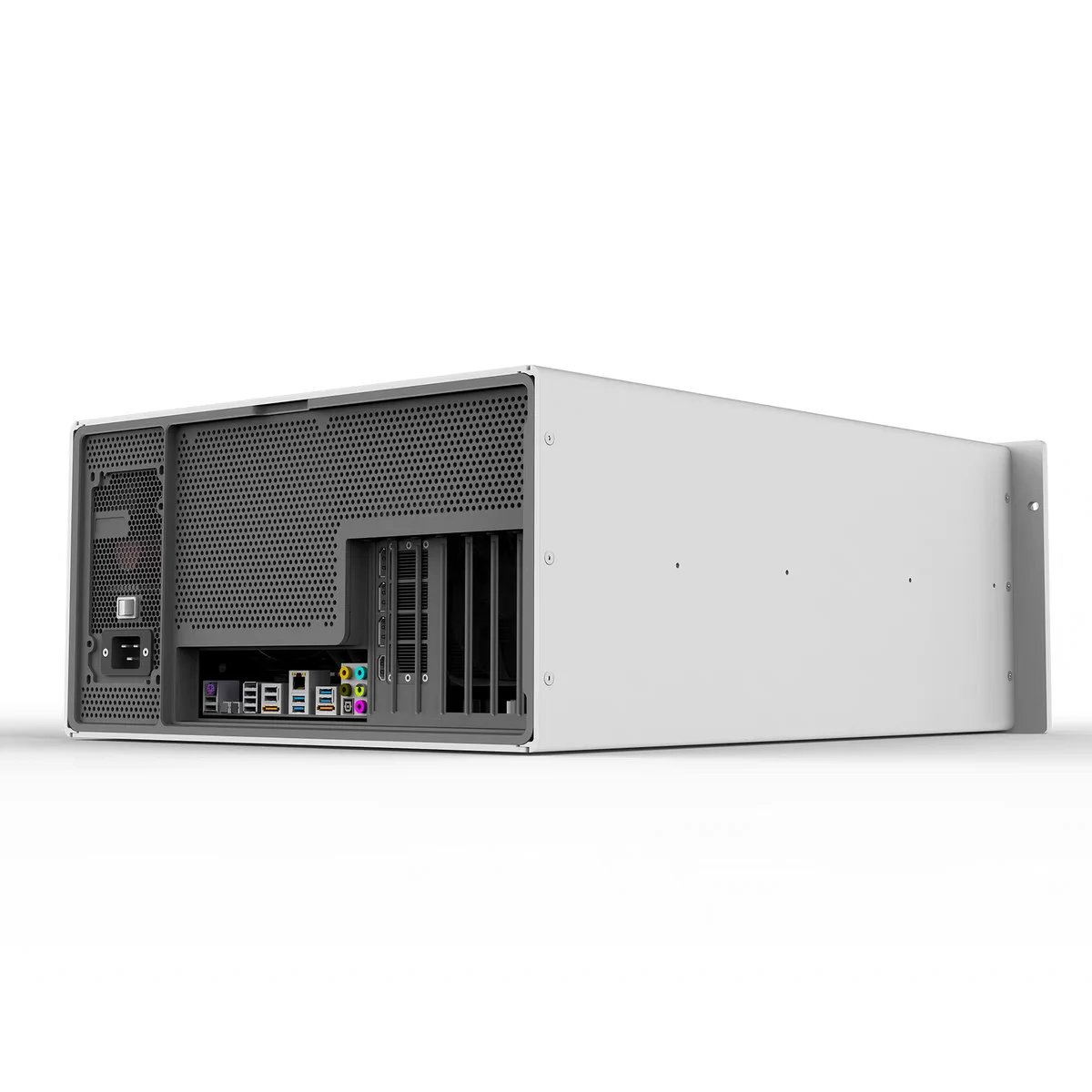

PCI-E Expansion
7 Slots
Hard Drive Support

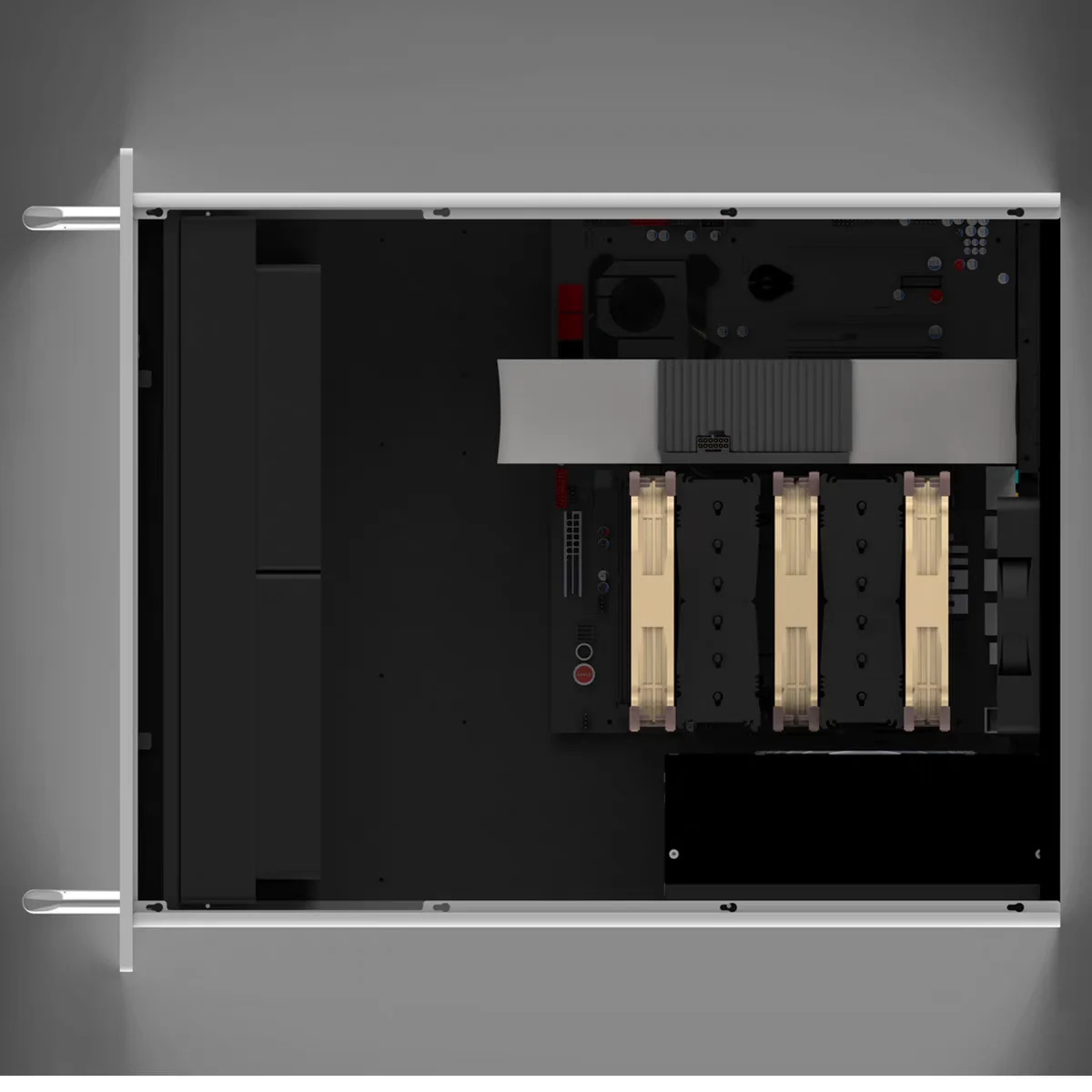

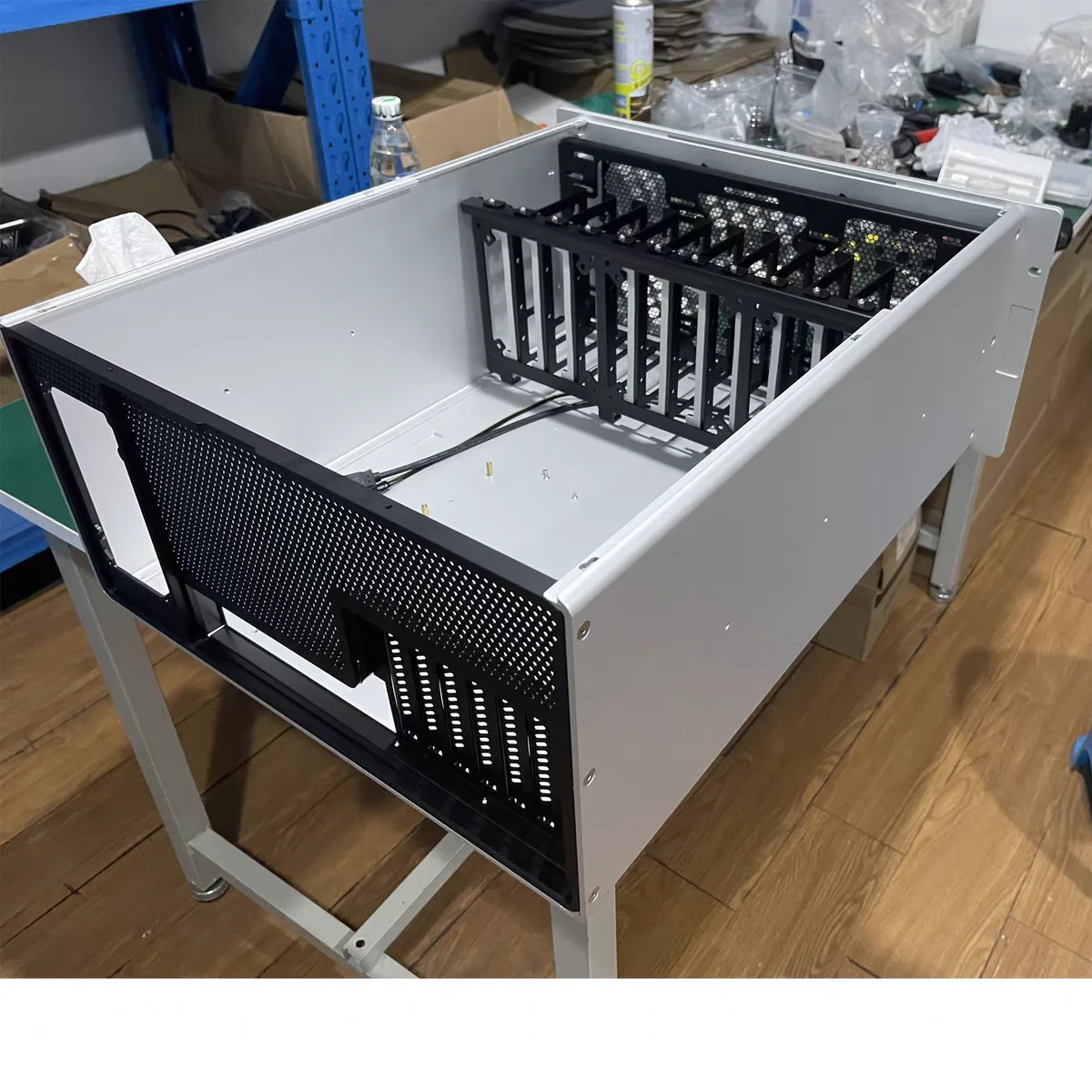

This will depend on configuration! If hardware is to be water cooled drive bracket has to be removed to enable water-cooling. *Supports 12 x 3.5 or 12 x 2.5 Drives*
Front cooling
3x140mm, 3x120mm fans, or 2 x 180mm fans. Water cooling support: This will depend on the configuration! The drive bracket must be removed to enable water cooling.
Water cooling support
360 and dual 180mm radiator
Rear cooling
1 x 140mm fan
GPU clearance
Up to 360 mm with drive bracket or up to 380mm withiur drive bracket
CPU Cooler Clearance
Up to 190 mm
Power Length Gap
ATX / EPS
