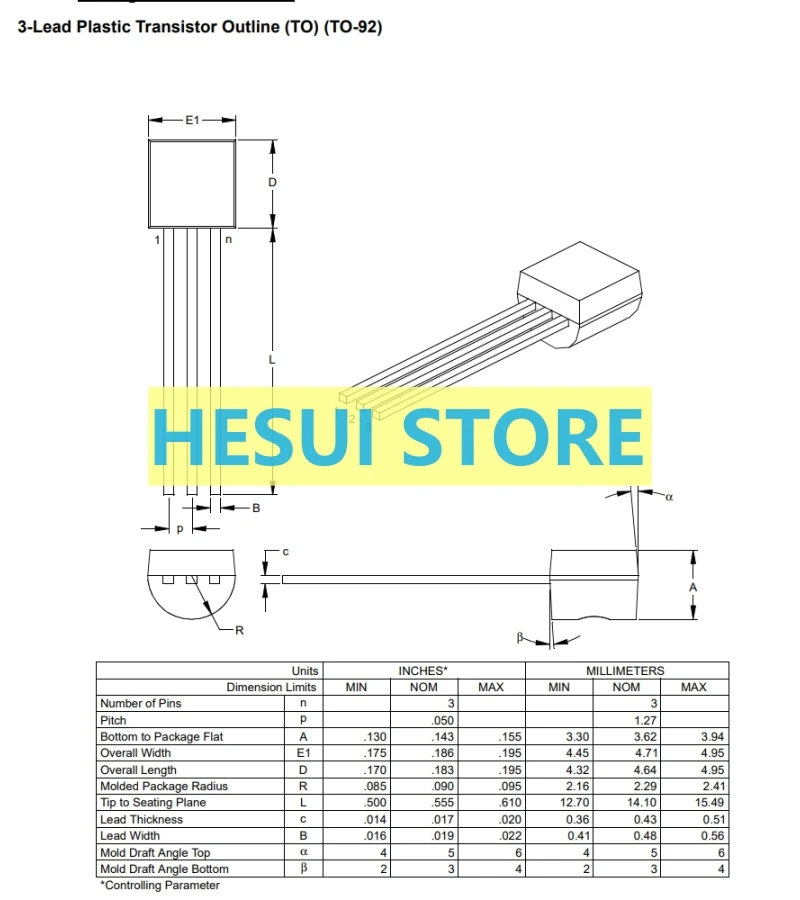

MCP120-485GI/TO MCP120-485GI MCP120-485 MCP120 TO-92-3 dispositivo de supervisión de voltaje Original

Product catalog: Monitoring and reset chips

Chip type: Simple reset/power-on reset

Output type: Open leak

Reset active level: The low level is active

Threshold voltage: 4.725V

Number of monitored voltage: 1

Reset timeout: 150ms

Working temperature: -40℃~+85℃@(TA)

FEATURES

• Holds microcontroller in reset until supply voltage

reaches stable operating level

• Resets microcontroller during power loss

• Precision monitoring of 3V, 3.3V and 5V systems

• 7 voltage trip points available

• Active low RESET pin

• Open drain output

• Internal pull-up resistor (5 kΩ) for MCP130

• Holds RESET for 350 ms (typical)

• RESET to VCC=1.0V

• Accuracy of ±125 mV for 5V systems and ±75 mV

for 3V systems over temperature

• 45 µA typical operating current

• Temperature range:

- Industrial (I): -40°C to +85°C

DESCRIPTION

MCP120/130 is a voltage supervisory device designed to keep a

microcontroller in reset until the system voltage has reached the proper level

and stabilized. It also operates as protection from brown-out conditions when

the supply voltage drops below a safe operating level. Both devices are available

with a choice of seven different trip voltages and both have open drain outputs.

The MCP130 has an internal 5 kΩ pullup resistor. Both devices have active low

RESET pins. The MCP120/130 will assert the RESET signal whenever the voltage

on the VDD pin is below the trip-point voltage.
