Descripción
! Used to install memory. All RAM needs to be preferentially installed in slot #1 and slot #4 (the outermost slot inserted). Motherboard middle memory slot (#2/#3) does not work alone.

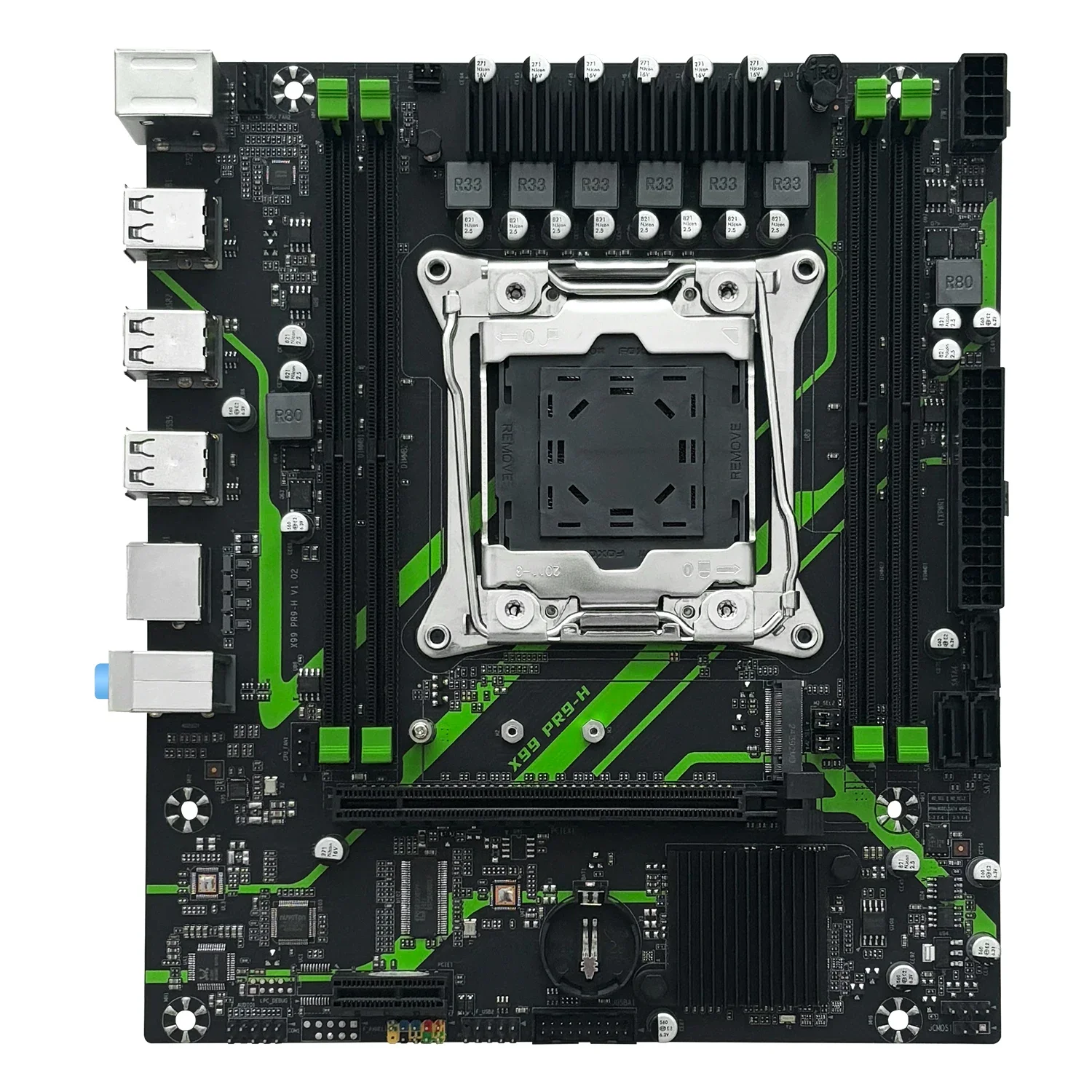

Motherboard information:

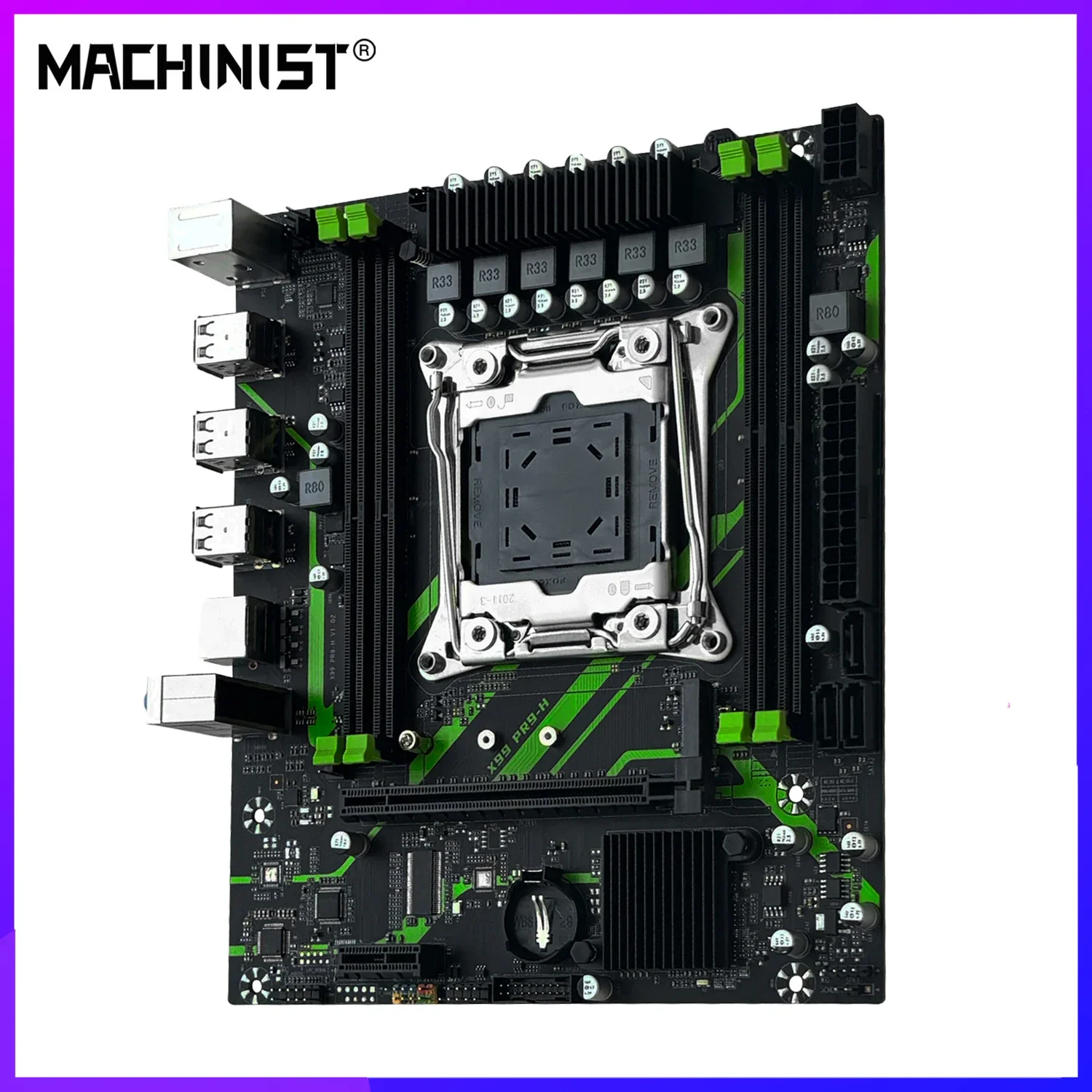

Brand :MACHINIST.
Motherboard model :X99 PR9-H.
Processor: Support LGA 2011-3 series,
Chipset :HM55 Chipset.
Complimentary accessories: I/O shield *1, SATA cable *1.
( Packaging is carried out after manual testing before sending. If there is any missing gift, it cannot be used as the reason for refund, please understand!)
Memory:
Technology: Dual channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity 128GB (32Gx4).
Memory slot :4 x 288 PIN DDR4. (Please use Samsung, Kingston, Sandisk, Micron and other international brands. Other brands have incompatibilities.)

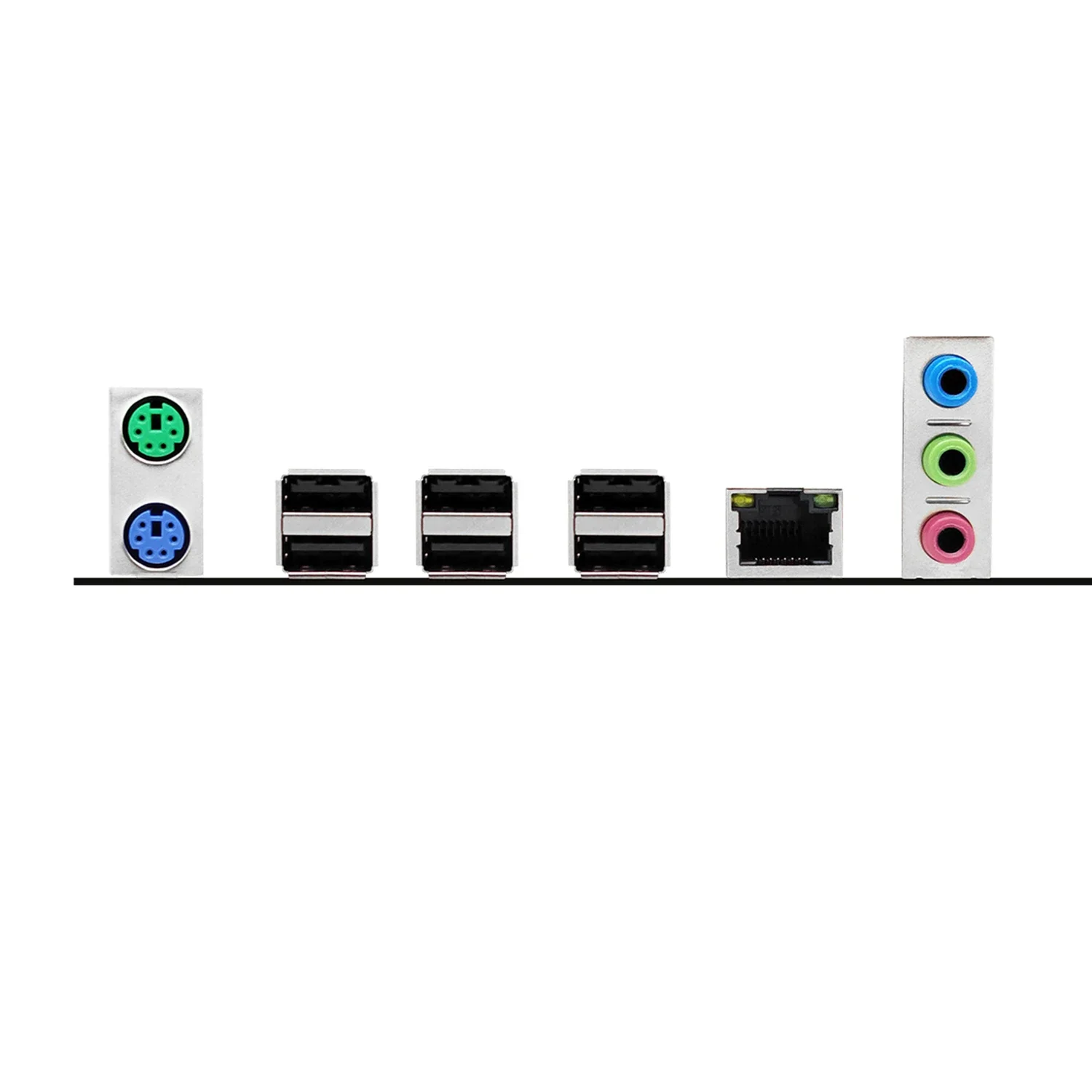

Post I/O
PS/2: one KB port + one MS port.
USB port :6 USB2.0.
Ethernet: one Gigabit network adapter.
Audio :1 (Mic-in, Line-out, Line-in).
SATA interface :3 (SATA2.0).

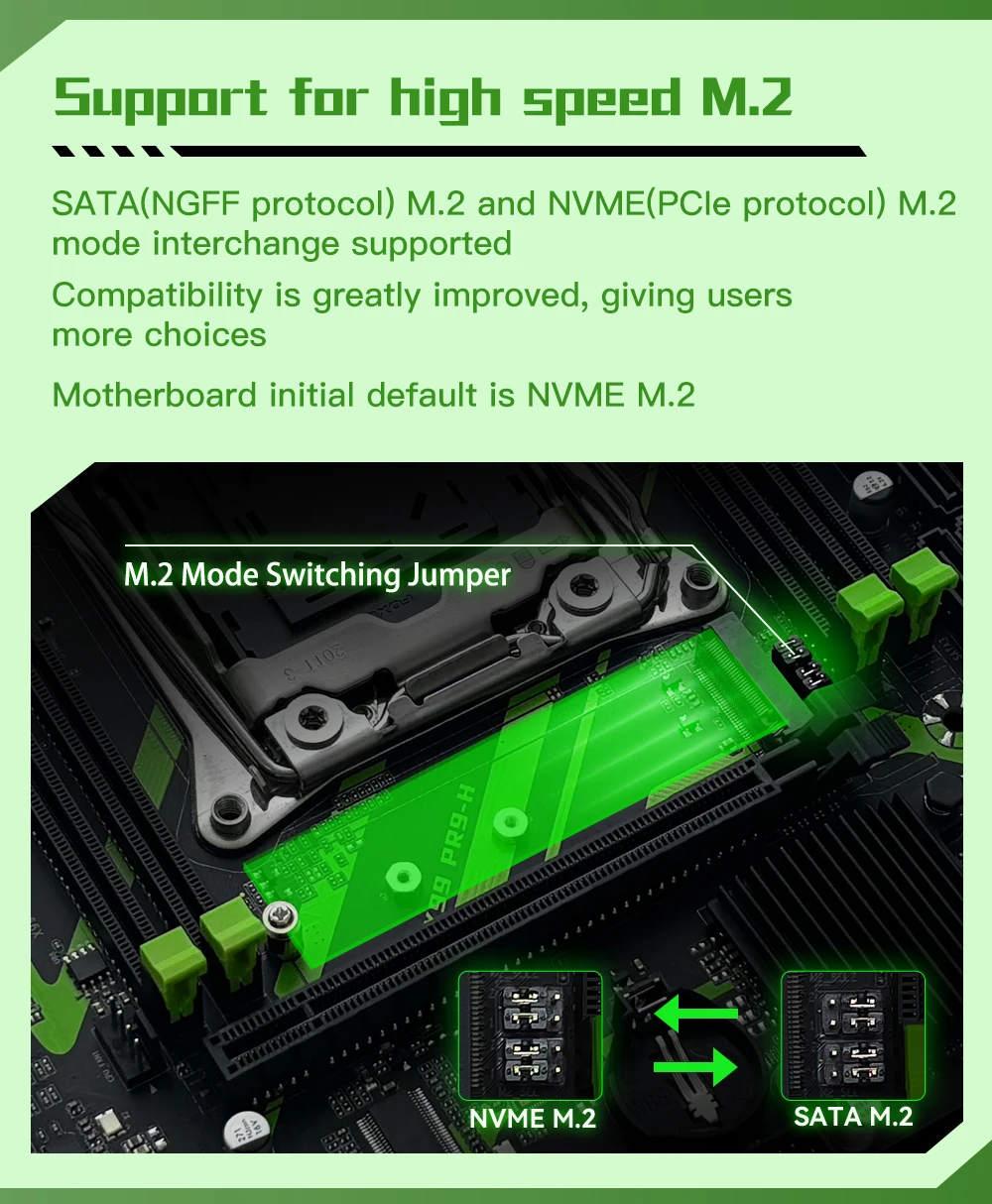

M. Two: one (nvme/sata).

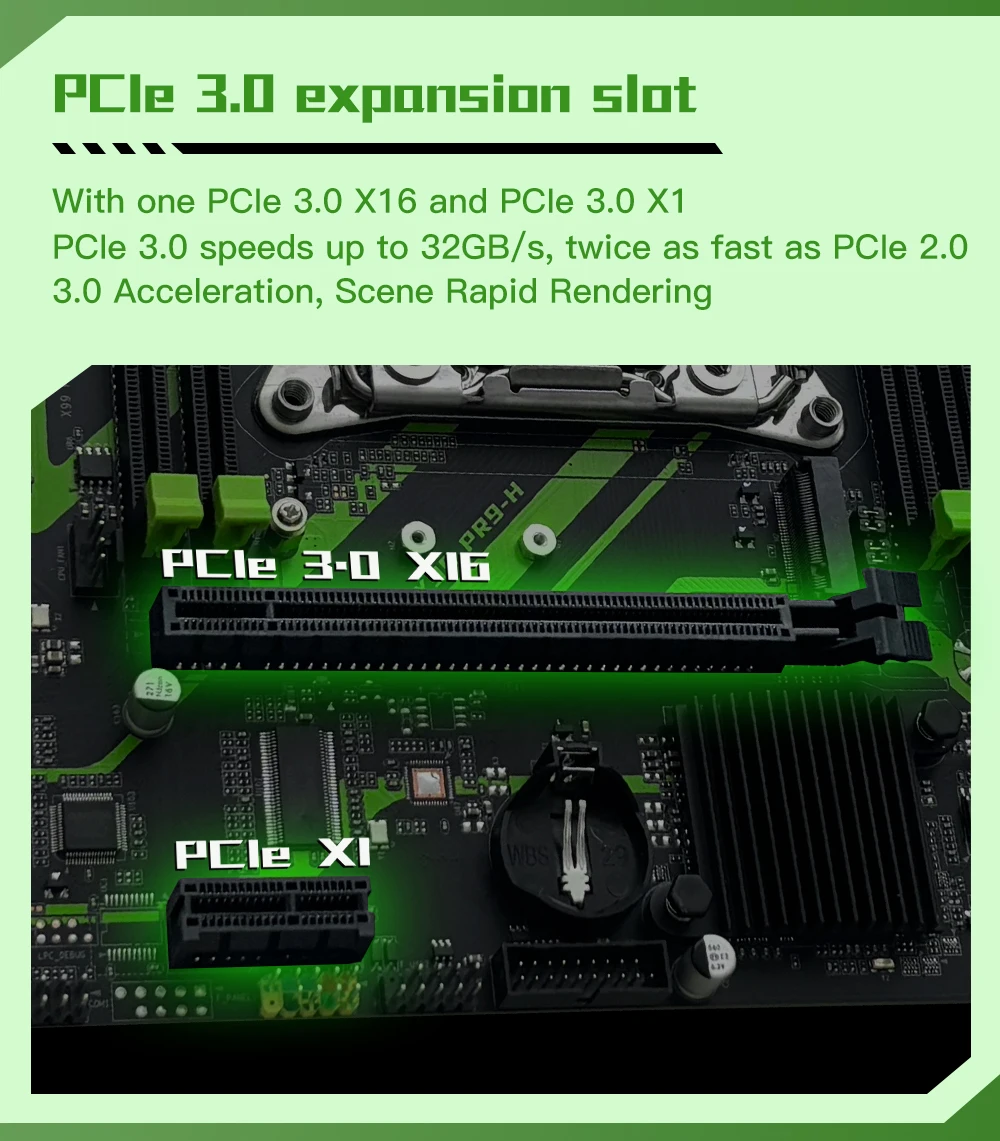

PCIe: One PCIe 16x and one PCIe 1x.

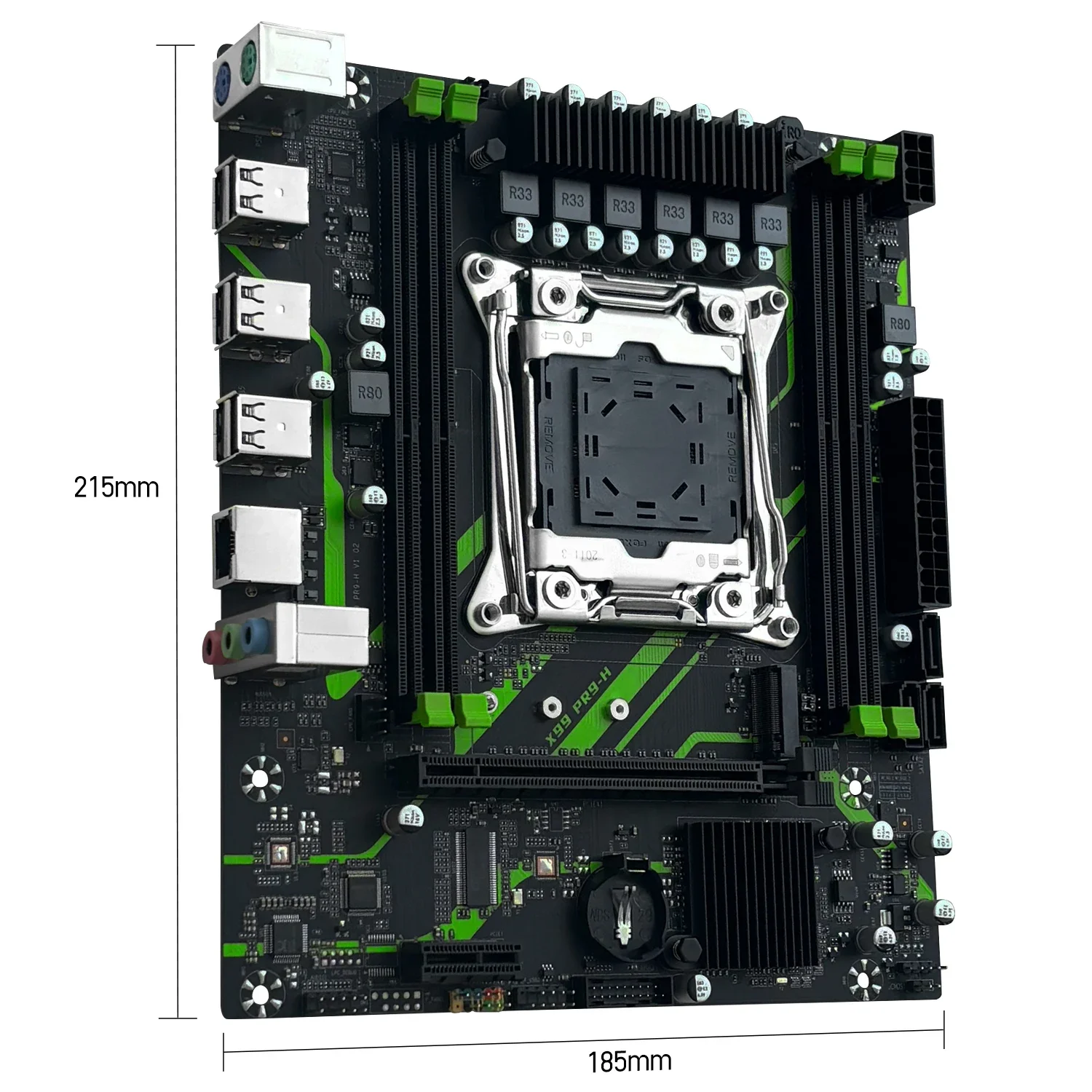

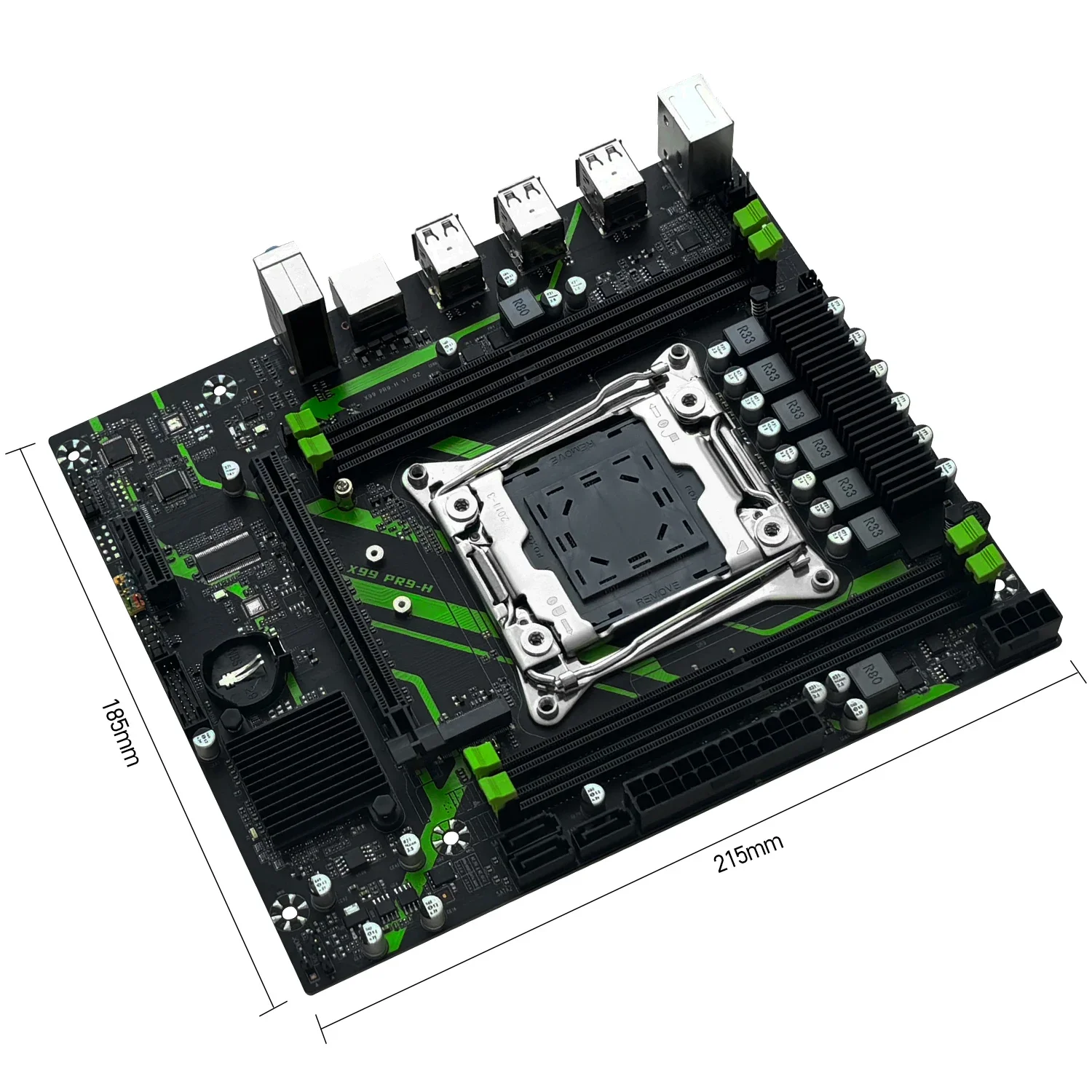

Dimensions :215mm * 185mm.
Note:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.
(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply).
(5) The battery in the motherboard photo is not included and will be removed before shipment, because the logistics requirements prohibit the use of the battery.
