Descripción
Notes:

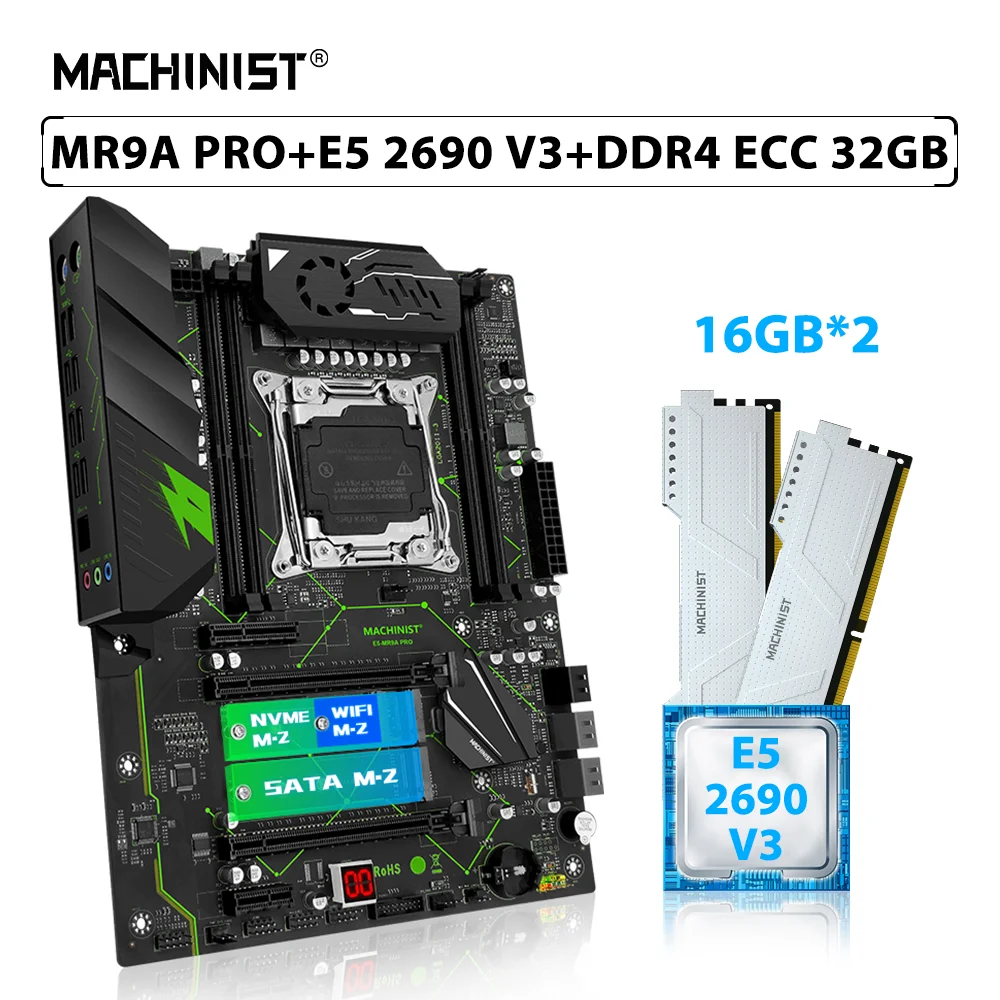

The package contains 1PCS motherboard + 1PCS processor + 2PCS memory

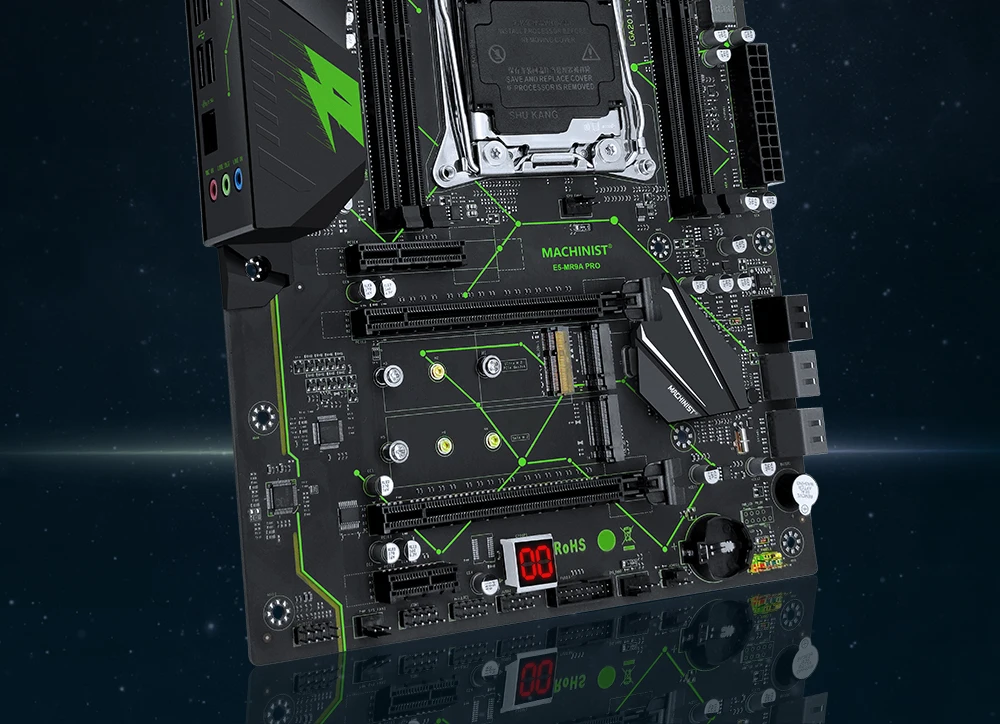

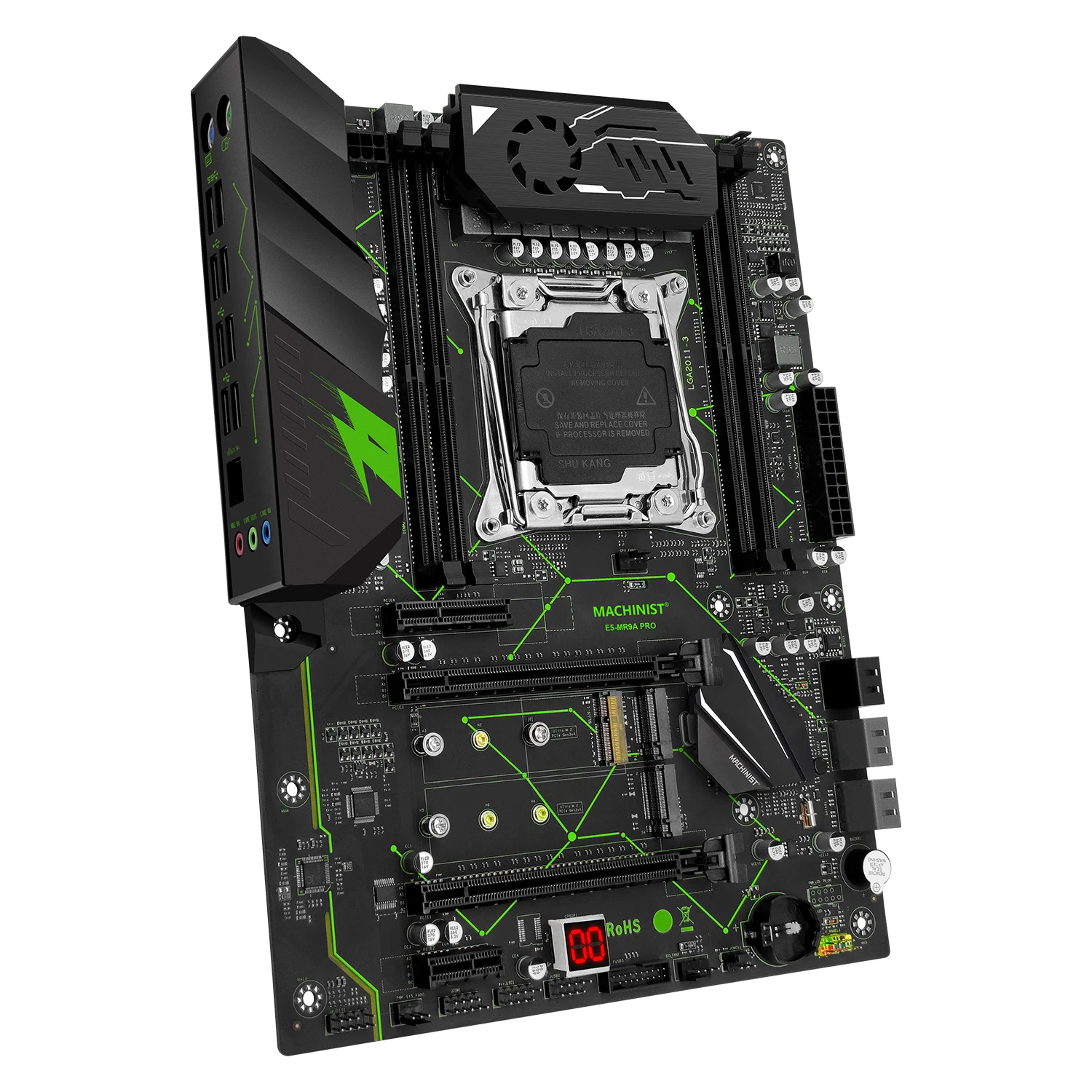

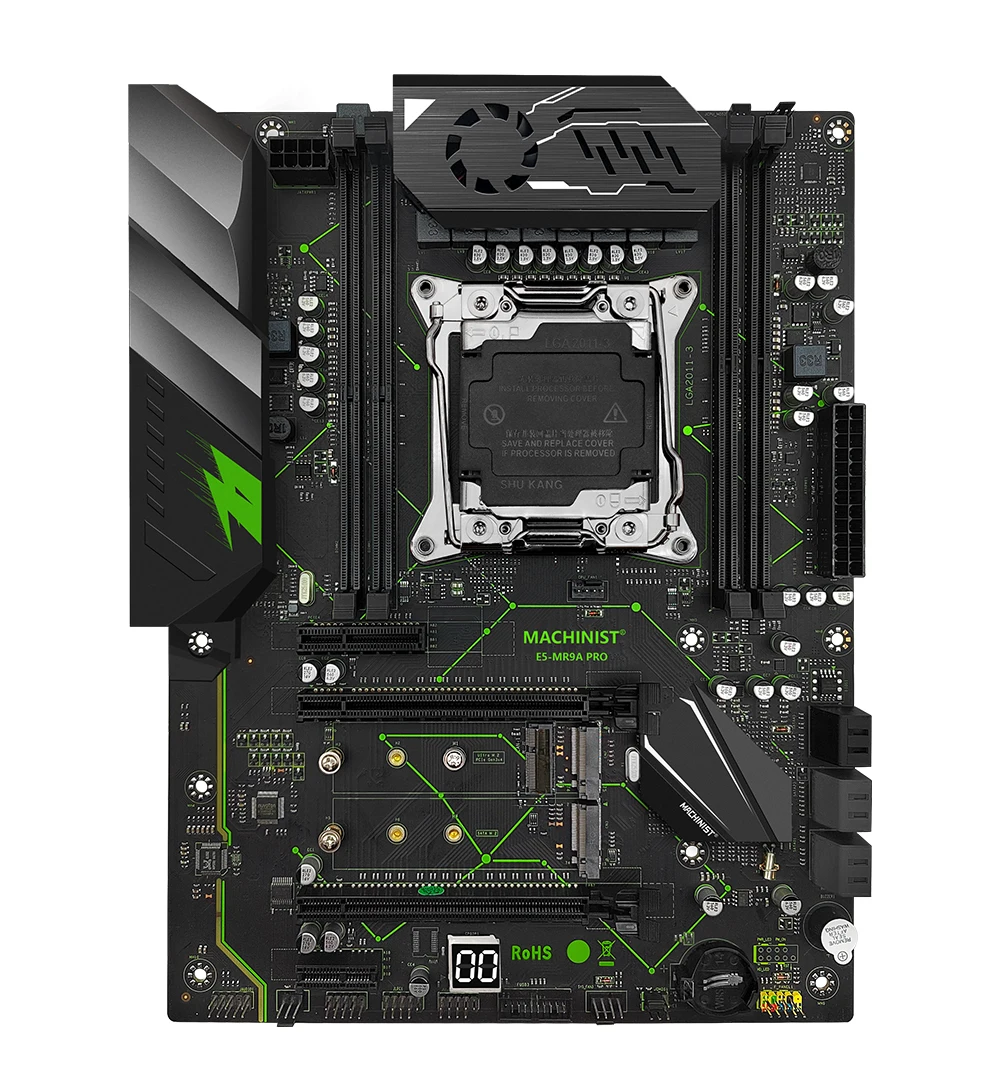

Motherboard is MACHINIST E5 MR9A PRO
Processor is Intel Xeon E5 2690 V3
The memory is 2pcs*16GB=32GB DDR4 2133MHz ECC RAM
Performance parameters
Intel Xeon E5-2690 v3 parameters
Slot Type: LGA 2011-3
Number of cores: twelve cores
Number of threads: twenty-four threads
CPU frequency: 2.6GHz
Thermal Design Power (TDP): 135W
Note:
1 : Second-hand CPU in good condition with 1-year warranty
2: There may be some small physical scratches on the surface of the CPU, which is normal
3: All CPUs are strictly tested before shipment

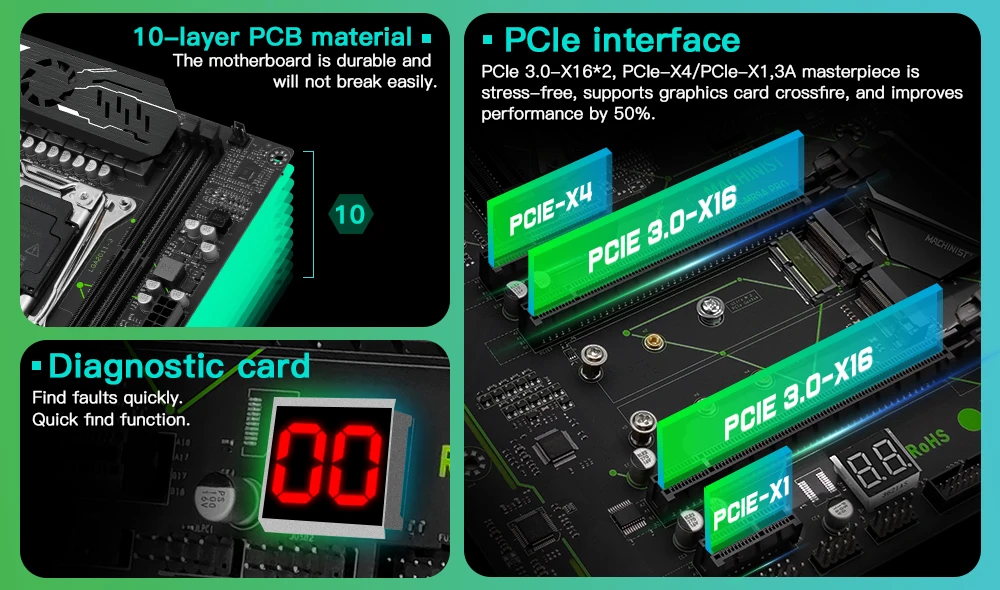

Features:

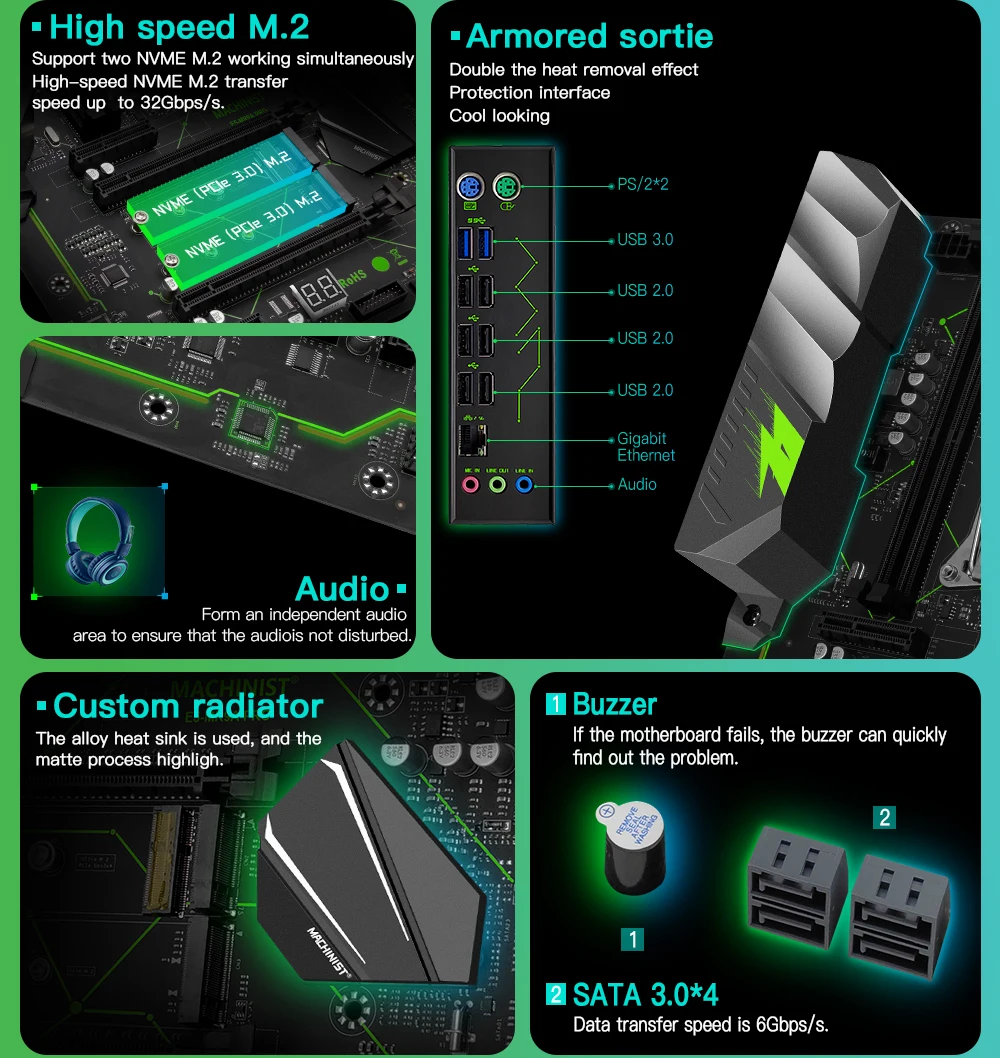

Support SATA M.2 and NVME M.2, WIFI M.2
Supports DDR4 ECC server memory and DDR4 desktop memory
8-layer PCB backplane, 8-phase power supply, VRM does not need a radiator, overclocking will not heat
High compatibility brings a higher experience.
All solid-state capacitors, fine workmanship, professional and stable.
Specification:
Brand: Mechanic
CPU socket: LGA 2011-3
Motherboard model: E5-MR9A-PRO
Structure: ATX
Chipset: Intel Q87
Memory slot: 4*DDR4 (four memory channels)
Maximum memory supported: 4*32GB DDR4
Supported memory types: The memory types support DDR4 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are not compatible)
Ethernet port: 10/100/1000Mbps/s
Video output port: requires graphics card support

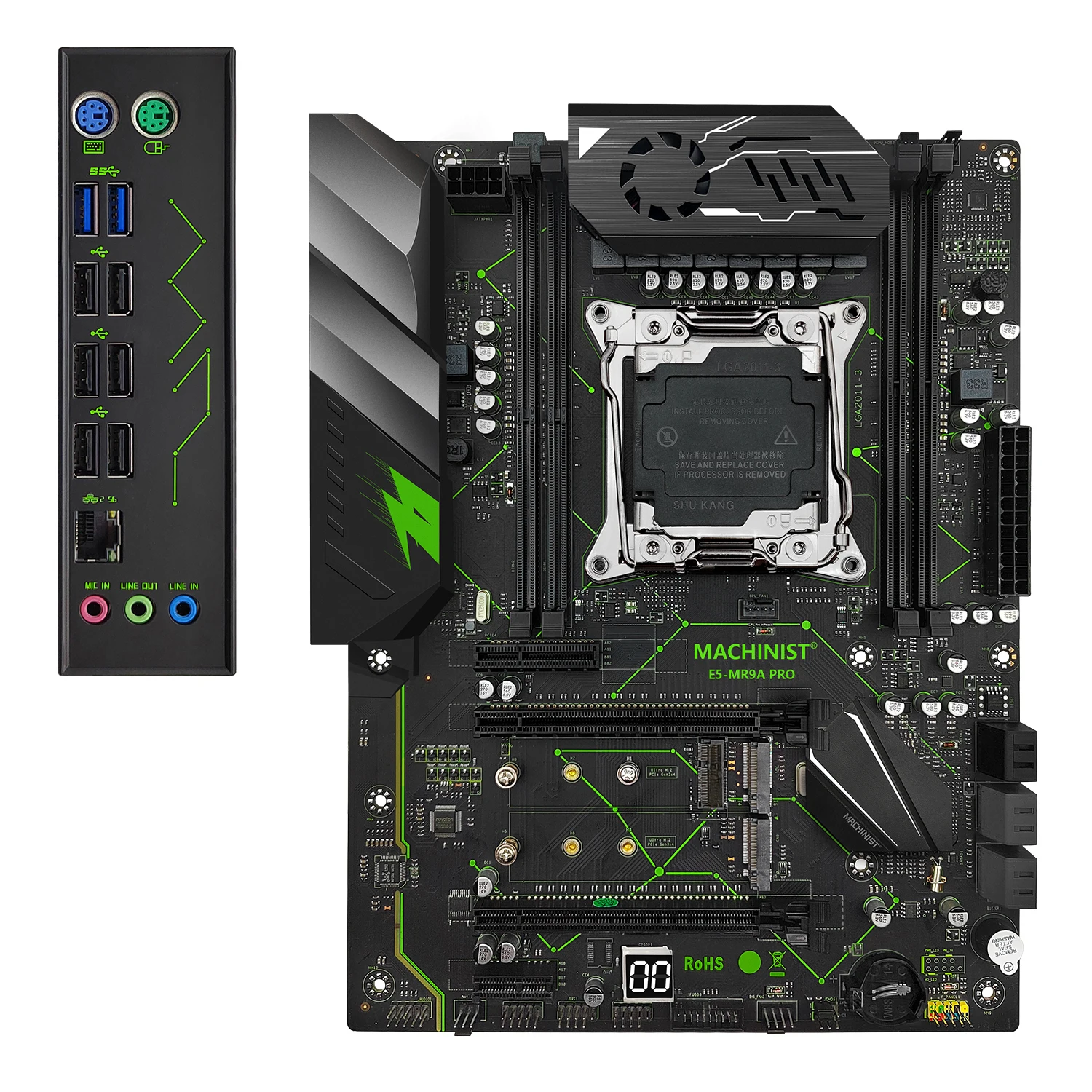

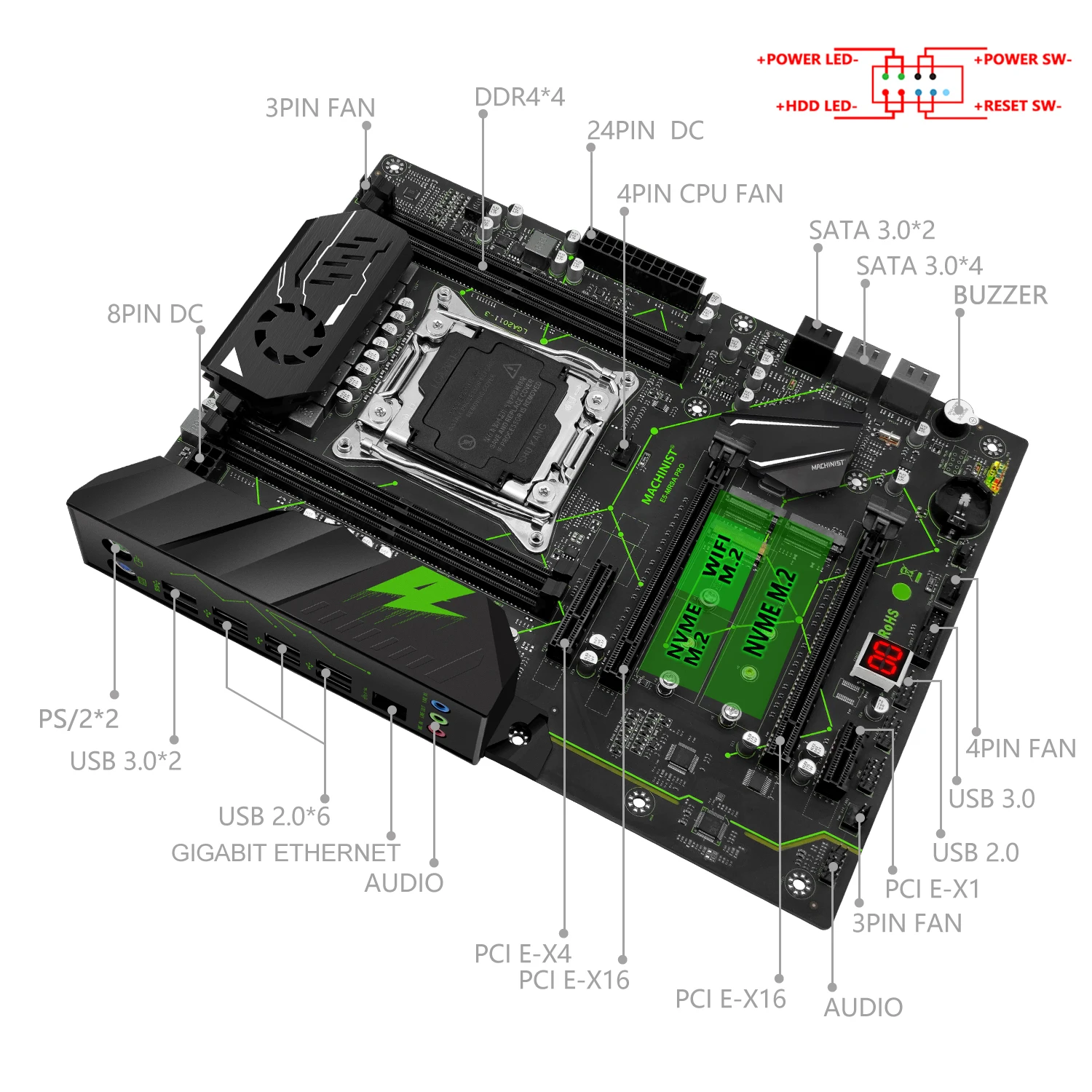

Interface: 1*RJ45/1*PS2/4*SATA2.0/2 *SATA3.0/6*USB2.0/2*USB3.0/2*PCI-E x16/1*PCI-E x1/1* PCI-E x4/1*NVME/NGFF M.2 interface;
Motherboard size: 216MM*283MM
Motherboard weight (including packaging): about 1.2kg.
notes:
1: The color of the slot bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
2: Please allow 1-3mm difference due to manual measurement.
3: Due to different monitors and different light, the pictures may not show the actual color of the goods. Thanks for your understanding.
4: This floor plan requires a strong power supply. Make sure your power supply is sufficient for this scenario. (at least 500w brand power supply)
5: The battery in the photo of the motherboard will be taken out before shipping, because China Post and Customs prohibit the use of batteries.
