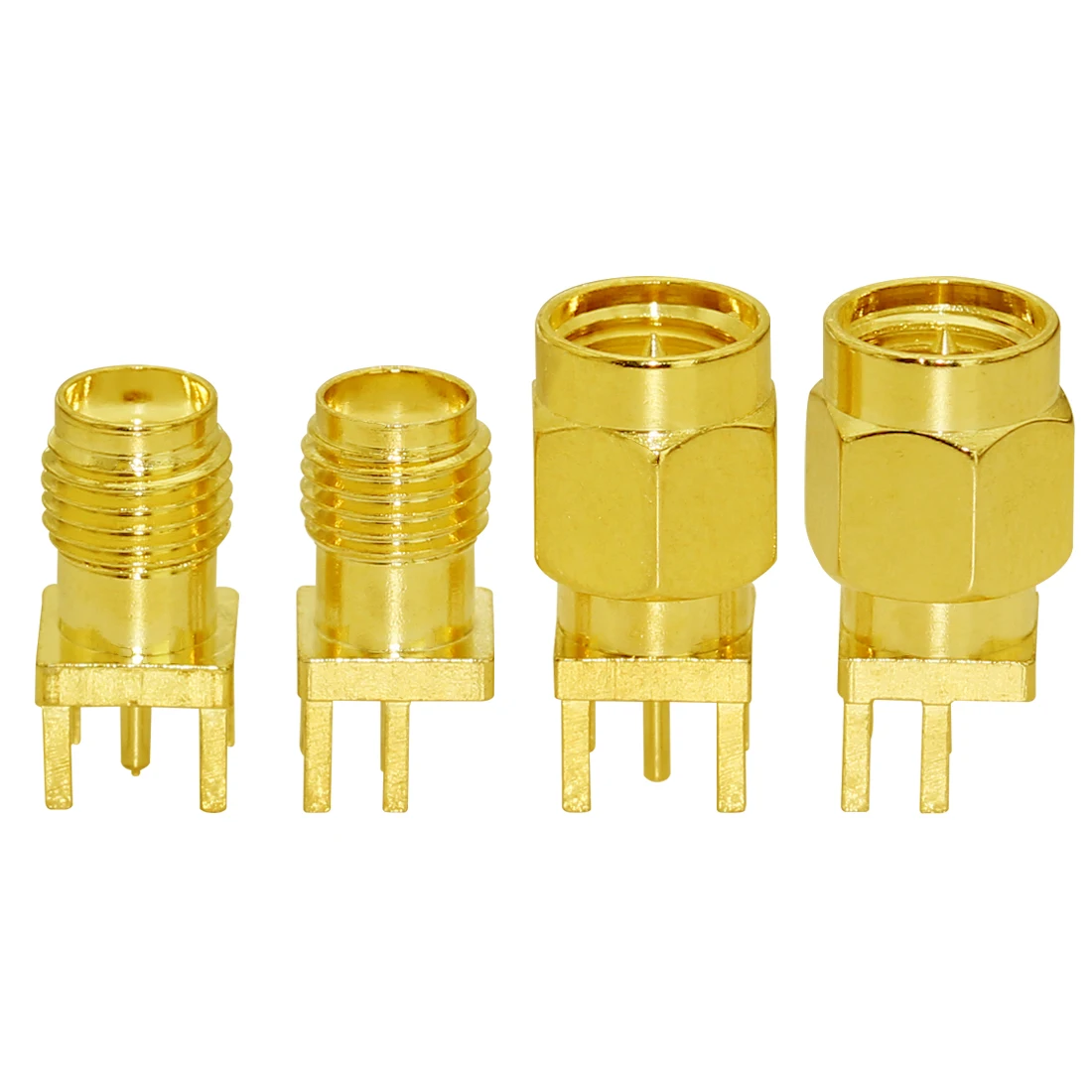

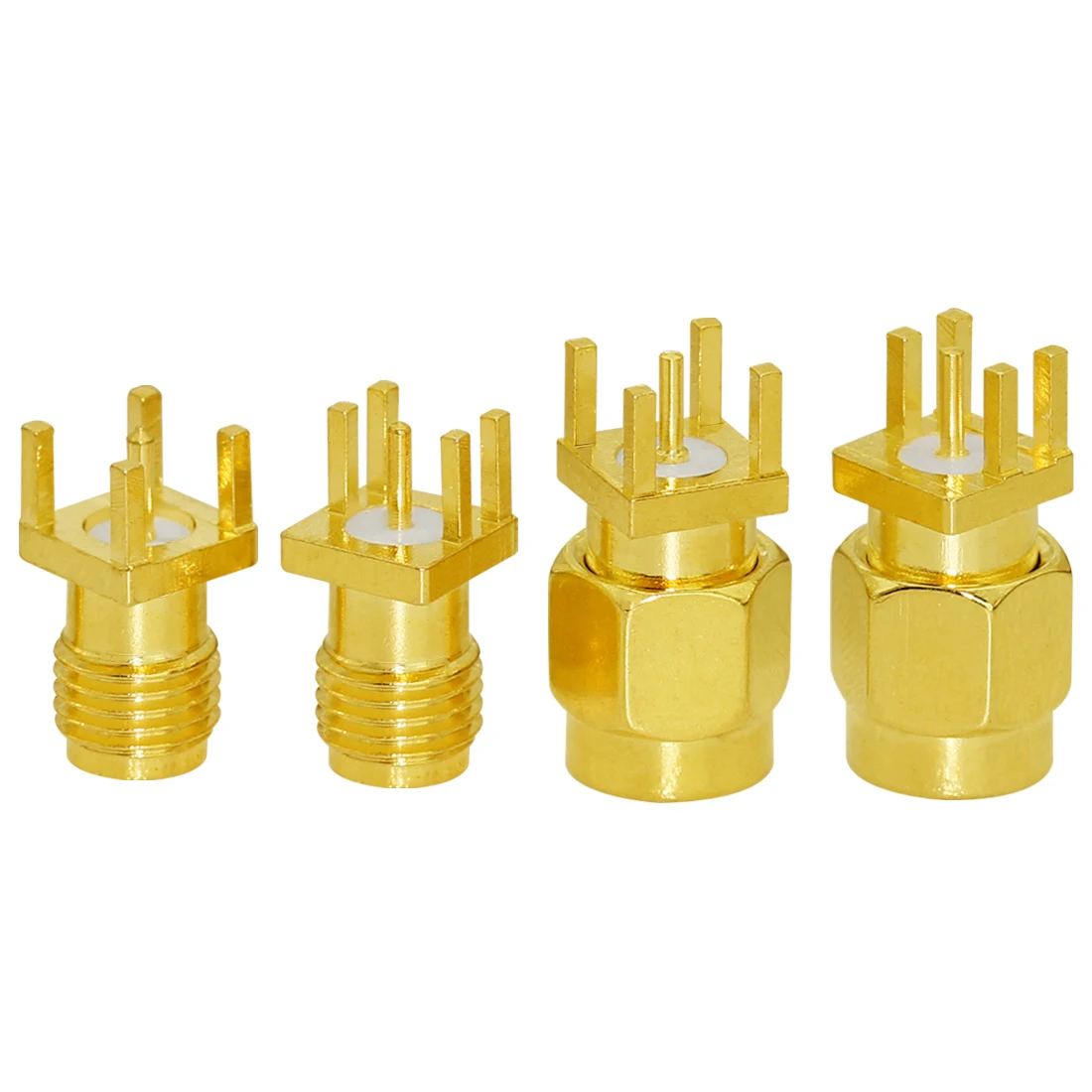

10pcs SMA Male Plug/female Jack Vertical /End launch PCB Mount RF Coax Connector Goldplated Wholesale
SMA connectorseries product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.
Applications
1.Antennas
2.Broadcast
3.radios
4.Electronic test equipment
5.Serial digital and Analog interface
6,Non-professional radio antenna connections
50Ω Specifications
Electrical
Impedance
50 Ω
Frequency Range
0-4 GHz with low reflection
Voltage Rating
500 volts peak
Dielectric Withstanding Voltage
1,500 volts rms
VSWR
M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact Resistance
Center contact: ≤3mΩ; Outer contact: ≤2mΩ
MIL-C-39012 Insulation Resistance
5,000 MΩ
Durability
500 Cycles
APPLICABLE STANDARD
IEC169-15 MIL-C-39012
Material
Contact
Brass,goldplated
Insulator
PTFE
Crimp Ferrule
Copper/brass
Environmental
Temperature Range
TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C
Note: These characteristics are typical but may not apply to all connectors.

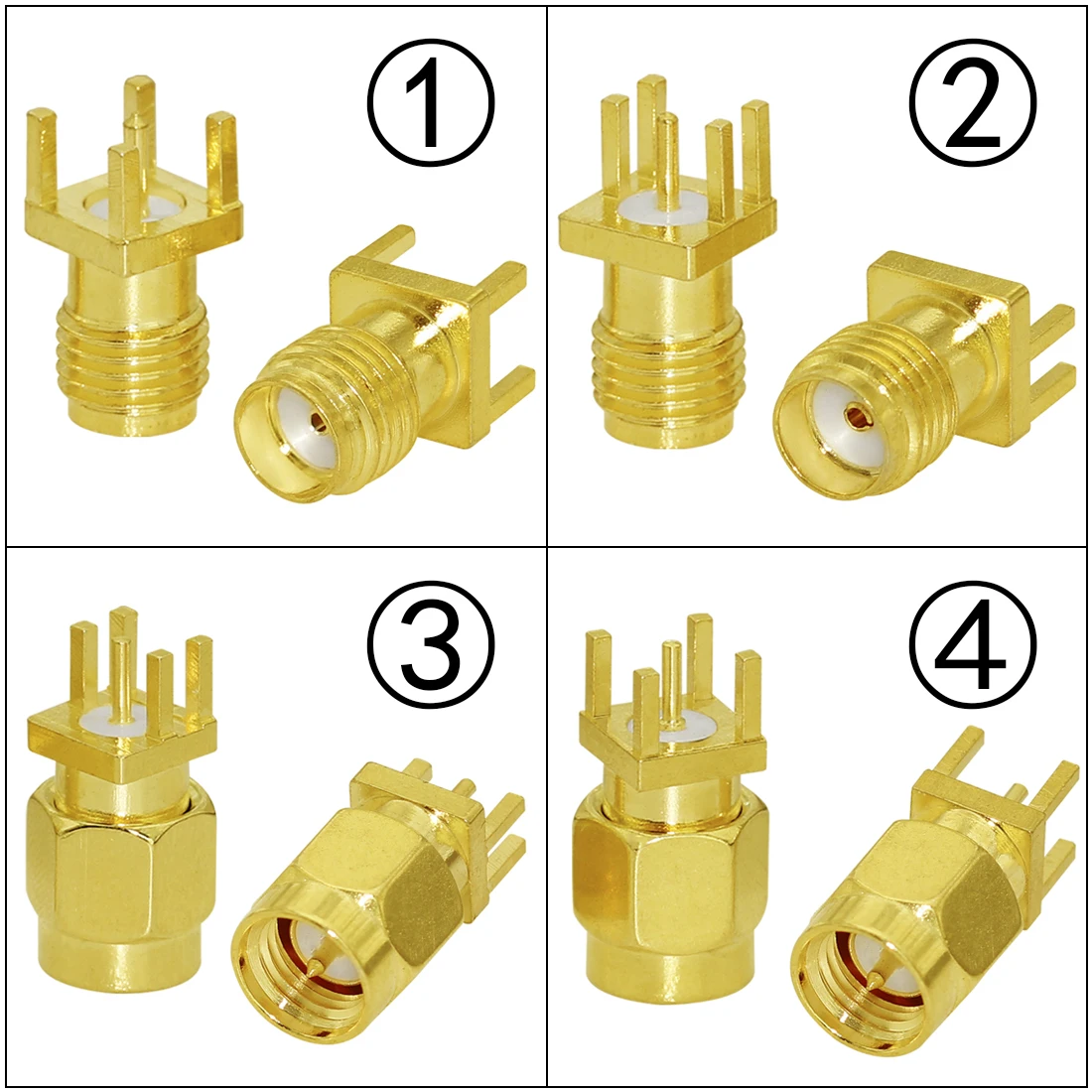

① 10PCS SMA Female Jack PCB Mount RF Coax Connector Goldplated
②10pcs SMA Male Plug PCB Mount RF Coax Connector Goldplated
③10pcs SMA Female End Launch Edge PCB Mount RF Coax Connector Goldplated
④10pcs SMA Male End Launch Edge PCB Mount RF Coax Connector Goldplated
