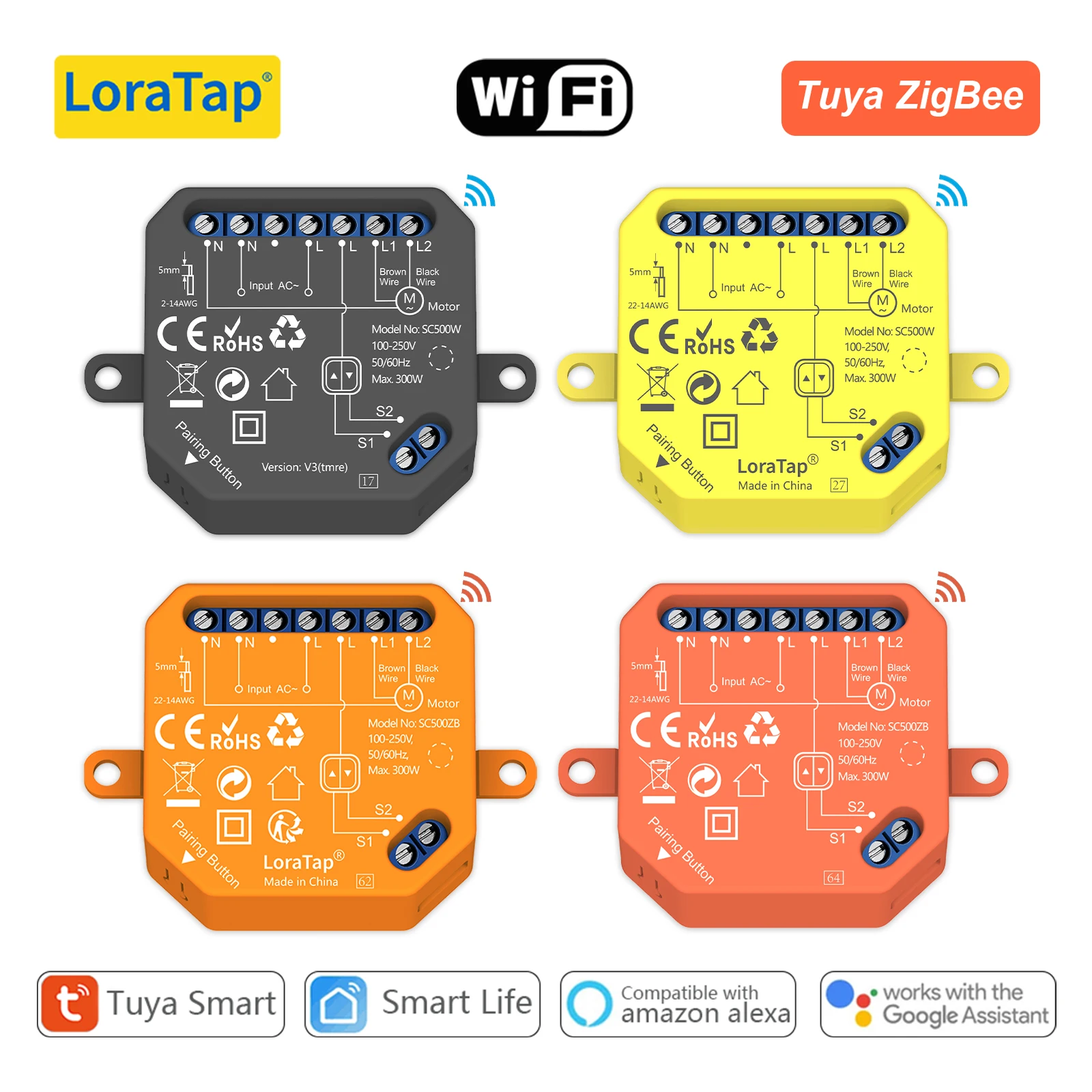

Comparison of LoraTap Curtain Switch Module
Note before order!
- The WiFi version of the curtain switch module does not require a gateway to be used.
- ZigBee curtain switch module need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub, if not, please buy the Tuya ZigBee Hub in this listing.
- This ZigBee curtain switch module can't work with other brands' ZigBee Hub, please make sure your ZigBee Hub is from Tuya.
- Input Voltage: 100~250VAC, 50/60Hz；Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can't work with DC motor!)
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can't use our device.
Features
- App Remote Control: Support Smart Life APP /Tuya APP.
- Voice Control: Compatible with Amazon Alexa, Google Home, and Yandex Alice.
- ZigBee Remote Control: Use a ZigBee Remote to control the curtain blinds.
- Running Time Setting: The running time can be set from 1-120 seconds, suitable for the use of large blinds.
- Wall Switch Control: After you install this module, your wall manual switch still works, it can open , or close the shutter.
- Tuya ZigBee Mesh: It has a stable network performance with zigbee 3.0 mesh technology.
- Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
Specification
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi) / Tuya ZigBee 3.0
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Home, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes
App Remote Control
- Support Smart Life APP /Tuya APP.
- You can use Tuya or Smart Life APP to remotely control the opening and closing of curtains.
Voice Control
- Compatible with Amazon Alexa, Google Home.
- Open and close curtains by voice control.
ZigBee Remote Control
- Use a ZigBee Remote to control the curtain blinds.(Open, Pause, Close)
* The zigbee remote control needs to work with the tuya zigbee gateway.
* zigbee remote control requires corresponding functions to be set in the app.
Running Time Setting
The running time can be set from 1-120 seconds, suitable for the use of large blinds.
Compatible with Your Manual Switch
- After you install this module, your wall manual switch still works, it can open, or close the shutter.
- In the absence of internet, you can still open or close the curtains through the wall switch.
Timer Function
- You can set a timer to open or close the curtains at a specified time.
Wiring Diagram

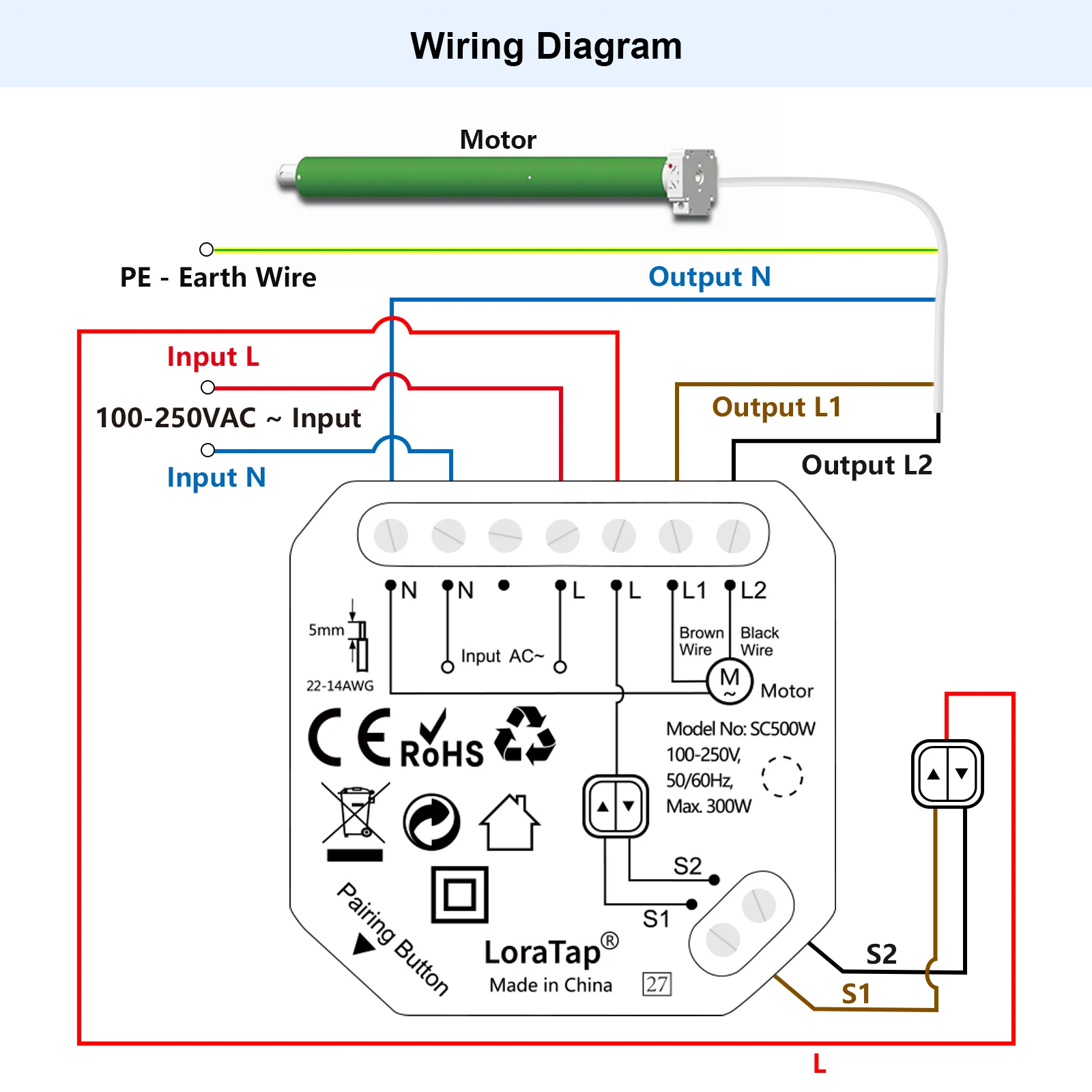

- If you need to connect with your manual switch, please refer to below wiring diagram.
- If you need any help for how to connect the module, please be free to contact with seller.

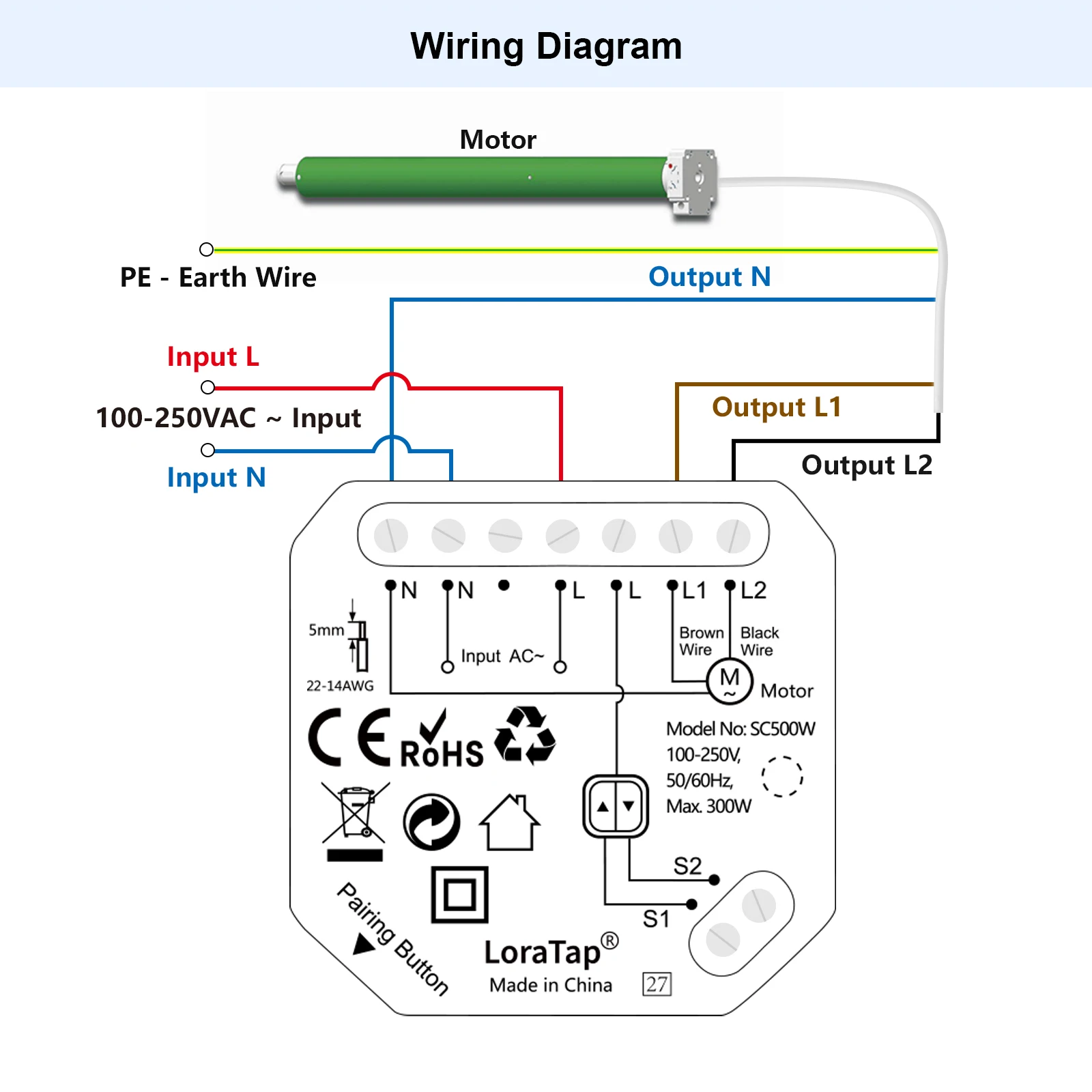

- If you don't need to connect with your manual switch, please refer to below wiring diagram.

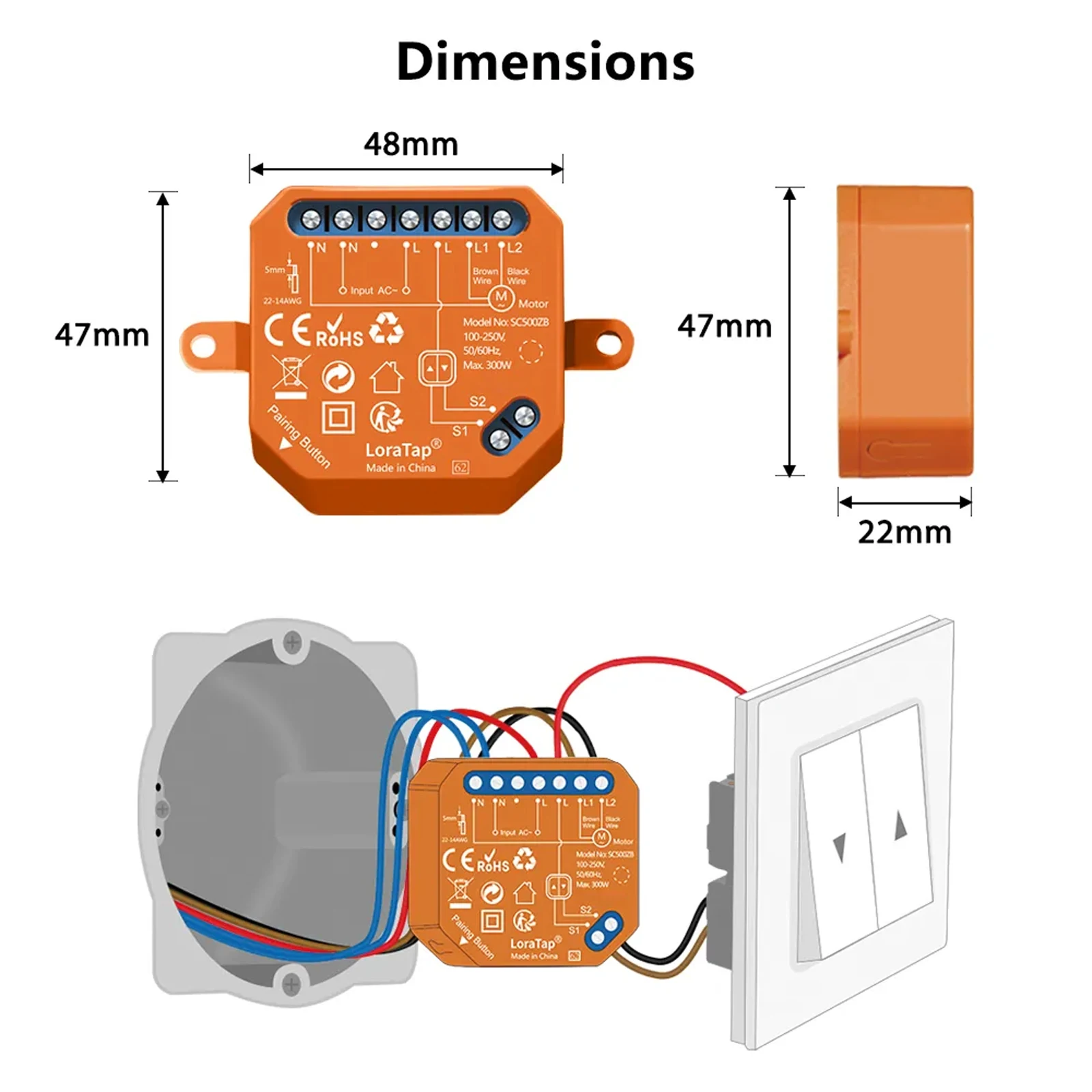

Dimensions
Module size: 48mm*47mm*22mm
Tiny size design enable it can fit most junction box.
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the Box?
1 * Roller Shutter Module
3 * Cables for Wiring
1 * Double-sided Adhesive Tape
1 * Screwdriver
1 * User Guide
Note before order!
- The WiFi version of the curtain switch module does not require a gateway to be used.
- ZigBee curtain switch module need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub, if not, please buy the Tuya ZigBee Hub in this listing.
- This ZigBee curtain switch module can't work with other brands' ZigBee Hub, please make sure your ZigBee Hub is from Tuya.
- Input Voltage: 100~250VAC, 50/60Hz；Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can't work with DC motor!)
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can't use our device.
Features
- App Remote Control: Support Smart Life APP /Tuya APP.
- Voice Control: Compatible with Amazon Alexa, Google Home, and Yandex Alice.
- ZigBee Remote Control: Use a ZigBee Remote to control the curtain blinds.
- Running Time Setting: The running time can be set from 1-120 seconds, suitable for the use of large blinds.
- Wall Switch Control: After you install this module, your wall manual switch still works, it can open , or close the shutter.
- Tuya ZigBee Mesh: It has a stable network performance with zigbee 3.0 mesh technology.
- Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
Specification
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi) / Tuya ZigBee 3.0
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Home, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes
App Remote Control
- Support Smart Life APP /Tuya APP.
- You can use Tuya or Smart Life APP to remotely control the opening and closing of curtains.
Voice Control
- Compatible with Amazon Alexa, Google Home.
- Open and close curtains by voice control.
ZigBee Remote Control
- Use a ZigBee Remote to control the curtain blinds.(Open, Pause, Close)
* The zigbee remote control needs to work with the tuya zigbee gateway.
* zigbee remote control requires corresponding functions to be set in the app.
Running Time Setting
The running time can be set from 1-120 seconds, suitable for the use of large blinds.
Compatible with Your Manual Switch
- After you install this module, your wall manual switch still works, it can open, or close the shutter.
- In the absence of internet, you can still open or close the curtains through the wall switch.
Timer Function
- You can set a timer to open or close the curtains at a specified time.
Wiring Diagram
- If you need to connect with your manual switch, please refer to below wiring diagram.
- If you need any help for how to connect the module, please be free to contact with seller.
- If you don't need to connect with your manual switch, please refer to below wiring diagram.
Dimensions
Module size: 48mm*47mm*22mm
Tiny size design enable it can fit most junction box.
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the Box?
1 * Roller Shutter Module
3 * Cables for Wiring
1 * Double-sided Adhesive Tape
1 * Screwdriver
1 * User Guide
