Descripción
Our Advantage
1.CCC,CE&Rohs,ISO9001,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life
4.MOQ: 1set
5.Prompt delivery: 5-12 working days
Specification
Module Parameter
Module Resolution
64(H)×64(V)
Pitch
3mm
Density
111.111 pixels/m²
LED Lamps
SMD2121
Driver IC
Universal chip
Size
192mm×192mm
Module Refersh
2880hz
Mask
Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution
192(H)×192(W)
Cabinet Size
576mm(H)×576mm(W)
Cabinet Weight
12.88kg
Driver Mode
Dynamic 1/16 scan , constant current driving
Cabinet Power
≤300w
Cabinet Thickness
≤73mm+5mm
Electricity Parameter
Optical Ratings
Brightness Of White Balance
≥4500cd/m²
View Angle
140 degree ( horizontal) 140degree(vertical)
View Distance
3m-280m
Gray Scale
65536
Display Color
3-in-1 RGB
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
1200 w/m²
Average Power Consumption
600 w/m²
Control System
Correction Scale Level
16bits
Screen Refresh Frequency
1920Hz
Gamma Correction
-5.0—5.0
Support Input
HDMI,DVI,VGA,RJ45,USB,Serial Port
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
800×600,1024×768,1280×1024,1600×1200,1920×1080
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Temperature
Storage:-35℃-+80℃ ; Operation :-25℃-+45℃
Humidity
Storage:10-70% RH ; Operation:10--60% RH
Operating Life
≥100,000 hours
MTBF
≥5000 hours
Continuous Working Time
≥48 hours
Protection Level
IP65
Out of Control Pixel Rate
≦0.03%
1),9pcs p3 outdoor modules ,

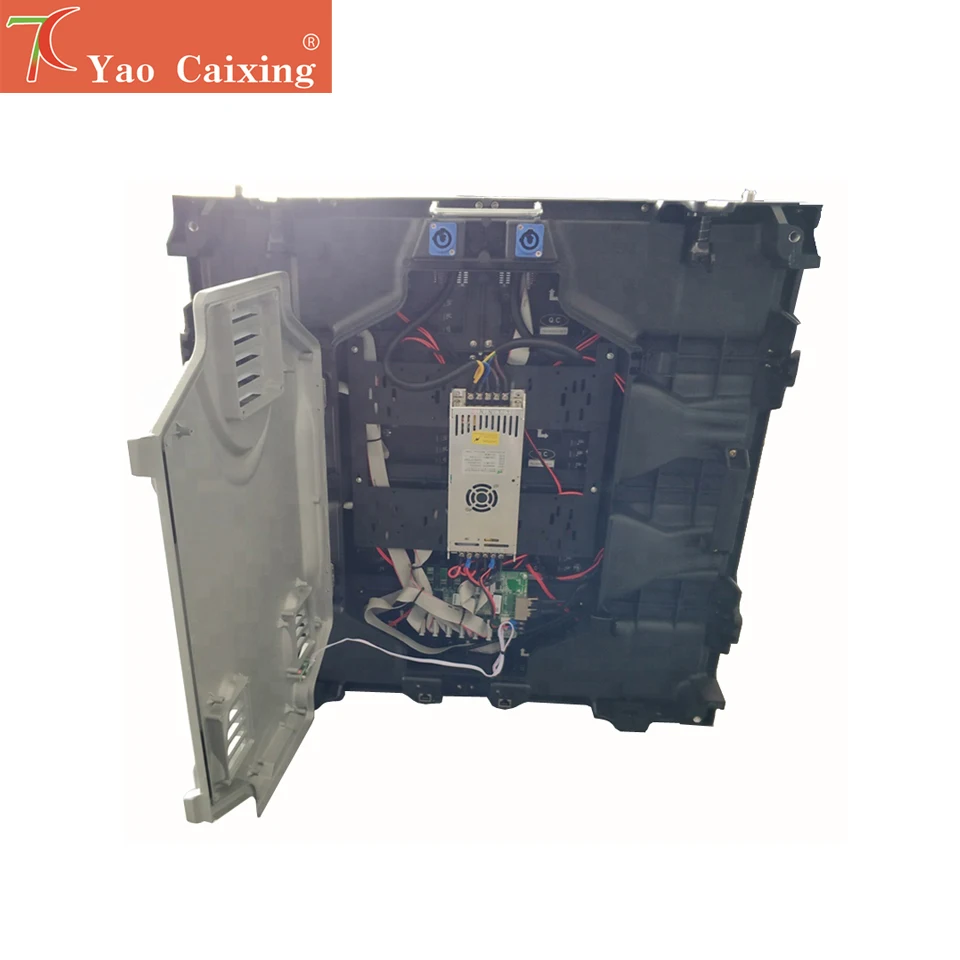

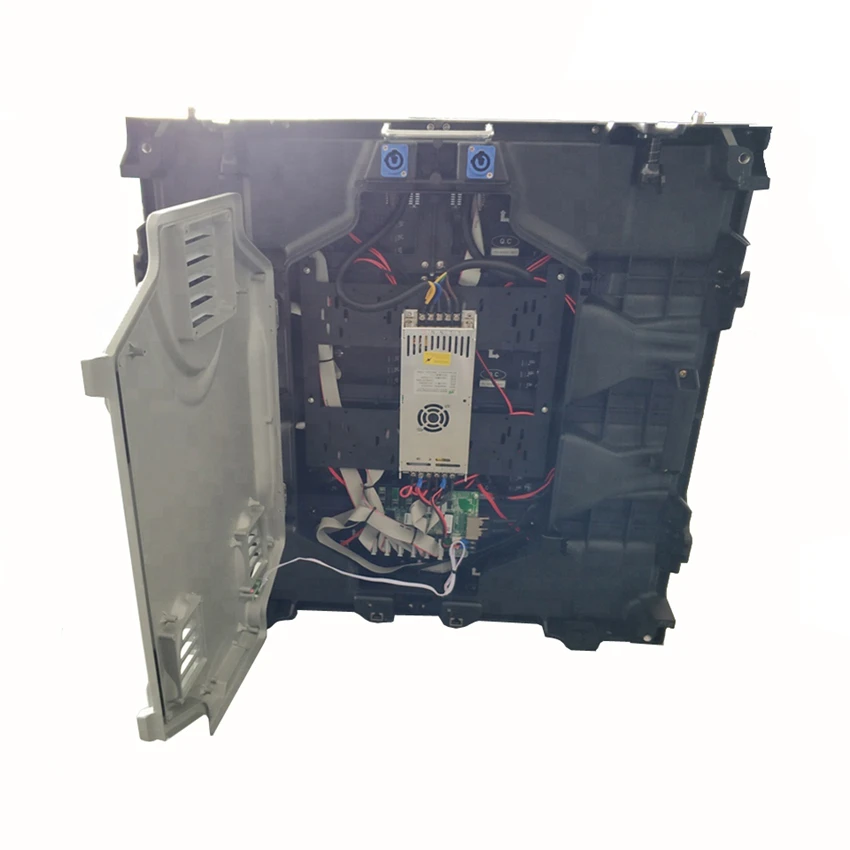

2),1 sets 5v60A300w power supply,
3),1pcs Linsn/Linten/Novastar/Colorlight receiving card,
5),5pcs power lines ,
6),9pcs flat cables ,
8),3pcs avation power plugs ,
9),3pcs avation signal lines ,

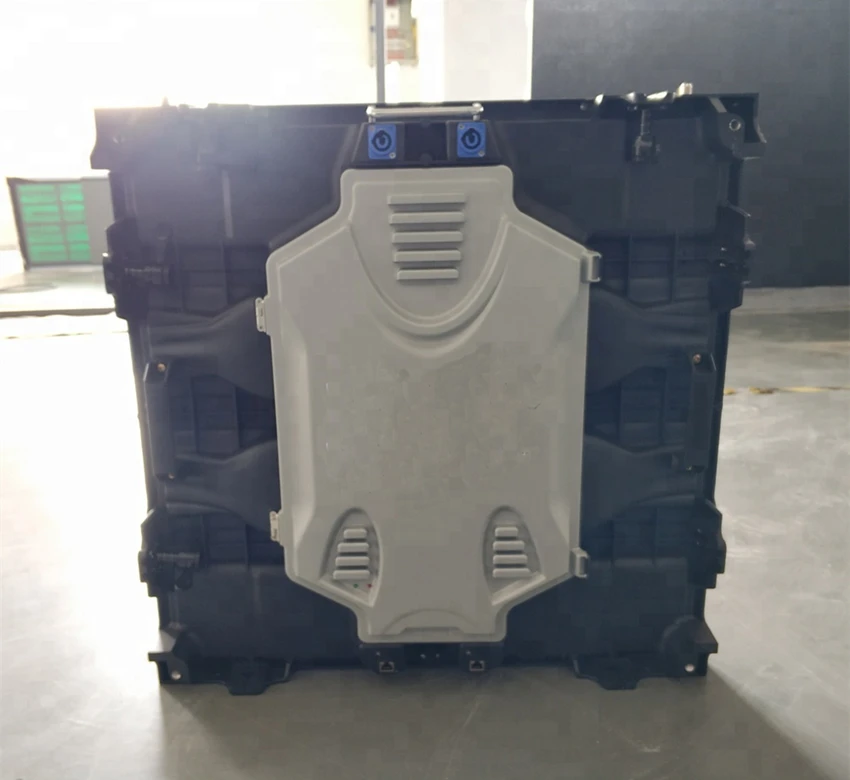

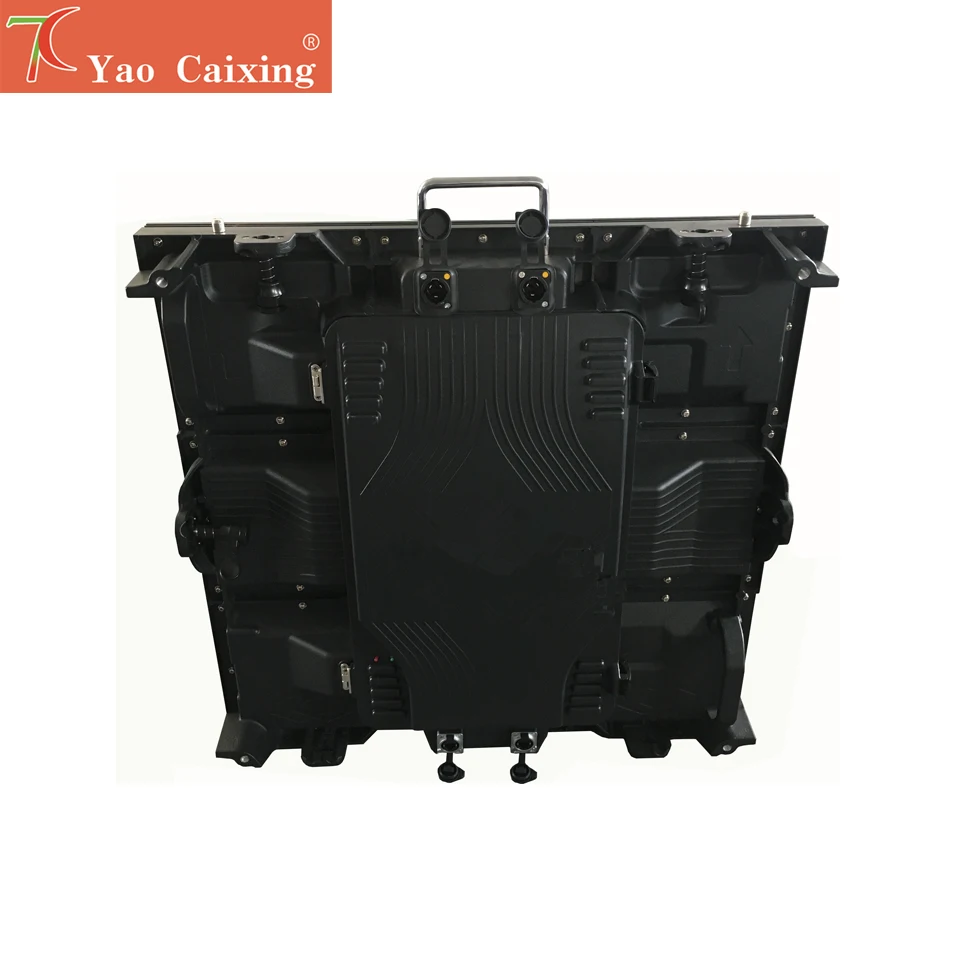

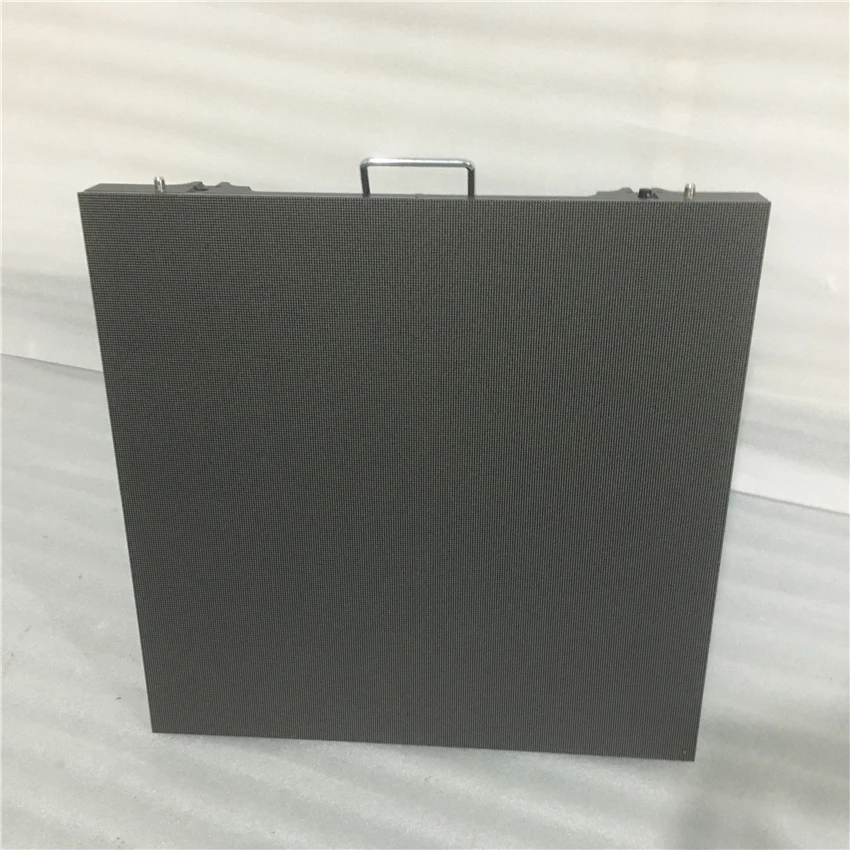

10),1set 576mmx576mm aluminum cabinet,
- SMD1921 high brightness lamps more than 4500cd
- IP65 whole waterproof cabinet suit any weather.
-The thickness of the PCB plate is two to three times that of the conventional module
- The data interface uses normal hub75 interface

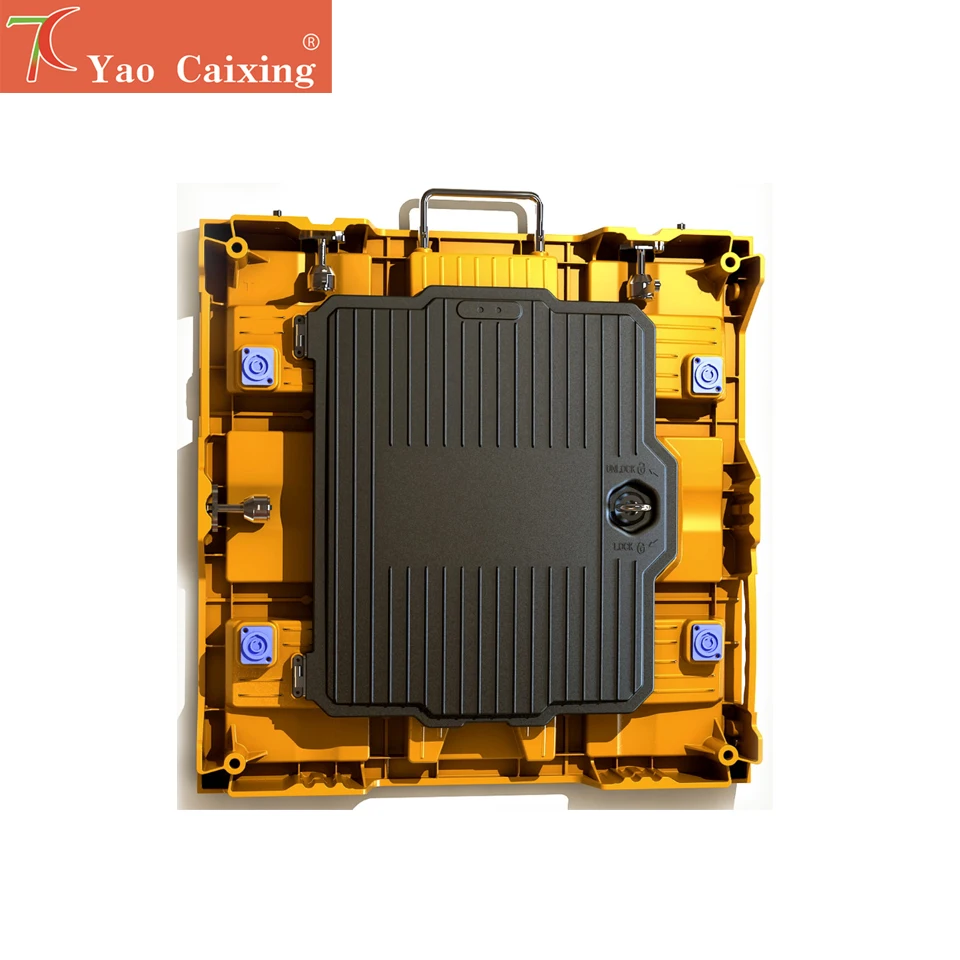

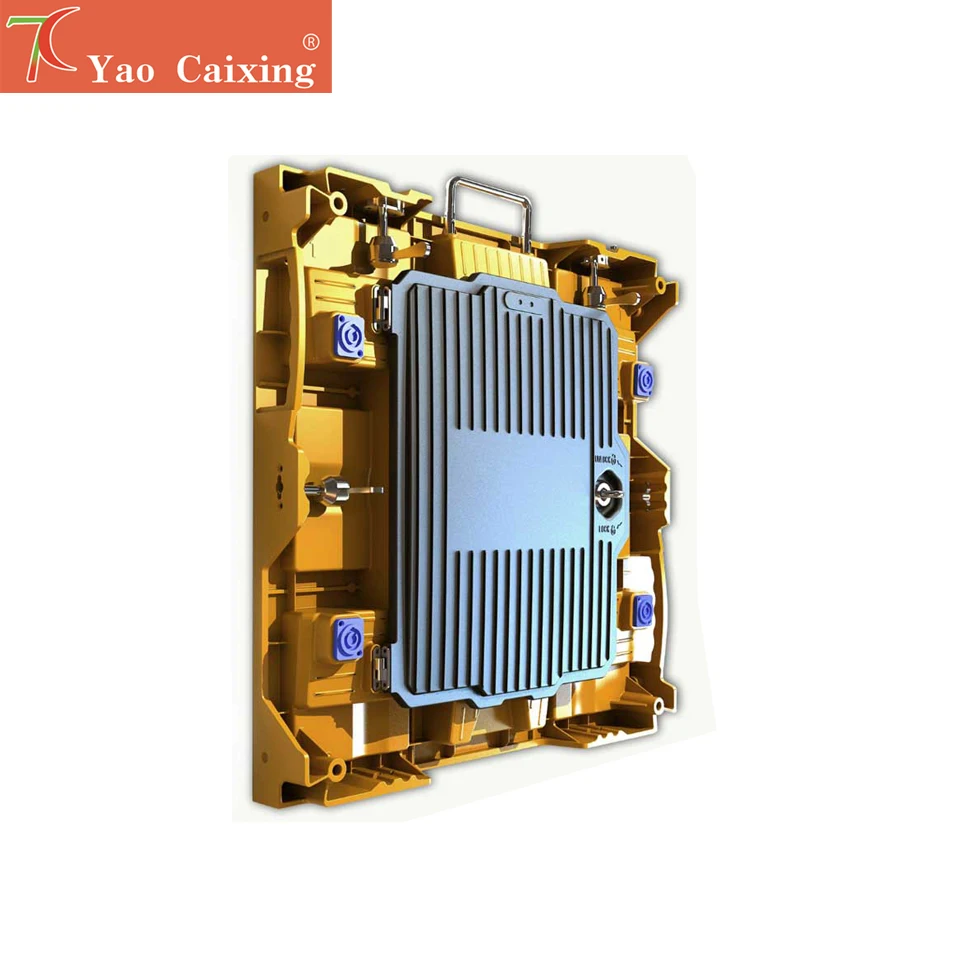

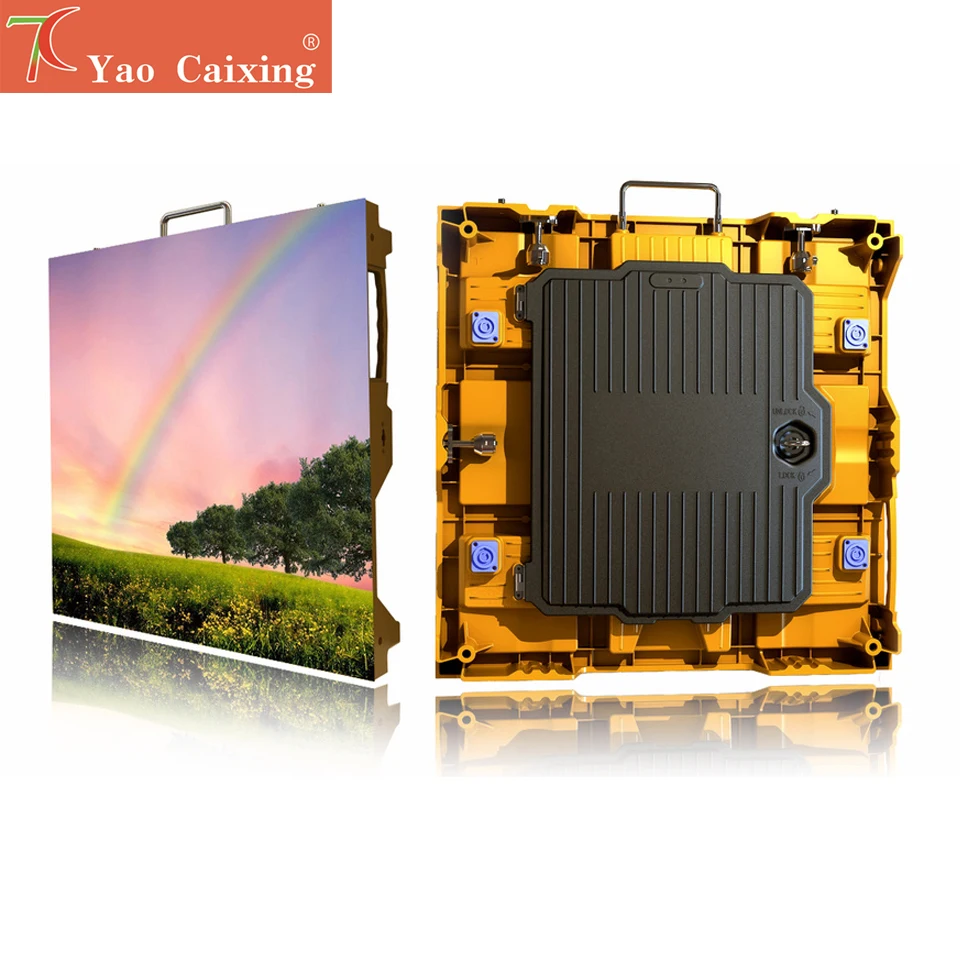

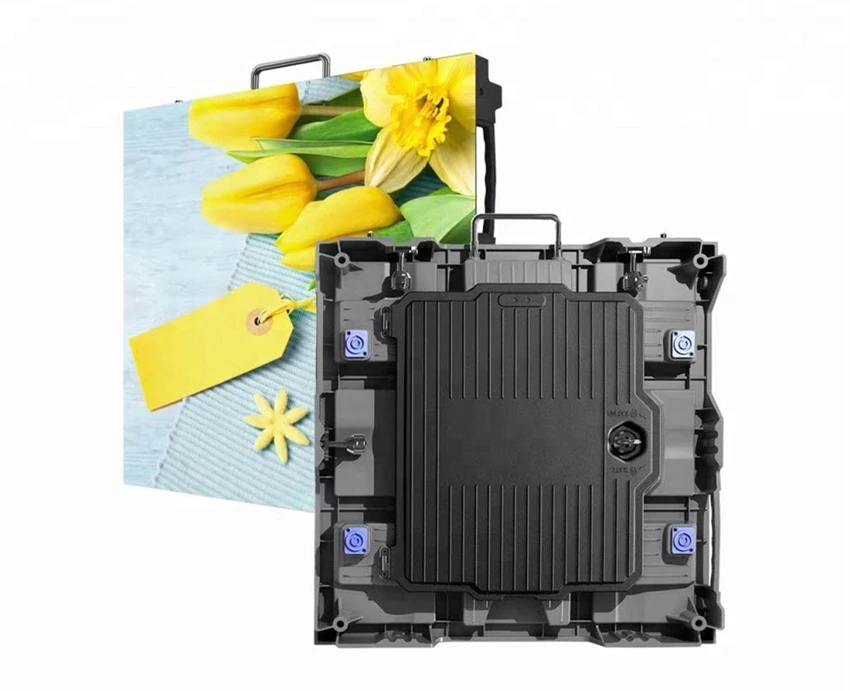

- Aluminum cabinet, stronger ,lighter and more beautiful

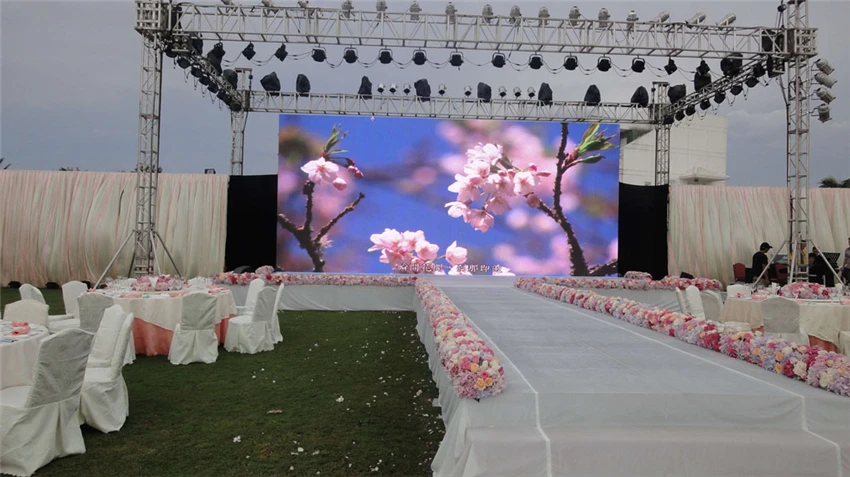

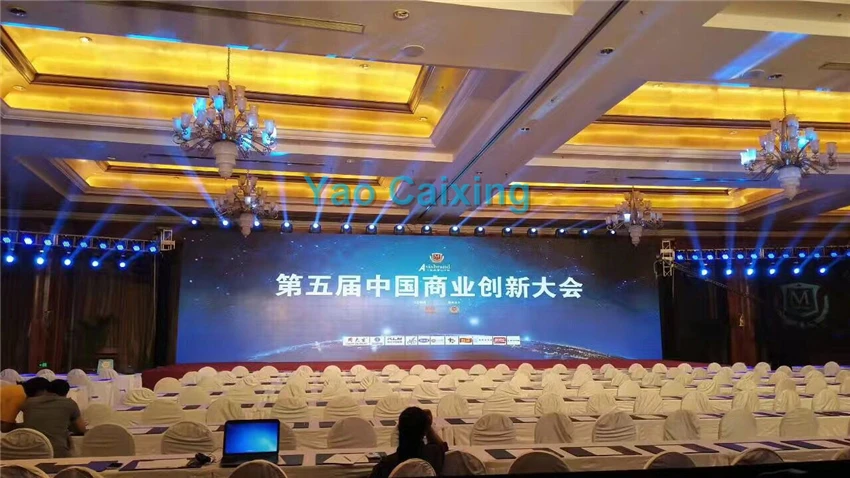

- Usually use for rental business, plug and play ,assemble or disassemble quickly
- Power aviation plug ,quickly and safety
- Signal aviation web line more convenient
- Cabinet thickness less than 7.8cm ,save space
- Cabinet weight less than 13kg, easy to carry
- Aluminum cabinet, stronger ,lighter and more beautiful
- Usually use for rental business, plug and play ,assemble or disassemble quickly
- Screen resolution can reach 1920hz

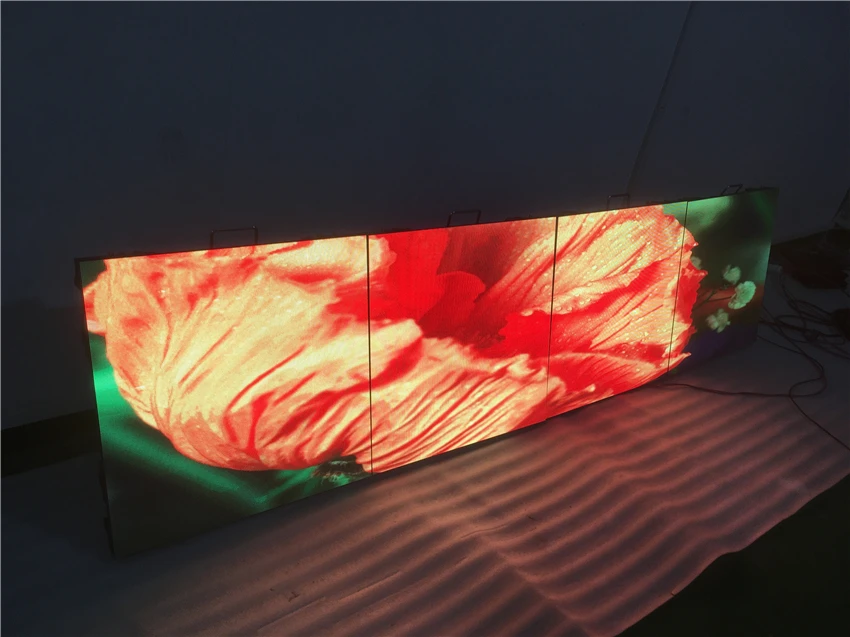

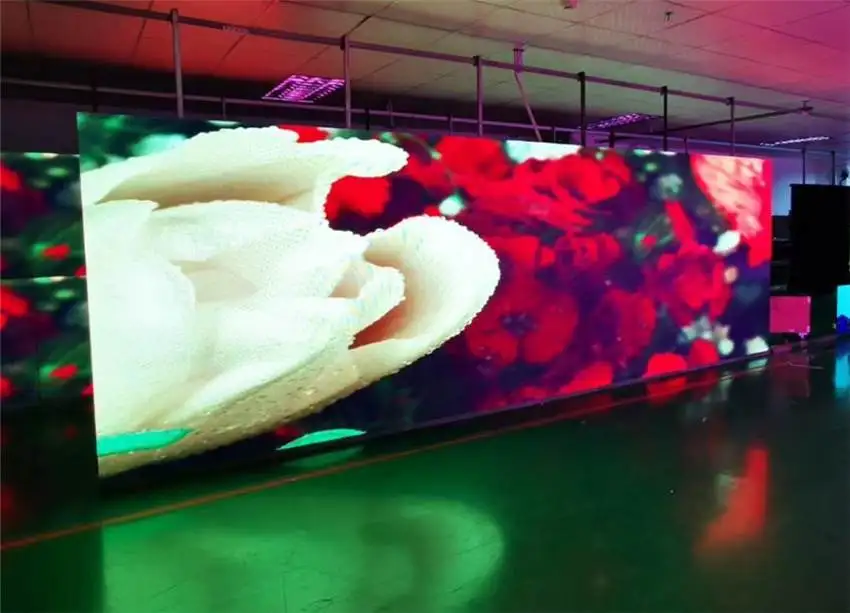

- Several pieces also can make a high clear screen
- We can fix the screen on the floor

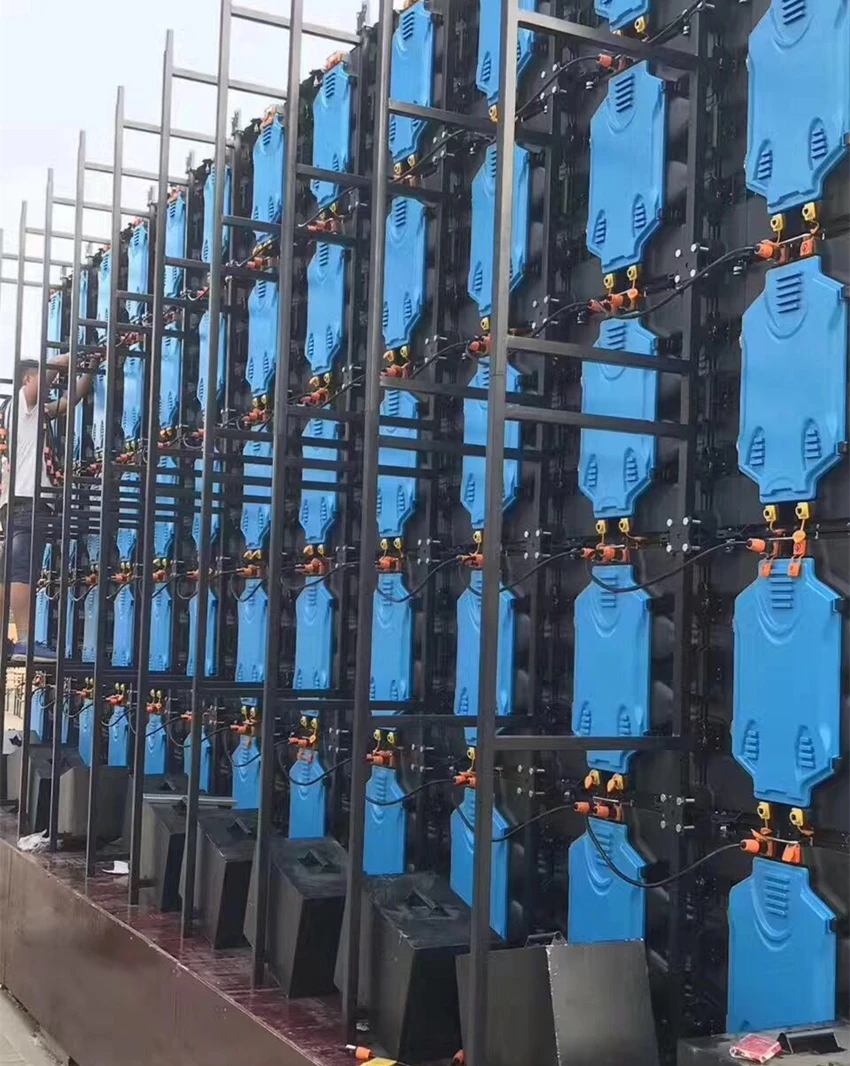

- We also can use hang beams hang them

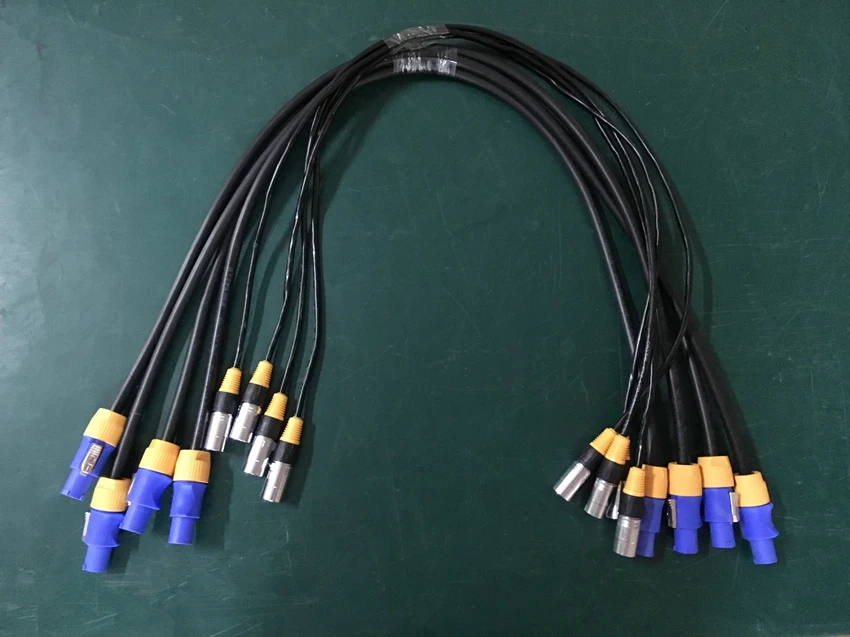

- Aviation power plug cable will send free- Aviatiion signal cable will send free

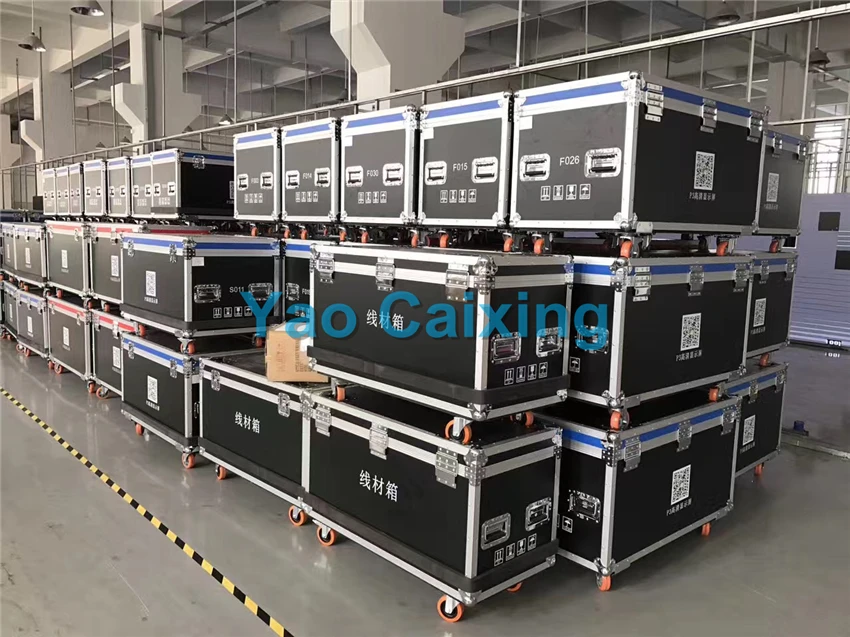

- Rental business screen usually use flight cases package, move convenient
Contact us , you will get the best price!!!
