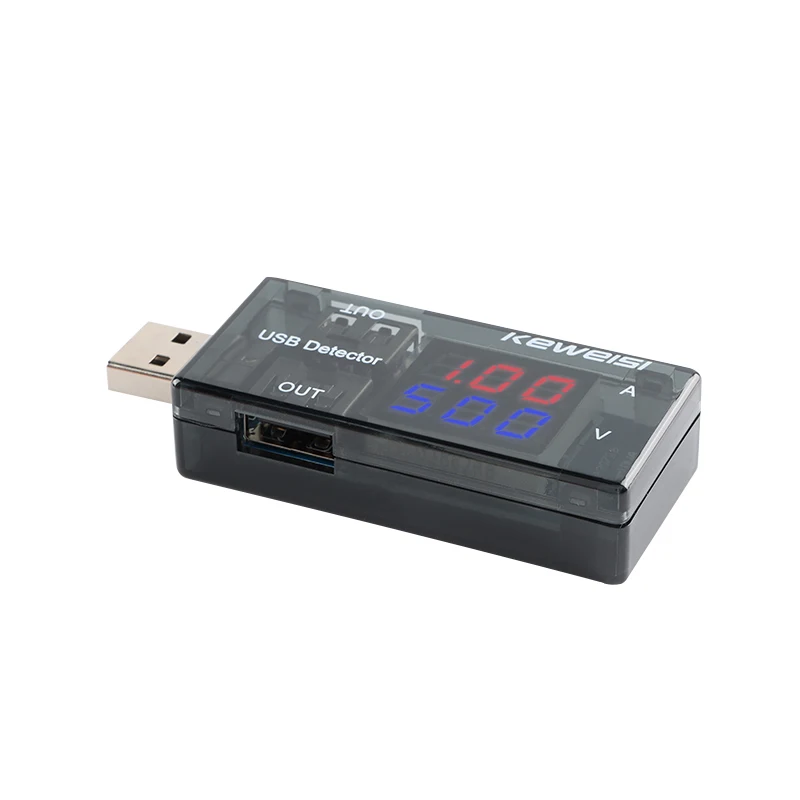

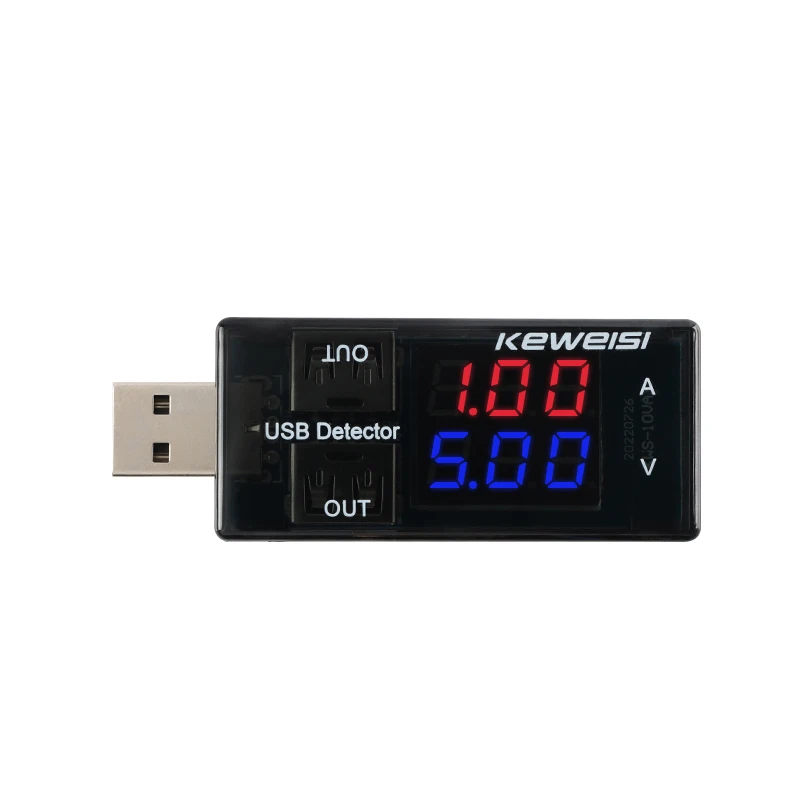

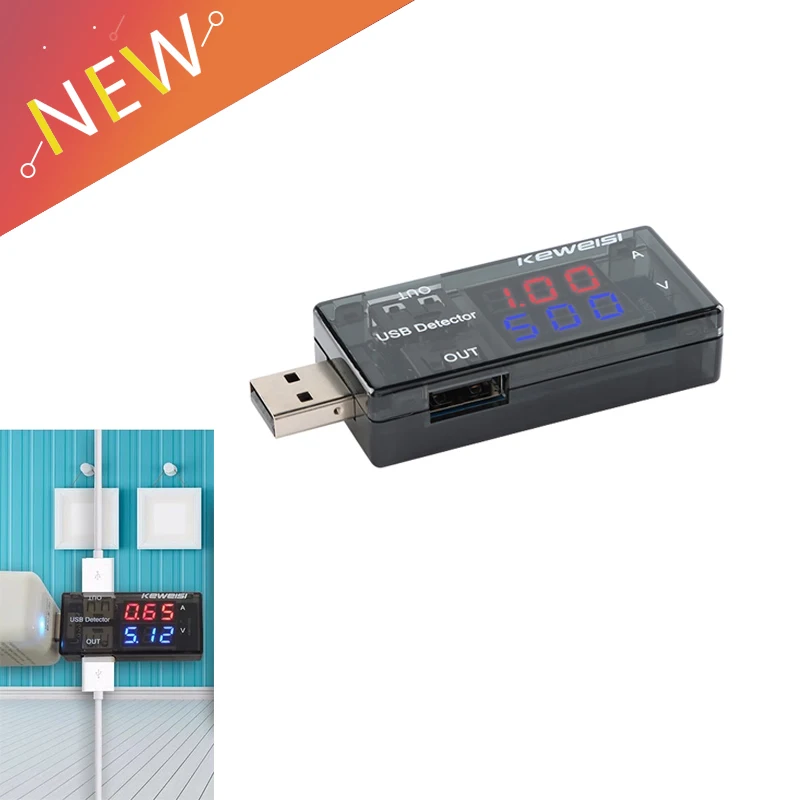

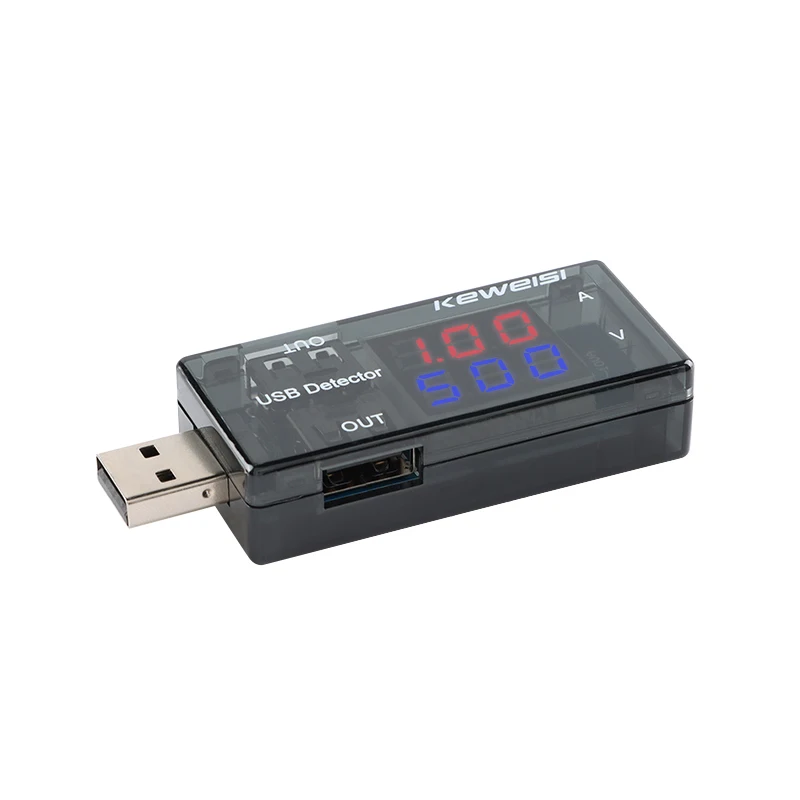

KWS-10VA Dual USB Current Voltage Charging Detector Tester Battery Voltmeter Sturdy Ammeter Charger Tester

Feature

*Safety charging, real -time monitoring and mastering your charging teaching, dual -display USB current voltage detection table, and display voltage current data at the same time, convenient to view, USB male head plug in 5V charger,female socket plug -in mobile phone and other equipment, read the voltage directly to read out the voltage Current parameter

*You can detect USB line quality, with precision current calibration function, and higher current accuracy. Data calibration function setting, an electronic loader, a constant current source. The Hengliu source is adjusted to 10V and 10V or less (recommended 9V), and the electronic load is set to CC mode (Hengliu mode) 3A, 2A, 1A, and 0.3A.

*Measure the battery capacity, and use the linear charging circuit to fill the battery with no power to be fully powered through this capacity table. The capacity reading is the battery capacity. Using this method can also measure the charging capacity of the mobile phone, and even calculate the mobile phone charging efficiency.

*Measure the output capacity and efficiency of the mobile power, begin connect the mobile power supply, turn on the mobile power supply, and press the key until the capacity data is zero. Plug in the mobile phone and charge until the mobile power supply is free of charge. The display capacity when the machine is turned on next time is the MAH output of the mobile power. Note that this MAH is far smaller than the nominal MAH, the output MAH*output voltage 5V/battery MAH*battery voltage 3.7V=mobile power efficiency

*The data is cleared, and the button is held until the (several sets of data) becomes the next group. After the button is released, it will automatically jump to the next set of data from scratch.

Specification

Product Name: KWS-10VA

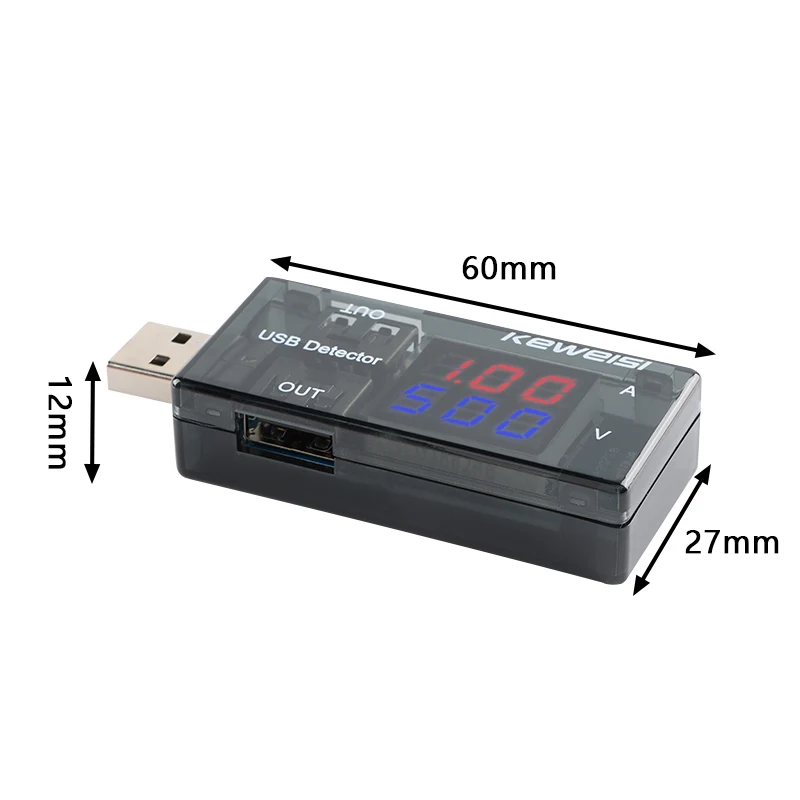

Size: 60mm (even USB74mm)*width 28mm*height 15mm

Voltage: Input/output voltage 3V-9V, voltage resolution: 0.01V

Current: input/output current: 0A-5A (seeing the scope of the intention of 0-3A, current resolution: 0.01A

Accuracy: positive and negative 1%

Line loss: about 0.1 Euro

Communication: Yes

Weight: 22g

Package included

1*USB voltage current Tester

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
