FAQ:

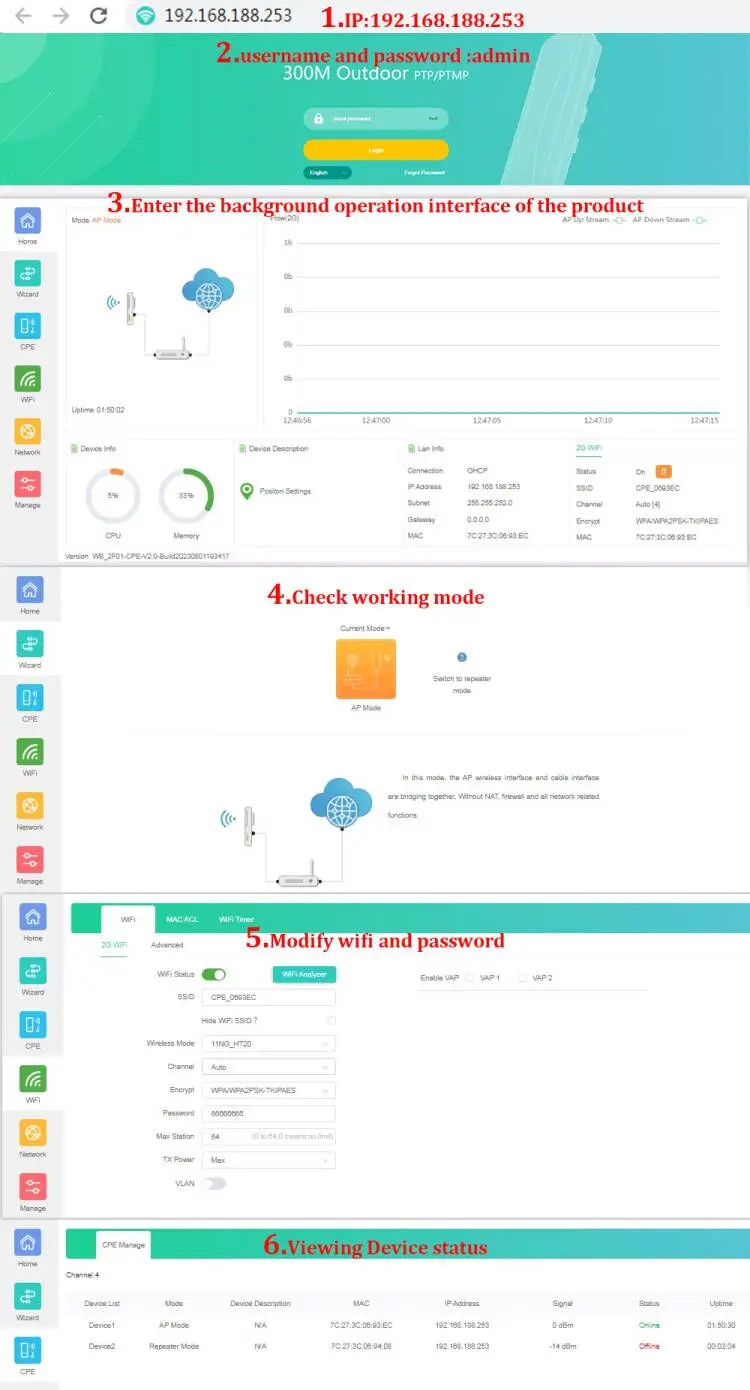

Q: I wan to login WEB UI page for IP Address,but i can not open it .
A:If you need to manage the bridge, you must use a computer to connect to the bridge.
Then set a static IP address for the network to access the WEB UI page.
(After the configuration is complete, restore the original status. ; Otherwise, the Internet access fails.)
you can set static ip address : 192.168.188.10
Subnet mask： 255.255.255.0
Description：

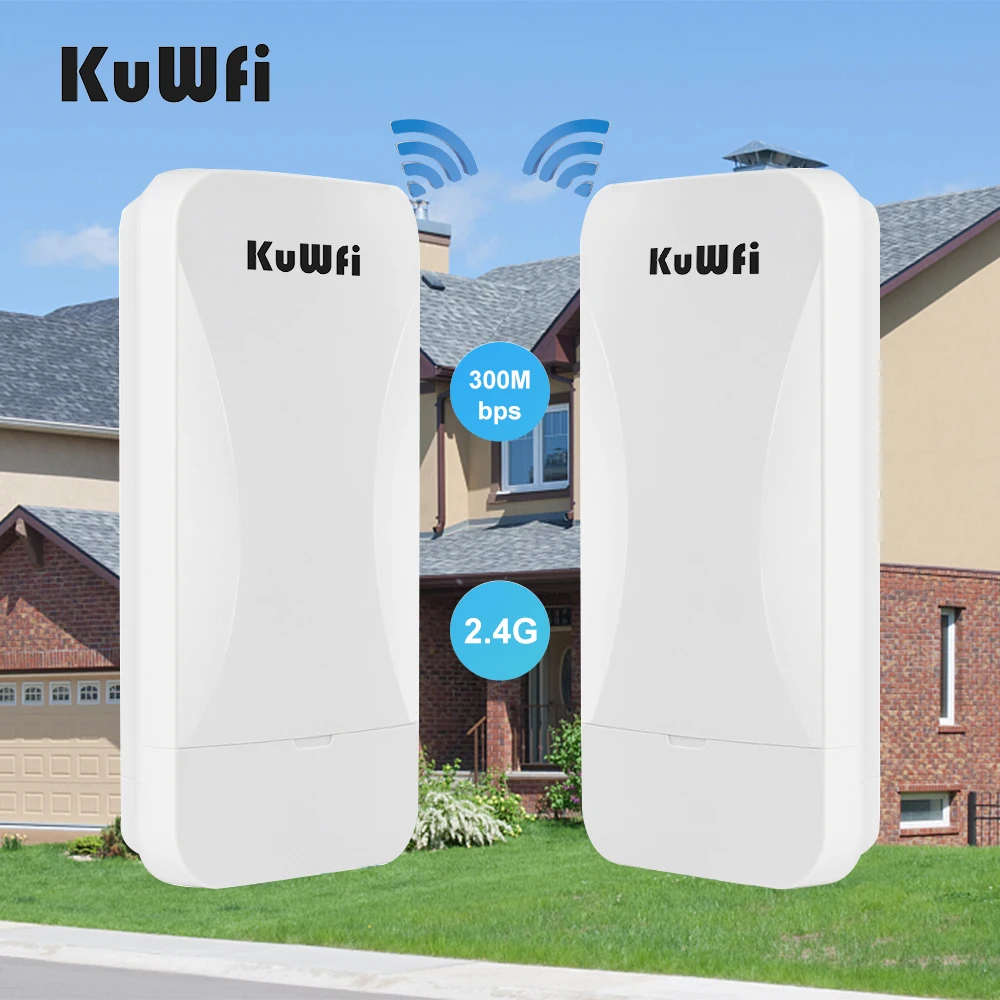

The Outdoor Wi-fi Bridge is a 300Mbps outdoor CPE Wi-fi Bridge. It complies with IEEE 802.11b/g/n standard, with 8dBi dual polarized high gain antenna, the PTP/PTMP distance up to 1000 meters.(Test under optimal conditions)
With ABS waterproof, dustproof and sunscreen shell, temperature adaptive also;Meantime, it supports 24V passive PoE and 4KV lightning protection, support outdoor use.
Main Features:

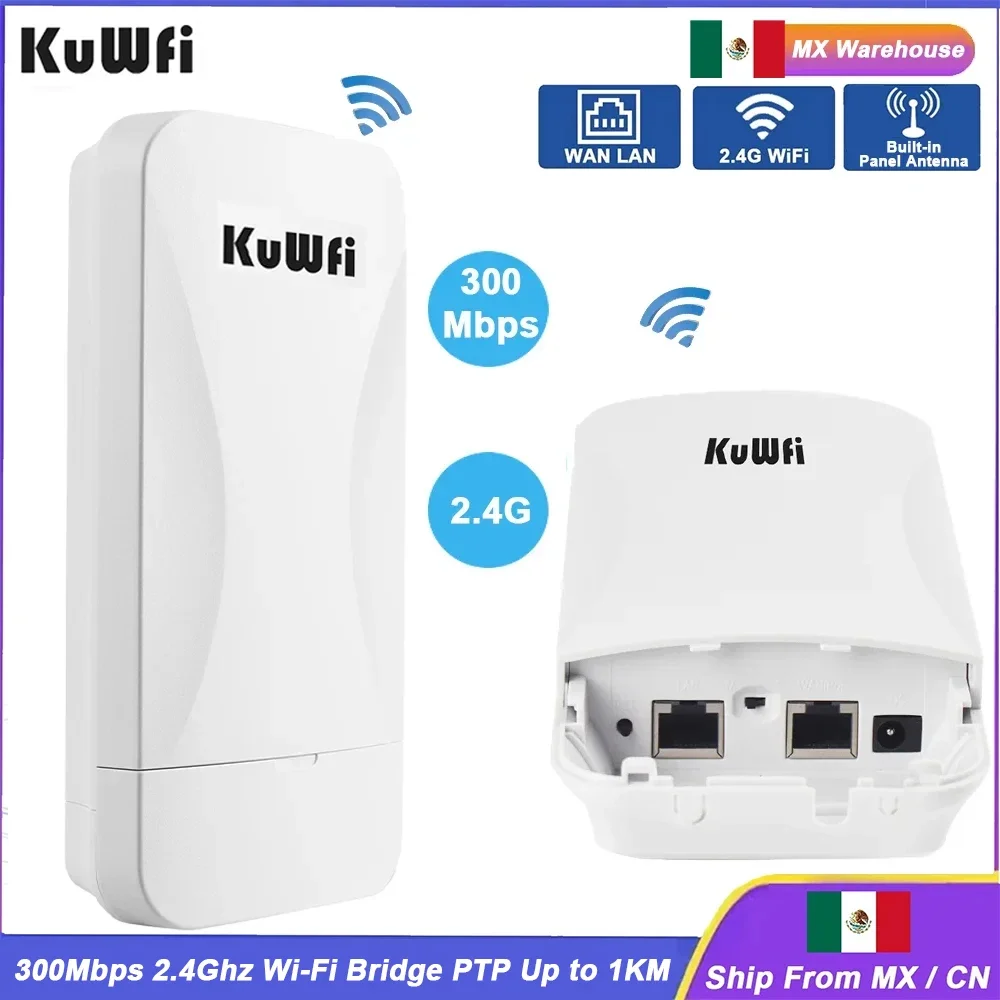

1.300Mbps 2.4G CPE Wi-fi Bridge

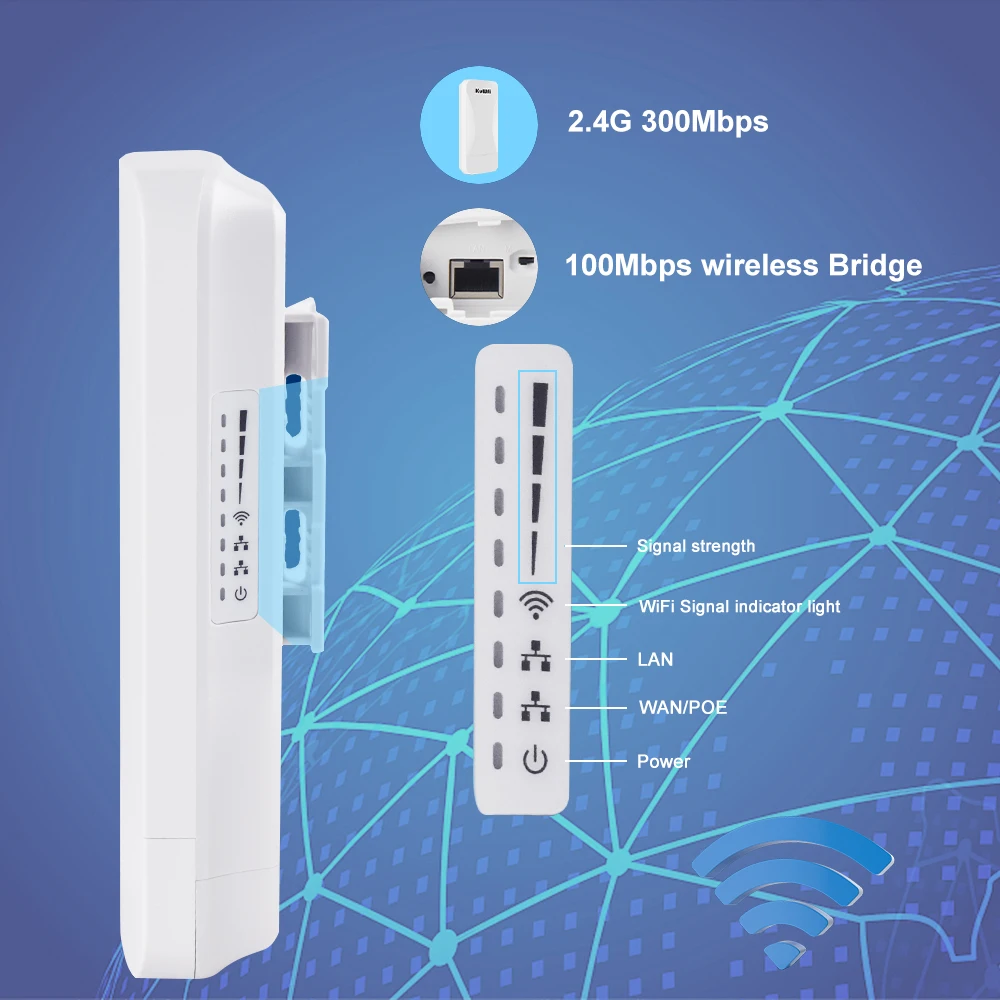

The CPE Bridge 2.4GHz Wi-fi network maximum rate of 300Mbps.Two RJ45 100Mbps network ports(WAN/LAN Port), providing a faster and more stable network. Make the wi-fi Bridge applicable to more scenarios.
2.AP / Repeater mode

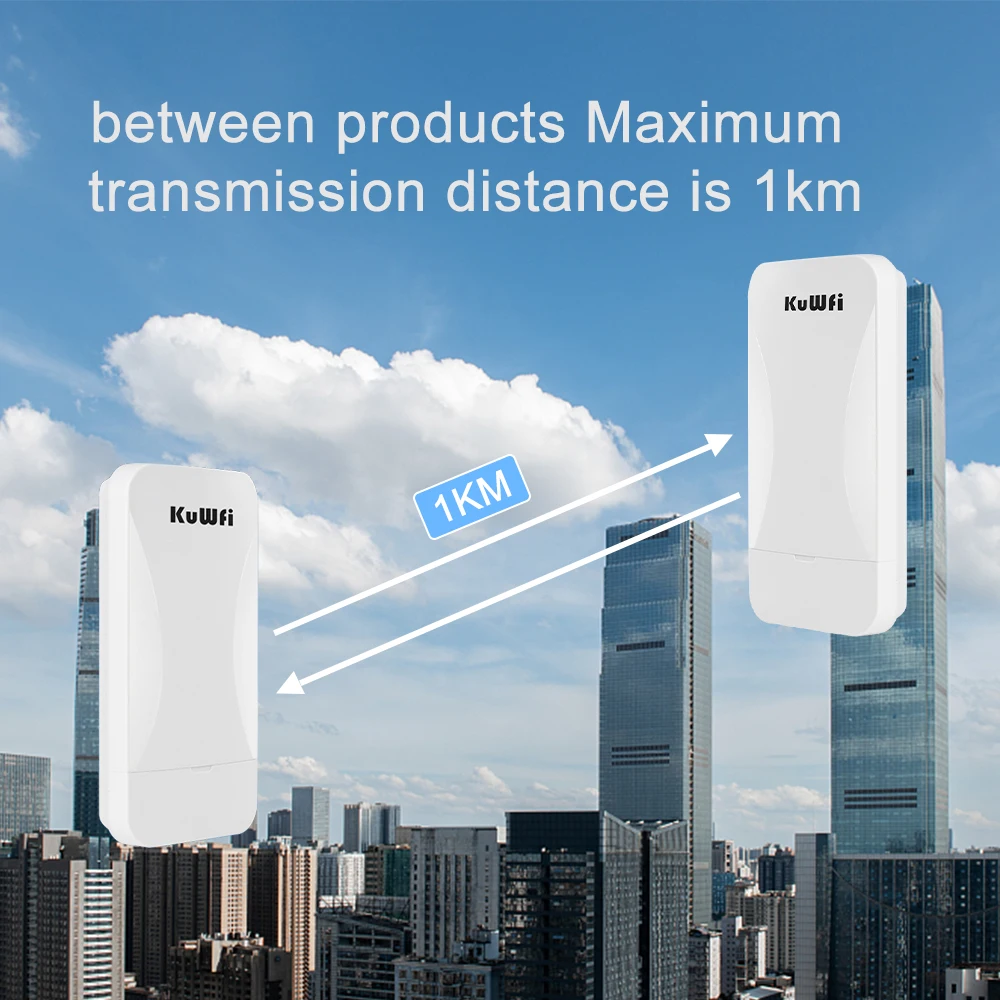

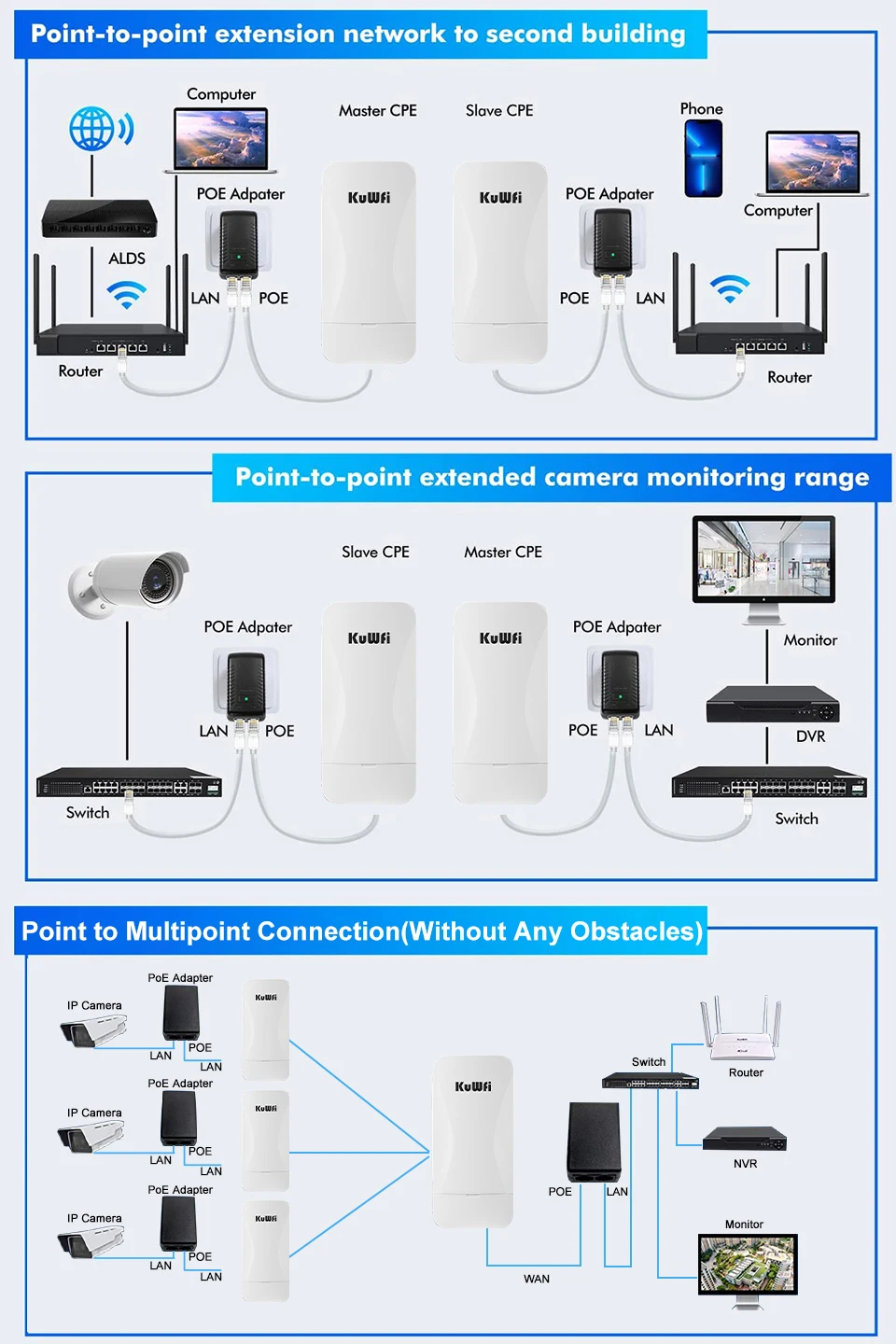

The Wi-Fi Bridge supports universal AP mode and Repeater mode, with a wider range of user application scenarios.When the two Bridges are used in pairs, the Wi-fi signal can be extended to further distances.Up to 1km(Test under optimal conditions)
3.Built in 8dBi antenna
Built-in 8dBi directional antenna, PTP/PTMP up to 1KM, very suitable for outdoor wi-fi camera monitoring.

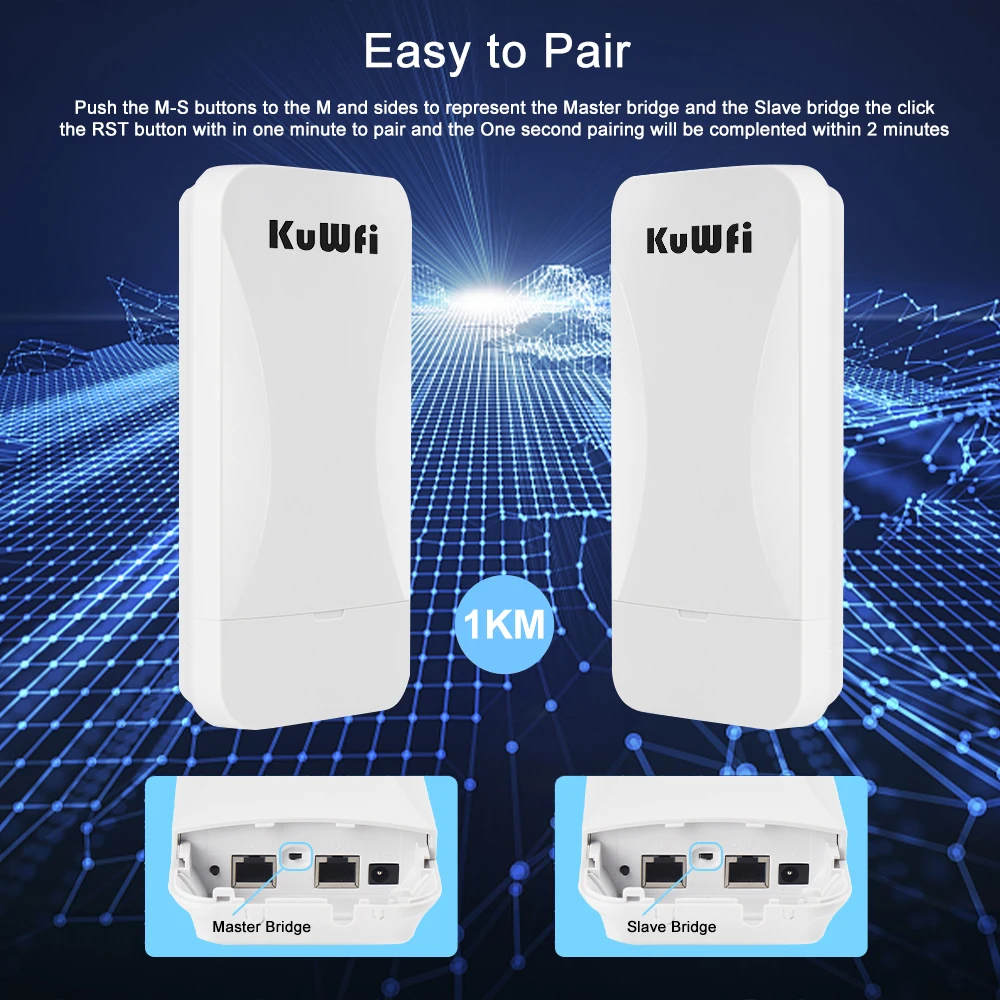

4.One-click fast pairing
Through the buttons on the bridge, the two Bridges can be pairing with one click, eliminating the tedious pairing process.Realize point-to-point connection.
5.Supports two modes of power supply
The CPE Bridge supports 24V PoE power supply and DC 12V power supply.The power supply mode of POE solves the problem that the network bridge can be placed remotely through the network cable.(Package does not include DC 12V power supply)

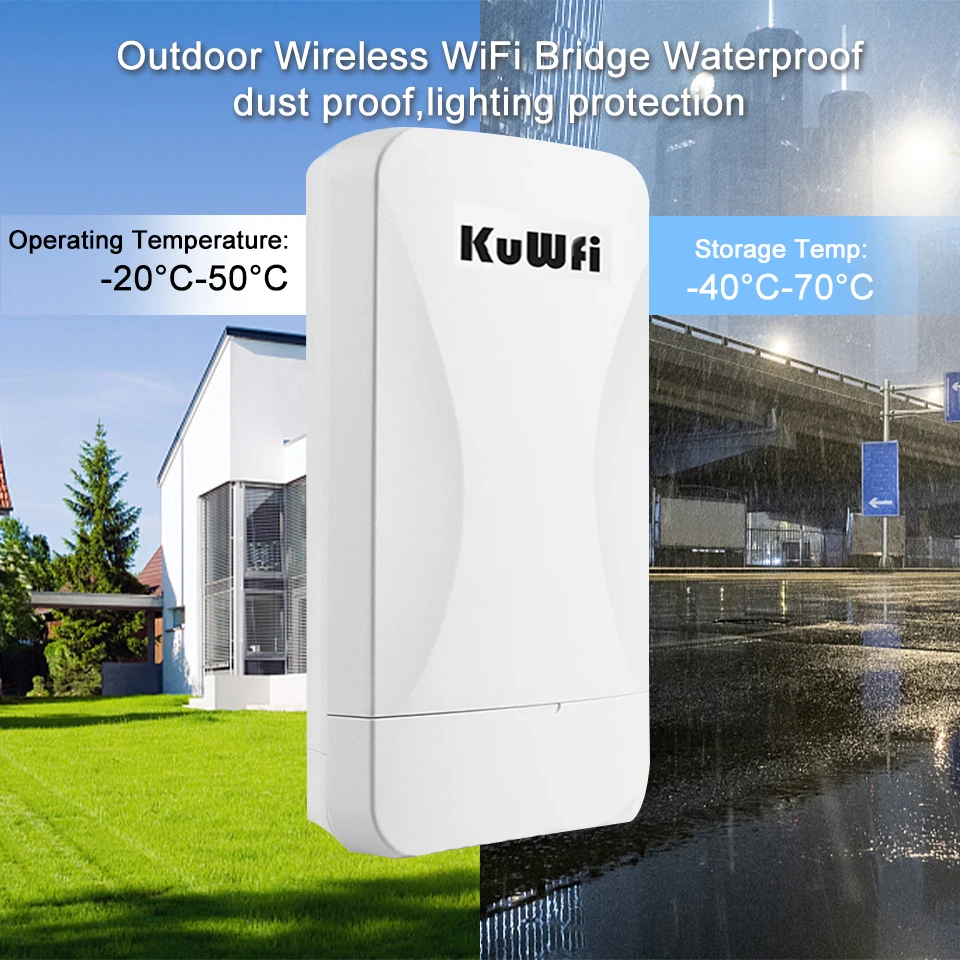

6.Outdoor Waterproof and Lightning Proof
Adopt outdoor ABS plastic shell, simple and elegant!Support professional lightning protection, IP65 water-proof, dust-proof, suit for multiple harsh environments.
Specifications
2.4G frequency: 2.412 GHz ~ 2.484GHz
2.4G WI-FI protocol: 802.11 b/g/n
Antenna: Built in 8dBi directional antenna
Wi-fi Max Rate: 300Mbps
WAN/POE Port: 10/100Mbps,Support 24V POE
LAN Port : 10/100Mbps
Size: 168mm*86mm*39mm
IP Grade: IP65 Outdoor Waterproof
Max Power Consumption: 5W
Working Temperature : -20°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity: 5 percent to 95 percent (Non-Condensing)

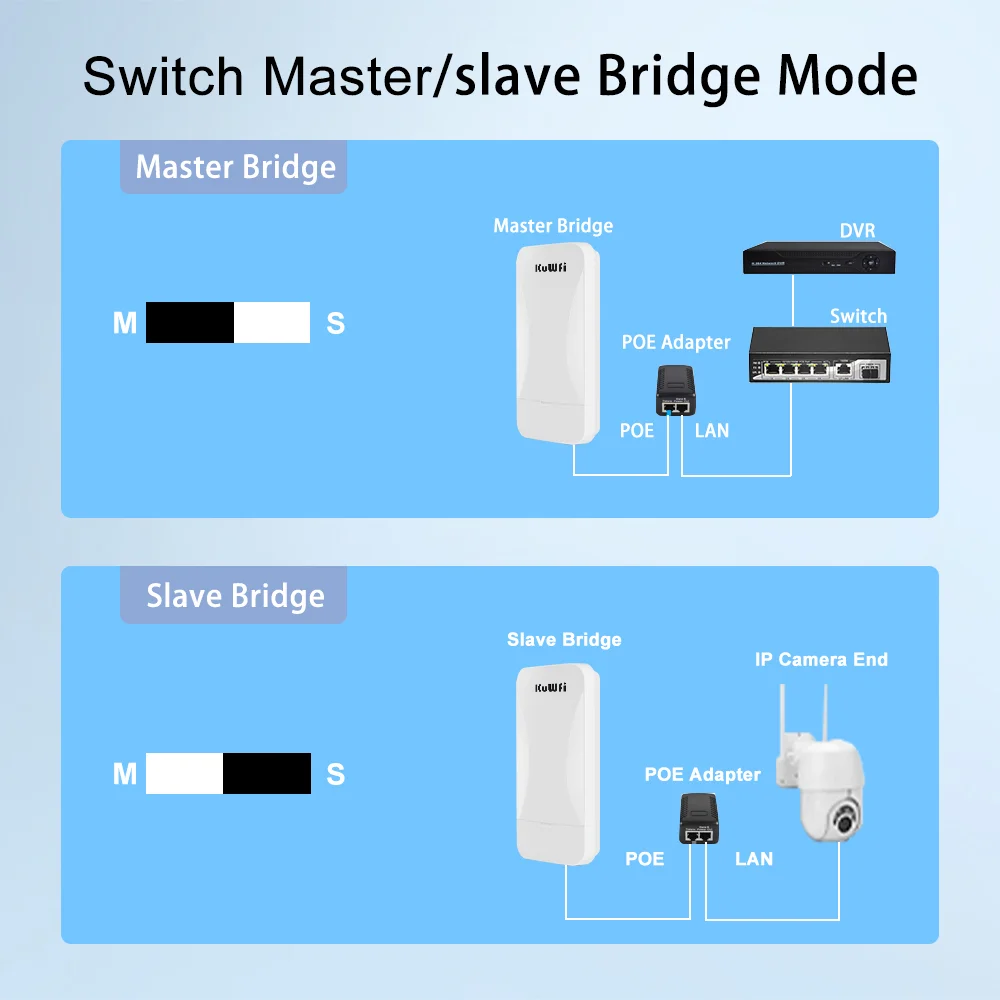

Switch button: Choose AP(‘M’)/ Repeater(‘S’) working mode
Reset Button: Long press for 10 seconds to restore the factory default configuration, and short press for 1 second to initiate pairing

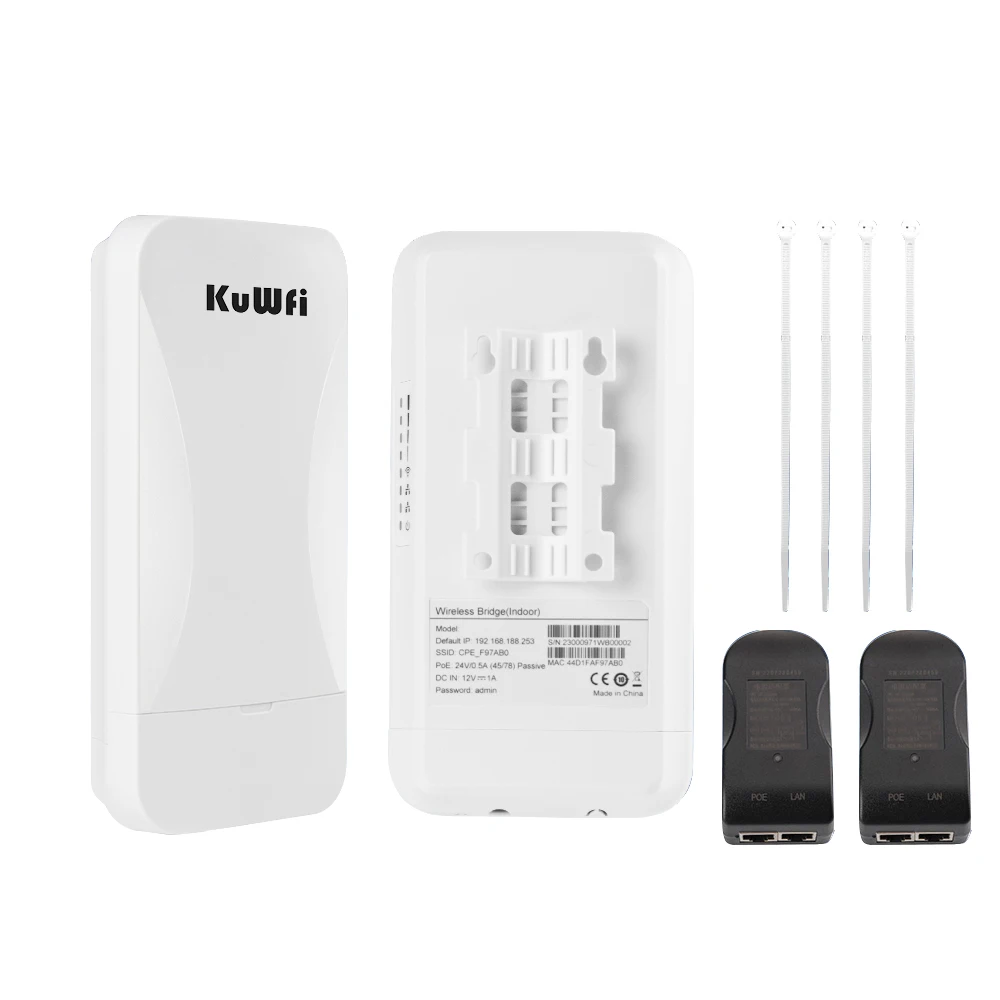

Package Listing:

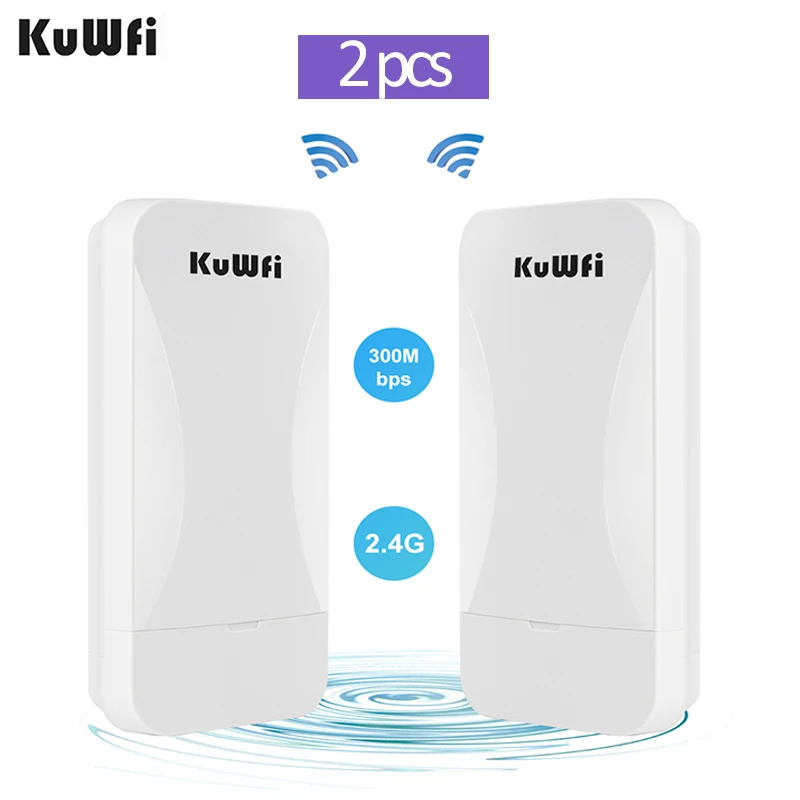

• 2x 2.4GHz CPE Bridge
• 2x POE Power Supply
• 2x Network Cable
• 4x Cable Tie
• 1x Specification
