of Mrcado Telecom Store, please have a check before order!

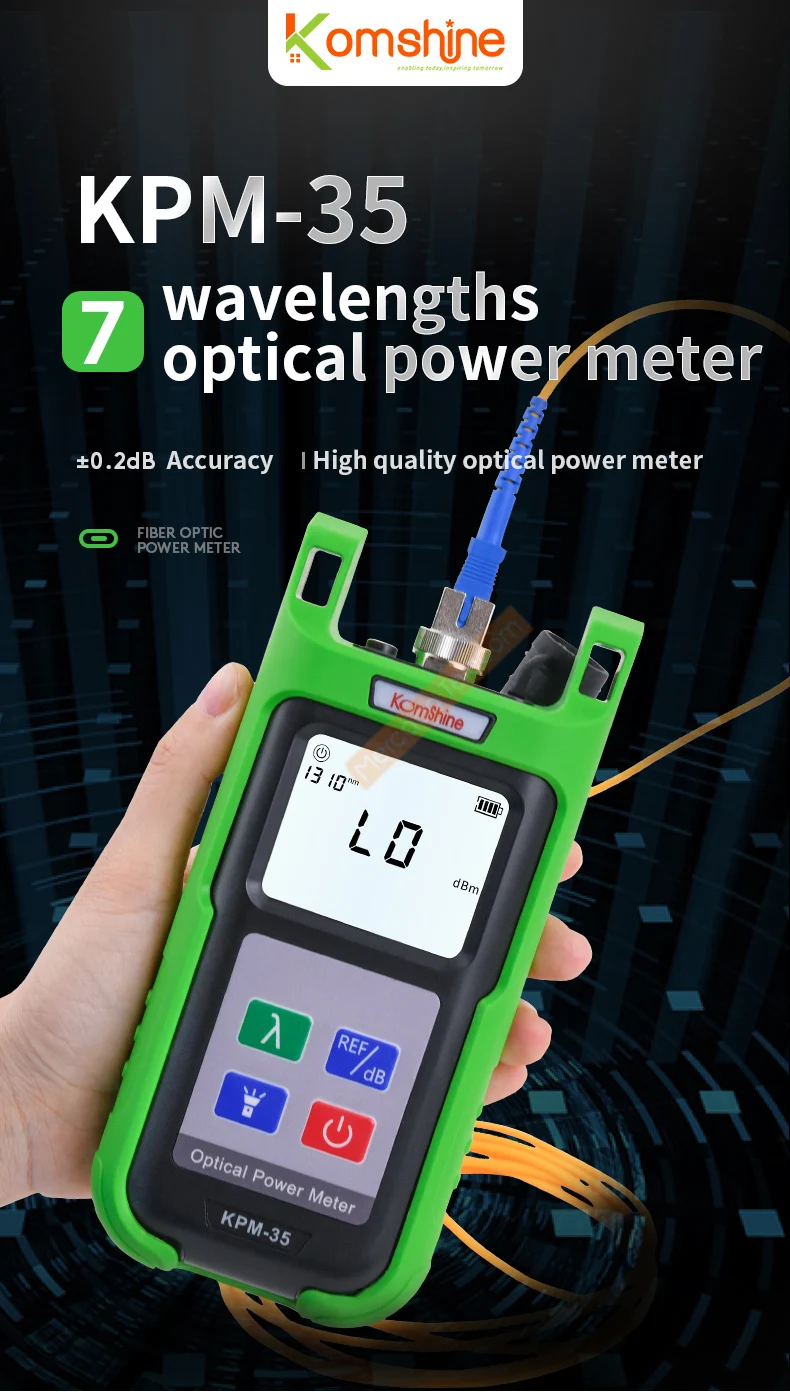

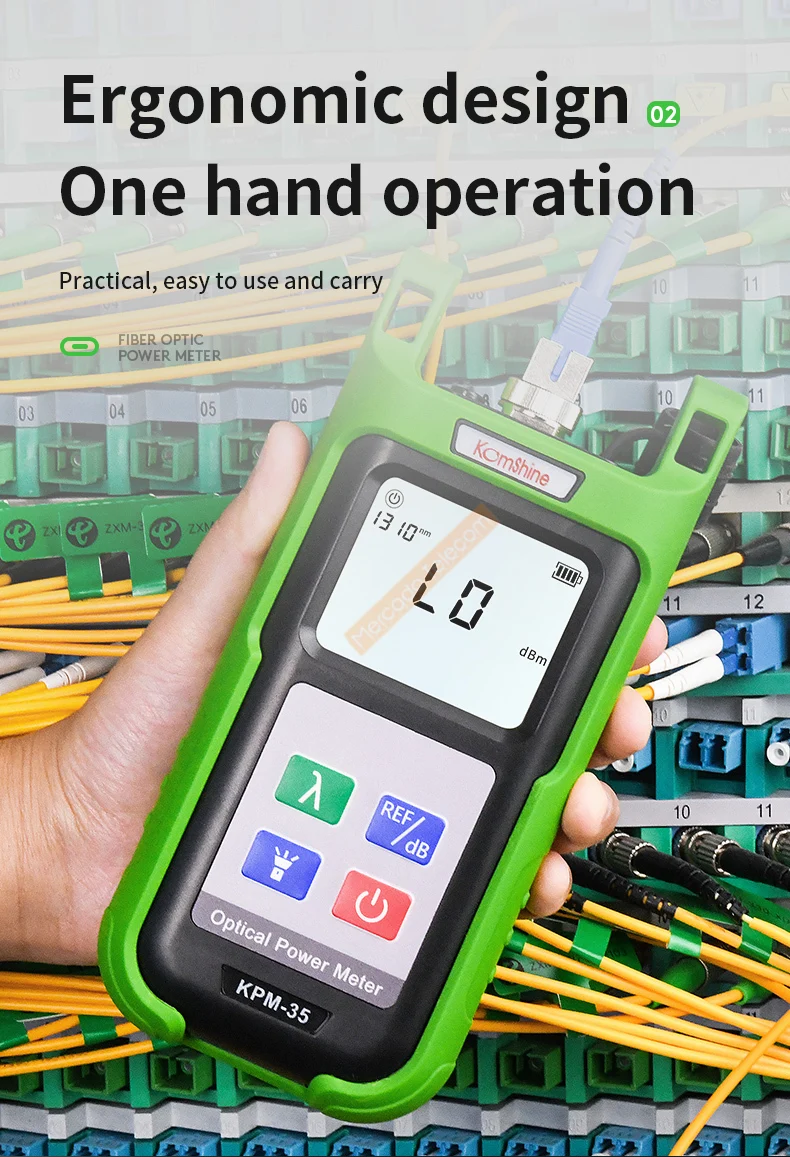

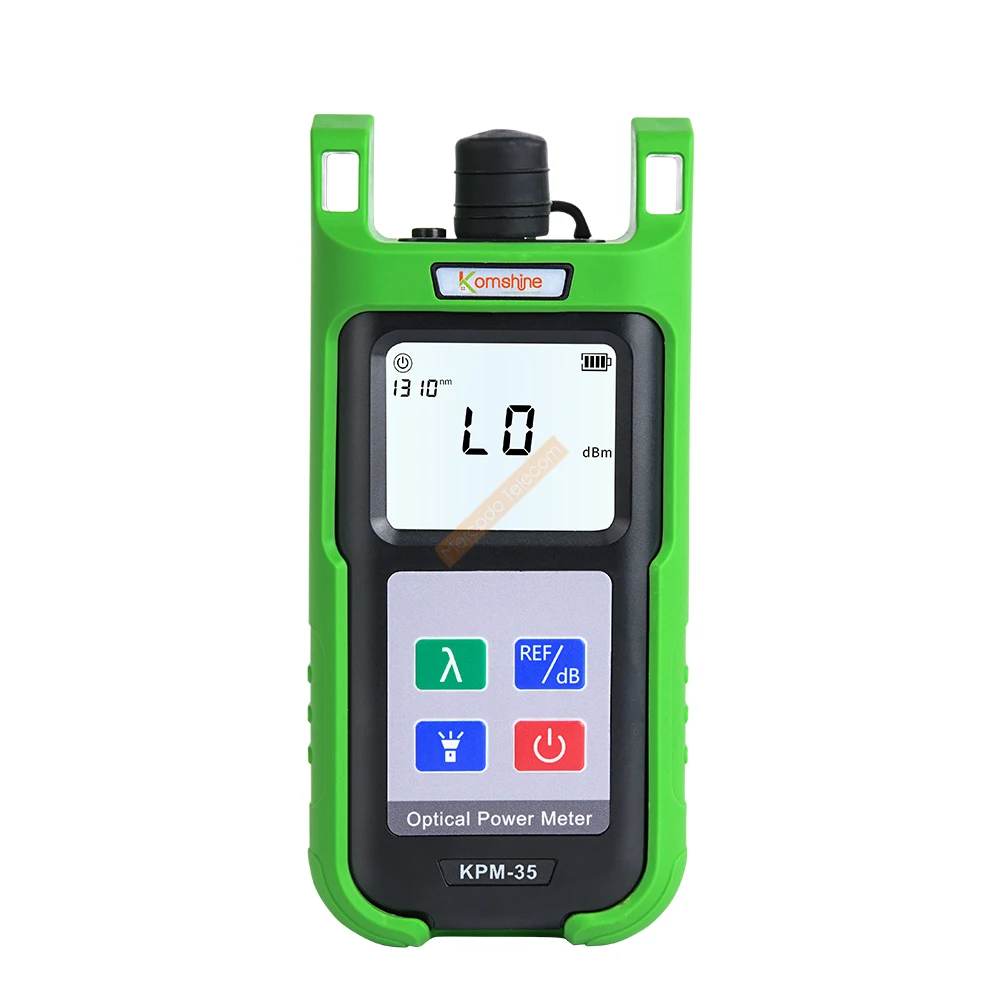

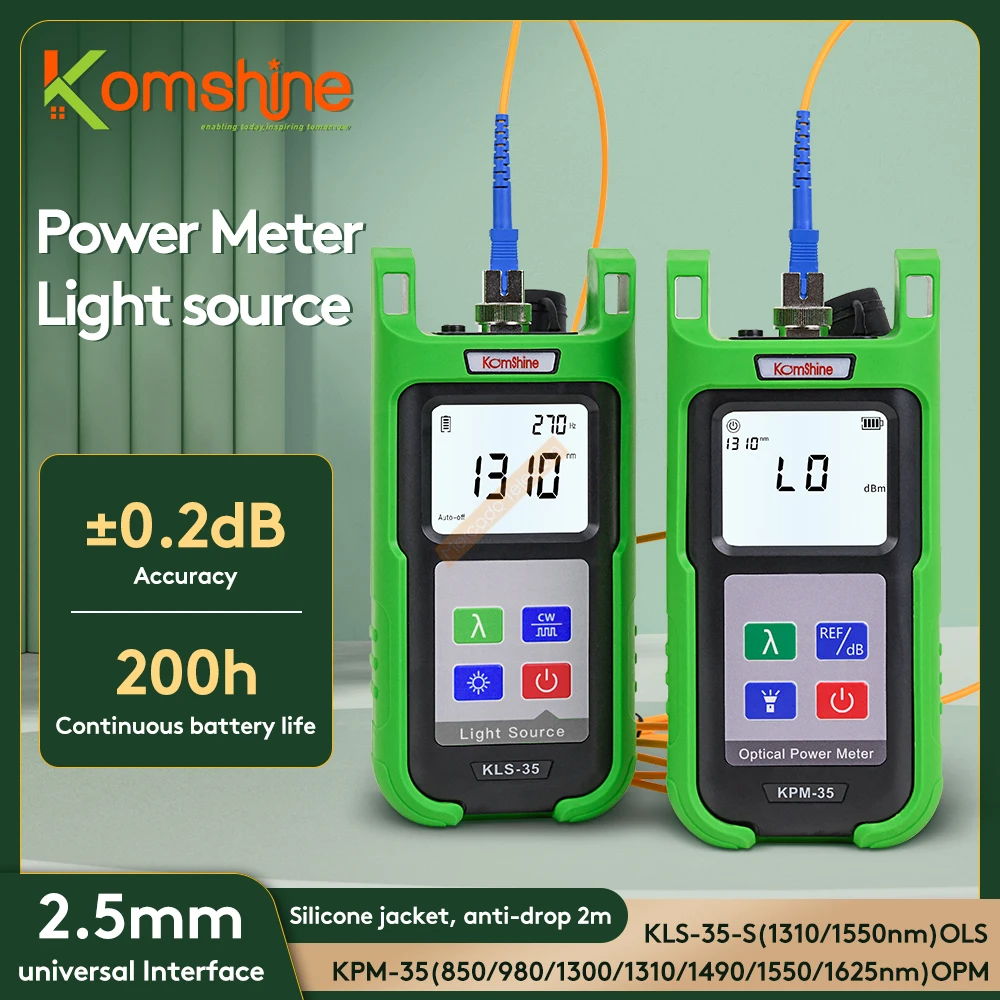

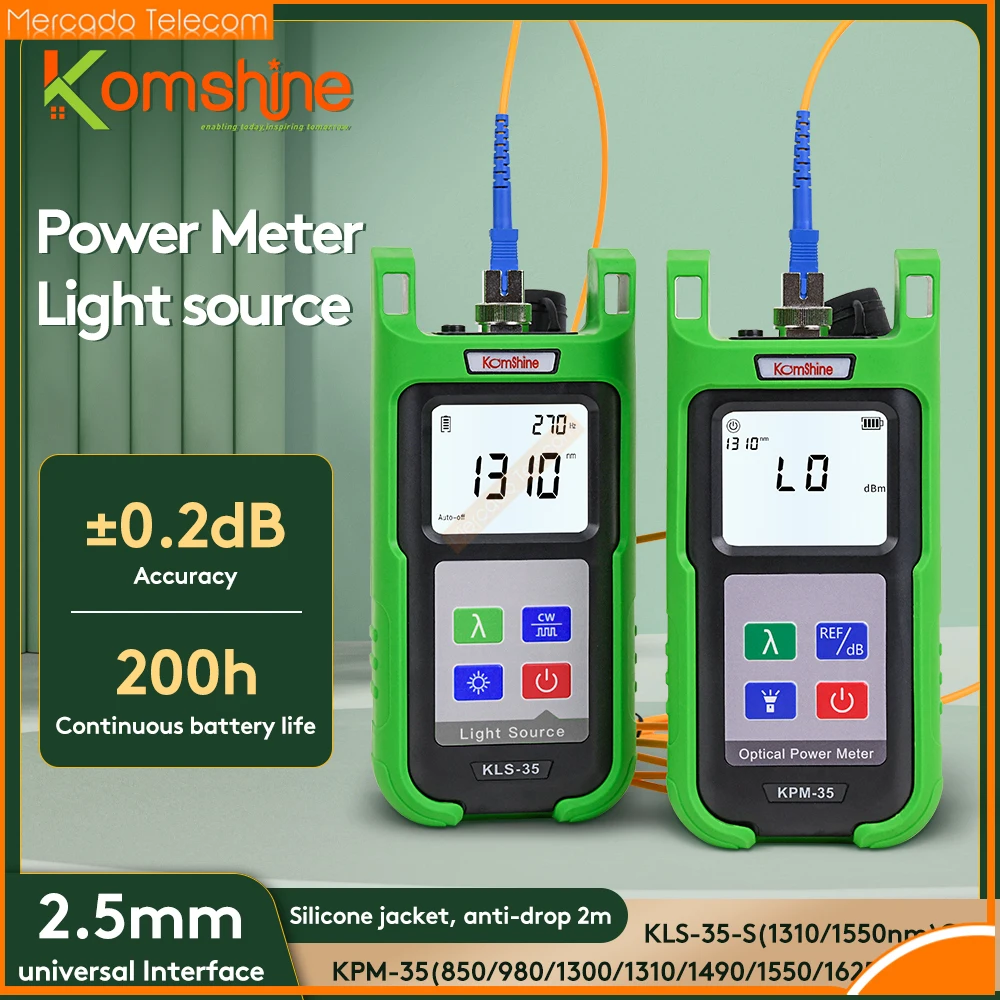

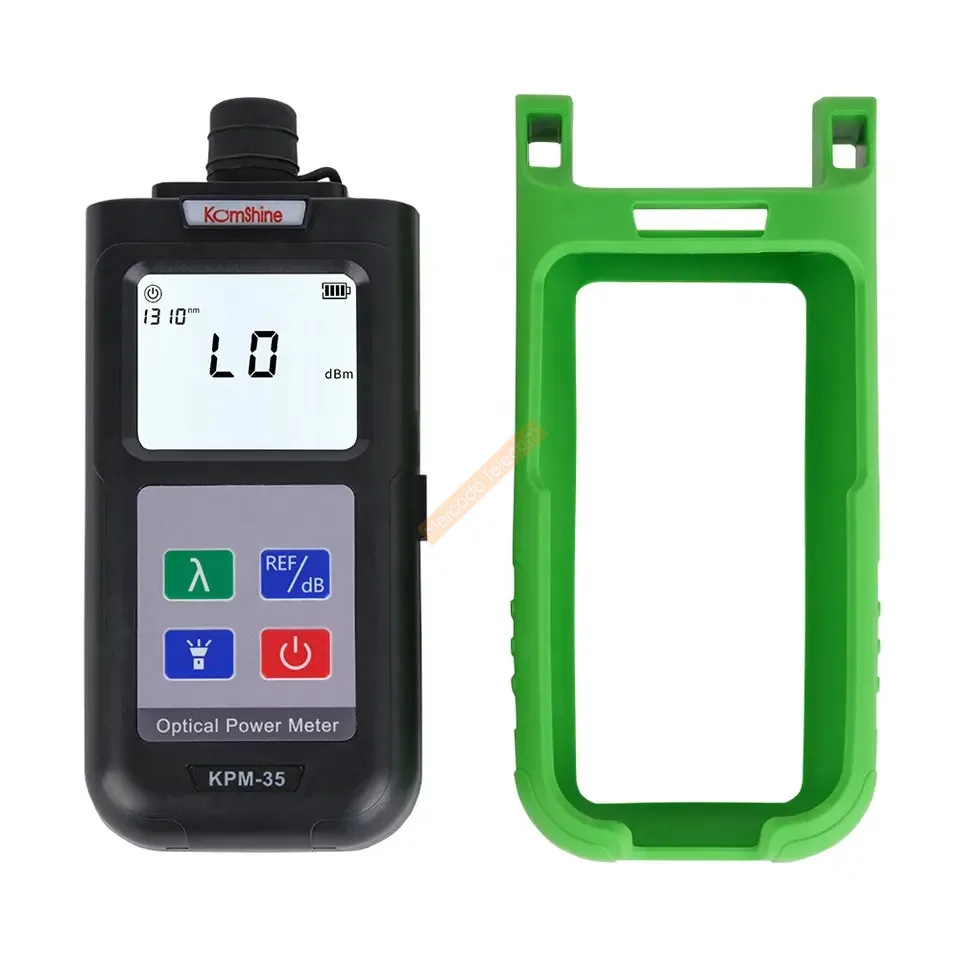

Optic fiber power meter KomShine KPM-35 FTTH fiber cable tester w/ Silicone case. Resolution (dB):0.01
Attention:Choose the correct model that you need.

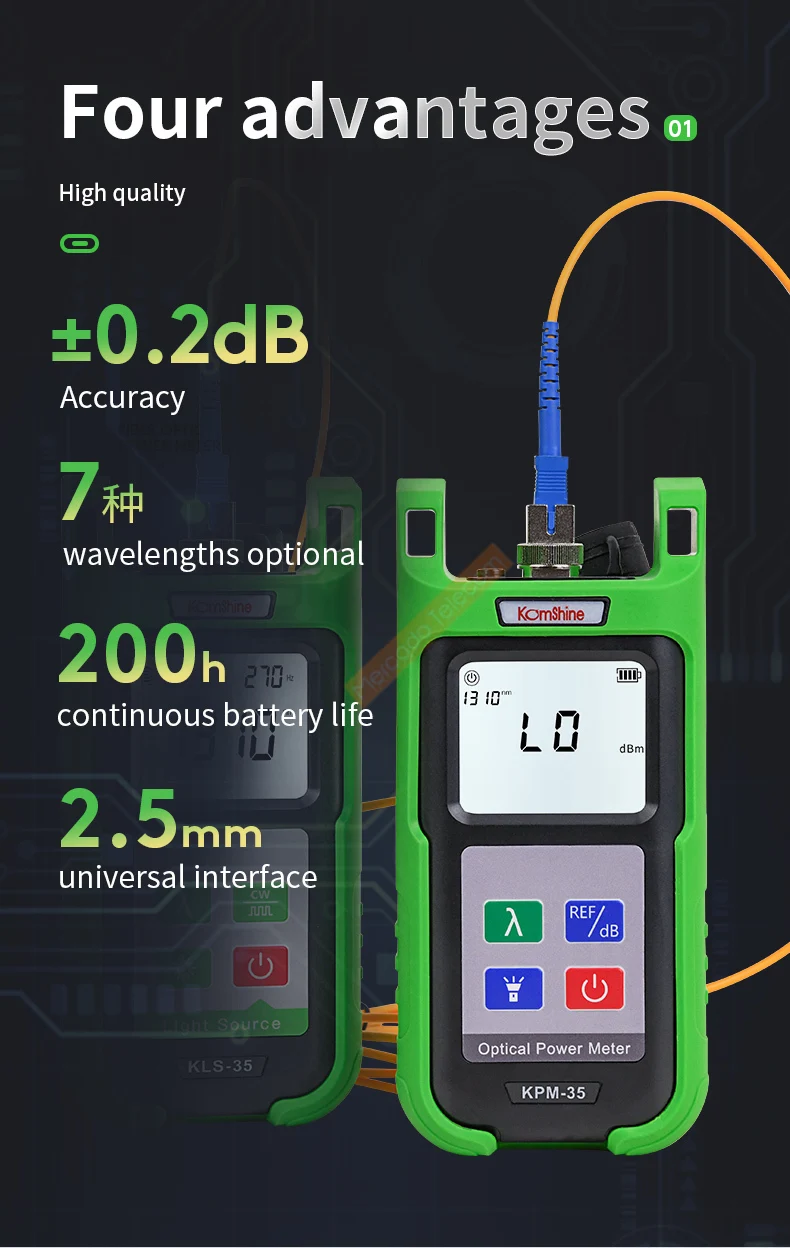

The KPM-35 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. What’s more, this convenient unit requires no offset nulling, and it offers power autonomy of 55 hours, for reliable, long-lasting performance in the field.
Specifications:
Wavelength(nm):800~1700nm
Measurement Range:-70+3dBm / -50~+26dBm
Optical Connector:SC 2.5mm universal (1.25mm for LC is Optional)
Power Supply:Alkaline Battery(3 AA 1.5V batteries)
Display Units:dB / dBm / w
Resolution (dB):0.01
Dimensions/Weight:160x85x45mm / 220g
Standard Accessories:
User guide——1PC
Certificate of Qualified—1PC
SC Connectors—1PC
Guarantee card—1PC
Soft carry bag—1PC

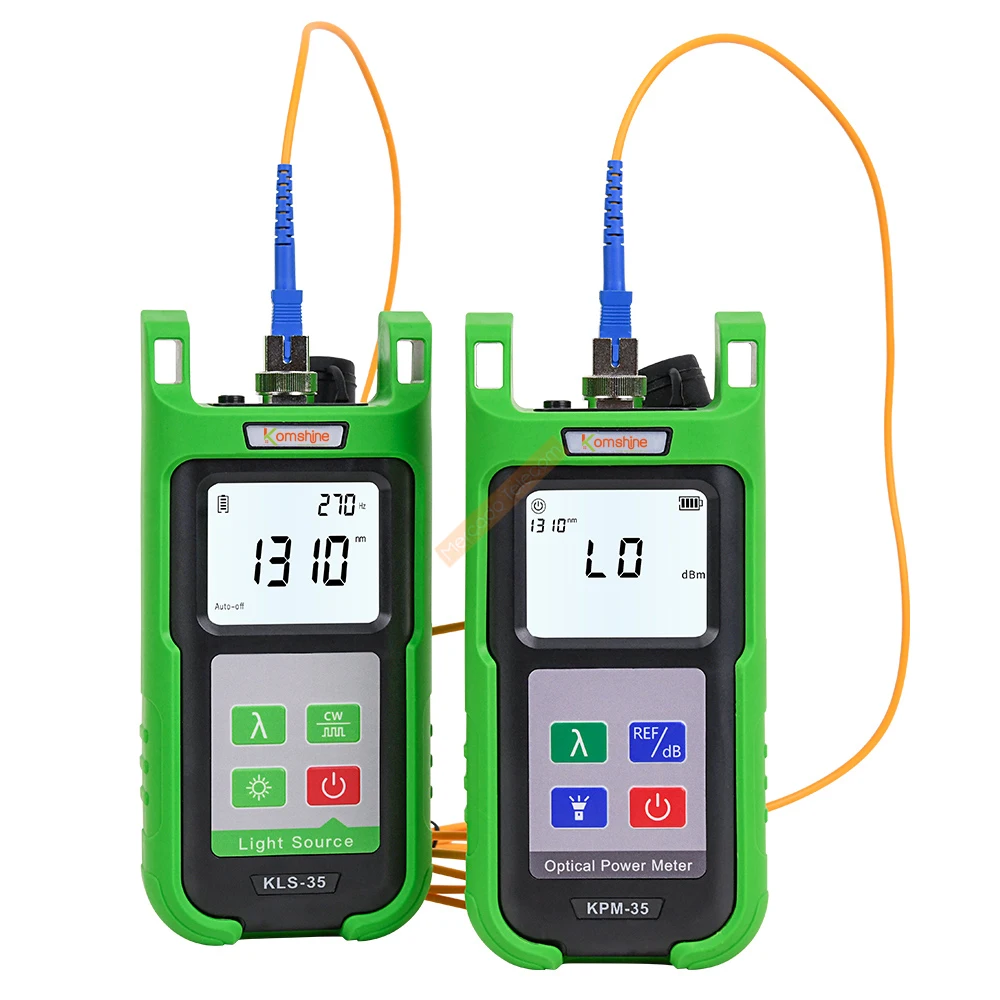

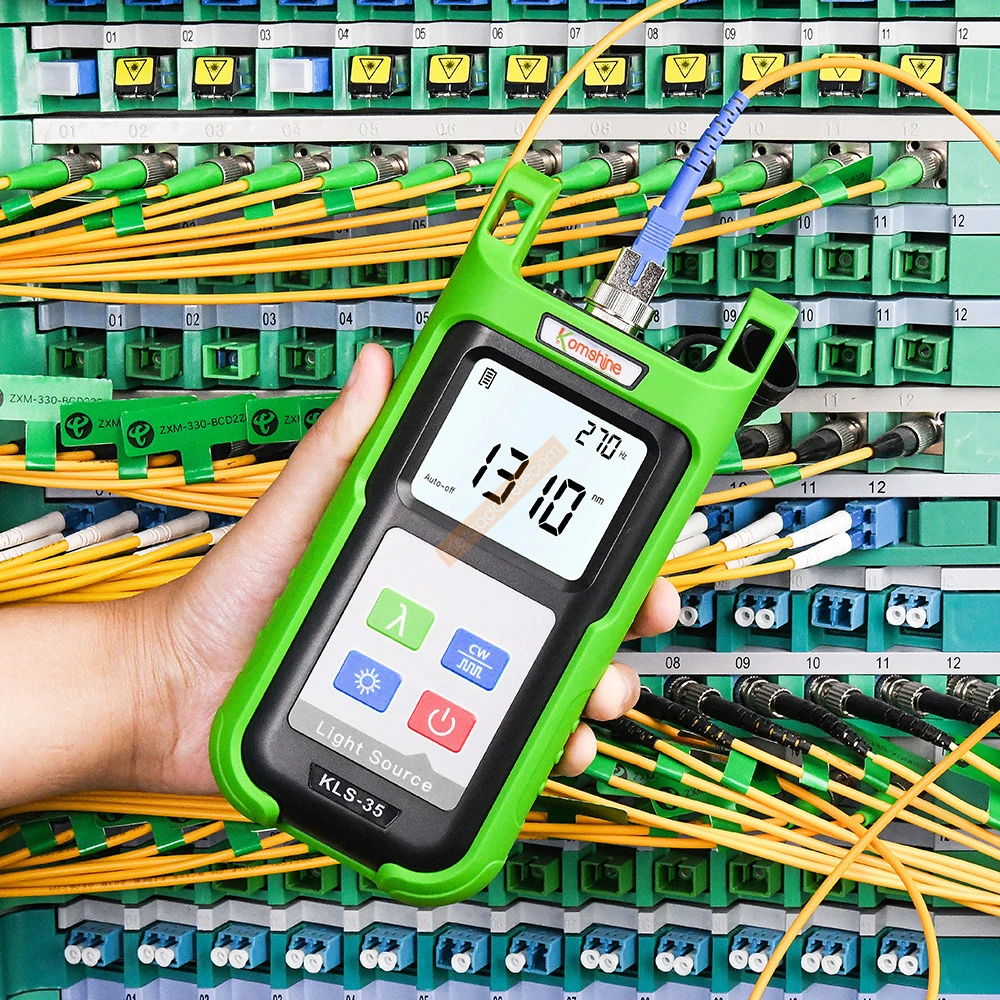

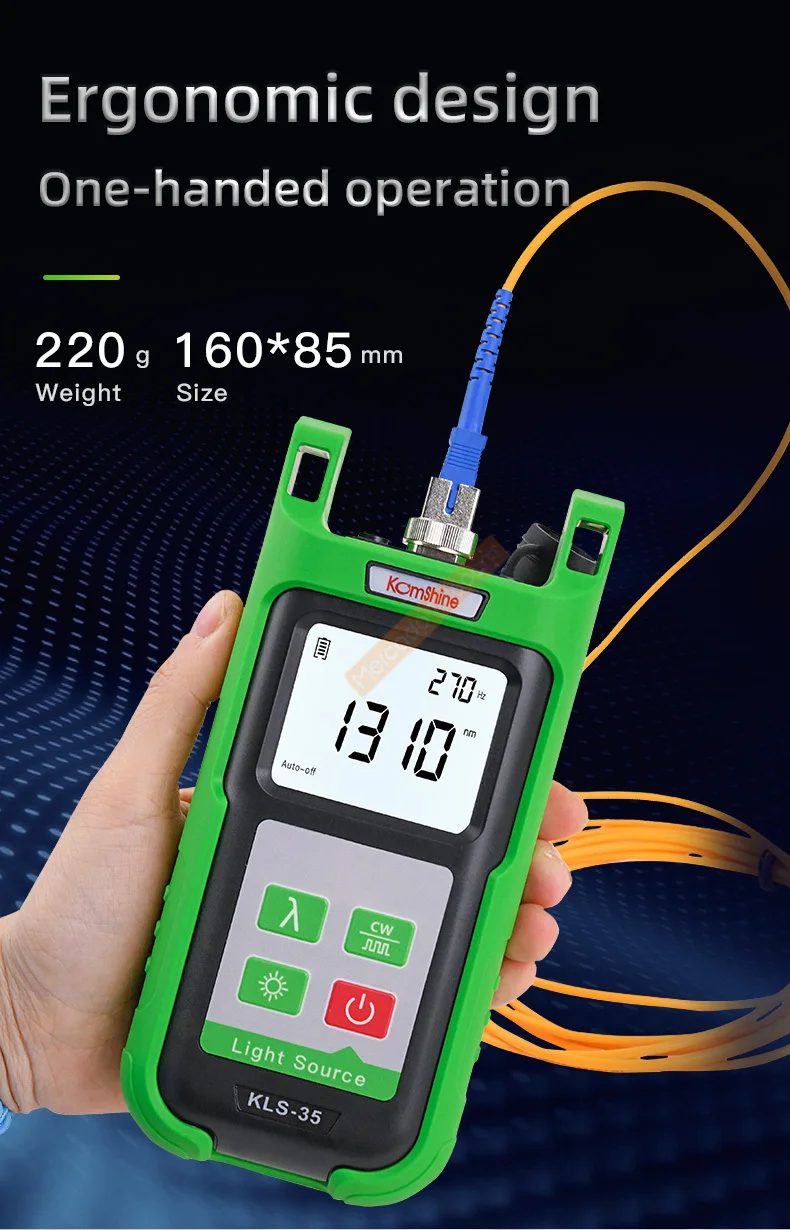

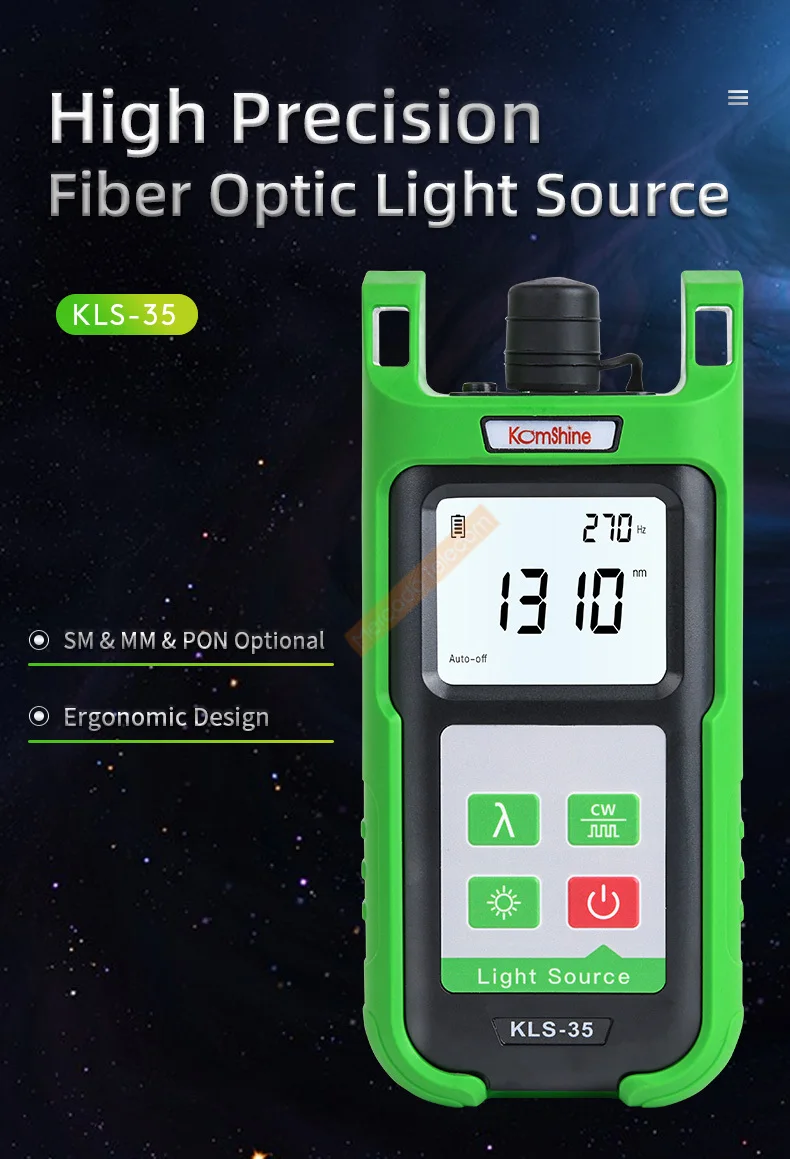

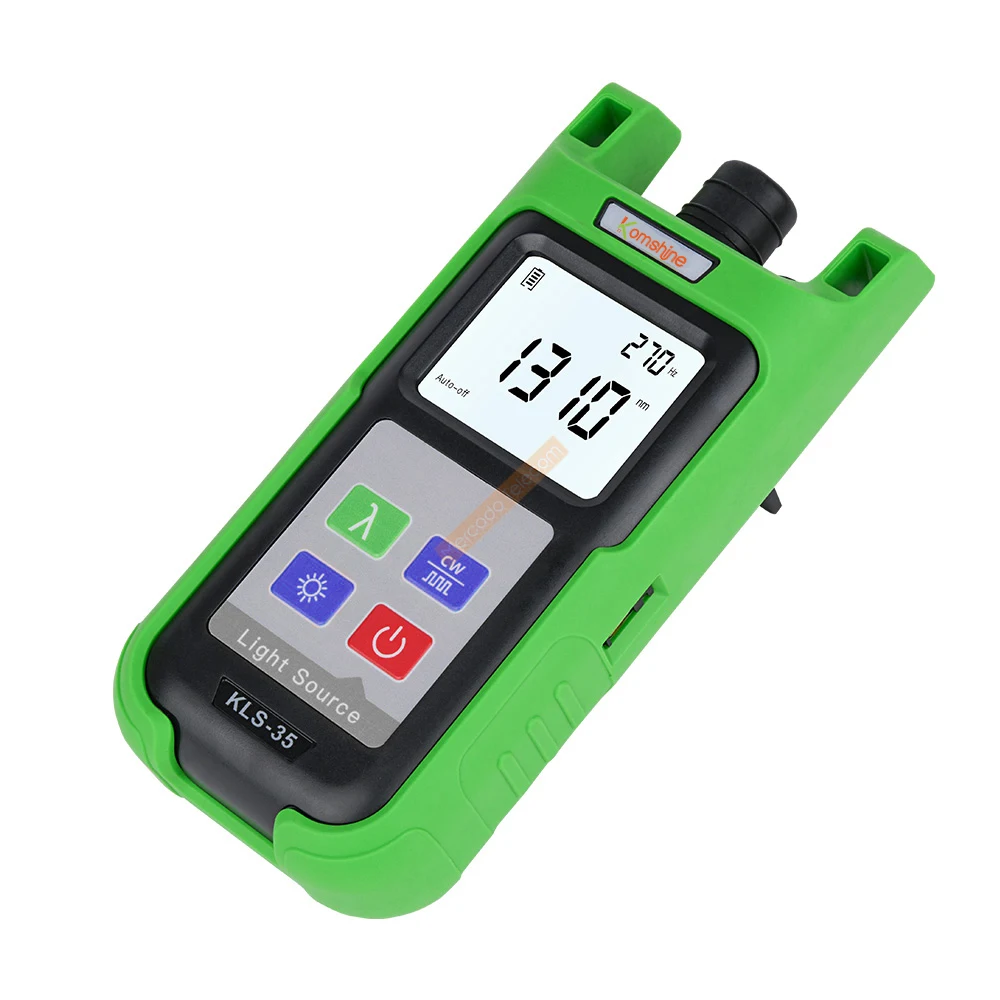

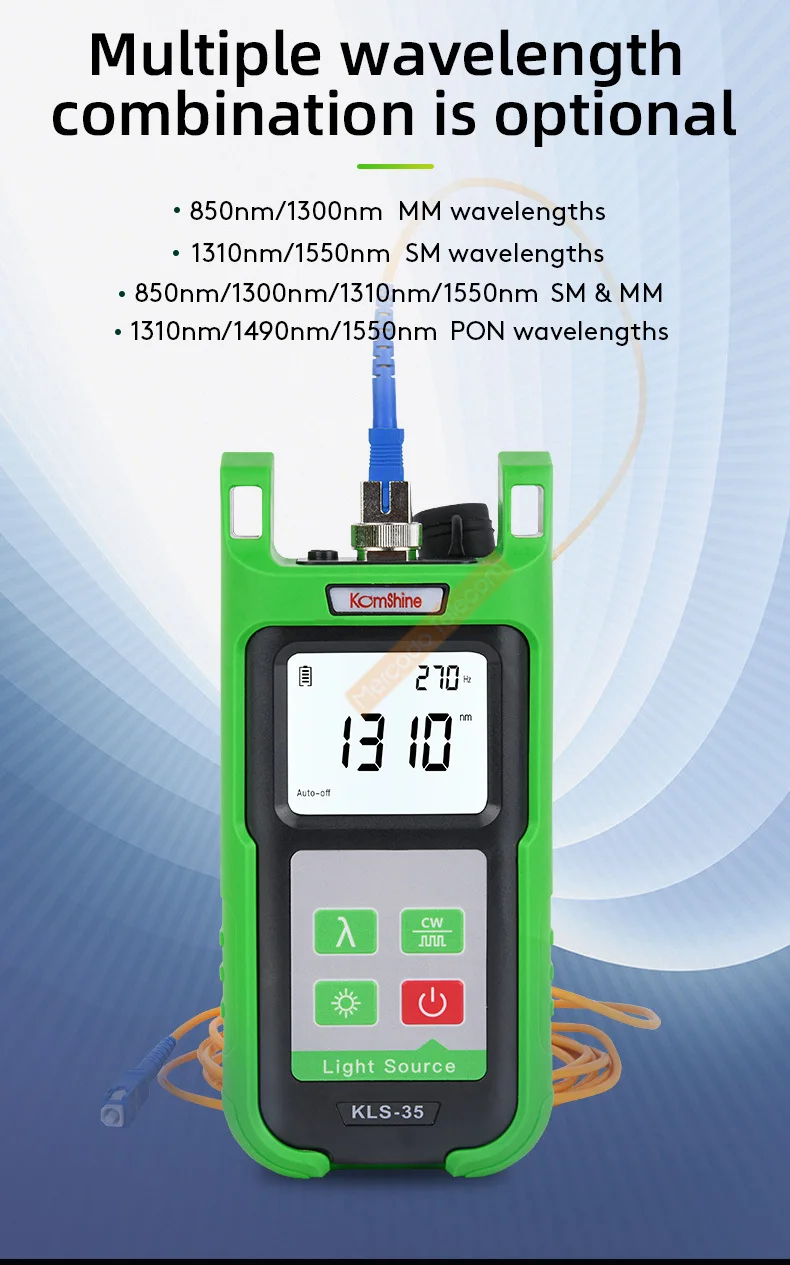

The KomShine KLS-35 Light Source provides excellent stability and high measurement accuracy for up to two single mode wavelengths or two multimode wavelengths. It is the perfect complement to the KPM-35 Power Meter when it comes to measuring attenuation on fiber-optic links
Specifications:
Wavelength(nm):1310+1550nm
Typical Output Power:-5dB
Optical Connector:FC+SC+ 2.5mm universal (1.25mm for LC is Optional)
Power Supply:Alkaline Battery(3 AA 1.5V batteries)
Output Stability:±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies:CW,270Hz,1KHz,2KHz
Dimensions / Weight:160x85x45mm / 220g
Standard Accessories:User guide——1PC
Certificate of Qualified—1PC
FC Connectors—1PC
SC Connectors—1PC
Guarantee card—1PC
Soft carry bag—1PC
