Kit de segundo contador, placa de segunda generación de señal, función de generador de señal, contador decimal, Kit de entrenamiento de enseñanza, electrónica DIY
0,49 € 0,78 €
Con la garantía de
Selección del modelo
Color
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.
Product Parameters:Supply voltage: 5VProduct size: 5.5*3.7CM

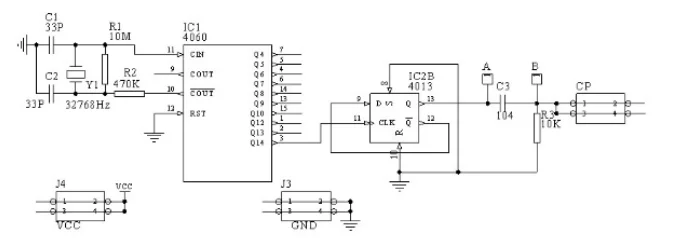

The signal generation part of the second counter is composed of the integrated circuit CD4060. The CD4060 contains an oscillator. The oscillator can be connected to an RC circuit or a crystal oscillator. This circuit is connected to a 32768Hz crystal oscillator. The crystal oscillator can be used to obtain a very stable oscillation signal. The 14-stage frequency divider circuit inside the CD4060 outputs different frequency signals. After 14-stage frequency division, the output frequency is 2Hz square wave signal from Q14 (pin 3). The integrated circuit CD4013 forms a 2-frequency divider circuit. After dividing the output 2Hz signal, a 1Hz second signal is finally obtained. A 1Hz square wave signal can be obtained at test point A, and a 1Hz sawtooth signal at test point.
The signal generation part of the second counter is composed of the integrated circuit CD4060. The CD4060 contains an oscillator. The oscillator can be connected to an RC circuit or a crystal oscillator. This circuit is connected to a 32768Hz crystal oscillator. The crystal oscillator can be used to obtain a very stable oscillation signal. The 14-stage frequency divider circuit inside the CD4060 outputs different frequency signals. After 14-stage frequency division, the output frequency is 2Hz square wave signal from Q14 (pin 3). The integrated circuit CD4013 forms a 2-frequency divider circuit. After dividing the output 2Hz signal, a 1Hz second signal is finally obtained. A 1Hz square wave signal can be obtained at test point A, and a 1Hz sawtooth signal at test point.Comprar Kit de segundo contador, placa de segunda generación de señal, función de generador de señal, contador decimal, Kit de entrenamiento de enseñanza, electrónica DIY
