Kit extensor de fibra óptica Compatible con HDMI, interruptor sobre Compatible con HDMI, receptor transmisor de vídeo de fibra óptica

HDMI-Compatible Extender Fiber Optic Kit HDMI-Compatible Over Switch HDMI-Compatible to Fiber Optic Video Transmitter Receiver

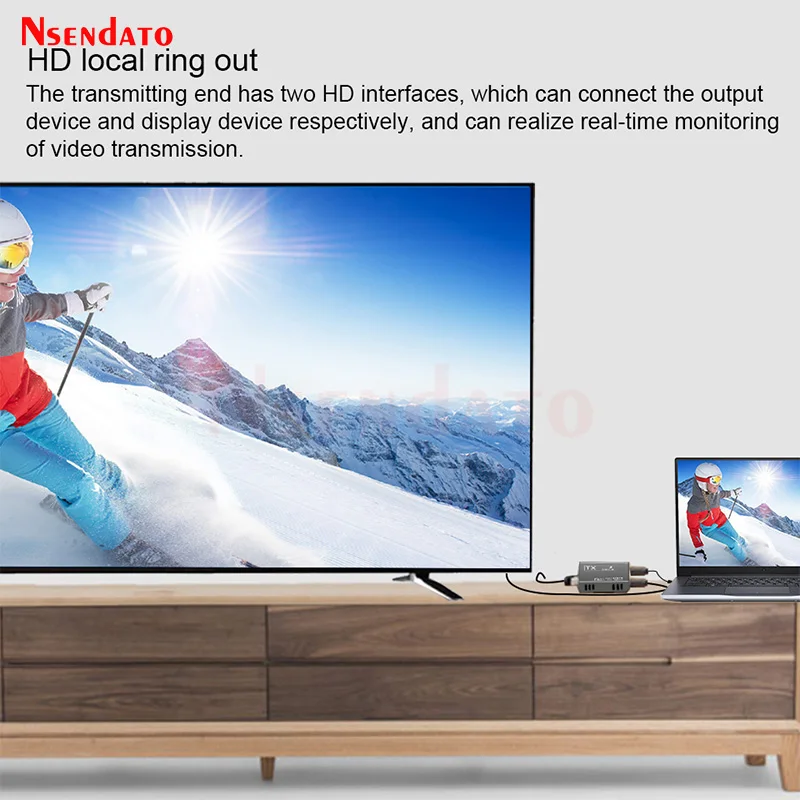

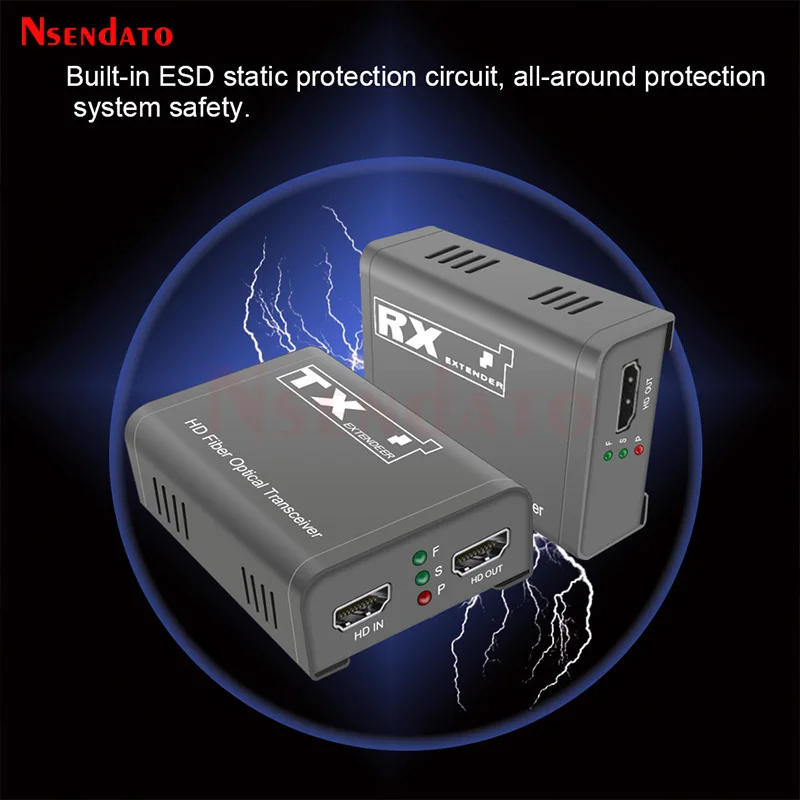

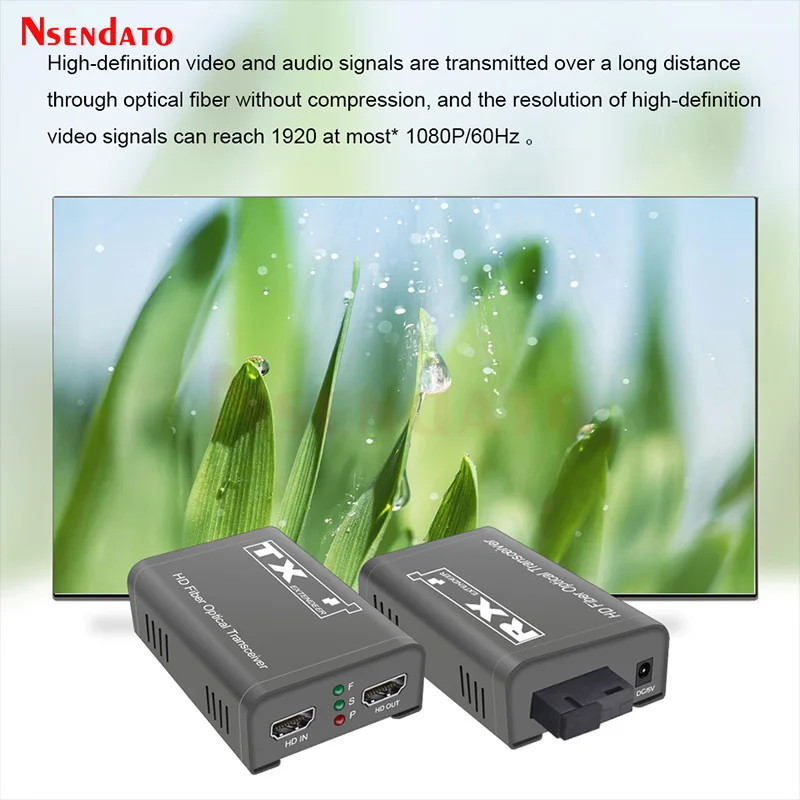

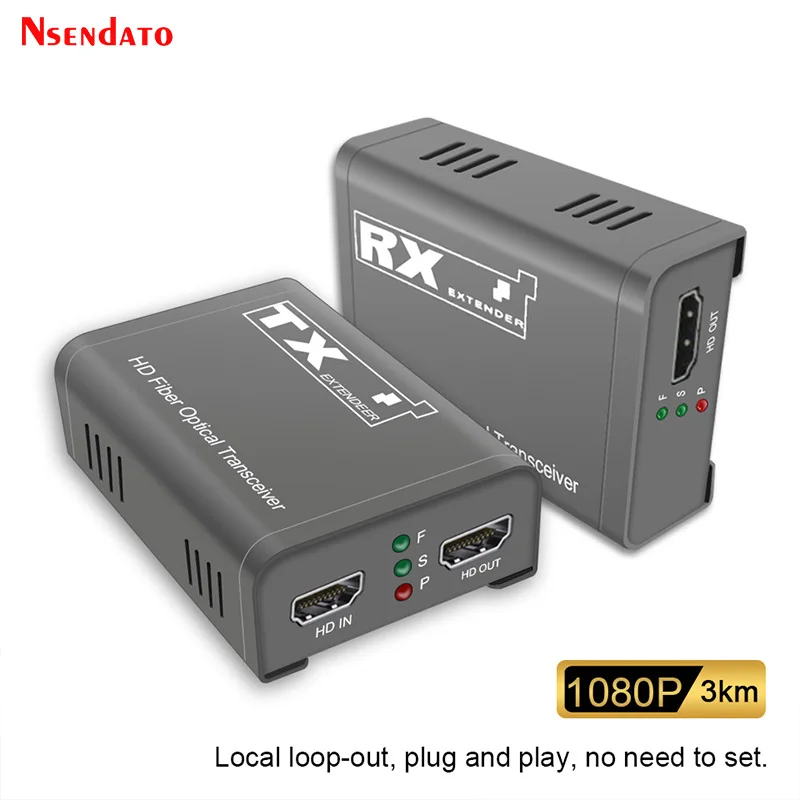

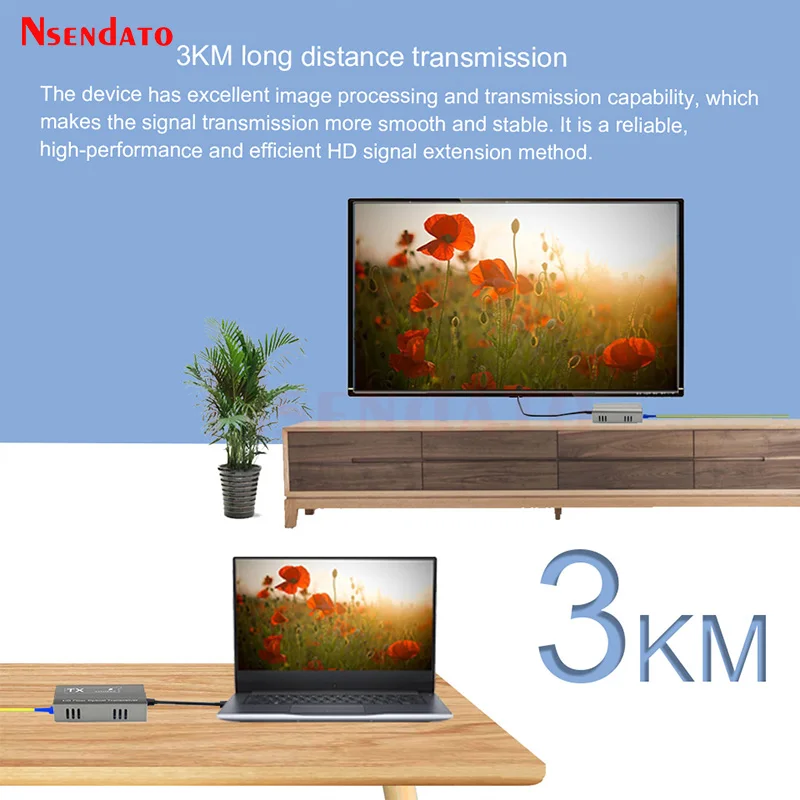

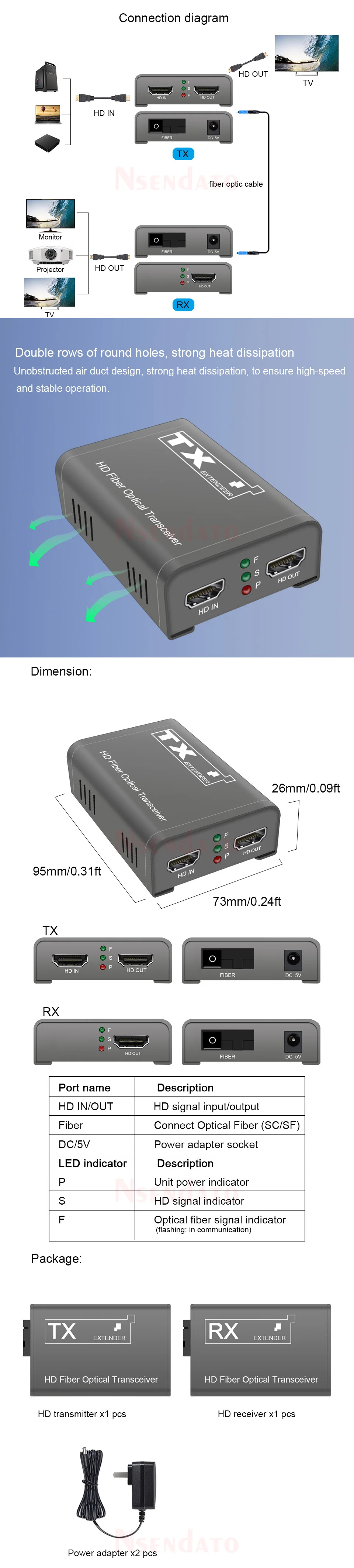

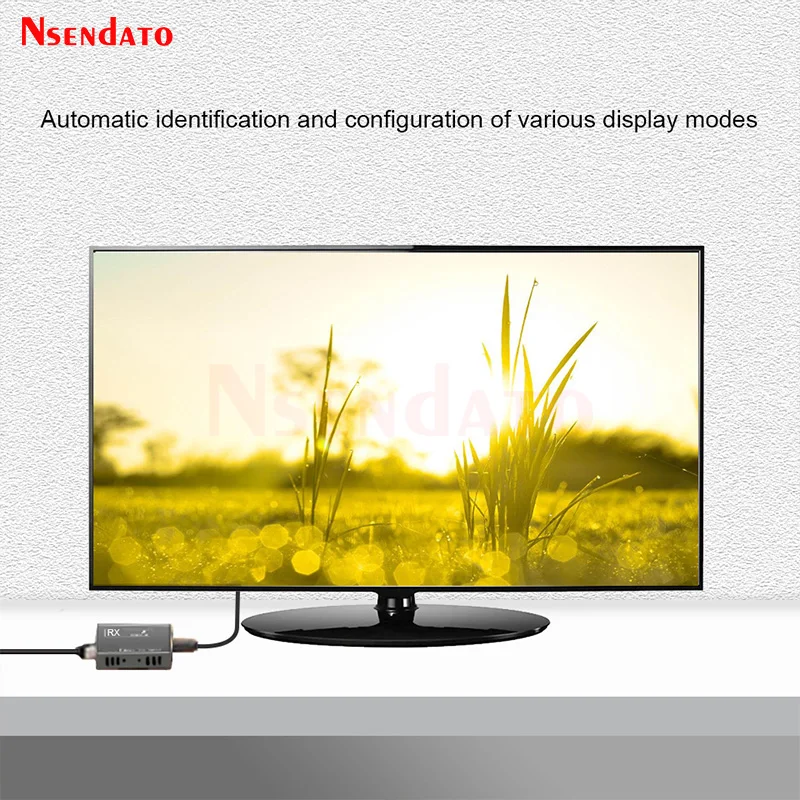

Introduction The extender provides extension of HDMI-Compatible signals long distances over a single Fiber, it supports loop output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. Features: Transmits HDMI-compatible video and audio signals up to 3-20KM over a single Fiber(default 3KM) Support video resolution up to 1920×1080P@60Hz, 1600×1200@60Hz3 Compliance with HDMI-compatible 1.3 and HDCP-compatible 1.2 standard High compatibility, can auto-match source and display device Built-in automatic adjustment system, make the image smooth, clear and stable Built-in ESD protection system Simple to install, plug and play Specification: Standards:HDMI-compatible 1.3; HDCP-compatible 1.2 Maximum pixel clock:165MHz Maximum data rate:6.75Gbps Resolution:640×480@60Hz;800×600@60Hz;1024×768@60Hz;1280×720@50Hz;1280×720@60Hz;1280×768@60Hz;1280×800@60Hz;1280×960@60Hz;1280×1024@60Hz;1360×768@60Hz;1400×1050@60Hz;1440×900@60Hz;1600×1200@60Hz;1680×1050 @60Hz;1920×1200@60Hz;1920×1080i@60Hz;1920×1080@50Hz;1920×1080@60Hz Connector:HDMI-compatible-A Impedance:100Ω Interface:SC/FC(default SC) Fiber Model:Single mode wavelength:Single mode 1310nm；1550nm bandwidth:6.25Gbps Transmission distance:Default standard 3KM, MAX up to 20KM Installation Process: 1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver 2.Connect an HDMI-compatible cable between the HDMI-comptible input port of transmitter and the HDMI-compatible output port of the video source 3.Connect the HDMI-compatible output port of receiver to the display device with HDMI-compatible cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber 4.Power on Transmitter and Receiver Package transmitter receiver Power adapter User manual
