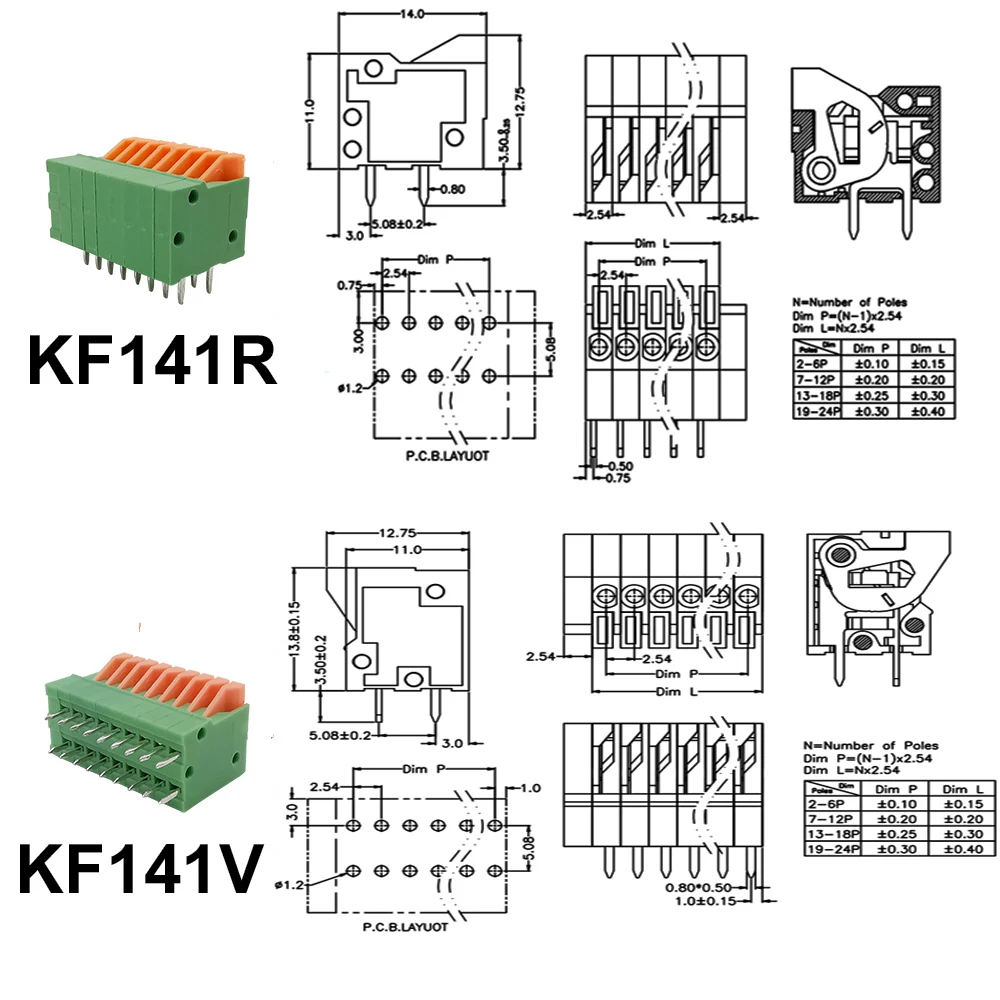

KF141V KF141R 2.54mm Pitch Push-in Spring Screwless Terminal Block Straight/Bent Foot 1/2/3/4/5/6/7/8/9/10Pin PCB Connector
Product Description:
Specification:
Pitch: 2.54mm
Type:KF141R KF141V

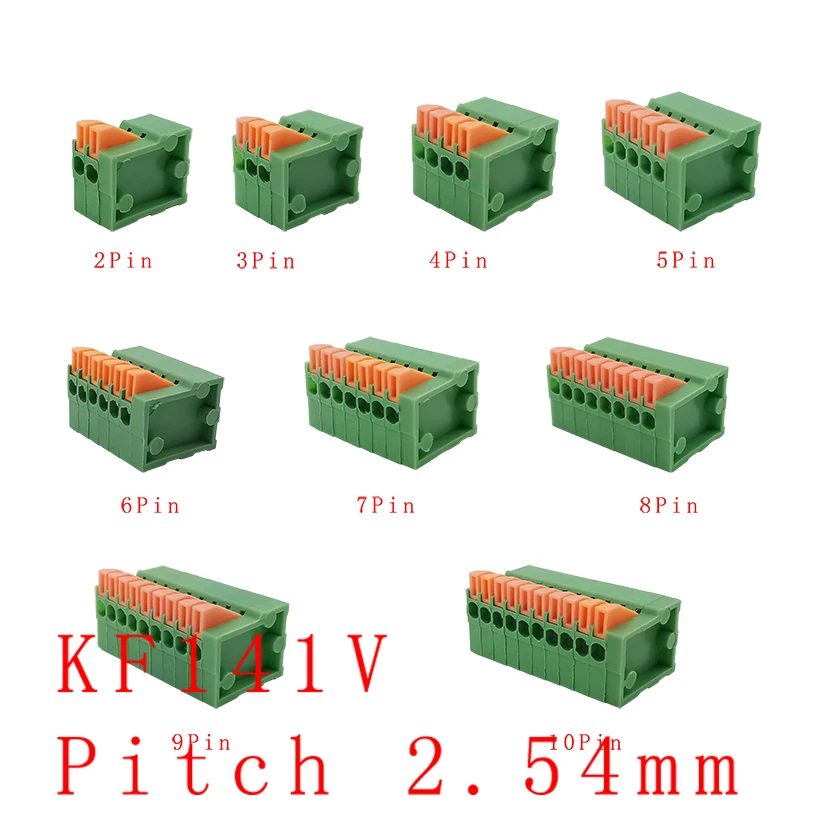

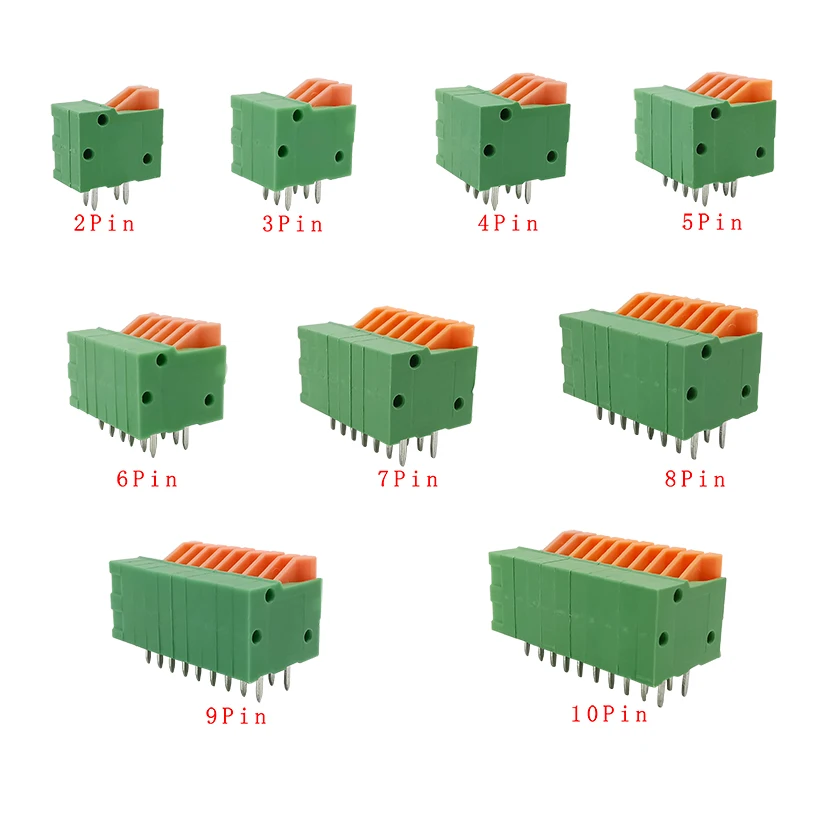

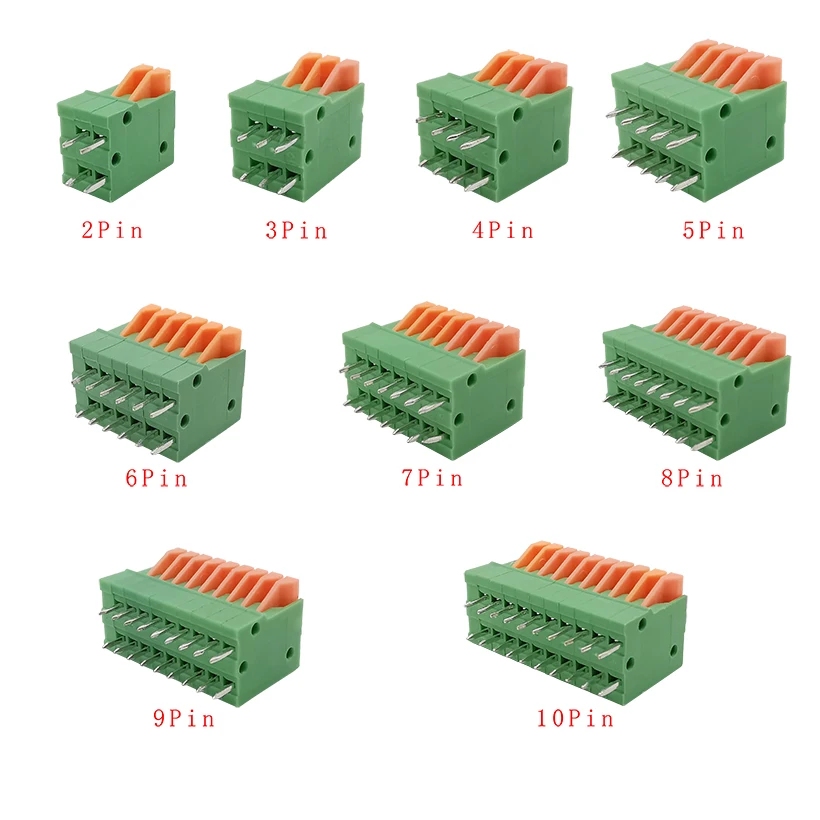

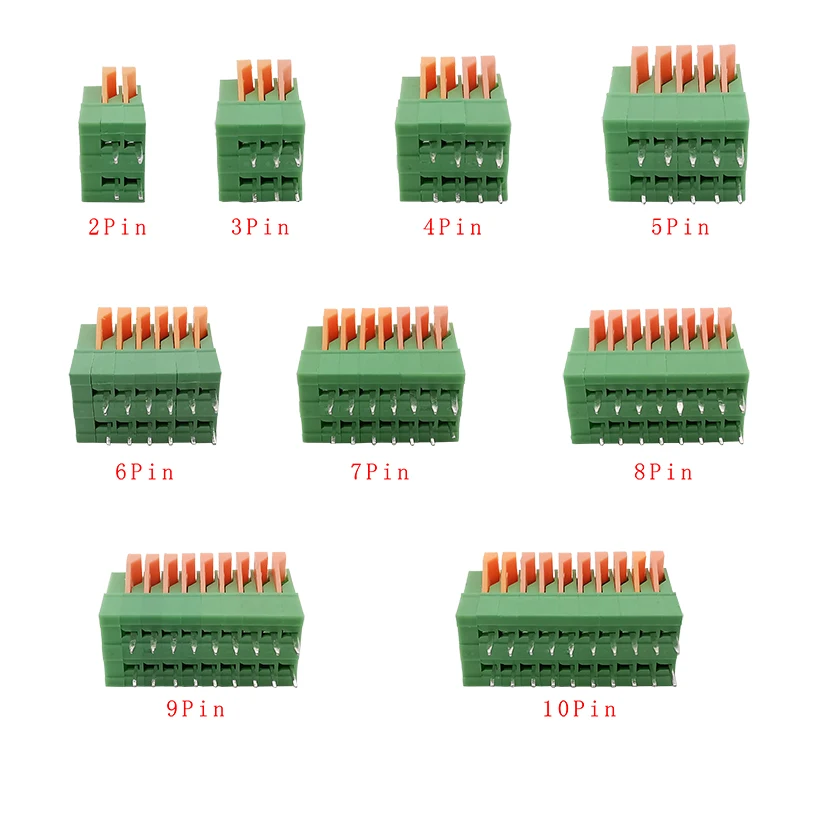

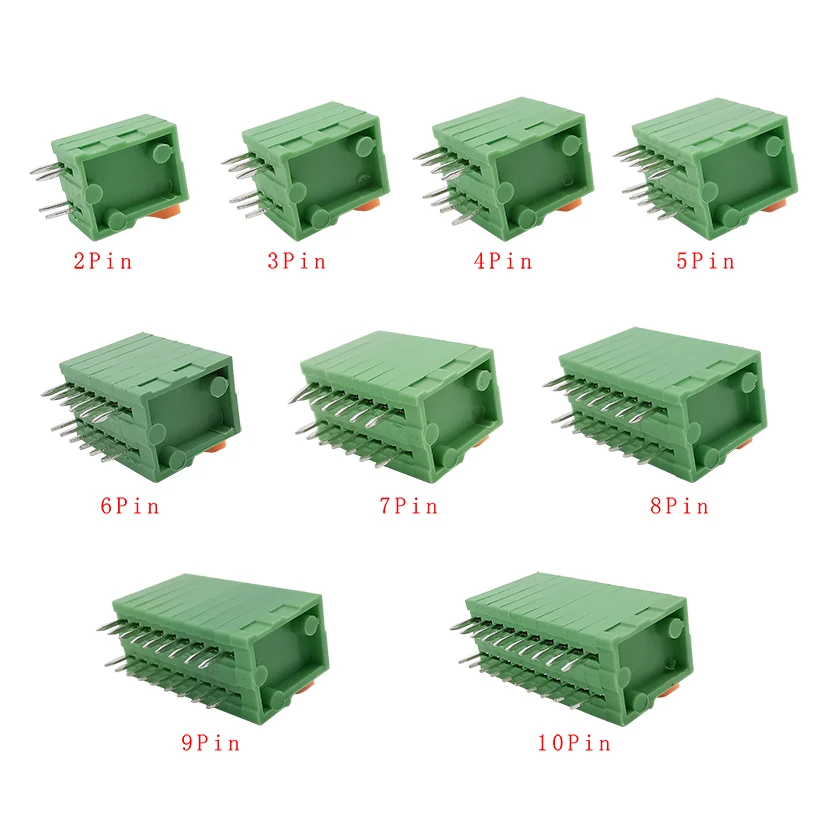

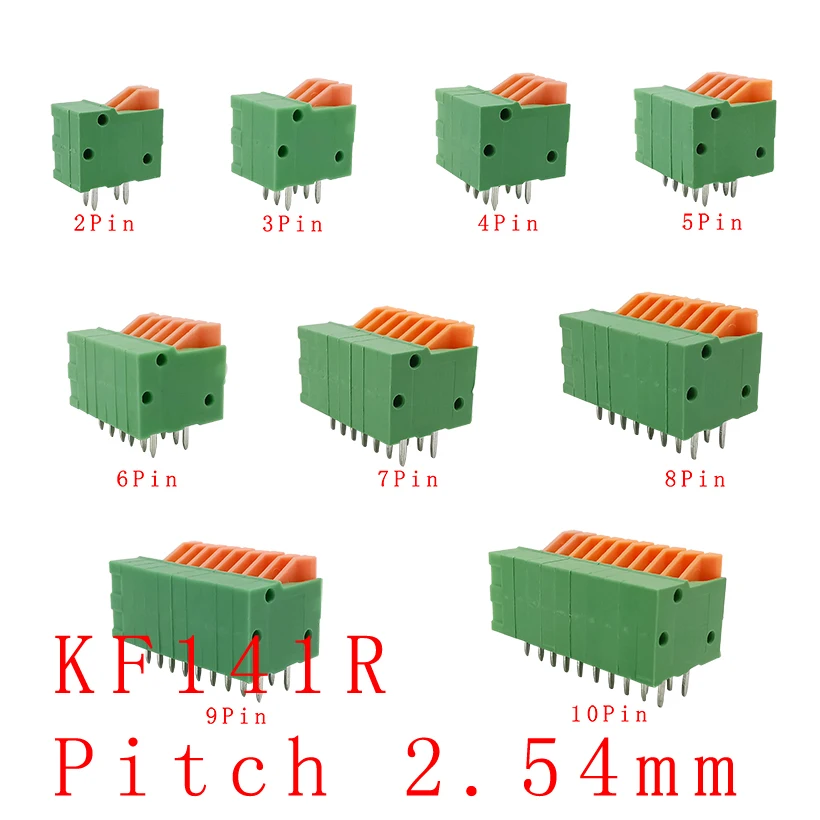

Pins: 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 Pin
Pin Header: Brass, Tin plated
Clips: Stainless Steel
Housing: PA66 UL94V-0
Rated Voltage: 150V
Rated Current: 2A
Withstanding Voltage: AC 1250V/ 1Min
Wire Range: 26-20AWG
Temperature Range: -40° ~ +105°
MAX Soldering: +250° for 5 sec.
Strip Length: 11mm
Quantity: 5/10Pcs KF141R KF141V Spring Terminal Block Wire Connector
1. Please allow ±0-2mm difference due to manual measurement.(1 inch=2.54cm)2. The flaws of the product in the picture are caused by reflections during shooting, the picture may not reflect the actual color of the item, subject to the actual product.Please make sure you do not mind before you bid. Thank you!
