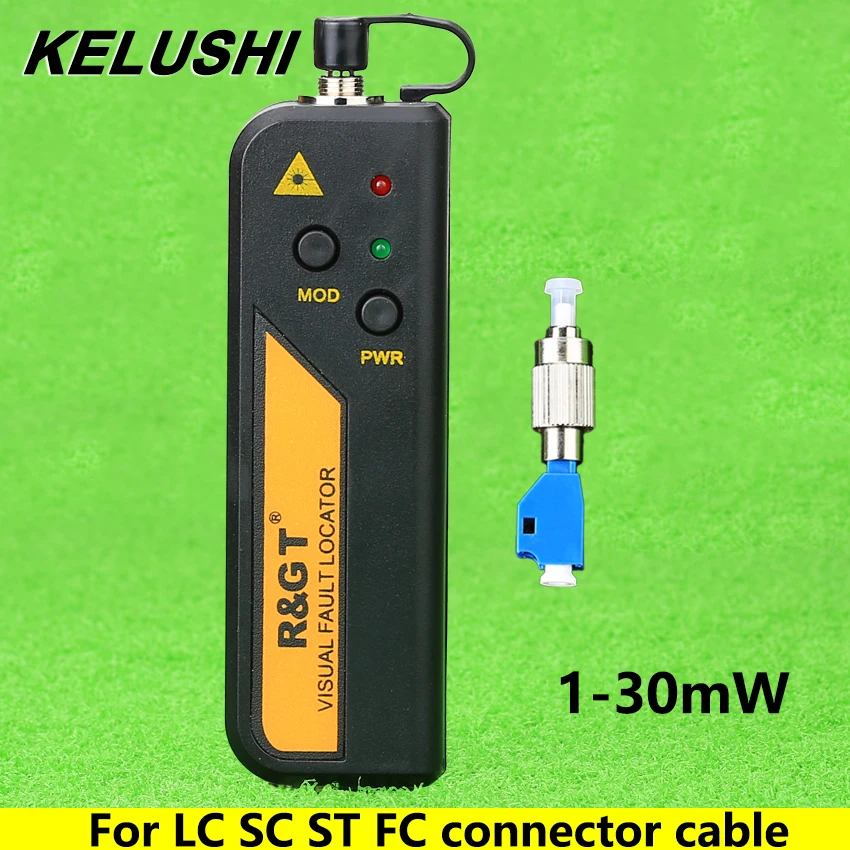

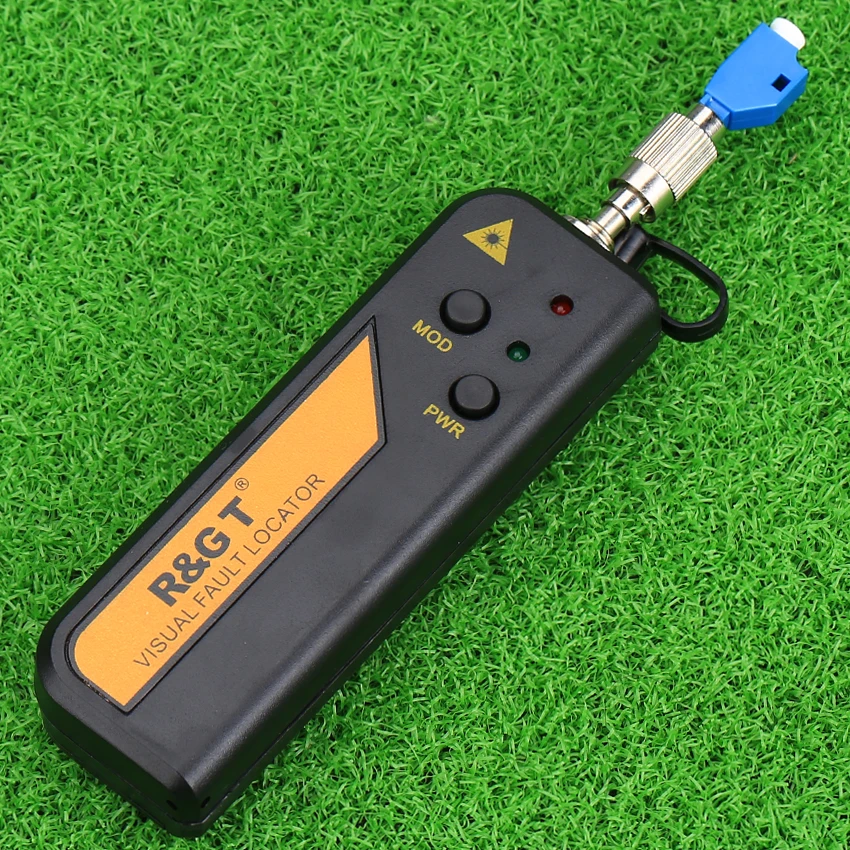

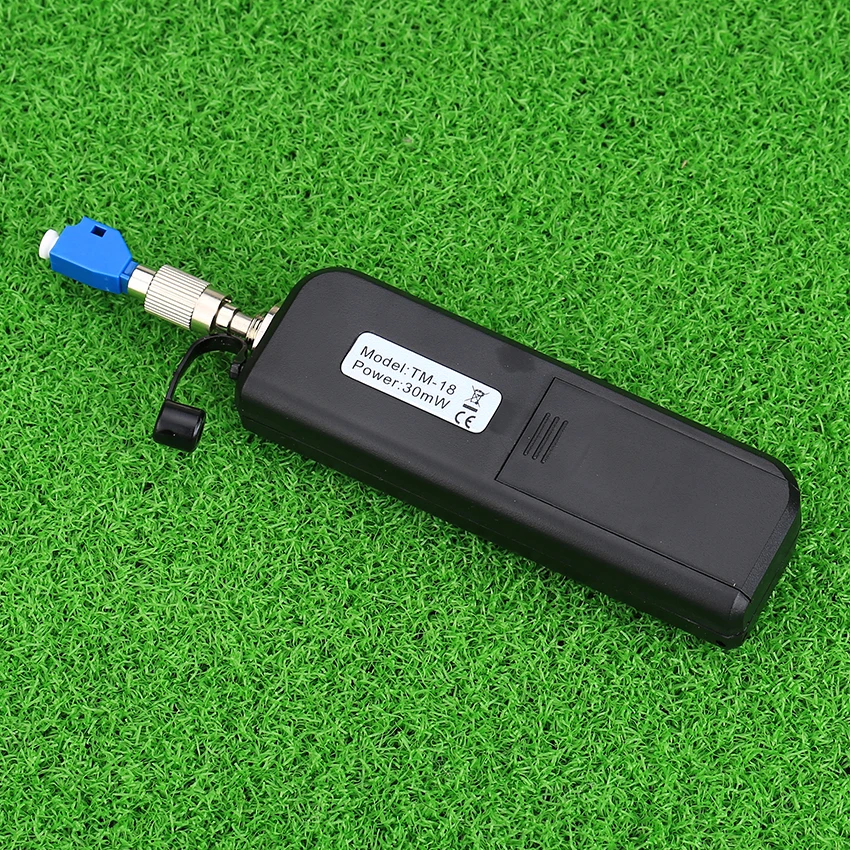

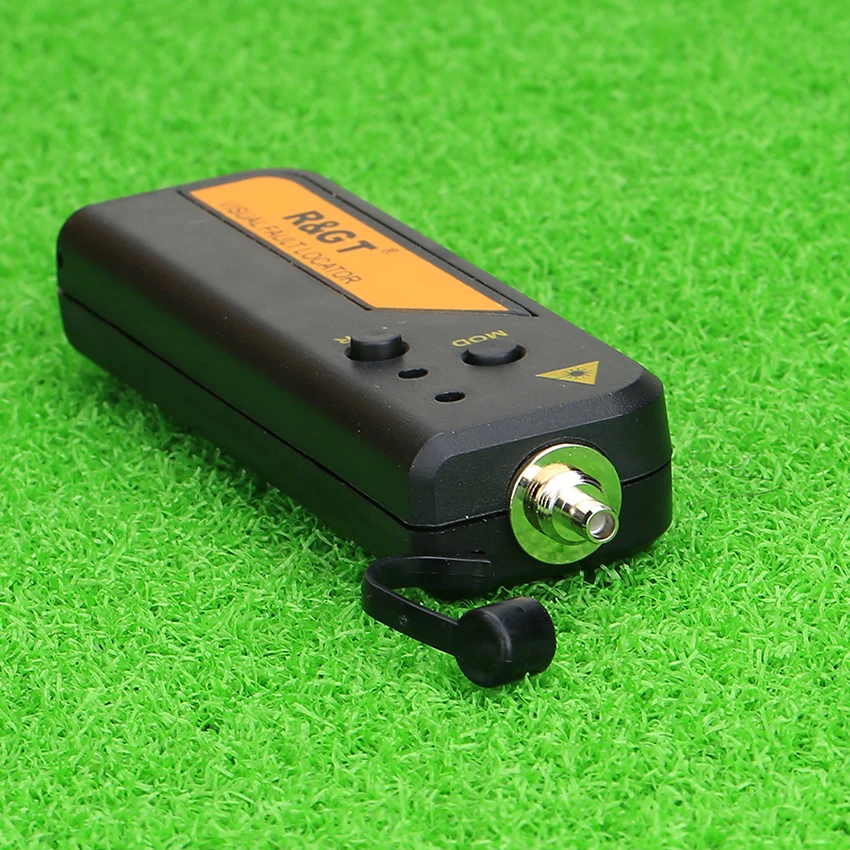

KELUSHI-Localizador Visual de Fallos, probador de Cable de fibra óptica, adaptador LC/FC/SC/ST, detector de fallos de prueba 1-30, 1/10/20/30mW
1,41 €
10,91 €
Enlace proporcionado por:
Color:
Features:
- Operating mode: CW and GLINT
- FC, SC, ST,LC General interface
- Long inspection distance
- Steady power output
- Sturdy and durable shell
- Pen pattern design, convenient for use and carry
Function:
- Locate the fiber failure, such as fracture and bend
- Failure inspection in OTDR blind zone
- Fiber recognition from head face to end face
- Mechanical transition point optimization
Application:
- Telecom, CATV project
- PDS construction and maintenance
- Optical component manufacture and research
- Other fiber project

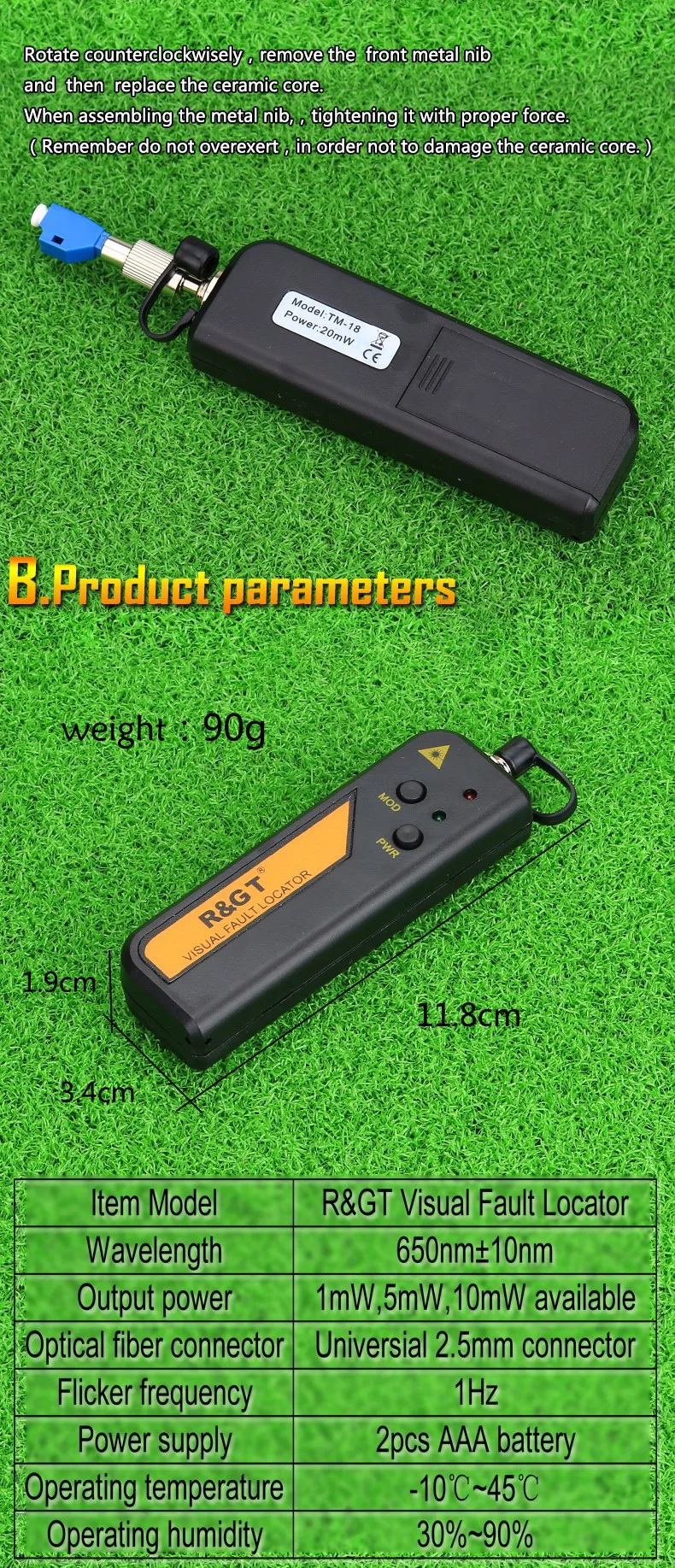

Technical Parameter:
- Wavelength: 650+/- 10nm
- Fiber mode: 2.5 mm Universal

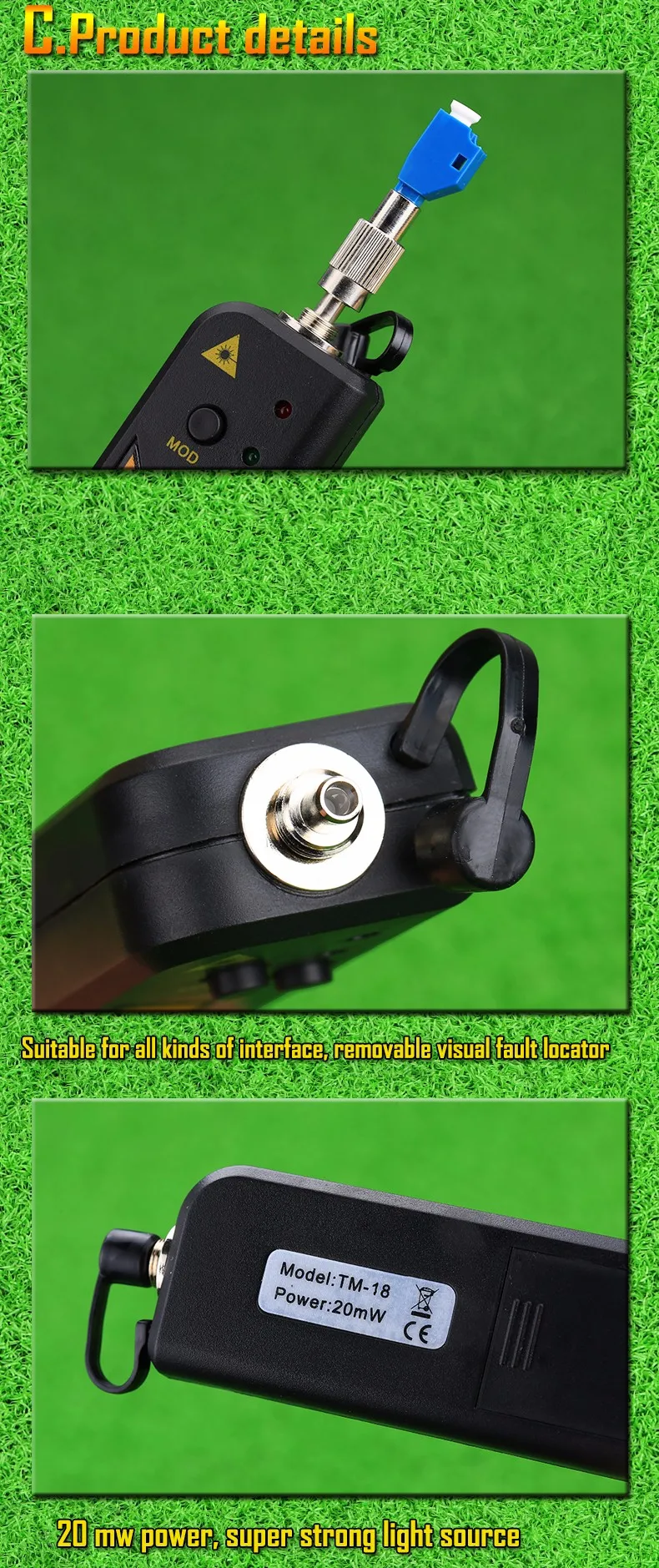

- Output power: 20mW
- Inspection distance: 15-18KM

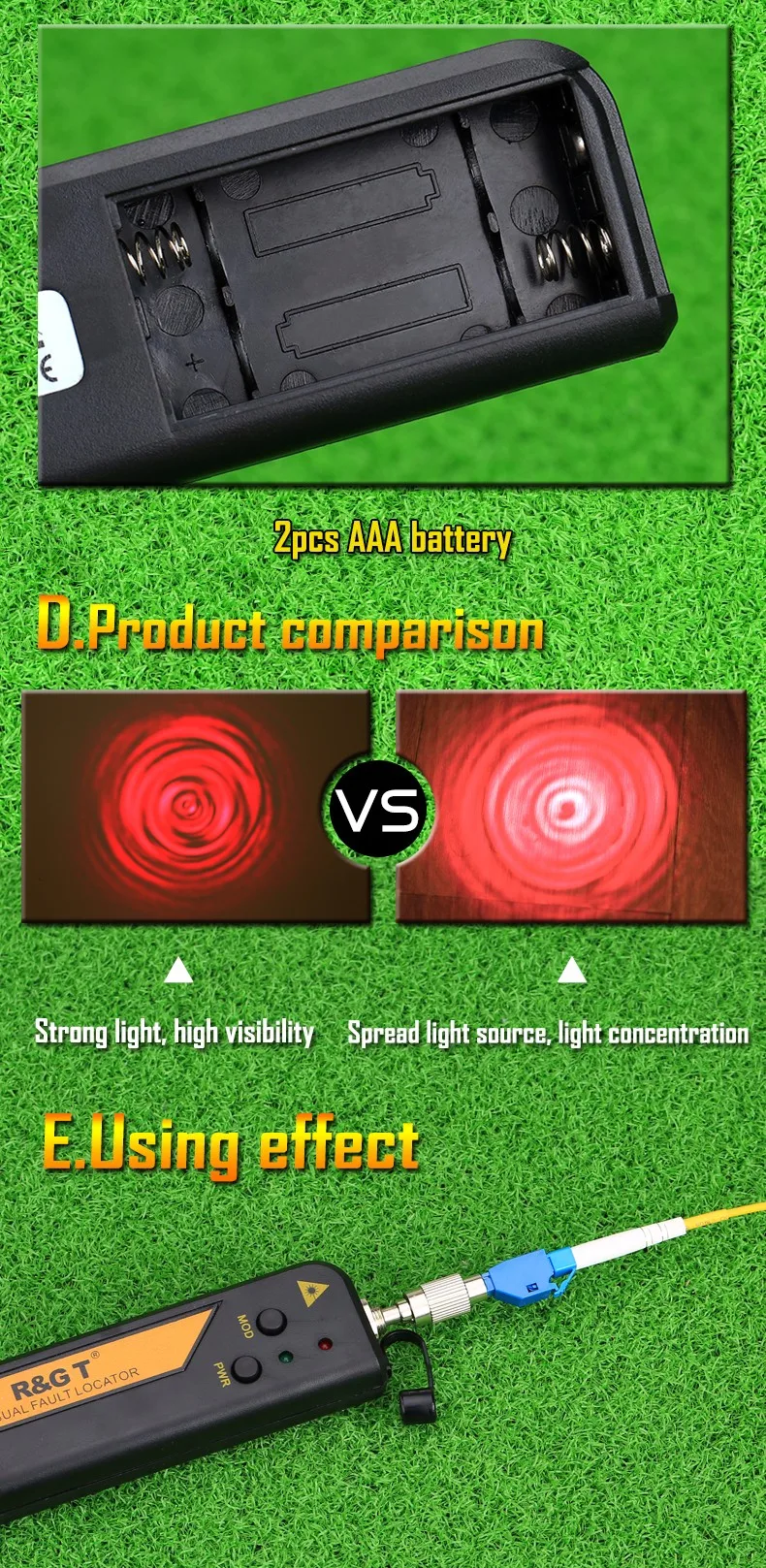

- Working time of batteries: More than 15 hours
- Operating Temperature: -10- +60 degree C
- Storage Temperature: -20- +70 degree C

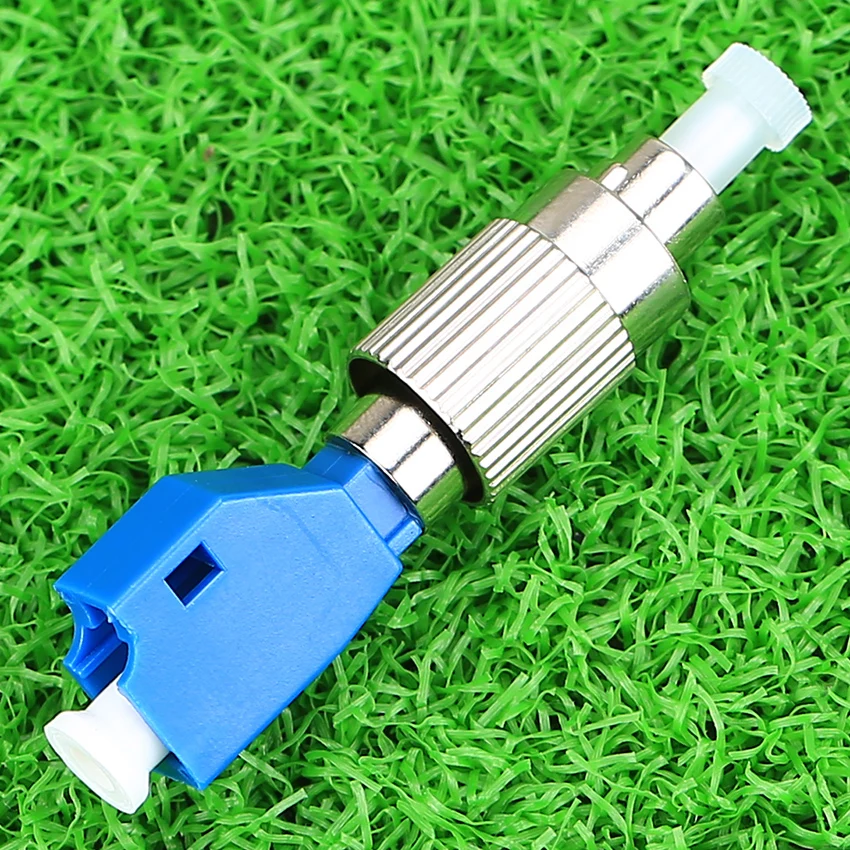

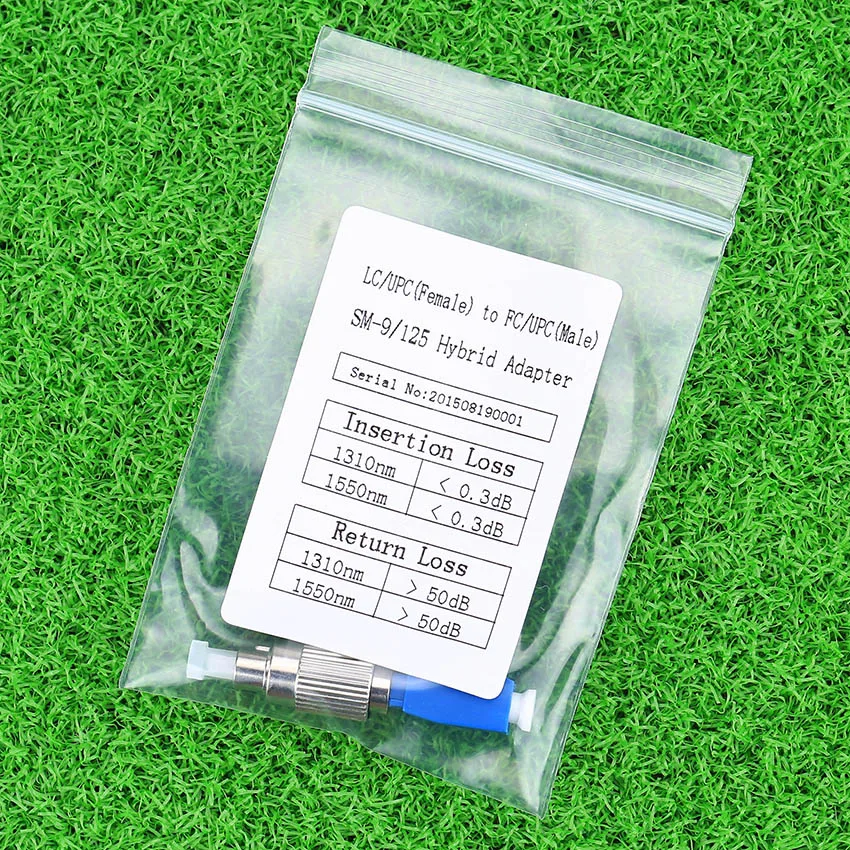

FC-LC fiber adapter
-Insertion loss: 0.20dB
-Mating durability: 500
-Receptacle retention force: 1~2.5N
-Operation temperature: -25°c to +70°c
Package include:

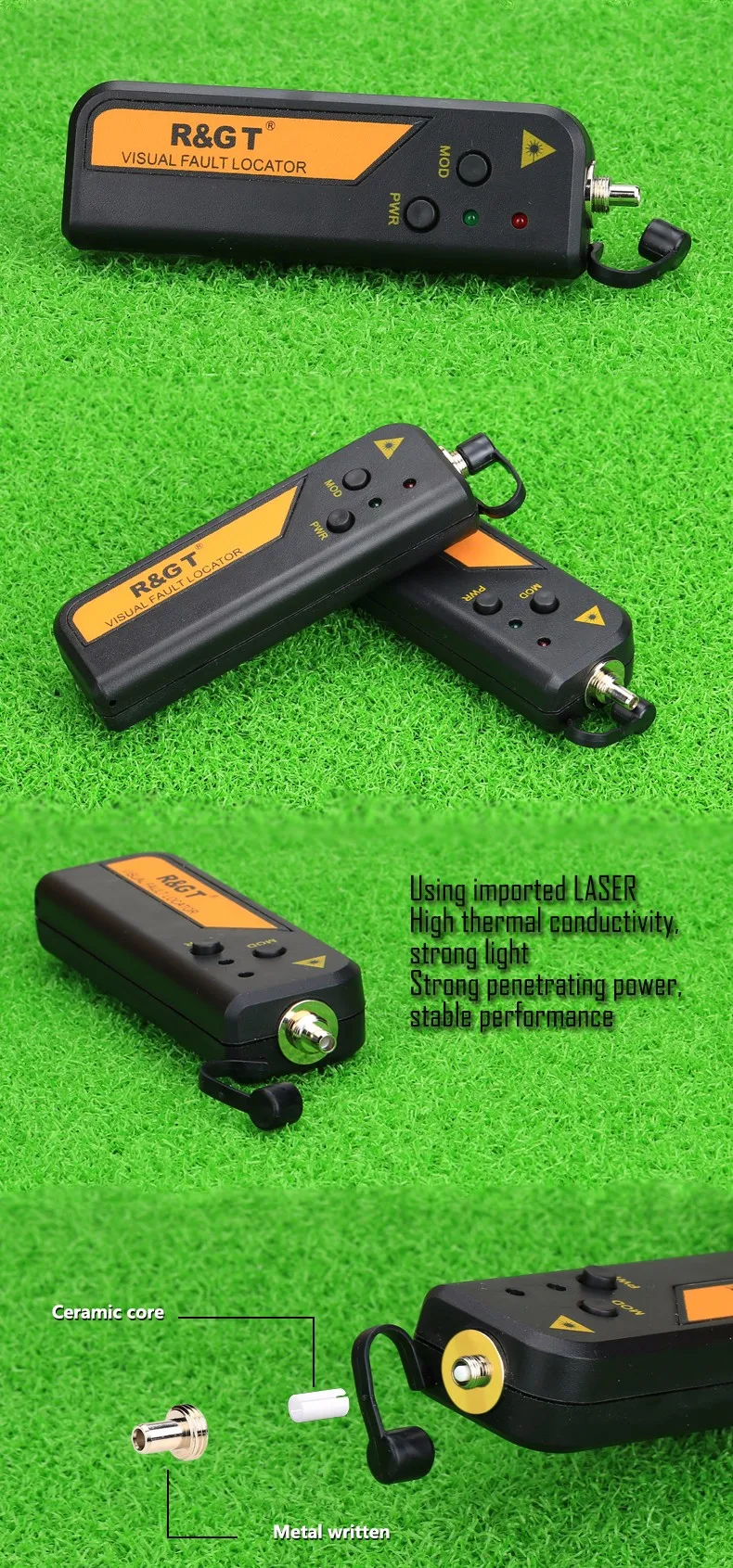

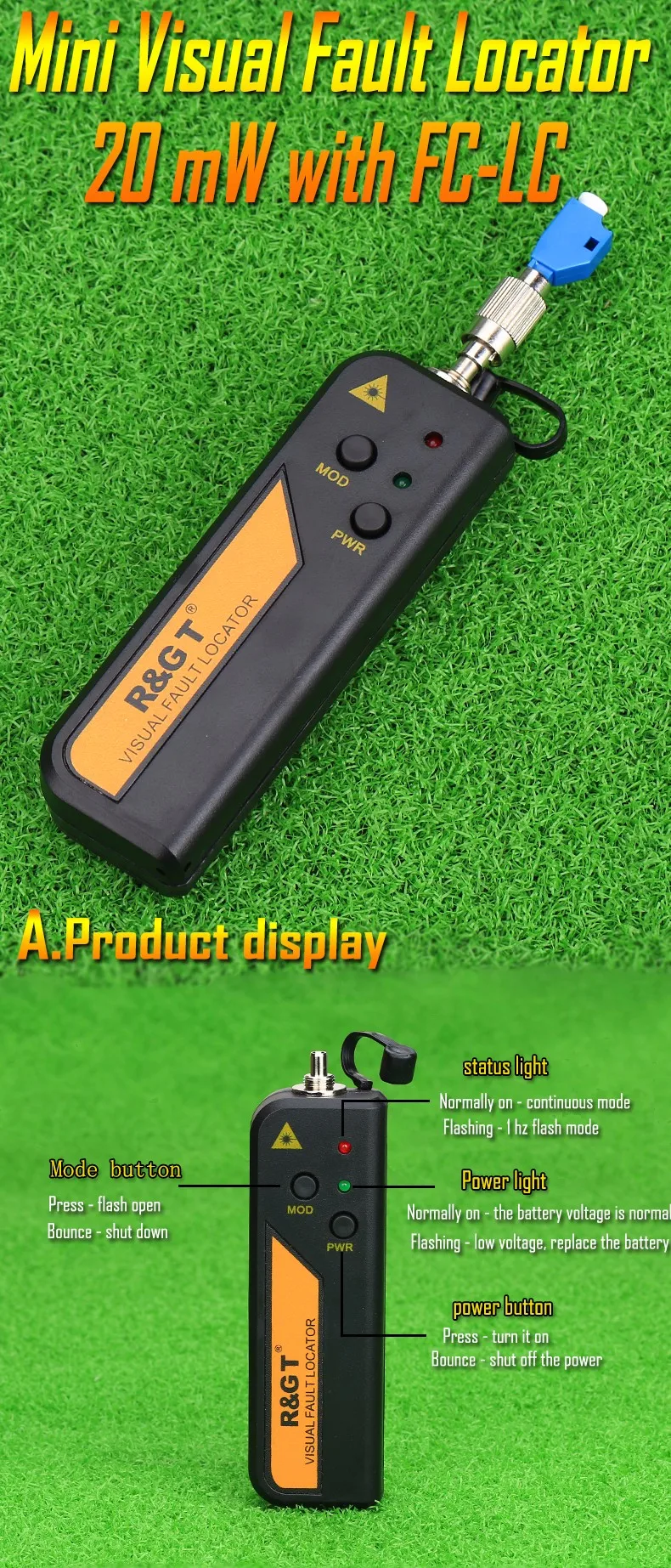

1x 20mW visual fault locator
1x FC-LC Fiber adapter

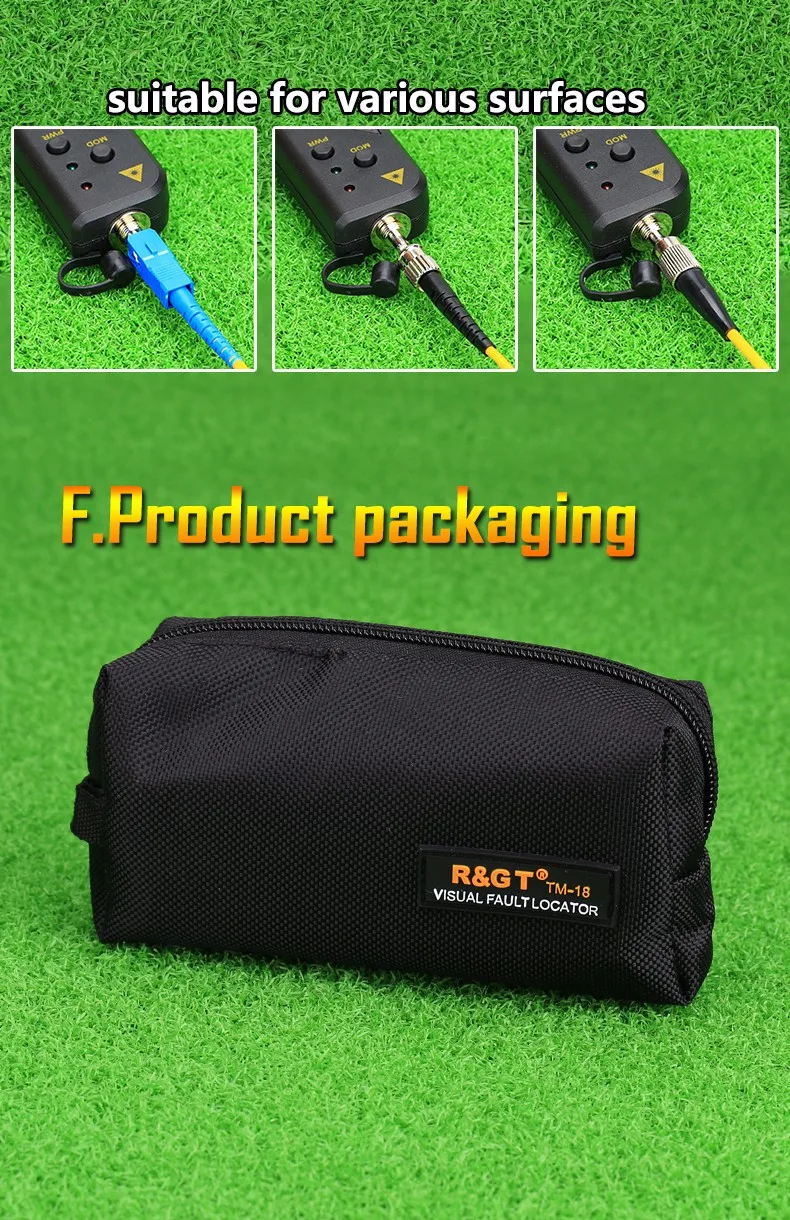

1X Visual fault locator bag
