Descripción
Product Selling Points
1.EASY TO INSTALL AND OPERATE: Plug and play, no assembly required, easy to operate.
2. highly durable: our soldering iron is made of high quality material, very durable and can be used for a long time.
3. large capacity 2600mah, large capacity, long working use.
4.USB CONNECTION: Simply connect the power cord to the usb port of the soldering iron of your mobile phone or other devices.
5.Meet all your soldering needs. All kinds of electronic and chip boards, soldering, jewellery, guitars, watches, wires, mobile devices, computer hardware, small electronic works for repair use.
Safety instructions and warnings
1.The soldering iron uses 18650 battery, please do not connect positive and negative levels.
2. Do not use the soldering iron on live circuits.
3. Do not allow the machine to enter or be immersed in water.
4. The temperature of the soldering iron head will become high during use.
5. As the tip of the soldering iron is very sharp, please keep the tip in case of accidents.
6. Do not approach flammable materials
7. To prevent malfunction, do not use the specified external voltage

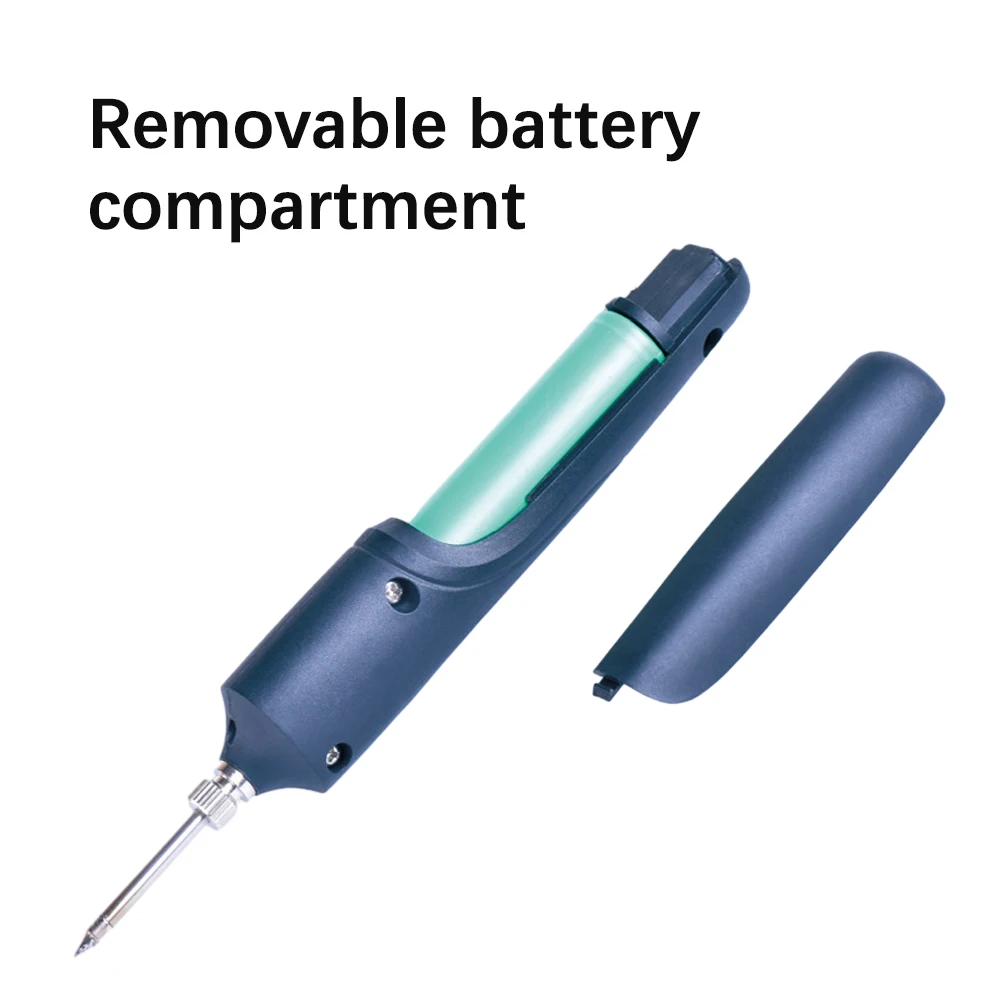

8. To prevent the battery from leaking or catching fire, remove the battery when it is not in use for a long time
Troubleshooting
1. When the heating stops after a few seconds of starting the button and the indicator light is off, please replace the battery with a sufficient charge or charge the battery.

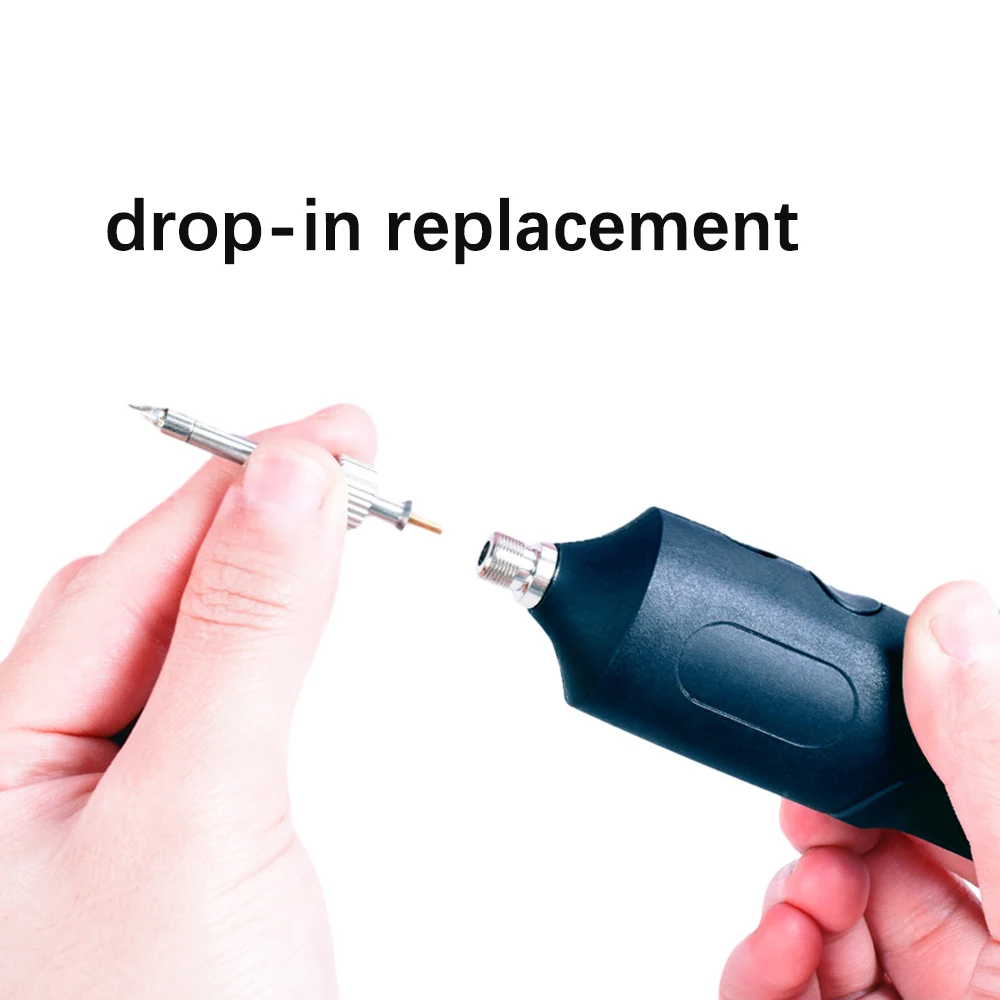

2. When the indicator light is on, the welding head is not hot, please replace the new welding head.
3. Press the indicator light to go out quickly, check whether the line is short-circuited.
Attention
Model: 18650 rechargeable battery, capacity needs more than 2000 to drive
Driving method includes: power cord 18650 battery
Single battery-less drive requires the power supply to meet 5V2a or above to drive. Red light indicates charging. Battery is fully charged, green light indicates charging function. Do not use for a long time to avoid overheating
Specification:

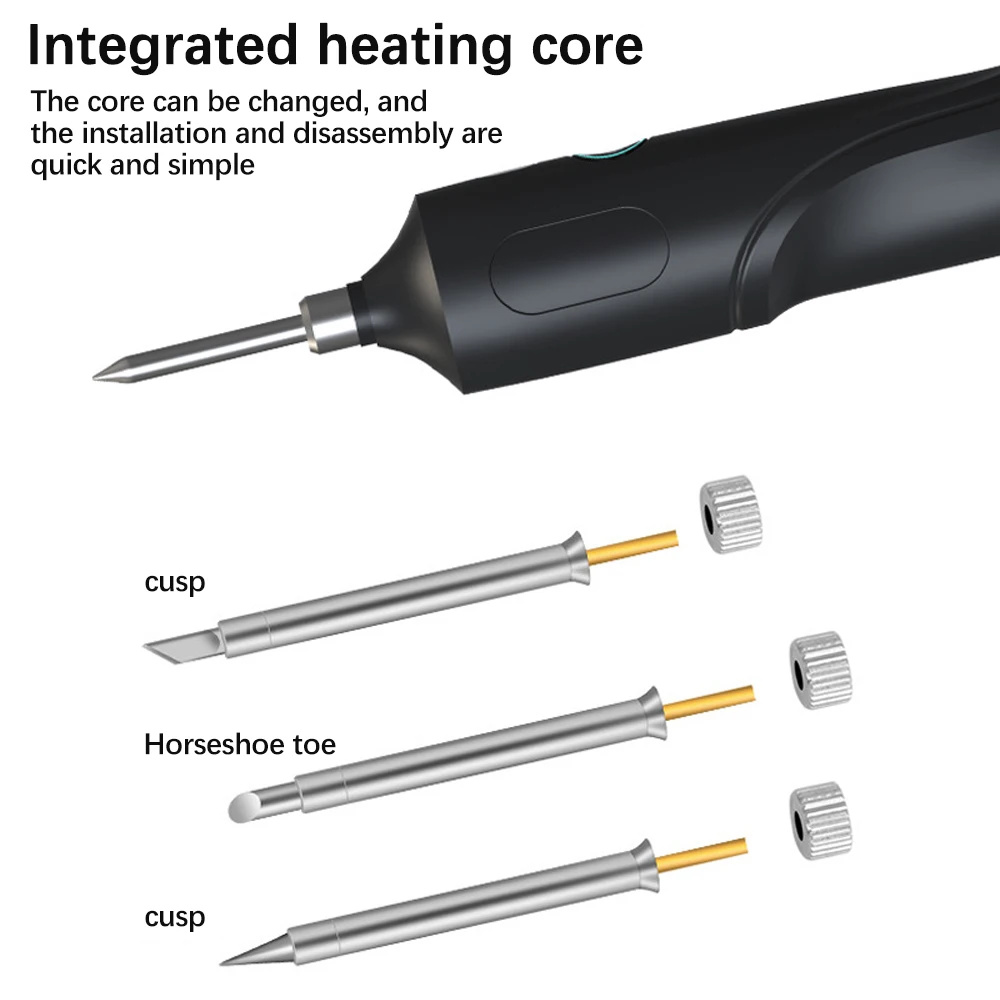

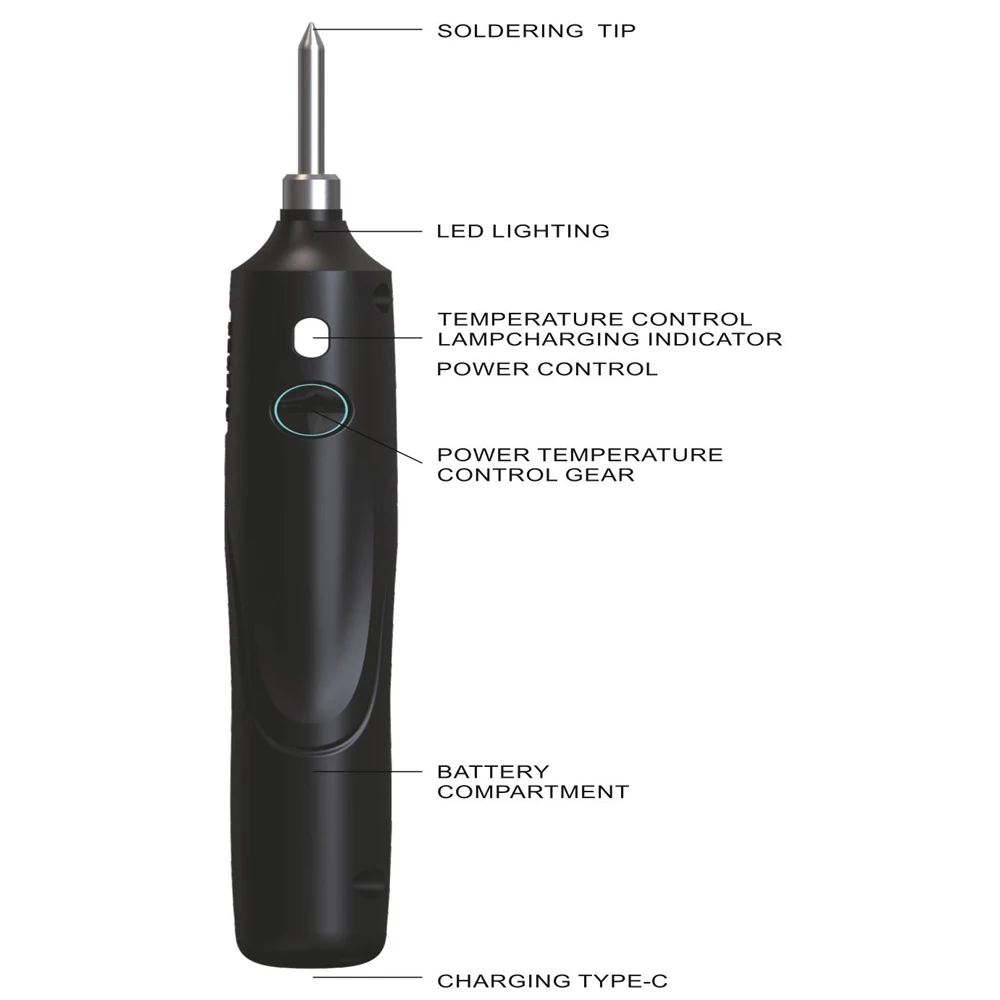

Battery iron soldering iron tip
Input voltage: 3.7V-4.2V
Resistance: 2.0-3.6Ω
Power supply: 8W
Melting time: 15s

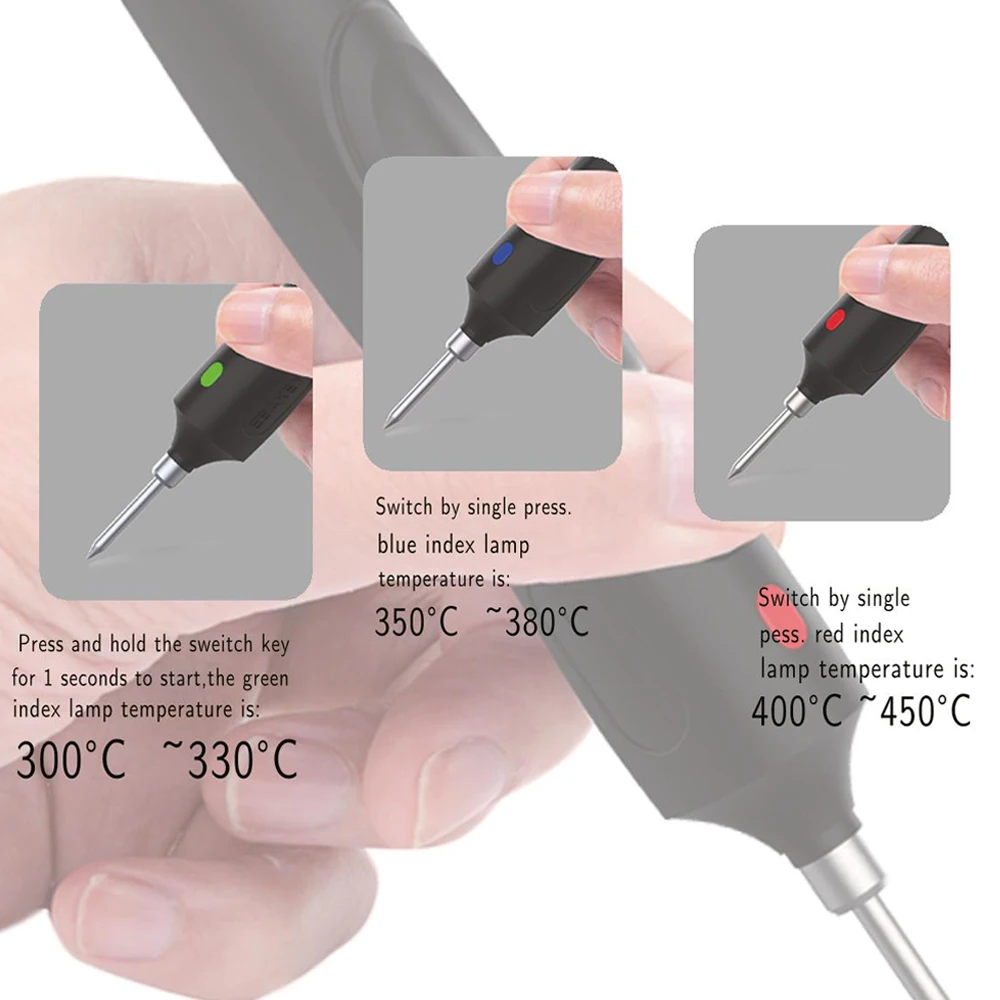

Temperature range: 300°C~450°C
Cooling: 30s
Power supply: 18650
Charging access: type-cImportant
Charging Voltage 5V
Starting current 2A

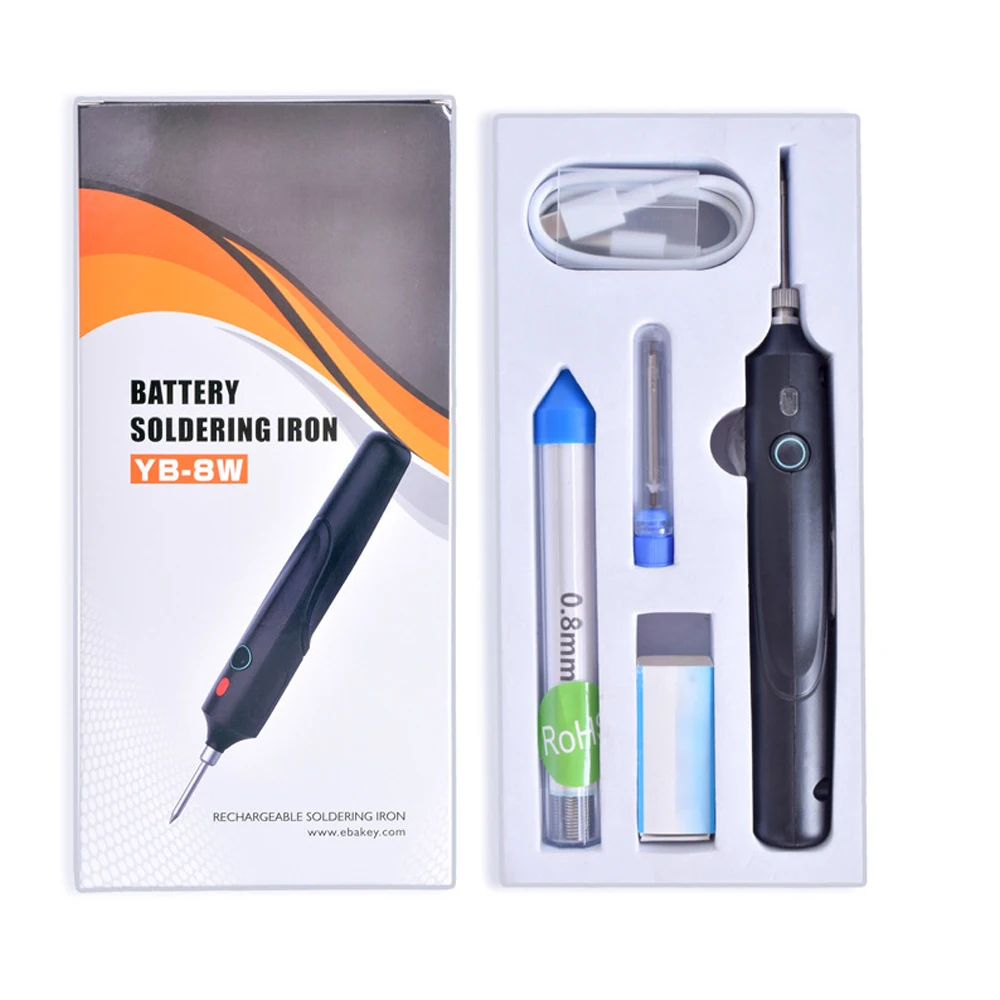

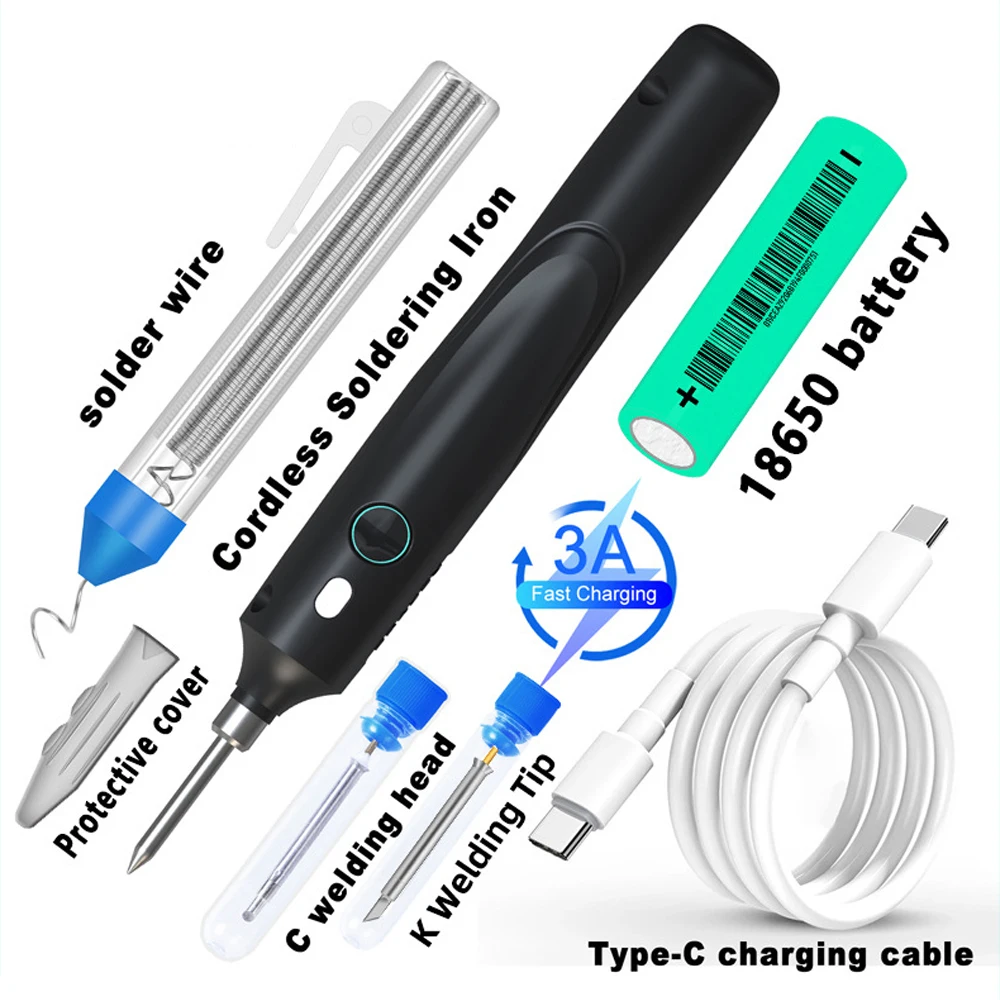

Package A includes:
Main unit *1 + charging cable *1 + C welding head *1 + battery *1 + Y-shaped bracket *1 + manual *1
Package B includes:
Host *1 charging cable *1 + solder *1 + C welding head *1 + K welding head *1 + battery *1 + Y-shaped bracket *1 + manual *1
