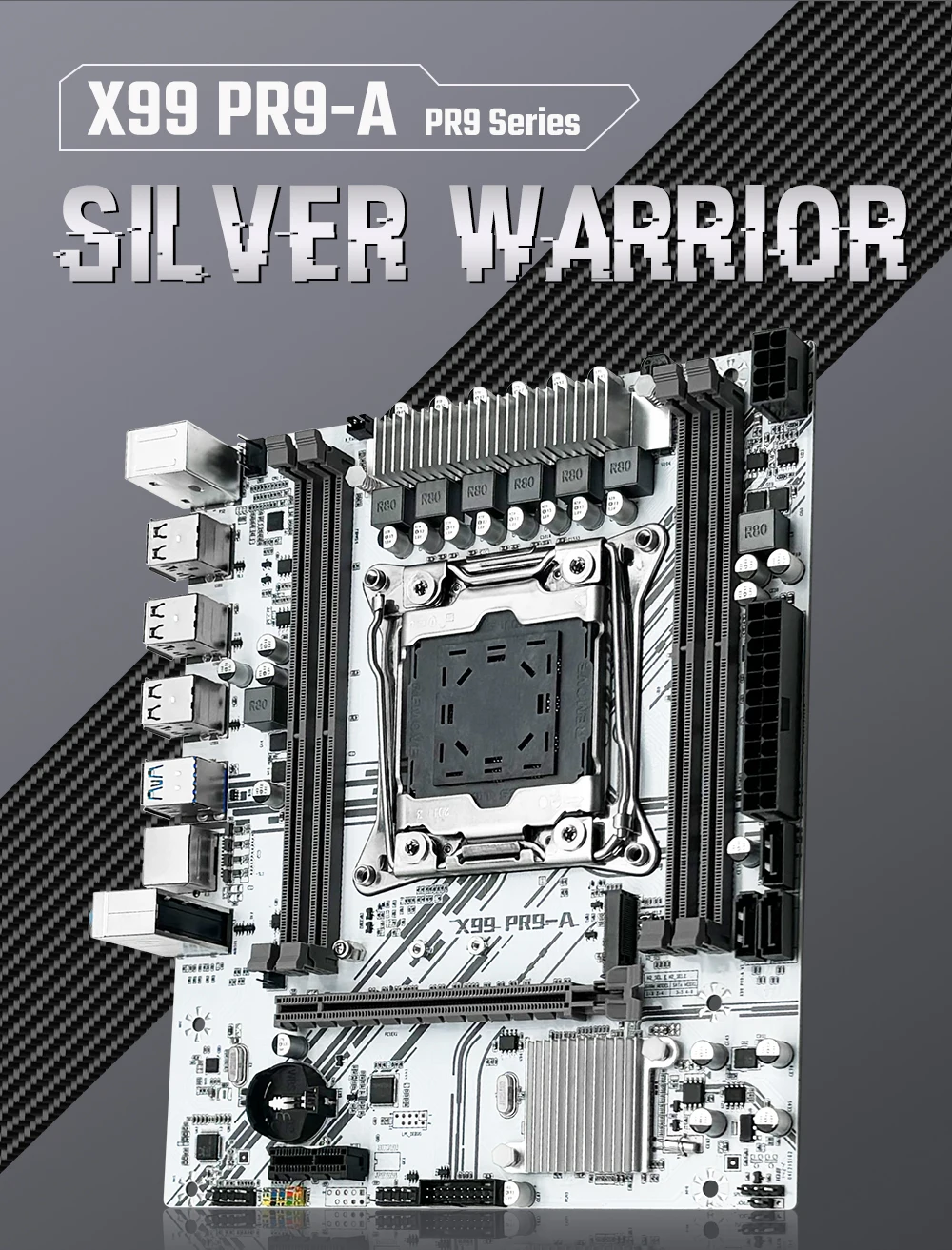

Juego de placa base MACHINIST X99 con LGA2011-3 Xeon E5 2690 V3 CPU DDR4 16GB REG ECC memoria PCIE3.0 NVME M.2 SATA X99 PR9-A

packing list:

!#1 Please pay attention to the bundle option before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check carefully.

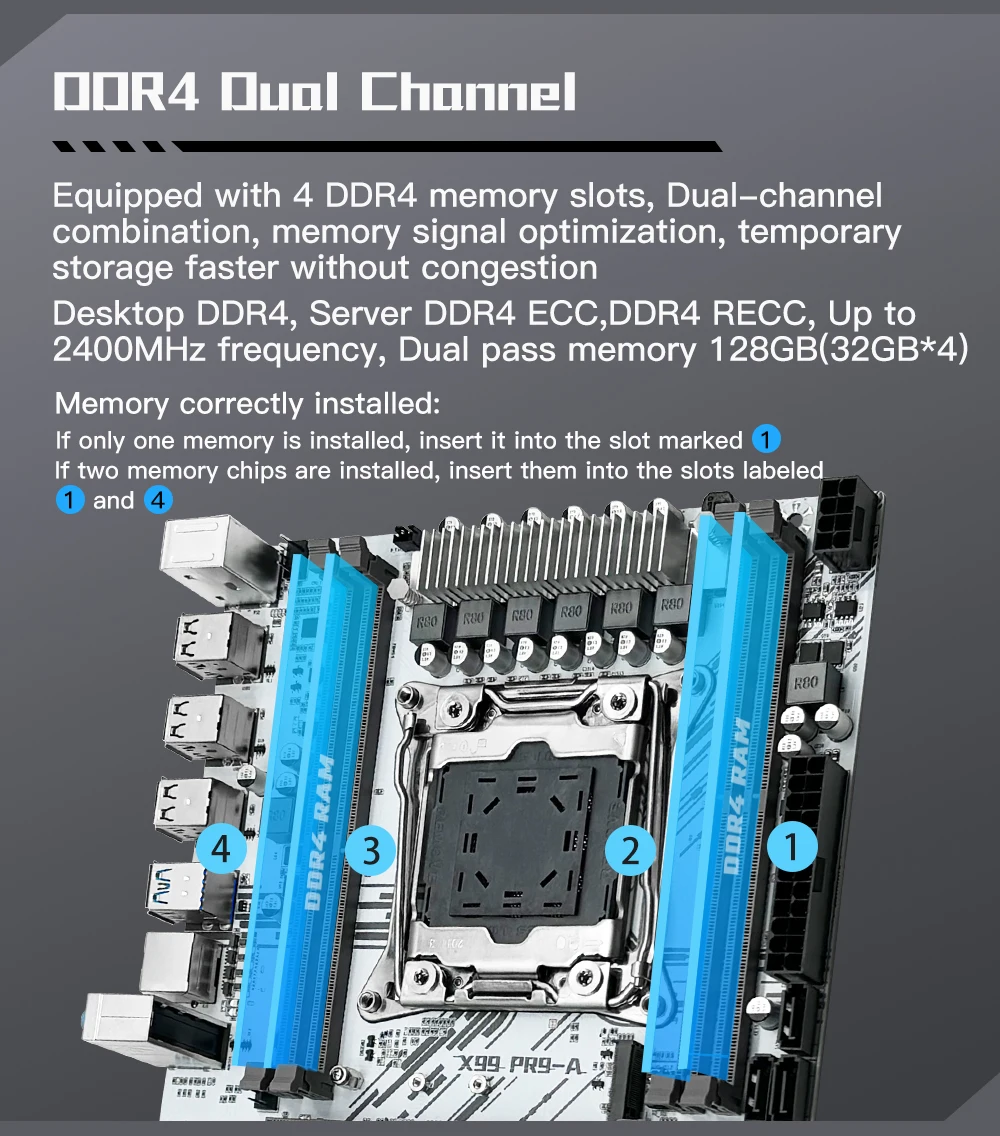

!#2 Memory installation. The middle memory slots (#2/#3) of the motherboard do not work alone. One RAM needs to be installed in slot #1 (the first slot on the right side of the motherboard). Two RAMs need to be installed in slot #1 and slot #4 (the slots inserted into the outermost layer) first.

Bundle: Motherboard + CPU:

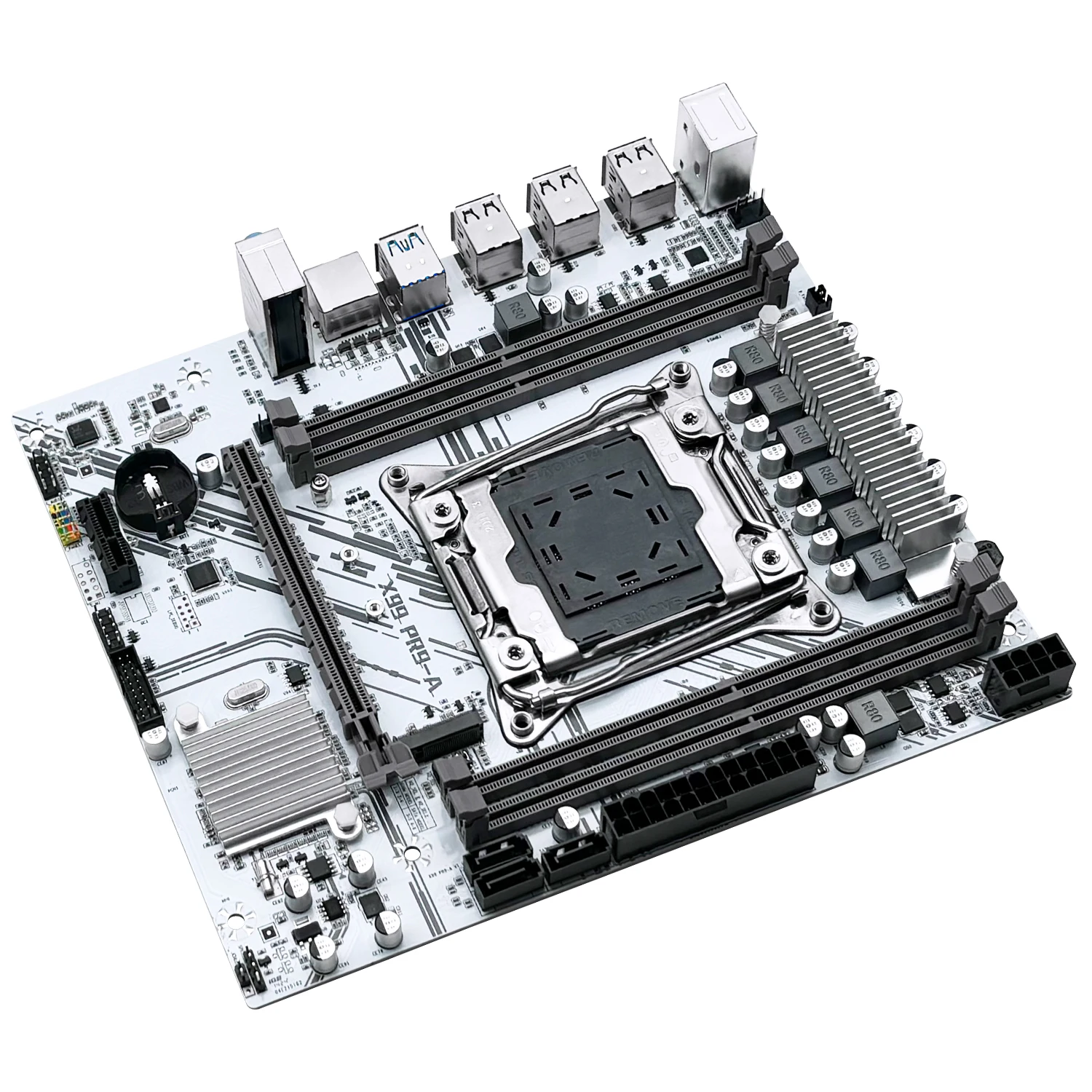

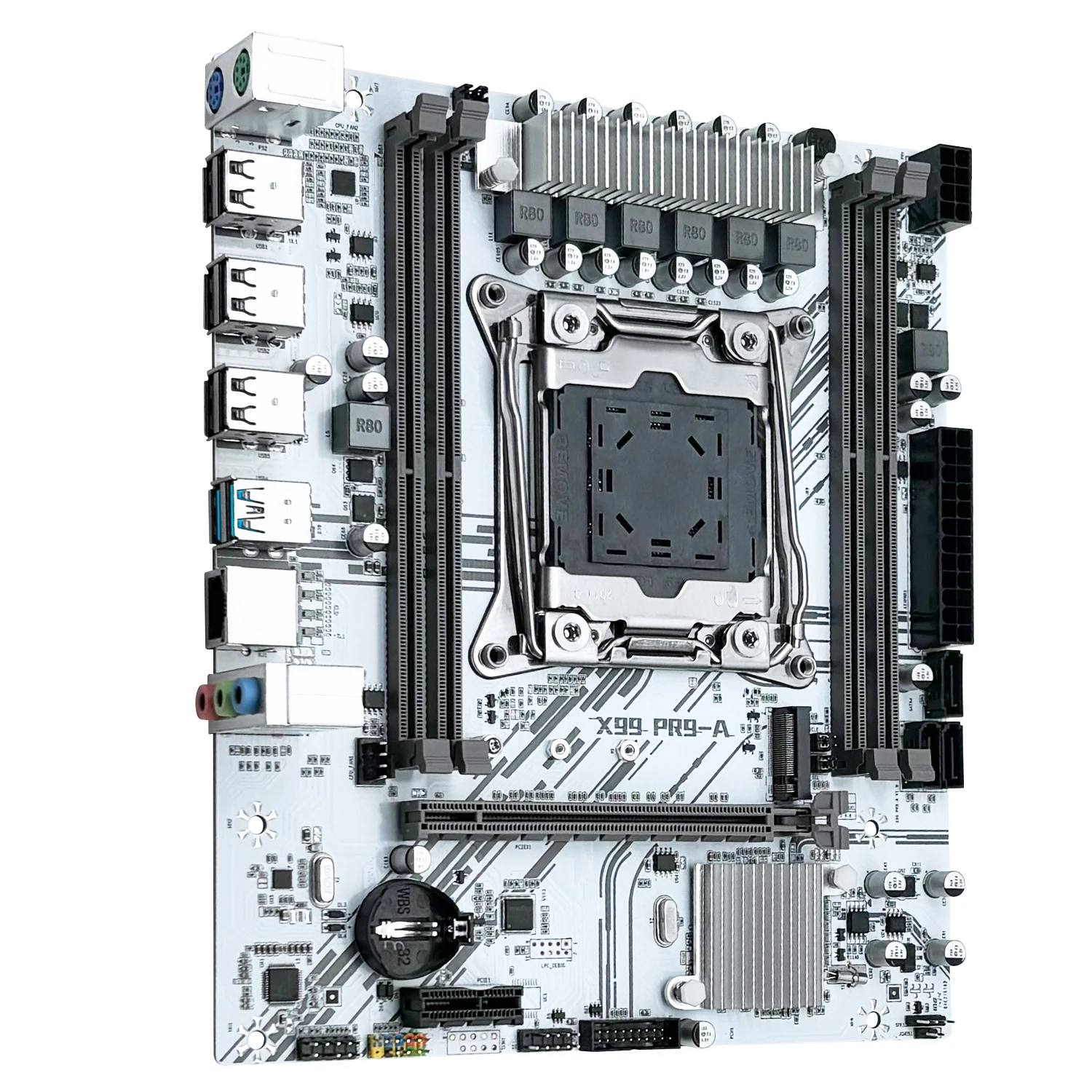

Motherboard: MACHINIST X99 PR9-A 2011-3 Motherboard * 1Pcs.
Processor: Intel Xeon E5 2690 V3 x 1Pcs.

Bundle: Motherboard + CPU + RAM:
Motherboard: MACHINIST X99 PR9-A 2011-3 Motherboard * 1Pcs.
Processor: Intel Xeon E5 2659 V3 x 1Pcs.
Memory: DDR4 16GB 2133MHz Desktop Memory *1PCS (Silver Radiator Vest);

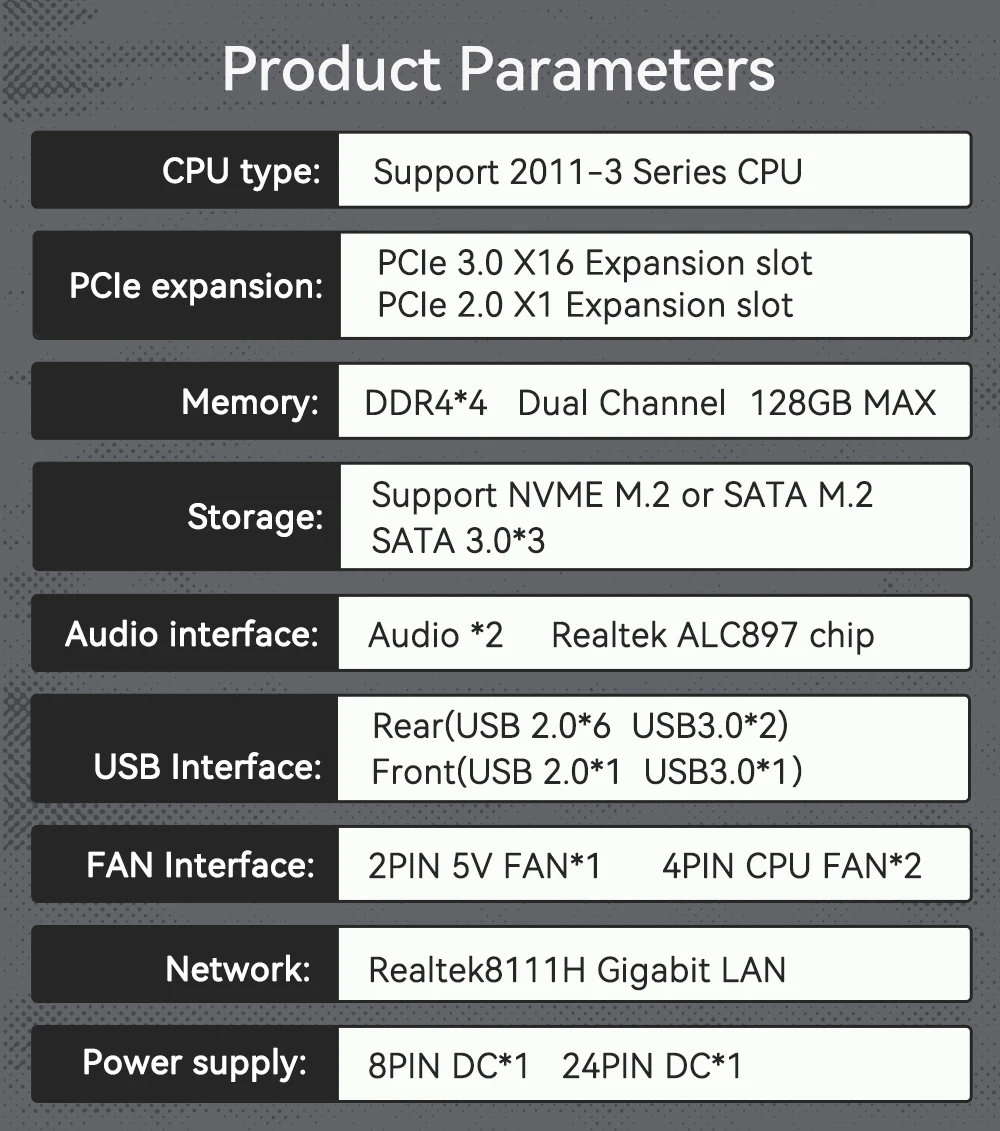

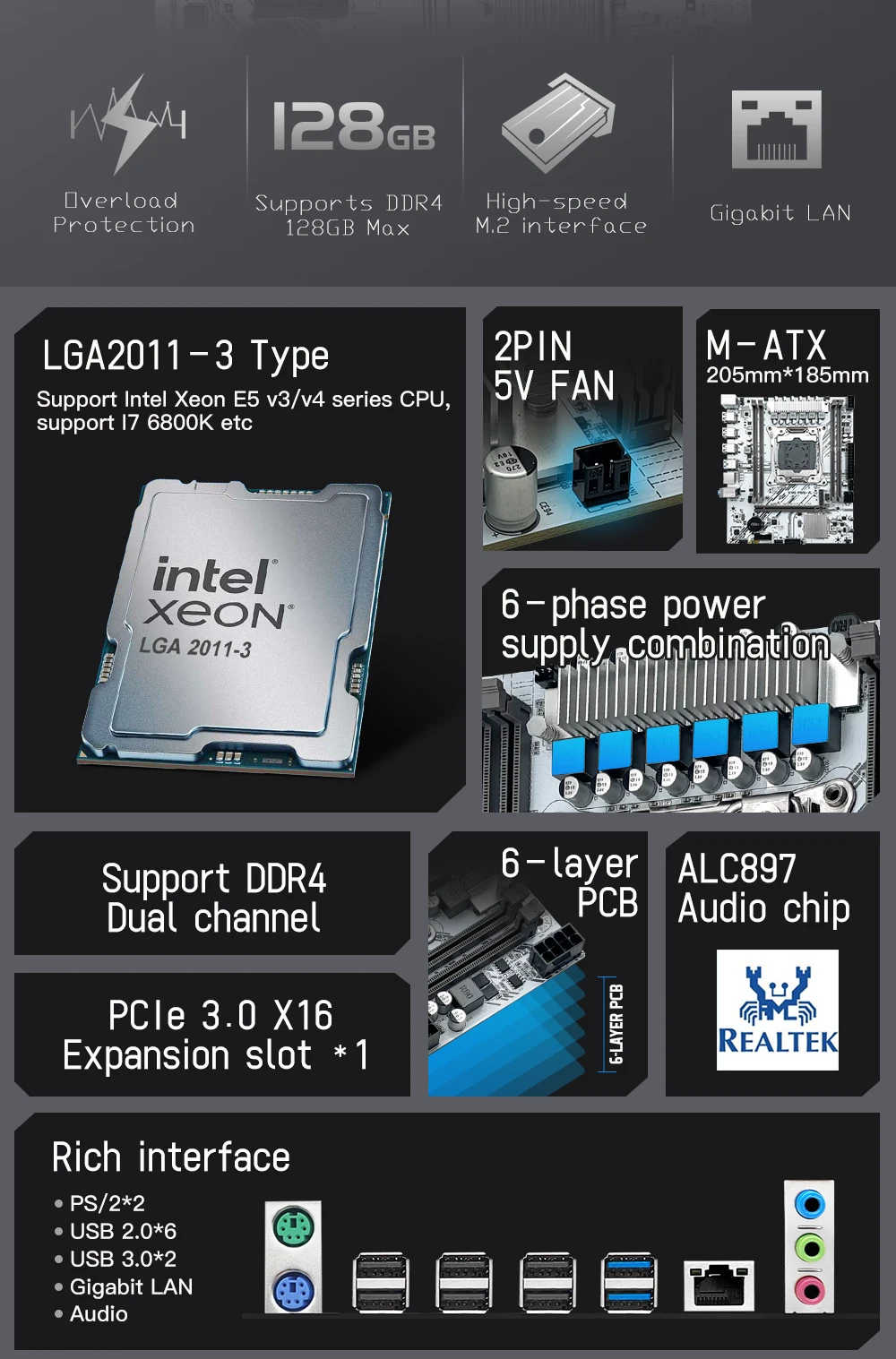

Motherboard parameters:

Motherboard information:
Brand: Mechanic.
Motherboard model: X99 PR9-A.
Processor: Support LGA 2011-3 series,
Chipset: B85/Q87/C226 chipset.
(Bonus accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink bracket *1.
( Packing is done after manual testing before sending. If any gift is missing, it cannot be used as a reason for refund. Please understand!

Memory:
Technology: Dual channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity is 128GB (32G x 4).
Memory slot: 4 x 288 PIN DDR4.
Note #1: Please use international brands such as Samsung, Kingston, Sandisk, Micron, etc. Other brands are not compatible.

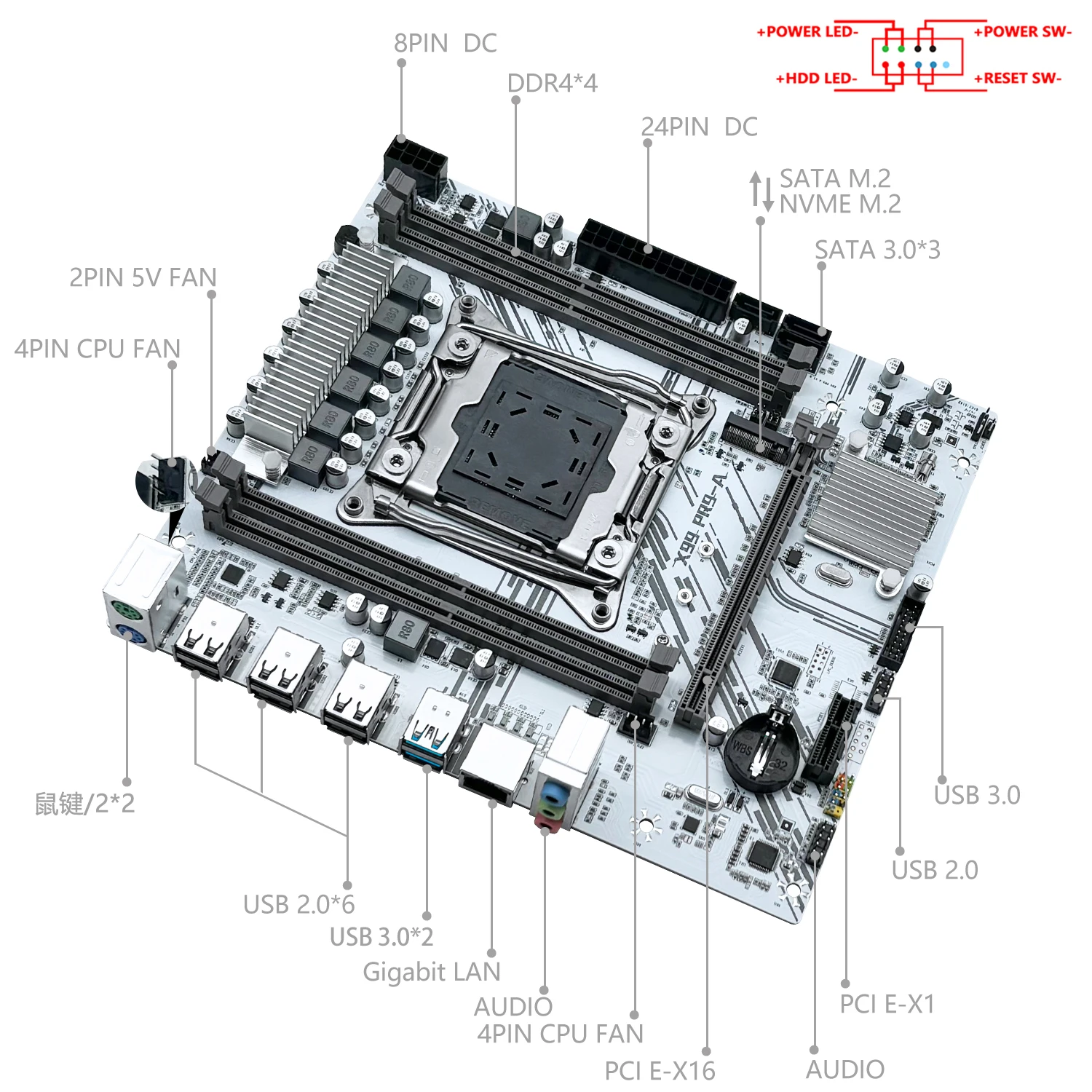

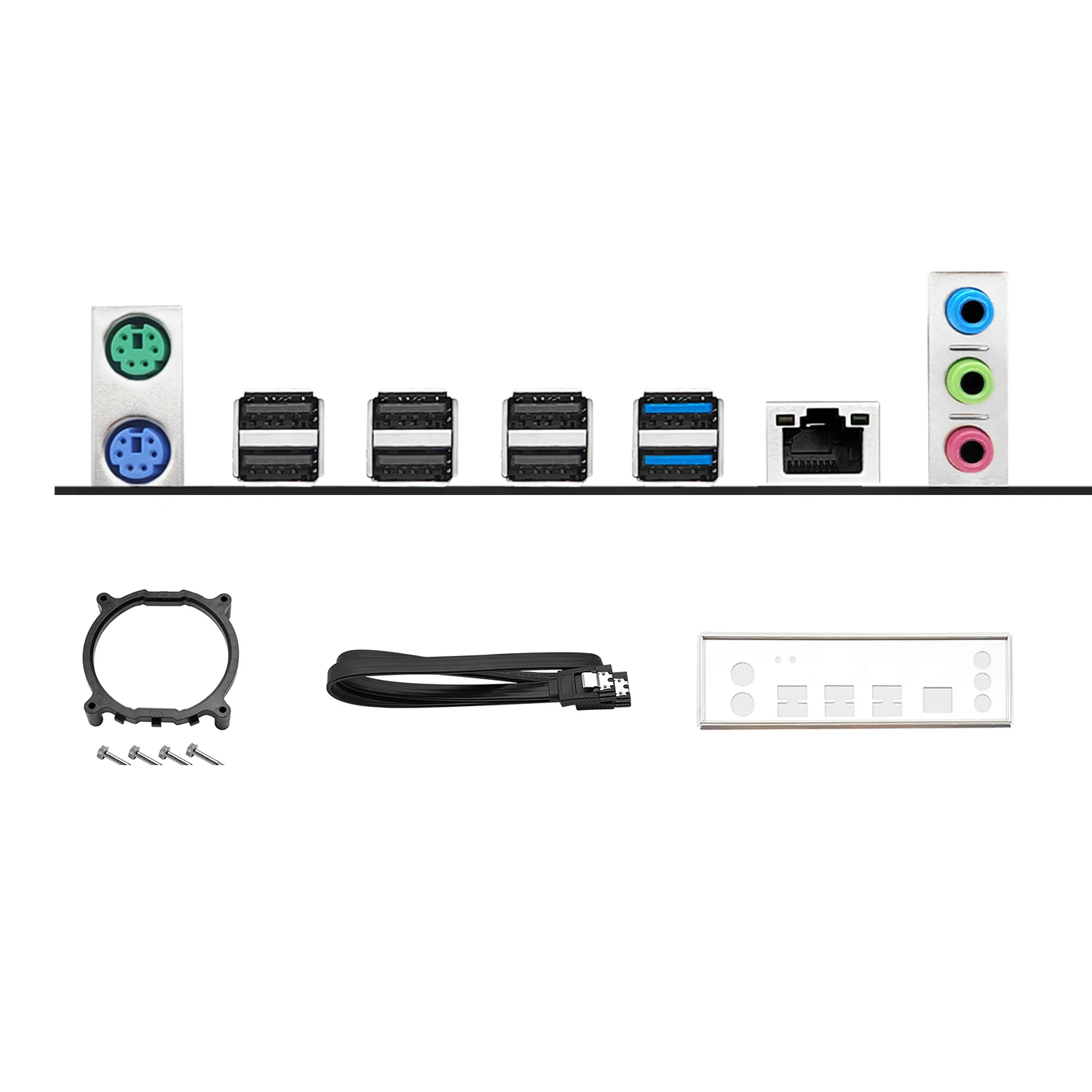

Rear I/O:
PS/2: 1 KB port + 1 MS port.
USB interface: 6 USB2.0; 2 USB3.0 ports.
Ethernet: 1 Gigabit network adapter.
Audio: 1 (Mic-in, Line-out, Line-in).

Others:
SATA interface: 2 (SATA2.0), 1 (SATA3.0).

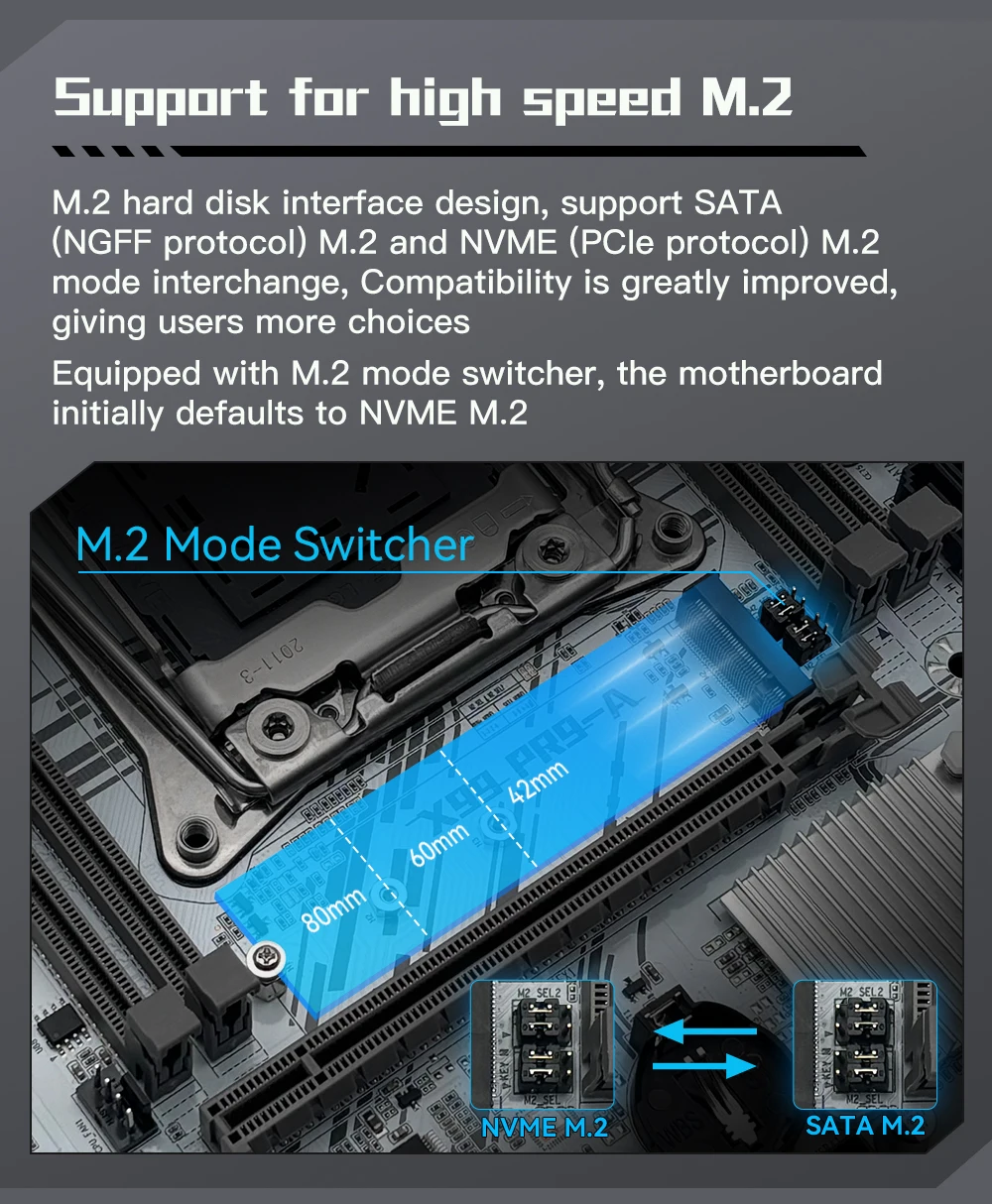

M. II: One (NVMe/SATA).
PCIe: One PCIe 16x and one PCIe 1x.

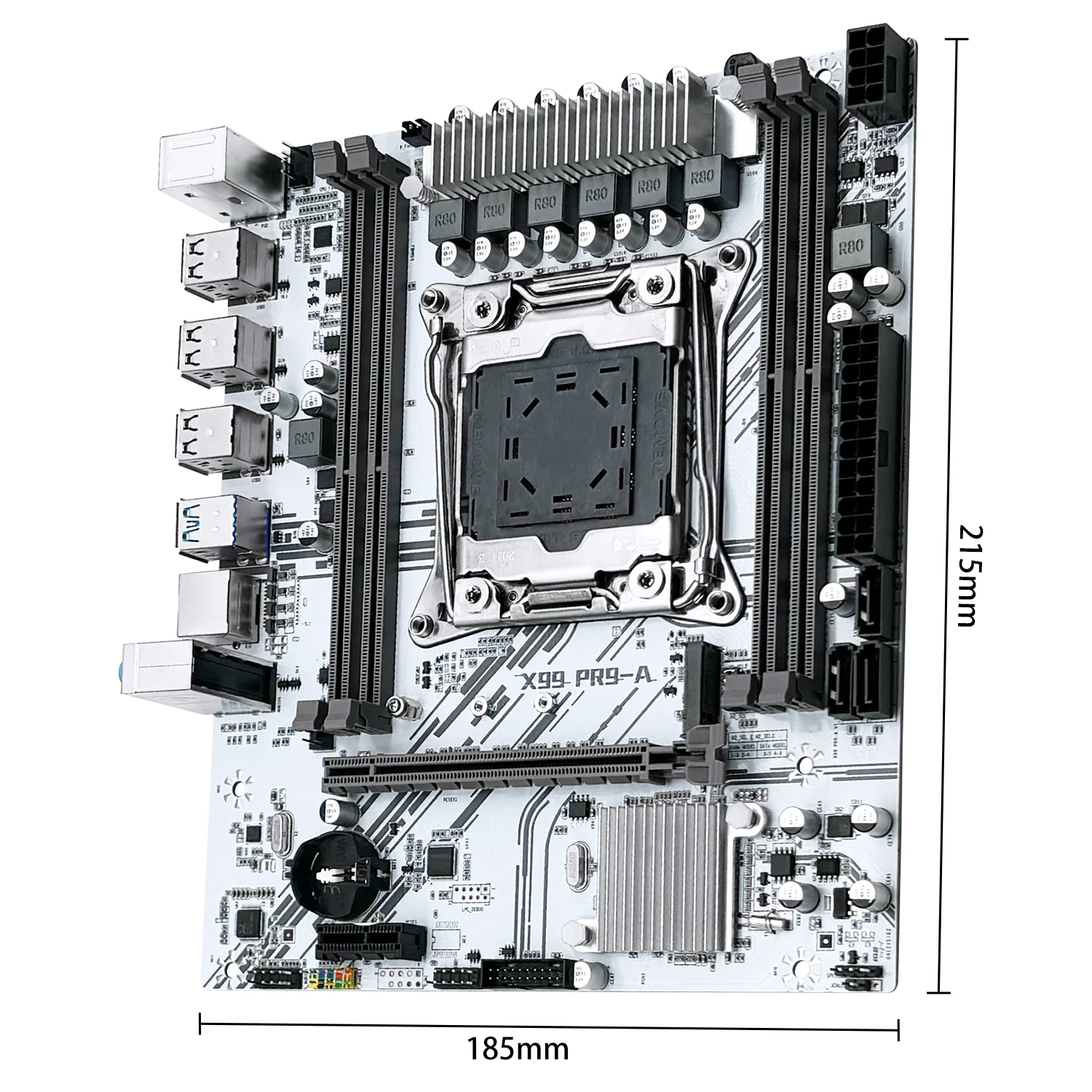

Size: 215mm * 185mm.

Notice:

1. All motherboard memory processors are strictly tested before shipment.
2. The battery in the motherboard photo will be removed before shipment because China Post and Customs prohibit the use of batteries.
3. For tax issues, please ensure that you can solve customs clearance issues by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. Thank you for your understanding.
4. Used to install memory. All RAM needs to be installed in slot #1 and slot #2 green slots) first. The motherboard's black memory slots (#3/#4) do not work alone. The memory needs to be inserted into the yellow main slot first.
