Juego de conectores automotrices, EL-2/3/4/6/9P, Tamiya pequeño, 4,5mm, EL4.5, conectores multipolos, macho + hembra + terminales

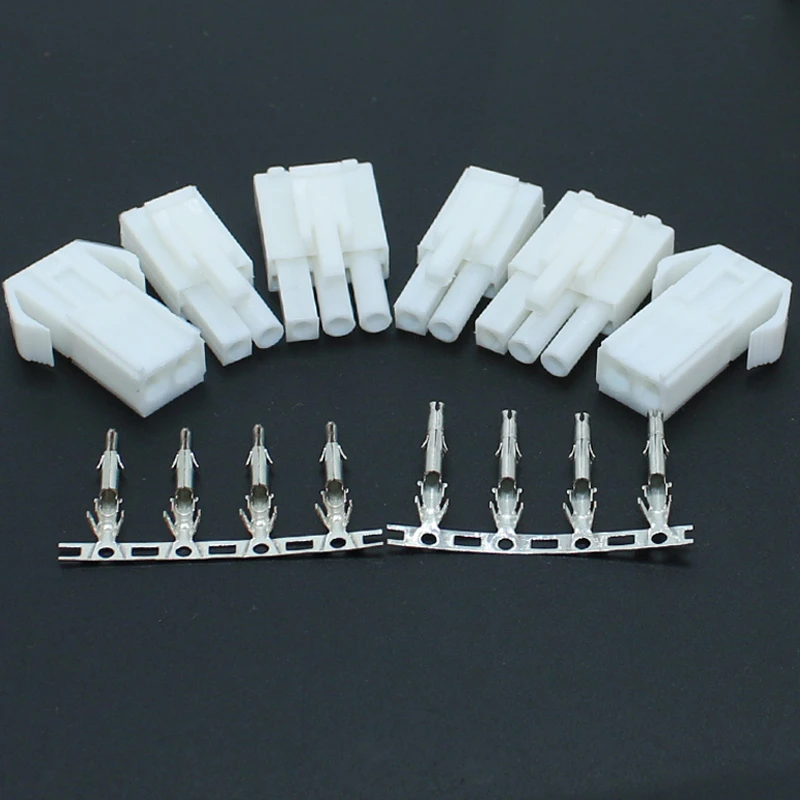

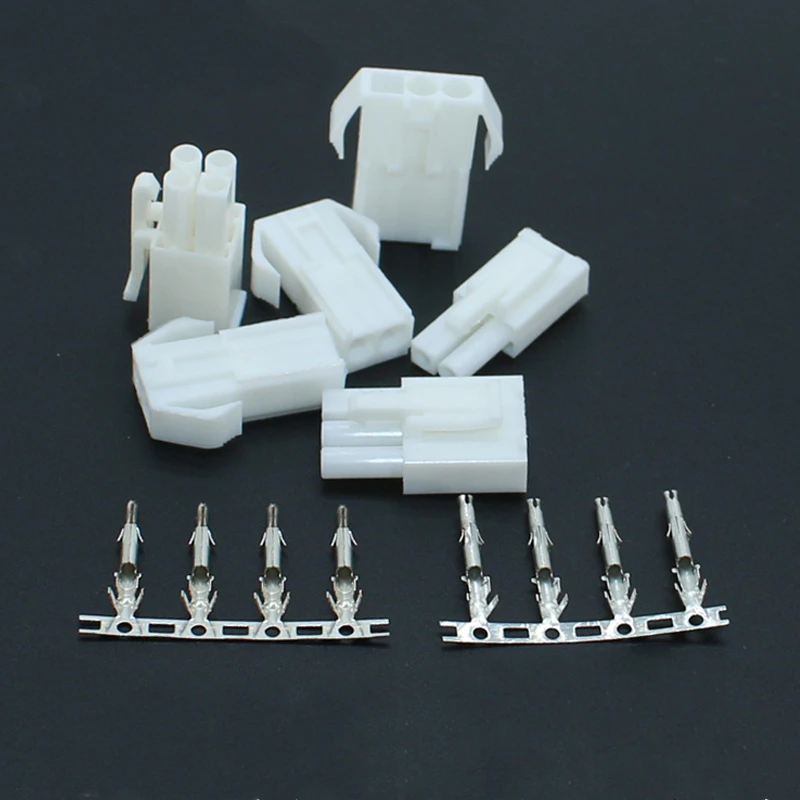

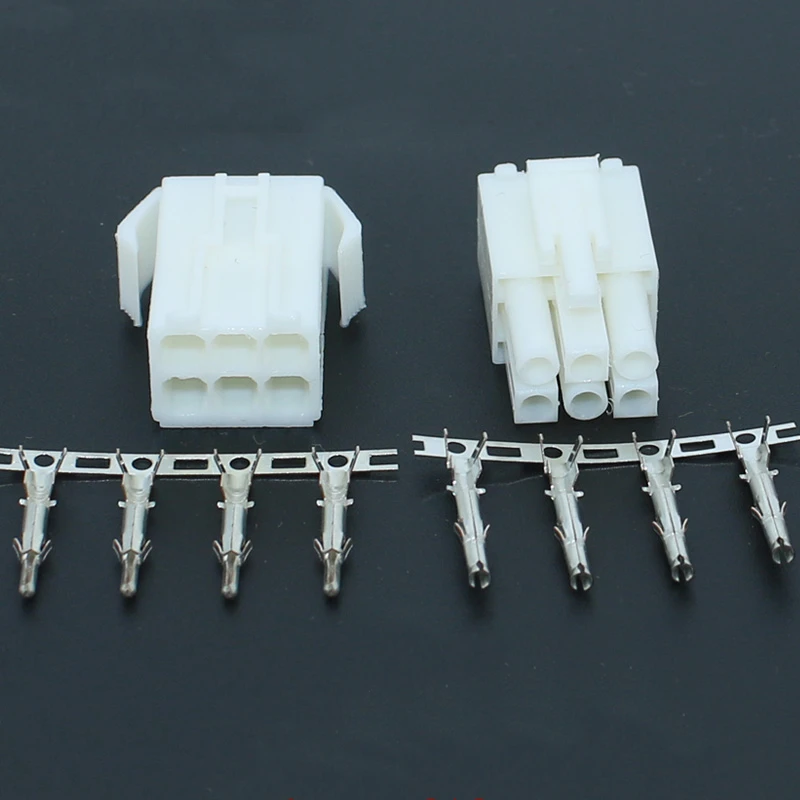

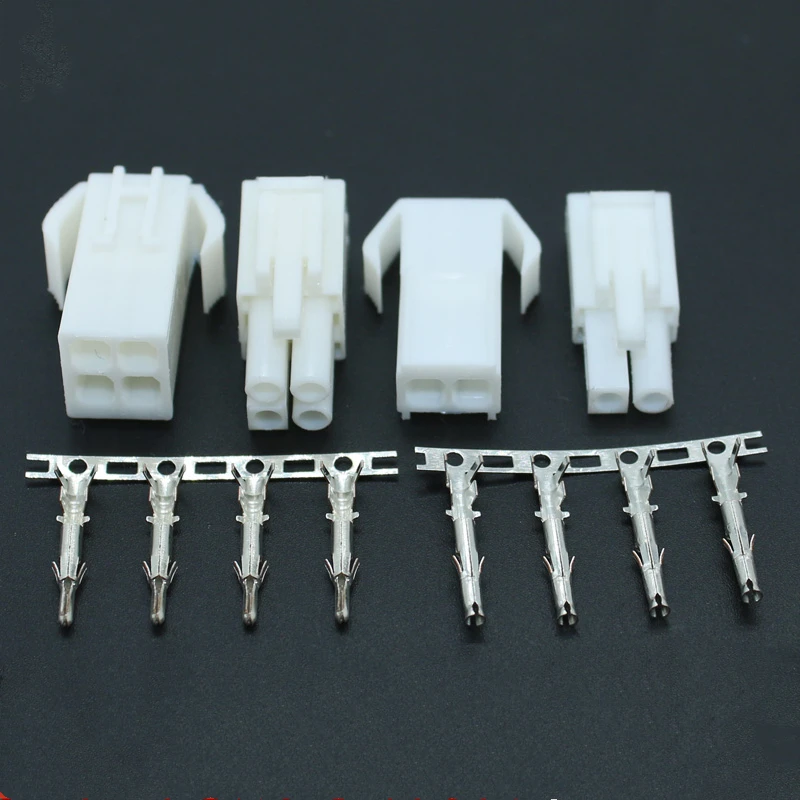

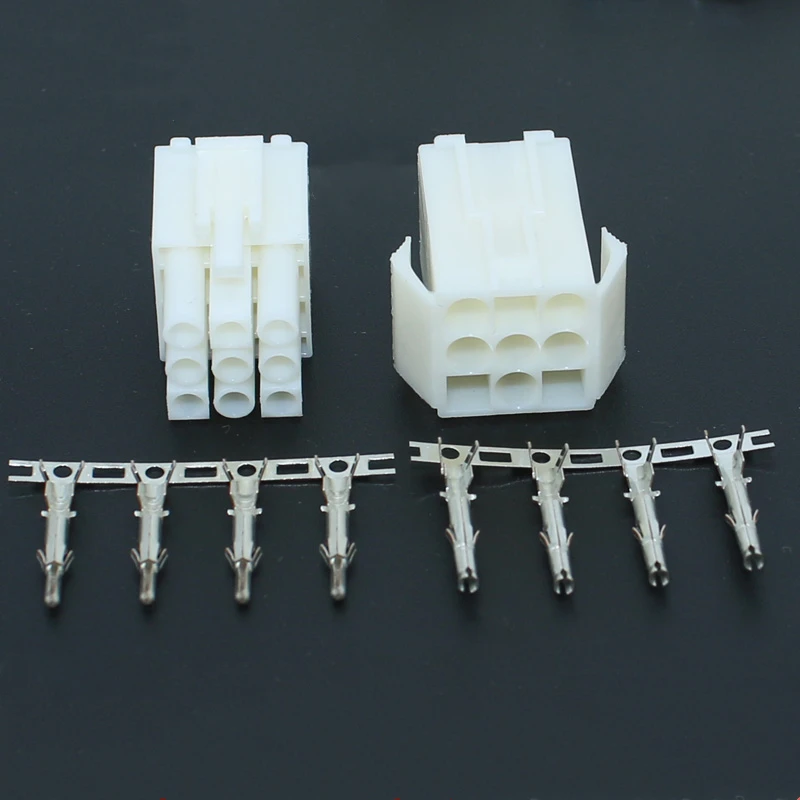

10Sets Automotive connector EL-2/3/4/6/9P Small tamiya Connector 4.5mm EL4.5 Multipole Connectors Male + Female Plug + terminals

Product Description (EL) Strip type connector

Spacing: 4.5 mm

Applicable wire gauge: AWG# 28 ~ # 18

The range of the PCB thickness: 1.6-2.0 mm

Temperature range:-25 C ~ 85 C

Rated voltage: 300 V AC/DC

Rated current: 10-6A

Contact resistance: 0.015 Ω or less

Insulation resistance: 1000 mΩ or higher

The pressure value: 1500V AC/min

Material: Plug: nylon (PA66) UL94V - 2 (0)

Socket: nylon (PA66) UL94V - 2 (0)

Terminals: phosphor bronze
