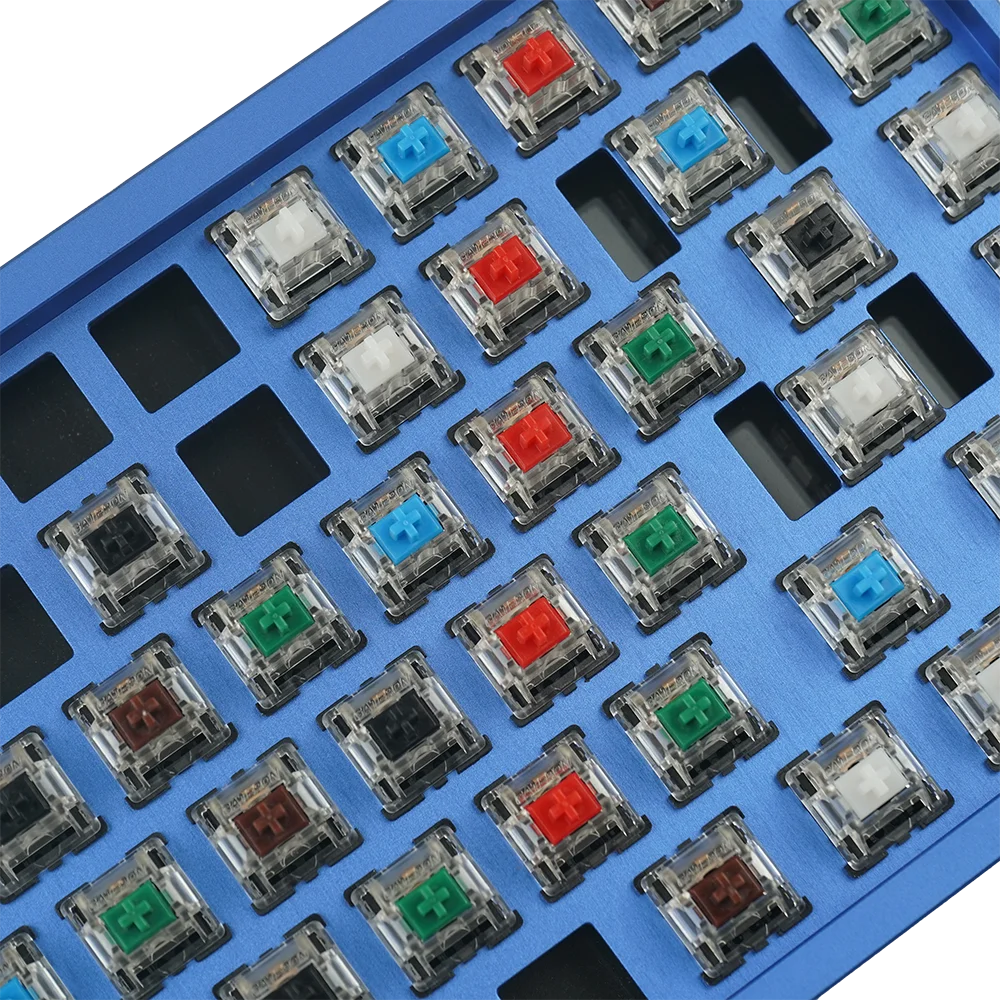

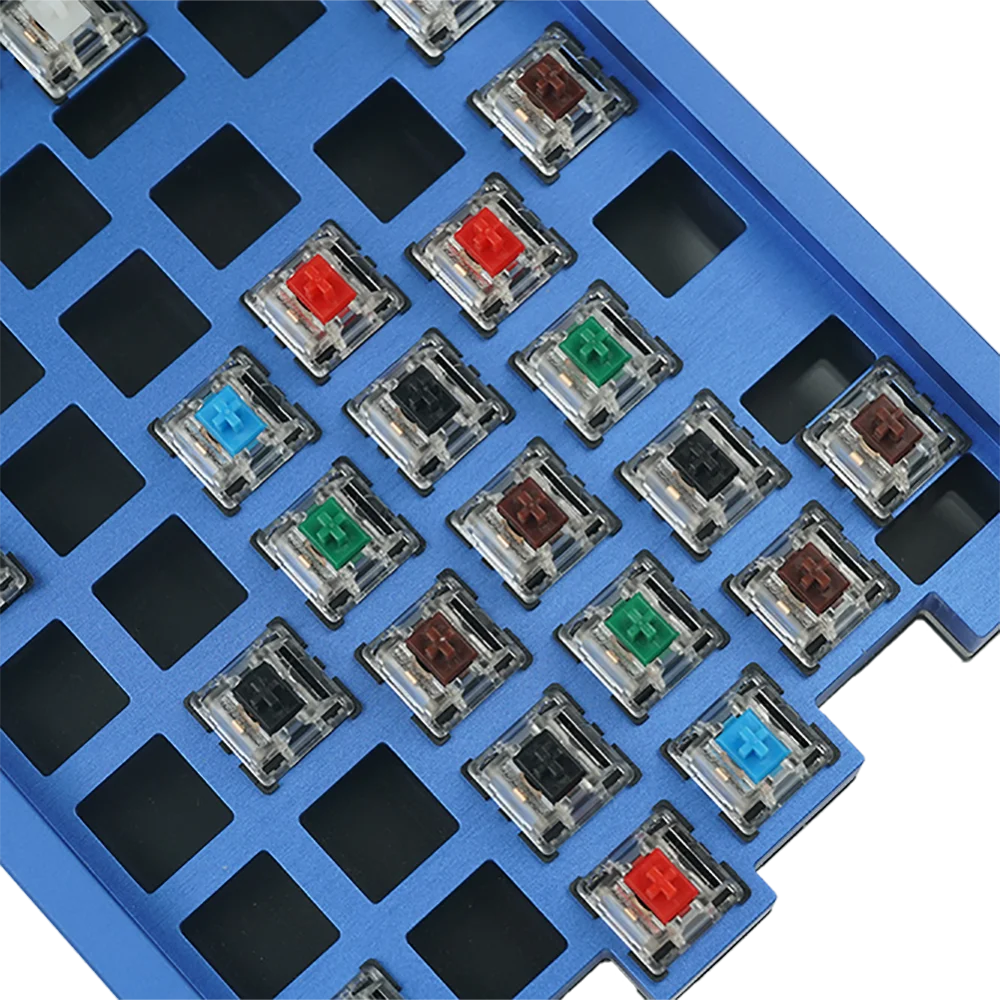

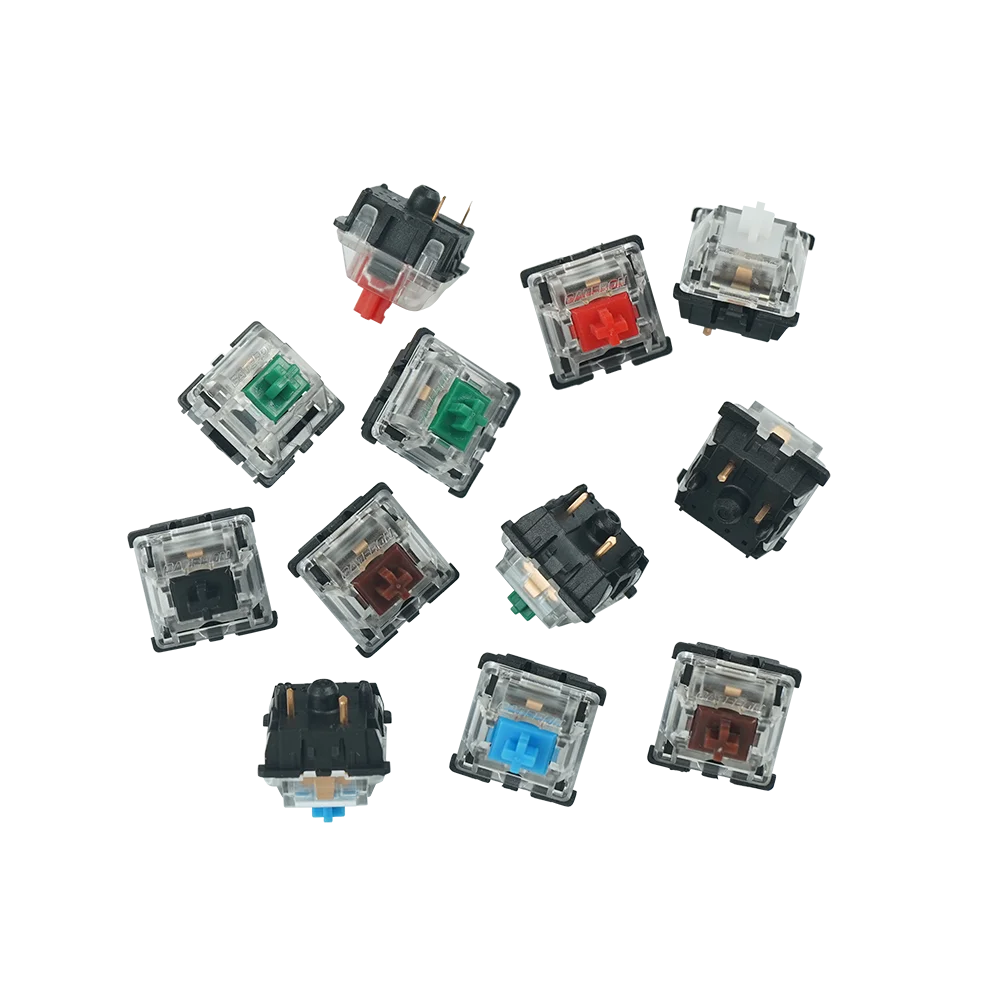

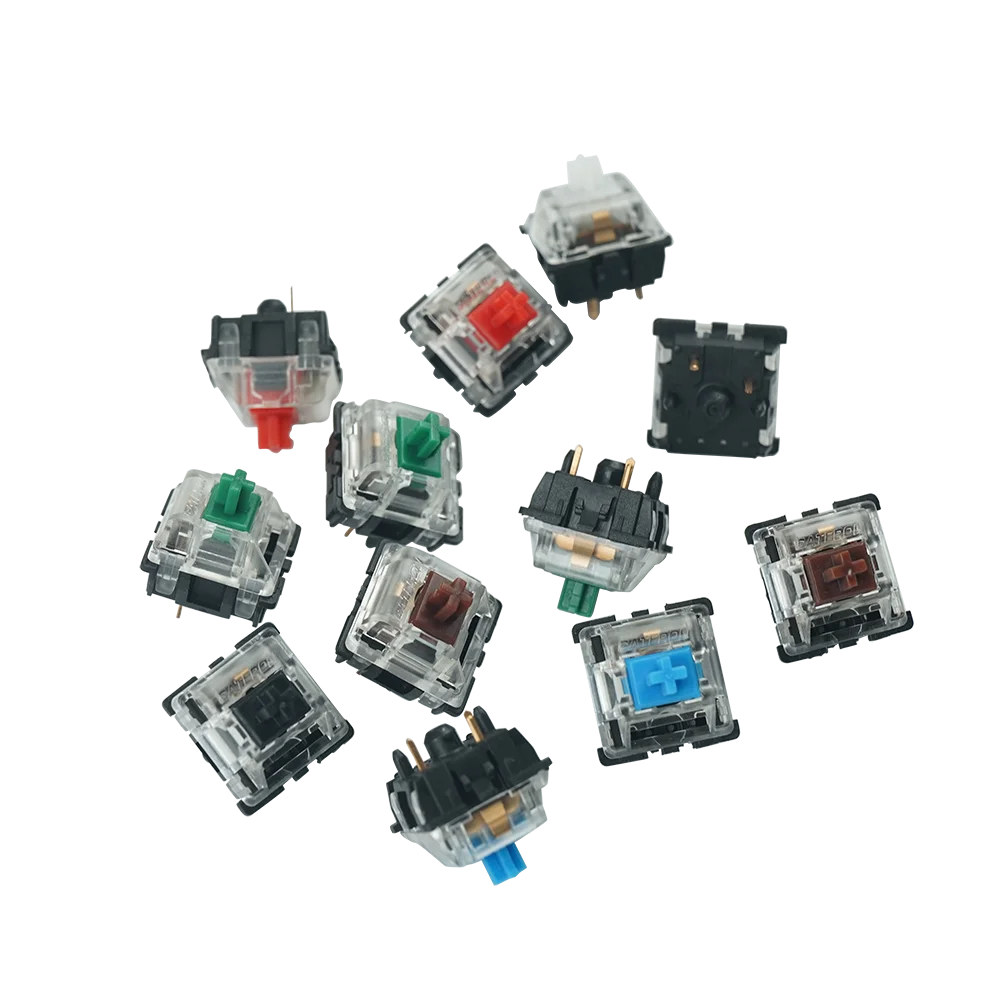

Interruptores Gateron, 10 Uds., teclado DIY de 3 pines y 5 pines para todos los teclados mecánicos MX, soporte personalizado, LED RGB de 4 pines

Definition and Characteristics

• Linear Switch: The key pressure curve of the linear switch is linear, without obvious tactile feedback. When pressed, the resistance of the button is uniform and there is no obvious paragraph feeling.

• Tactile Switch: The buttons on the Tactile Switch provide a noticeable tactile feedback during the pressing process. Typically, there is a noticeable increase in resistance after the button is pressed a certain distance, creating a sense of paragraph.

Detailed Description

1. This link is only the shaft and switches for mechanical keyboard, no keyboard included. It's 3 pin and 5 pin switches. You can choose any color of these 5 colors and can choose them mixed, no need to choose only 1 color. (Pro 3.0 does not support mixing with the regular version)

2. 3 pin is plate, 5 pin is OK for plate and PCB. This switches only supports 4 pin RGB LED, not support underglow RGB LED. (Pro 3.0 support underglow RGB LED)

3. Gateron switches has similar clicking sense as Cherry and the price is half of the Cherry, very good for DIY.Gateron switches can replace Cherry switches on PCB board. The most difference is Gateron switches own bigger axis and more stable than Cherry switches. The lifetime can be more than 50 million as well.

4. Red Black White switches are linear switches moving straight up and down without any additional tactile feedback or loud clicking noise. For operating force, Black Red White.

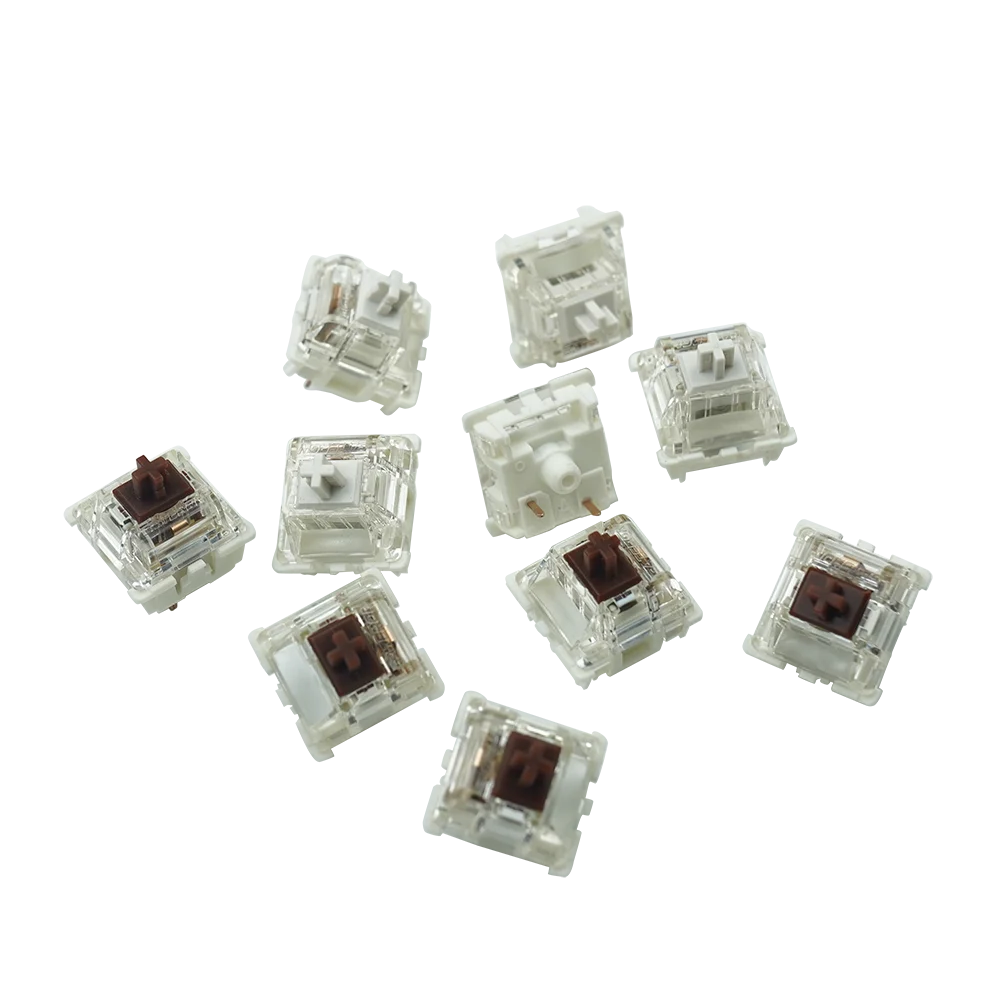

5. The Brown switches are tactile and non-clicky, between Red and Blue handle feeling. It's both good for gaming and typing which depends your preference.

6. The Blue and Green is tactile and audible switch, Green is stiffer version of Blue.
