Interruptor remoto de relé DC3.7V 4,2 V 5V 6V 7,4 V 8,4 V 9V 12V Salida 0V relé de contacto seco Valor de conmutación NO COM NC 315MHz 433MHz

- brand new and high quality

Instructions:
Momentary--press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control
Toggle--press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control
Latched--press one button is working/ON ,press another button is stop/OFF. ( one channel switchneed 2 buttons remote control )

Features:
Small size, low power consumption, flexible operation, easy to install.
Provide high signal sensitivity at lower cost and resist interference for excellent stability.
Remote Control only, other accessories demo in the picture are not included!

Specification:
Material: Plastic
Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V
Max Load: 1A (have better Load less than 700mA)
Quiescent Current: 5mA
Relay Working Current: 20-30mA
Working Mode: Momentary Toggle Latched adjustable
Encoding Type: Learning Dot to add Transmitter
Normally Open Port (NO), Common Port (COM), Normally Close Port (NC)
Input: DC3.5V-12V
Output: 0V Switching Value

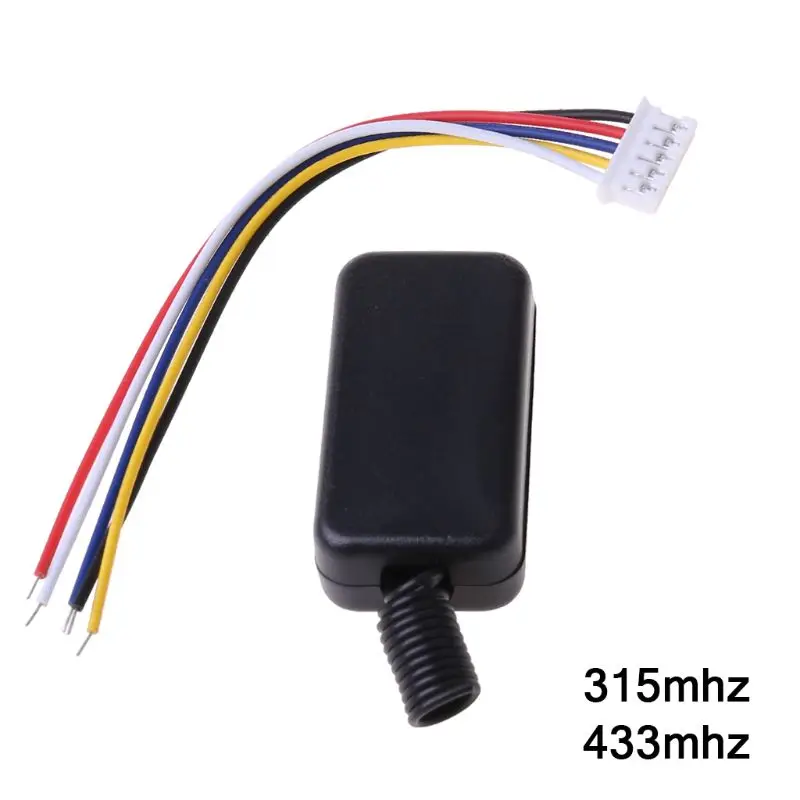

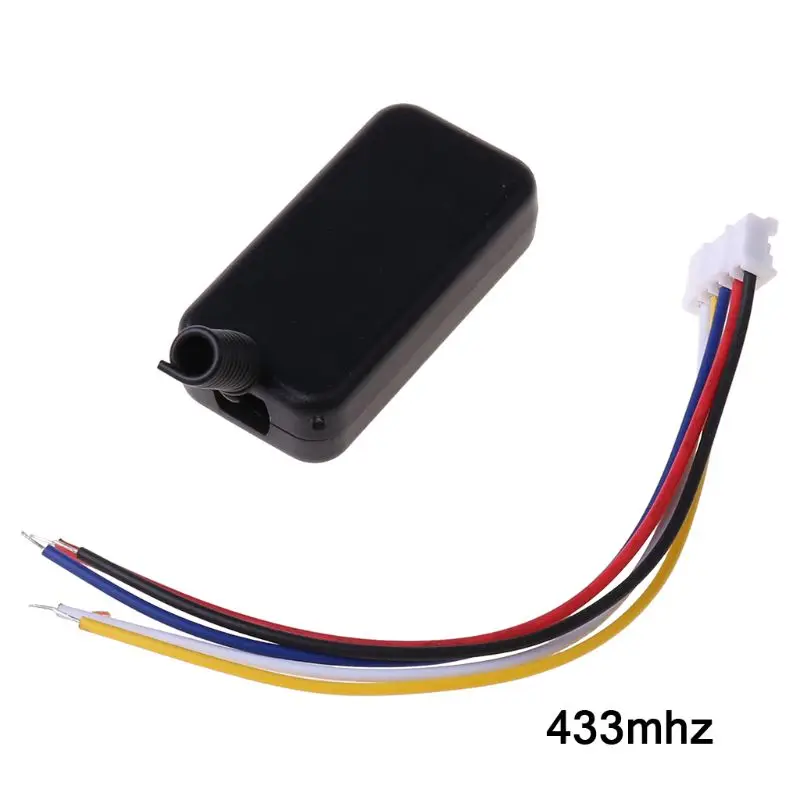

Frequency: 315MHz, 433MHz
Color: As Pictures Shown

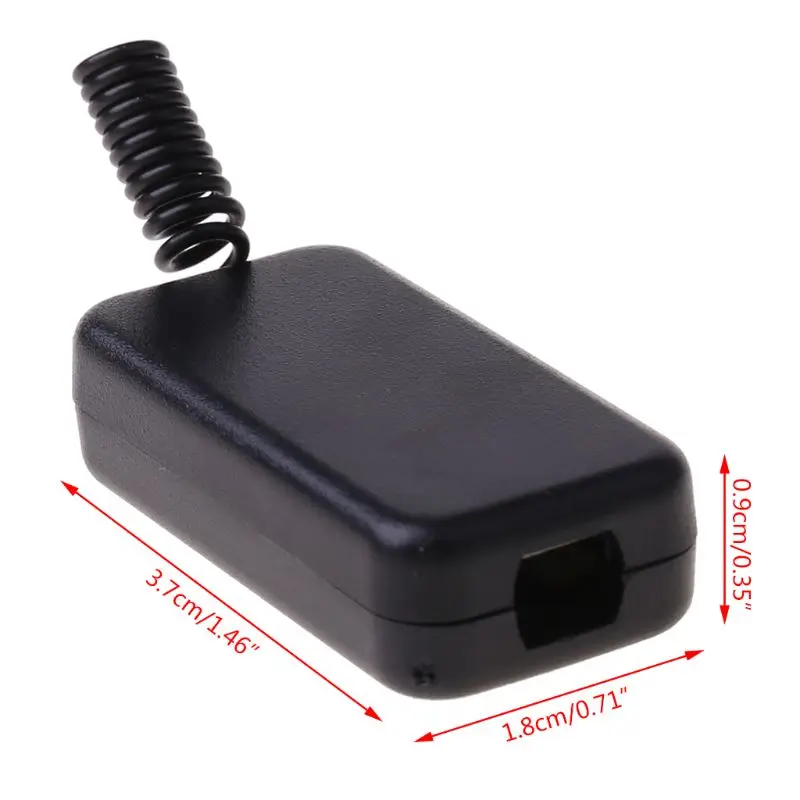

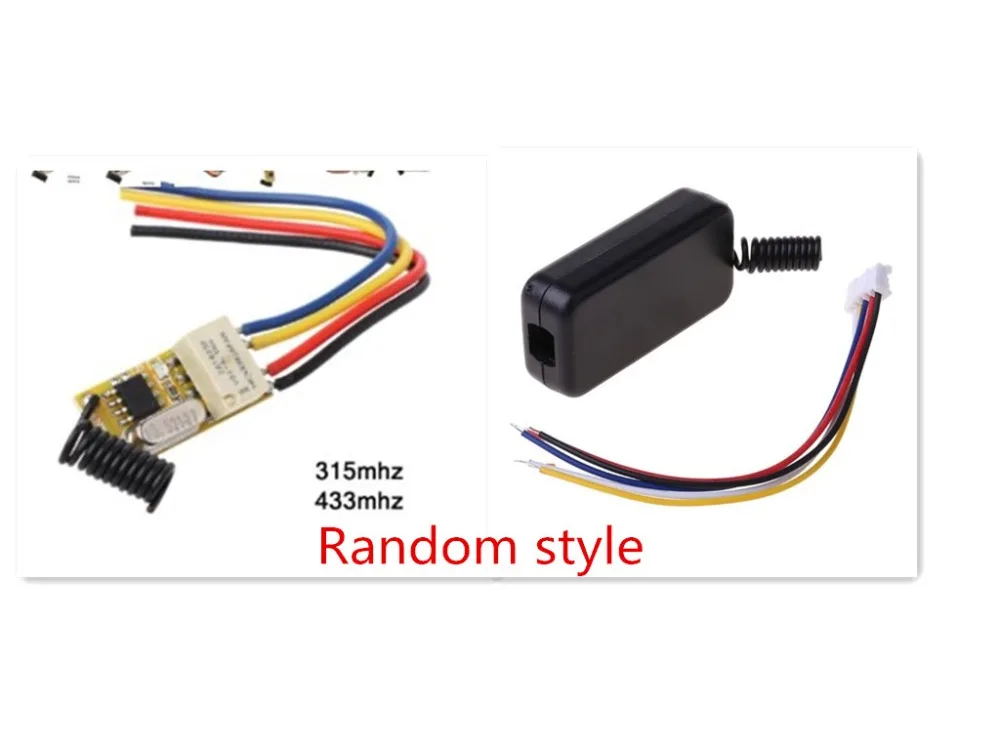

Dimension: random delivery with style, without box: 2.4x1.1x0.7cm/0.94x0.43x0.28in; style with box；3.7*1.8*0.9cm

Quantity: 1 Pc

Note:
1.No retail package.
2.Please allow 0-1cm error due to manual measurement. plz make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Receiver
