Descripción
1xUser manual

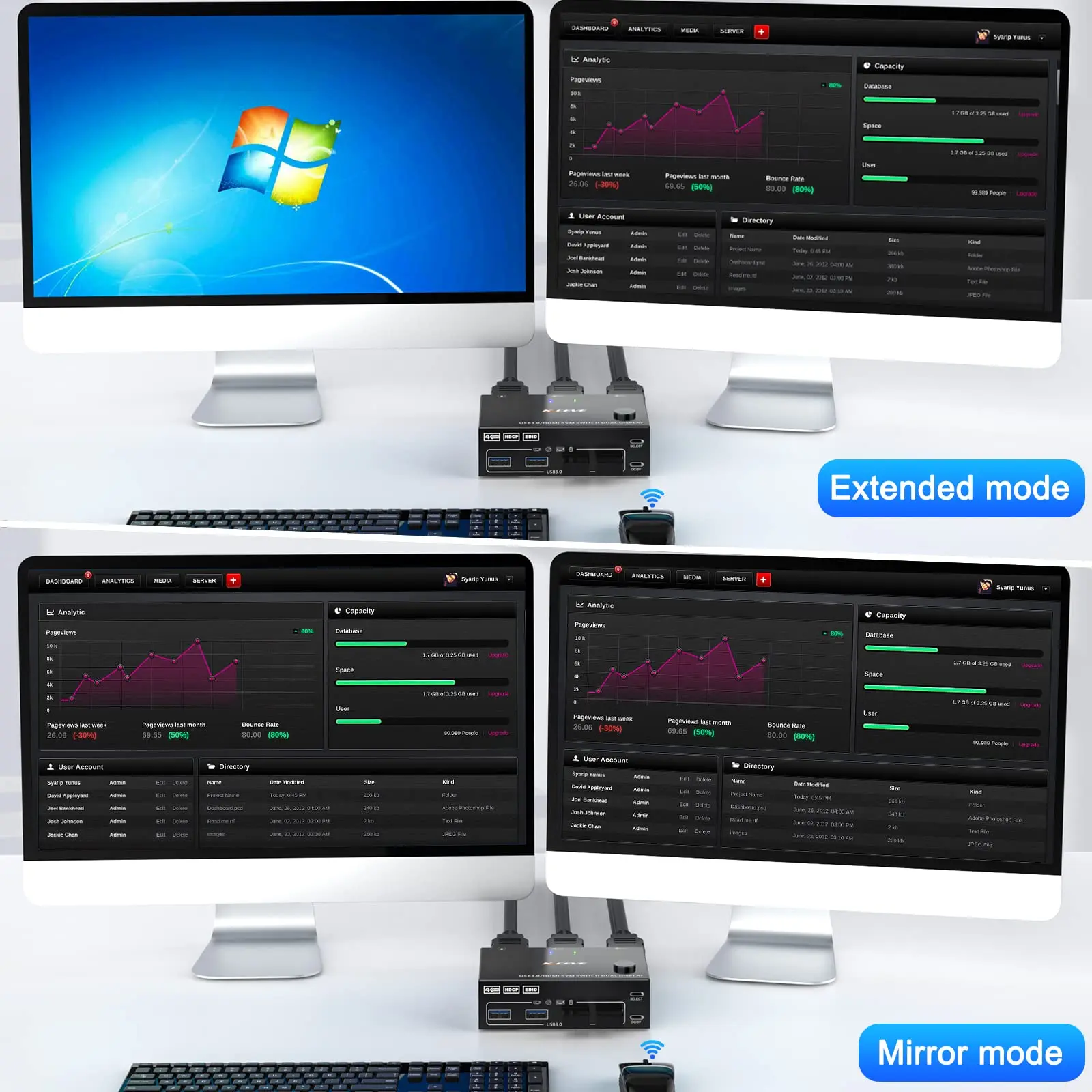

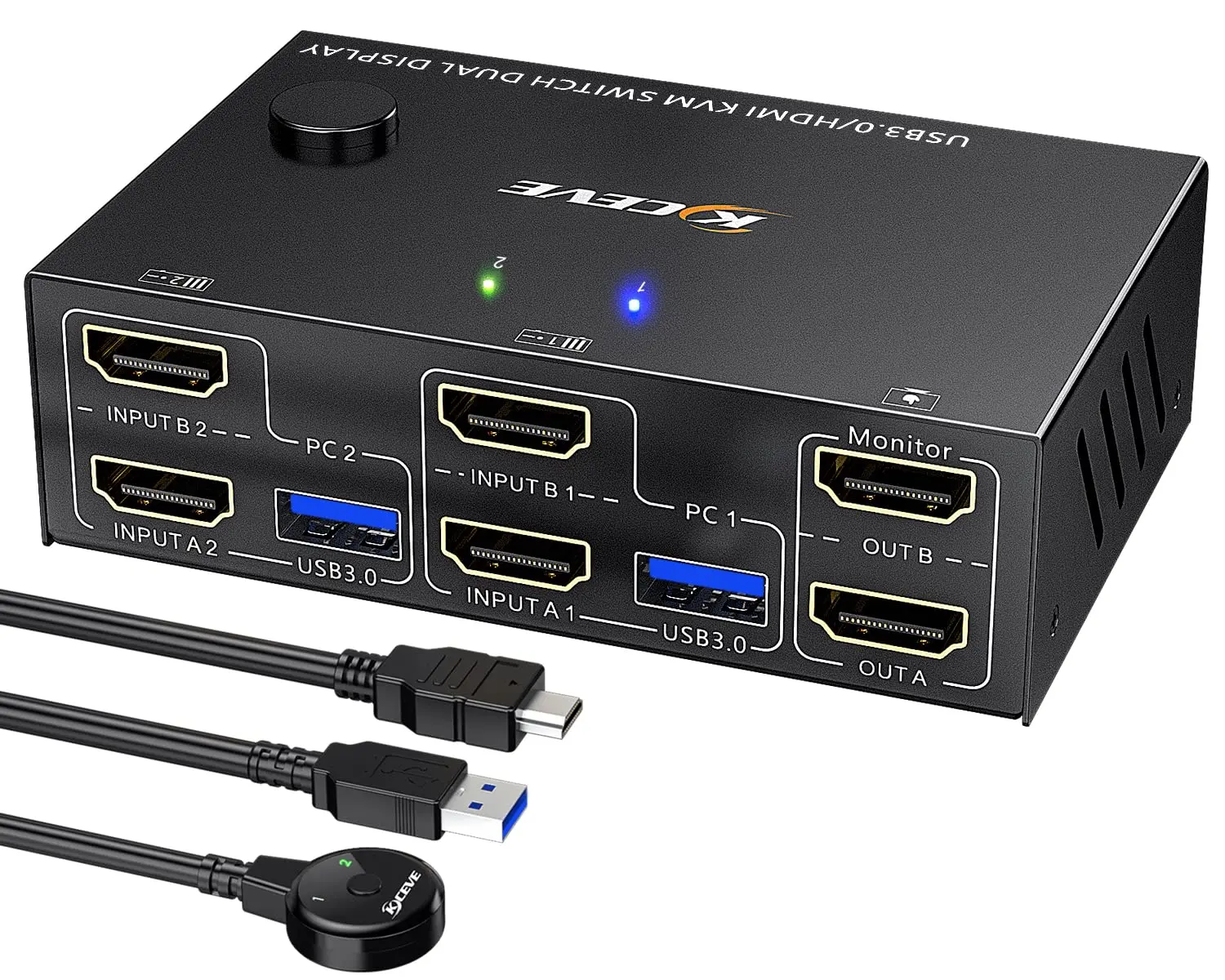

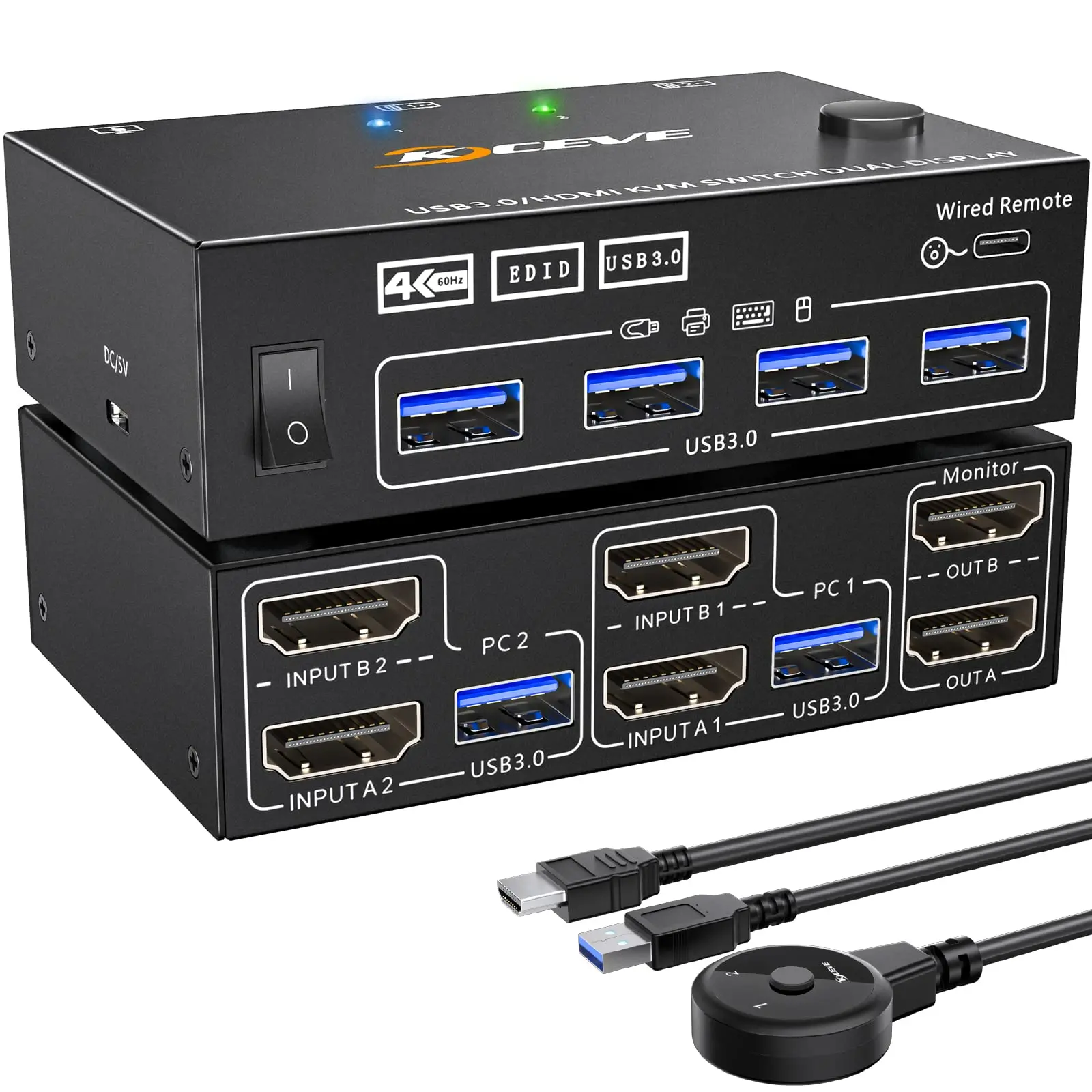

1.HDMI KVM Switch Dual Monitor 2 computers 2 monitors：This Dual Monitor KVM switch 2 monitors 2 computers allow you to control 2 computers or laptops by only one set of wired or wireless keyboard mouse,share 4 USB 3.0 devices and 2 monitors(Extend display mode or copy display mode). Please note that the extended mode can output two different screens, and the copy mode can output two identical screens.

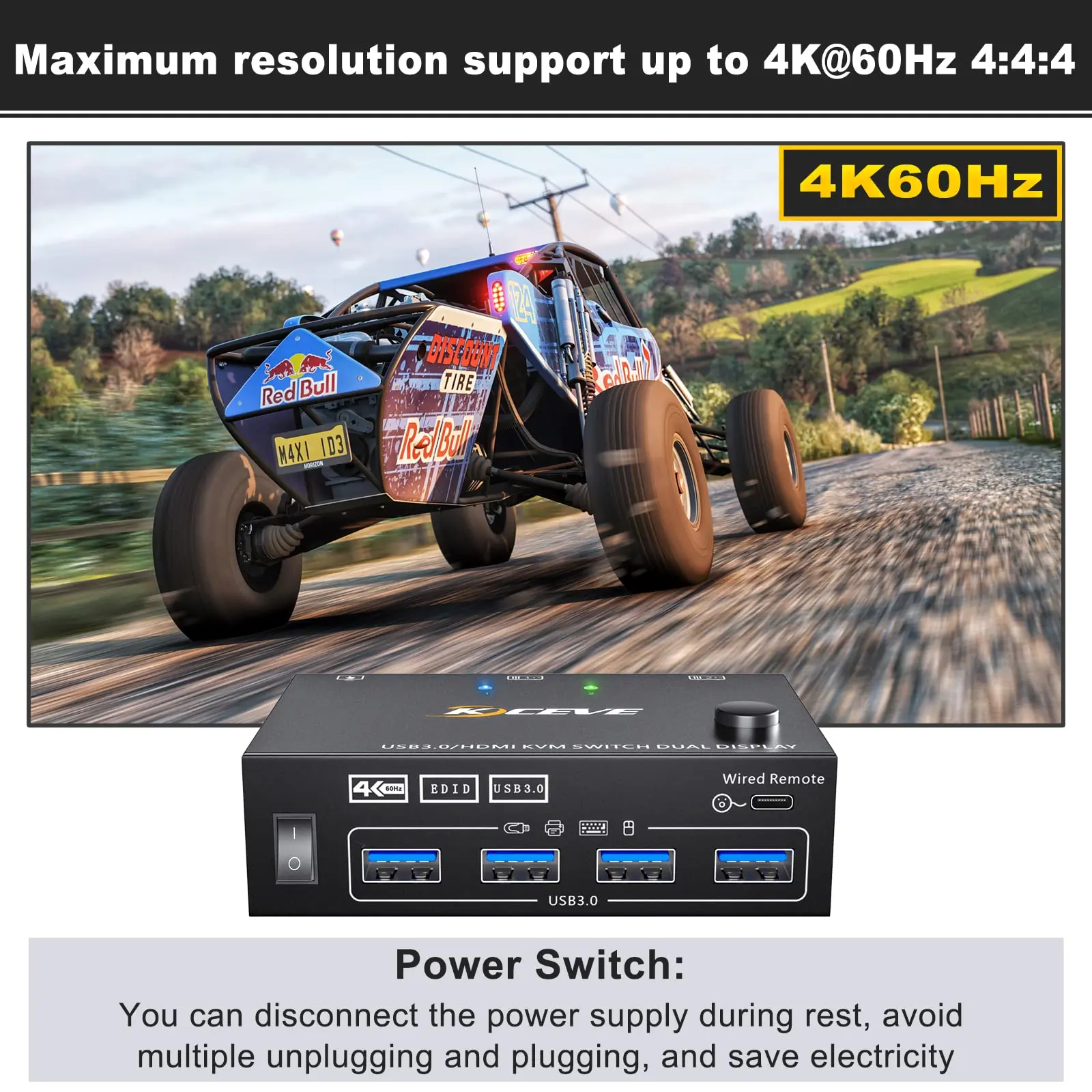

2.Ultra HD 4K@60Hz ：USB 3.0 Dual Monitor KVM switch HDMI support resolution 4K@60Hz,[email protected] switch 2 monitors 2 computers aslo support input terminal to connect 2 computers with different resolutions, e.g. one is 4K@60Hz, the other is 4K@30Hz, 1440P@60Hz, 3D,1080P@60Hz or lower resolution.Note: if you need a 4K resolution , please use HDMI 2.0 cable and make sure your computers and monitors support 4K !

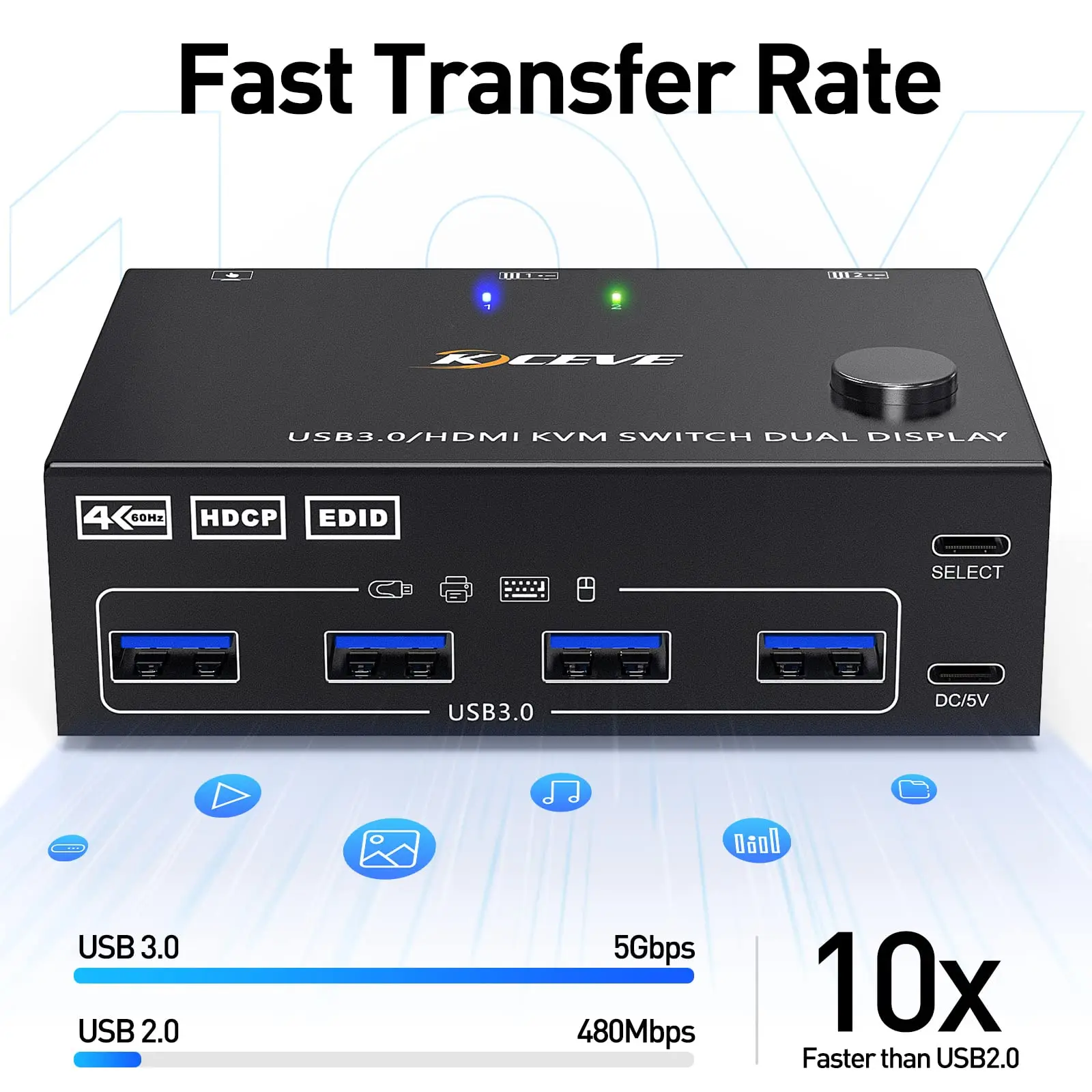

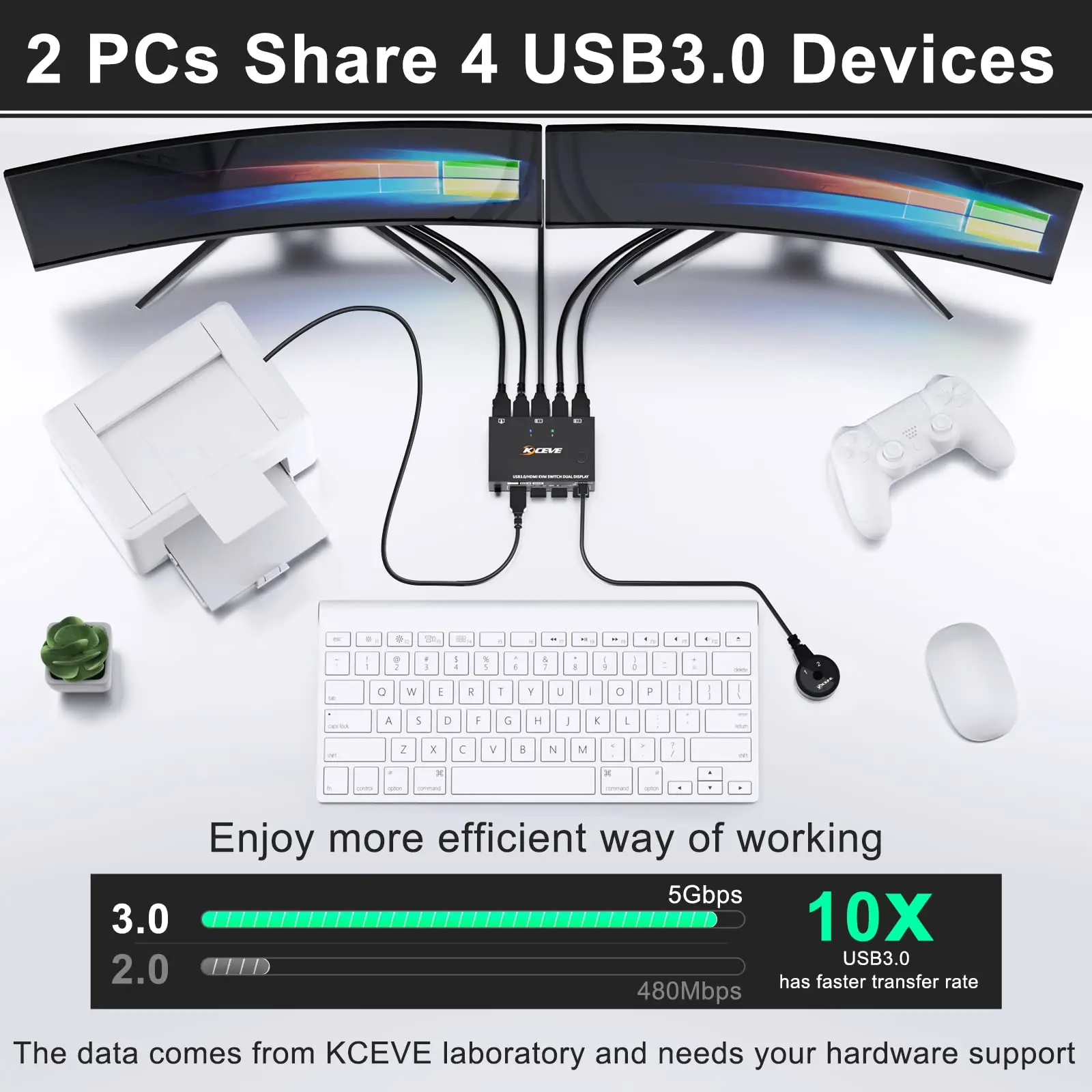

3.KVM Switches with 4 USB 3.0 Ports：Dual monitor HDMI USB switch with 4 integrated USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices.supports ultra-fast USB 3.0 data transfer up to 5Gbps,backward compatible with USB 2.0/1.1 devices.When using a high-power USB device with this HDMI dual monitor KVM switch(such as HDD, Digital Video Cameras, SSD etc),external 5V adapter is required.Otherwise,no need to connect to power.

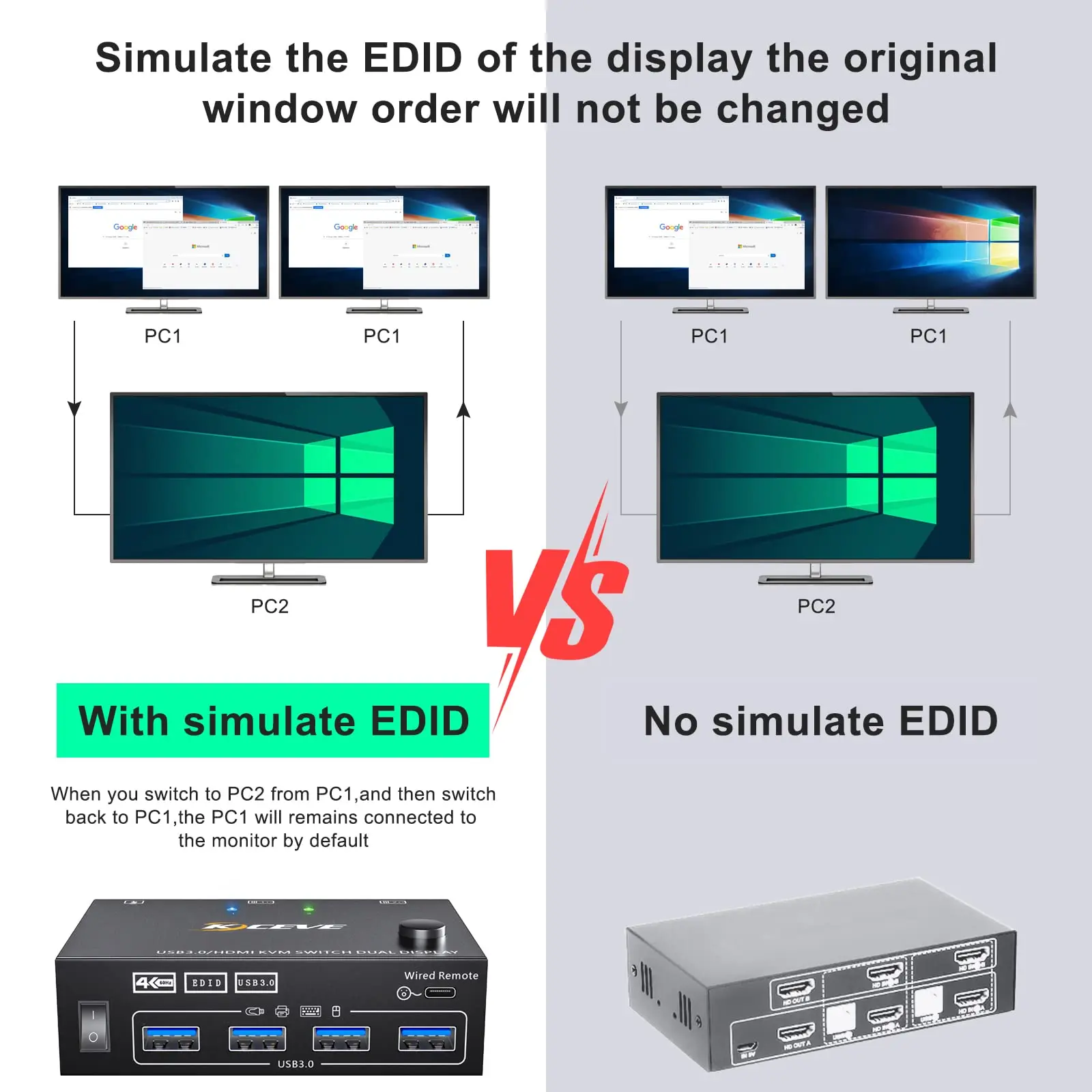

4.Support Simulation EDID：This KVM dual monitor switch can simulate the EDID of the display, store the resolution and refresh rate of the display, it comes with EDID emulators in each input port, keep PCs always having correct display information.

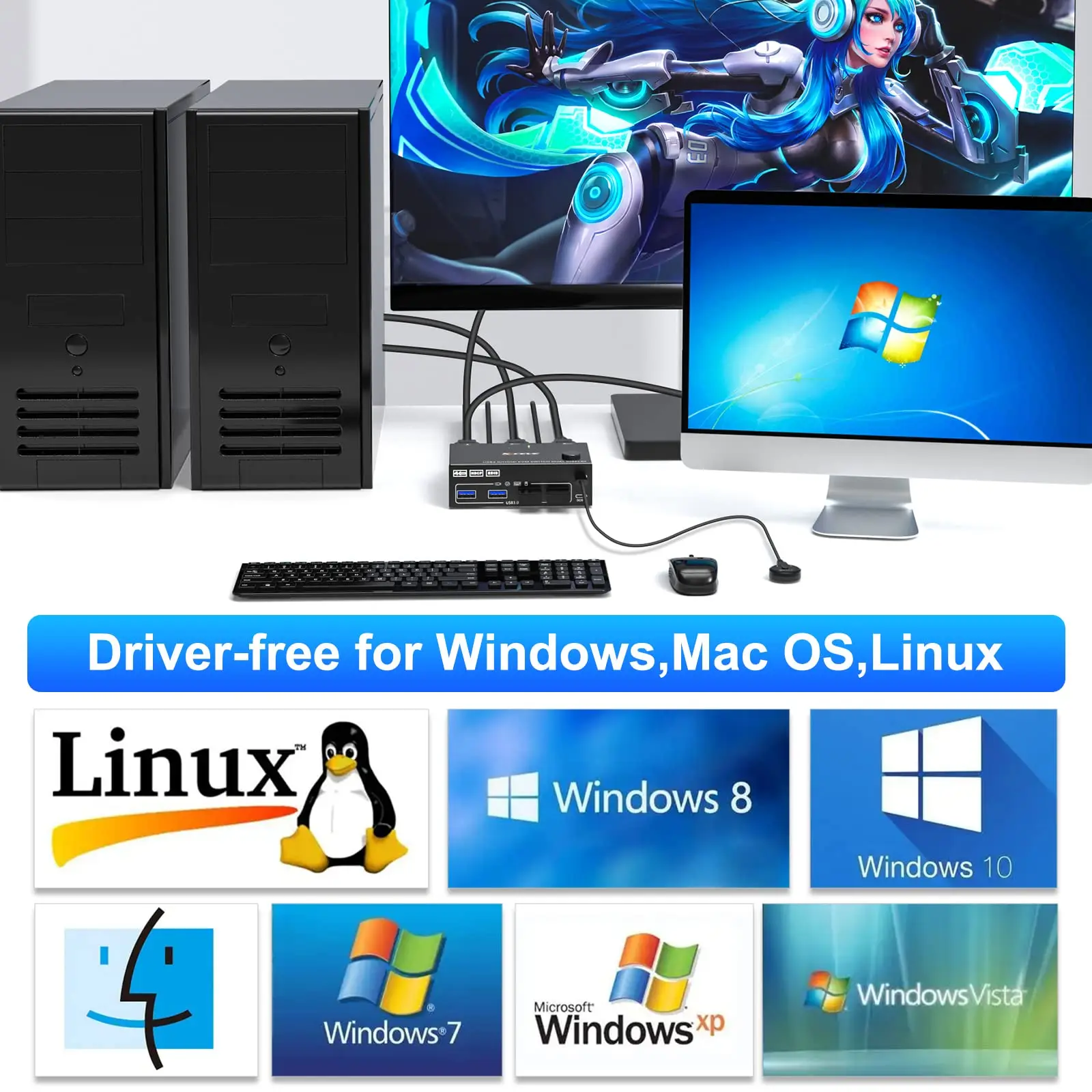

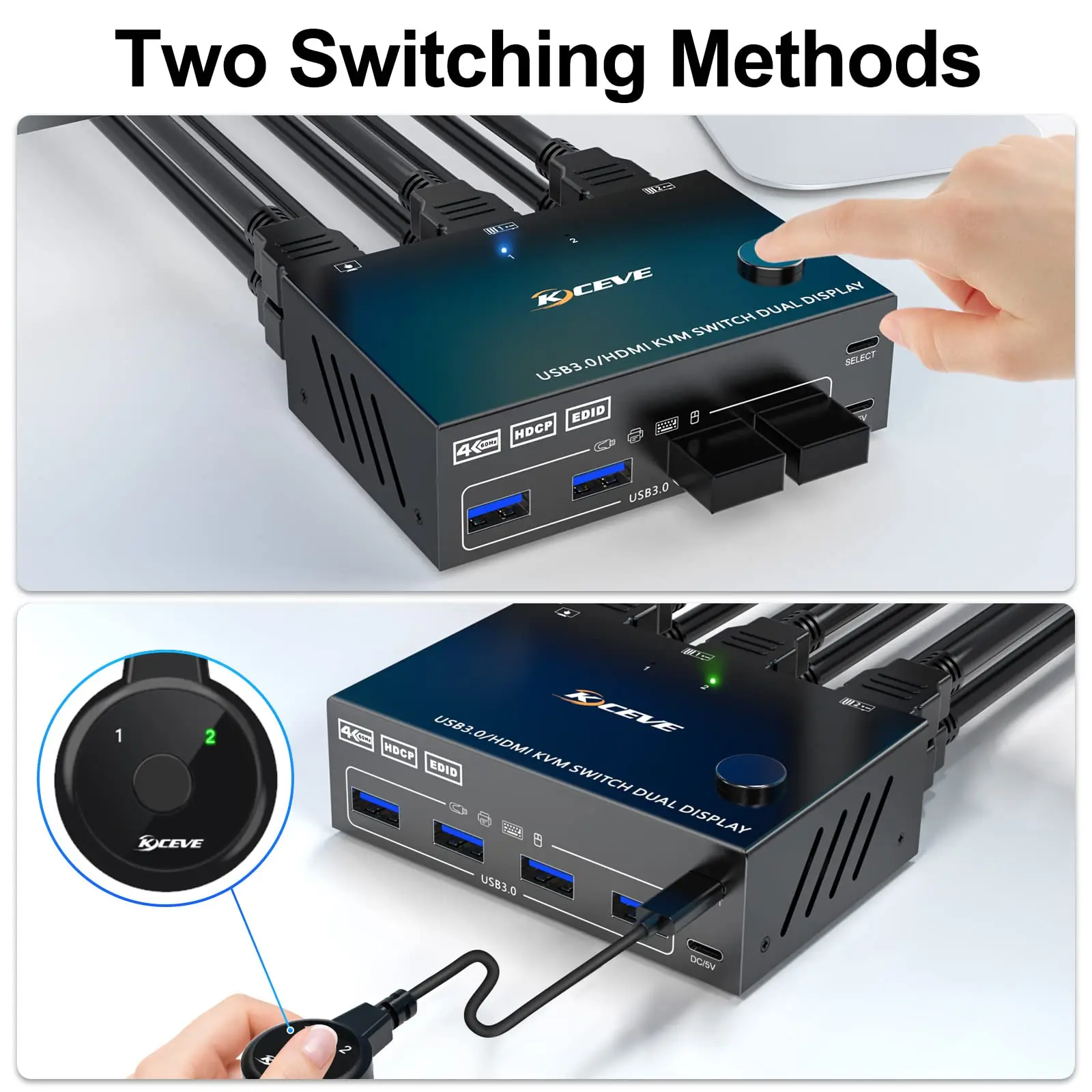

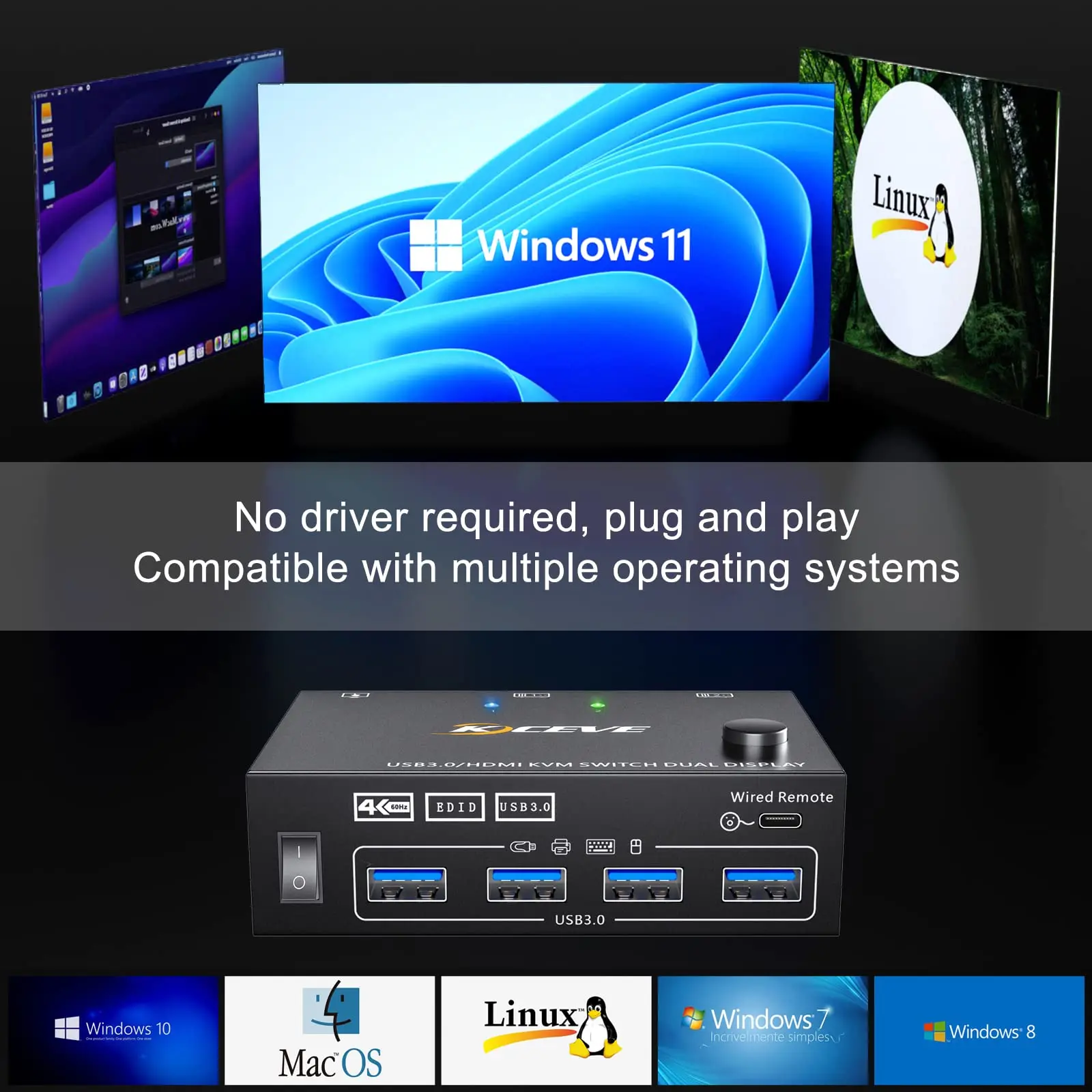

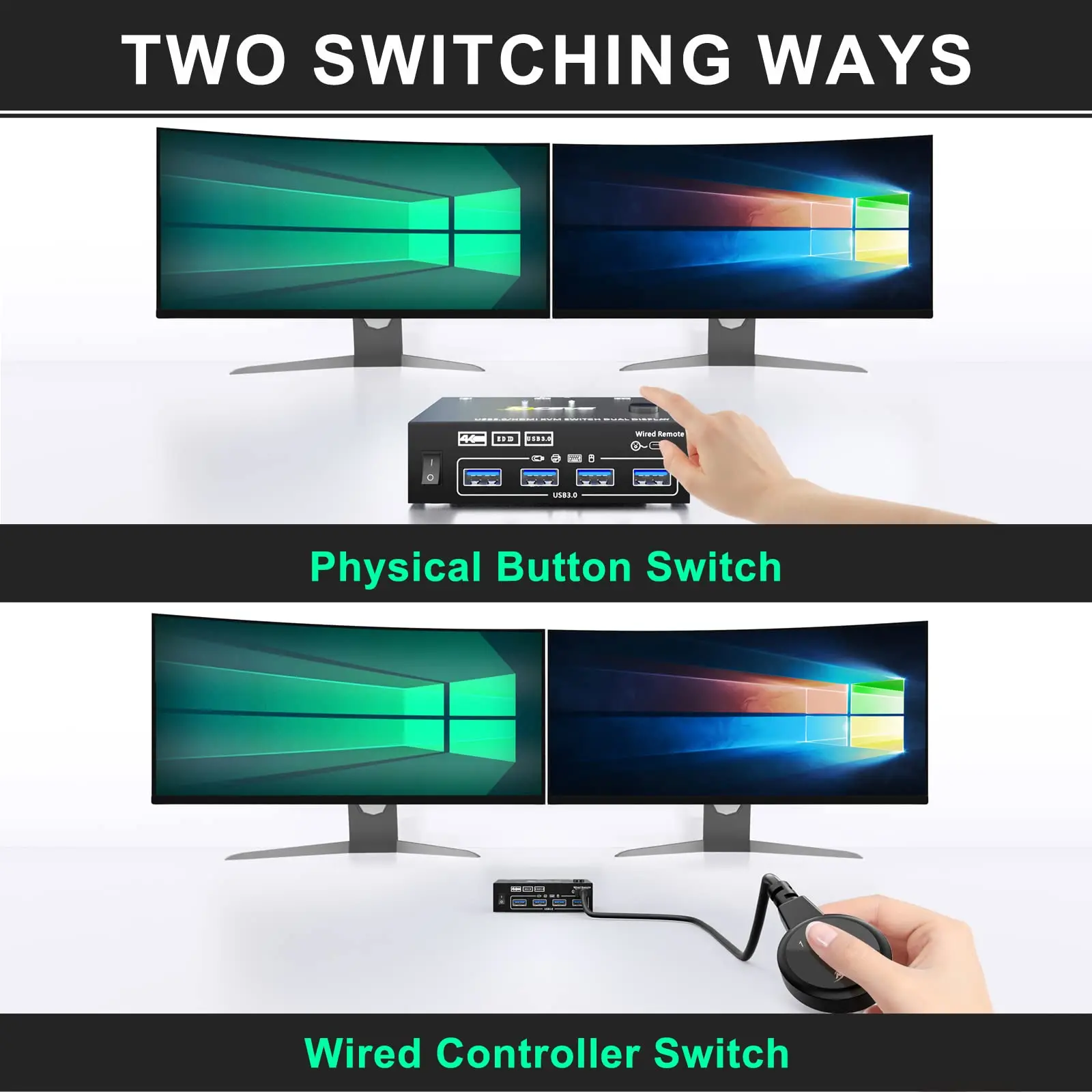

5.Great Compatibility & 2 Switching Mode：MLEEDA 2 monitor KVM switch driver-free for Windows 10/8/8.1/7/Vista/XP and Mac OS,Linux.plug and play,no external power required. you can press the button on the panel or use the wired remote controller（included in the package） to switch the computers.LED indicate the active computer.
6.KVM dual monitor With Wide Compatibility：Dual Monitor KVM support many kinds of input devices,such as PC,Laptop,Apple TV,Xbox.it is widely applied for Office,Multimedia Teaching,Meeting Room,etc.

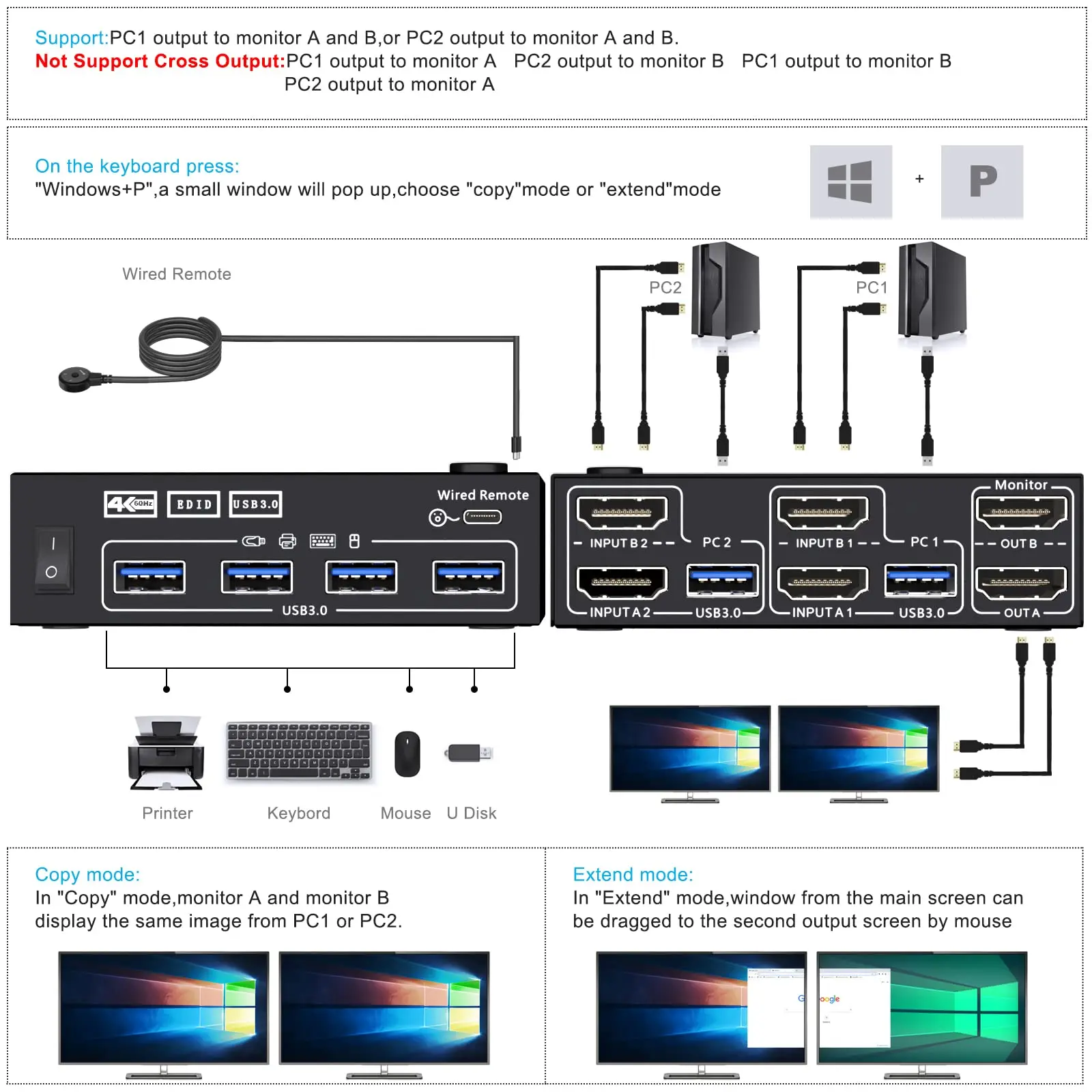

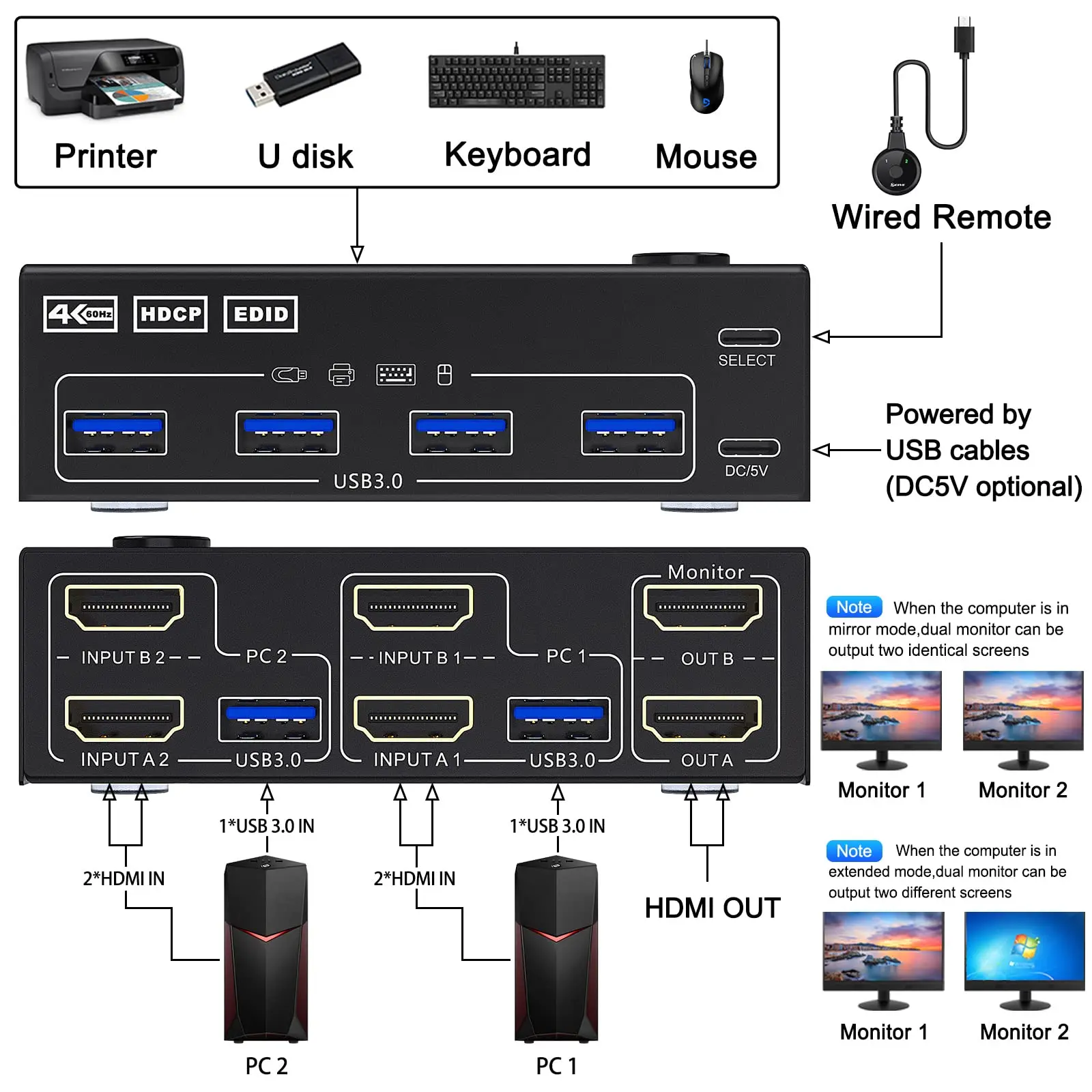

Connection steps:
Step 1. Connect 2*HDMI cables+1*USB-A cable between computer 1 and KVM (USB 3.0, INPUT A1, INPUT B1).
Step 2. Connect 2*HDMI cables+1*USB-B cable between computer 2 and KVM (USB 3.0, INPUT A2, INPUT B2).
Step 3. Connect 2*HDMI cables between the KVM (OUT A, OUT B) and the monitors.
Step 4. Connect the keyboard and mouse to the K/M USB ports on the KVM.
Step 5. Insert your USB devices into the USB port on the KVM.
Step 6. Insert the desktop controller into the "SELECT" port to remotely switch between PC1 and PC2.
Note:
Dual monitor KVM switches require each computer to have 2 HDMI output ports and supports extended display, Support DVI/DP to HDMI converter,not compatible with VGA to HDMI converter. If your computer only supports single display, then this product cannot help you get dual display function.
Specifications
Name:USB 3.0 Dual Monitor KVM Switch
Item model number : KC-KVM202A
Device Dimensions (W x H x D) :100mm x 30mm x65mm/ 3.94’’ x 1.18’’ x 2.56’’
Product Weight :0.63kg/1.39lbs

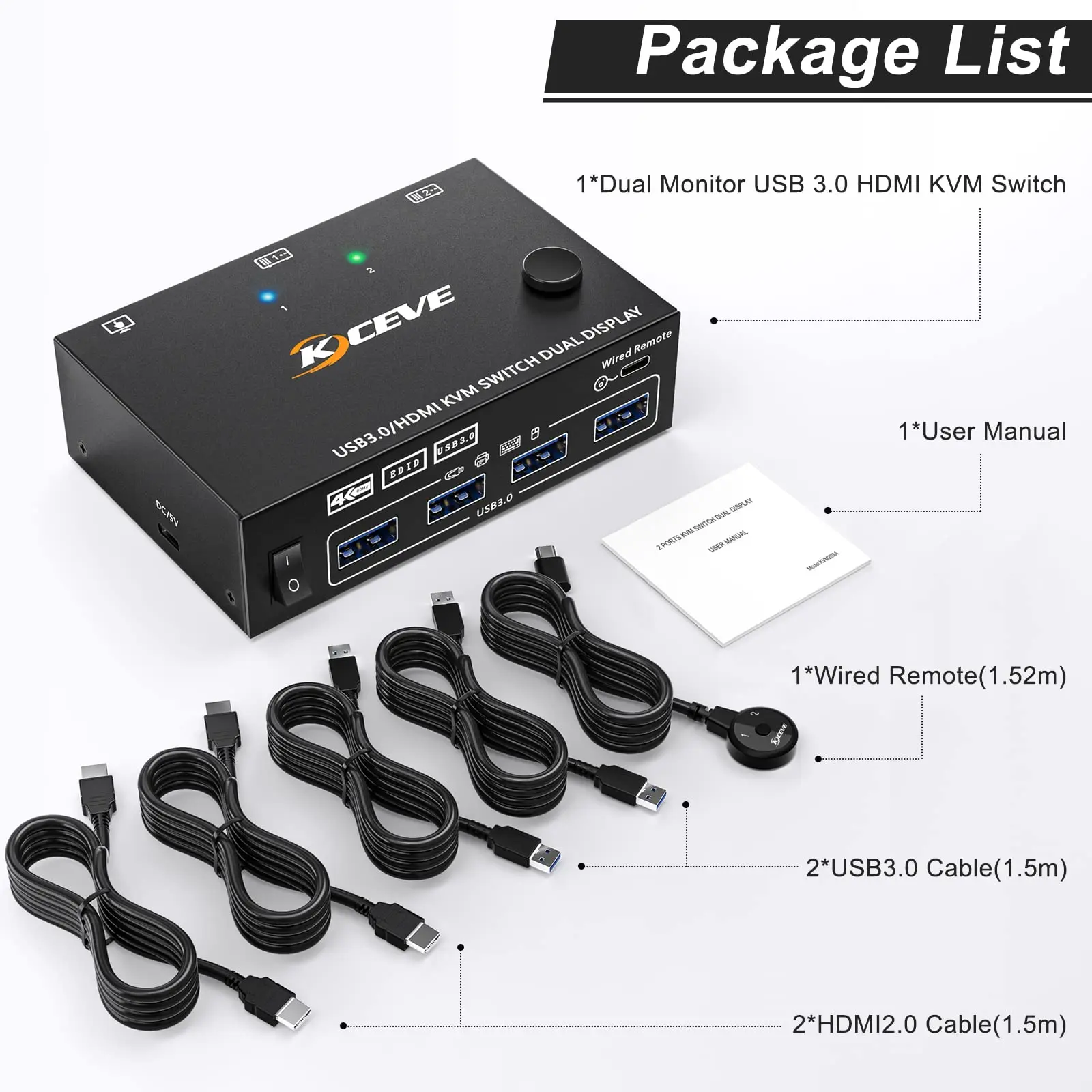

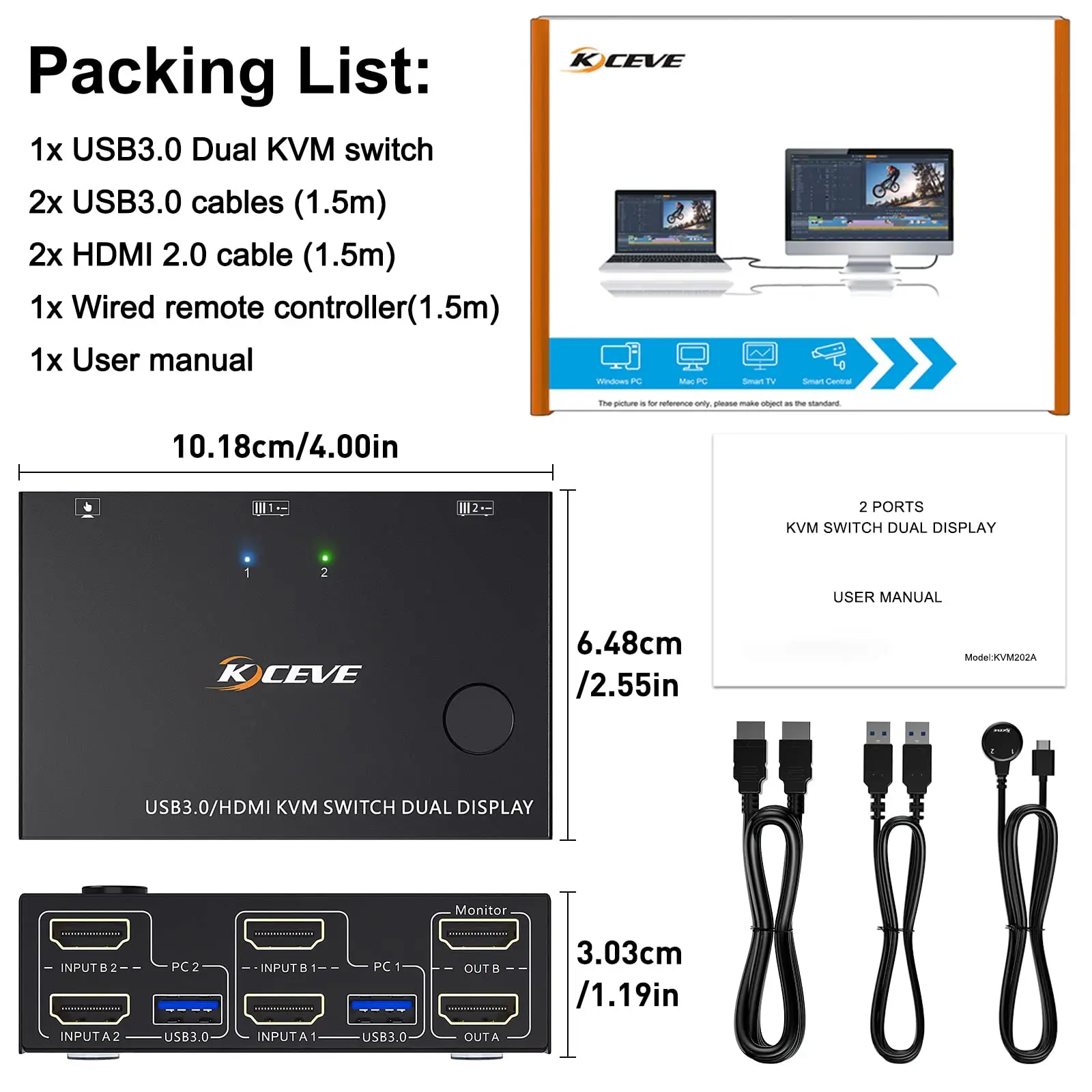

Packing List：
1x USB 3.0 Dual KVM Switch
2x Usb 3.0 cables（1.5m）
2x HDMI 2.0 cables（1.5m）
1x Wired remote controller
1xUser manual
