433Mhz Universal Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module RF Transmitter Momentary Toggle Latch for Gate Door Open,LED,Pump,Car(Transmitters 2 Button+ 1 Receiver
Features:
• Wireless control, easy to install. The wireless receiving controller with high confidentiality, stable performance, low power consumption characteristic, RF working mode is superheterodyne
• Reliable control,the receiver only works with the transmitter which use same code. One/several transmitters can control one/several receivers simultaneously, Warm tip :Support remote type: EV1527 learning code
• Wireless RF signal could pass through walls, floors, doors or windows. You can use two or more units in the same place.it is bring your life and working more Convenience

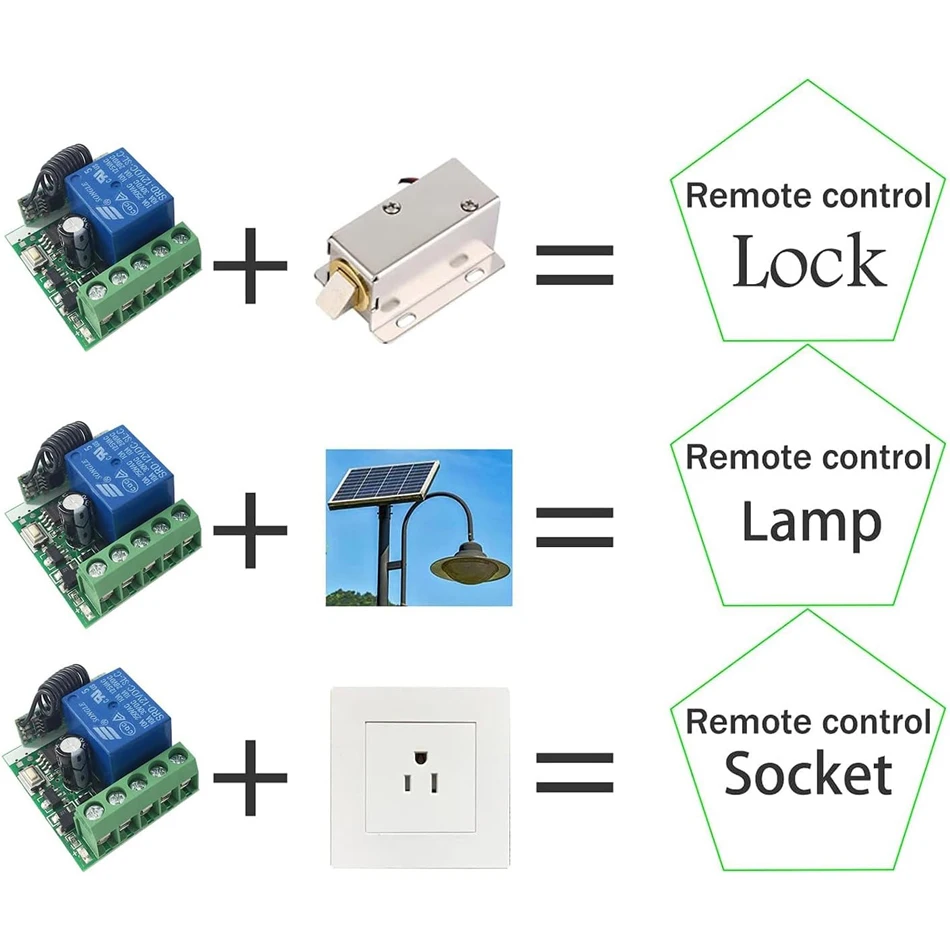

• Application for Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, remote control socket, remote control LED, garage door remote control, remote control door opener, remote control
Specifications
Product Type: 2-button Transmitter + 1CH Receiver
Coded System: 1527 Learning Code

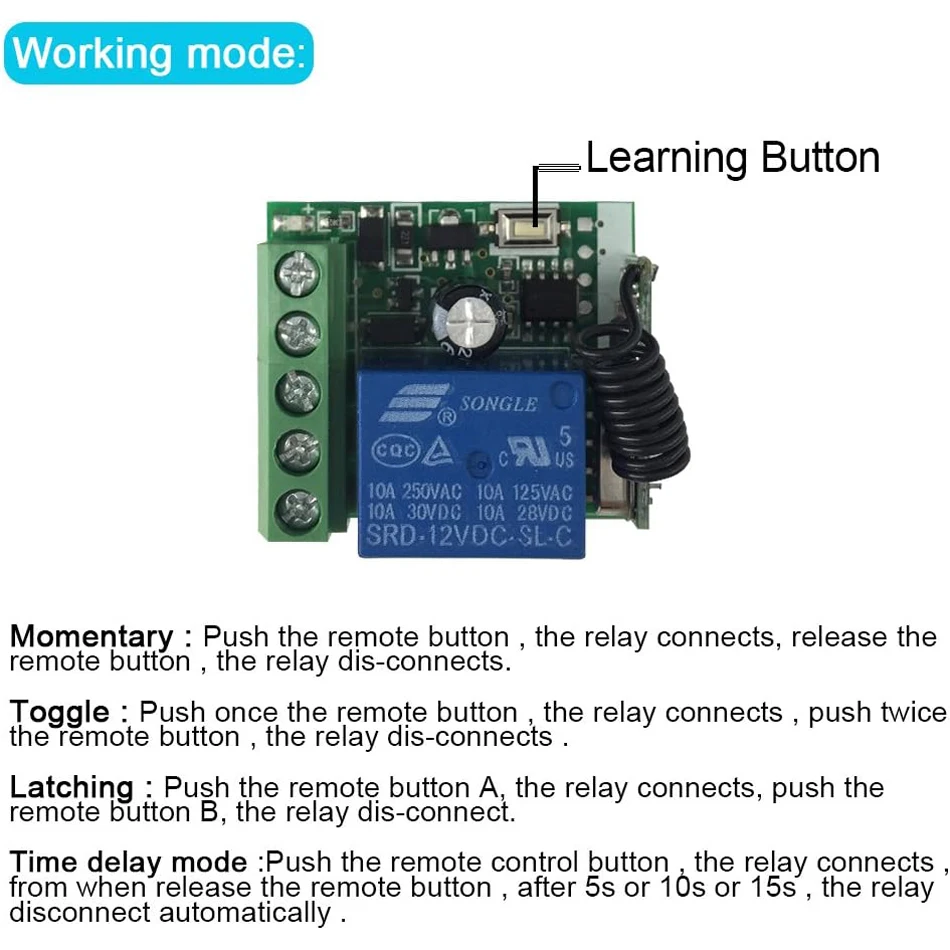

Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Modulation Mode: ASK
Operating RF Frequency: 433MHz
Input Voltage: 12 V, RF working mode: Superheterodyne
Receiver sensitivity: 97 dbm
Transmitting distance: 100 m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20
Support remote type: EV1527 learning code

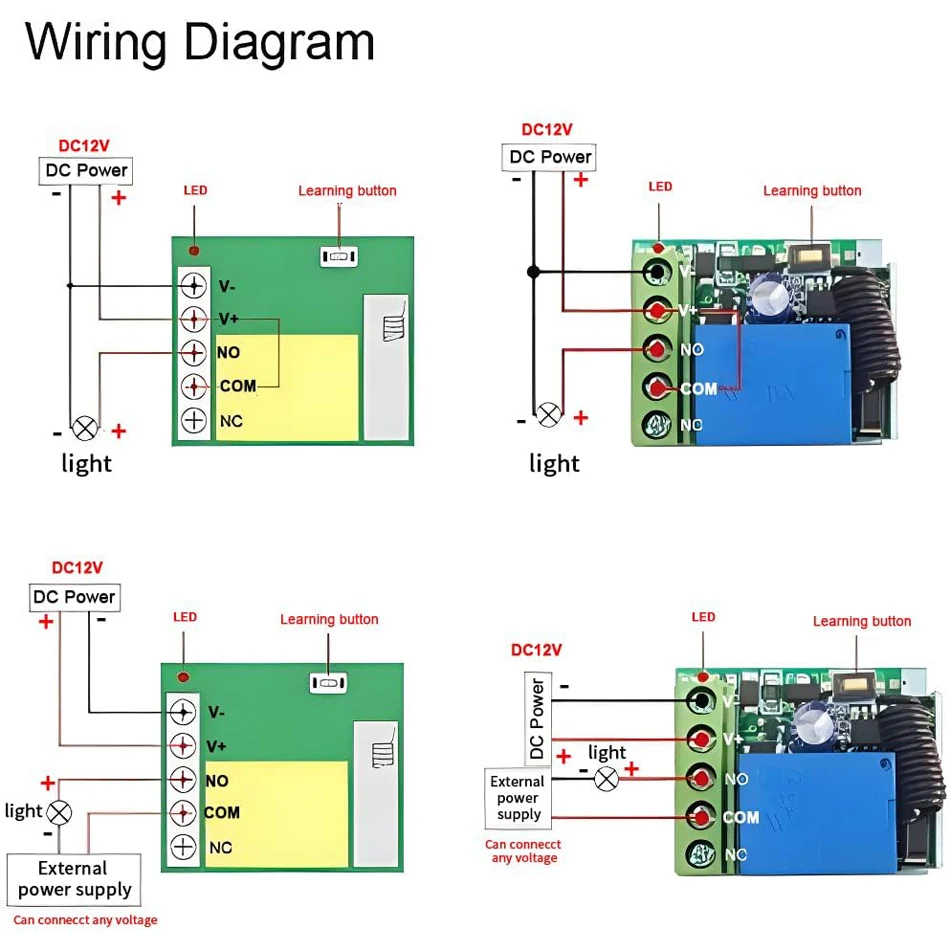

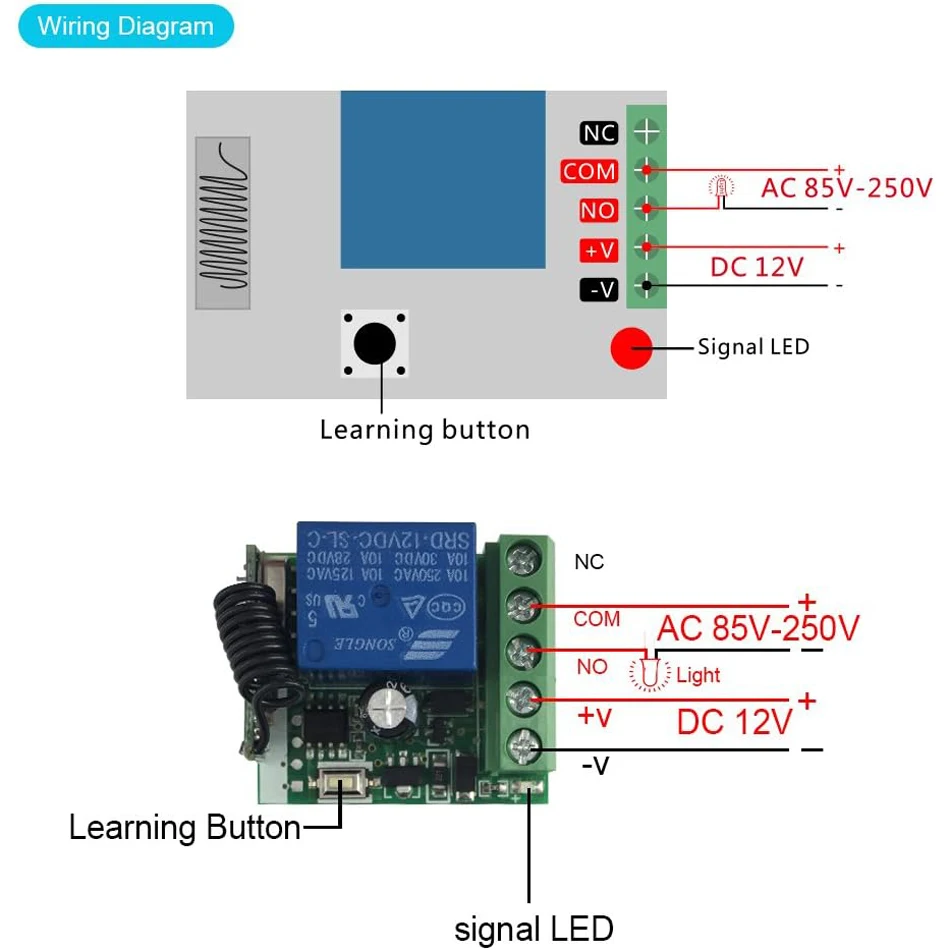

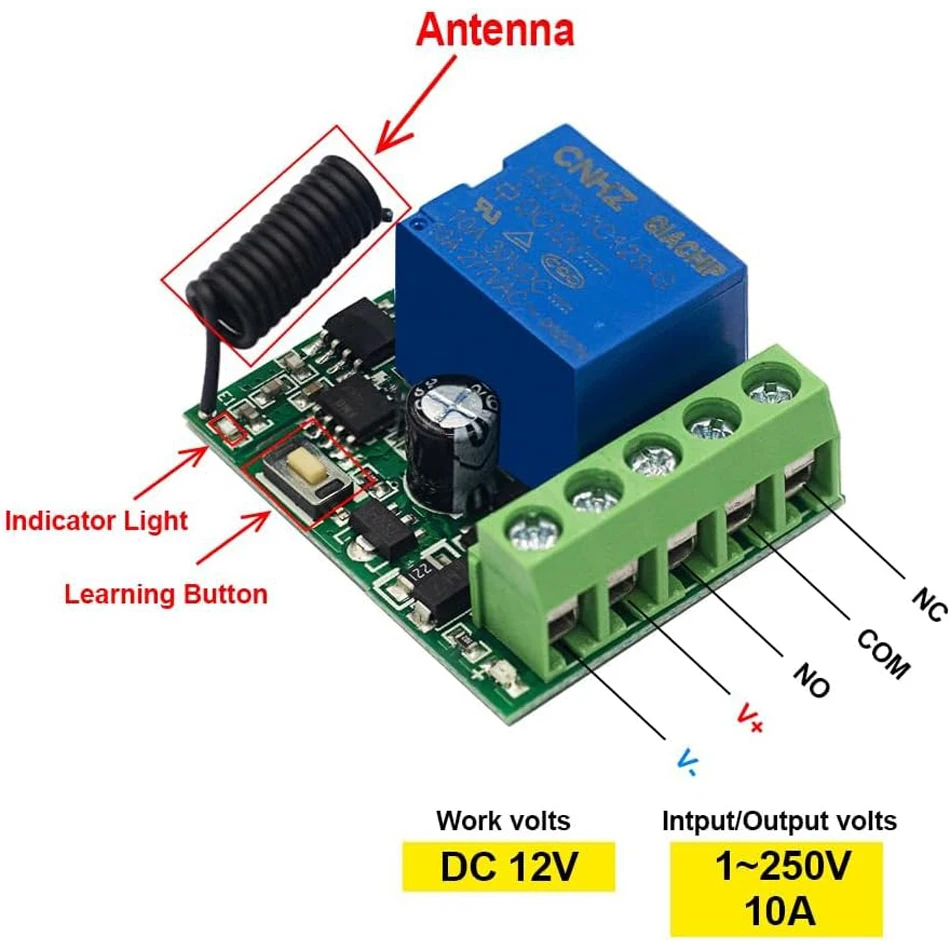

Output terminal: NO , NC , COM

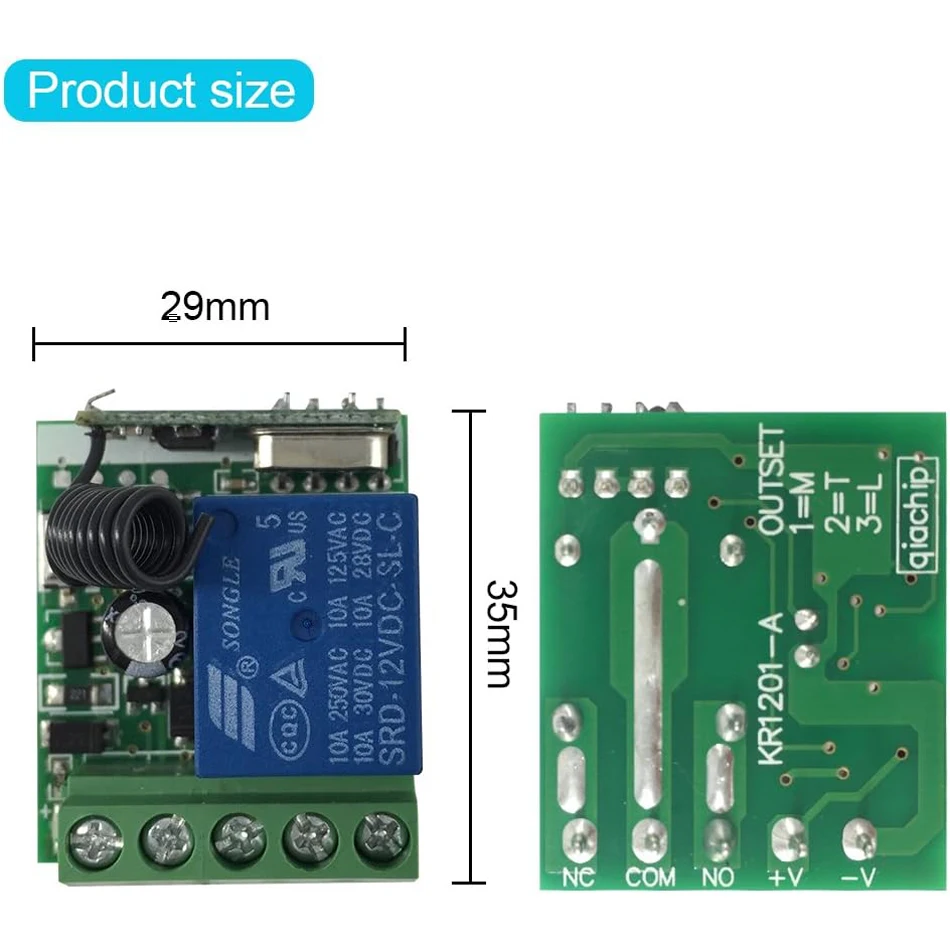

Dimension of PCB: 35 x 30 x 18 mm (L,W,H)
Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V

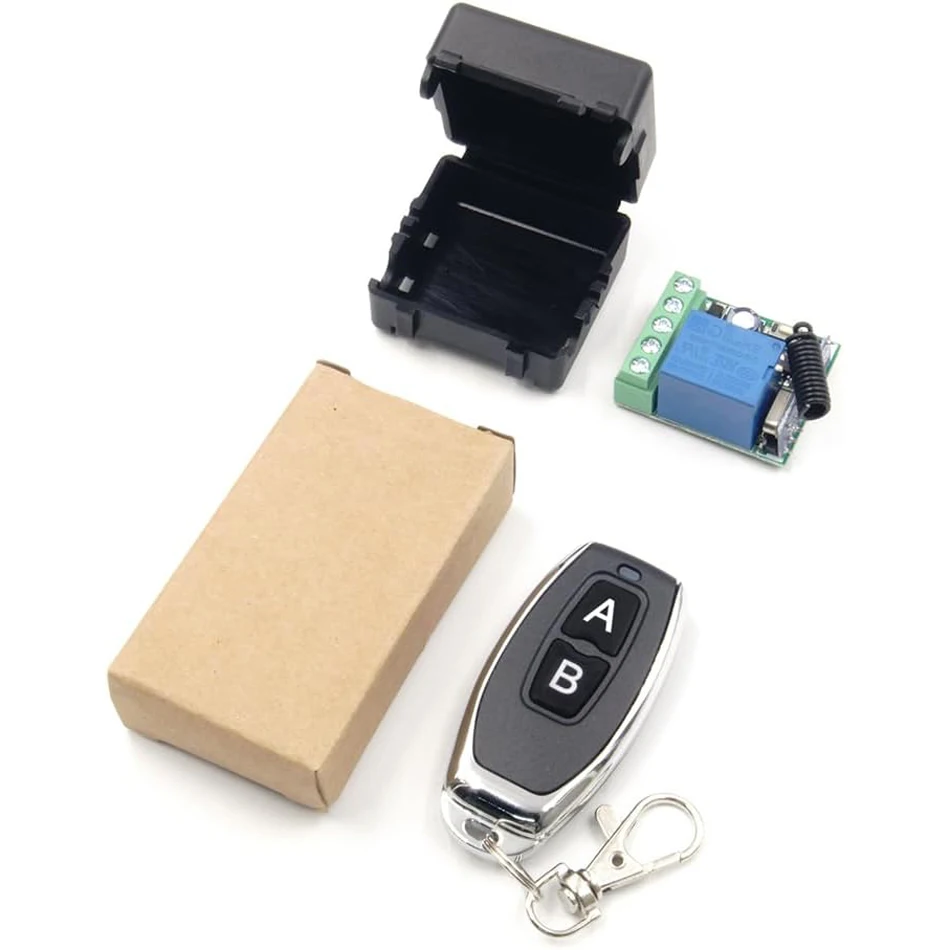

Package included:
1 x Transmitters 1 x Receiver
