DHL Free JW3306B Optical Fiber Identifier handheld for bare fiber 0.9 2.0 3.0mm cable 800-1700nm mini fiber optic tester
DON'T INCLUDE THE BATTERY!
Specification
Type
JW3306B
Identified Wavelength Range
800-1700 nm
Identified Signal Type
CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type
Ø1mm InGaAs 2pcs

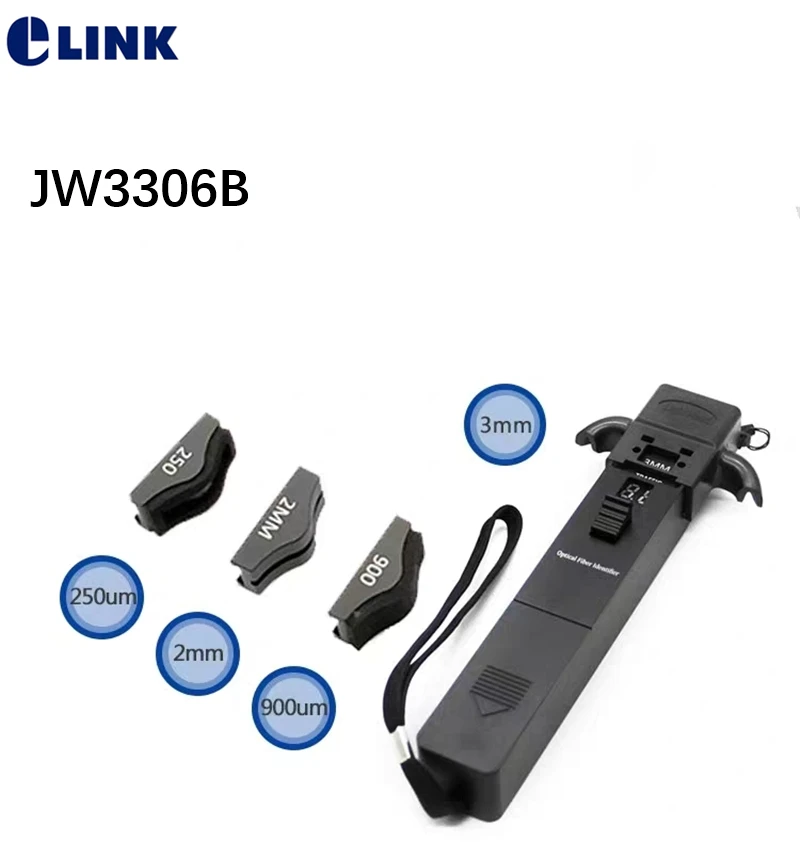

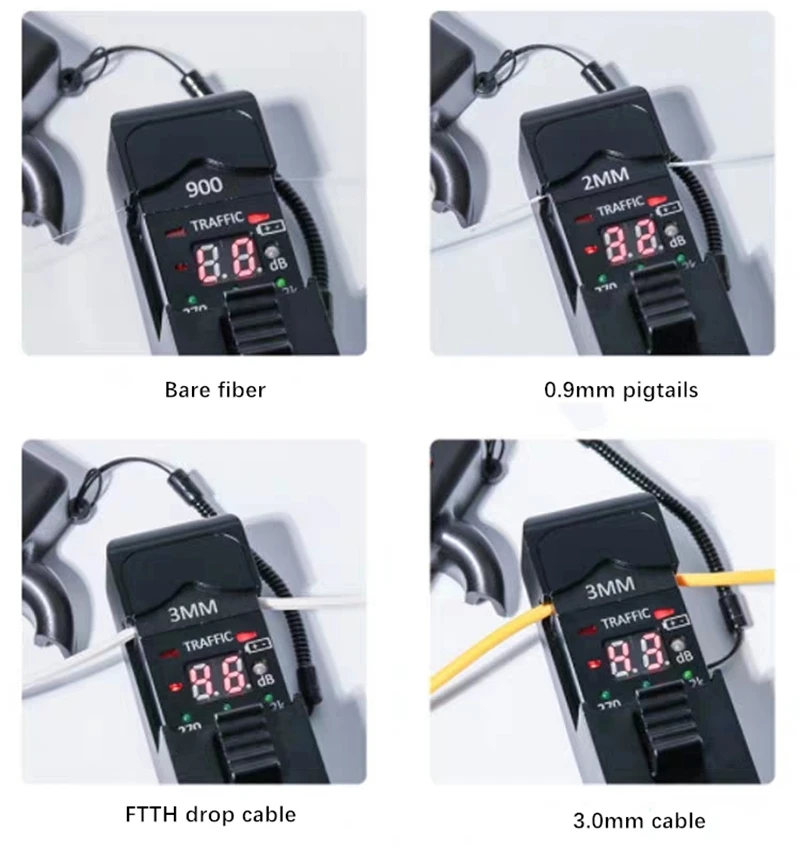

Adapter Type
Ø0.25 (Applicable for Bare Fiber)
Ø0.9 (Applicable for Ø0.9 Cable )
Ø2.0 (Applicable for Ø2.0 Cable )
Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction
Left & Right LED
Singe Direction Test Range(dBm, CW/0.9mm bare fiber)
-46~10(1310nm)
-50~10(1550nm)
Signal Power Test Range(dBm, CW/0.9mm bare fiber)
-50~+10
Signal Frequency Display (Hz)
270, 1k, 2k
Frequency Test Range(dBm, Average Value)
Ø0.9, Ø2.0, Ø3.0
-30~0 (270Hz,1KHz)
-25~0 (2KHz)
Ø0.25
-25~0 (1KHz,2KHz)
-20~0 (2KHz)
Insertion Loss(dB, Typical Value)
0.8 (1310nm)
2.5 (1550nm)
Alkaline Battery(V)
9
Operating Temperature(°C)
-10-+60
Storage Temperature(°C)
-25-+70
Dimension (mm)
196X30.5X27
Weight (g)
200

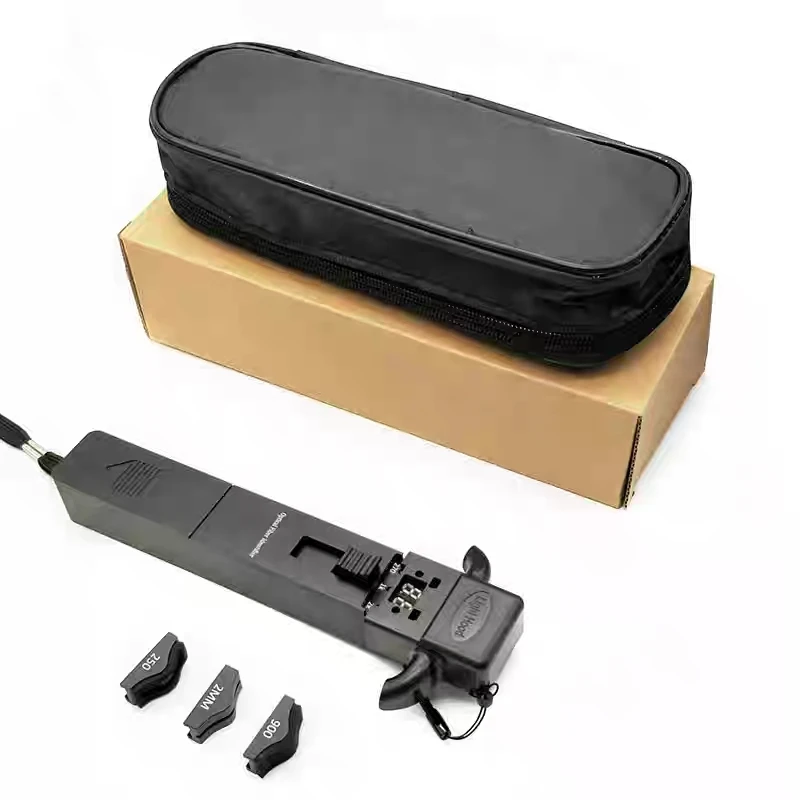

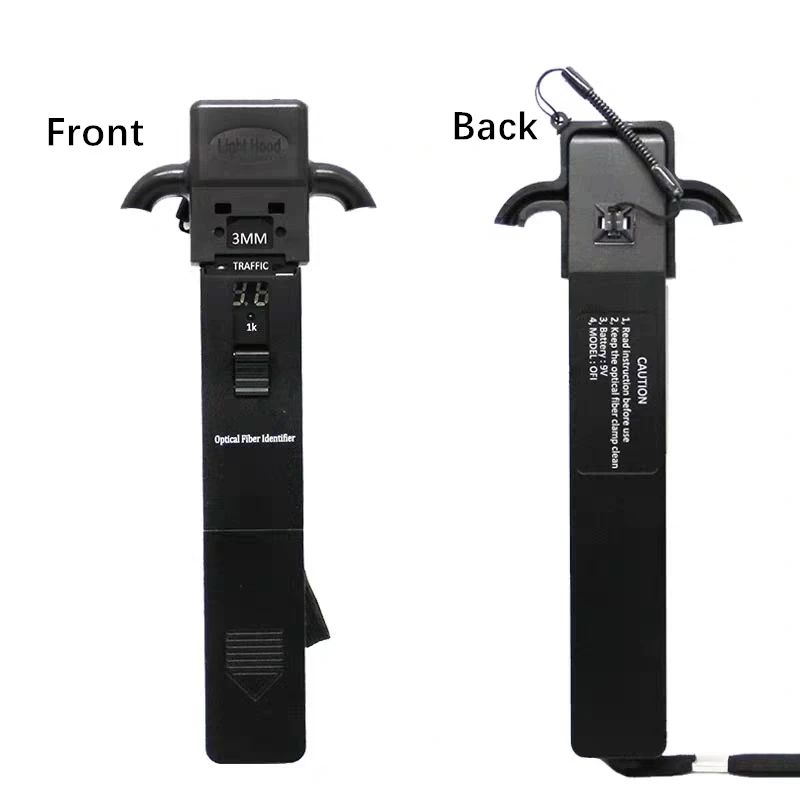

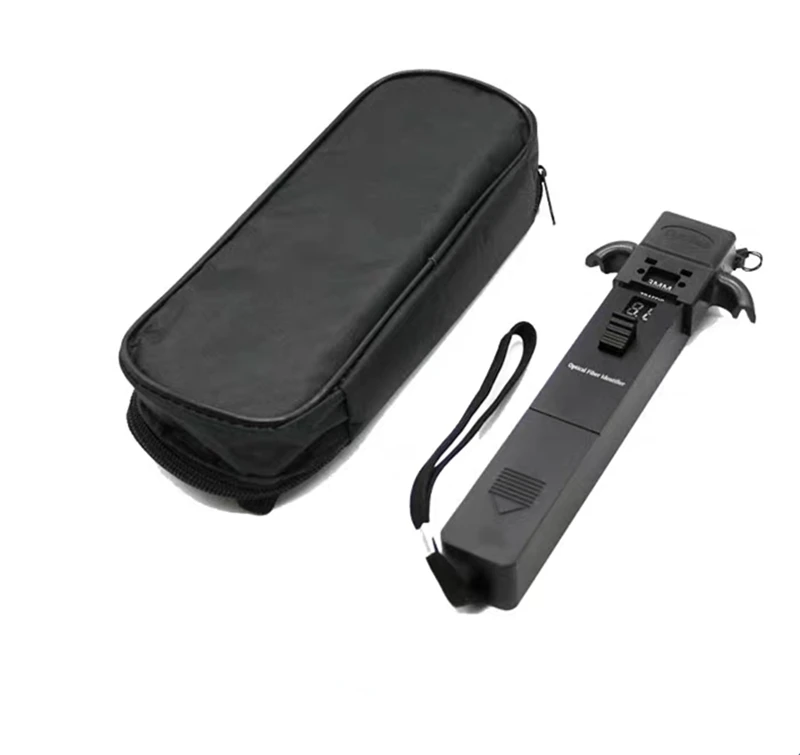

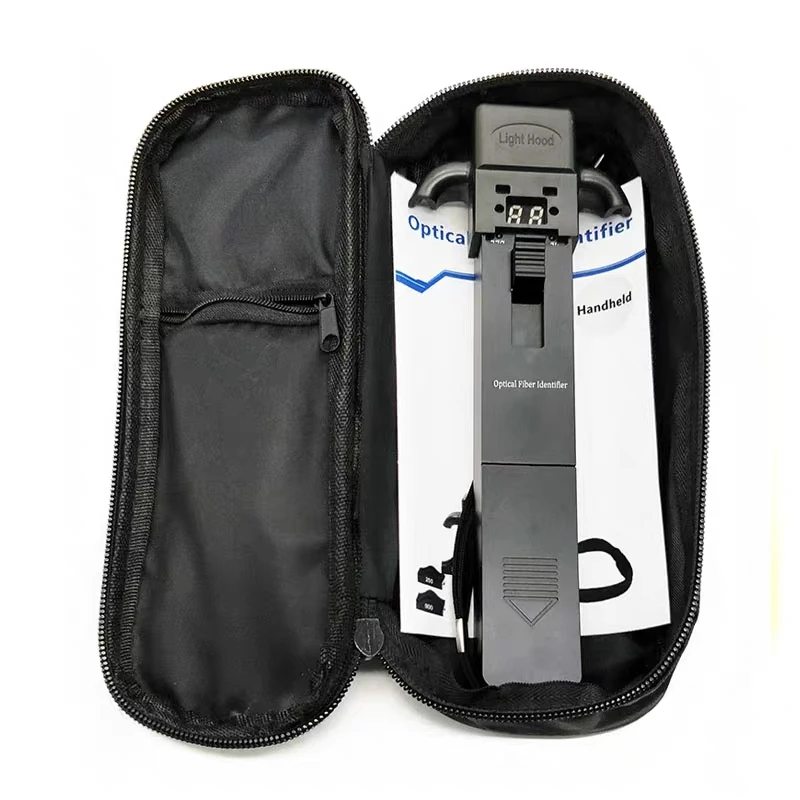

PIC SHOW
