Descripción

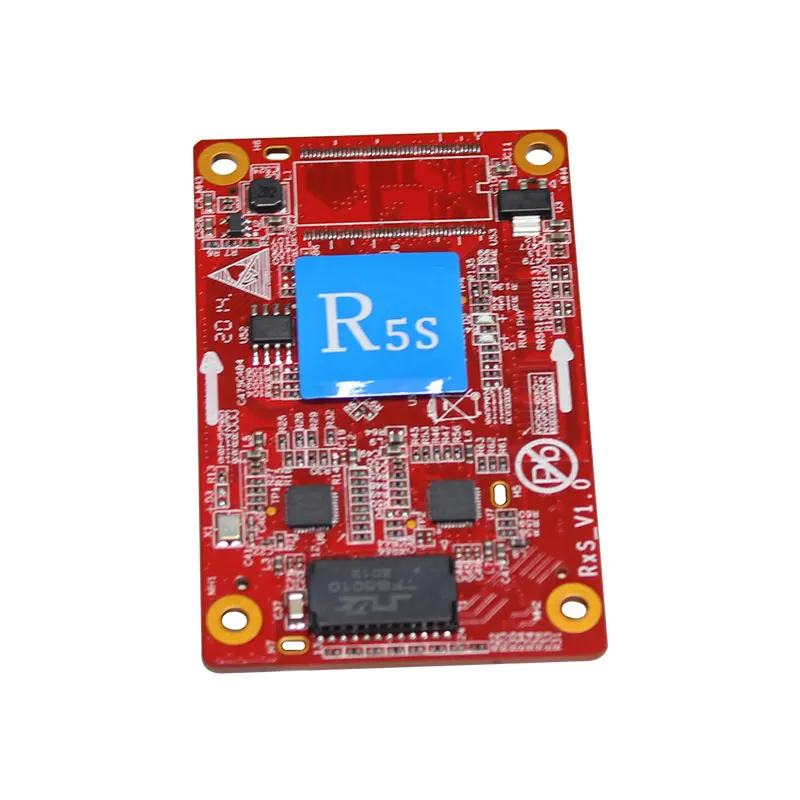

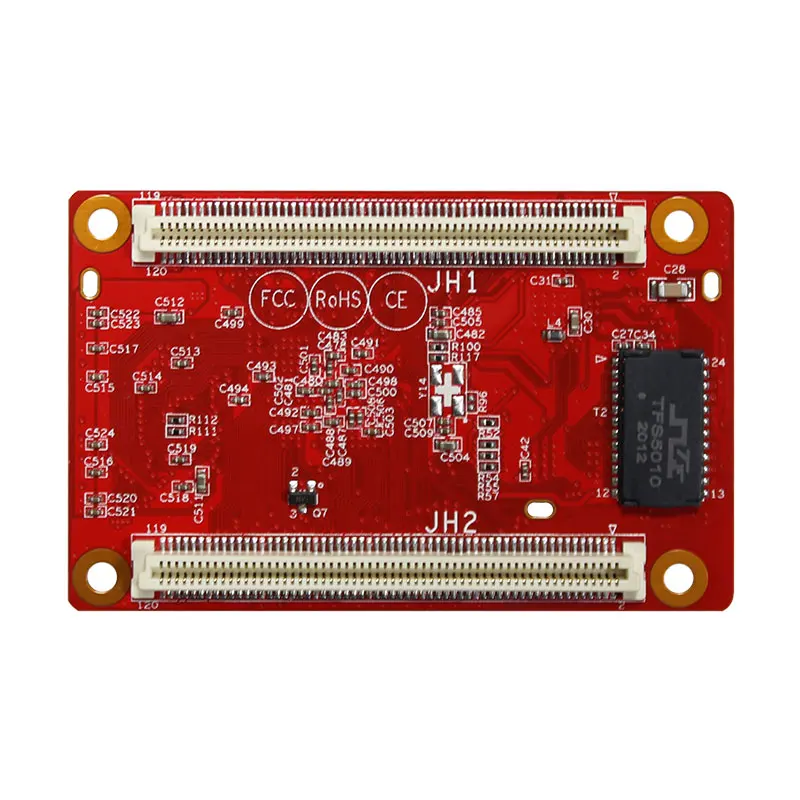

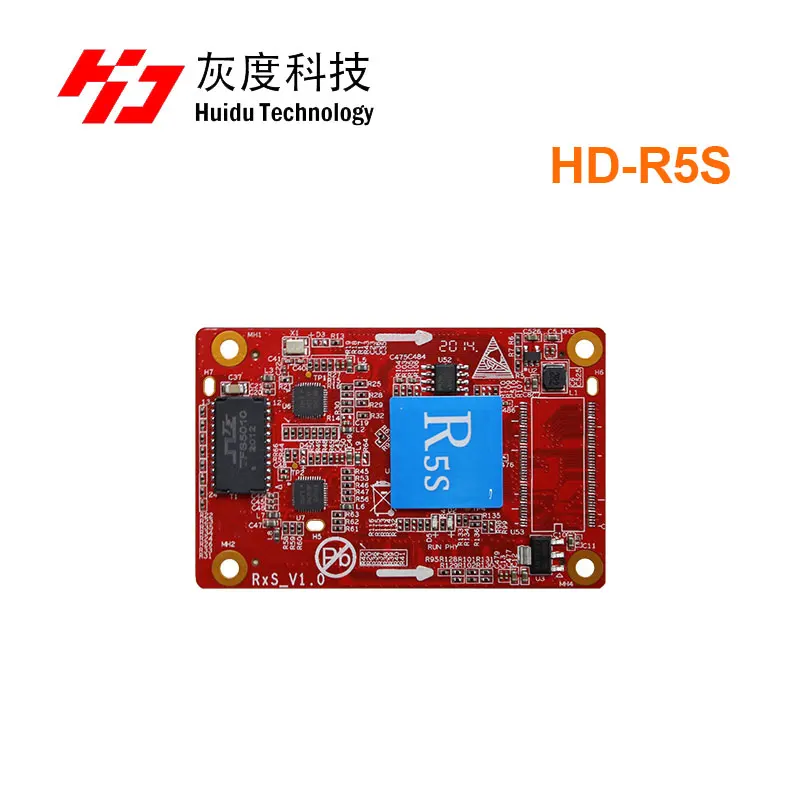

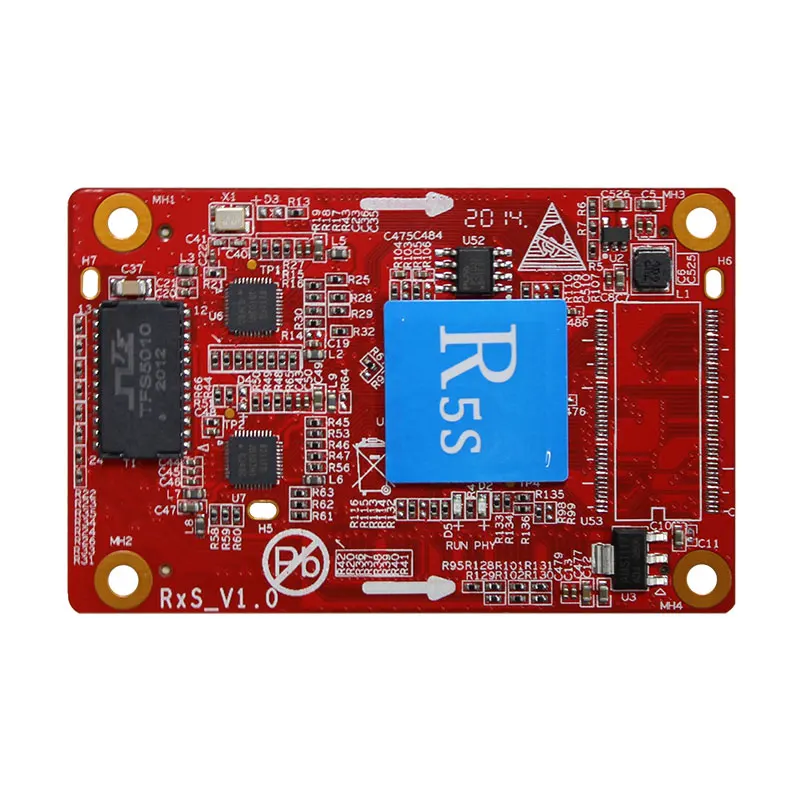

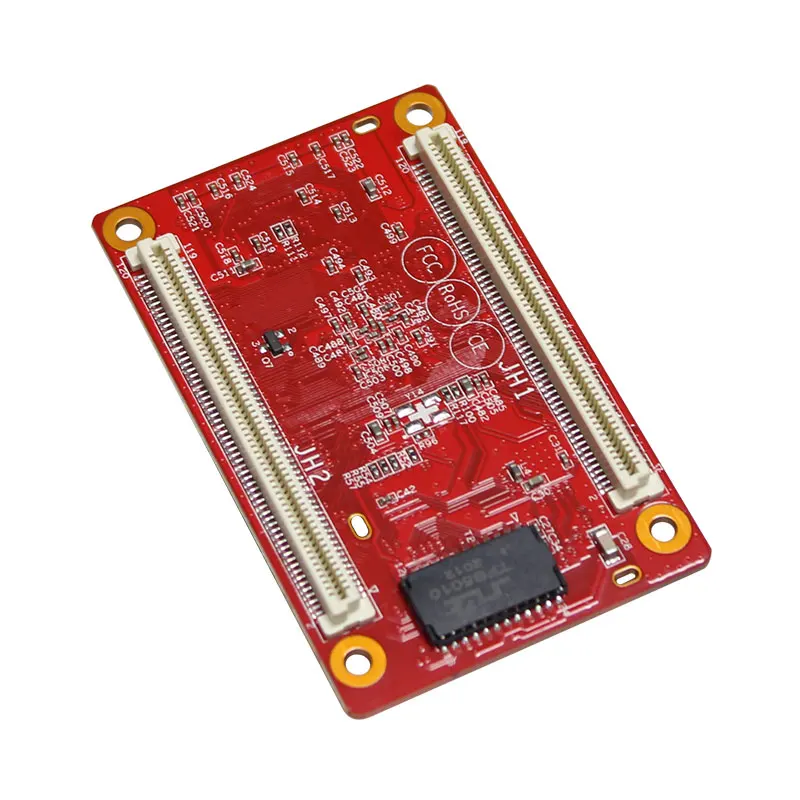

Huidu R5S Small Size LED Receiving Card HD-R5S for LED Transparent Screen and Fine Pixel Pitch LED Screen Control
Overview
R5S is a small-size receiving card for LED transparent screen and fine pixel pitch LED screen control launched by Huidu Technology. A single card supports control of 256*512 pixels, and it can be cascaded with any Huidu sending card.

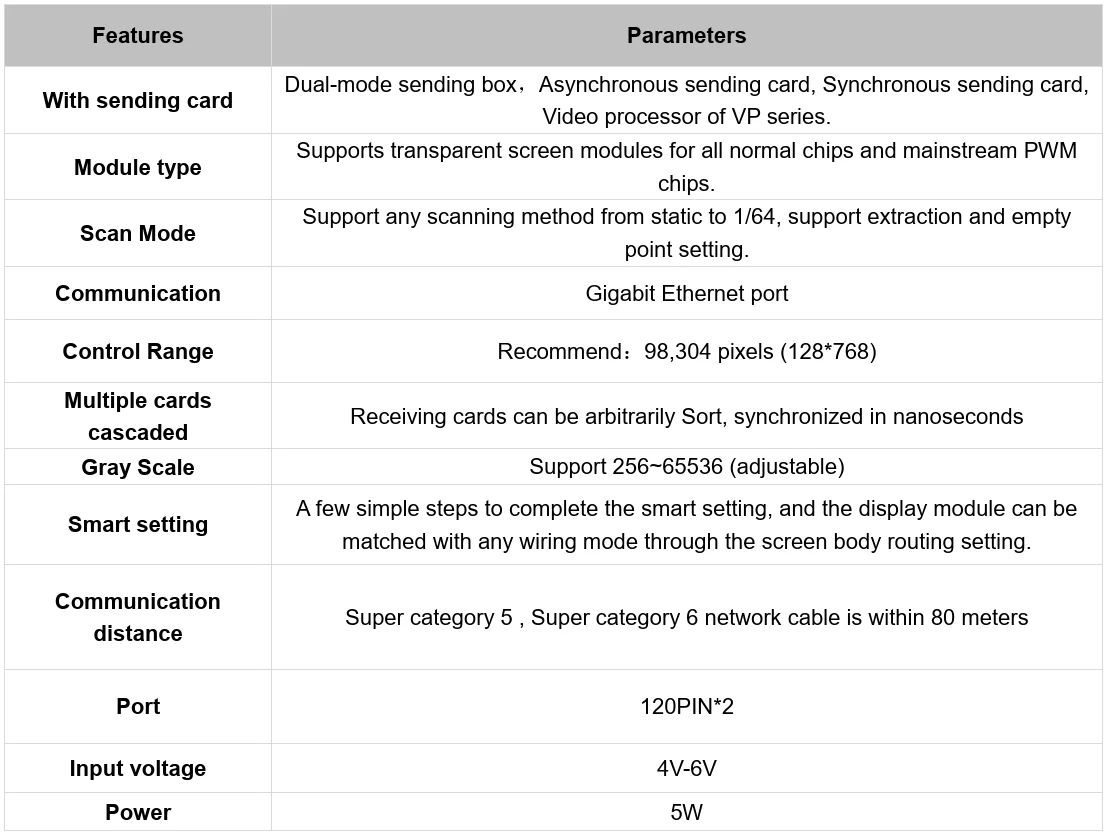

Parameters
Connection Method
Schematic diagram of connection between sending box and receiving card:

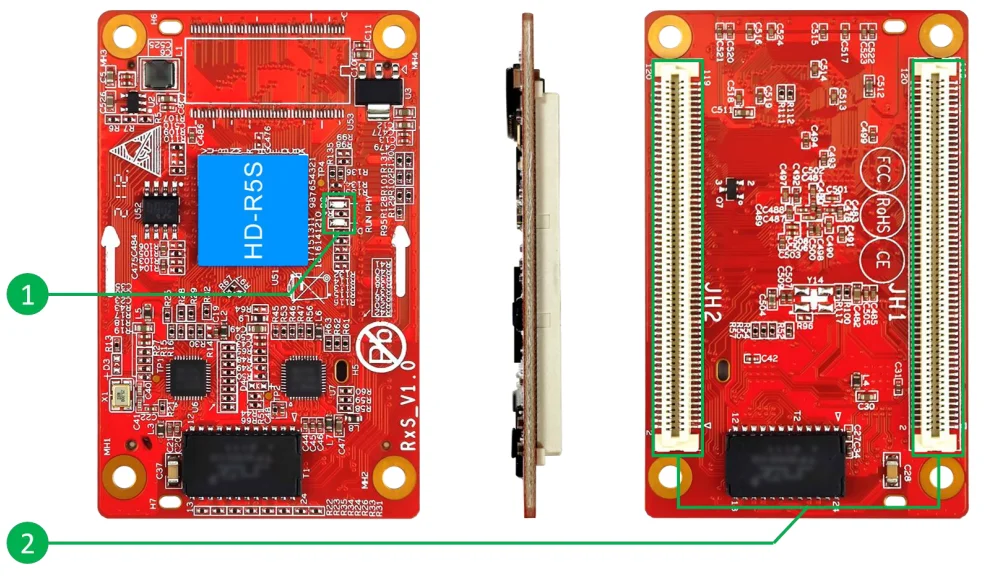

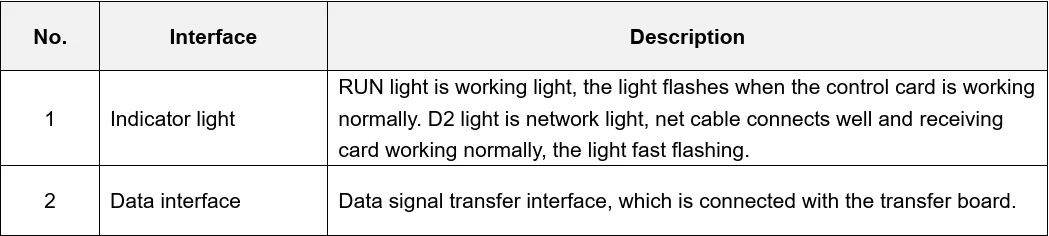

Interface Description

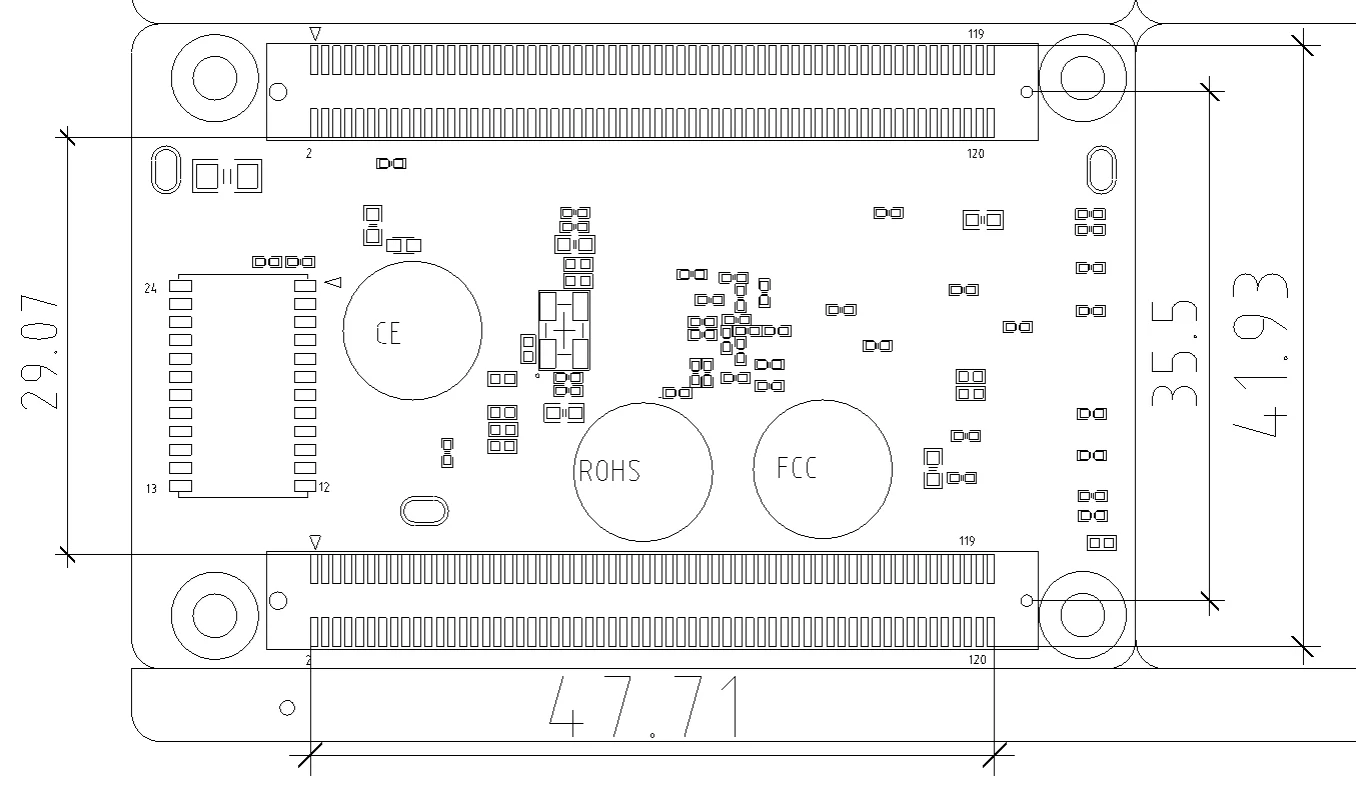

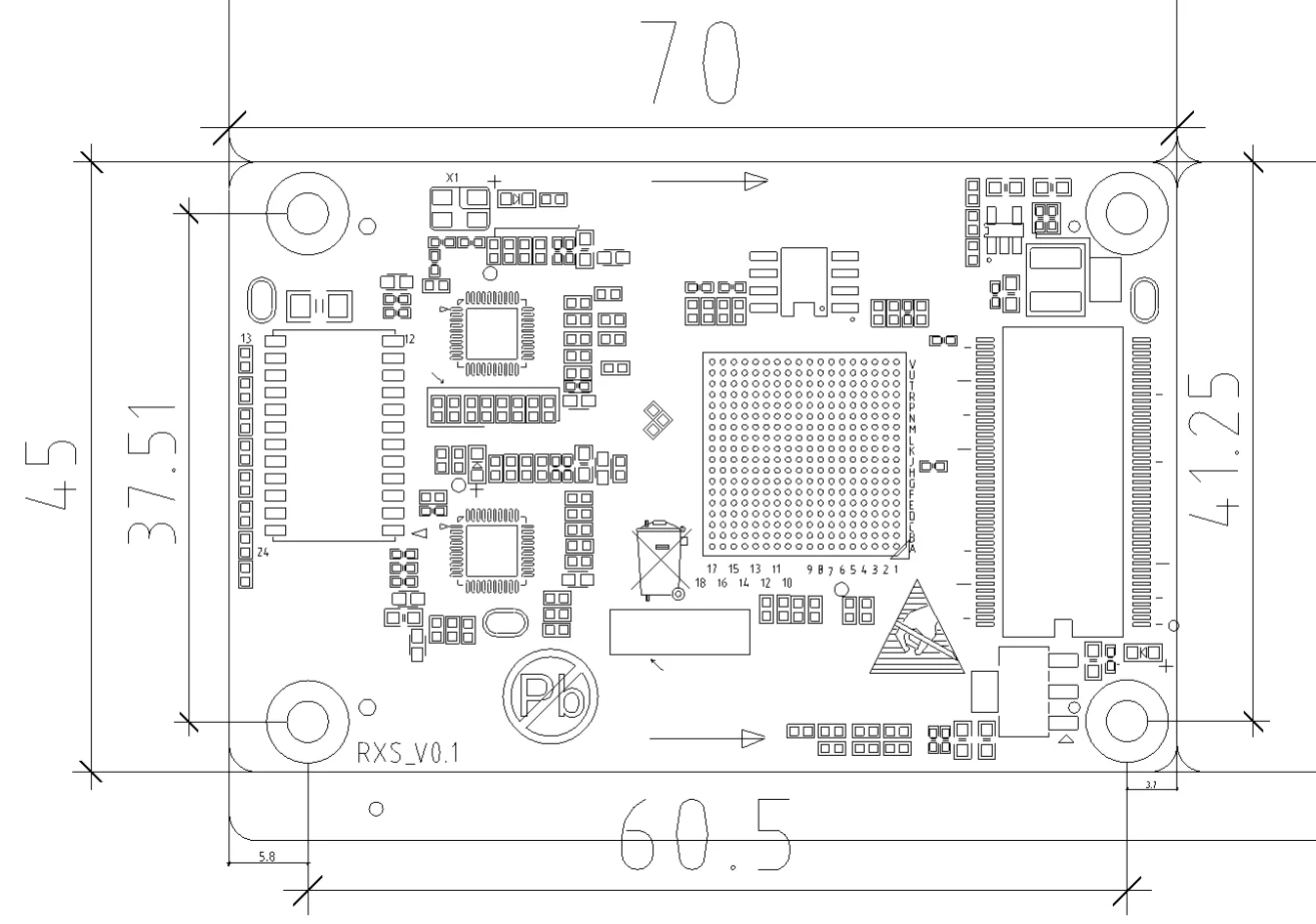

Dimensions
