Descripción
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
According to the national Customs policy of Brazil, some customers have reported that low value declaration will lead to the failure of customs clearance. In order to smooth customs clearance, we will truthfully declare the true price of packages for Brazilian customers who buy goods in our store. If you need to cooperate with customs clearance when the parcel arrives at the customs, please cooperate. Mind please don't buy, thank you for understanding.
If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

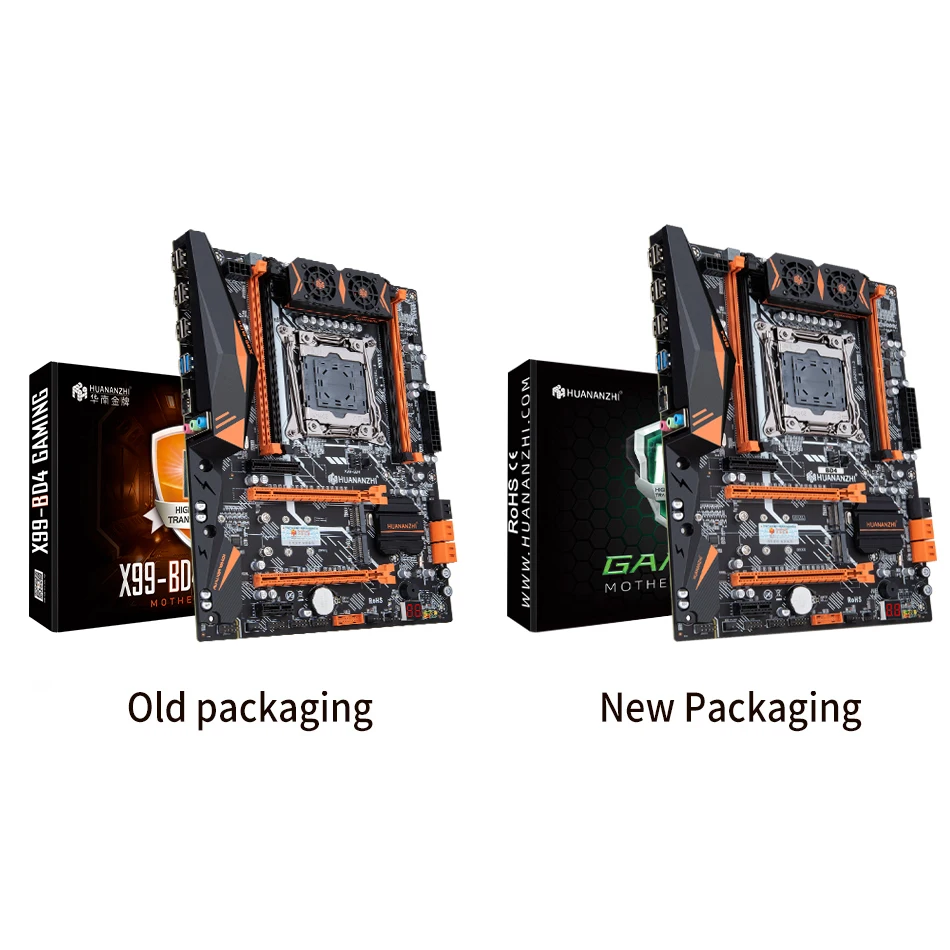

Packaging Upgrade Notice
Dear Friends：
As requested by AliExpress, we will upgrade the packaging starting from October 11, 2022. During this period, the old and new packaging will be shipped randomly, all are authentic. Please rest assured to buy.
(Note: Only the package would changed, the performance of the motherboard remains unchanged, we are Huananzhi official channel, guarantee of authentic products,thanks for your continued support)
Specifications:

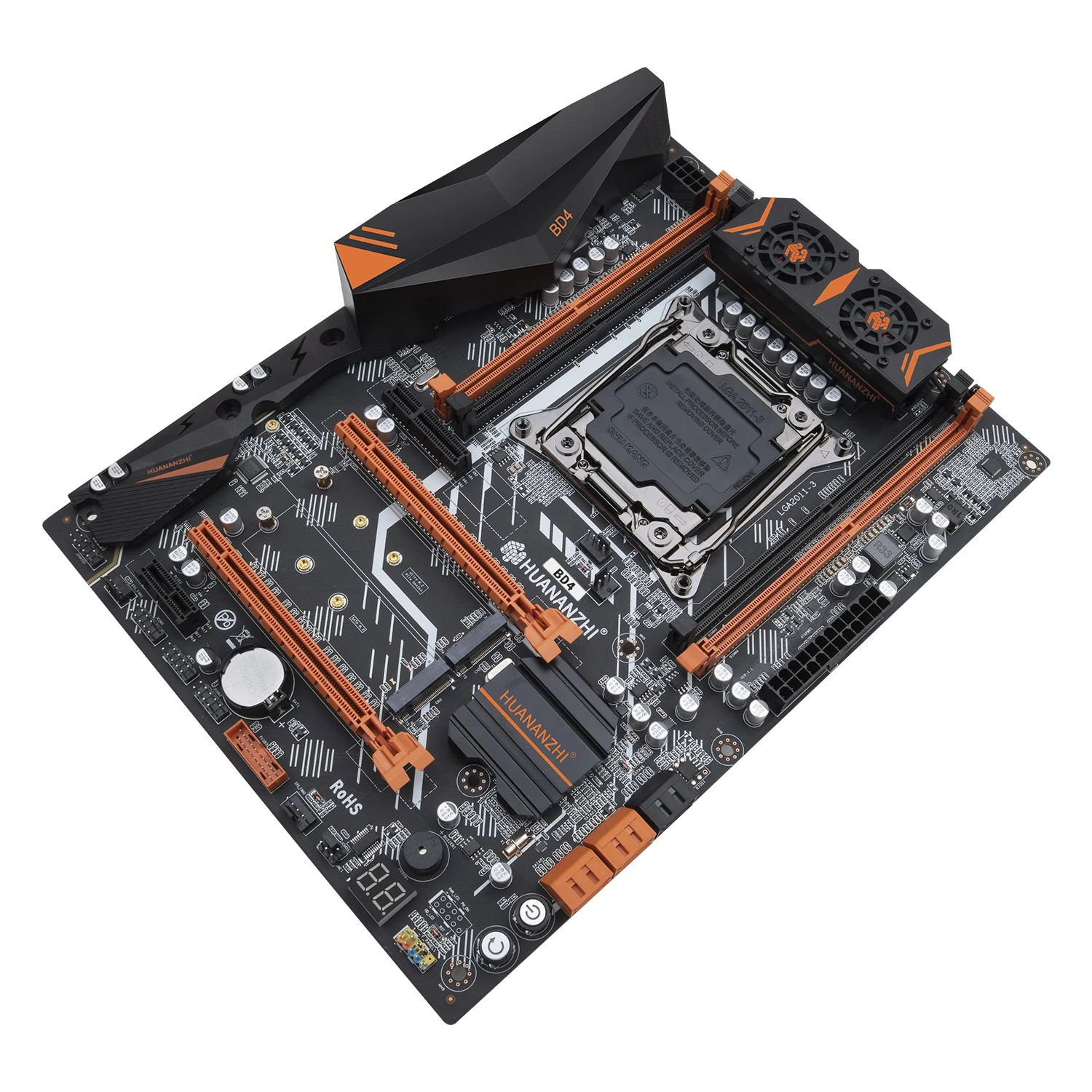

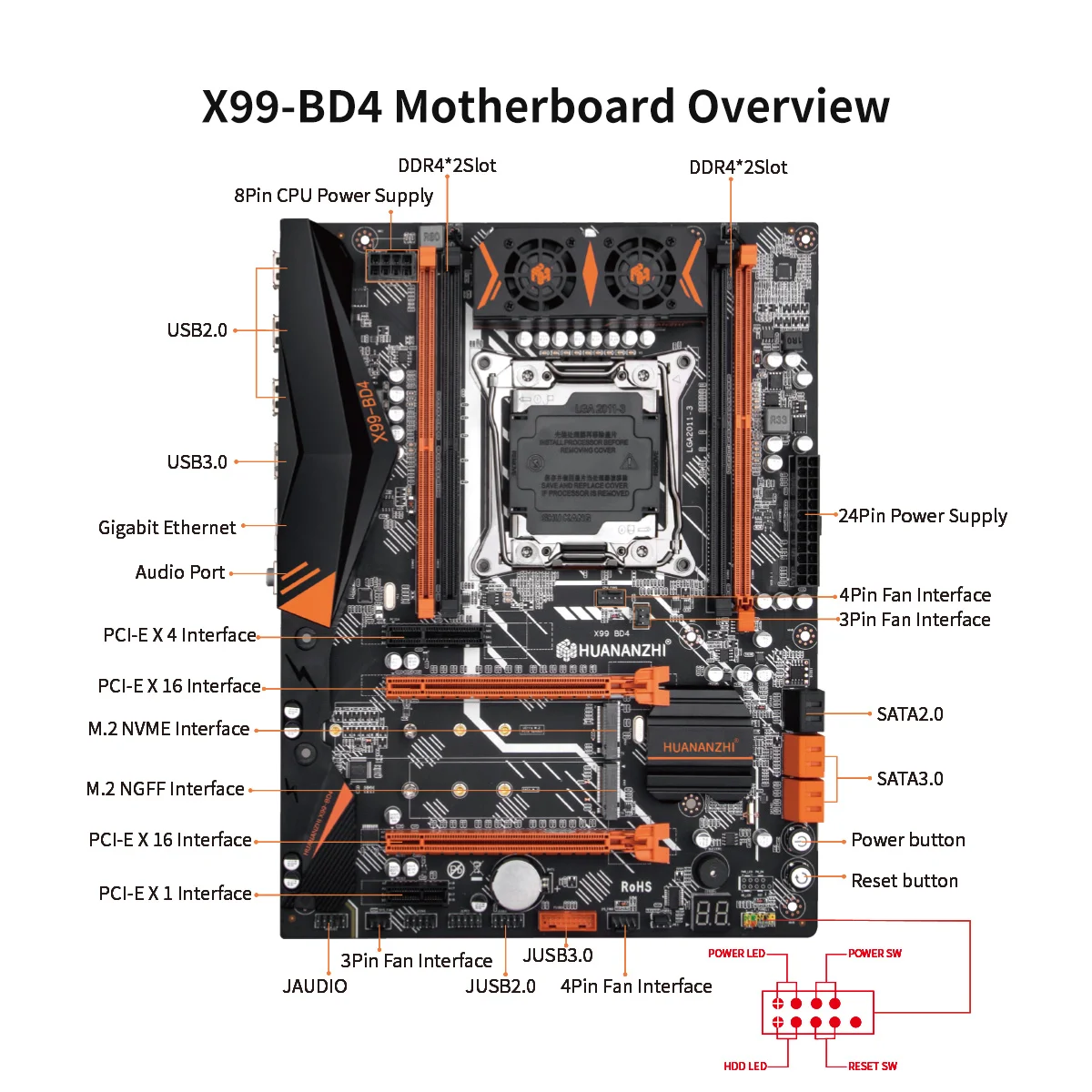

Model：HUANANZHI BD4 Motherboard
CPU Socket：Support Intel 2011-3 Processors
Main chipset: B85 ... Etc chipset shipped randomly
Ｍemory Socket：4*DDR4 Memory，Maximum Memory Capacity 128G
Ｍemory Standard：Support Dual channel DDR4 2400/2133/1866MHz
SATA Inderface：4*SATA3.0 interface，2*SATA2.0 interface
Extended Inderface：IO：6*USB2.0，2*USB3.0，1*Gigabit Ethernet Card，3*3.5MM Audio interface；Expansion pin：1*9pin USB2.0，1*19pin USB3.0，1*Front audio output pin
Expansion Slots：2*PCI Express3.0X16，1*PCI Express3.0X4，1*PCI ExpressX1，1*M.2 NVME(X4 3.0)，1*M.2 NGFF(SATA3.0)
Soud Track：5.1
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：4
PCB layer：10 layer PCB，6Phases power supply
Dimension：283*215MM ATX
CPU:
Processor Series: Xeon E5 2670V3 (12 cores/24 threads)
Main frequency: 2.3GHz
Socket type: LGA 2011-3
3rd level cache: 30MB
Technology: 22nm
Power consumption: 120W
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested before shipping
4.The origin of CPU is from different country, like China, Malaysia, Vietnam, Costa Rica etc, but the performance is all the same. Random delivery. If you mind, please don't buy it.
Note:
1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2.Please allow 1-3mm differs due to manual measurement.
3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5.We show photos of motherboard, pictures are for reference only, subject to our available products.
6.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
7.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
