Descripción
If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price
Specifications:

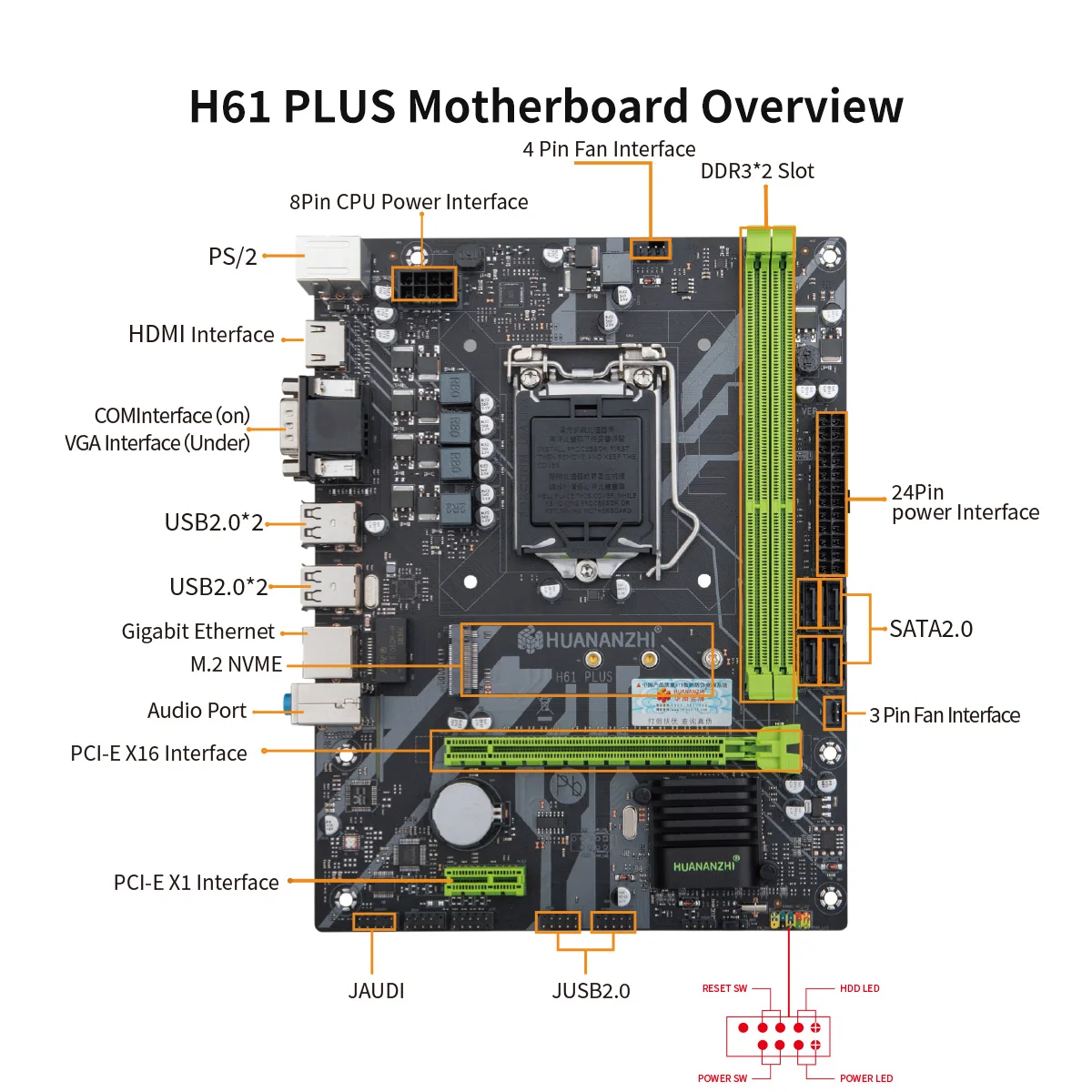

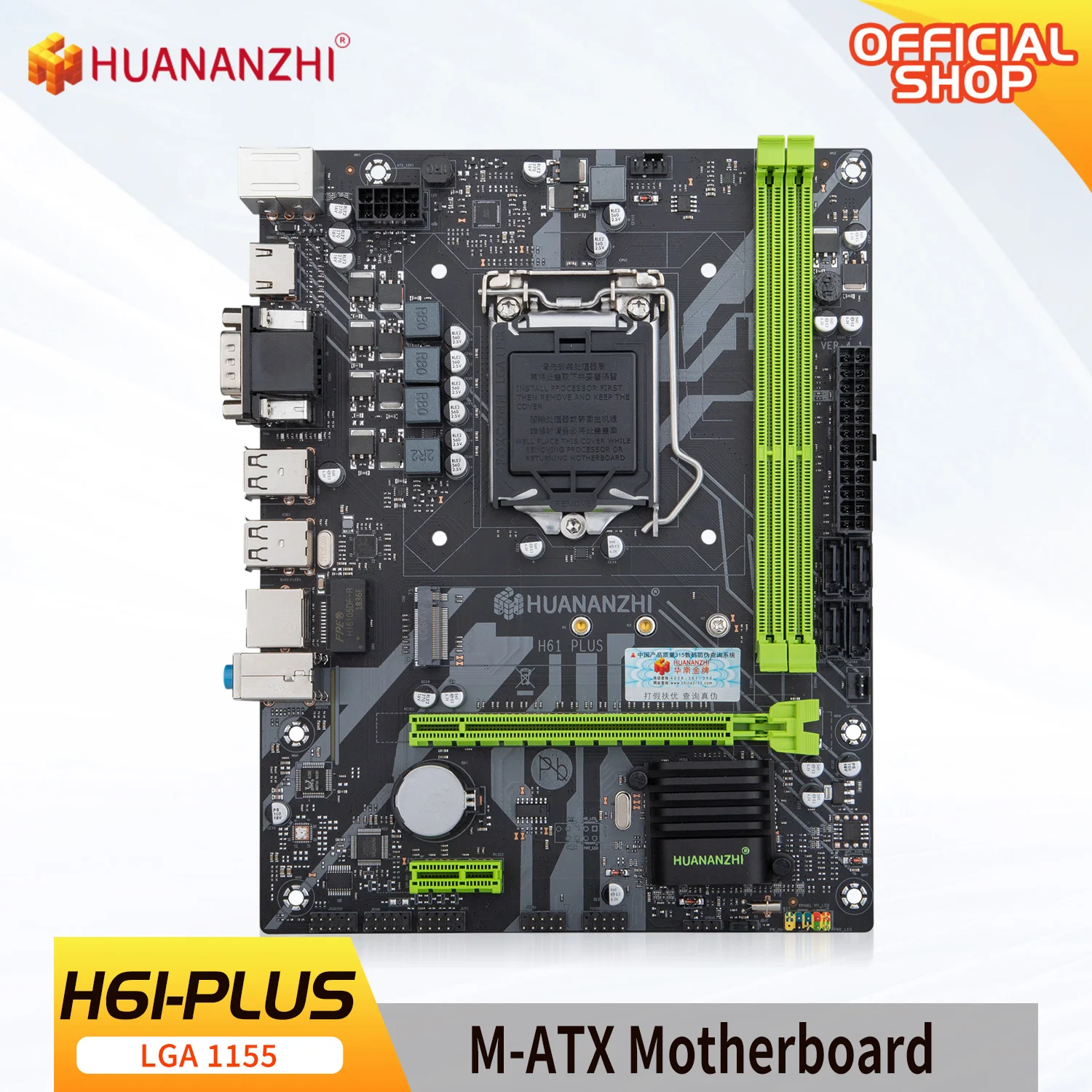

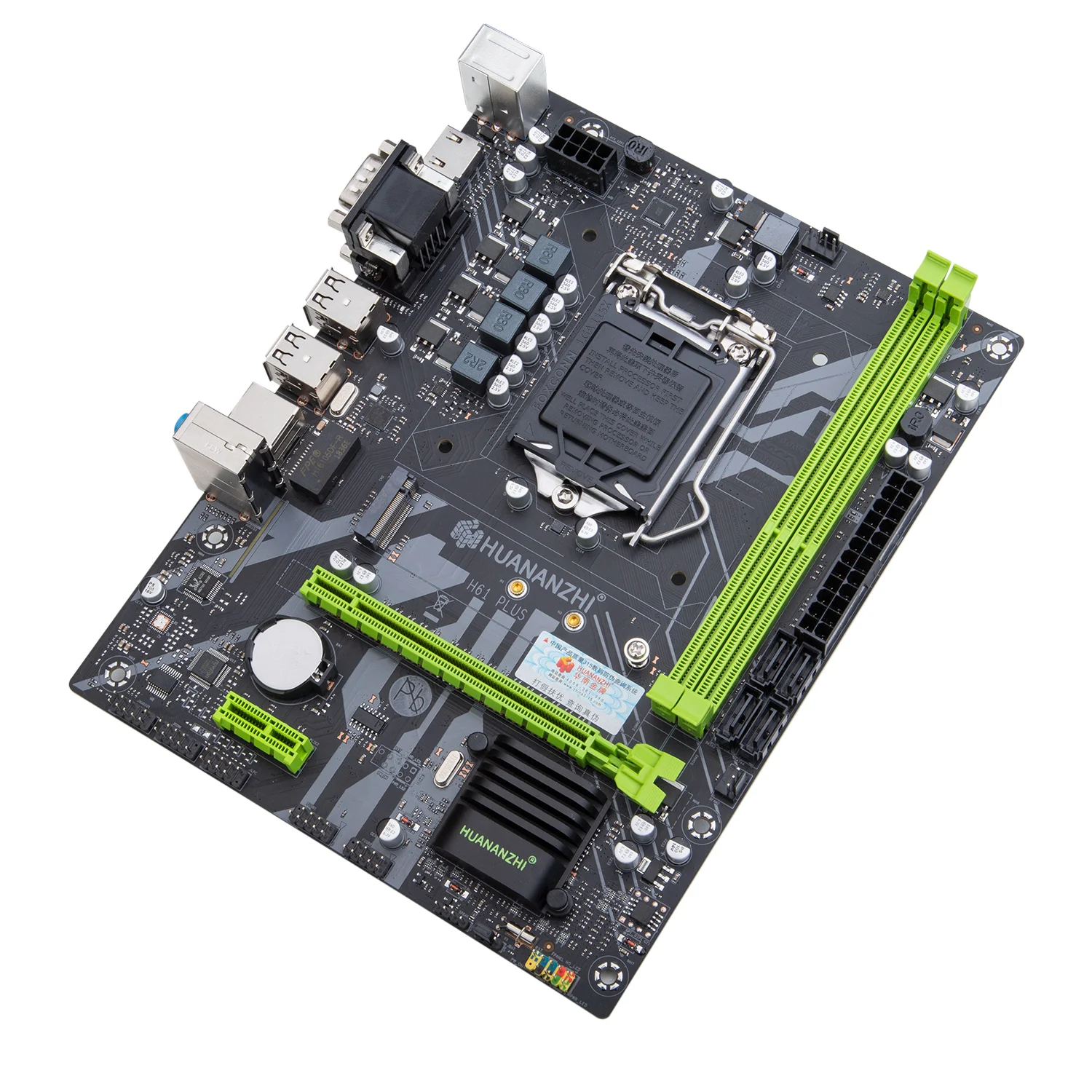

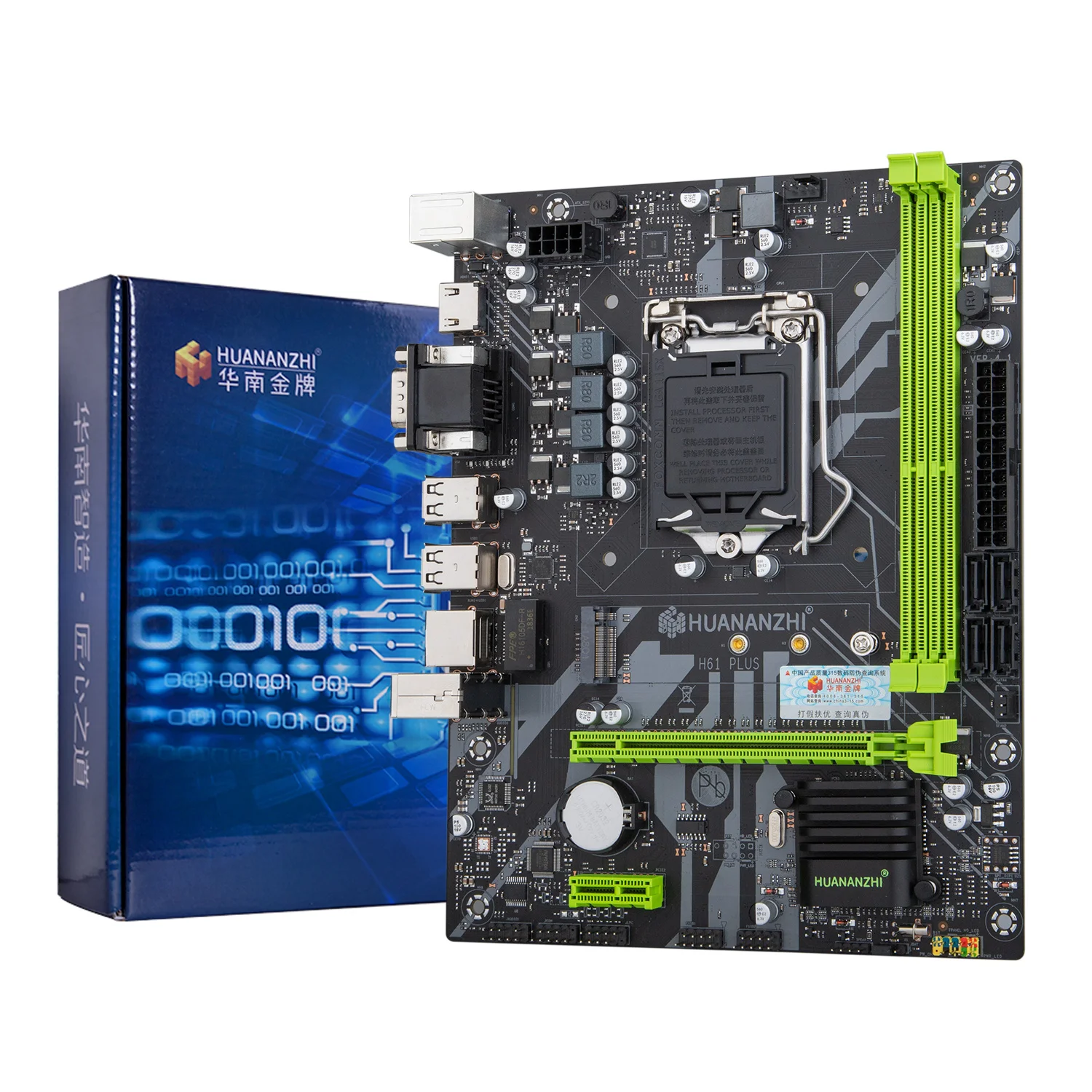

Model：HUANANZHI H61 PLUS M.2 Motherboard
CPU Socket：Support Intel 1155 Processors
Ｍemory Socket：2*DDR3 Memory，Supports a maximum of 16 GB
Ｍemory Standard：Support Dual channel DDR3 1600/1333MHz
SATA Inderface：4*SATA2.0 interface

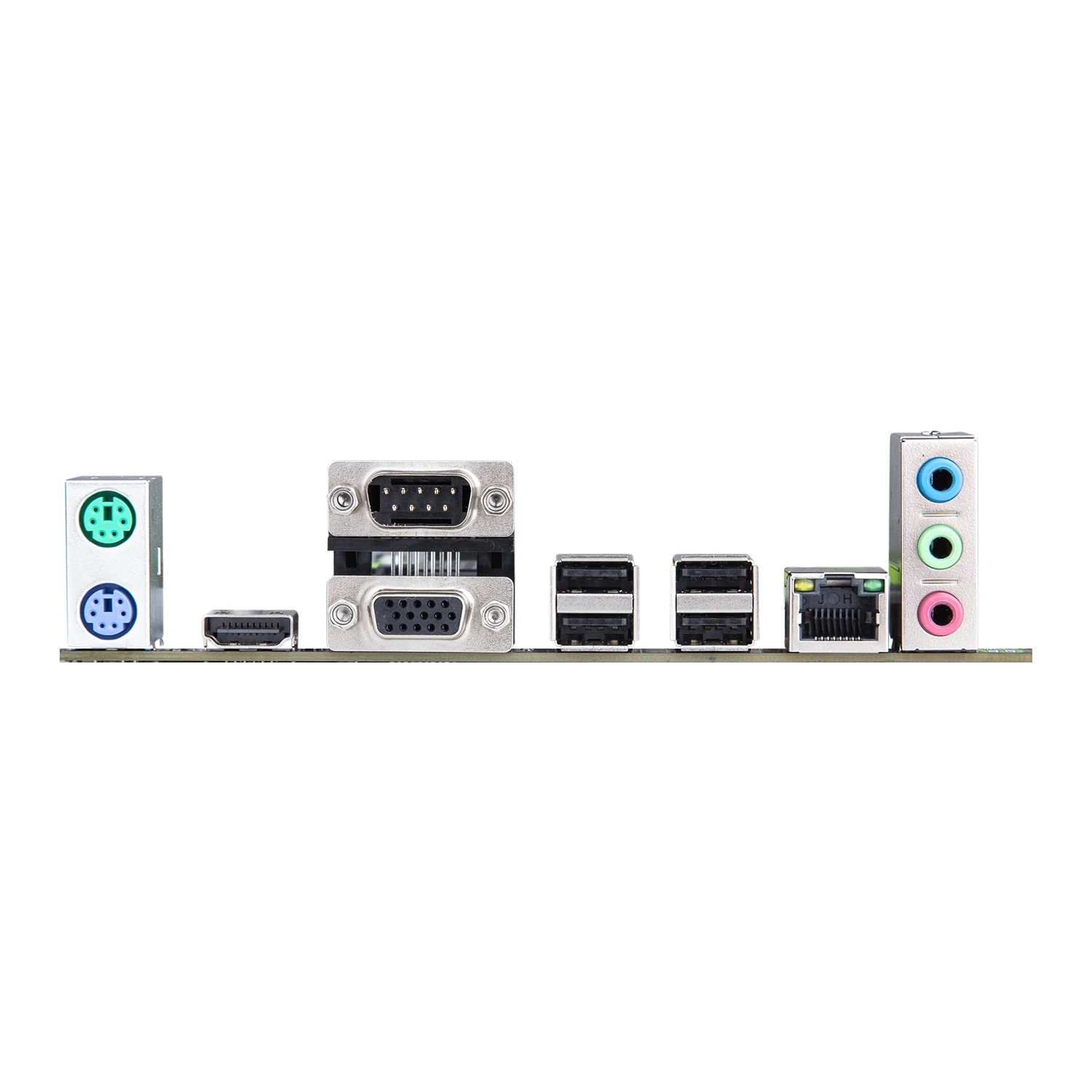

Extended Inderface：IO：1*PS/2 Mouse / Keyboard interface，4*USB2.0，1*100 Ethernet Card，3*3.5MM Audio interface；Other ports: VGA+HDMI+COM；Expansion pin：2*9pin USB2.0，1*Front audio output pin
Expansion Slots：1*PCI Express3.0X16，1*PCI ExpressX1,1*M.2 NVME
Soud Track：5.1
Network interface：100m Ethernet
Power interface：24pin+8pin
Fan interface：2
PCB layer：4 layer PCB，5Phases power supply
Dimension：220*170MM M-ATX
Note:
1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
4.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
