Descripción
Attention Brazilian friends:
According to the national Customs policy of Brazil, some customers have reported that low value declaration will lead to the failure of customs clearance. In order to smooth customs clearance, we will truthfully declare the true price of packages for Brazilian customers who buy goods in our store. If you need to cooperate with customs clearance when the parcel arrives at the customs, please cooperate. Mind please don't buy, thank you for understanding.
If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price
Specifications:

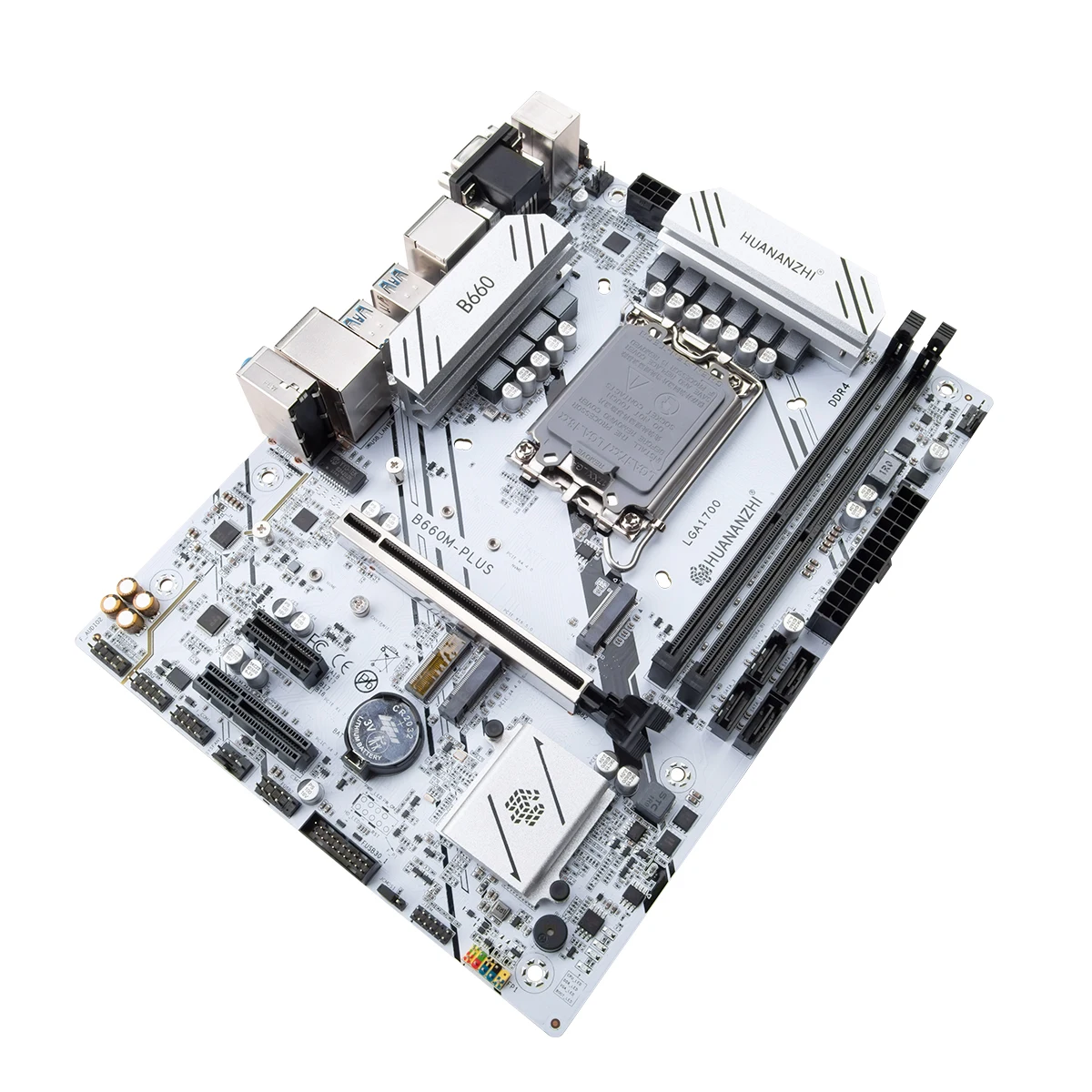

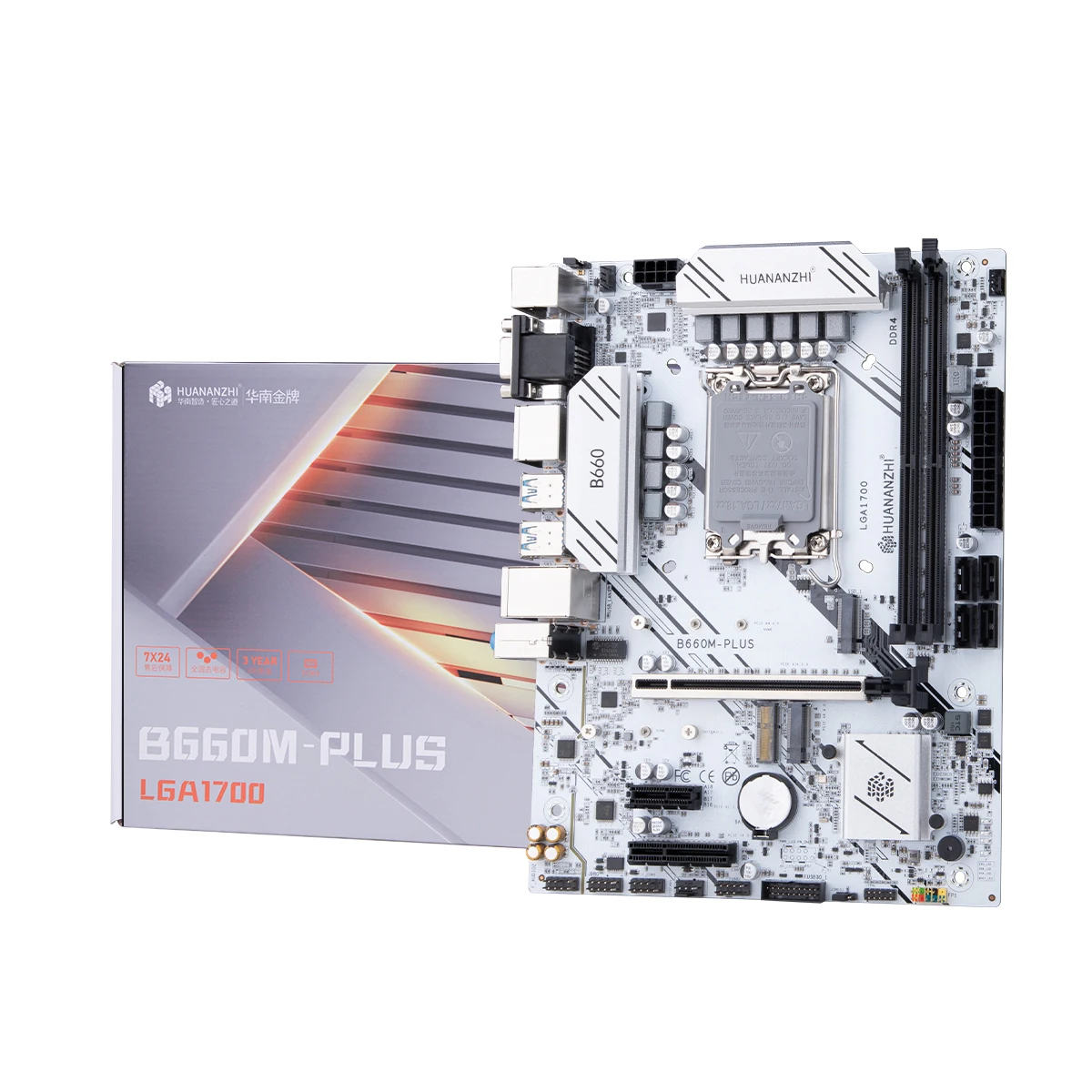

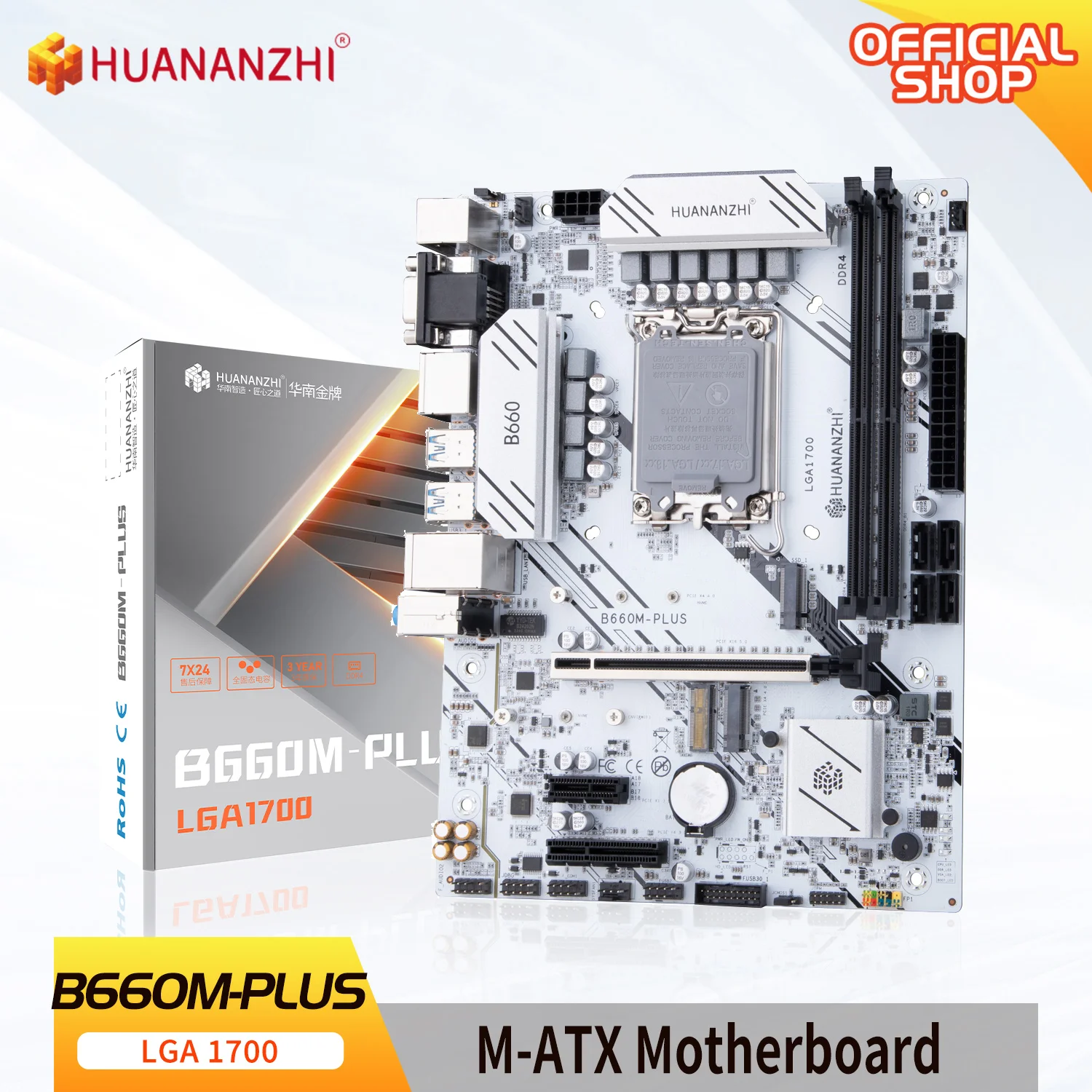

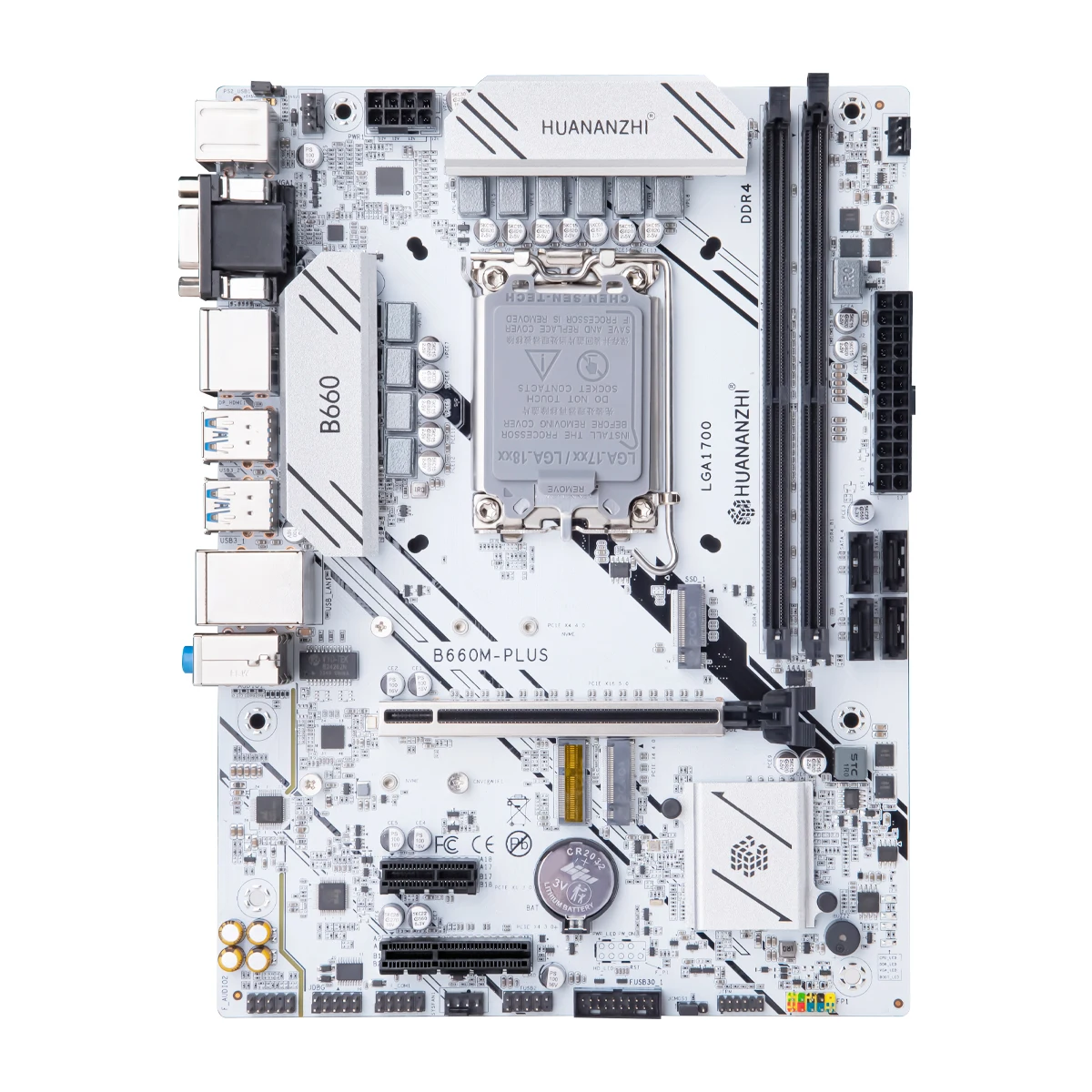

Model：HUANANZHI B660M-PLUS Motherboard
Main chipset：Intel B660

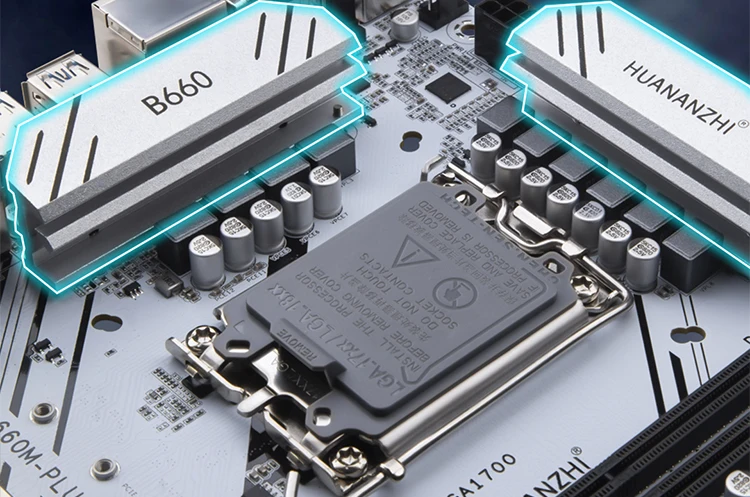

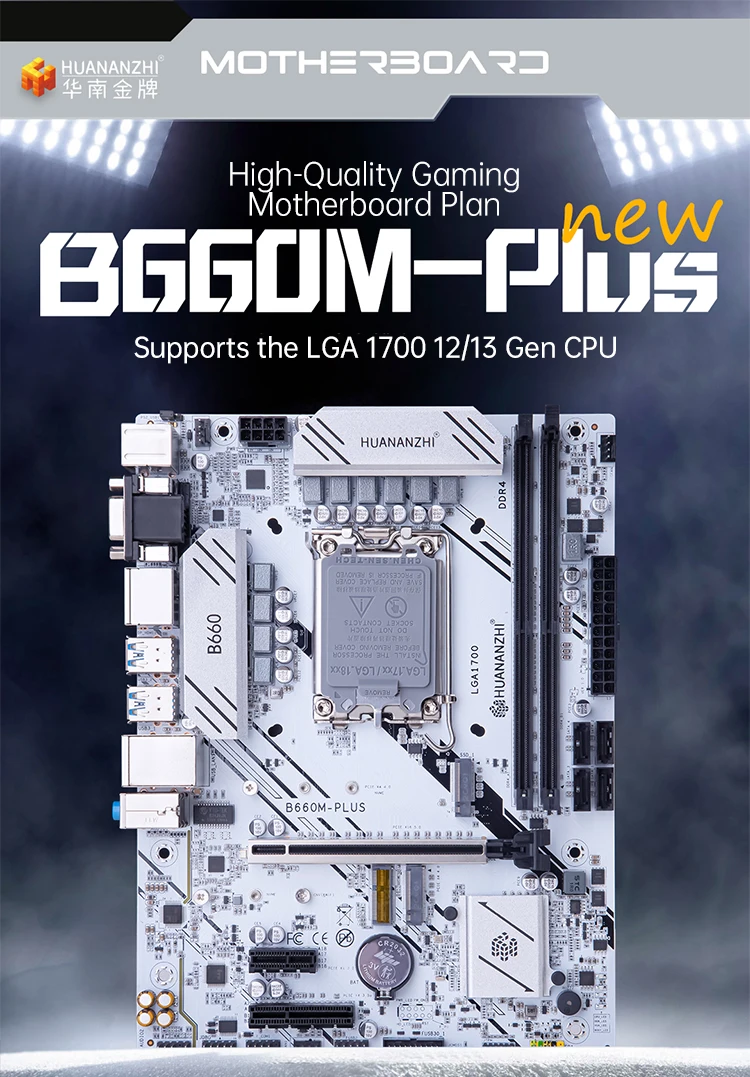

CPU Socket：Support Intel LGA1700 platform processor
Memory slot：2 x DDR4 memory slot
Memory standard：Support dual channels DDR4 3600/3200/2933/2666/2400/2133MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB
Storage interface：4 x SATA 3.0 6Gbps（Support RAID0/ 1/ 5/ 10）

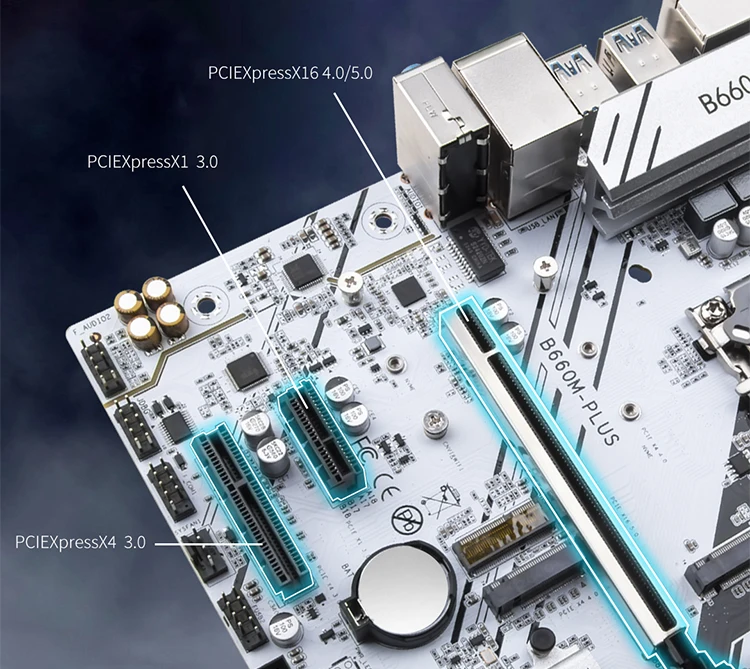

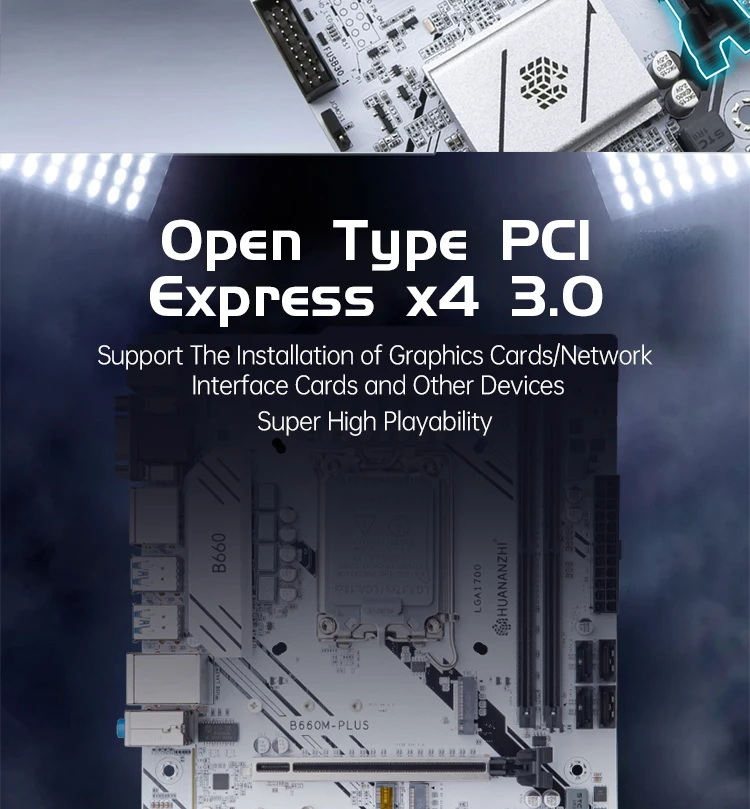

Expansion Slots：1 x PCI [email protected]，1 xPCI Expressx13.0，1 xPCI Expressx4 3.0

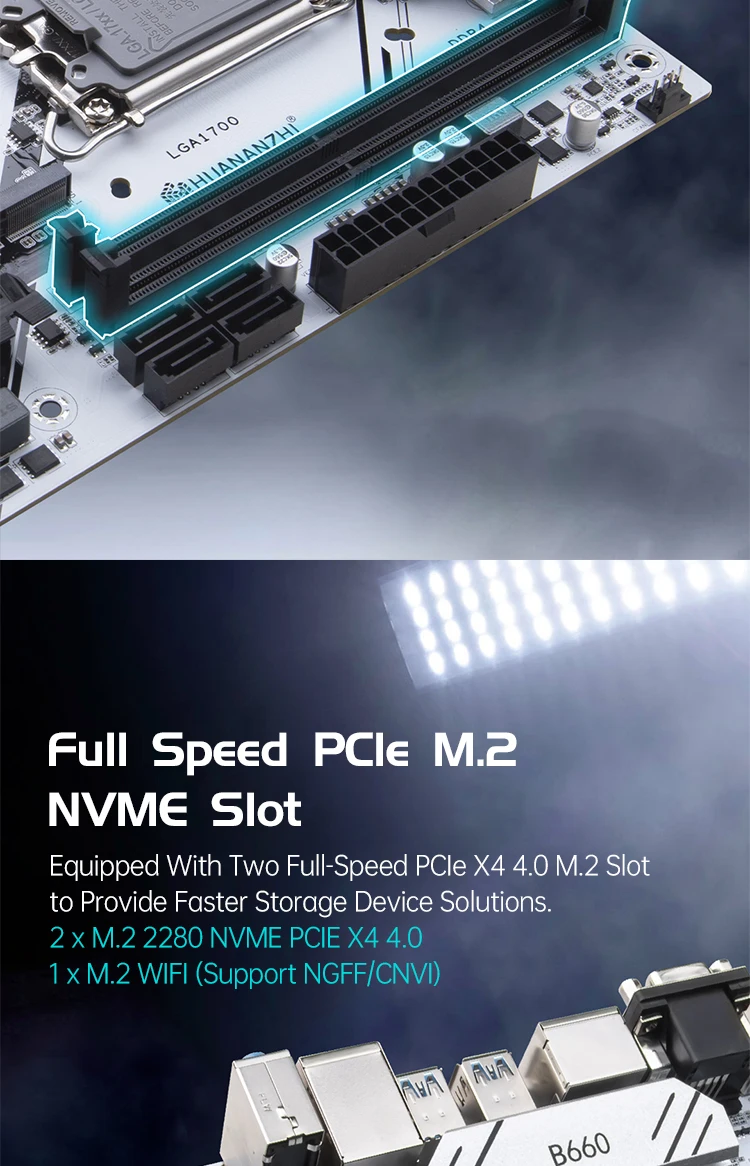

Expansion interface：2 x M.2 2280 NVME PCIE X44.0，1 x M.2 WIFI (Support NGFF/CNVI)
Soud Track：Realtek High Fidelity Audio
Network Card：Realtek RTL8125BG 2.5Gbps LAN
Power interface：24PIN+8PIN
FAN PIN：1xCPU_FAN PIN，2xSYS_FAN PIN
power supply：10-phase power supply
PCB layers：6-layer PCB
Dimension：240*180MM M-ATX

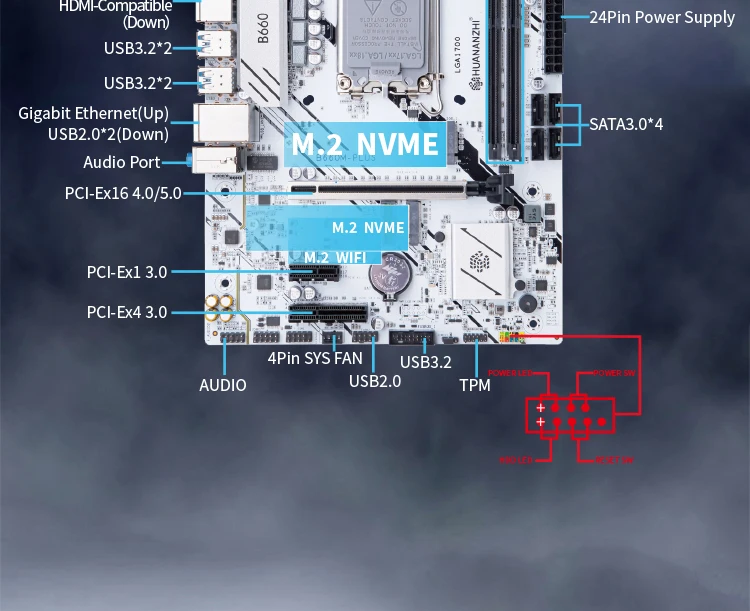

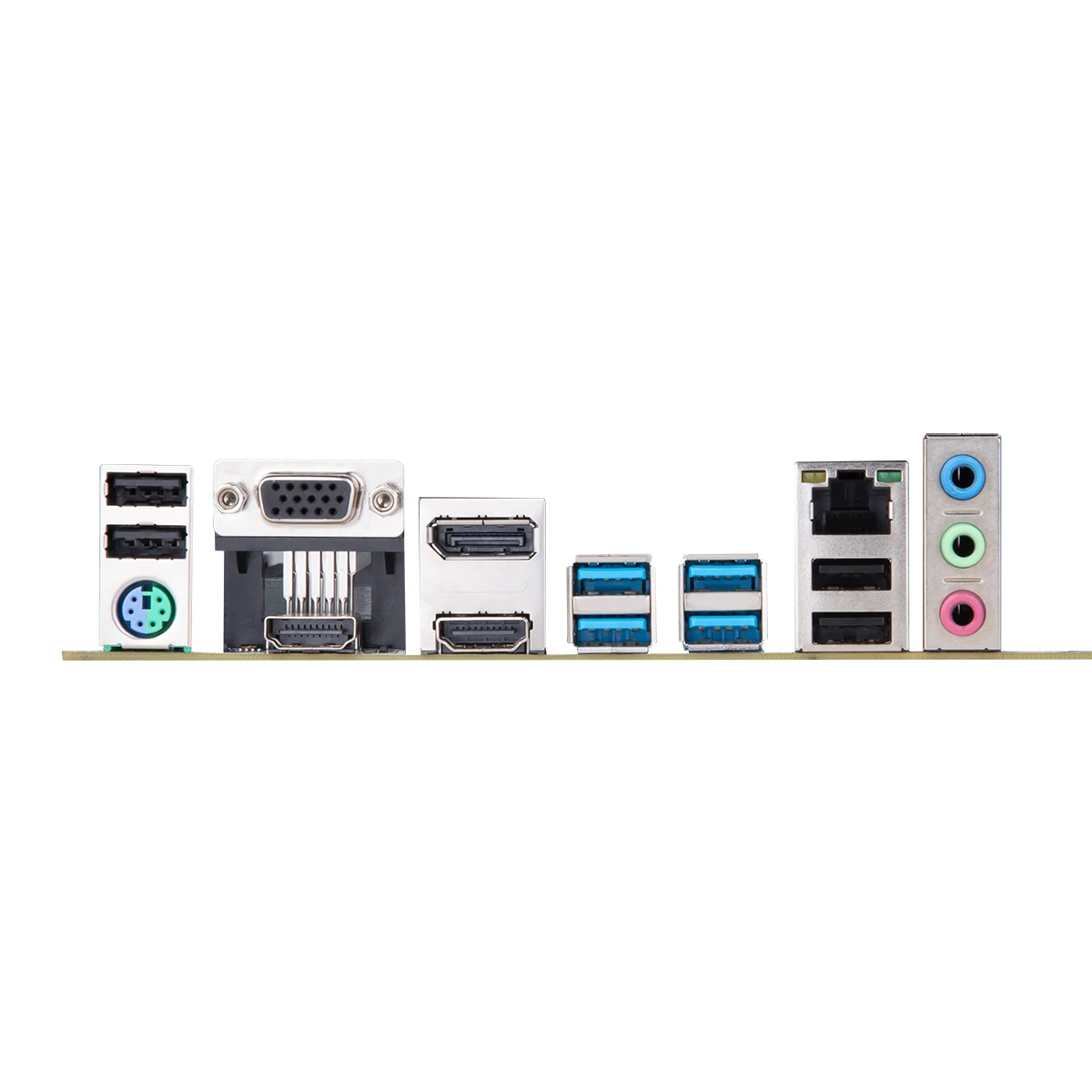

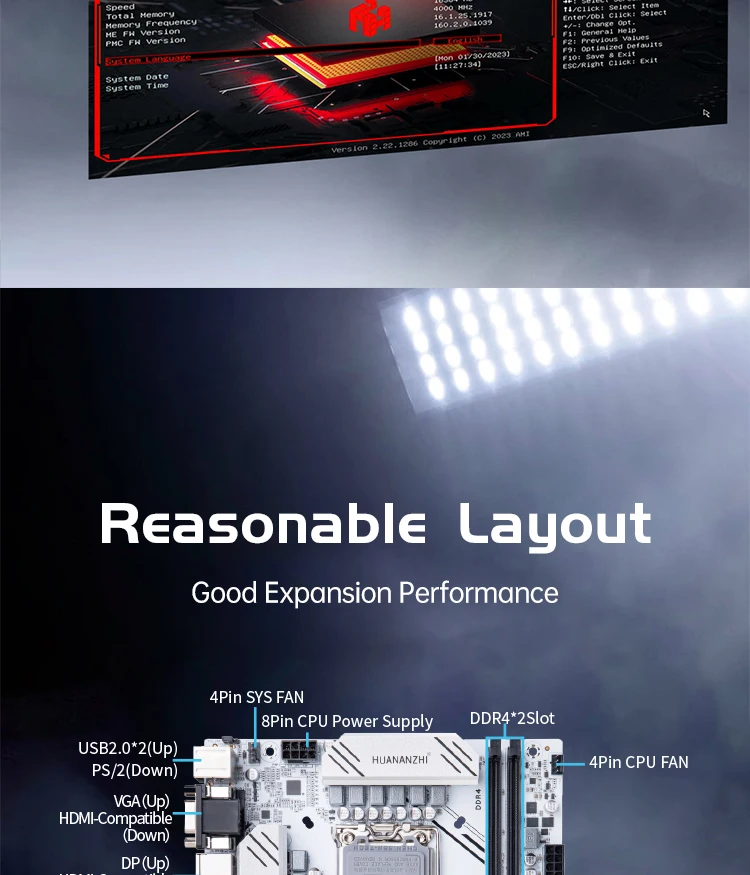

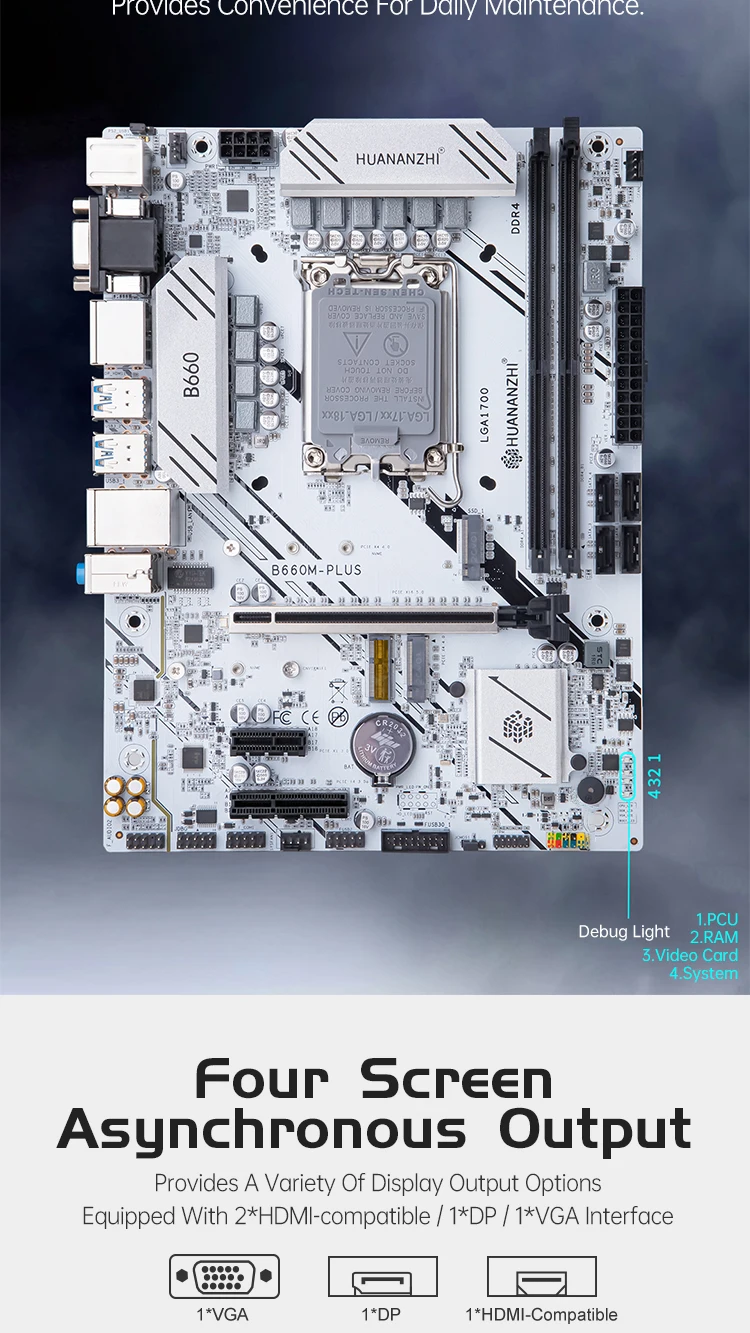

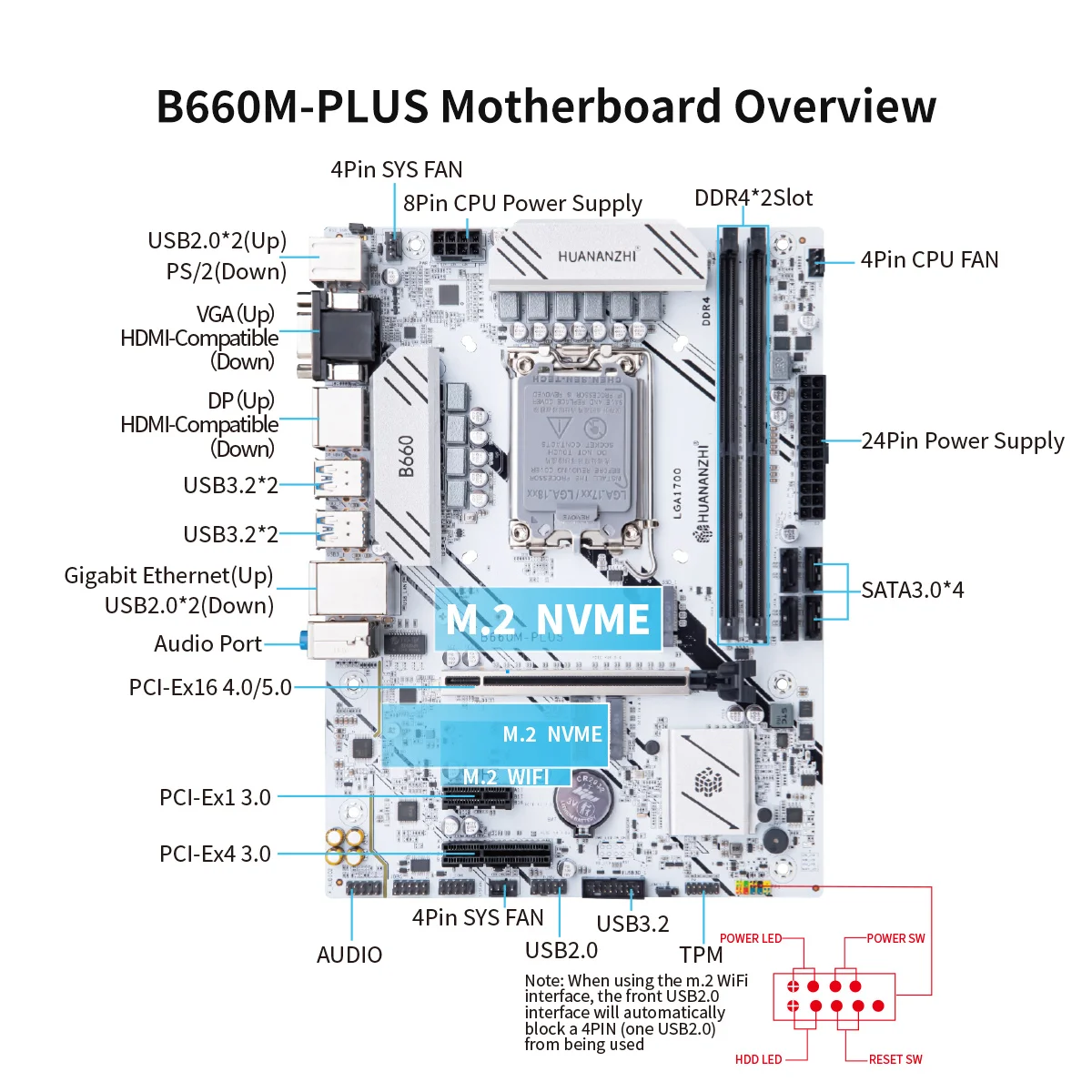

Rear panel interface：1xPS/2 Mouse and Keyboard port，4xUSB2.0，4xUSB3.2，1xRJ45Network card interface，1x3-hole audio interface，1x VGA，2x HDMI2.0，1xDP1.4（Support processor core display four-screen output）

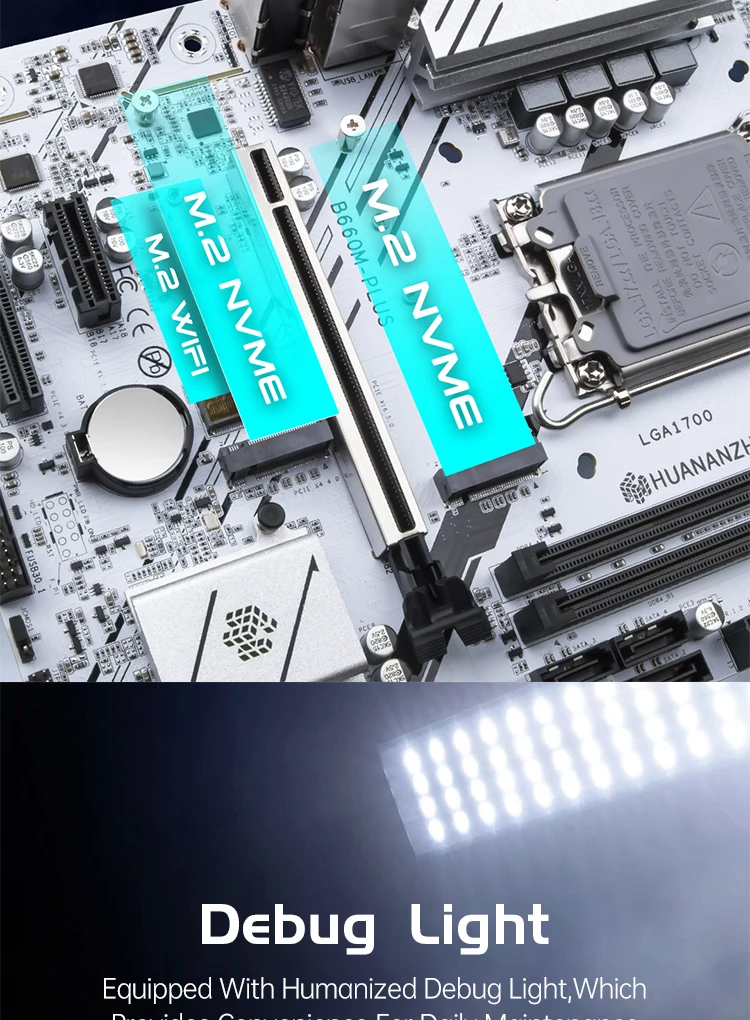

Front panel interface：1 x USB2.0 PIN，1 x USB3.2 PIN，1 xFront audioPIN，1xCOM PIN，1 x Debug indicator，1 xPower on/restart PIN，1xMotherboard buzzer，1 xTPM2.0
Support system：Windows10 Windows11
Note: 1.The motherboard does not have integrated graphics, the cpu needs to support Core Graphics card, and the video output interface can be used.
2.Without cooler Holder Base
Note:
1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
4.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
