Our Advantage
1.CCC,CE&Rohs,ISO9000,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life
4.MOQ: 1pcs 768*768mm die-casting aluminum cabinet screen.

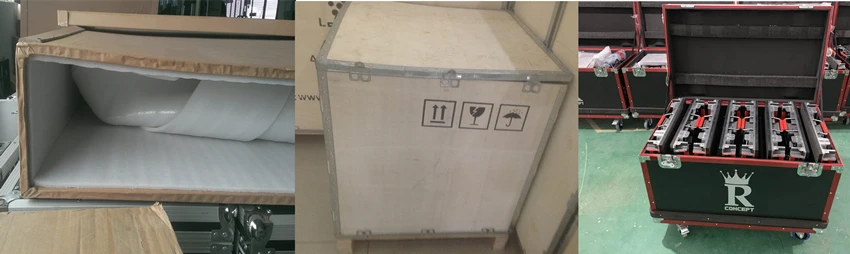

5.Our package type:wooden box or flight case(extra charge)
6.Prompt delivery: 5-12 days
Specification

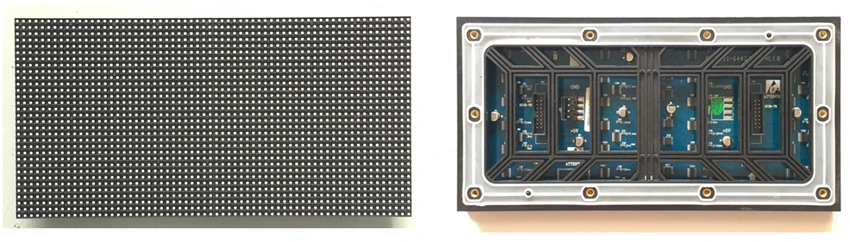

Module Parameter
Size
128mm(H)×256mm(H)
Module Resolution
32(H)×64(W)
Pitch
4mm
Density
625.000pixels/m²
LED Lamps
SMD1921(Customizable)
Driver IC
Universal chip(Customizable MBI5166/MBI5124)
Module Refresh
1920hz
Mask
Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution
192(H)×192(W)
Cabinet Size
768mm(H)×768mm(W)
Cabinet Weight
18kg
Driver Mode
Dynamic 1/8scan , constant current driving
Cabinet Power
≤1200w
Cabinet Thickness
≤75mm+5mm
Electricity Parameter
Optical Ratings
Brightness Of White Balance
≥6000cd/m²
View Angle
140 degree ( horizontal) 140degree(vertical)
View Distance
4m-260m
Gray Scale
65536
Display Color
3-in-1 RGB
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
1400 w/m²
Average Power Consumption
800 w/m²
Control System
Correction Scale Level
16bits
Screen Refresh Frequency
1440Hz
Gamma Correction
-5.0—5.0
Support Input
HDMI,DVI,VGA,RJ45,USB,Serial Port
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
800×600,1024×768,1280×1024,1600×1200,1920×1080
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Temperature
Storage:-35℃-+80℃ ; Operation :-25℃-+45℃
Humidity
Storage:10-70% RH ; Operation:10--60% RH
Operating Life
≥100,000 hours
MTBF
≥10.000 hours
Continuous Working Time
≥48 hours

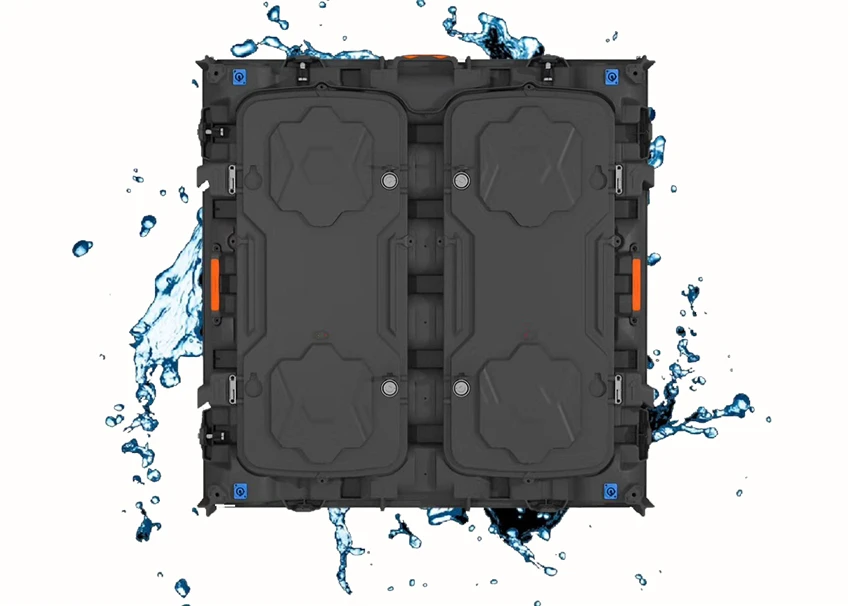

Protection Level
IP67
Out of Control Pixel Rate
0.03%
Product specifications are for reference only and subject to change without prior notice;
Please contact sales for details
At the same time, we can design according to customer requirements and production.
Pictures

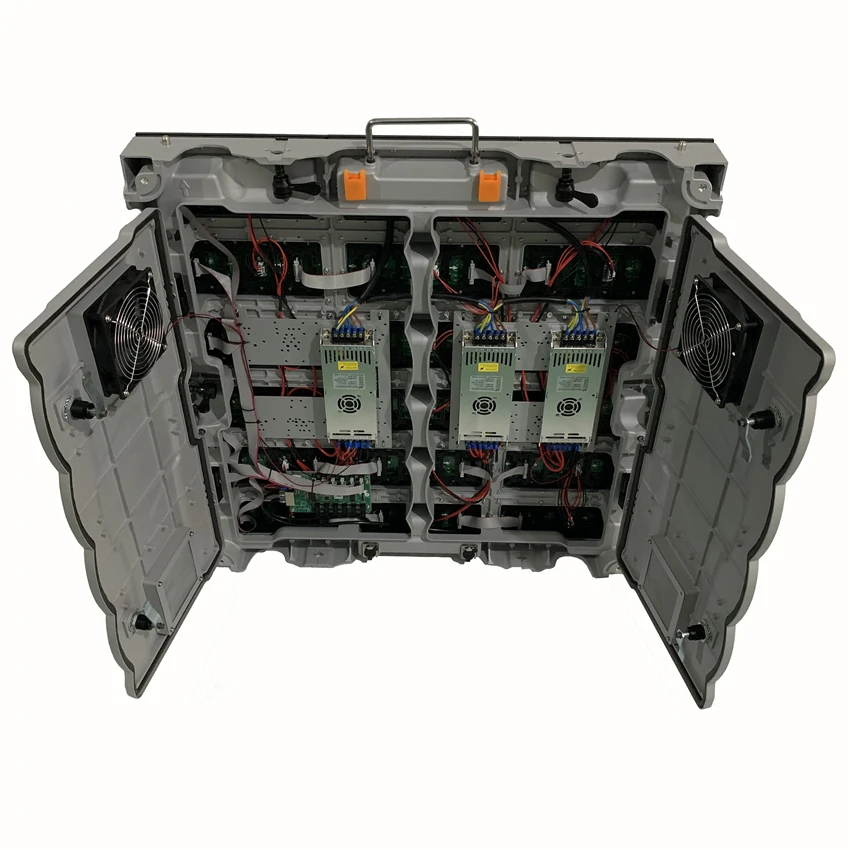

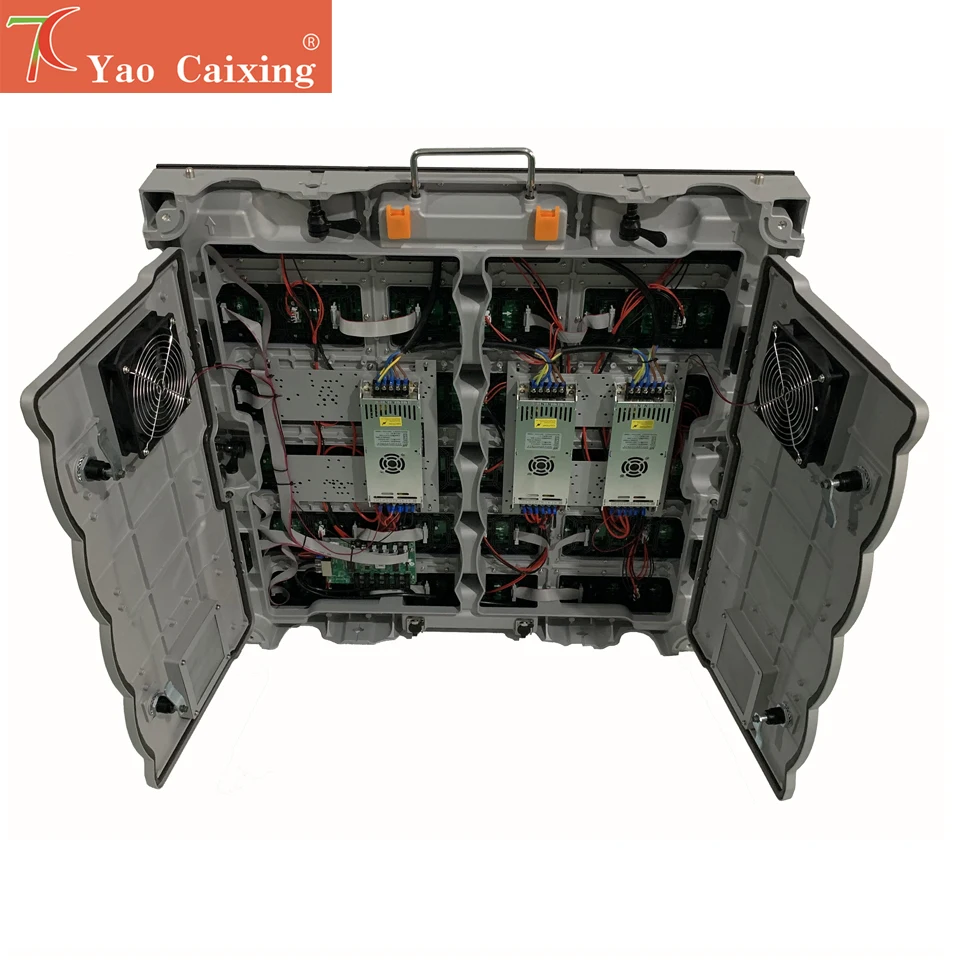

MOQ:1 set 768×768mm aluminum cabinet screen accessories
1),18pcs modules ,
2),4sets 5v60A300w power supply,
3),3pcs avation power plugs
4),3pcs avation web lines
5),9pcs power lines ,
6),18pcs flat cables ,
7),1pcs Linsn/Linten synchronous receiving card

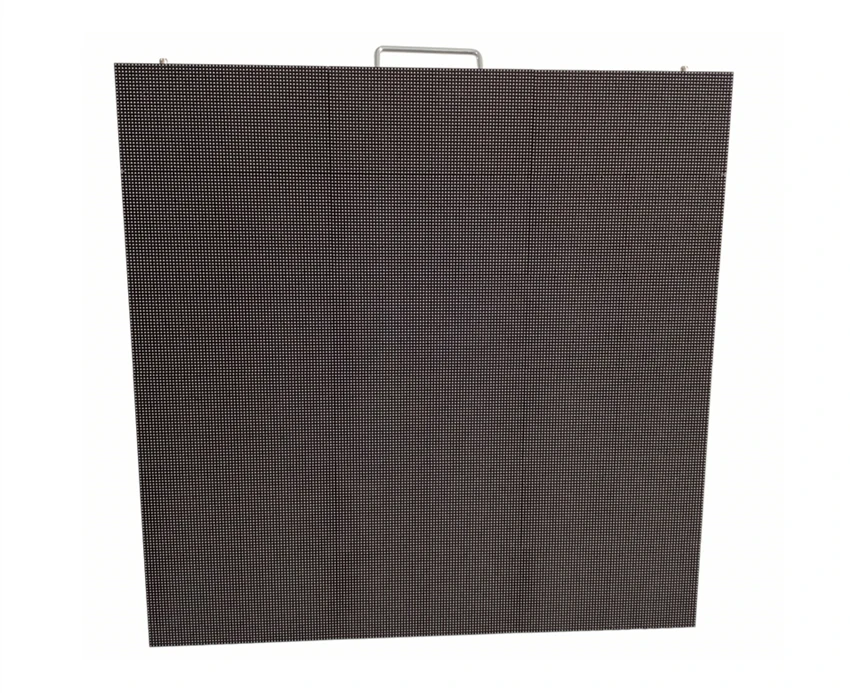

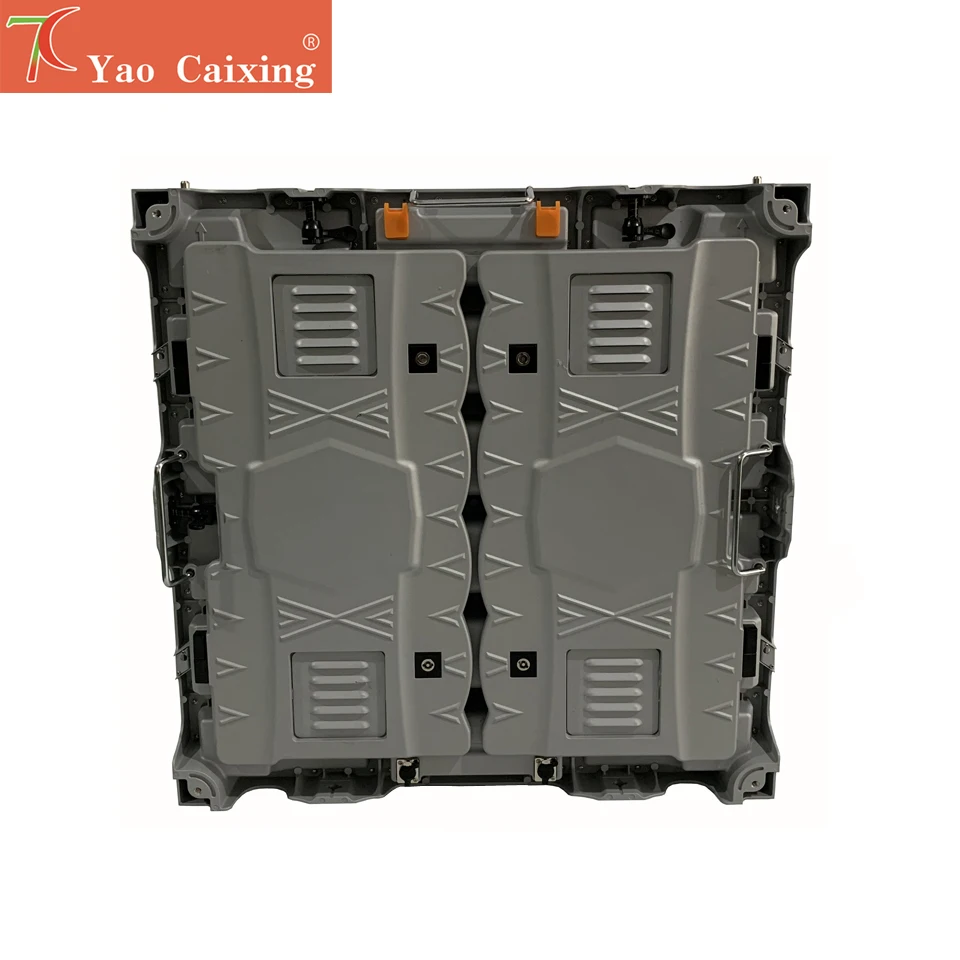

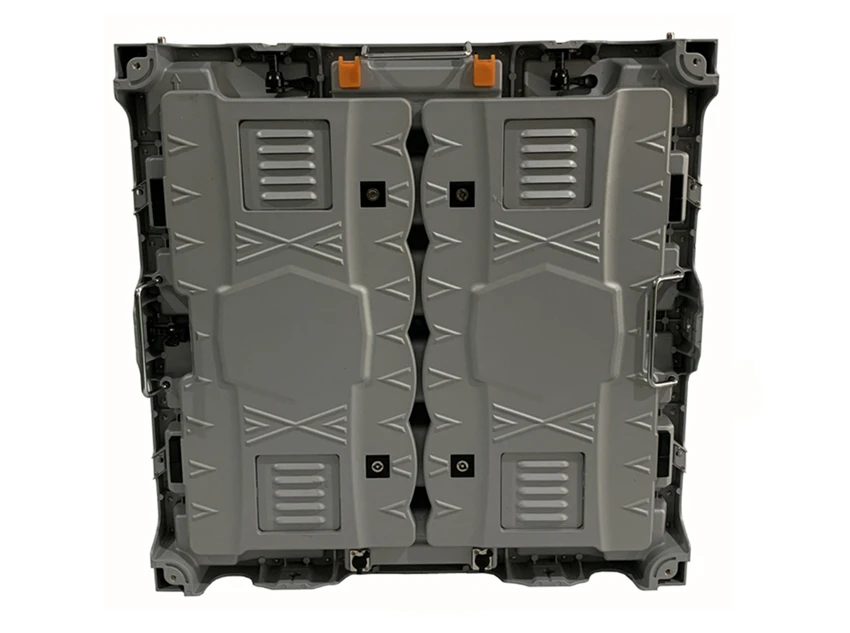

8),1pcs 768×768mm die-casting aluminum waterproof cabinets
Advantage:
- Save Money More cheaper than 576*576mm size screen each square meter.
- Save Weight More lighter than 576*576mm size screen each square meter.
- Save Time Assemble and disassemble screen faster
- Save Space Need less flight cases package
- Power aviation plug ,quickly and safety- Signal aviation web line ,convenient
- More orders will use wooden cases pack
- Flight case package also is available (extra charge)
About UsShenzhen YaoCaixing Electronic Co.,LTD is founded in 2008 which is located in the world display screen manufacturing center - Fuyong,SheZhen China.The cover area is about 20000square meters. We are specialized in the development,production,sales and services of the LED display and focus on providingcustomers with a full range of product solutions.It is a integrated operation service private enterprise in photoelectric LED display filed.
After several years of study and unremitting efforts,the company gathered a large number of talents and has accumulated rich experience,owned the firstclass automated production equipment and standard production workship,also established a systematic and professional display screen productionprocess and provide a powerful guarantee for the quanlity of the LED display to improve the the stability and product cost performance.
Main products:inside and outside LED DIP electronic display screen,LED SemiSMD full color,LED SMD full color screen ,households inside and outsidedouble-color,LED highway screen,LED large screen.And the production types areP1.2,P1.6,P1.8,P1.9,P2,PH2.5,PH3,PH4,PH5,PH6,PH7.62,PH8,PH10,PH16,PH20,etc.
Shipment
1. We only ship to confirmed order addresses. Order address need match your Shipping address. 2. The images shown are not the actual item and are for your reference only. 3. We will choose to ship your item from our first available warehouse for fast delivery.
Hope you love and choose us ,thanks for your surpportWe'll try to do better and better in the future.Have a nice day !!!
