Descripción

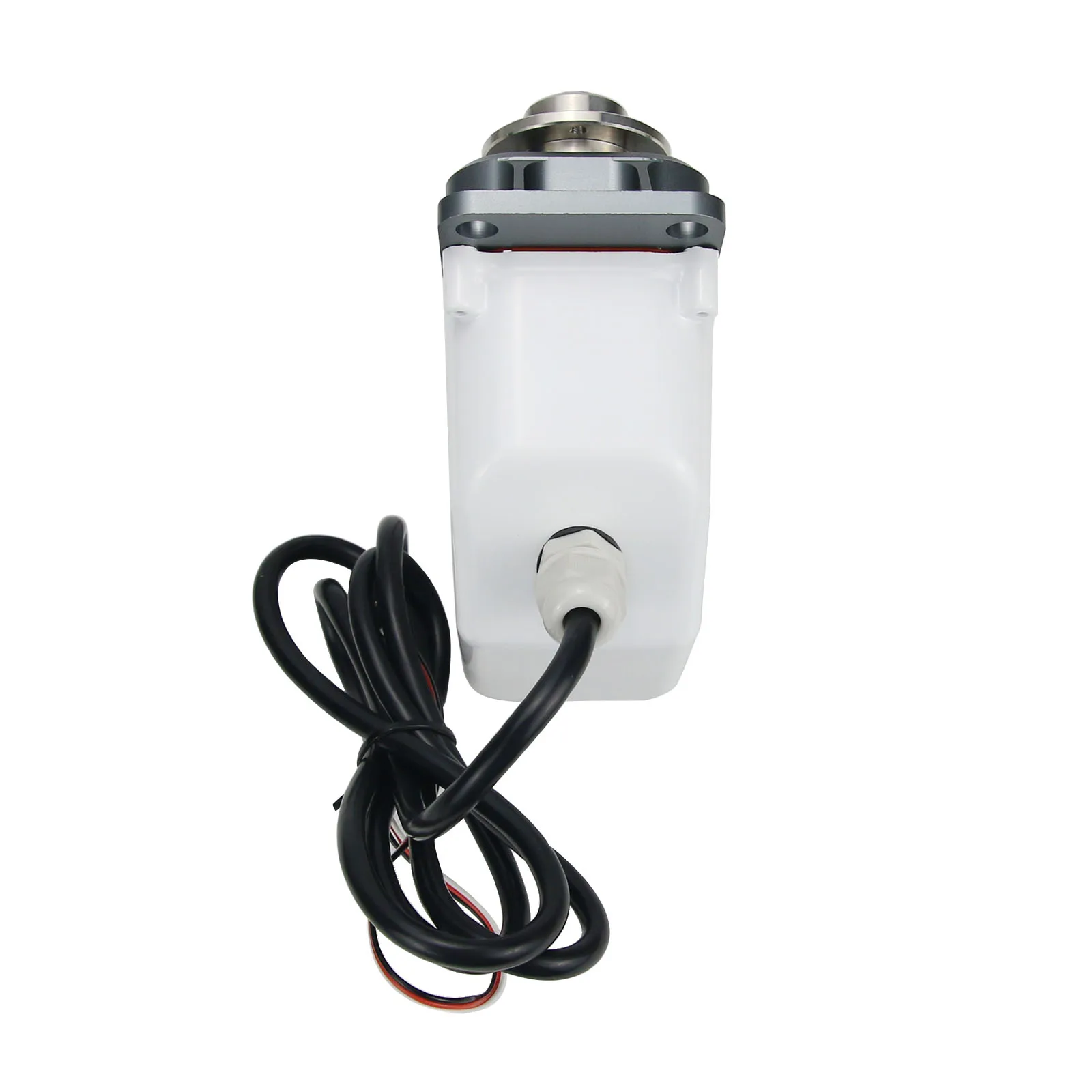

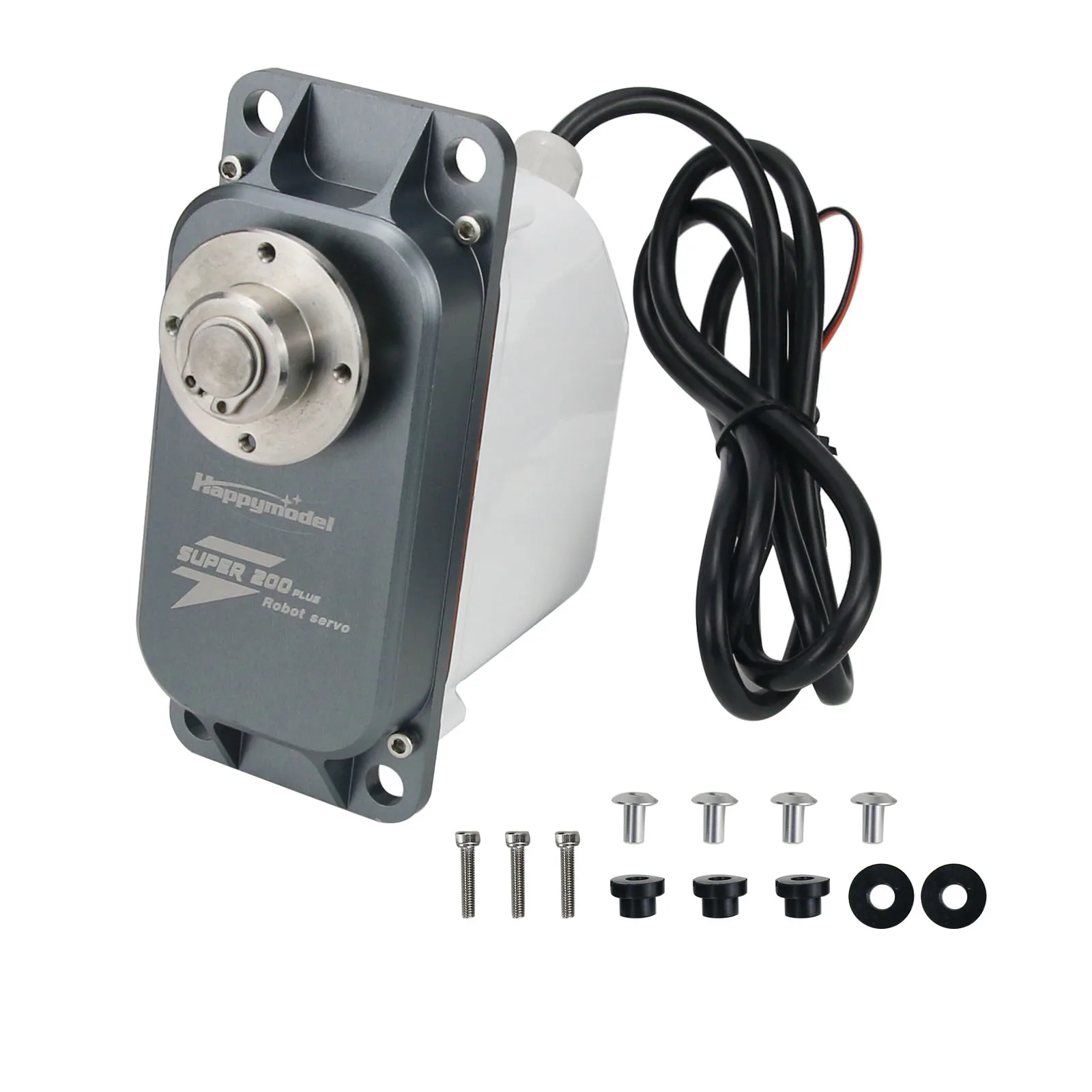

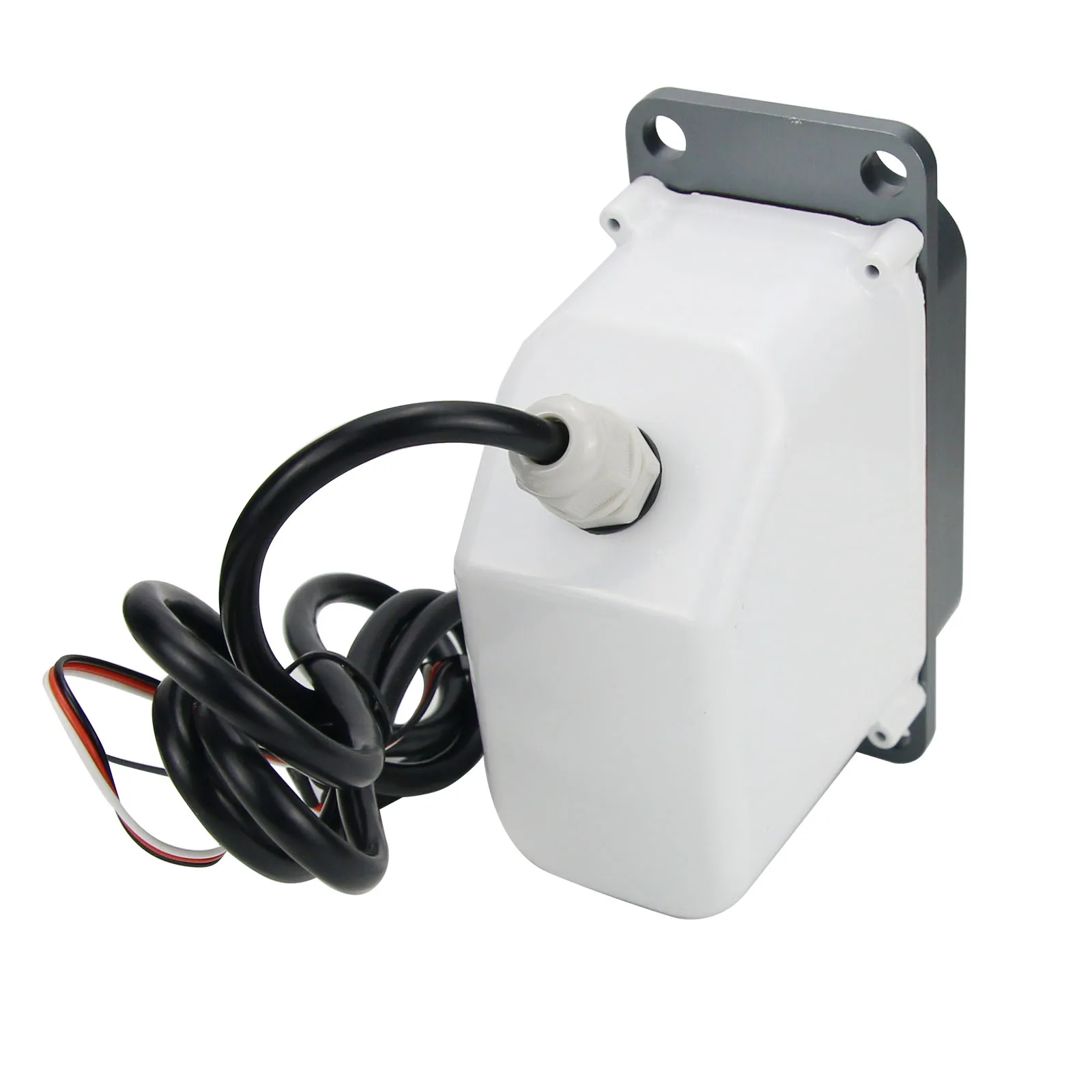

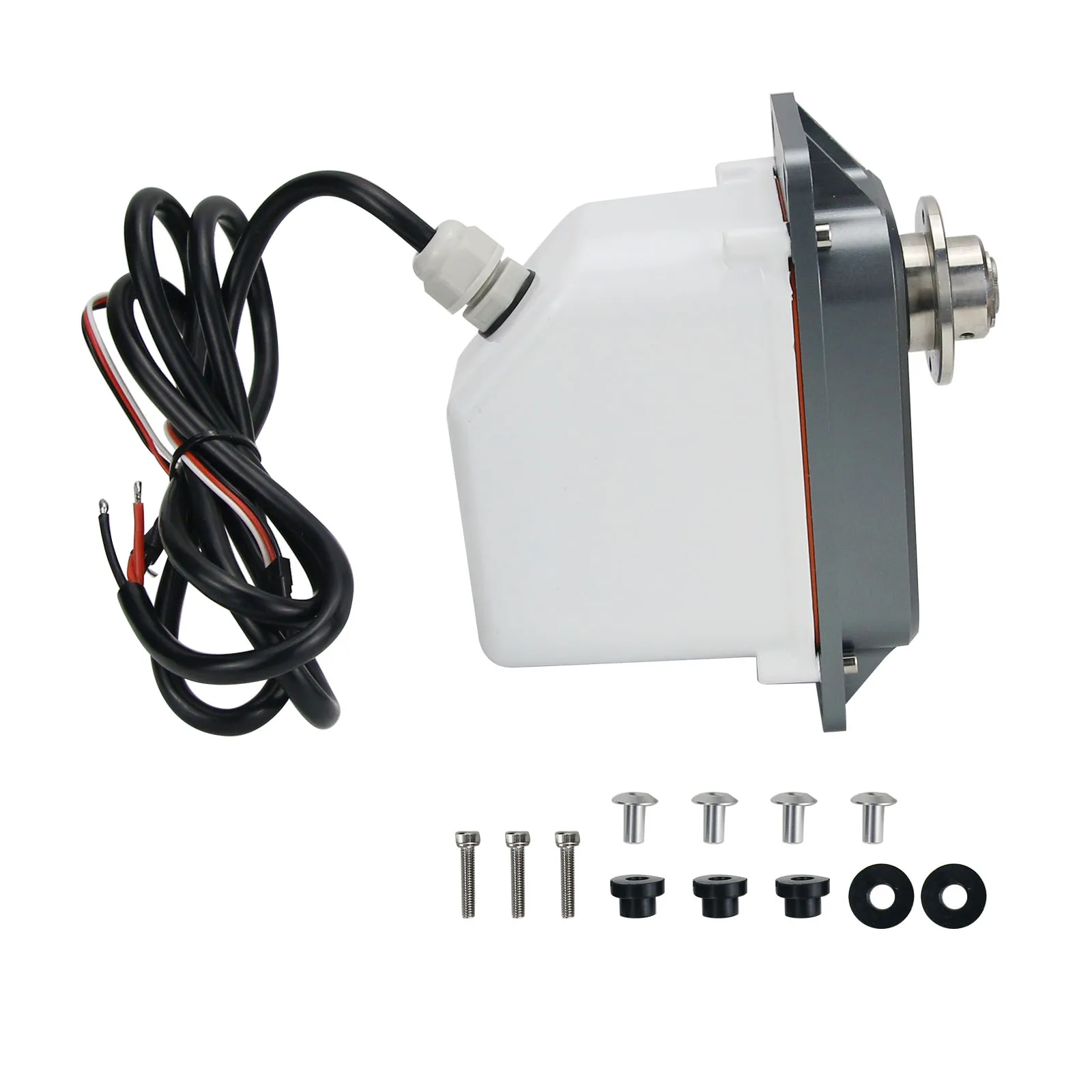

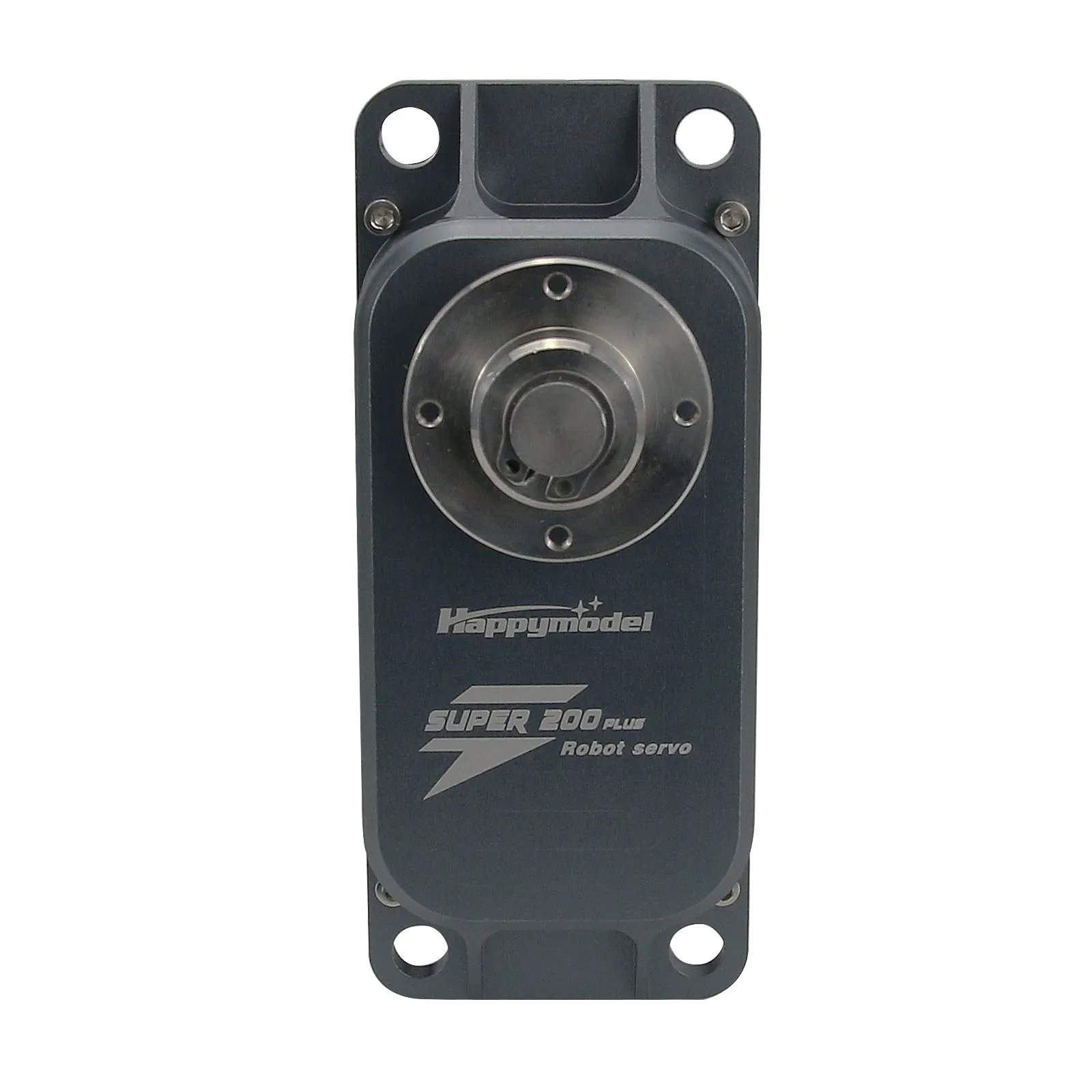

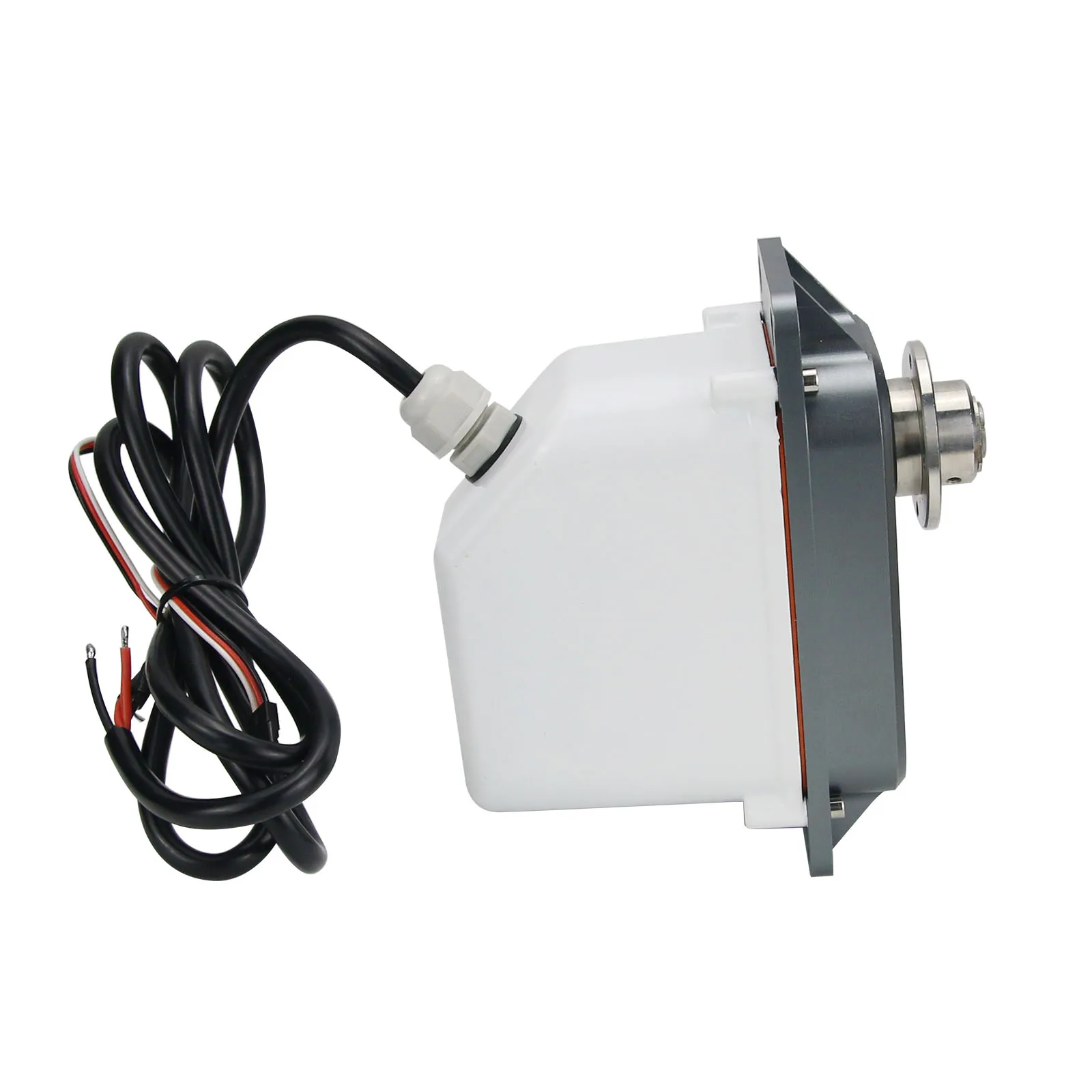

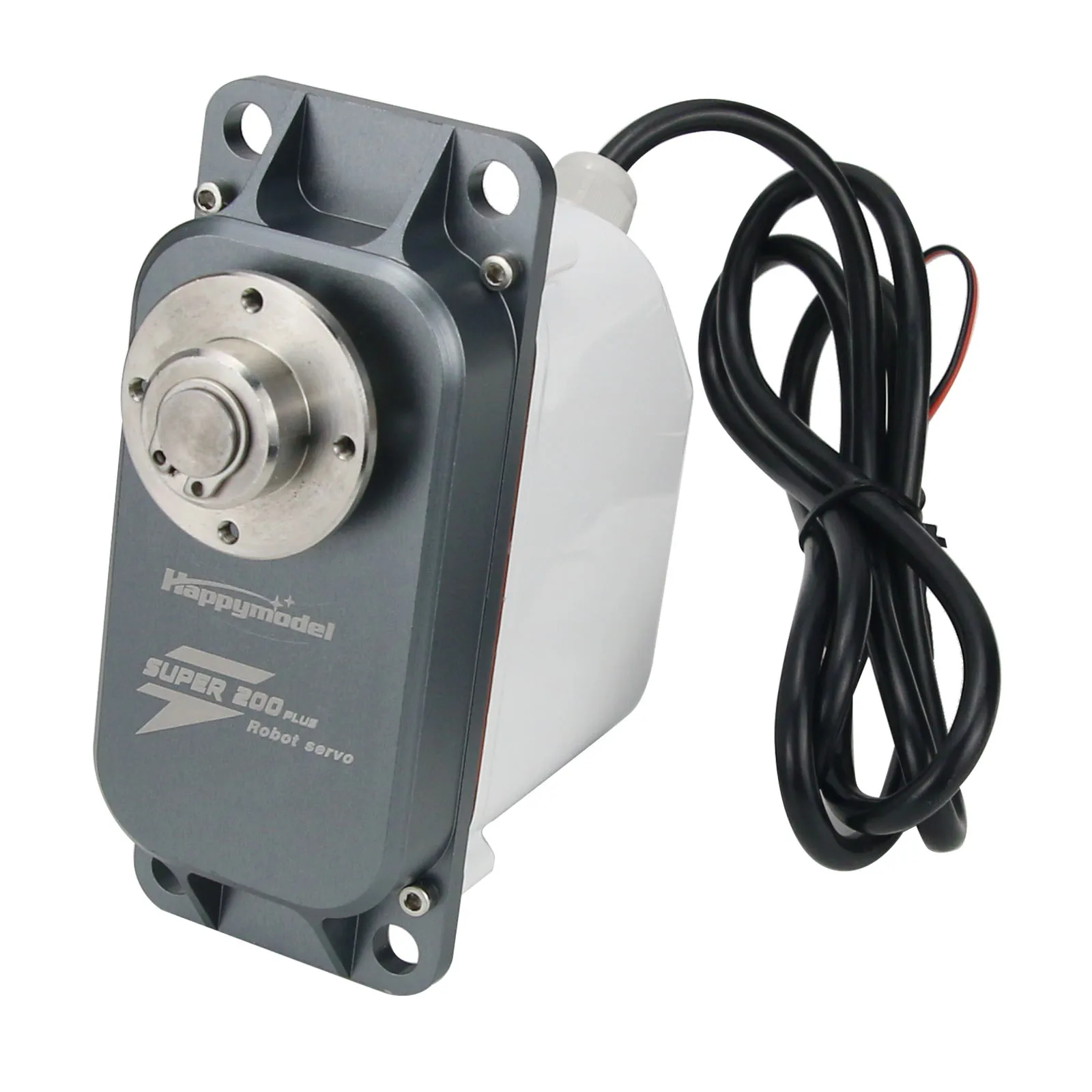

Super200 Plus Upgraded Industrial Servo High Performance Robot Servo PWM 300 Degrees
Specification:
Input voltage: 24V (recommended to use battery power supply)
Speed (no load): 24V, about 0.46s/60°
Maximum torque: 200kg.cm
Holding torque: 70kg.cm
No-load current: 0.15A
Stall current: 11A at 24V
Input signal: PWM: 800us-2200us, 50-400Hz
Operating angle range: adjustable, minimum 60°, maximum 300°
Net weight: 748g
Features:
1. The servo is small in size and light in weight, and its internal structure has been improved.
Specification:
Input voltage: 24V (recommended to use battery power supply)
Speed (no load): 24V, about 0.46s/60°
Maximum torque: 200kg.cm
Holding torque: 70kg.cm
No-load current: 0.15A
Stall current: 11A at 24V
Input signal: PWM: 800us-2200us, 50-400Hz
Operating angle range: adjustable, minimum 60°, maximum 300°
Net weight: 748g
Features:
1. The servo is small in size and light in weight, and its internal structure has been improved.
2 The control and drive circuit hardware of the steering gear adopts thecurrent mainstream components, which has faster calculation speed and smaller volume. It adopts a non-contact Hall sensor, which has higher
resolution, wear-resistant, with longer service life and more reliable.
3 We added heat sinks to the servo motor drive tube. The heat sinks areconnected to the aluminum housing of the steering gear, which has bette heat dissipation effect and increases the reliability when the steering
gear is locked.
4. Metal powder metallurgy teeth are used for the
first-level teeth, steel-plastic composite teeth are used for the
second-level gears, so that the noise is lower, and powder metallurgy
gears are used for the third-level gears, which has good self-lubricity.
The steel rolling gears used in the fourth and fifth gears are surface
carburized and quenched, which improves the durability and impact
resistance of the gears. The overall transmission structure is more
reasonable.
5. Adopt high temperature resistant enameled wire,
imported brushes and commutator to improve the motor's overload
resistance. After many tests, the efficiency and speed of the motor have
been optimized to make it react faster.
Package List:
1 x Motor
