Grabador de tarjeta de captura de vídeo HDMI, transmisor de transmisión en vivo, transmisión Ip, H.264, H.265, RTMP, 4G, LTE

FHD Live Video H.264 H.265 SDI Encoder Transmitter For Wifi Video Capture Grabber Camera Live Streaming Broadcast Wowza Vmix

Video

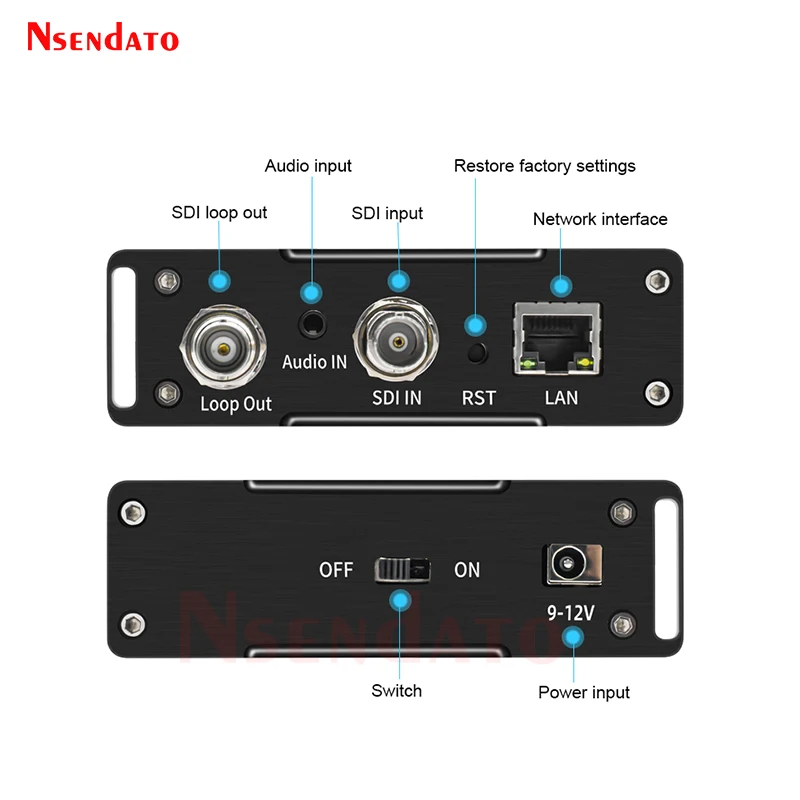

Input/Output:1x 3G-SDI(Level-B)/1x3G-SDI Loopout

Resolution:1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i

Encoding:H.265/H.264

Output:Up to 1080P60

Bitrate:0.16Mbps~32Mbps

Bitrate Control:Bandwidth Priority(CBR)/Image Quantity Priority(VBR)

GOP:5-300

Advanced:Flip,Mirro,Rotate,Clip,EDID swtichable,SAR

Chip Lantency Time: 100ms

OSD:BMP,TXT,Fly Txt,Time

Audio

Input:1xSDI /1xLine In

Encoding:AAC/AAC+/AAC++/MP3

Resample:44100/48000 Hz

Audio Channel:Stereo

System

Ethernet:1000M

Protocol:UTP/SRT/RTSP/RTMP/RTMPS/HLS(push)/Multicast/SAP

Management:Website/CGI Command

SDI Cable:Support 75Ohm coaxial-cable 80M
