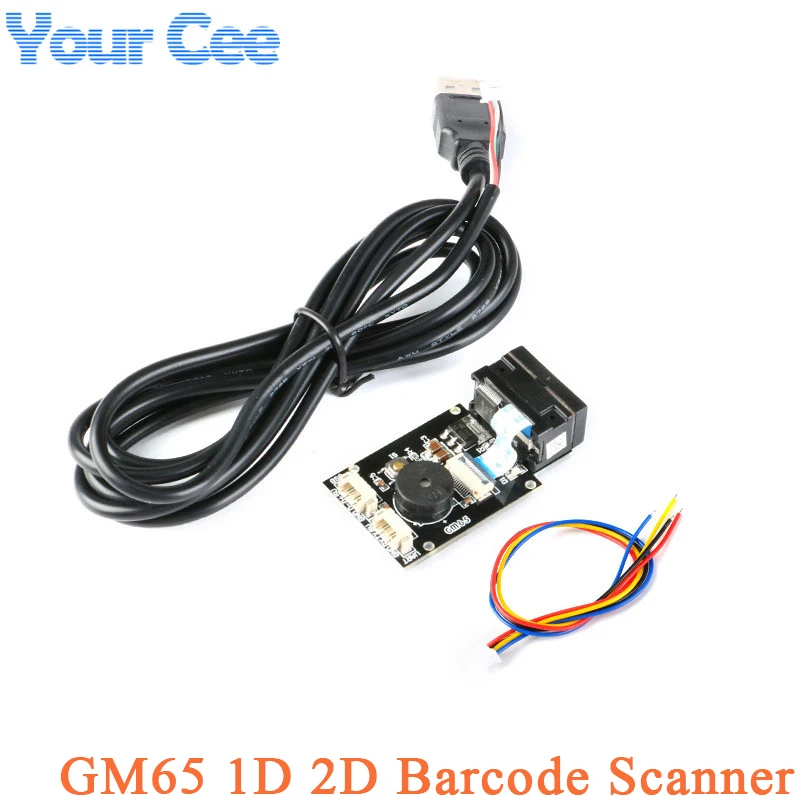

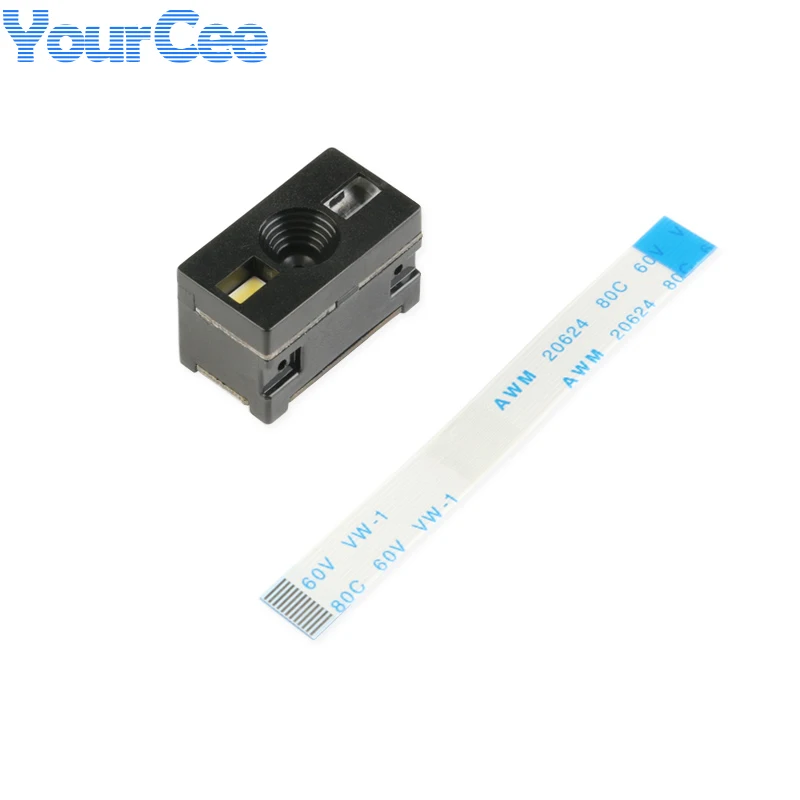

GM65 GM65S 1D 2D imagen de código QR módulo de identificación de código de barras escáner escaneo placa lectora de código de barras integrada con Cable

Name: GM65 GM65S 1D 2D imagen de código QR módulo de identificación de código de barras escáner escaneo placa lectora de código de barras integrada con Cabl
Brand: Your Cee
SKU: 417818
Price: 12.69 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

GM65 GM65S 1D 2D imagen de código QR módulo de identificación de código de barras escáner escaneo placa lectora de código de barras integrada con Cable

2 opiniones

En Stock

12,69 €

~~19,52 €~~ -65.01%

Comprar ahora

Con la garantía de

Color

30 unidades vendidas

Última actualización: 2026-01-01T20:27:51.158Z

Descripción

Product Introduction:

GM65 scanning device module has low power consumption, working current less than 150mA, integrated design and small size;
Support TTL232 and USB (Chinese free drive) interface;
Support all common 1D barcodes and common 2D codes to directly identify the phone screen.

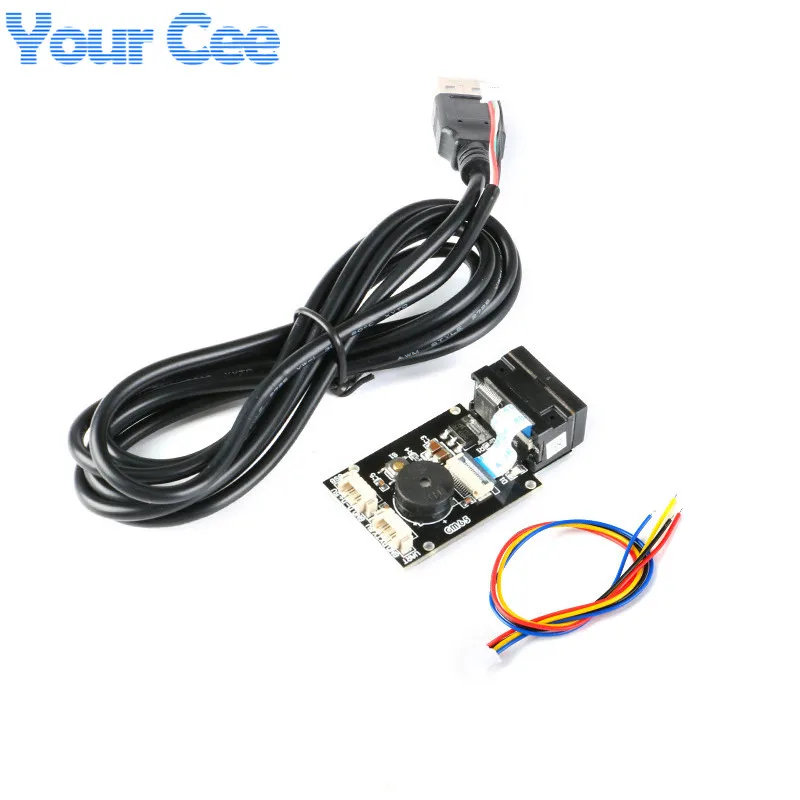

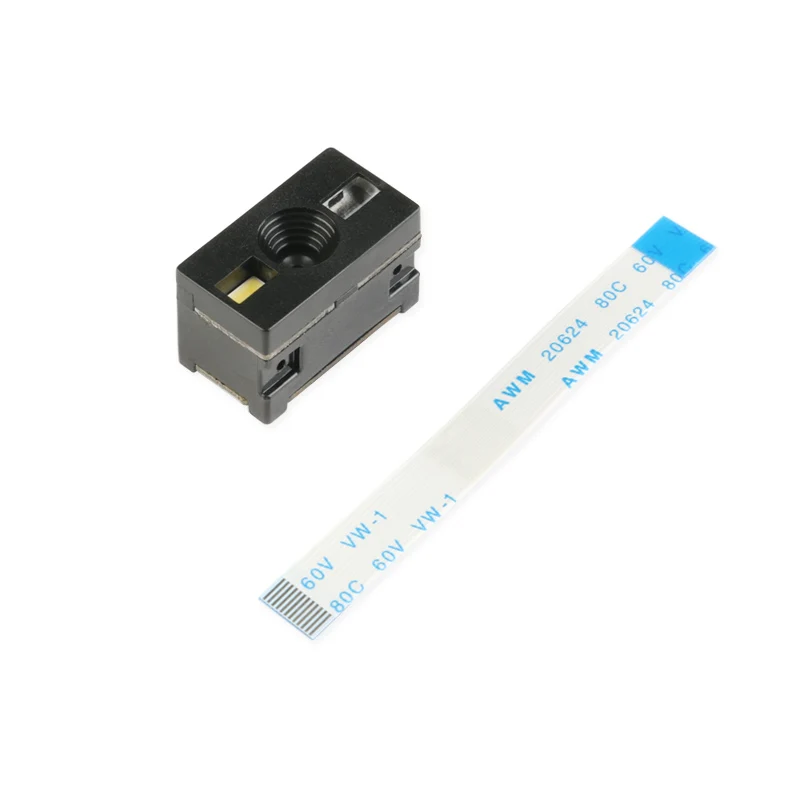

Buying the scan head separately will provide the line order of the cable

Type that can be read:

Read the barcode type (1D): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar,MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
Read the QR code type (2D): QR Code ,PDF417,Data Matrix

The value read by the GM65 module can be directly displayed on a text file such as WORD.

Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the place where you can input text on the computer will be displayed directly, such as WORD, chat window

Parameter:

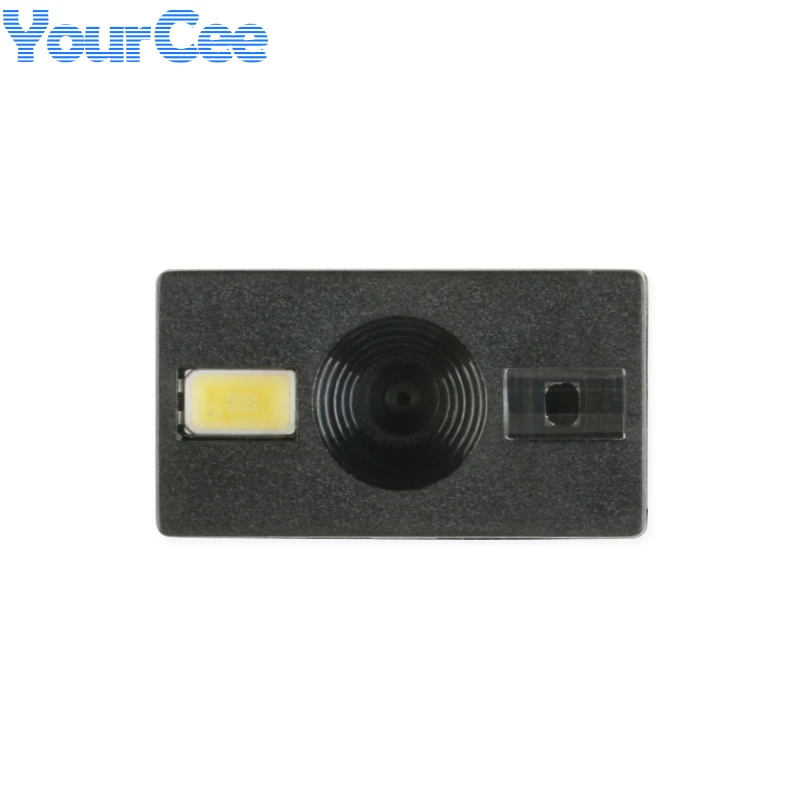

Optical system: CMOS
Capture light source: 617nm LED
Lighting source: 6500K LED
Reading angle: Rotate 360 °

Deflection ± 60 °

Tilt ± 65°

Scanning angle: 34 ° (horizontal) 26 ° (vertical)
Minimum contrast: 30%
Resolution: ≥ 0. 1mm (4mil)
Voltage: DC 5V
Current: 120mA during scanning / 30mA during standby
Interface: USB, URAT
Working temperature: Temperature: 0°C～50 °C
Storage temperature: -40 °C ~ 70 °C
Working humidity: 10% to 80%
Ambient light: Ambient light: 0~86,000 lux

View size chart:

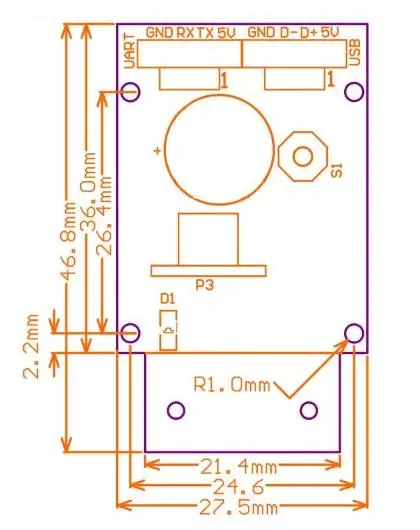

Product Size:

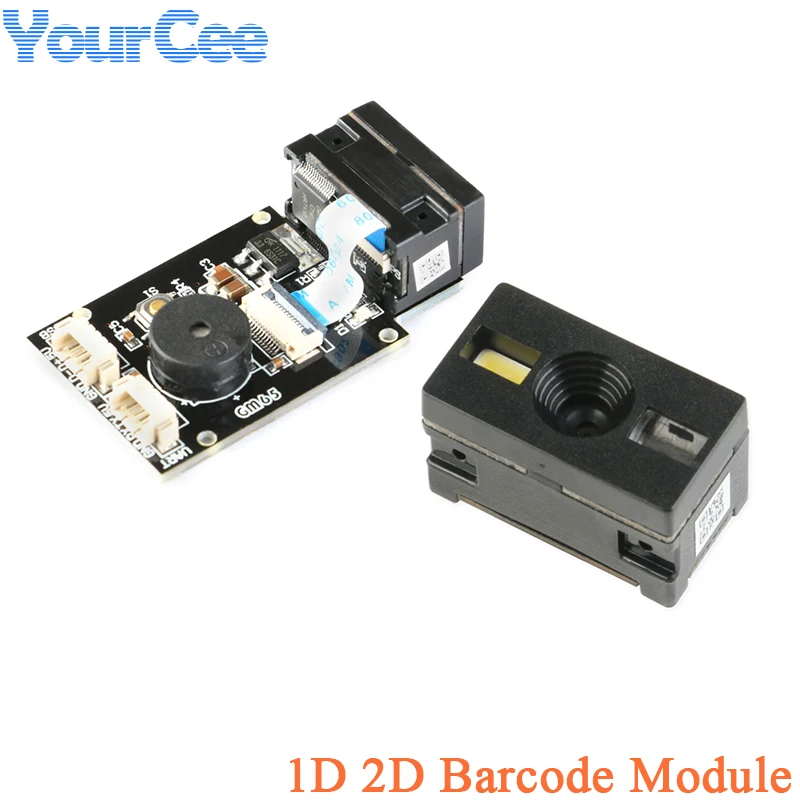

Introduction:GM65 is a high-quality 2D image scanning and identification module. The built-in image scanning technology can be applied to a variety of applications. No matter whether it is a two-dimensional code or a one-dimensional bar code, it can be scanned omnidirectionally. Barcodes or screen display labels can be sensitively identified.The GM65 offers customers a variety of settings in terms of functionality. For example, the scan mode can be selected by key triggering or automatic continuous scan. The communication mode can be selected as USB or virtual serial port. You can add prefix or suffix to the barcode data, and you can select multiple end terminators. Rich functions can fully meet the special requirements of various customers. Can be widely used in express logistics, retail, e-commerce office automation and other fields.GM65 scanned bar code or QR code information can be directly displayed in some text input places such as WORD file. Please connect USB, find a barcode or QR code scan (not the QR code on the manual), on the computer The place where text can be entered will be directly displayed, such as WORD, chat window; this can simply test whether the module is working properly. .
