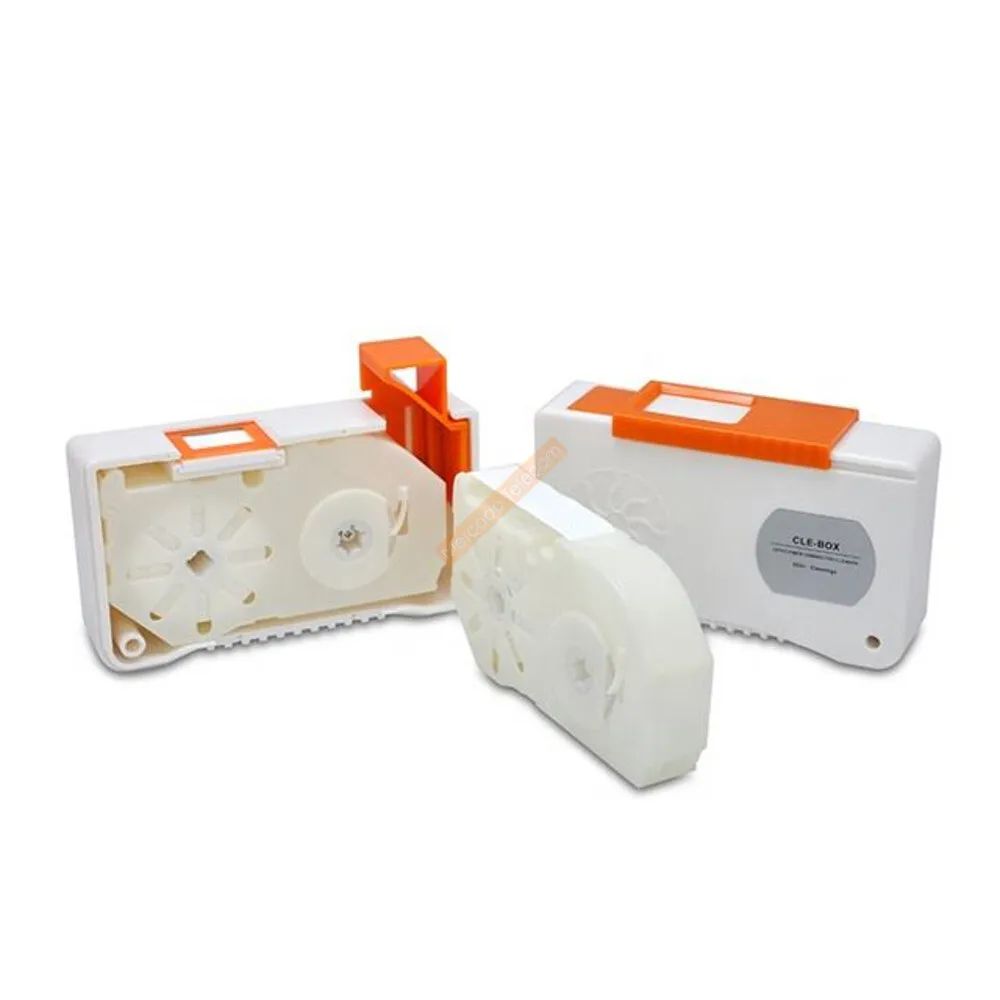

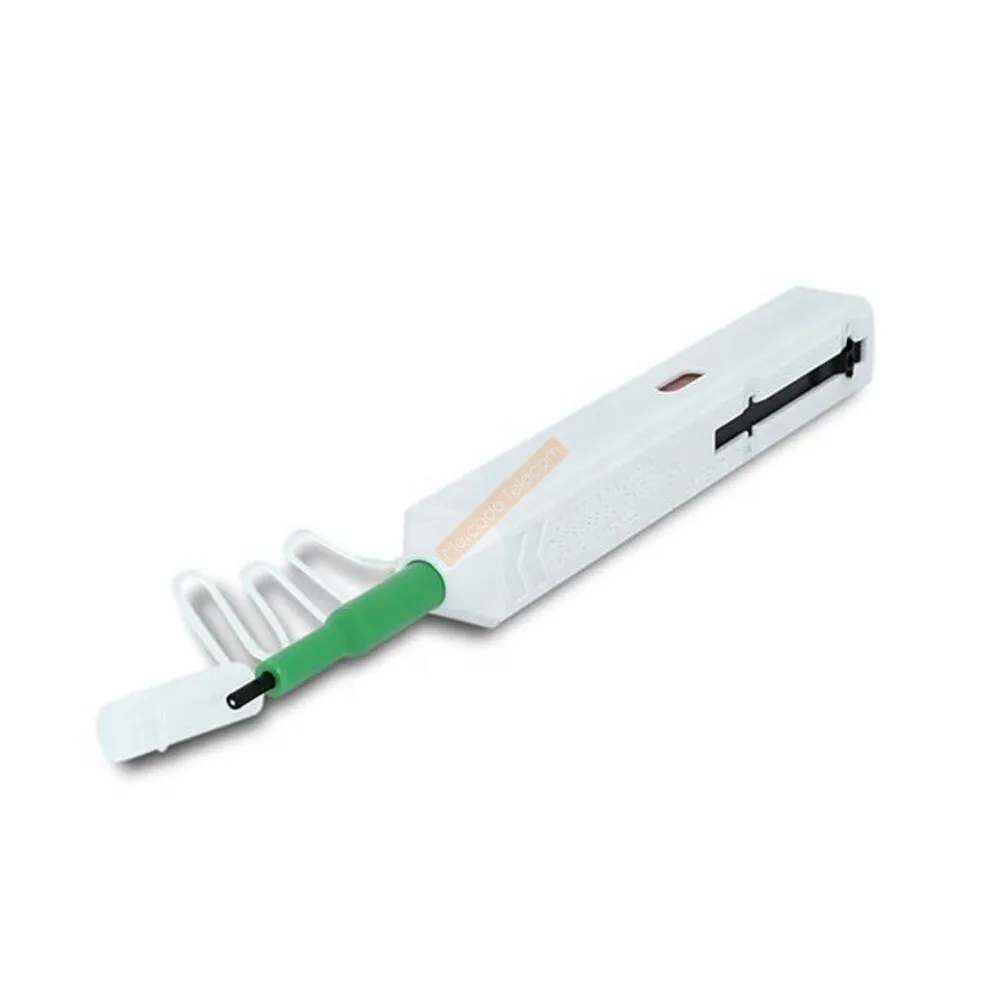

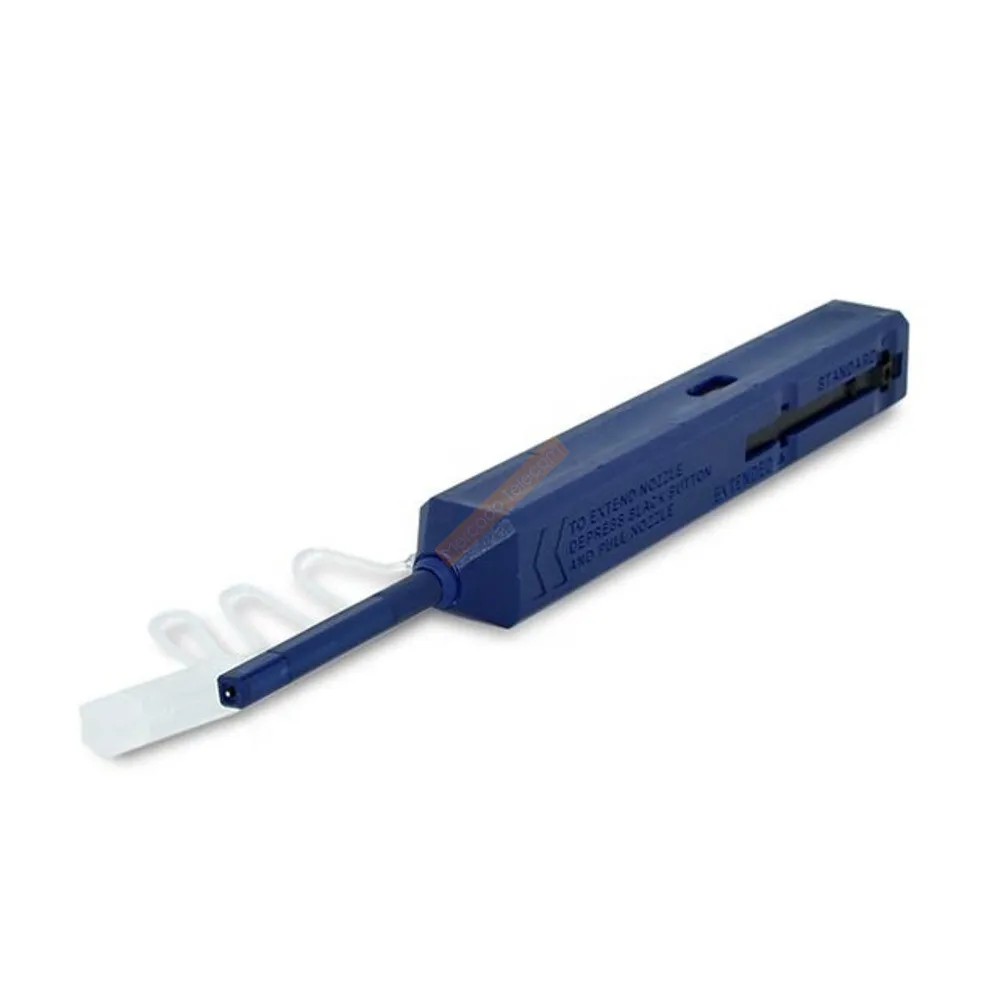

FVM-100 Inspection Fiber Video Probe Microscope Fiber Optic End Face Inspection Detector Display Optical Cleaning Tool Clean pen
Product Attributes
The end face of the fiber optic connector plug has dirt or small particles that are invisible to the naked eye, which may cause the optical signal to be blocked, or cause the reflected wave to damage the optical fiber, or even damage the light source, causing significant damage to the entire communication system. The fiber connector ferrule must be inspected and cleaned before the fiber optic connector is connected. Inspection of the fiber end face is the key to reducing maintenance costs, improving troubleshooting efficiency, and ensuring transmission quality. This product comes standard with a 3.5-inch display, and a 5-inch and 9-inch display is optional. Please purchase it according to your needs. The default 3.5-inch display. Please inform the shopkeeper if you have special needs.
The main function:
Quick and easy to check
Can be directly inspected, or can be inserted into the flange to check the fiber end face on the 2.5mm or 1.25mm ferrule.
Fiber end face inspection is widely used
Such as DWDM, SDH, SONET equipment and various fiber transmission racks, optical switches, optical distribution boxes, etc.
gain
A 3.5-inch, 220,000-pixel TFT high-definition LCD display magnifies the image by 250 times, making it easier to determine the condition of the fiber end face.
External computer can record test results
Connected to the computer via a USB adapter cable, the test picture can be stored in the computer
Technical Parameters:
Specific indicatorsMagnification 300X (5-inch display screen) 250X (3.5-inch display screen)
Resolution 0.5μm
Display screen 3.5” TFT-LCD, 960 x 240 pixels
Output PAL/NTSC
Support Fiber Test Adapter Type 2.5mm PC Adapter
Test: PC connector for FC/SC/ST/E2000 fiber patch cord
1.25mm PC adapter
Test: PC connector for LC/MU fiber patch cord
2.5mm APC Adapter
Test: APC connector for FC/SC/ST/E2000 fiber patch cord
1.25mm APC Adapter
Test: APC connector for LC/MU fiber patch cord
FC/SC/ST/E2000
Test: Fiber end face inside FC/SC/ST/E2000 adapter
Adapter LC/PC Adapter
Test: Fiber end face inside LC/PC adapter SC/APC
Test: Fiber end face inside SC/APC adapter FC/APC
Test: Fiber end face inside FC/APC adapter LC/APC
Test: Fiber end face inside LC/APC adapter
Other parts
Battery / Power 3.7V, 4500mA rechargeable lithium battery / 5V / 1A lithium battery charger
Weight / volume 1.5kg
Working / storage temperature -20 ° C - +50 ° C, -30 ° C - + 60 ° C,
Purchase configuration list
Model Function Description: FVM-100

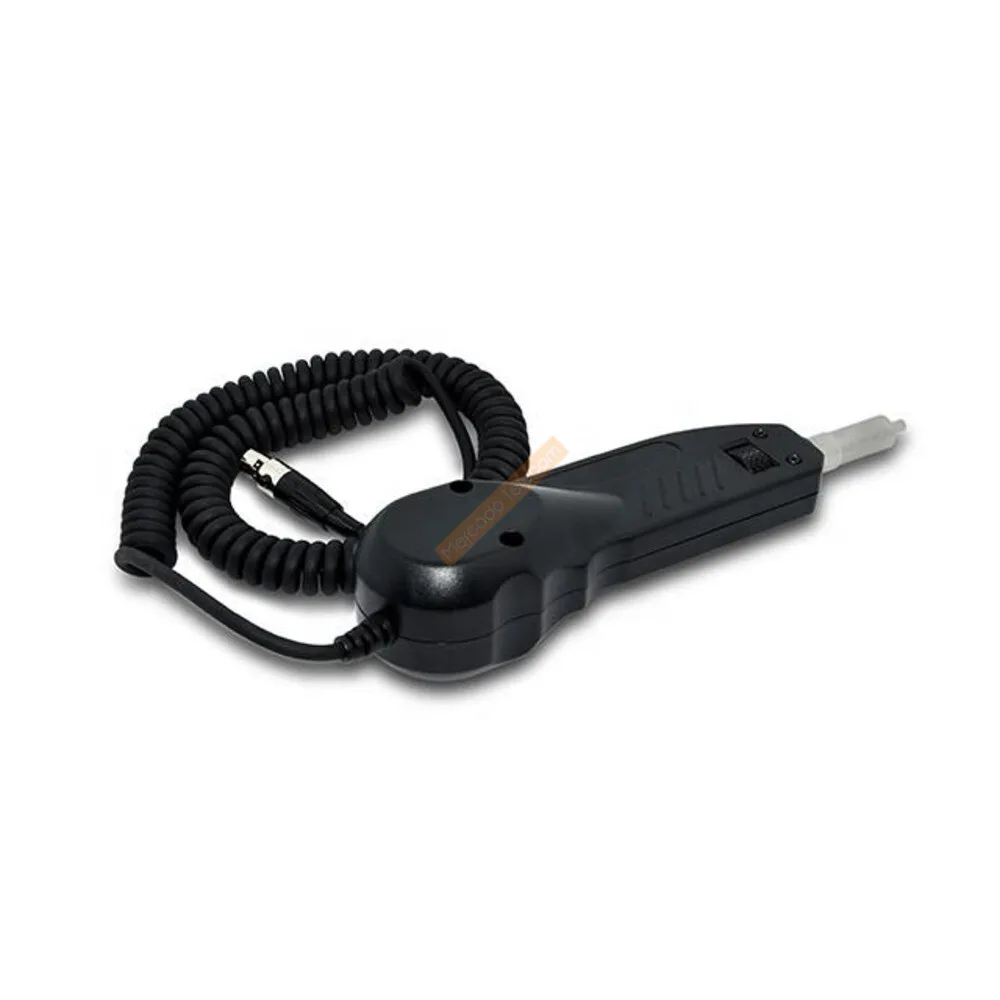

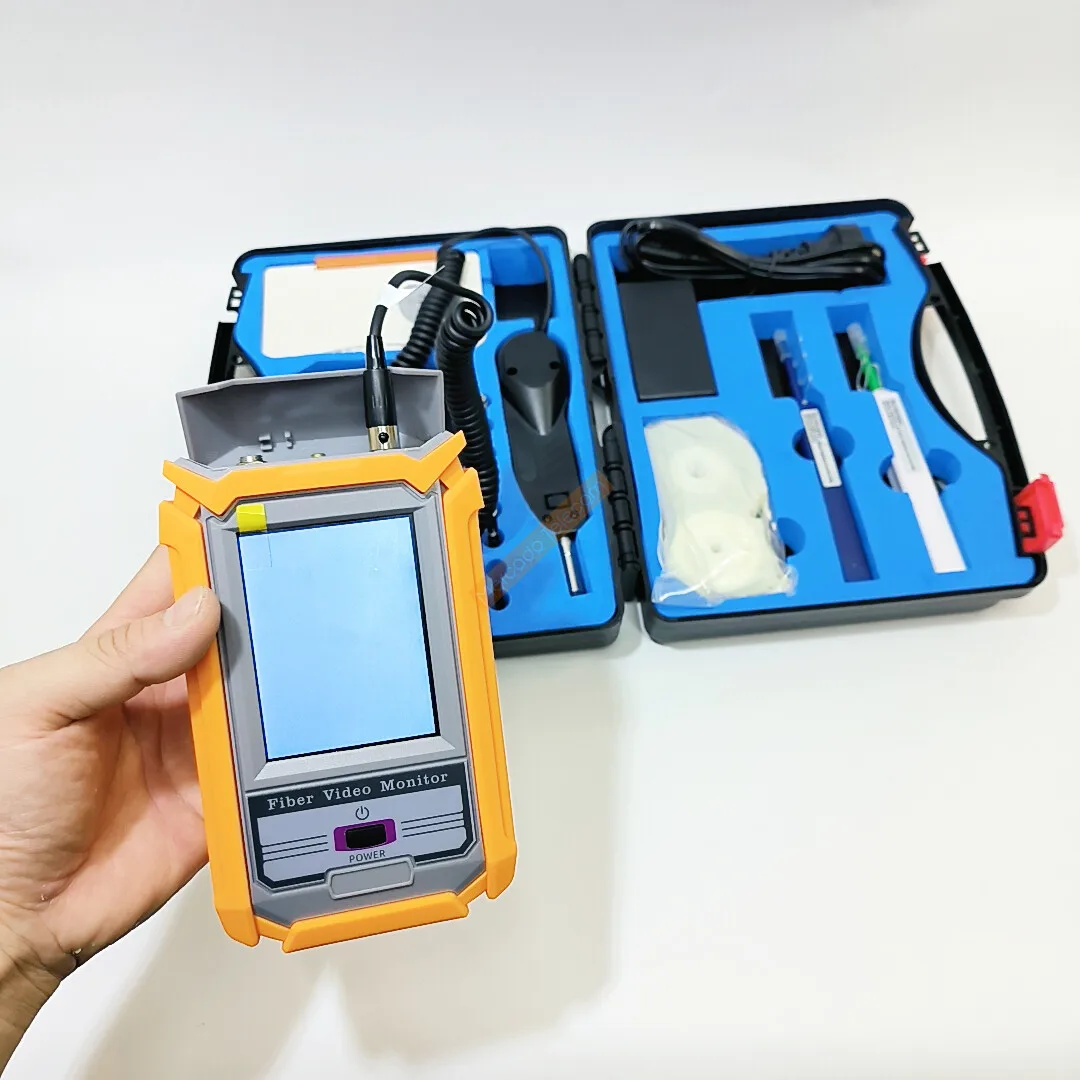

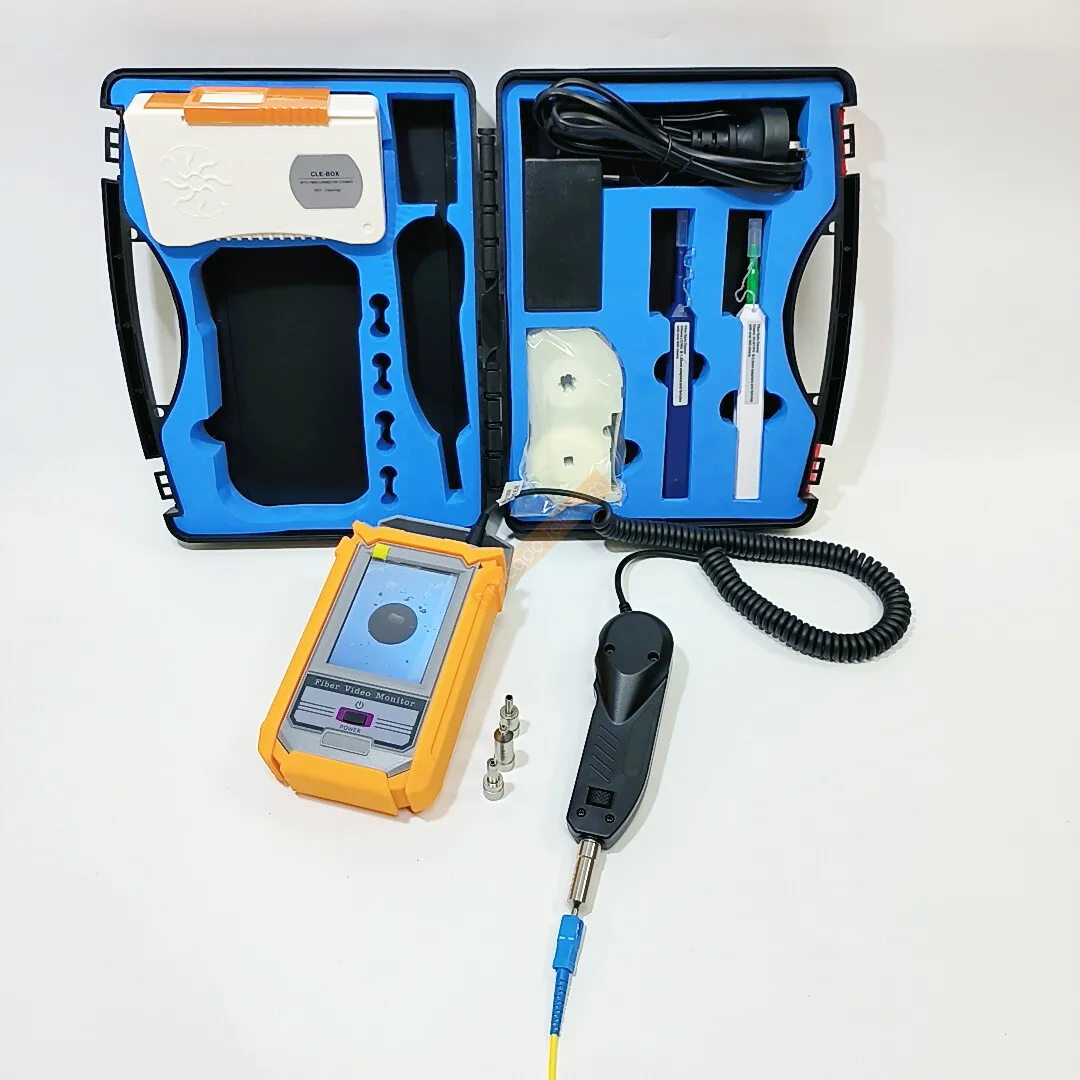

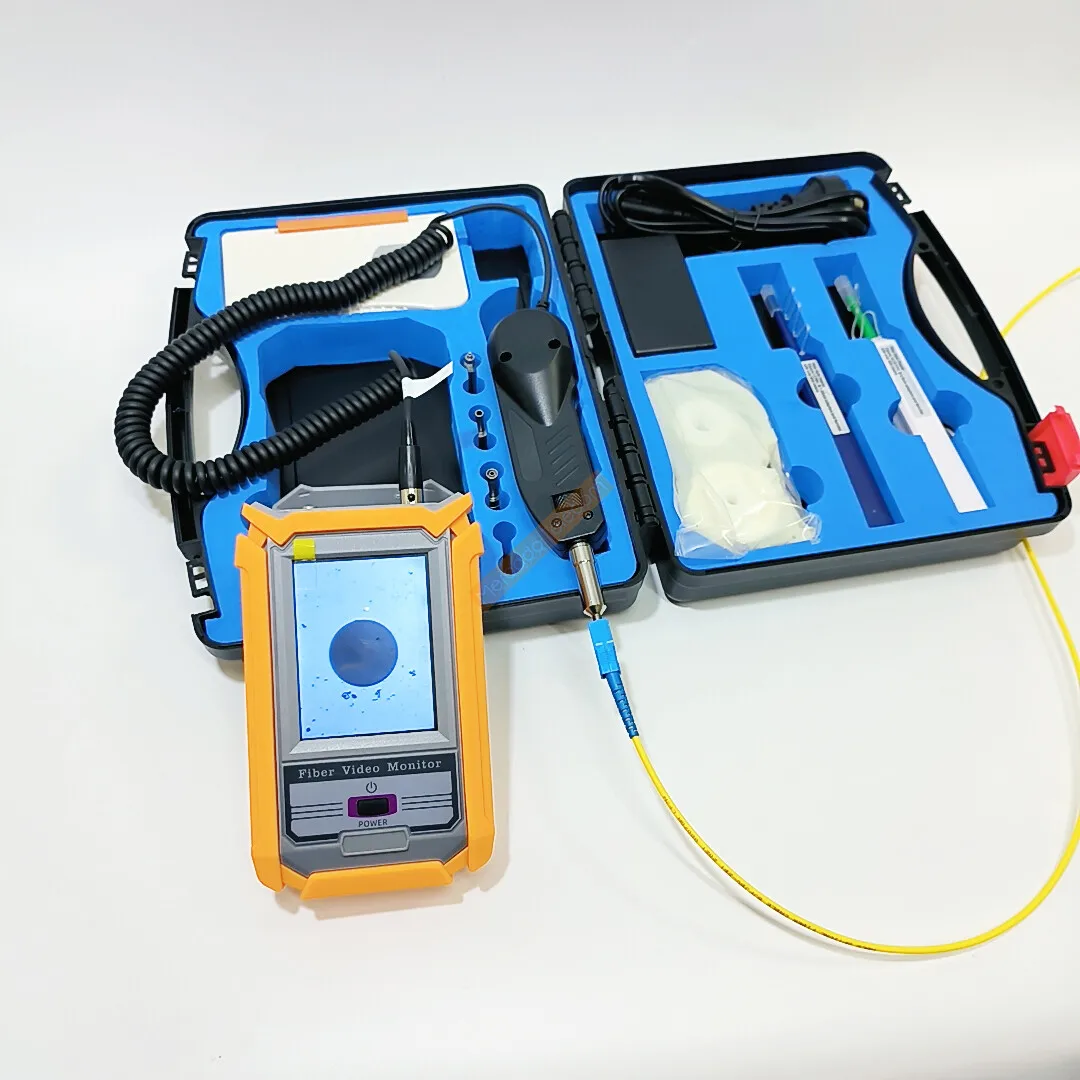

Standard configuration: 1 test handle, 1 display host, 1 2.5mm PC adapter, 1 1.25mm PC adapter, FC/SC/ST/E20001, 1 LC/PC adapter
Other options list Adapter options:
One 2.5mm APC adapter, one 1.25mm APC adapter, one SC/APC adapter, one FC/APC adapter, one LC/APC adapter, and one AV/USB converter.
Attachment configuration
Charger, manual, carrying case, lithium battery, factory certificate
