Features:

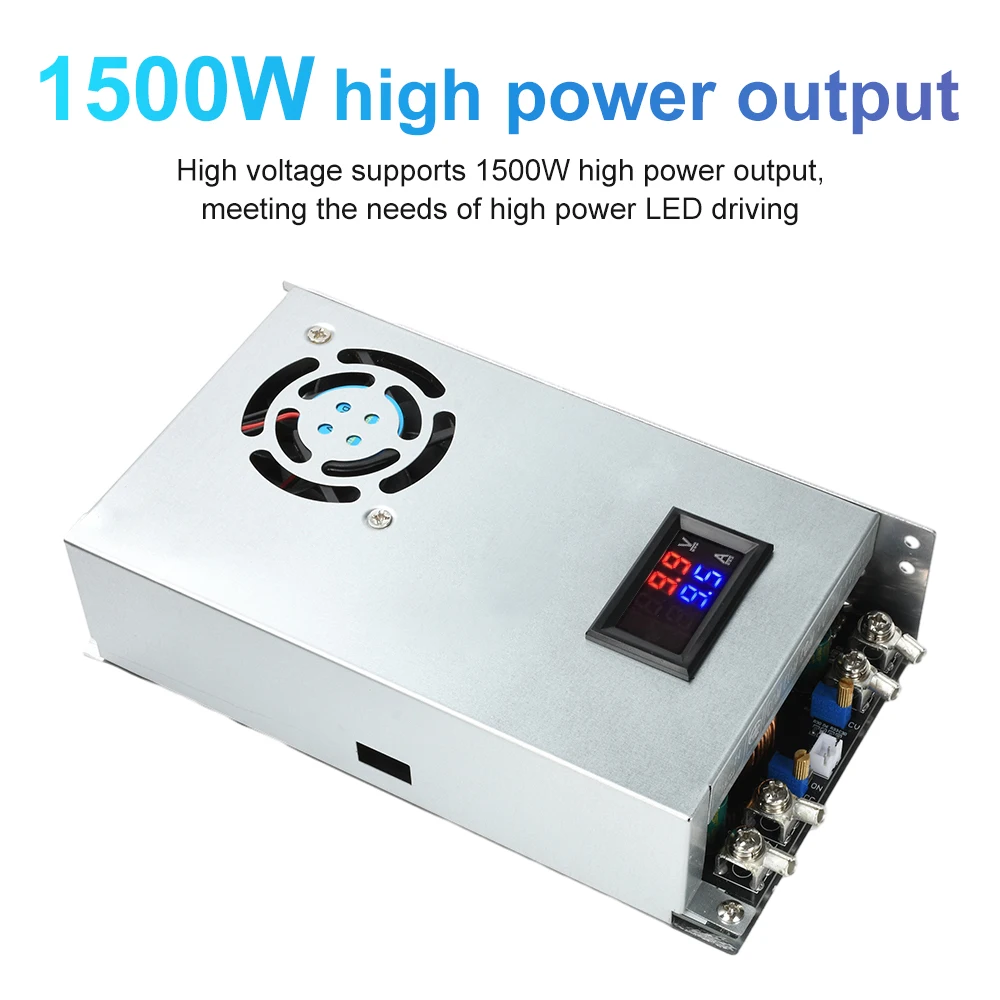

1. High-voltage support for 1500W high-power output, meeting the demands of high-power LED drivers

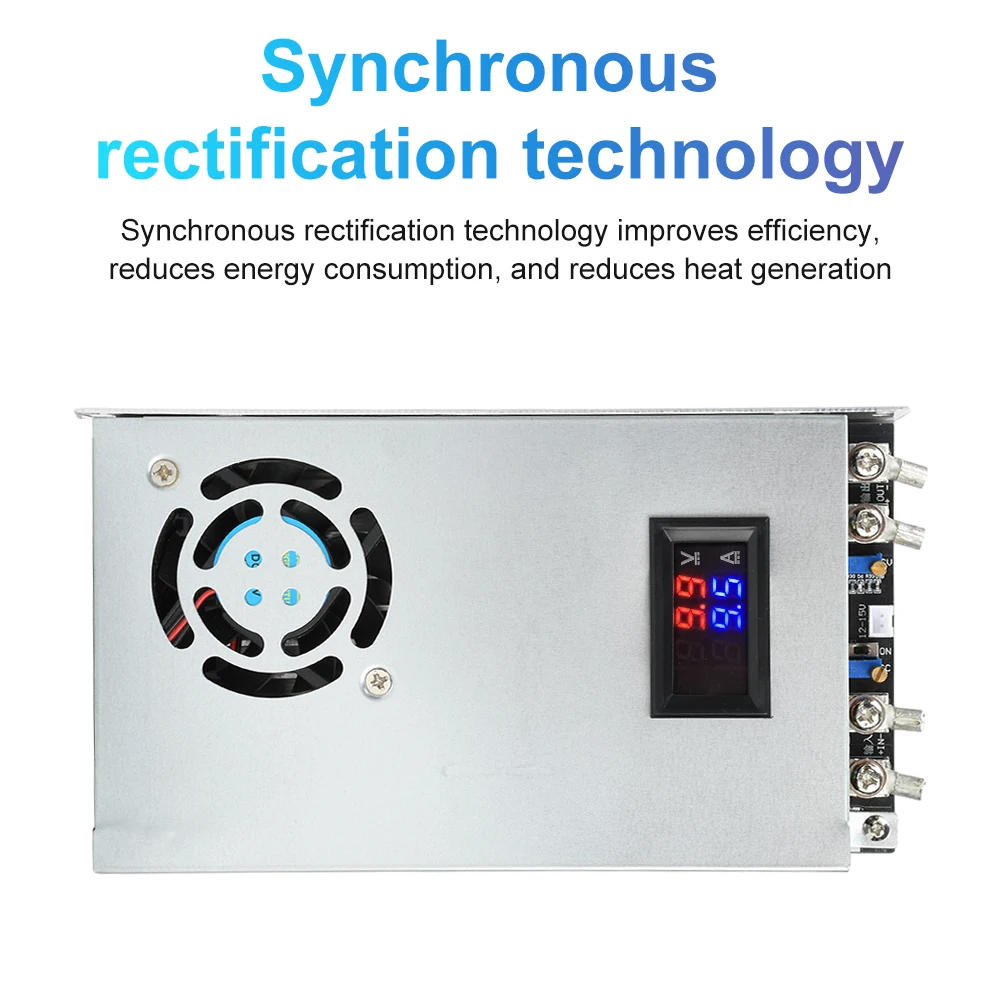

2. Synchronous rectification technology enhances efficiency, reduces energy consumption, and minimizes heat generation
3. Multiple voltage options available, enabling broader application ranges
4. Adjustable power design for flexible adaptation to different load requirements

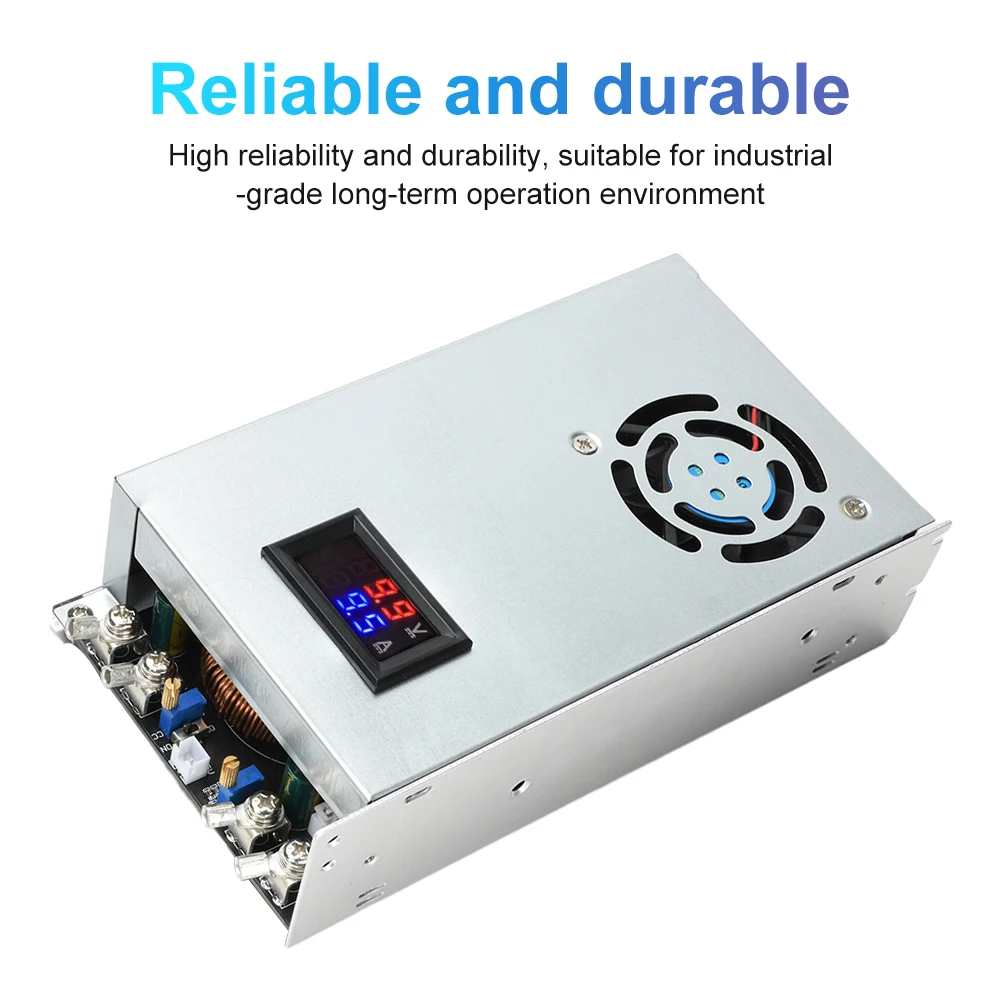

5. High reliability and durability, suitable for industrial-grade long-term operation environments
Input voltage range: Model A 15-90VDC, Model B 15-140VDC, Model C 15-140VDC
Output voltage range: Model A 2.5-72 VDC, Model B 2.5-85 VDC, Model C 2.5-112 VDC
Minimum input-output voltage difference: IN*0.2
Maximum output current: Model A 1-50A, Model B 1-35A, Model C 1-35A
Rated output current: Model A 40A, Model B 30A, Model C 30A
Maximum peak output power: 1500W
Rated power: 1200W
Typical efficiency: 95% (90%-97%)
Operating frequency: 70kHz
Input reverse polarity protection: None (reverse connection strictly prohibited)
Output backfeed protection: None

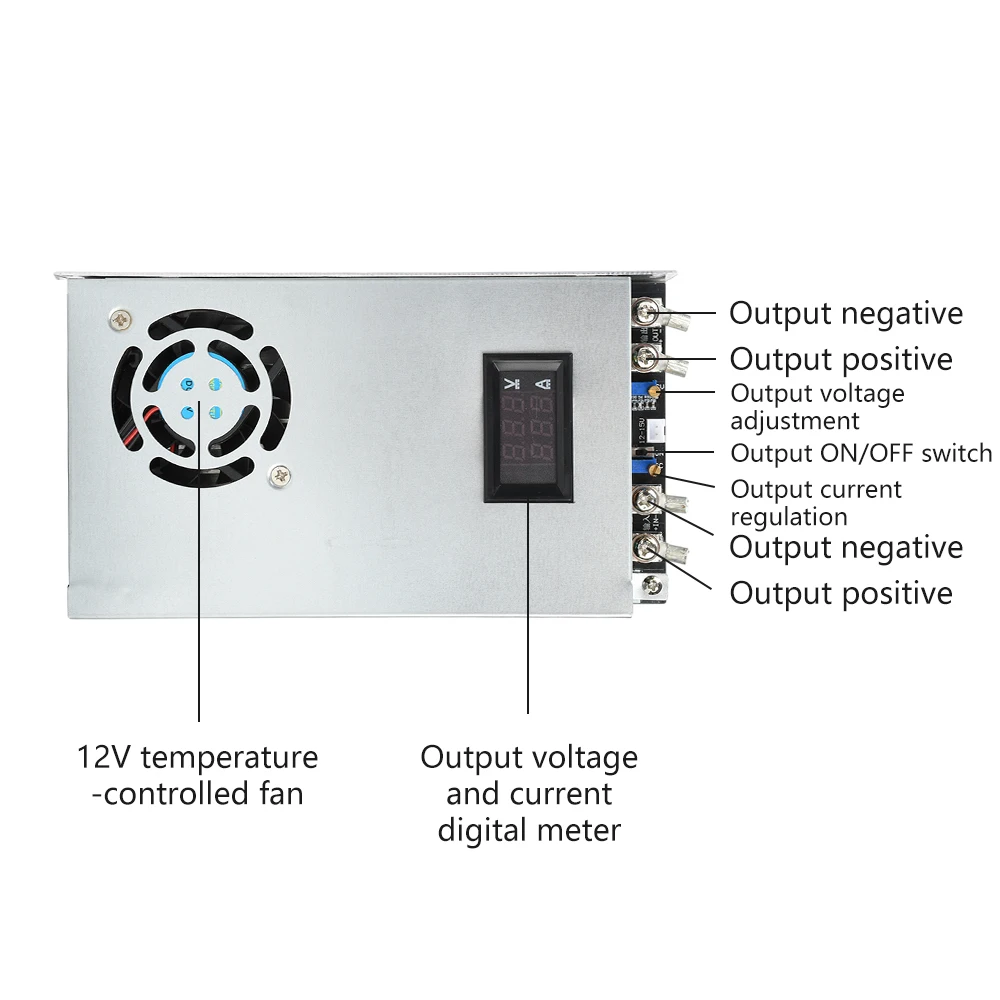

Output constant voltage indicator light: Yes

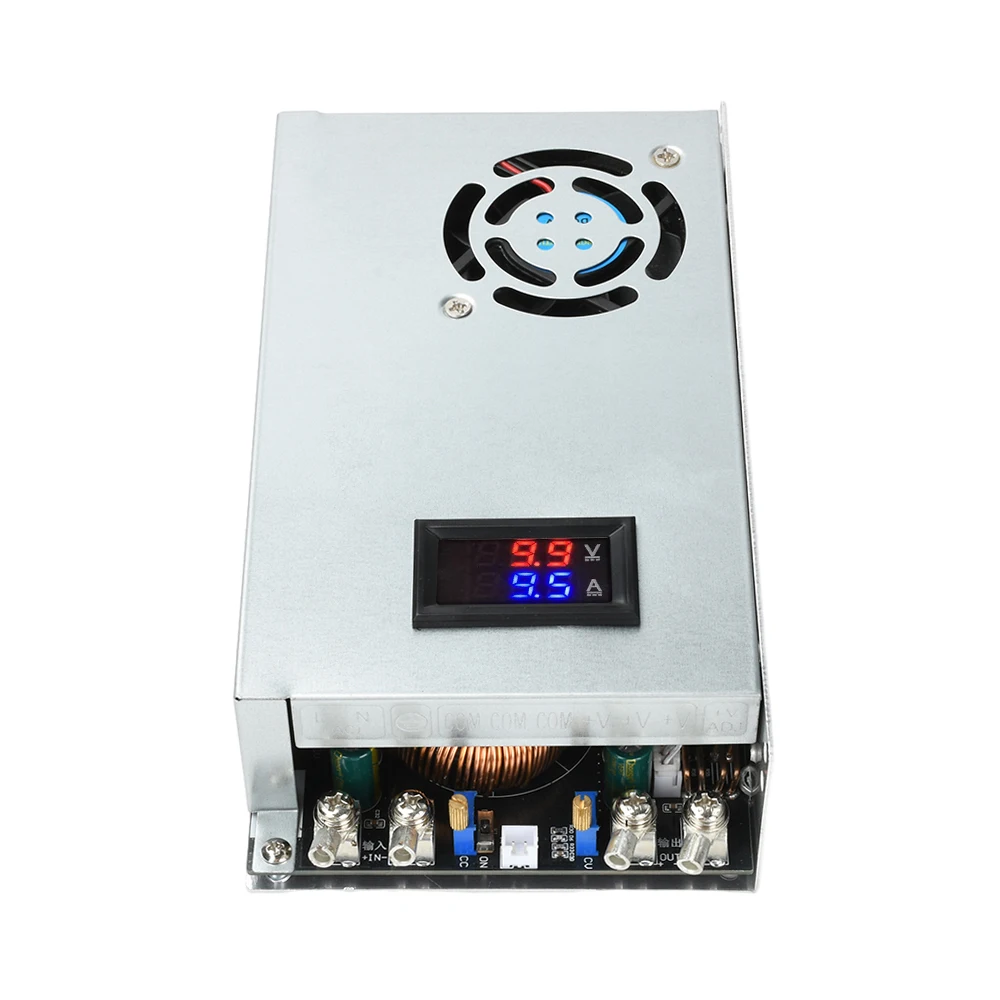

Output voltage and current digital display: Yes
Operating temperature: 0-65°C
Application scenarios: Converts high voltage to low voltage for constant voltage or constant current power supply to devices. Can drive high-power LED lights and charge batteries.
1 This power supply is a step-down power supply and can only step down voltage, not step up.
2 Do not reverse the input polarity.

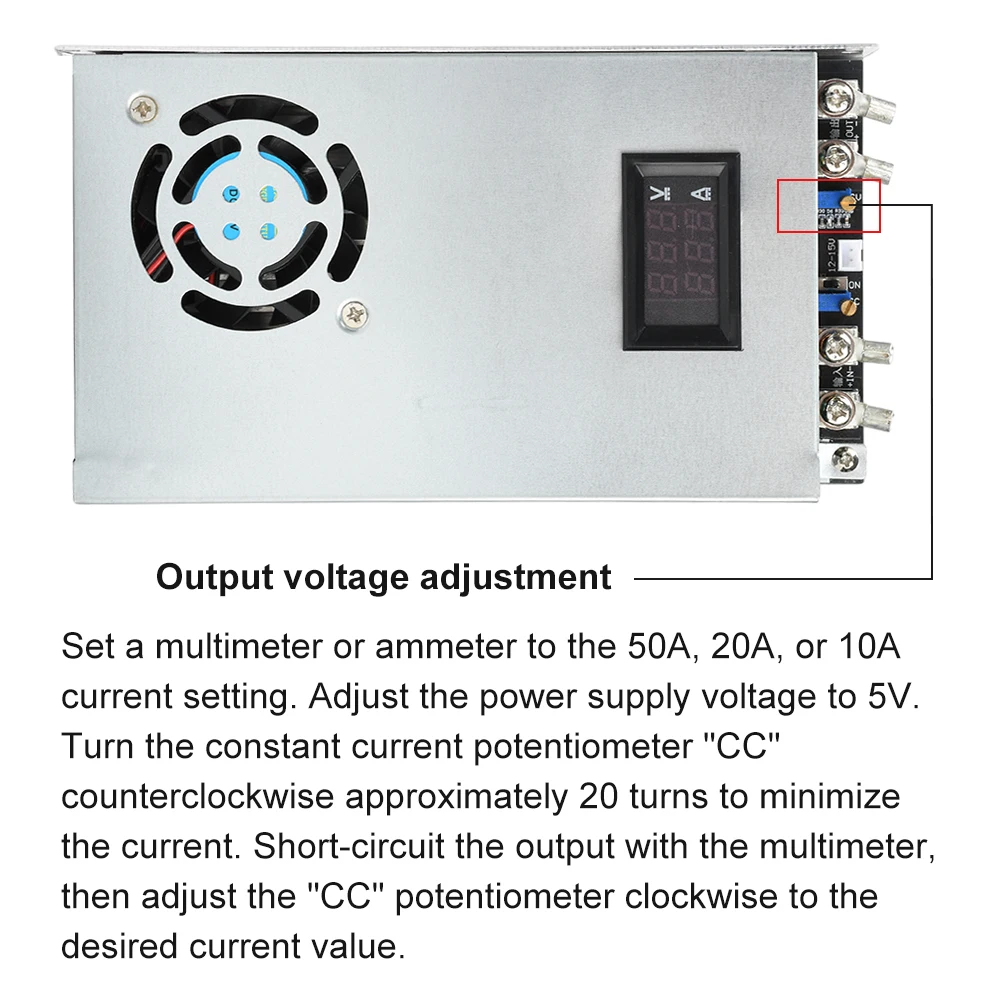

3 This power supply is a constant voltage and constant current power supply with adjustable output voltage and current, suitable for constant current battery charging and LED constant current driving.
4 When connecting the output to a motor or battery charger, please series-connect a Schottky diode with a current rating of 50A or higher and a voltage rating of 100V on the output positive terminal to prevent reverse current flow.
5 Do not operate at maximum power or current for extended periods. Leave at least 20% margin for continuous operation. The power supply has maximum power and current limits; do not exceed the maximum output power or current during use.
6 When selecting the input power supply, the input power must be at least 1.5 times greater than the output power.
7 Do not parallel connect to increase power.

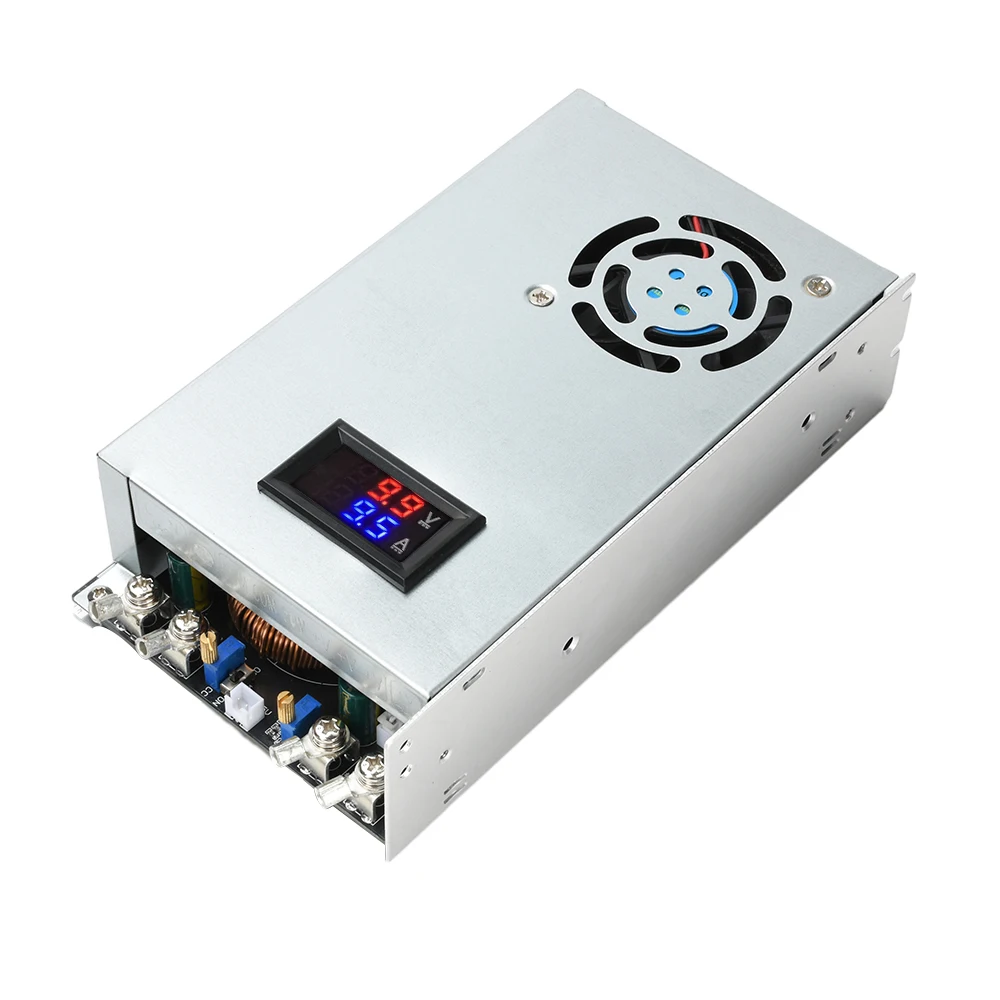

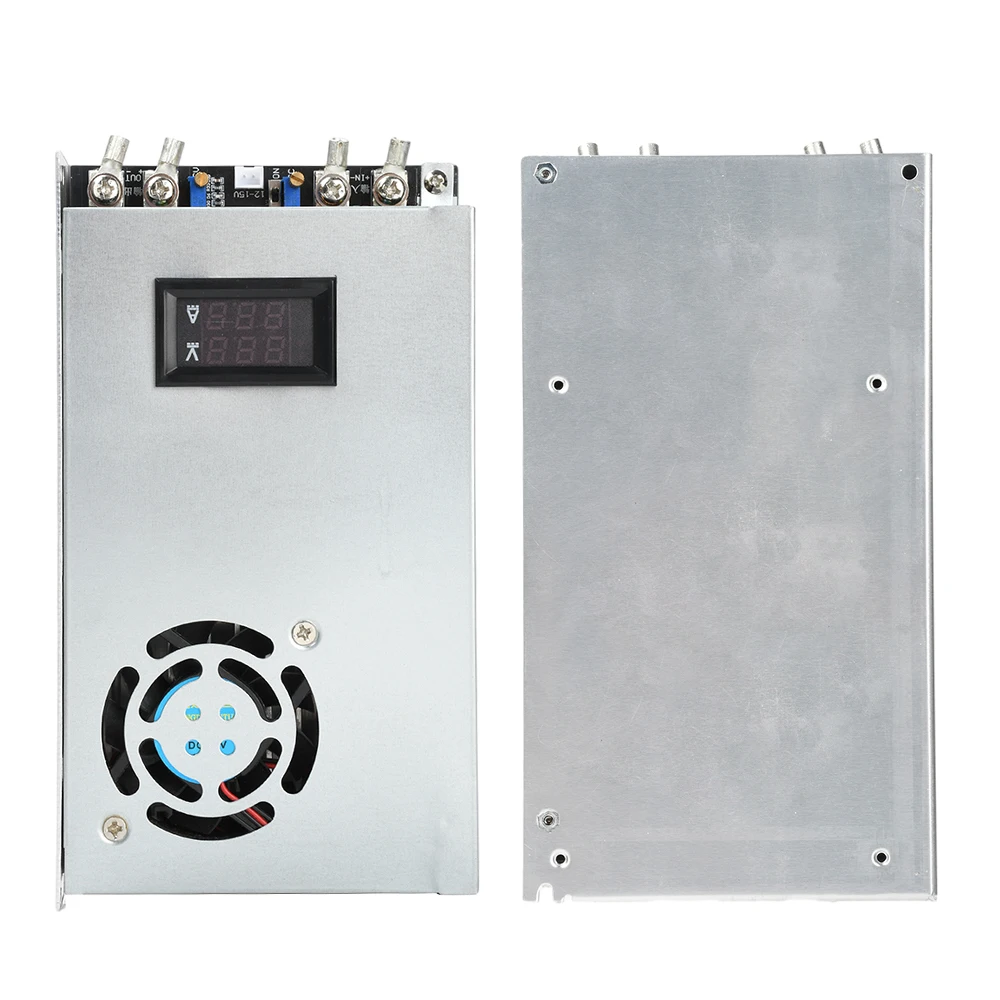

1 x 1500W Voltage and Current Adjustable Switching Power Supply with Dual Display Screen Constant Voltage and Current Power Module
