Fuente de alimentación conmutada de 2000W CA a CC 0-12V 24V 36V 48V 60V 70V 80V 90V 110V 220V 300V 400V 600V corriente de voltaje ajustable

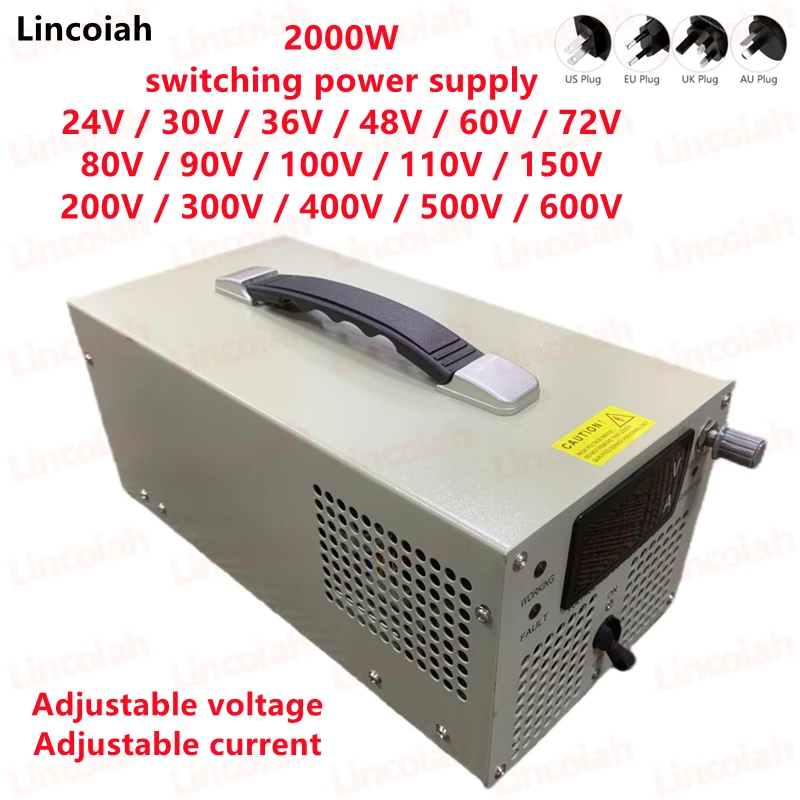

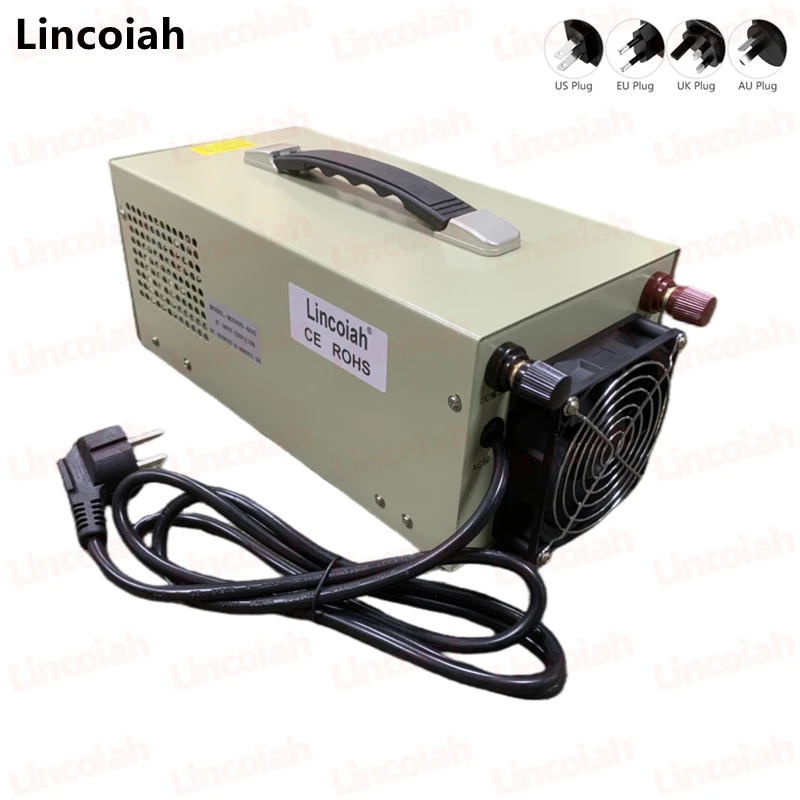

2000W Switching Power Supply 24V 36V 48V 60V 150V 300V 400V 600V Adjustable Current Voltage For Plating Electrolysis

The current and voltage all can adjusted.

Applications:

1. PCB board manufacturing industry

2. LED products, motors and dc fans test,

3. Electrofacing, electrolyzation, electronic components ageing

4. Laboratory , Electronic equipment , Automatic Test Equipment

5. All other occasions need to use DC Power Supply

features:

1. single phase, single output dc power supply

2. constant voltage and constant current operation (C.C and C.V. automatic conversion)

3. both current and voltage can be adjusted from 0 to rated value

4. 2LED digital display

5. Built-in EMI filter.(have anti-interference circuit)

6. intelligent temperature control fan to help power supply cooling fast

specifications:

Model No: S-2000-XXX

Input voltage: single-phase 220Vac±10% 50Hz or 110Vac±10% 60Hz when you make order, please choose it.

Brand：Lincoiah

Working conditions: -10℃ -40℃ relative humidity : 90%

Storage conditions: -20℃-80℃ relative humidity : 80%

Efficiency 85%

Efficiency factor 0.85

Load adjustment rate: 1%

Voltage adjustment rate: 0.1%

Output voltage adjustment rate: 0.1%

Ripple voltage: 0.5%

Protection :A、input overload turn off protection

B、Output over-voltage protection

C、output over-current protection

D、Output short circuit protection

E、Output power protection

F、Overheating protection for the whole machine

Overheating protection rate: 80~850C

Insulation resistance ≥20M

Input pressure for casing ≥AC1500V

Input pressure for output ≥AC1500V

Output pressure for casing ≥AC500V

Average time for No-fault ≥50000H

environment condition

Working environment:(-20~50) °C;

Storage environment:(-40~70)°C;

relative humidity: 90%(40±20C);

atmospheric pressure:(70——106)KPA;

Net Weight：6KG

Voltage and current both show

Rise up time：full load is 50ms (Typical value)

Keep time：full load is 20ms (Typical value)

Storage environment：-40℃～+85℃,10%～95%RH

Cooling way：fan

Safety standards：as GB4943，UL60950-1,EN60950-1

EMC standards：as GB9254, EN55022 CLASS A

Only indoor use

Overall size：45*22.5*15cm
