Note !It is laser line version.It can not support to scan screen barcodes.

Features:

1.Adopt 630nm Laser technology and intelligent image identification system.

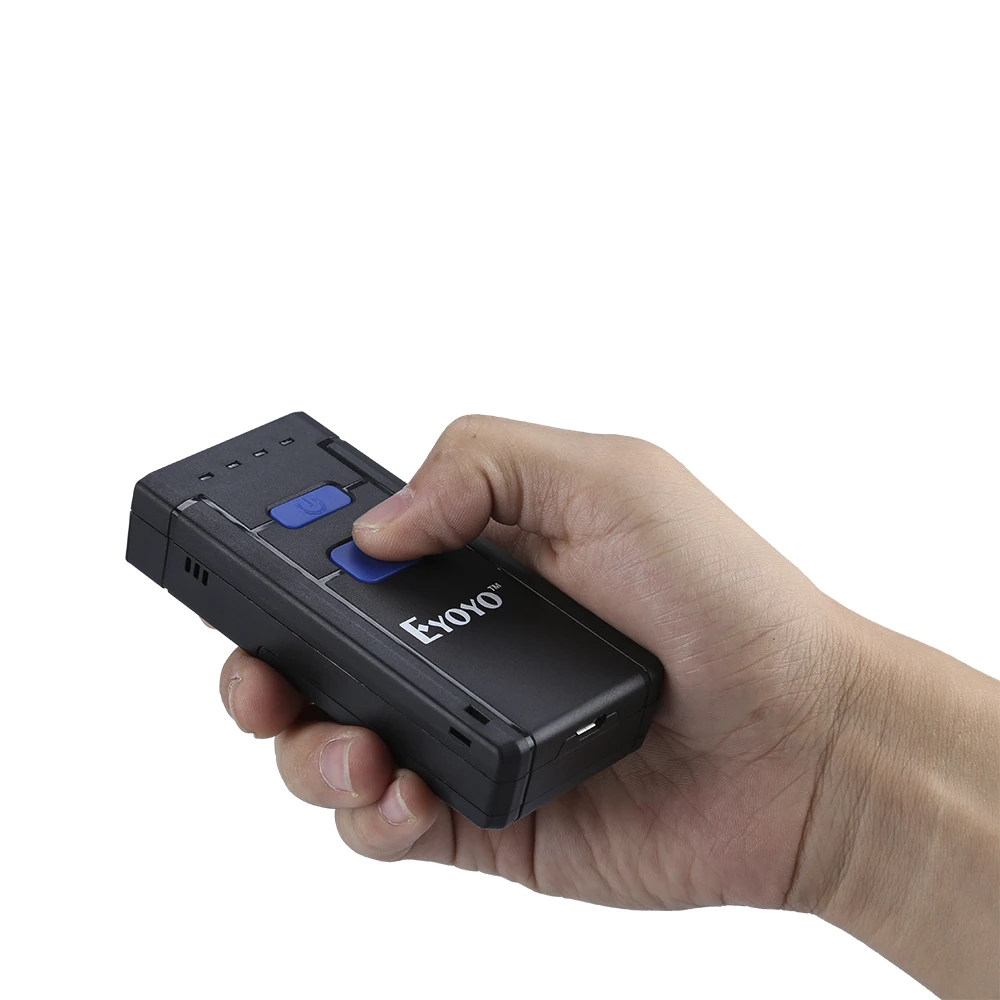

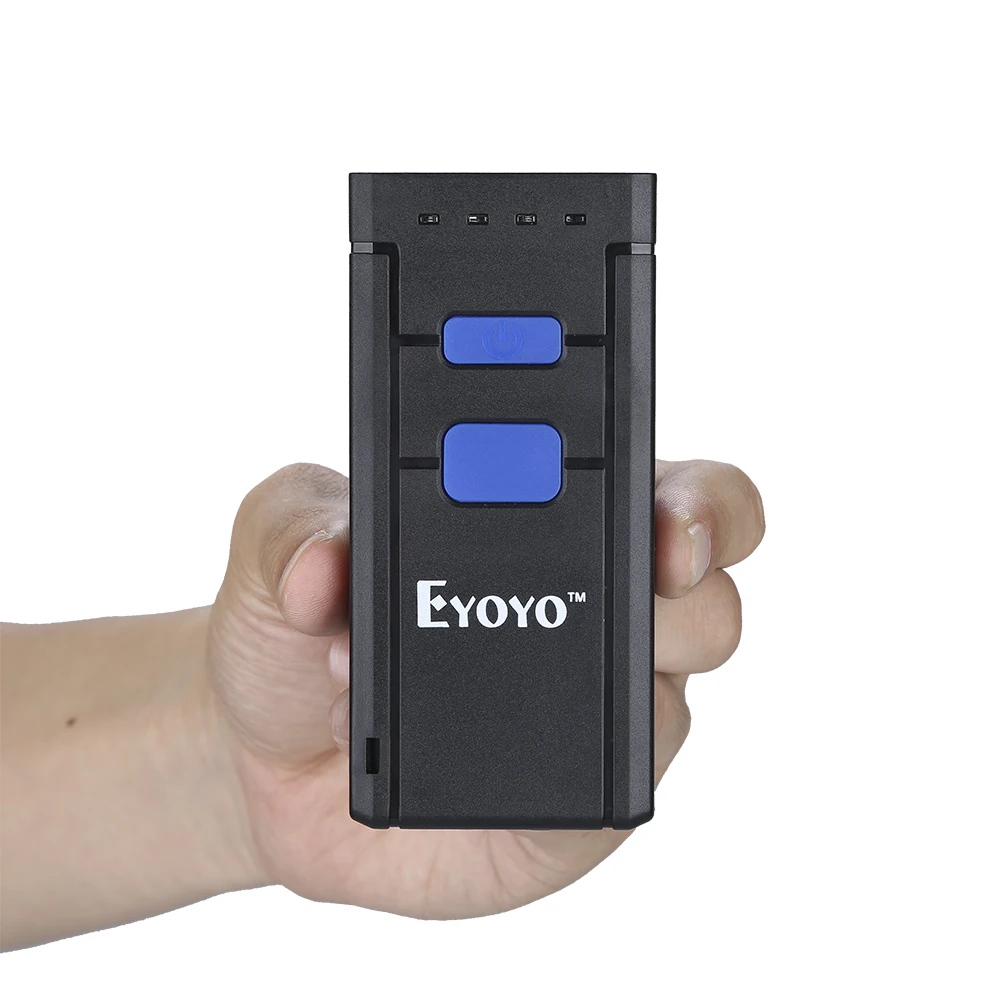

2.Mini Portable Bluetooth Laser 1D Barcode Scanner with rechargeable 1000mAh Li-ion battery.

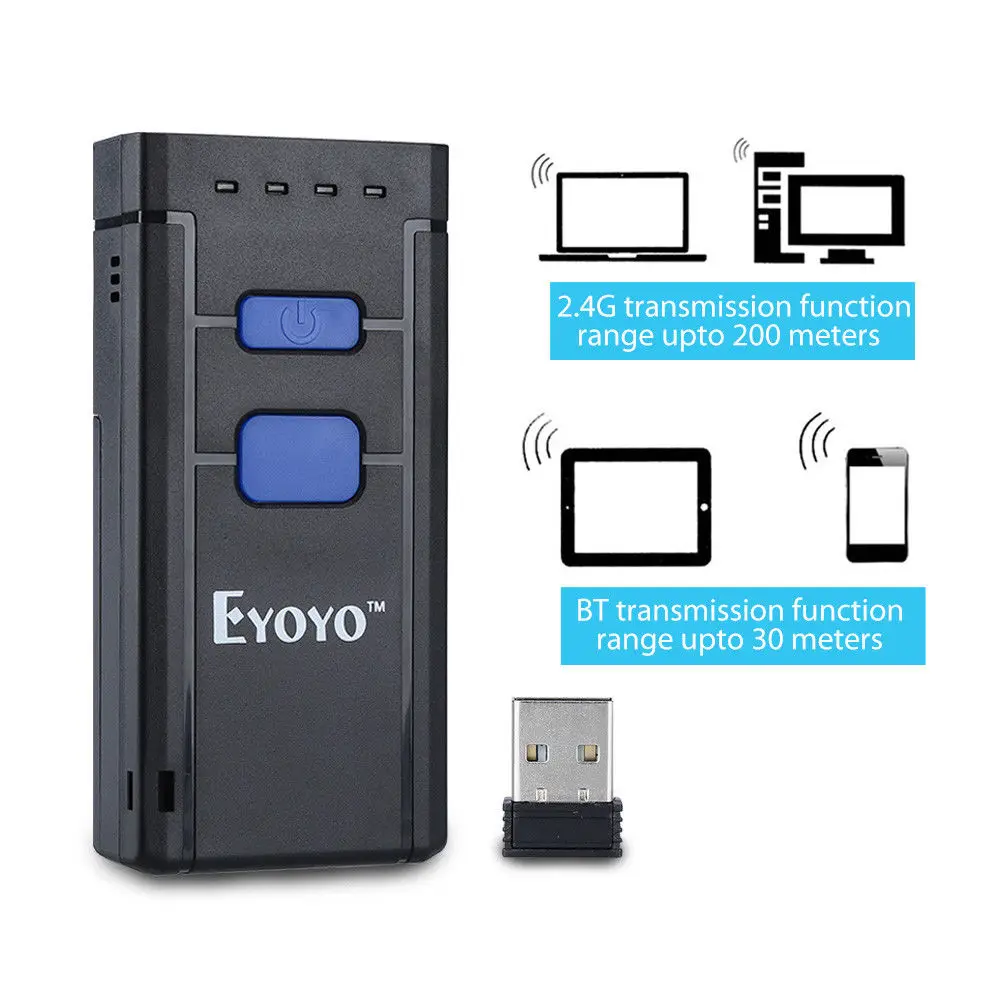

3.Support connection with smart phones, tablets, PC based on windows xp/7.0/8.0/WinCE, Windows Mobile, Android OS, iPhone/iPad etc.

5.Support HID virtual keyboard mode.

Specifications

Dimension

L*W*H:99*46*20mm

Color

Black

Accessories

USB Cable,1000mAh lithium battery, sling,Bluetooth reciever

weight

50g( without battery) 71g( with battery)

Distance

10 meters (visual distance)

Bluetooth

Bluetooth 3.0 Module

Sensor

2500pixels

Light Source

Laser line 630± 20nm

Supported Symbologies

Codabar,Code 11,Code 93,Full ASCII,ASCII,UPC/EAN, Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,ISBN,ISSN

Postal code,Interleaved 2 of 5

Resolution

4mil

Depth of Field

5~30CM

Scan Rate

500 scans/sec

Temperature in operation

0 C- 45 C

Temperature in storage

0 C- 45 C

Humidity in operation:

20 - 85% (non-condensing)

Humidity in storage:

20 - 85% (non-condensing)

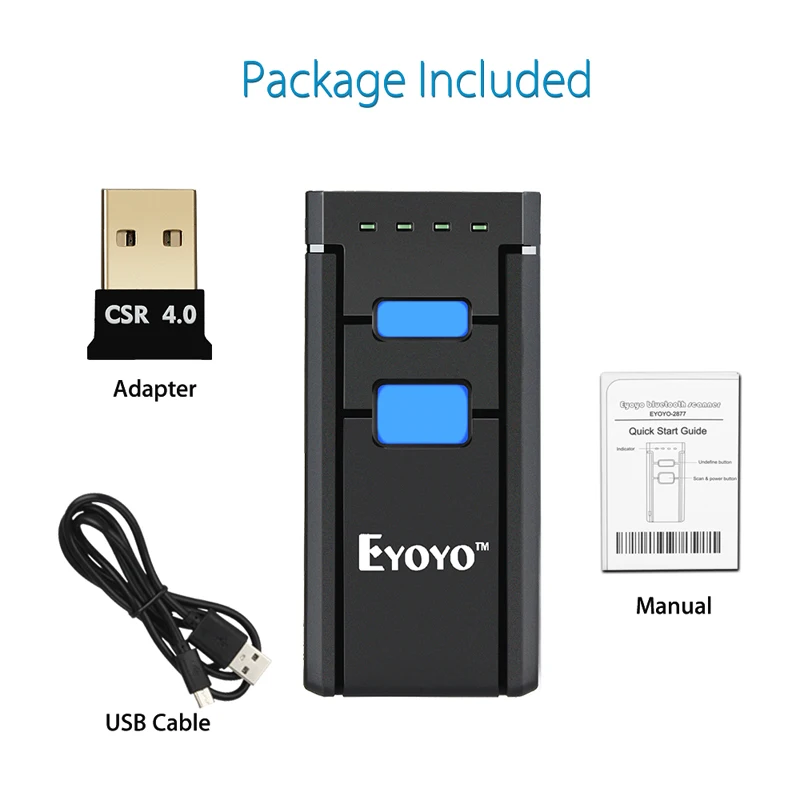

Package list:

Scanner *1 pcs

USB charging cable *1 pcs

Quick start guide *1 pcs

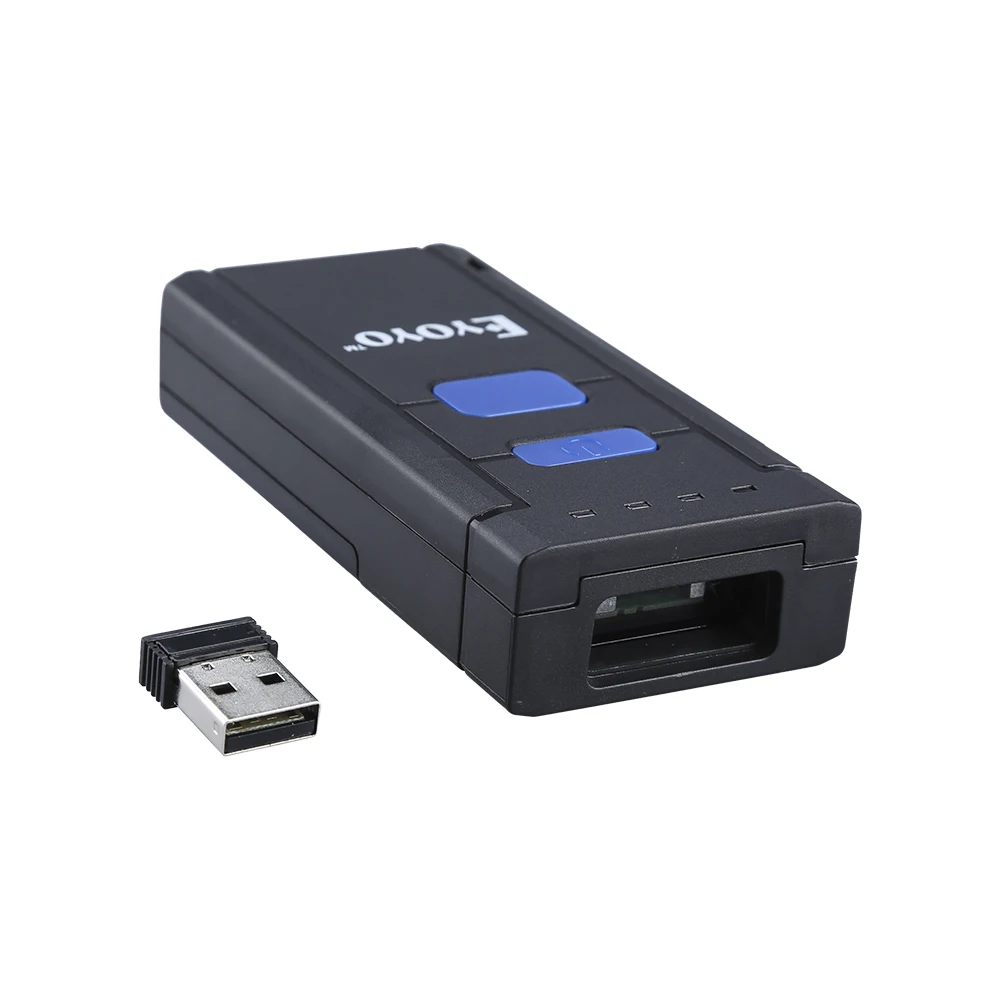

USB dongle *1 pcs

FAQ:

1. It can not connect with Android device ?

If the device is android 3.0 or above version,it can connect directly.

2. It can not recognize some type of barcodes?

Some inactive typebarcodes are disabled as factory default.So you should enable this tyoe via read tge ebable barcode.If you don't know the type,pls contact out technical support.

3. Bracods can't upload to PC or mobile after paired?

A:Please chekc is the pairing successfully?The indicator of scanner should be blue.

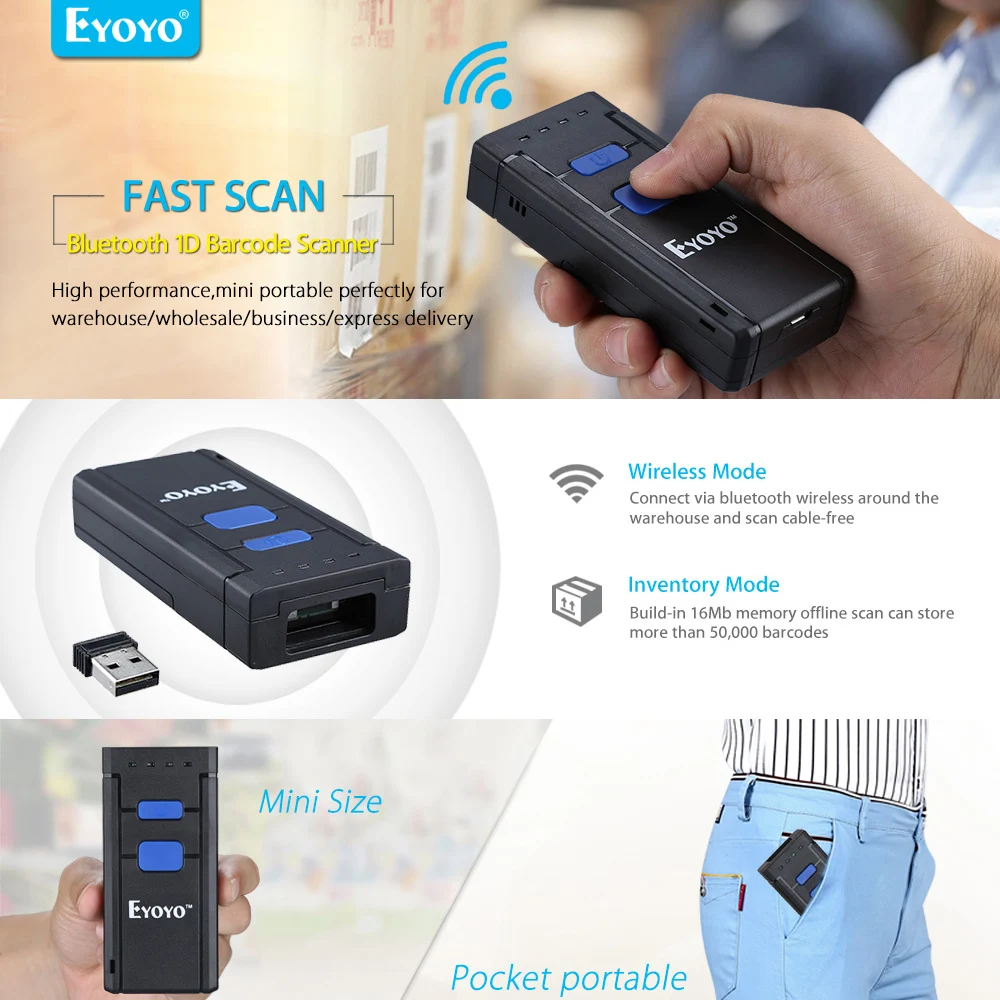

B:Please check if you enable inventory mode(under inventory mode,the barcodes need upload manually or read tge upload barcodefor upload)

4. PC or mobile phone can not search out it?

A:Confirm scanner is power on.

B:The scanner can pair only when blue LED is flashing.

5. Can It connect with mobile or tablet after connecting with PC?

If you want to change device,plesae clear the pairing information on the device first and reset it.The Method is according to front steps.

6. It can not connect autolly after restart the mobile device ?

A. Please make sure that there is no other BT connection with mobile device.

B. Power on scanner,it will connect with the mobile device automatically.

7. Can it auto linefeed during barcode scanning?

The user can set apply enter for suffix of barcode data or not ,please refer to the user manual.
