Features:

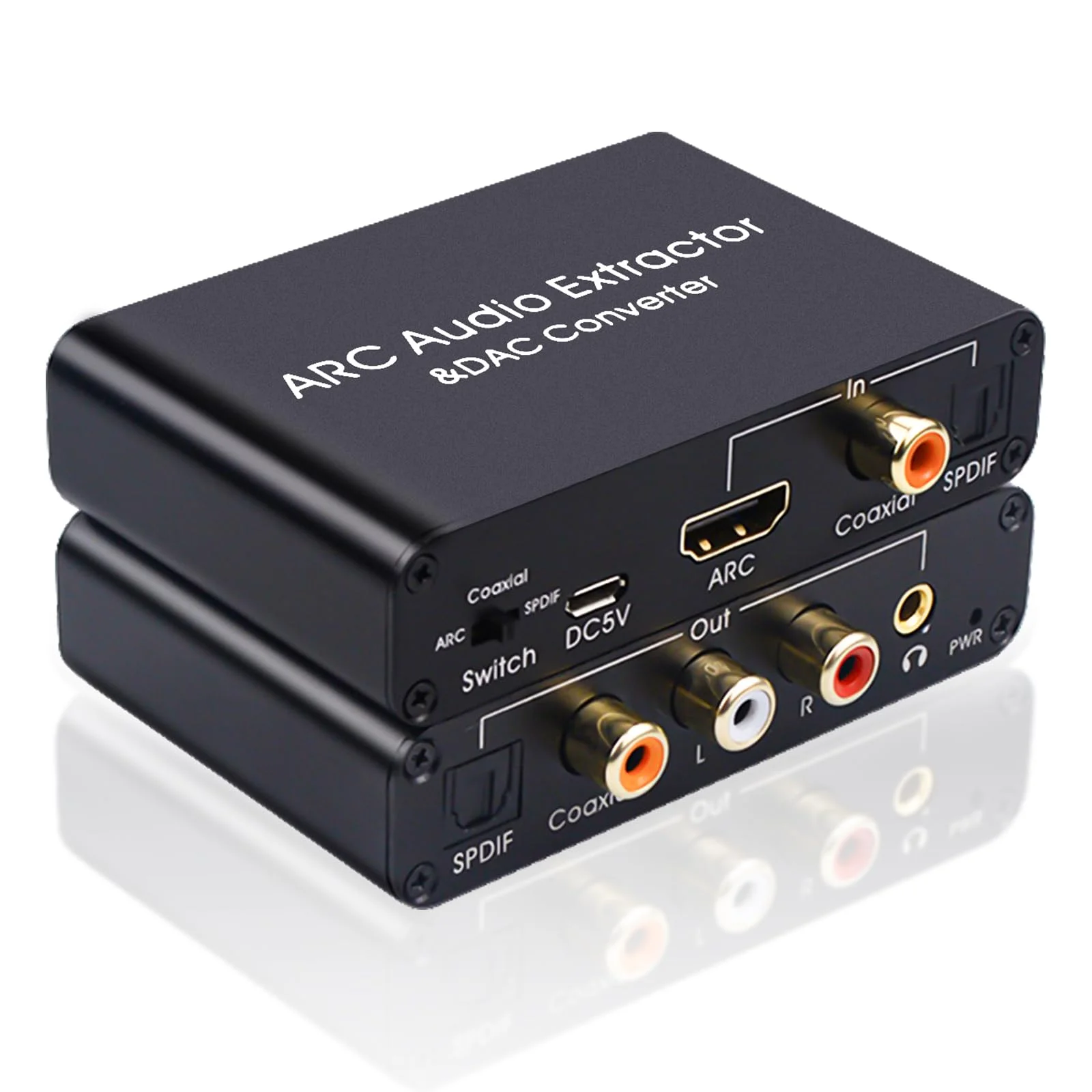

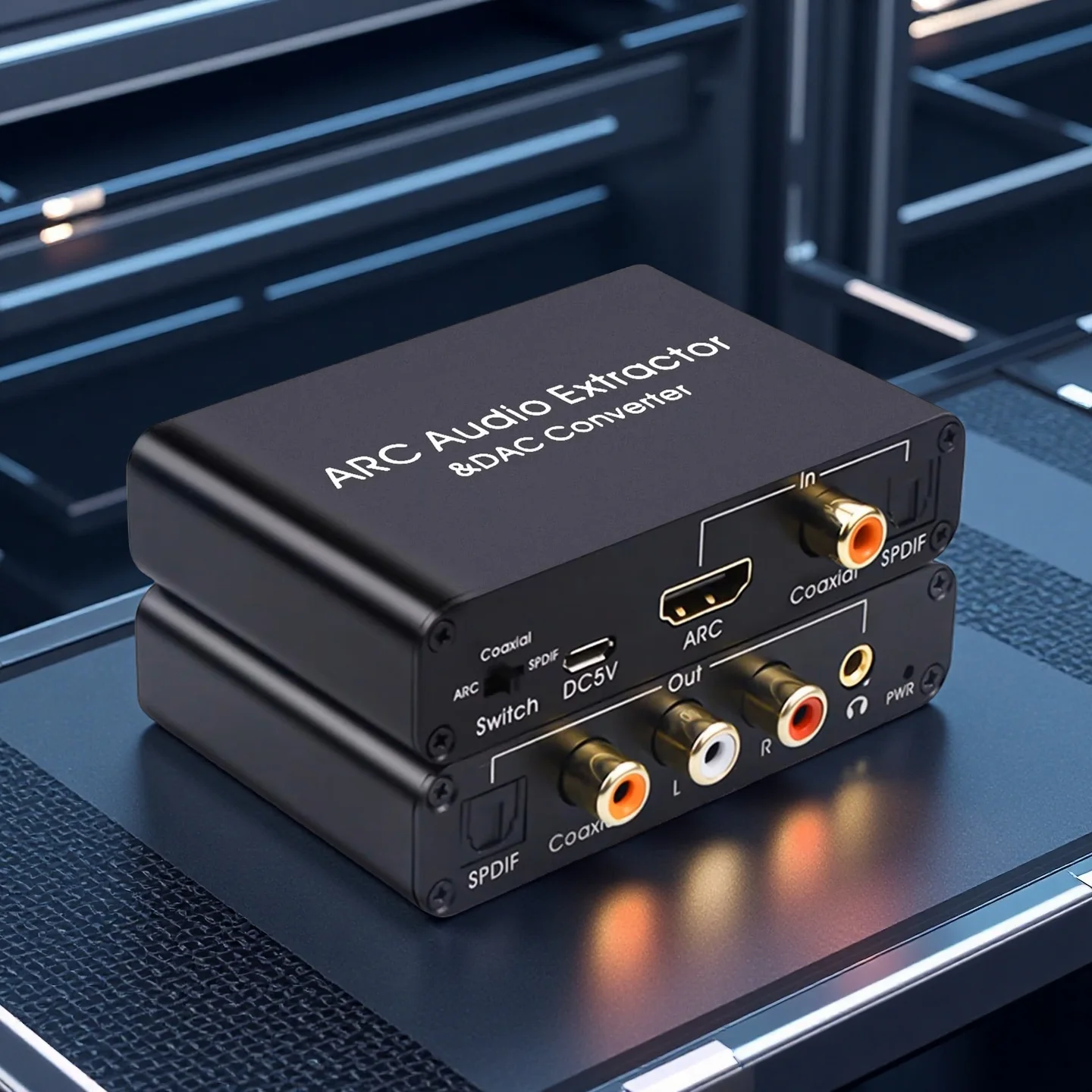

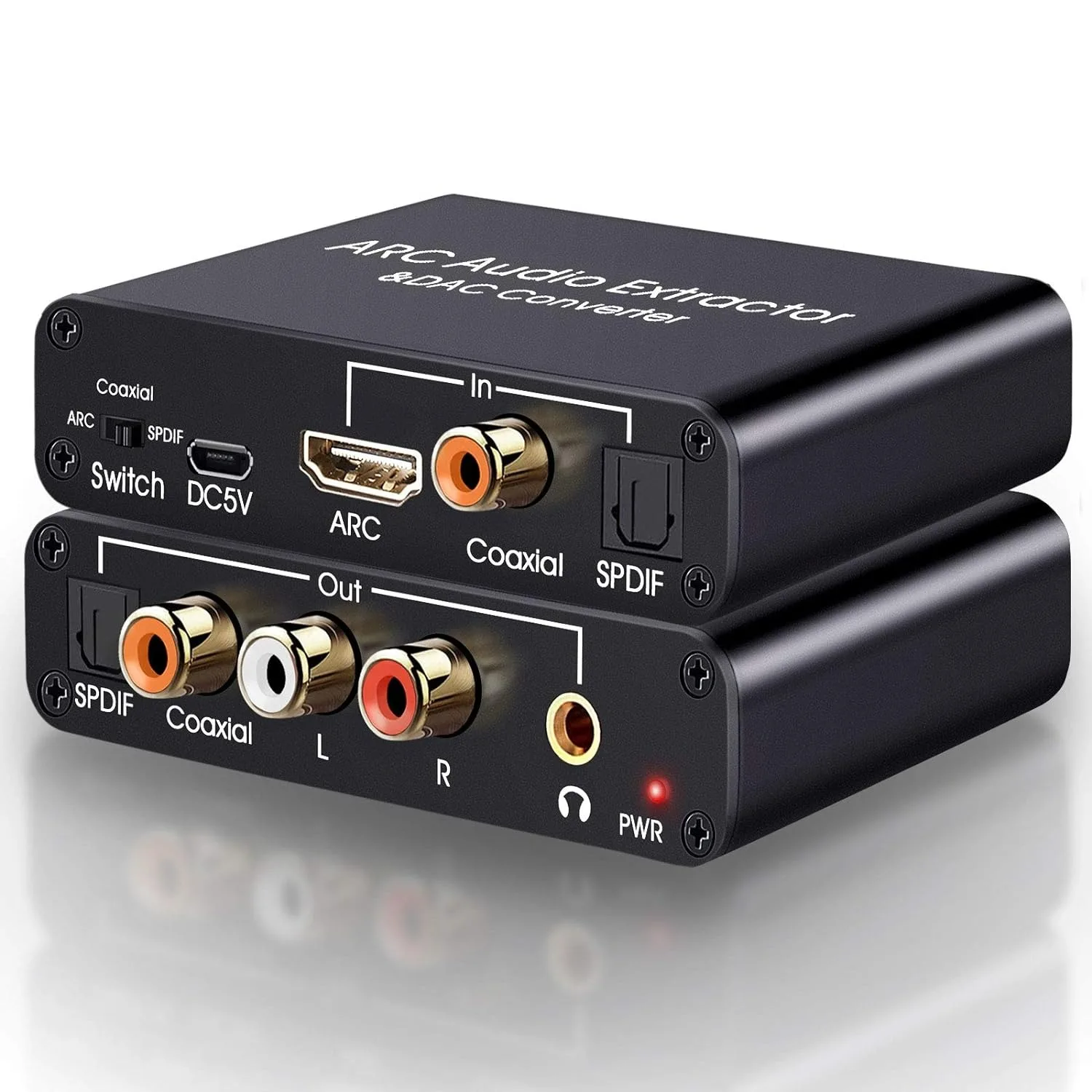

Multifunction DAC Audio Converter Input: Toslink x 1, Coaxial x 1, Output: Toslink Coaxial Stereo R/ L 3.5mm jack output at the same time,Can be used as digital to analog audio converter,hdmi-compatible ARC audio adapter;Digital coaxial to optical Toslink Bi-Directional converter (NOTE:not support reverse use like Analog to Digital function)

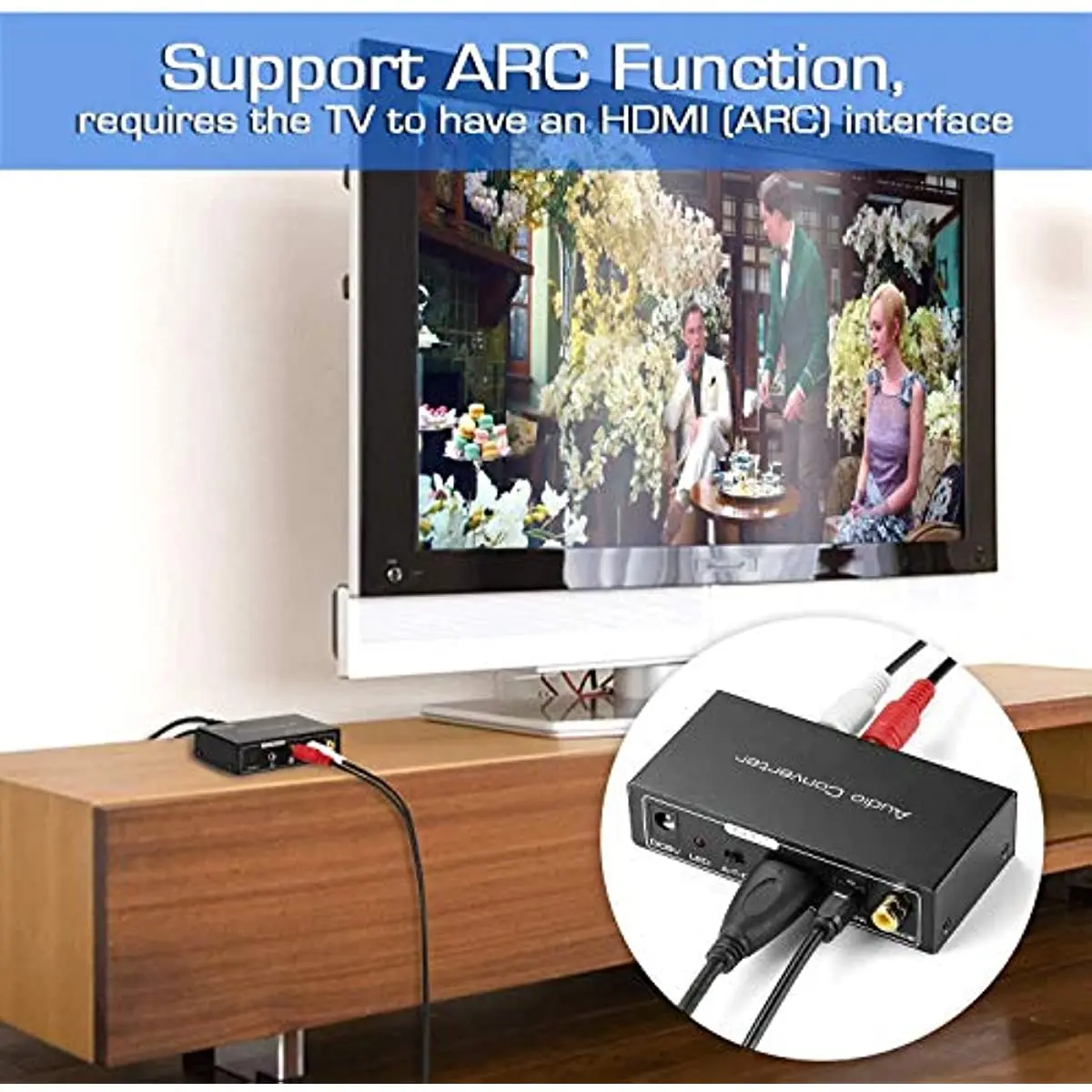

HDMI-compatible ARC Adapter (Audio Return Channel) HDMI-compatible ARC audio adapter can extract HDTV or projection audio that supports ARC and convert it to the audio format you need for output.(Note: If you need to use the HDMI-compatible ARC channel to transmit audio, the HDMI-compatible device (TV or projection, etc.) must support the ARC function and 19+1 HD cable require

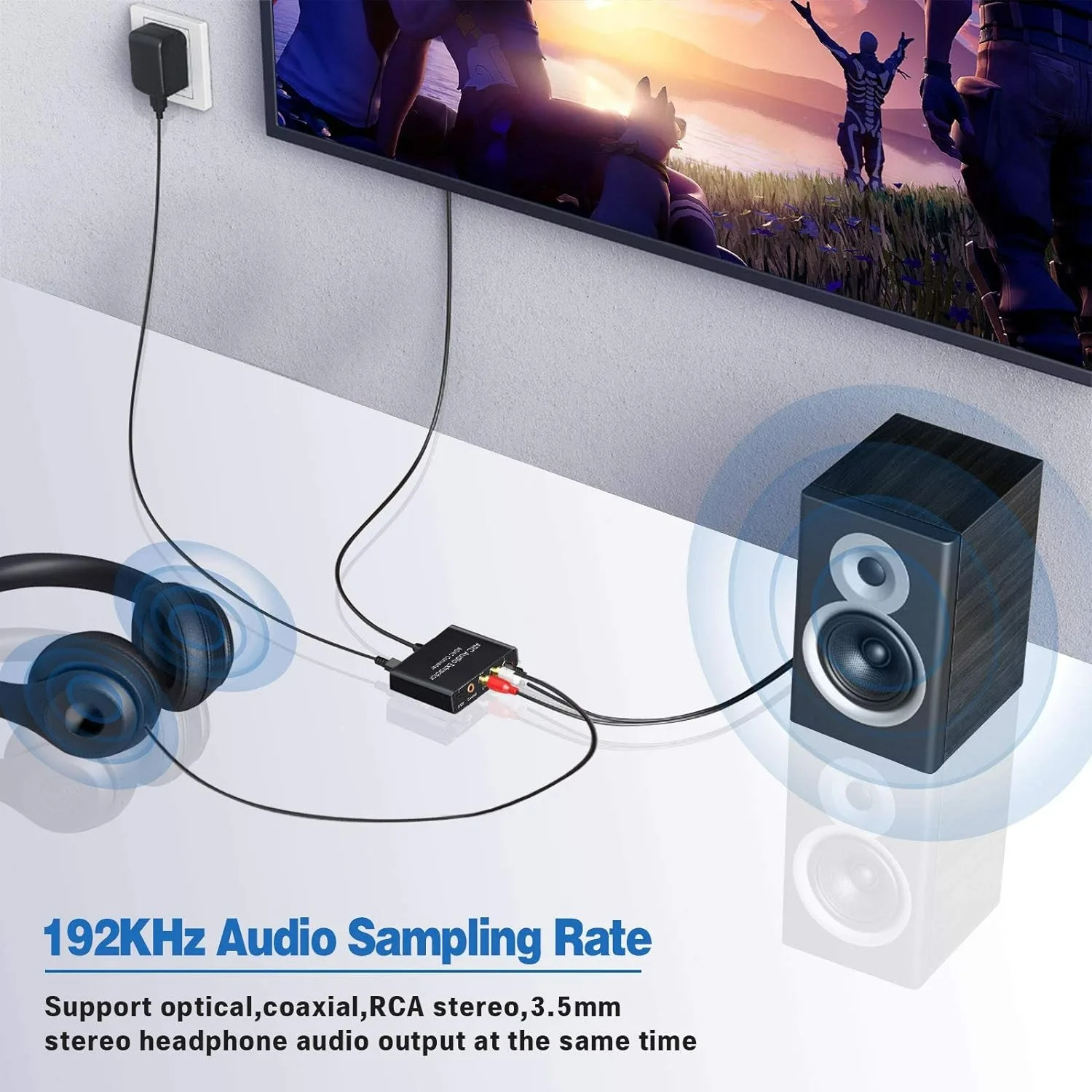

Audio Output Simultaneously: This HDMI-compatible ARC Adapter can send audio from TV (Support ARC function) to Optical/ Coxial/ 3.5mm/ L/R audio through ARC Adapter via ARC interface and out audio simultaneously. (NOTE: It is Incompatible Dolby AC3/ Dolby Digital Plus etc., Please Set the Audio Output to PCM or LPCM before Using)

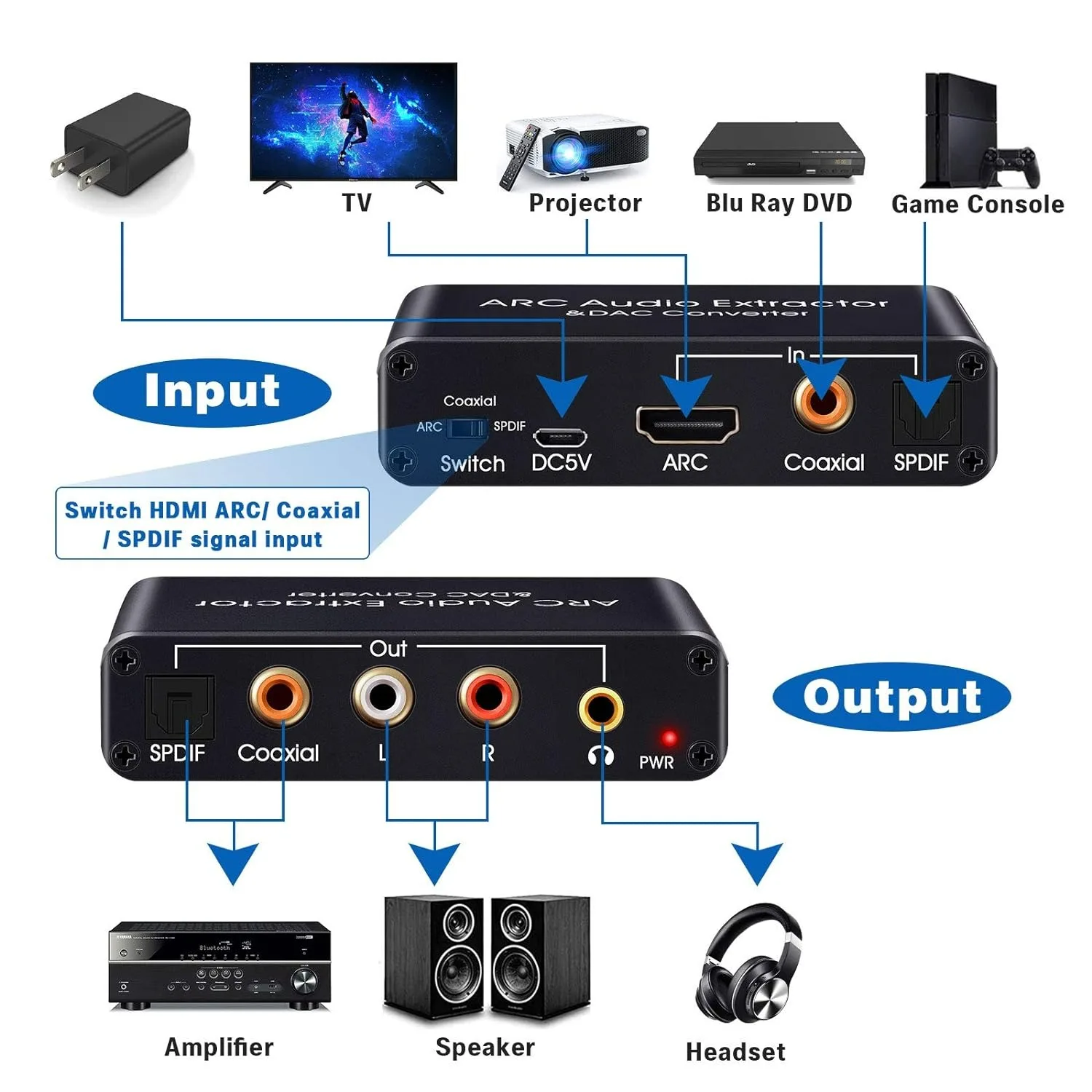

Multiple types of audio output: HDMI-compatible ARC to Optical Toslink(SPDIF) RCA(L/R) Stereo Analog Outputs Audio 3.5mm Audio Output. Optical Toslink supports incoming 2.0CH, 5.1CH Dolby Digital, DTS (Note: Not support Dolby Digital Plus and above); Note: If you are using stereo R/ L or 3.5mm jack output, this unit can only support LPCM/ PCM audio format input(Note: Dolby is not supported at this time)
Notes:
If you are using stereo R/ L or 3.5mm jack output to your audio receiver, please set your audio source(such as your TV) to PCM/ LPCM. This unit can not support 5.1 or 7.1 audio via stero R/ L or 3.5mm jack output.
Please use the Toslink output to support DTS / Dolby-AC3

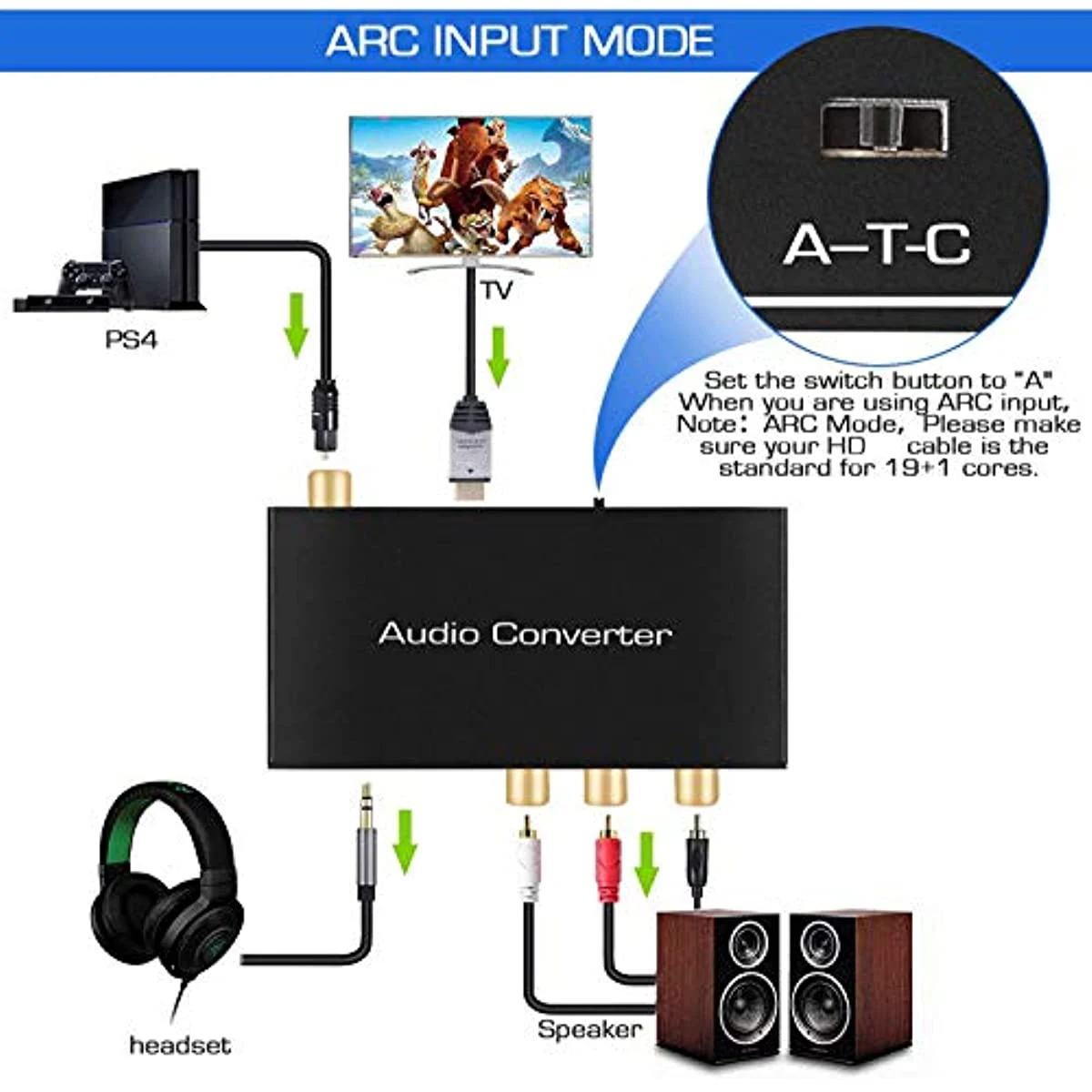

If you are using HDMI-compatible ARC input, please make sure you are using standard 19+1 high level HD cables and please make sure that your TV has ARC function

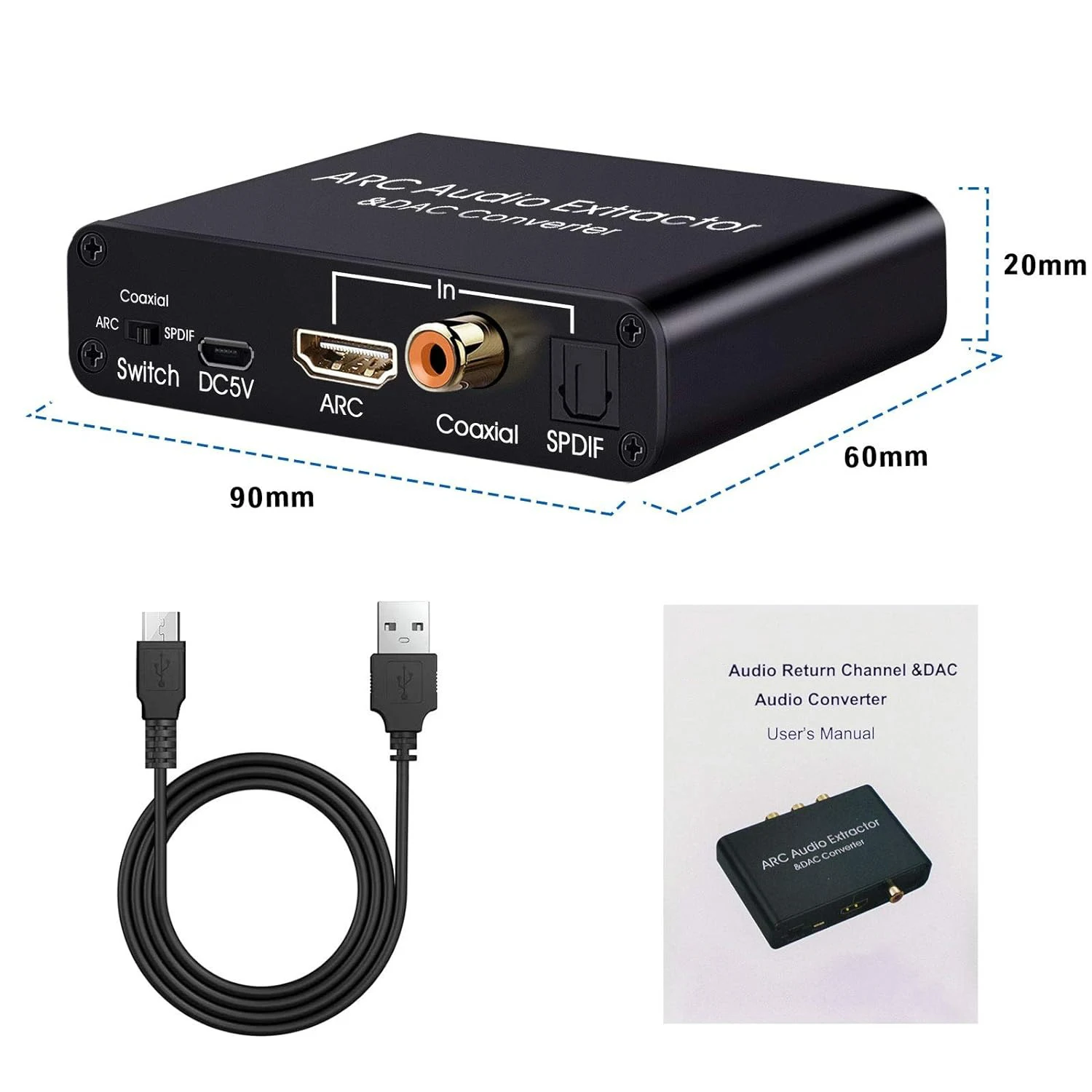

Package List:
1 * Multifunction Audio Converter
1 * 5V/ 1A power cable
1 * User manual

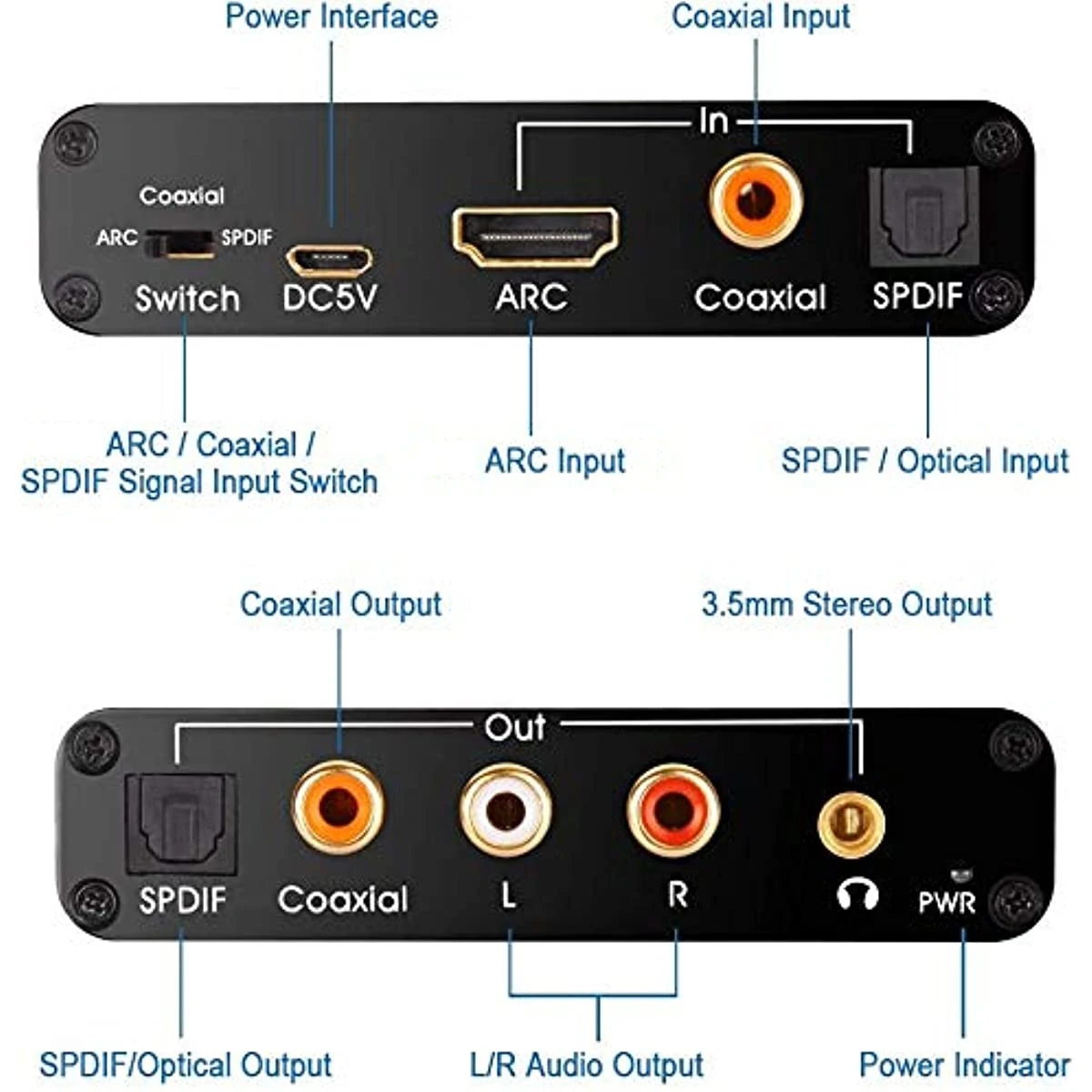

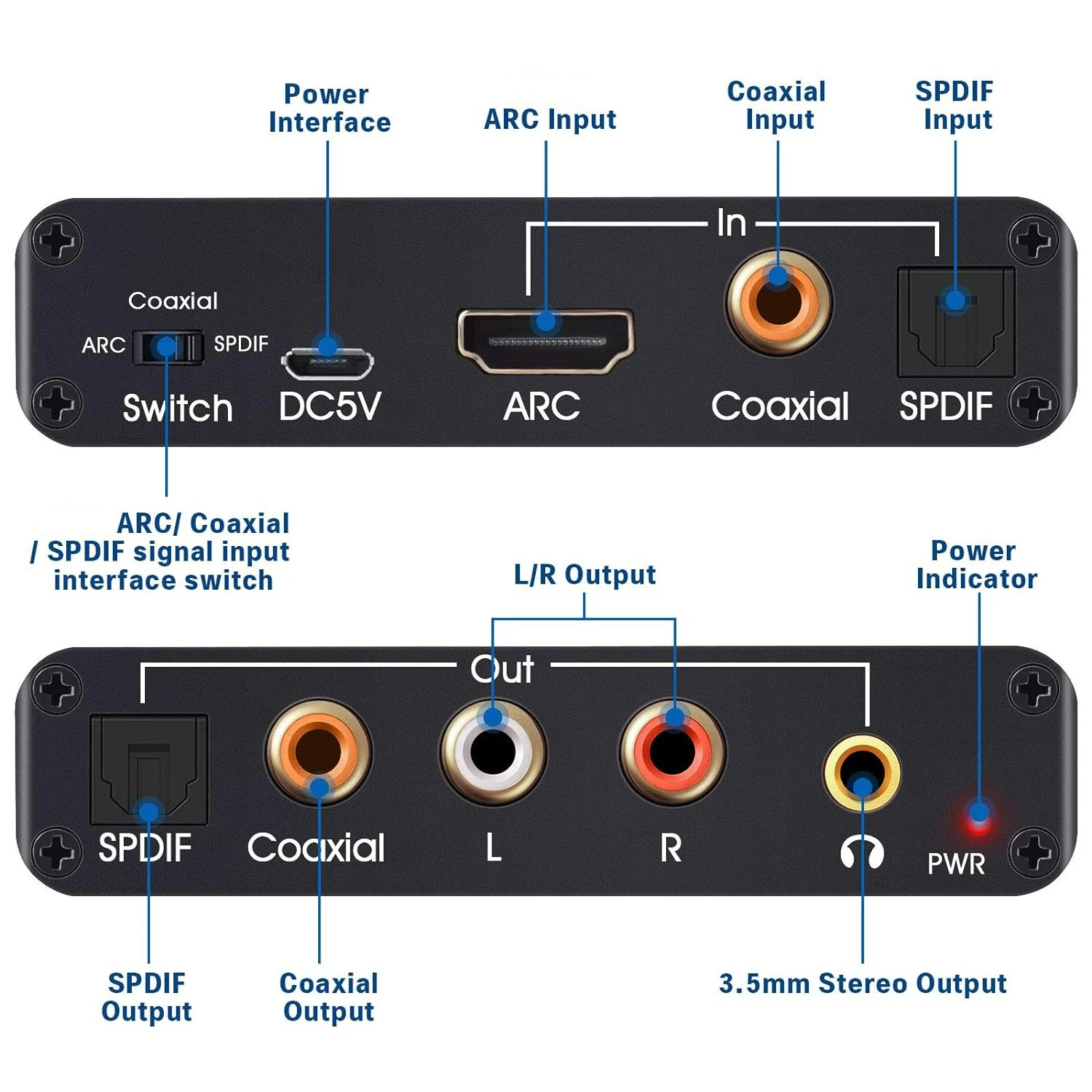

Audio input
Toslink ;Coaxial ; HDMI-compatible ARC ; (Only one port works at a time.)
Audio output
Toslink ; Coaxial; Stereo R/ L ; 3.5mm jack(4 Ports can work simultaneously)
Audio format
Support LPCM/PCM
Output cable distance
≤10m(Use the optical fiber cable loss less the 0.2Db/m )
Sampling Rate
32~192 KHz
Bit Rate
16~24 Bit
Output Impedance
10 ohms
ESD Protection
±8kV(Air-gap Discharge) ±4kV(Contact Discharge)
