Our Advantage
1.CCC,CE&Rohs,ISO9000,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repaire whole life
4.MOQ: 1pcs 960*960mm die-casting aluminum cabinet screen.
5.Our package type:wooden cases and flight case (extra charge)
6.Prompt delivery: 14 working days after get deposit.
Specification
Module Parameter
Size
160mm(H)×320mm(H)
Module Resolution
32(H)×64(W)
Pitch
5mm
Density
40.000 pixels/m²
LED Lamps
SMD1921
Driver IC
Universal chip
Module Refresh
3840hz
Mask
Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution
192(H)×192(W)

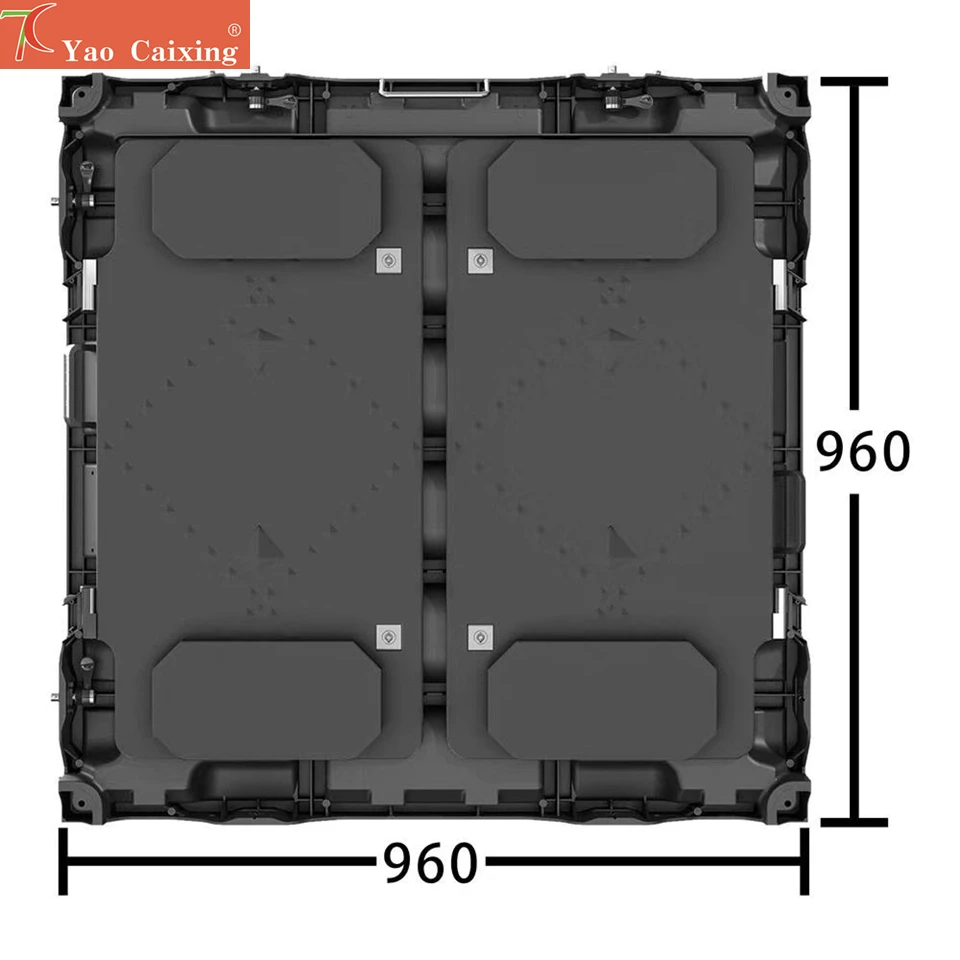

Cabinet Size
960mm(H)×960mm(W)
Cabinet Weight
28kg
Driver Mode
Dynamic 1/8scan ,
constant current driving
Cabinet Power
≤700w
Cabinet Thickness
≤135mm+5mm
Electricity Parameter
Optical Ratings
Brightness Of White Balance
≥6000cd/m²
View Angle
140 degree ( horizontal)
140degree(vertical)
View Distance
4m-20m
Gray Scale
65536
Display Color
3-in-1 RGB
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
700 w/m²
Average Power Consumption
300 w/m²
Control System
Correction Scale Level
16bits
Screen Refresh Frequency
1920Hz
Gamma Correction
-5.0—5.0
Support Input
HDMI,DVI,VGA,RJ45,USB,Serial Port
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
1024×768,1600×1200,1920×1080
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Temperature
Storage:-35℃-+80℃ ;
Operation :-25℃-+45℃
Humidity
Storage:10-70% RH ;
Operation:10--60% RH
Operating Life
≥100,000 hours
MTBF
≥10.000 hours
Continuous Working Time
≥48 hours
Protection Level
IP65
Out of Control Pixel Rate
0.03%
Product specifications are for reference only and subject to change without prior notice;
Please contact sales for details
At the same time, we can design according to customer requirements and production.
Pictures
MOQ:1 square meter screen accessories
1),18pcs modules ,
2),2sets 5v70A350w power supply,
3),4pcs fans for heat dissipate
4),3pcs aviation power plugs,
5),3pcs aviation web lines,
6),9pcs power lines ,
7),18pcs flat cables ,
8),1pcs Novastar receiving card
9),1pcs 960*960 die-casting aluminum waterproof cabinets
- SMD1921 outdoor high brightness lamps - Black mask protect the lamps - Glue make the lamps waterproof

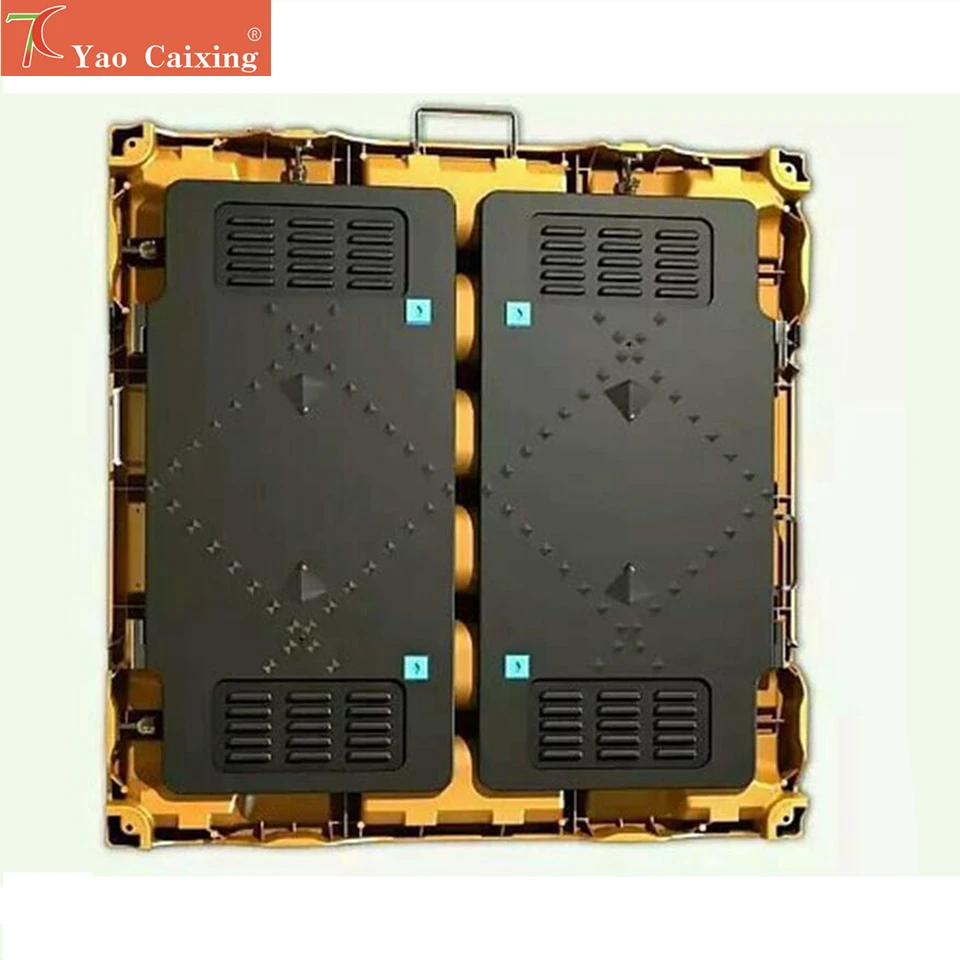

- Aluminum cabinet, stronger ,lighter and more beautiful- Usually use for RENTAL business, plug and play ,assemble or disassemble quickly- Cabinet thickness less than 13.5cm , saving space
- Aluminum door stronger enough to protect modules,- Locks design make the screen safety
- Power aviation plug ,quickly and safety- Signal aviation web line convenient to plug
- 4 sets fan inside make good heat dissipation- 350W power supply also with fans ensure screen working with long time
- flight case package need extra charge
