Extensor VGA KVM RJ45 1080P 200m sobre IP CAT6 Rj45 Cable de extensión de red Ethernet KVM VGA interruptor para teclado de ratón

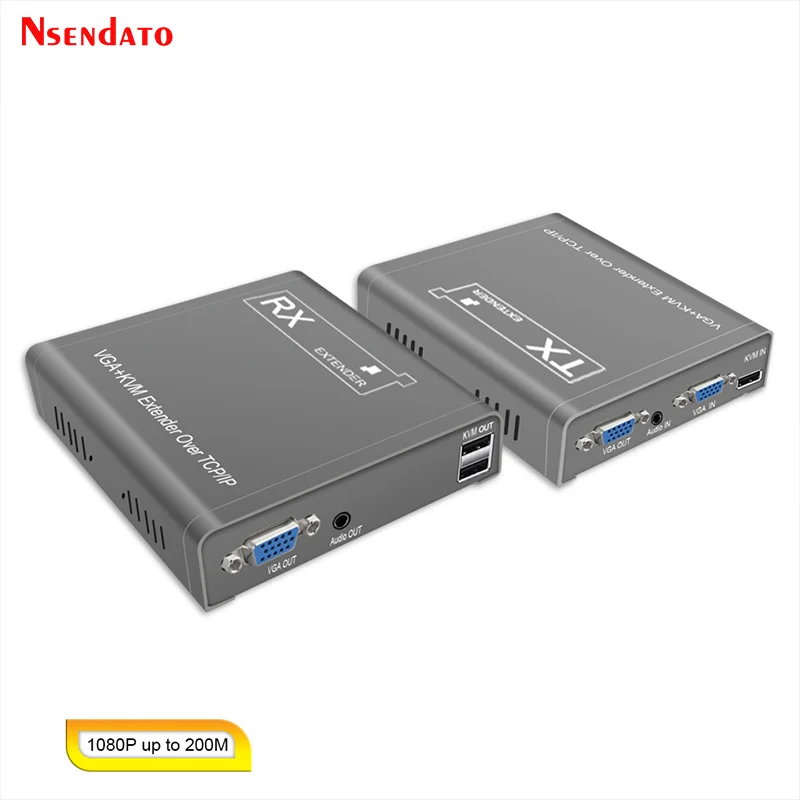

200M VGA USB KVM Extender over IP RJ45 Ethernet Cat5e/6 Extension Cable KVM VGA USB Multi Extender Switch sharing keyboard mouse

Noted:Full set including the transmitter and receiver.TX is only for transmitter ,RX is only for receiver

Introduction

The Nsendato of extender provides extension of VGA signals long distances over a single Cat5e/6 cable, it supports high resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security

Features

Transmits VGA video and audio signals up to 200 meters over a single Cat5e/6 cable, automatic identification, no need to adjust the gain

Support video resolution up to 1920*1080P@60Hz

Support over TCP/IP, support one TX to more RX

Support keyboard and mouse

Support Audio input/output

Support VGA loop output

High compatibility, can auto-match source and display device

Built-in automatic adjustment system, make the image smooth, clear and stable

Built-in ESD protection system

Simple to install, plug and play

Specification

Signal type:VGA Signal

Maximum pixel clock:380MHz

Maximum data rate:6.75Gbps

Resolution:640x480@60Hz/800x600@60Hz/1024x768@60Hz/1280x720@60Hz/1280x1024@60Hz/1360x768@60Hz/1920x1080@60Hz/1400x1050@60Hz/1440x1050@60Hz/1440x900@60Hz/1920x1200@60Hz/1920x1080@60Hz/1920x1080i@60Hz/1920x1080@50Hz/1920x1080i@50Hz

Impedance:75Ω

Interface:3.5mm seat

Signal type:Stereo

PC:USB interface; connect to pc;

K/M:connect USB keyboard and mouse;

UTP Interface:RJ45

Transmission distance:Cat6-200m MAX

Package

VGA transmitter

VGA receiver

USB Cable

Power adapter

User manual
