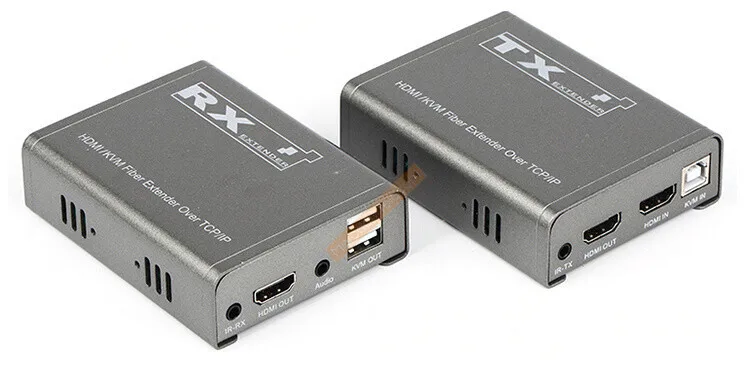

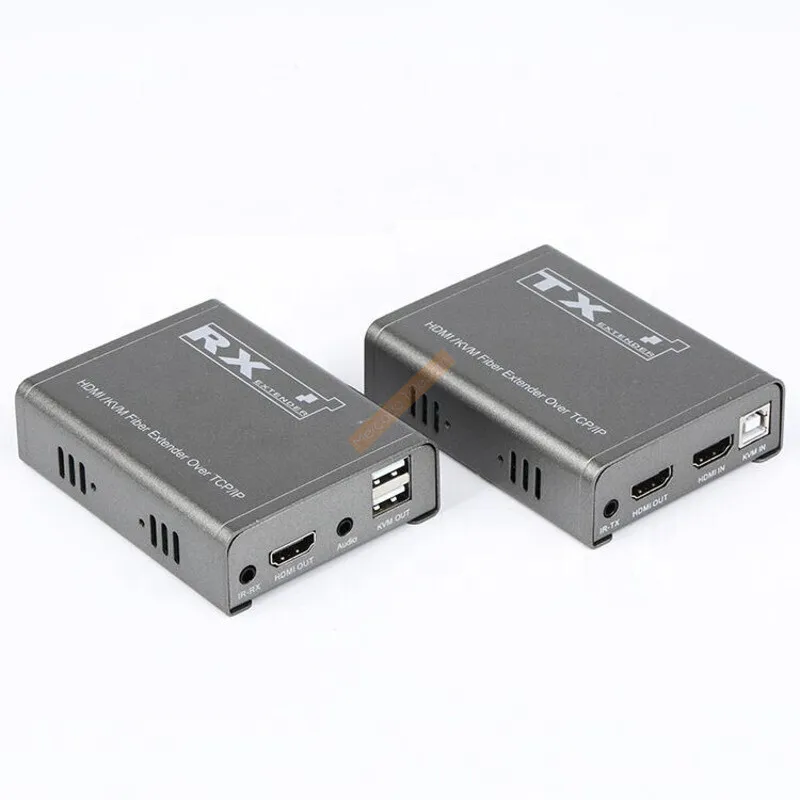

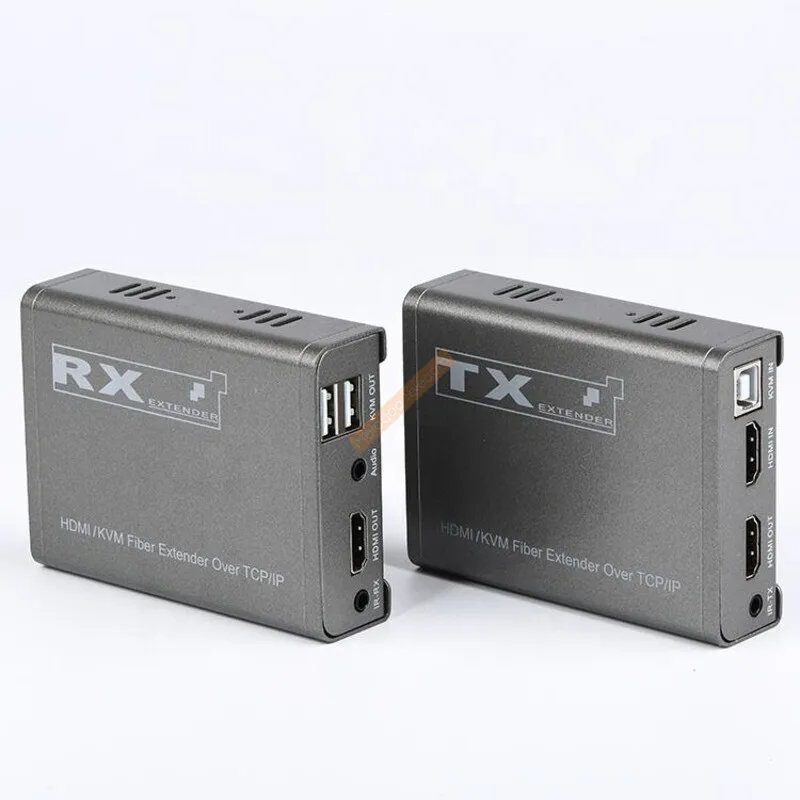

20Km HDMI KVM Fiber Extender Transceiver HDMI USB extender over SC Fiber Optical Cable HDMI to Fiber Video Transmitter Converter
Introduction:

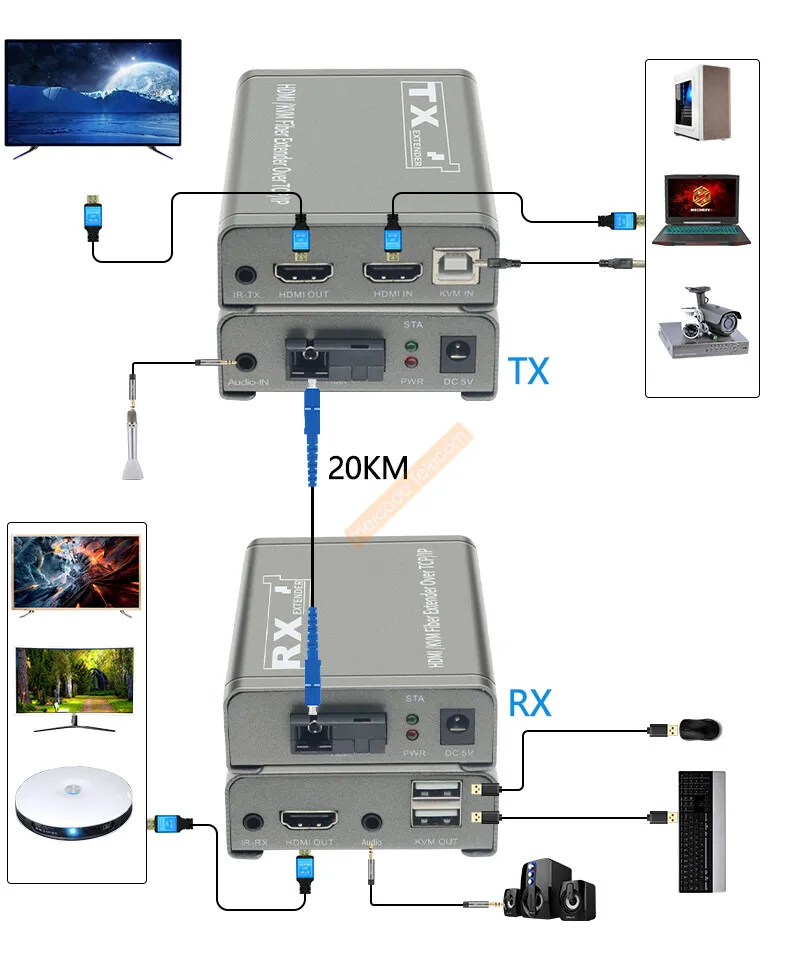

The extender provides extension of HD signals long distances over a single Fiber, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

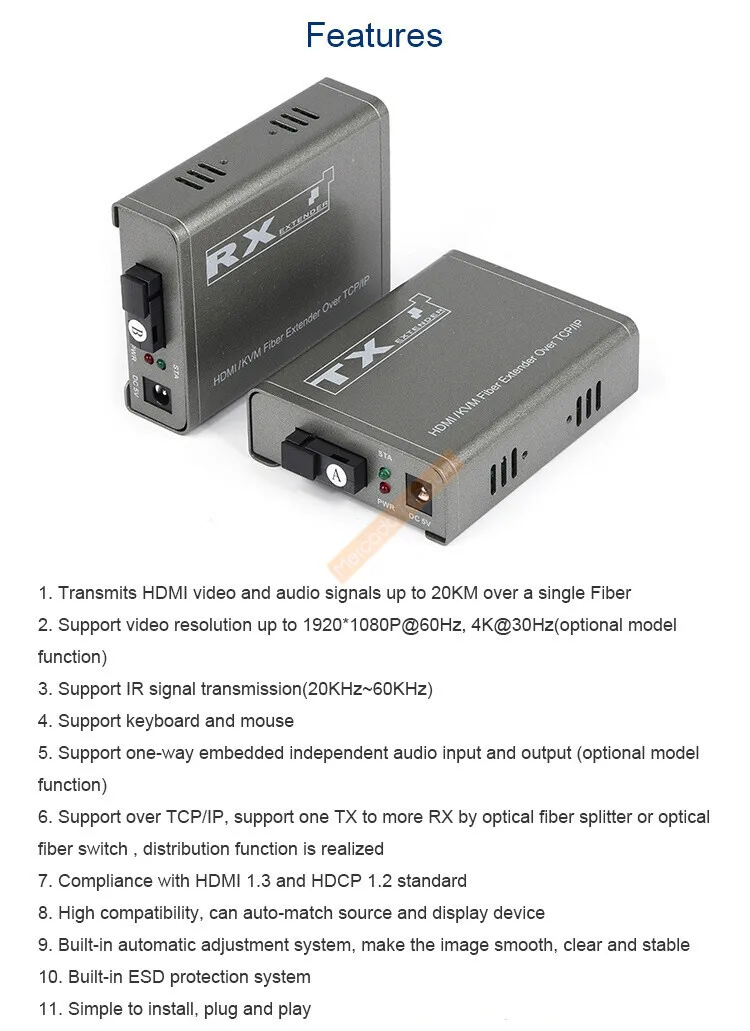

Features:
Transmits HD video and audio signals up to 20KM over a single Fiber
Support video resolution up to 1920*1080P@60Hz
Support IR signal transmission(20KHz~60KHz)
Support keyboard and mouse

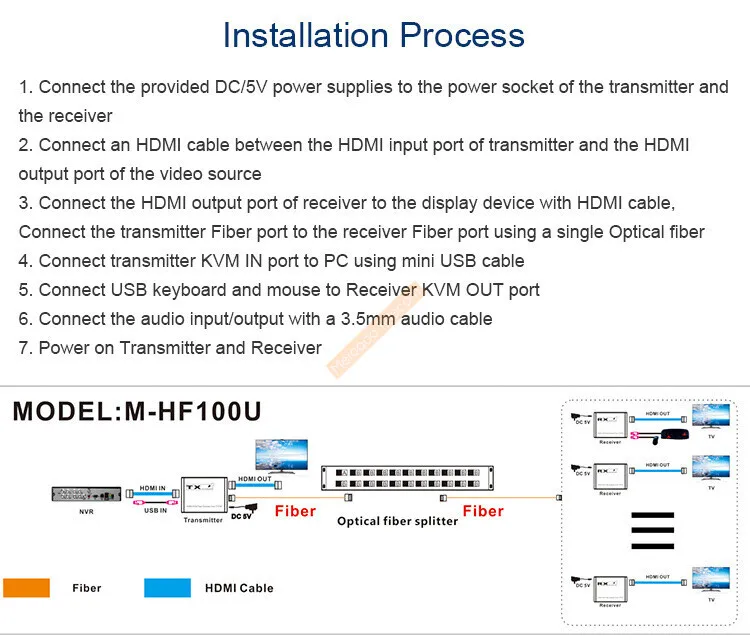

Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized
Compliance with HD V1.3 and For HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Simple to install, plug and play
Specification:
Standards:For HD V1.3; for HDCP 1.2
Maximum pixel clock:165MHz
Maximum data rate:6.75Gbps
Resolution:1920X1080P@60Hz

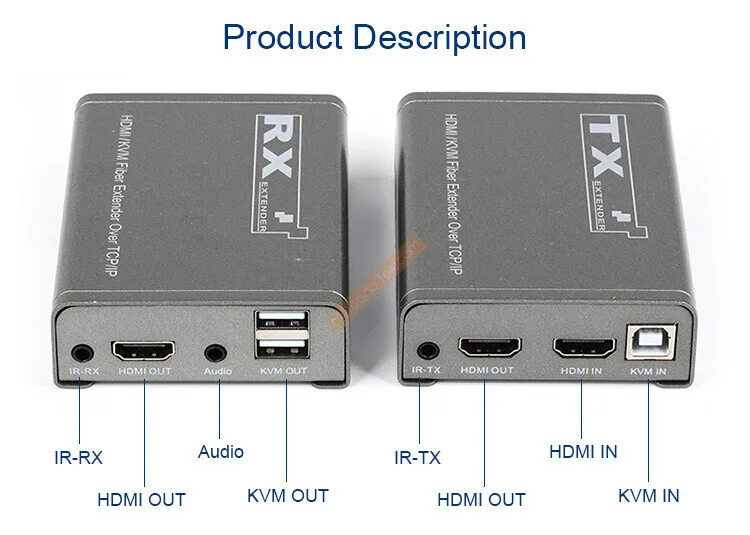

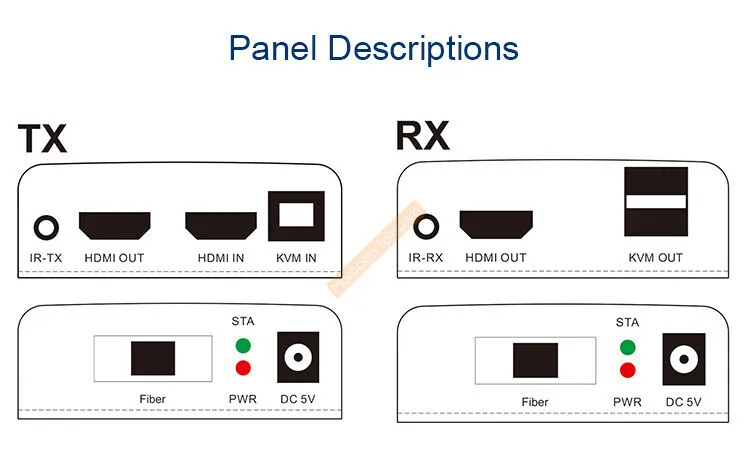

Connector:HD-A
Impedance:100Ω
PC:Type B USB interface; connect to pc;
K/M:connect USB keyboard and mouse;
Interface:3.5mm seat
IR frequency:20-60kHz

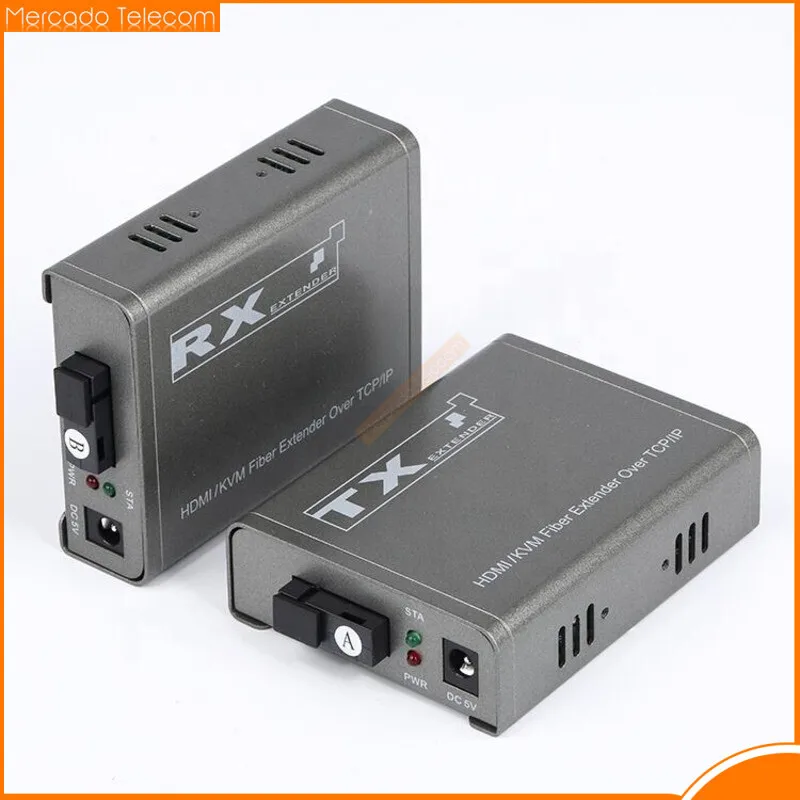

Fiber:Interface SC/FC(Default SC interface)
Fiber Model:Single mode
wavelength:Single mode 1310nm;1550nm
bandwidth:6.25Gbps
Transmission distance:default standard 20KM, MAX up to 80KM

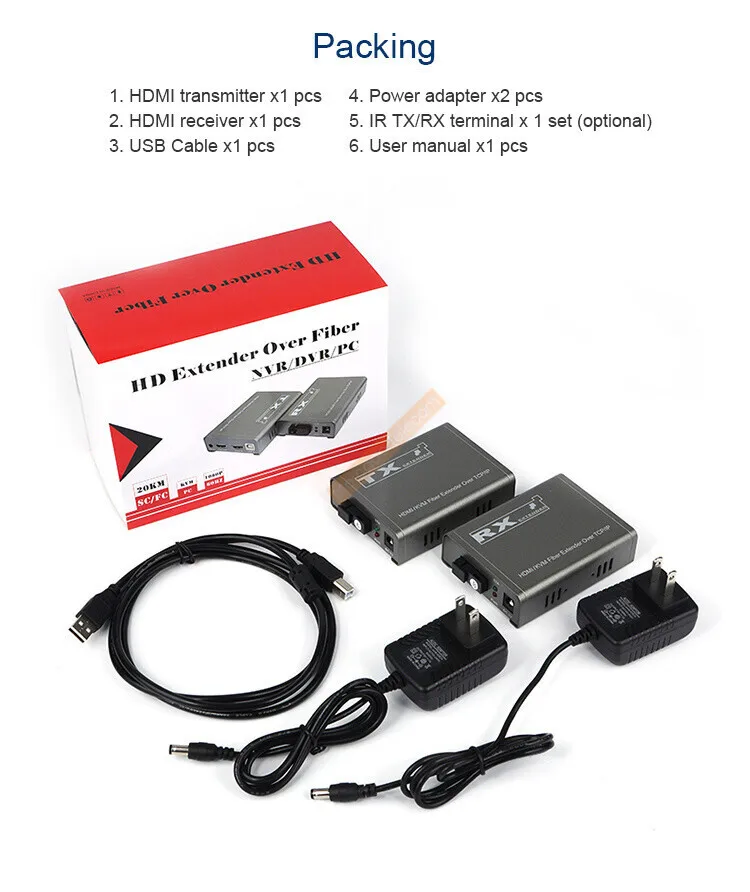

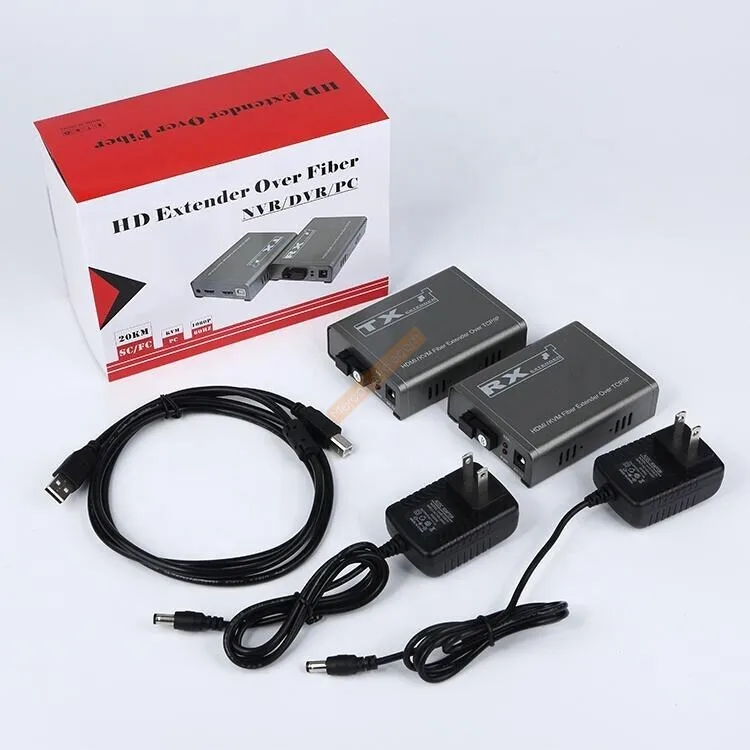

Package:
1 x HDMI transmitter
1 x HDMI receiver
1 x USB Cable
1 x Power adapter
1 x User manual
