Descripción
Our Advantage
1.CCC,CE&Rohs,ISO9000,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life
4..Prompt delivery: 5-12 days
Specification
Module Parameter
Size
160mm(H)×320mm(H)
Module Resolution
32(H)×64(W)
Pitch
5mm
Density
40.000 pixels/m²
LED Lamps
SMD2121
Driver IC
FM6124/2037
Module Refresh
2560hz
Mask
Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution
192(H)×192(W)
Cabinet Size
960mm(H)×960mm(W)
Cabinet Weight
25kg
Driver Mode
Dynamic 1/16scan , constant current driving
Cabinet Power
≤600w
Cabinet Thickness
≤125+5mm
Electricity Parameter
Optical Ratings
Brightness Of White Balance
≥800cd/m²
View Angle
140 degree ( horizontal)
140degree(vertical)
View Distance
5m-160m
Gray Scale
65536
Display Color
3-in-1 RGB
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
600 w/m²
Average Power Consumption
300 w/m²
Control System
Correction Scale Level
16bits
Screen Refresh Frequency
1920Hz
Gamma Correction
-5.0—5.0
Support Input
HDMI,DVI,VGA,RJ45,USB,Serial Port
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
800×600,1024×768,1280×1024,1600×1200,1920×1080
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Temperature
Storage:-35℃-+80℃ ;
Operation :-25℃-+45℃
Humidity
Storage:10-60% RH ;
Operation:10--40% RH
Operating Life
≥100,000 hours
MTBF
≥10.000 hours
Continuous Working Time
≥48 hours
Protection Level
IP25
Out of Control Pixel Rate
0.03%
Product specifications are for reference only and subject to change without prior notice;
Please contact sales for details
At the same time, we can design according to customer requirements and production.
Pictures
MOQ:1 pcs P5 2121 indoor 960x960mm aluminum cabinet screen
1),18pcs P5 SMD1921 indoor modules ,
2),3sets 5v40A200w power supply,
3),3pcs avation power plugs
4),3pcs avation web lines
5),9pcs power lines ,
6),18pcs flat cables ,
7),1pcs Novastar receiving card

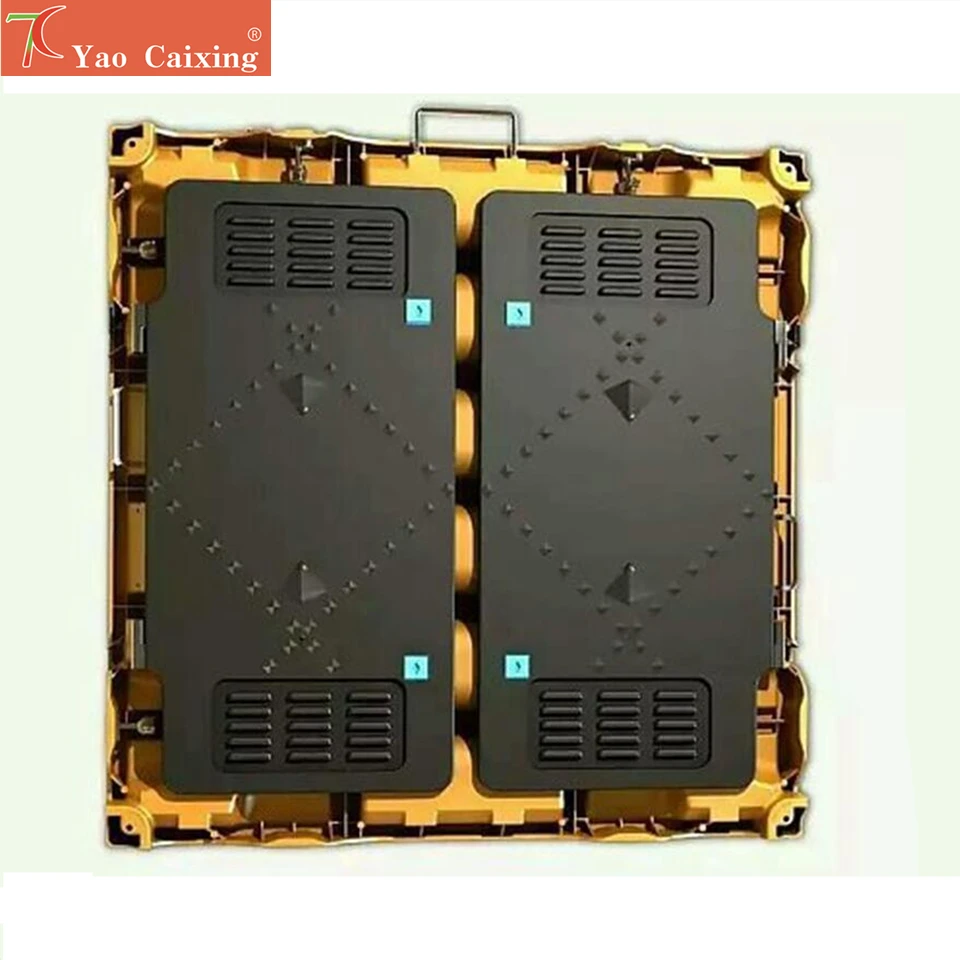

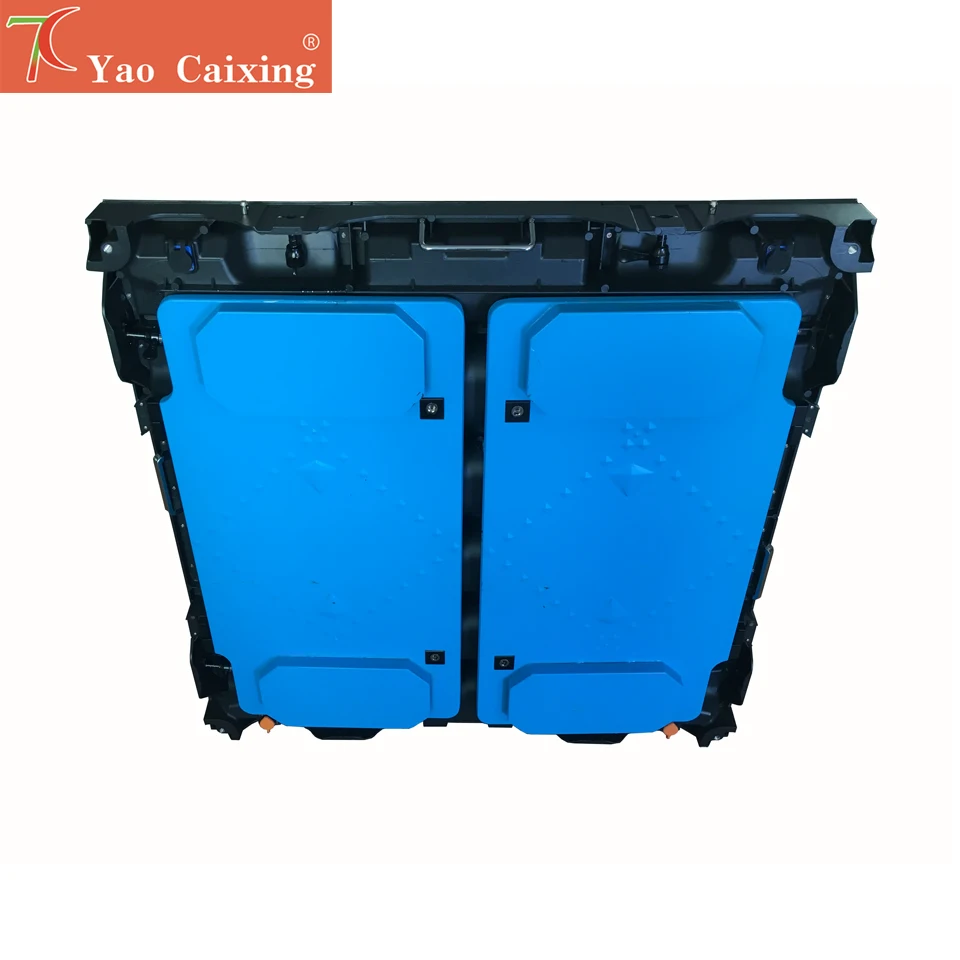

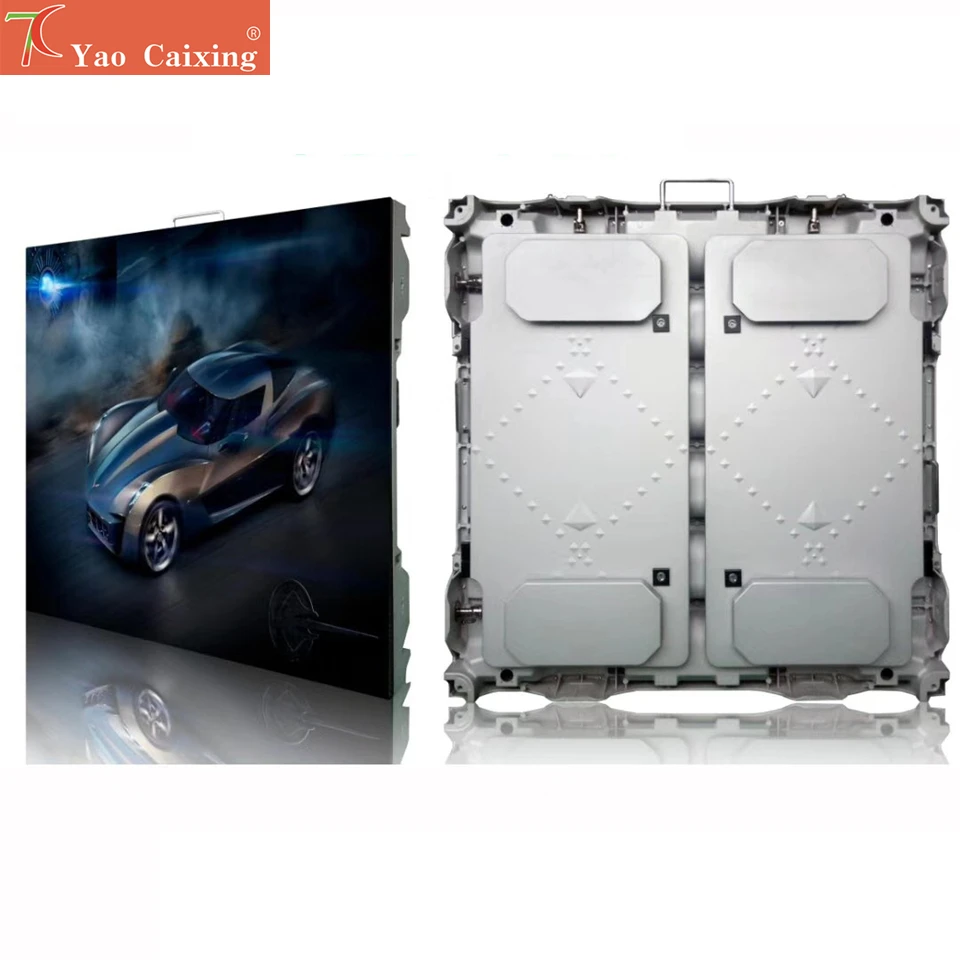

8),1pcs 960x960m die-casting aluminum waterproof cabinets
- Aluminum door stronger enough to protect modules,- Locks design make the screen safety
- Cabinet thickness less than 13cm
- 4 fans cool fans
- We can hang them with hang beams
- We also can use for fix installation
