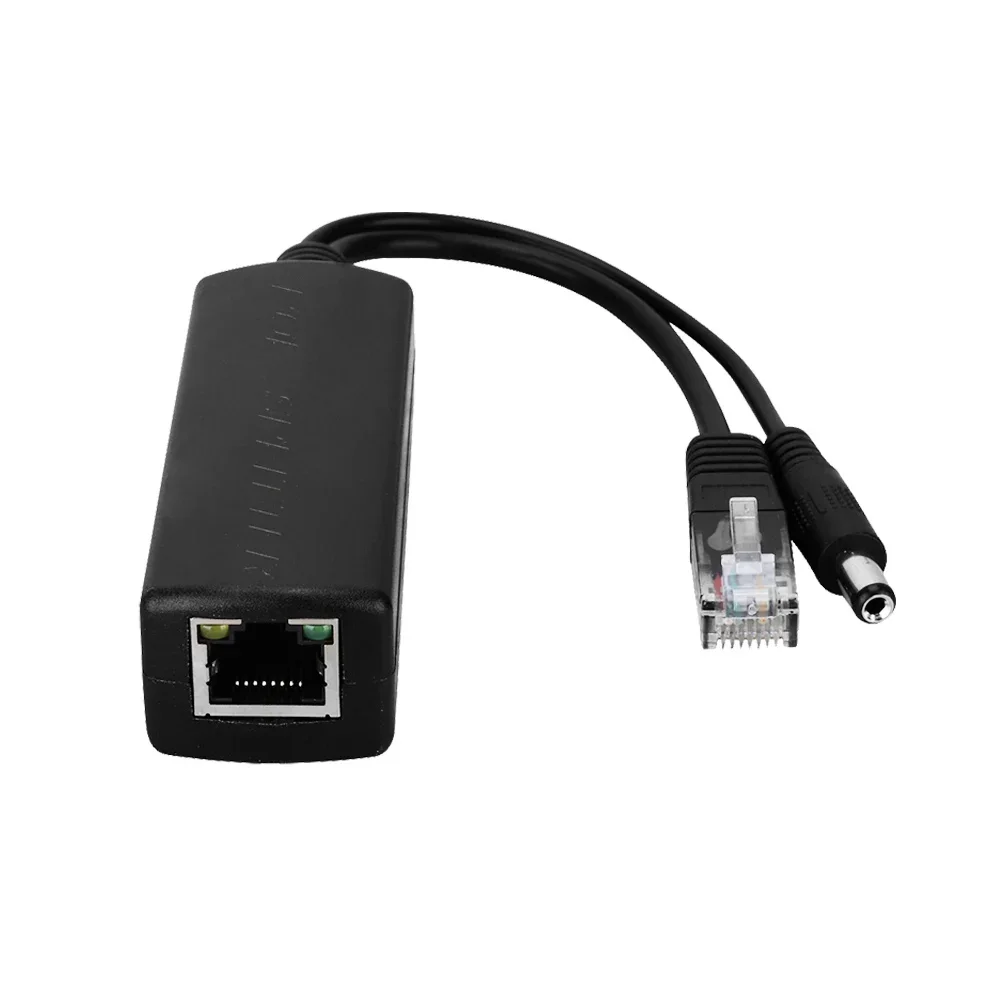

EWIND Gigabit POE Splitter 48V To 5V12V Micro USB/Type-C/DC 10/100/1000Mbps Power Over Ethernet with Isolated POE Breakout Cable

It is compatibility for mostly switches. Like that CISCO, HUAWEI, HP, ARUBO SWITCH etc. it is can working with these switches and AP wireless device; Because of our engineer put the protocol on the poe splitter;

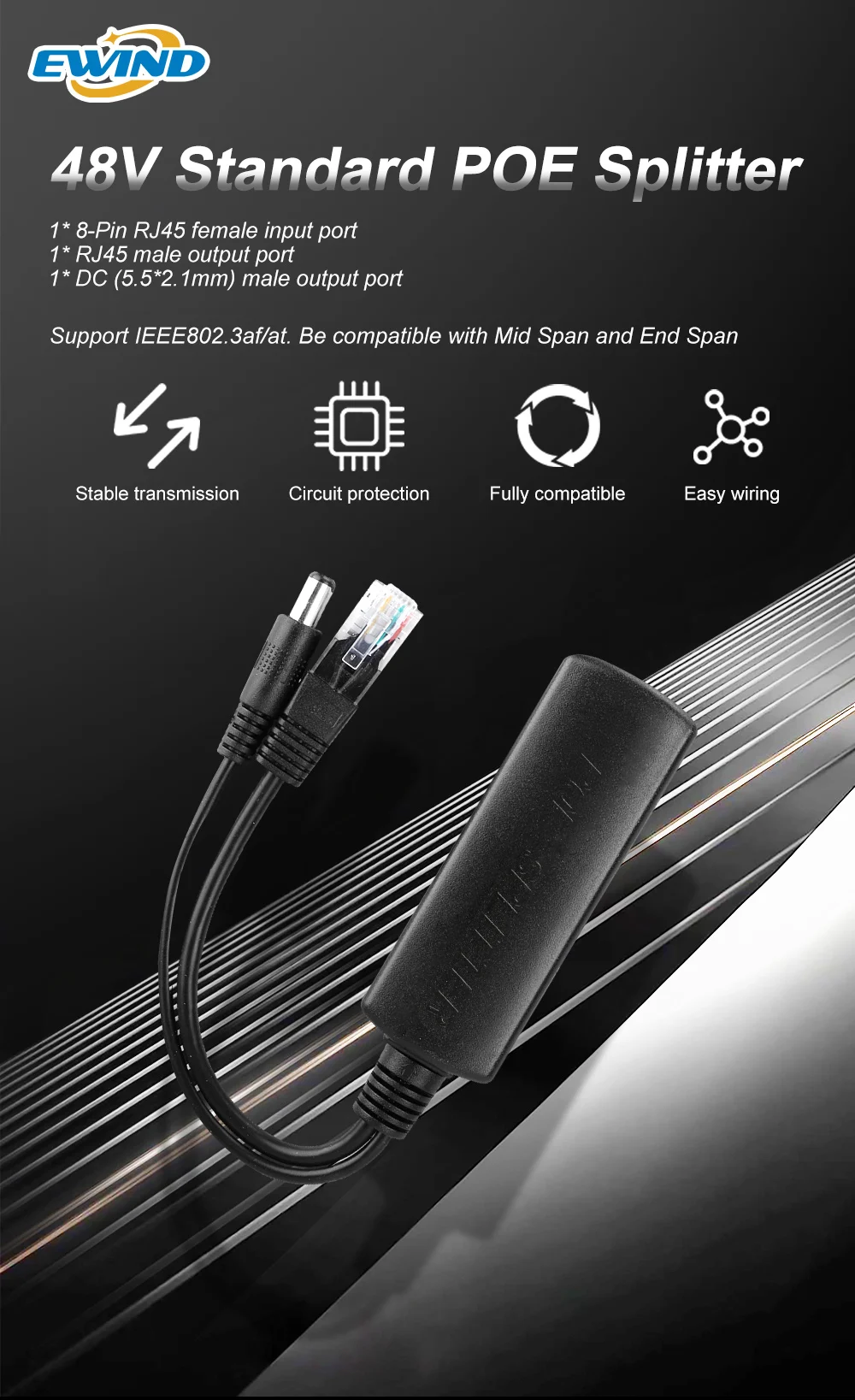

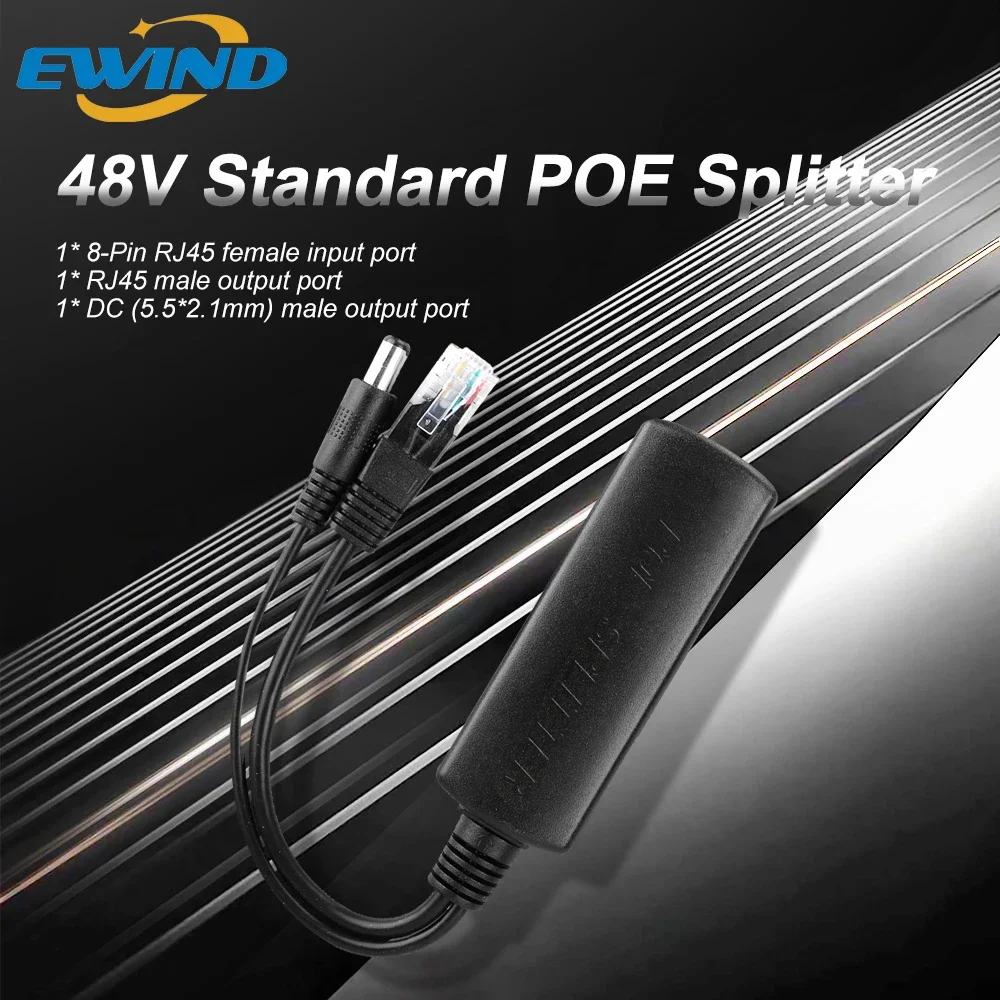

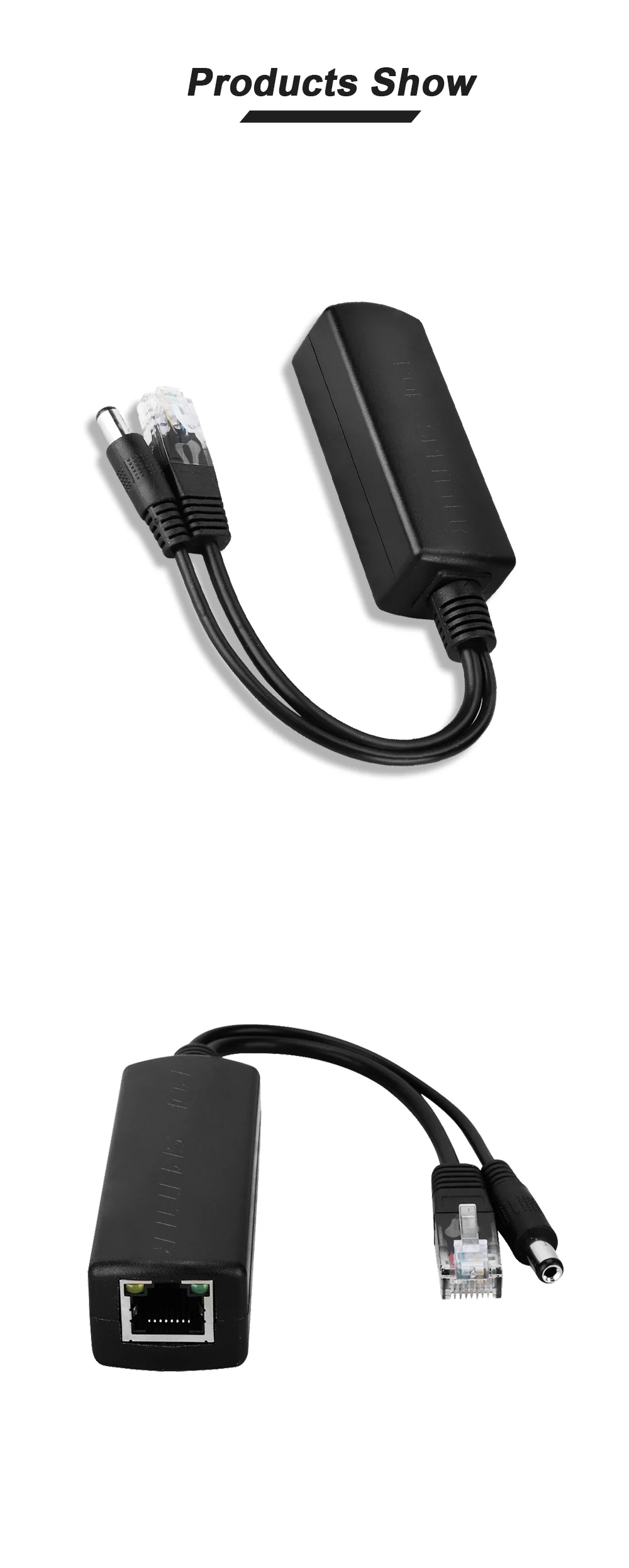

1* 8-Pin RJ45 female input port + 1* RJ45 male output port + 1* DC (5.5*2.1mm) male output port;
Support IEEE802.3af/at. Be compatible with Mid Span and End Span;
Voltage Input Range: 44-57V, Power Output: 25.5W, with over 82% efficiency;
Support isolation function;
Default Voltage Output: 12V2A;

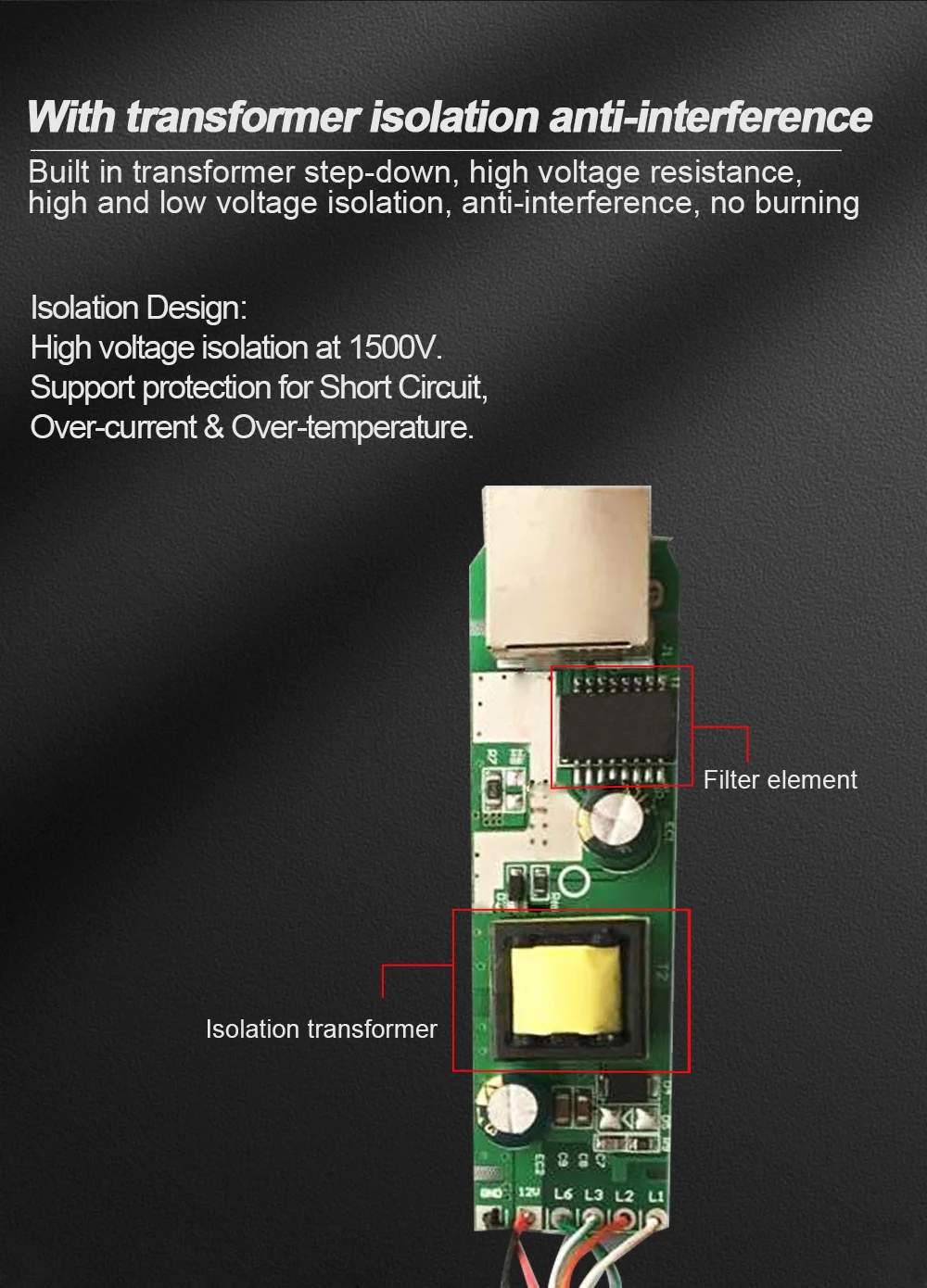

High Voltage Isolation: 1500V (Input Stage to Output Stage);

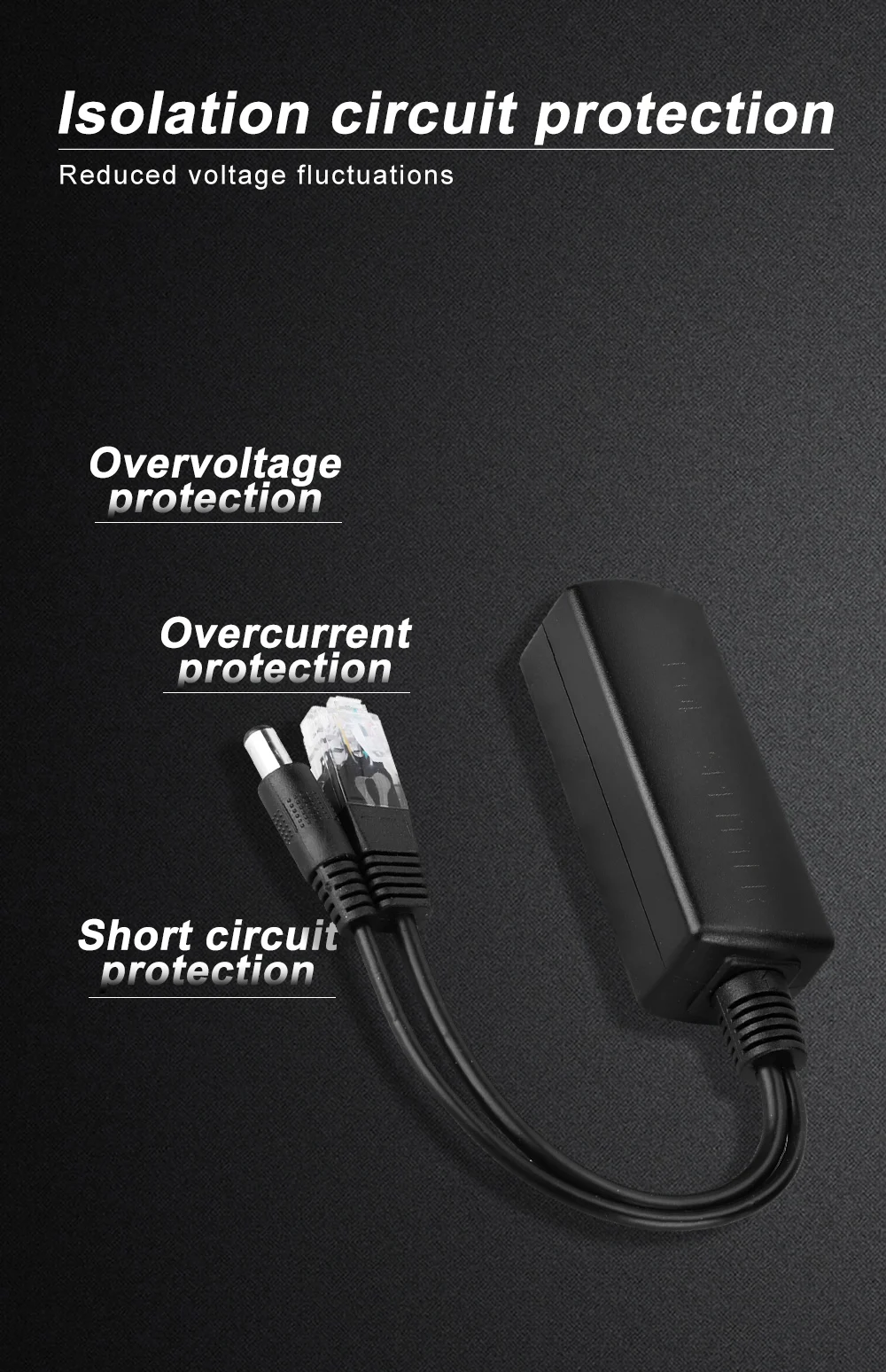

Support protection for Short Circuit, Over-current & Over-temperature;

EW-PD101F-AF:
1.10/100MPoE separation line (PD);
2. Comply with IEEE802.3af/at international standard and compatible with both 1236 and 4578 power supply modes;
3. Standard PoE input voltage range: DC44-57V;
4. Maximum output DC12V 1.1A, maximum load power 13W;

EW-PD101F-AF-12:
1.10/100M PoE separation line (PD) with isolation;
2. Comply with IEEE802.3af/at international standard and compatible with both 1236 and 4578 power supply modes;
3. Standard PoE input voltage range: DC44-57V;
4. Maximum output DC12V 1.25A, maximum load power 15.4W;

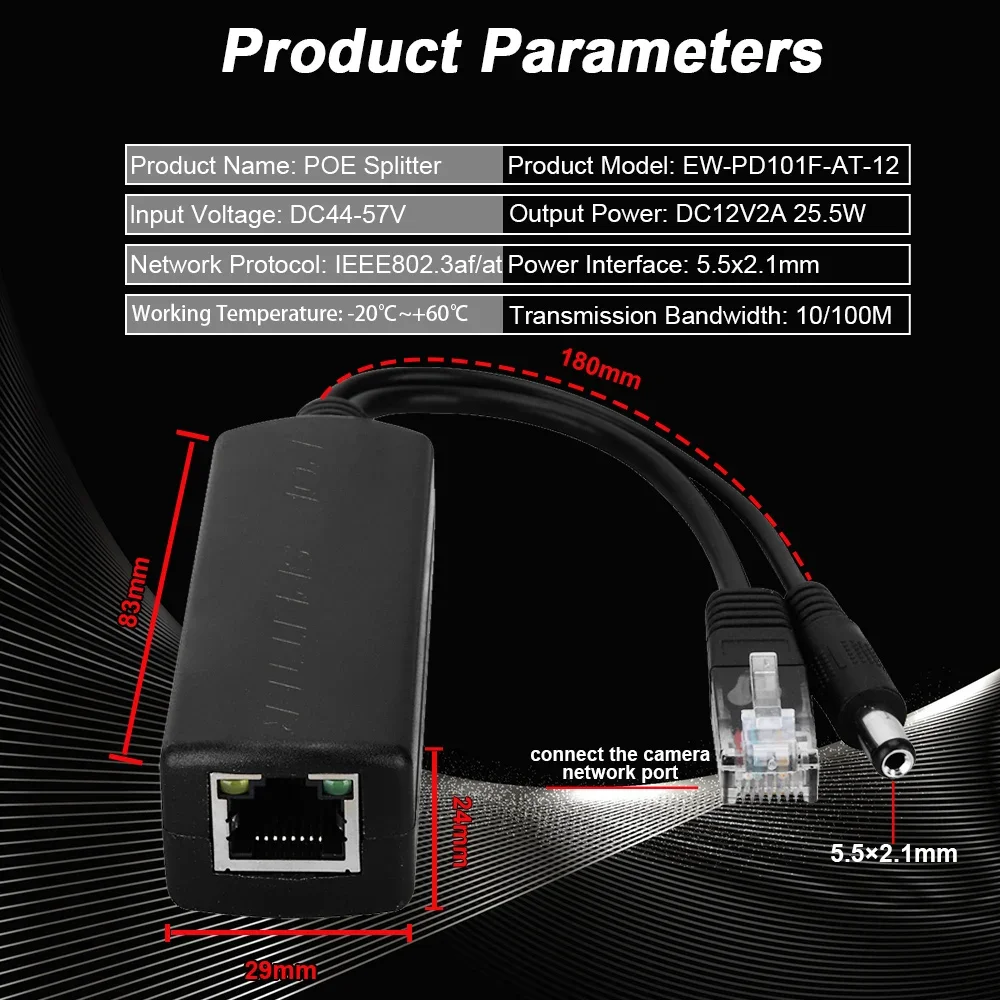

EW-PD101F-AT-12:
1.10/100M PoE high power separation line (PD) with isolation;
2. Comply with IEEE802.3af/at international standard and compatible with both 1236 and 4578 power supply modes;
3. Standard PoE input voltage range: DC44-57V;
4. Maximum output DC12V 2.125A, maximum load power 25.5W;

Introduction

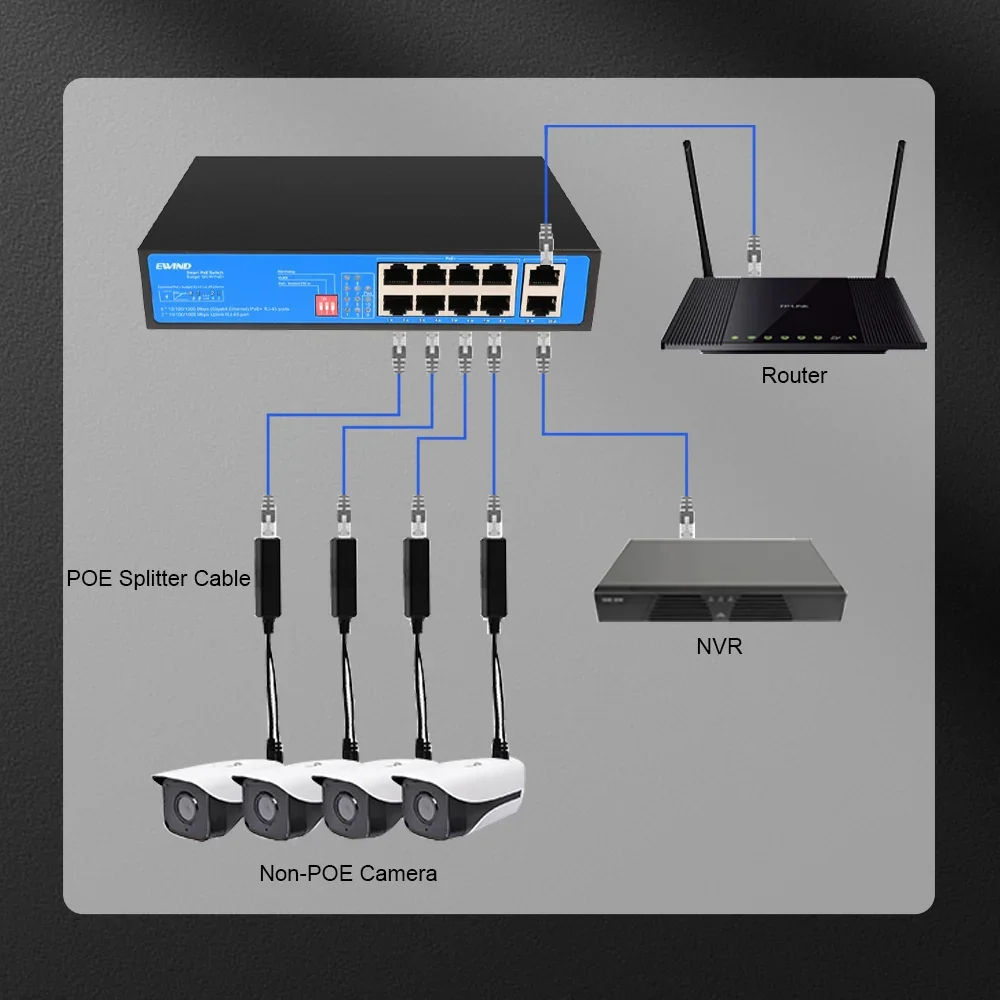

10/100M PoE Splitter Cable is using the MPS project and meeting the standard IEEE802.3af/at. It is compatible with both End-span (1,2+; 3,6-) and MID-span (4,5+; 7, 8-); Power output:25.5W, low ripple, with high efficiency at more than 82% and high voltage isolation at 1500V. Support protection for Short Circuit, Over-current & Over-temperature. It has passed the RoHS. With 2 in 1 design, The PoE splitter cable could be used to products that support external POE. ABS+PC shell makes it more durable. Its ports are for latest camera in the market.

EWIND Gigabit POE Splitter 10/100/1000Mbps IEEE802.3af/at 44-57V To 12V Power Supply for IP Camera Wireless AP or Non-POE Device
