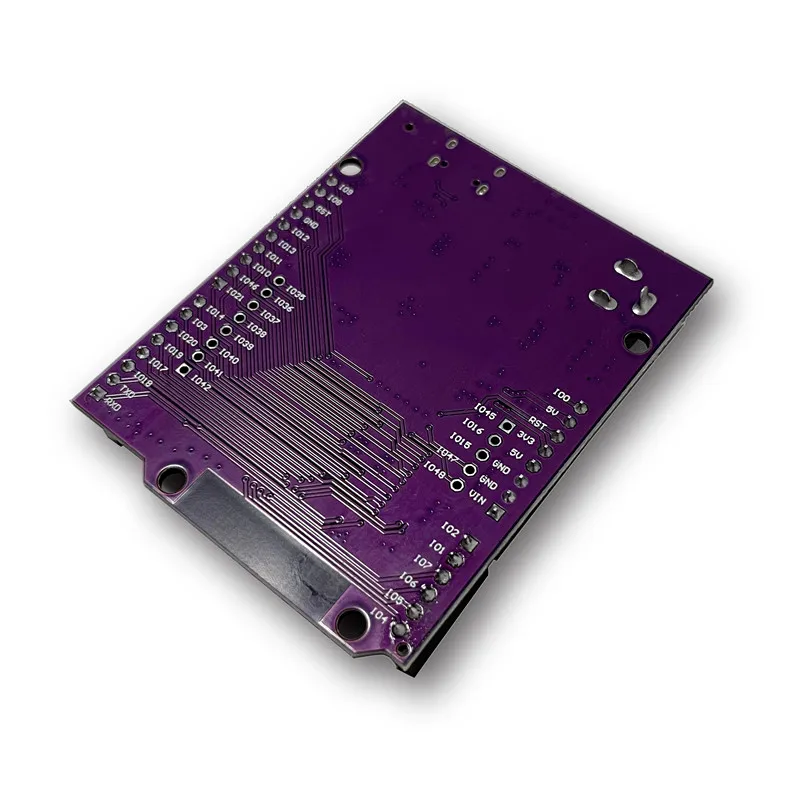

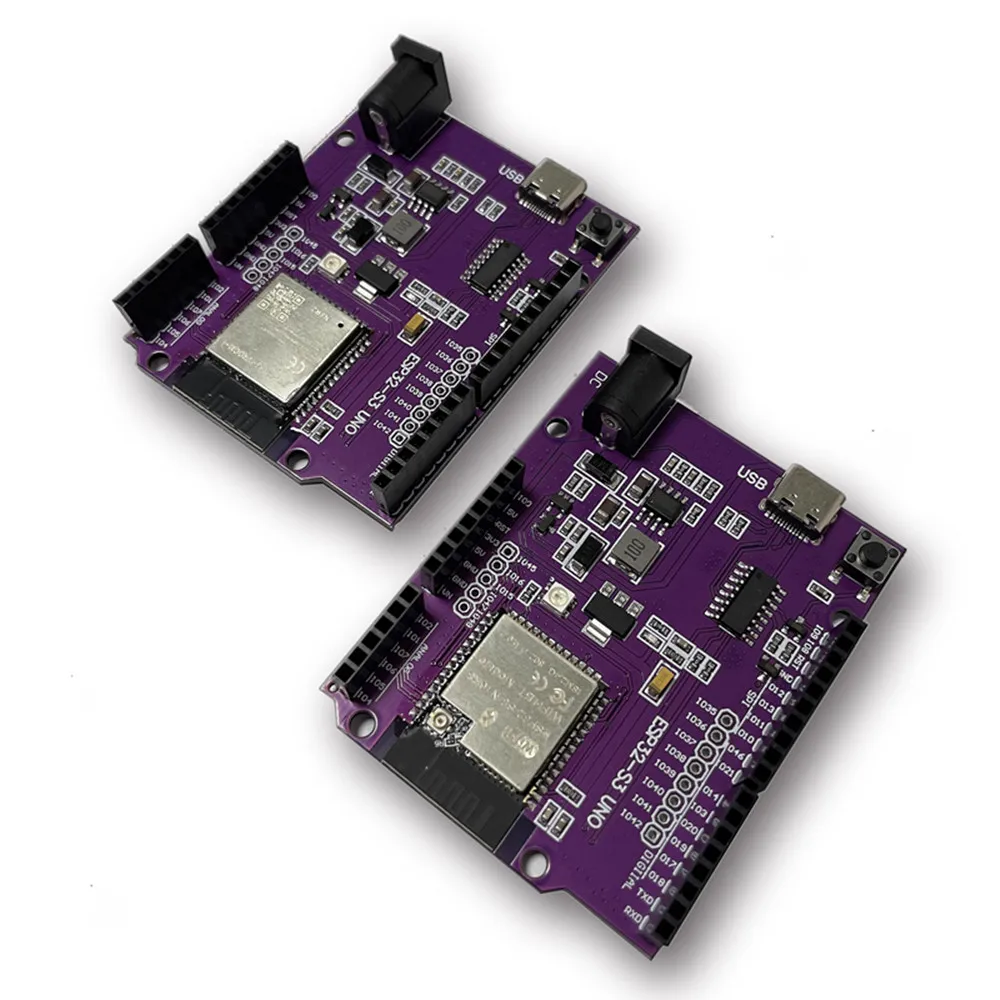

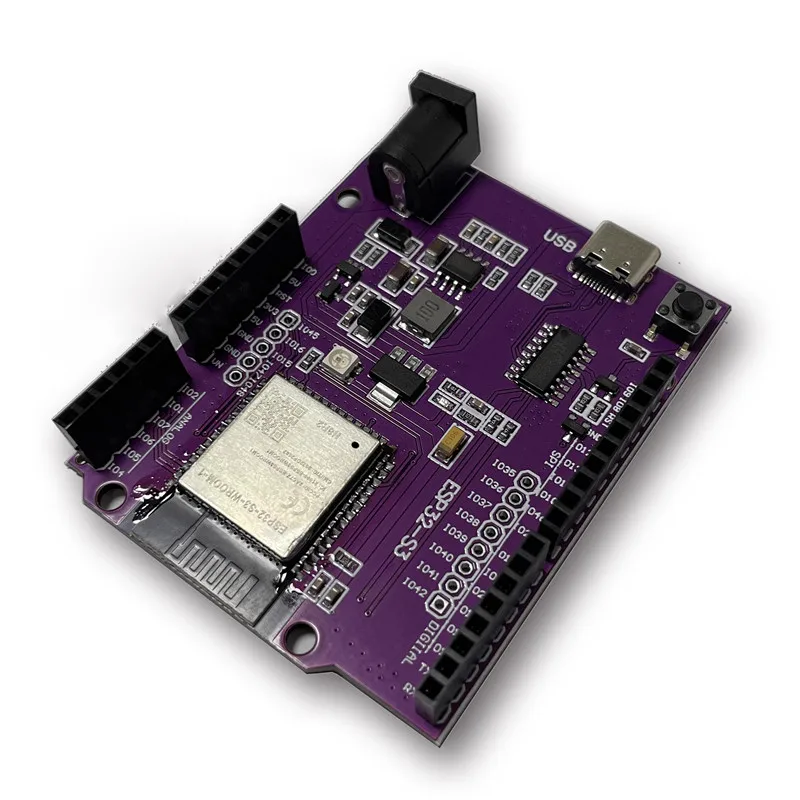

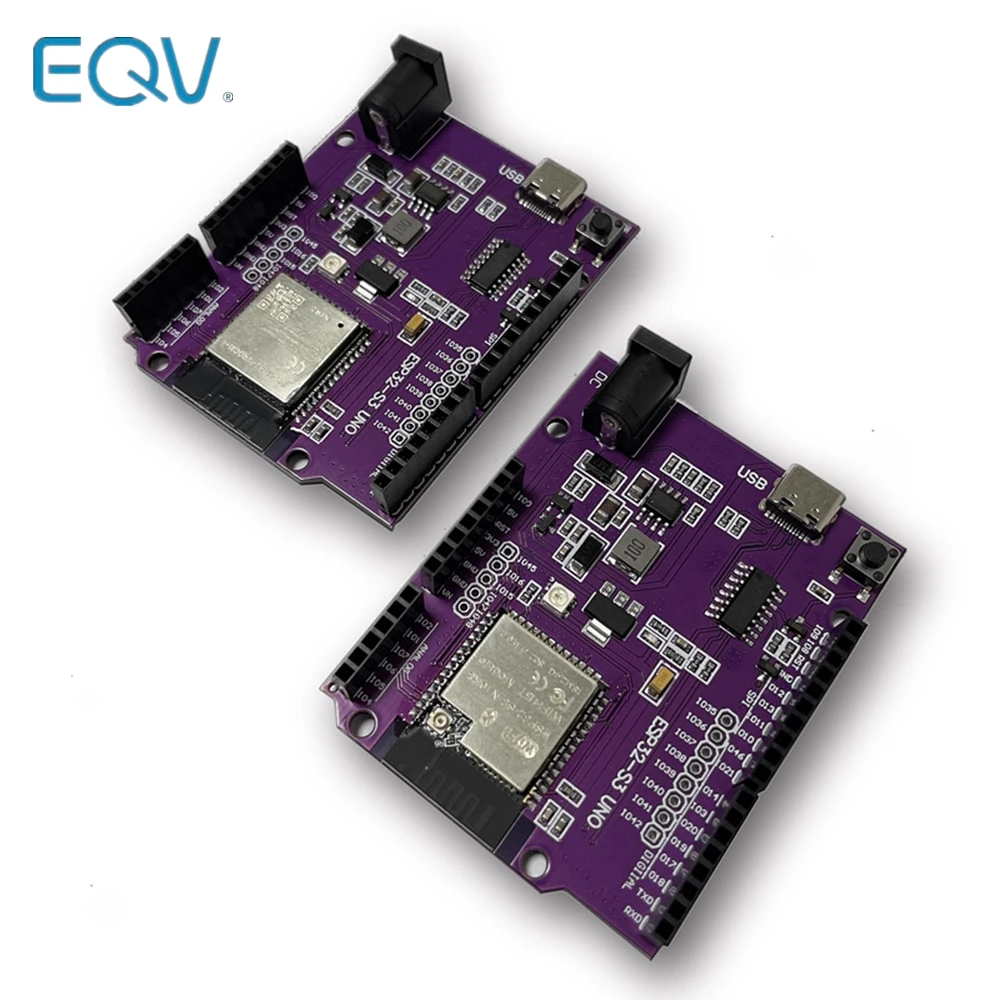

ESP32-S3 para placa de desarrollo UNO WROOM-1-N8R2 integrado el módulo N16R8 es compatible con DevKitC-1

Features:
1. The product uses high-quality PCB materials, with stable performance and guaranteed quality.
2. The ESP32-S3 development board has two specifications: N8R2-8M and N16R8-16M optional
3.ESP32-S3 is an MCU chip integrating 2.4GHz Wi-Fi and Blue-tooths 5 (LE), supporting long-distance mode
4. Support AI acceleration, powerful AI computing power and security encryption mechanism
5. Advanced peripheral interfaces and sensors support currently popular programming methods: IDF C language programming/Python programming/Ar-duinos programming






N8R2 parameters:
MPN: ESP32-S3-WROOM-1-N8R2
Built-in SRAM: 512K
Built-in ROM: 384K
External expansion PSRAM: 2M
External expansion FLASH: 8M
Development board interface: Type-c USB interface





N16R8 parameters:
MPN: ESP32-S3-WROOM-1-N16R8
Built-in SRAM: 512K
Built-in ROM: 384K
External expansion PSRAM: 8M
External expansion FLASH: 16M
Development board interface: Type-c USB interface





Shipping list:
ModuleX1




Features:
1.ESP32-S3-WROOM-1 is a universal W-Fi + low-power Bluetooth MCU module, equipped with ESP32-S3 series chips.
2. The module has rich peripheral interfaces, including module interfaces: SPI, LCD, Camera interface, UART, I2C, I2S, infrared remote control, pulse counter, etc.
3. Adopts dual-core 32-bit LX7 microprocessor with operating frequency up to 240 MHz.
4. The module also has powerful neural network computing capabilities and signal processing capabilities, and is suitable for a variety of application scenarios in the AoT field.
5. ESP32-S3-WR0OM-1 uses a PCB onboard antenna, which has a wide range of applications and can operate such as wake word detection and voice command recognition, face detection and recognition, smart home, smart appliances, smart control panels, smart speakers, etc.



Performance parameters:
CPU and on-chip memory
●Built-in ESP32-S3 series chip, Xtensa dual-core 32-bit LX7 microprocessor (supports single-precision floating point operation unit)
●Up to 240 MHz clock frequency
●384 KB ROM
●512 KB SRAM
●16 KB RTC SRAM
●MAX8MB PSRAM
Wi-Fi
●802.11 b/g/n
●Data rate up to 150 Mbps in 802.11n mode
●Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)
●0.4 μs protection interval
●Working channel center frequency range: 2412 ~ 2484 MHz
Bluetooth
●Bluetooth Low Energy (Bluetooth LE: Bluetooth 5. Bluetooth mesh)
●Rate supports 125 Kbps, 500Kops, 1 Mbps, 2 Mbps
●Advertising Extensions
●Multiple Advertisement Sets
●Channel Selection Agorithm #2
●Wi-Fi and Bluetooth coexist and share the same antenna
peripherals
●GPIO, SPI, LCD, Camera interface, UART, 12C, l2S, infrared remote control, pulse counter, LEDPWM, USB1.1 OTG.
Antenna selection
●Onboard PCB antenna (ESP32-S3-WROOM-1)




working conditions
●Working voltage/supply voltage: 3.0~3.6V
ESP32-S3-WROOM-1-N8R2:
Flash: 8 MB (Quad SPI)
PSRAM: 2 MB (Quad SPI)
Ambient temperature: –40℃ ~ 85℃
Module size: 18.0 mm × 25.5 mm × 3.1mm



ESP32-S3-WROOM-1-N16R8:
Flash: 16 MB (Quad SPI)
PSRAM: 8 MB (Octal SPI)
Ambient temperature: –40℃ ~ 65℃
Module size: 18.0 mm × 25.5 mm × 3.1mm



Product List:
1Xmodule
