EMK SPDIF TOSLINK Digital Optical Audio Cable Switch 3x1 with IR Remote Controller Toslink Splitter 1x3 Optical hub Switcher Support 5.1

Introduction:

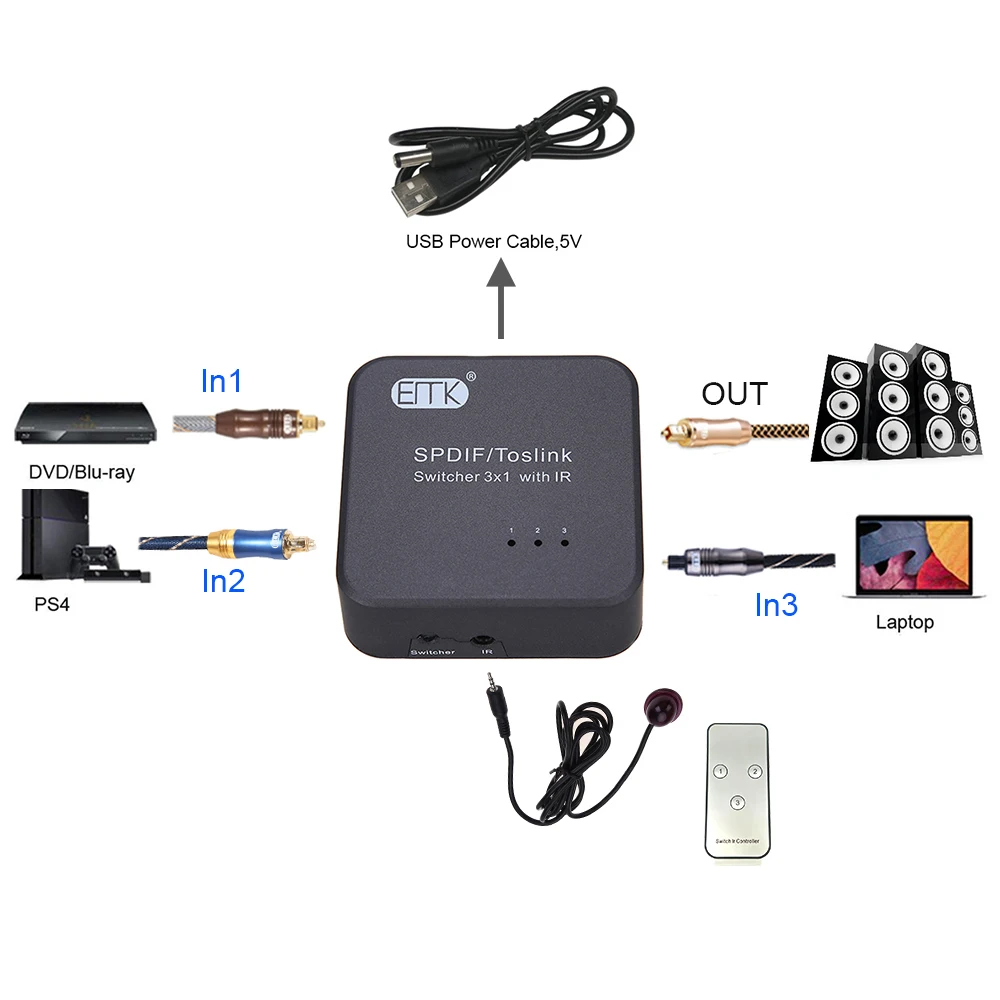

This SPDIF/Toslink Digital Optical Audio Switcher can let the users to connect three digital optical toslink sources to one optical toslink/SPDIF input on your AV amplifier.

Our devices offer solutions for noise,space and security concerns,data center control,information distribution,conference room presentation,school and corporate training environment.

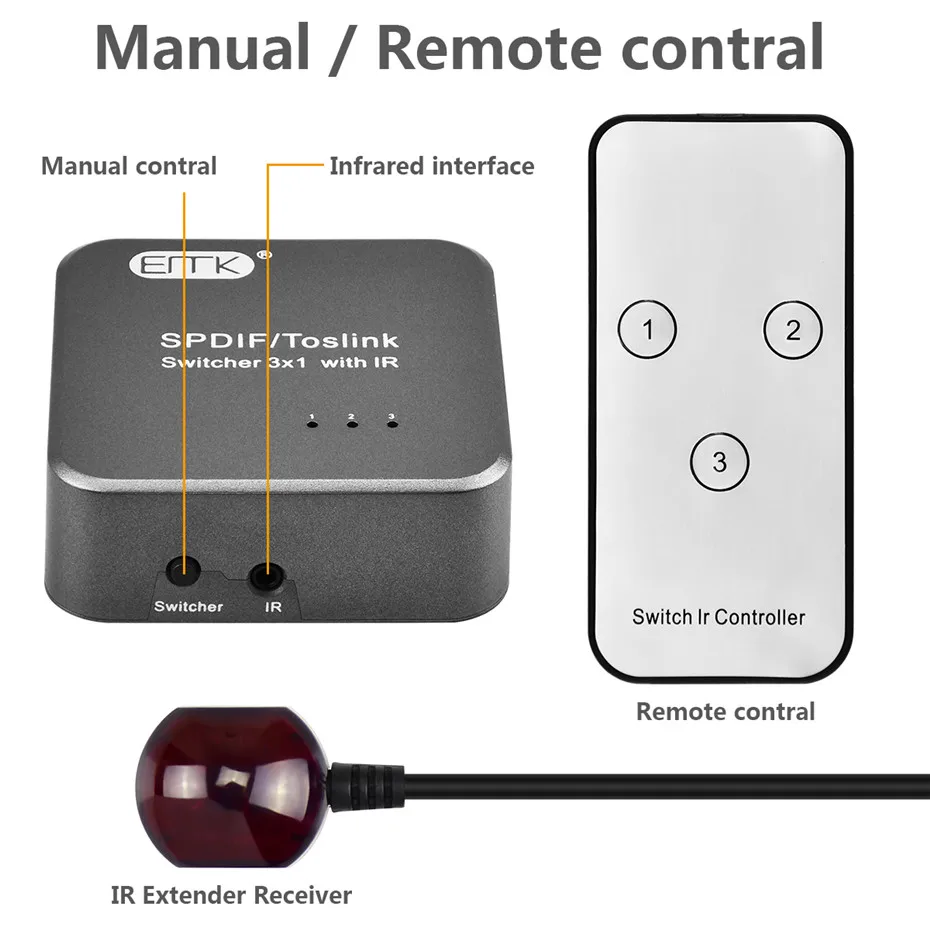

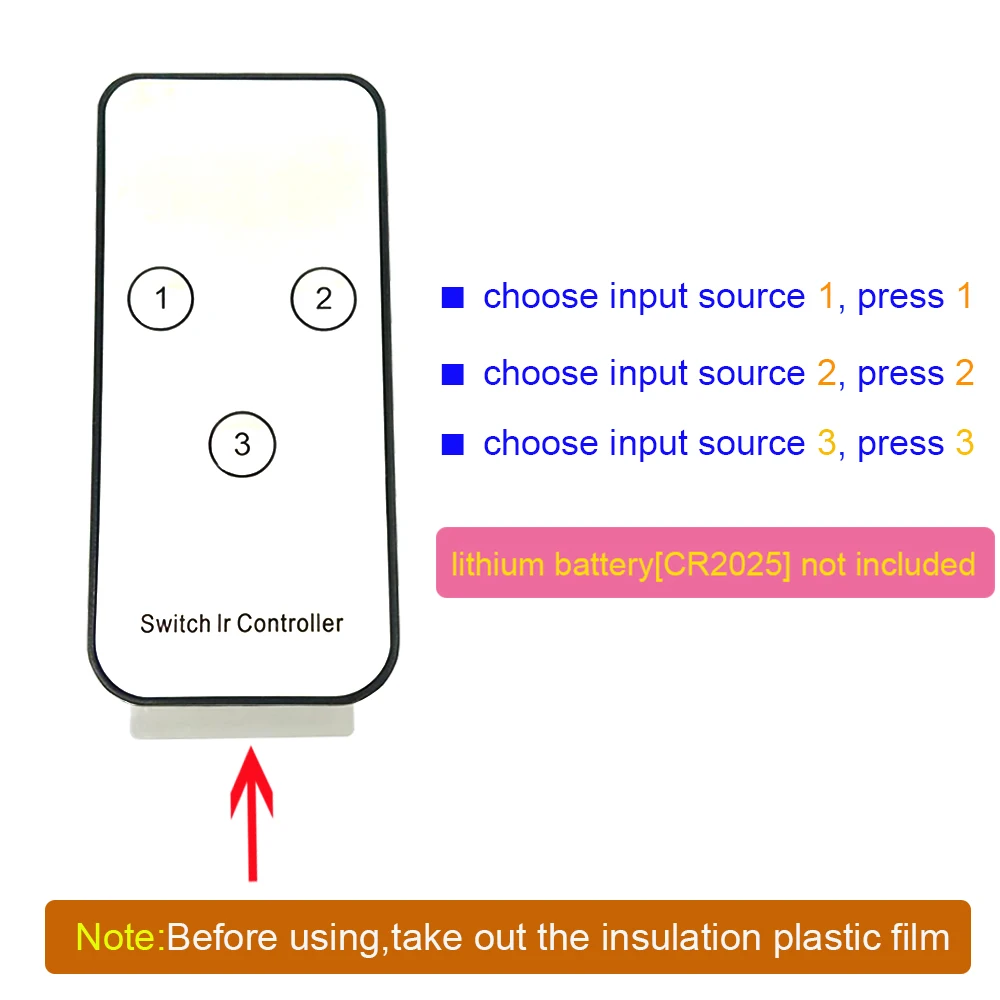

Remote control unit operating instructions:

note:Before using the remote of the unit,please first take out the insulation plastic film from remote control unit tail,If the remote control is not used for a long time,please insert the insulation plastic film.

1.Press the Power switch button.

2.SPDIF/Toslink input port switch button,if you want to choose input source 2,direct press numeric key 2.

Specification:

• Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.

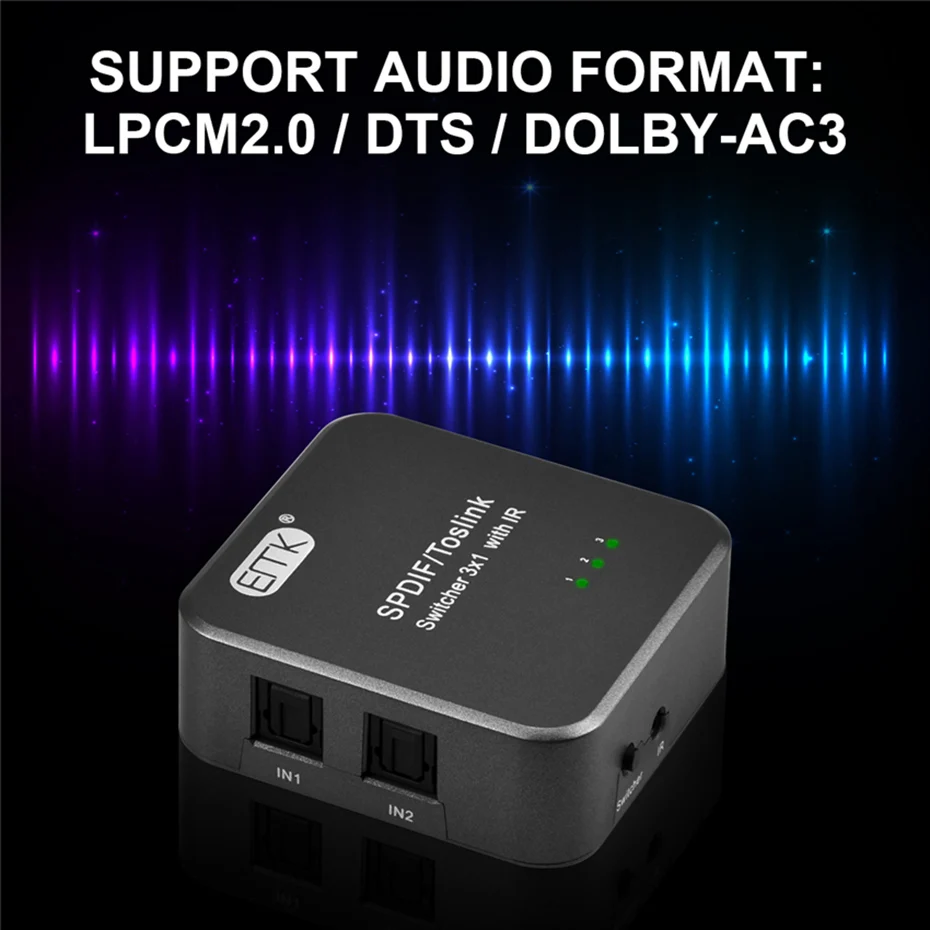

• Audio format support : LPCM2.0/DTS/Dolby-AC3

• Support signal retiming

• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.

• The input control can through R/M and also can directly press the button

• Support last time working state memory when power off

• Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

• LED status indication

• No loss of quality

• Installs in minutes

• Need DC5V/500mA power supply

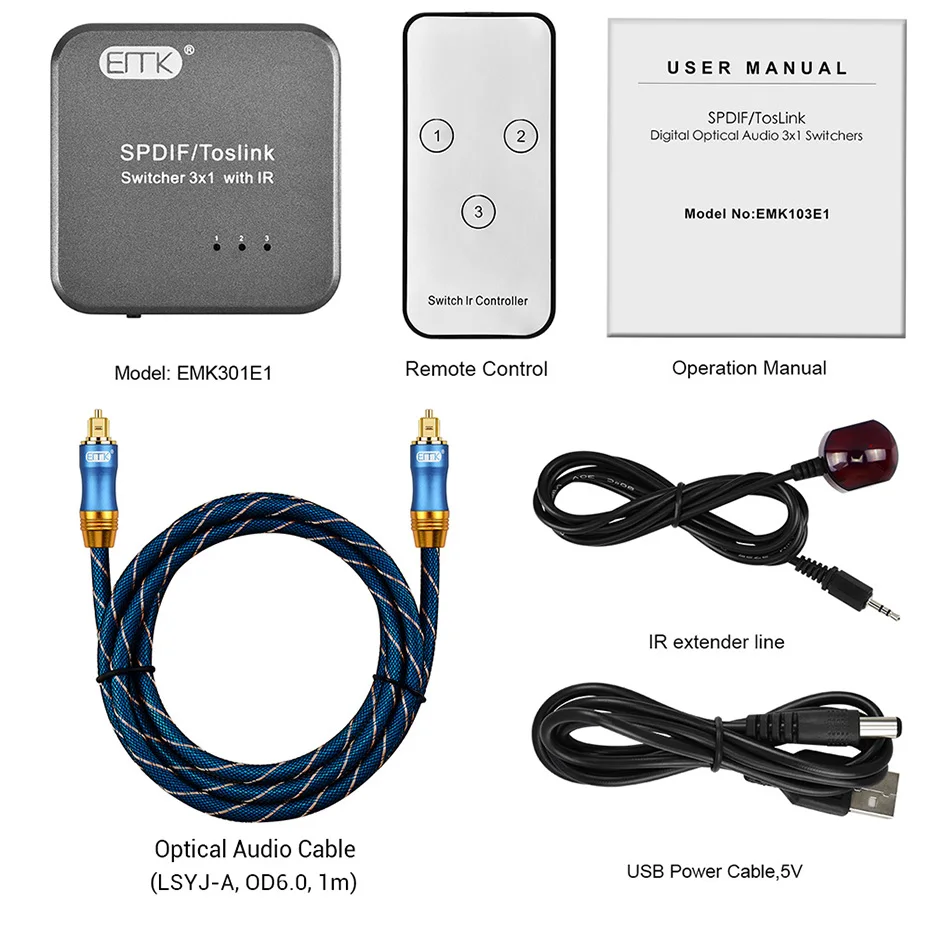

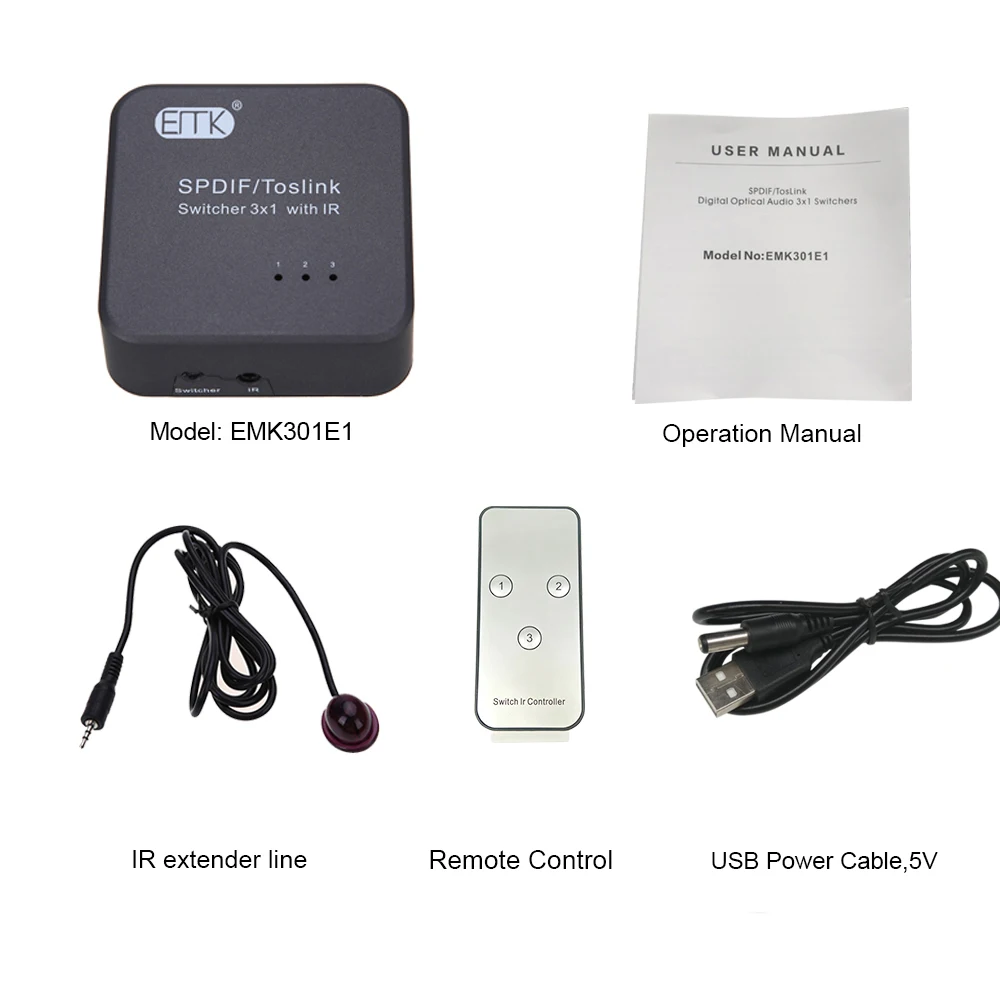

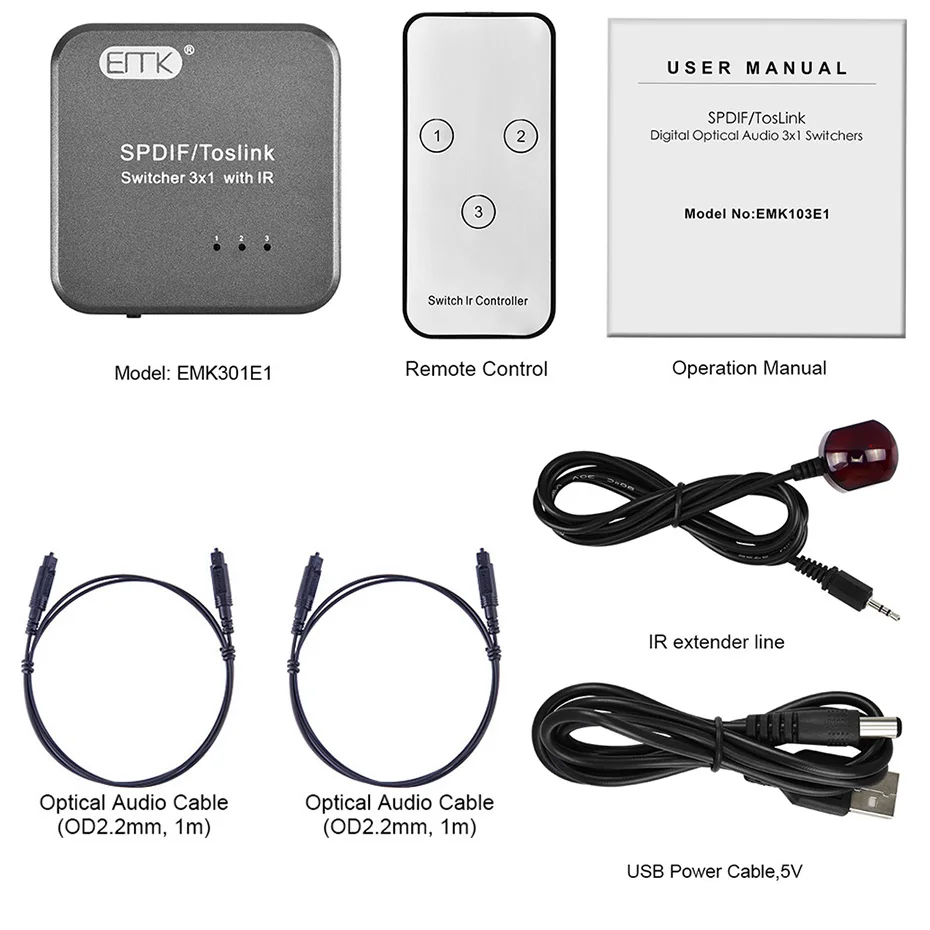

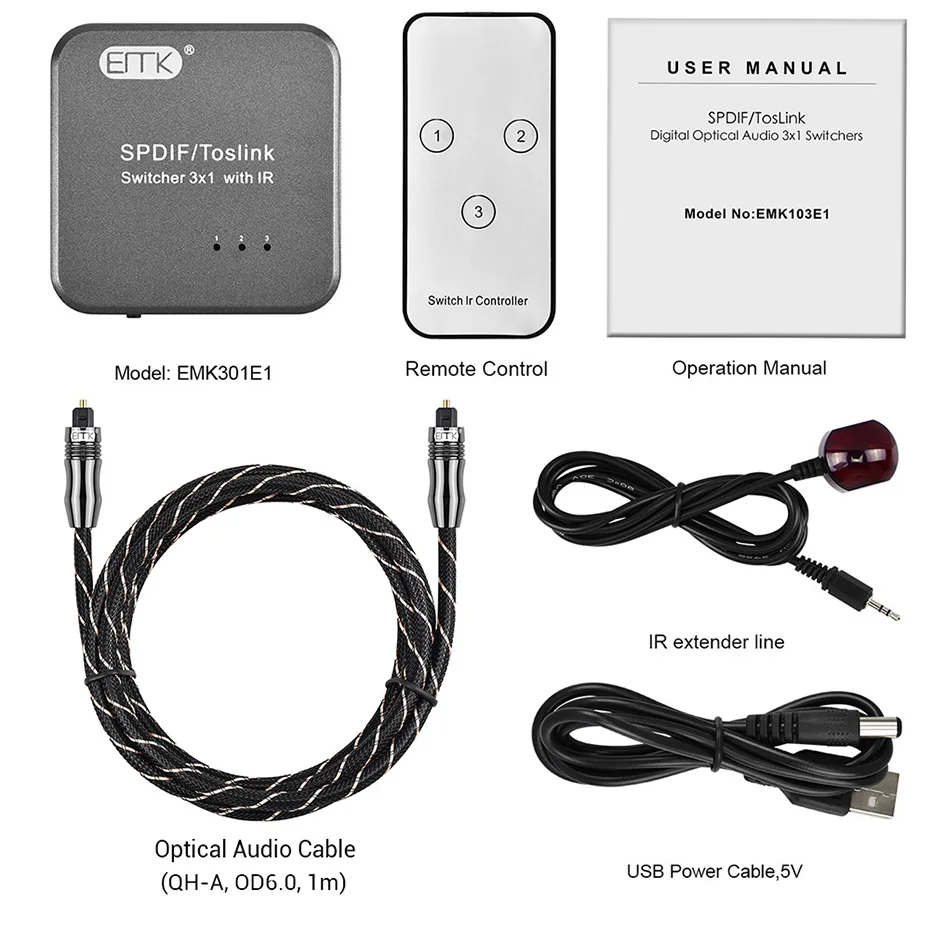

Package Including:

EMK-301E1

1. Main unit: EMK301E1
2. 5V Power Cable
3. Operation Manual

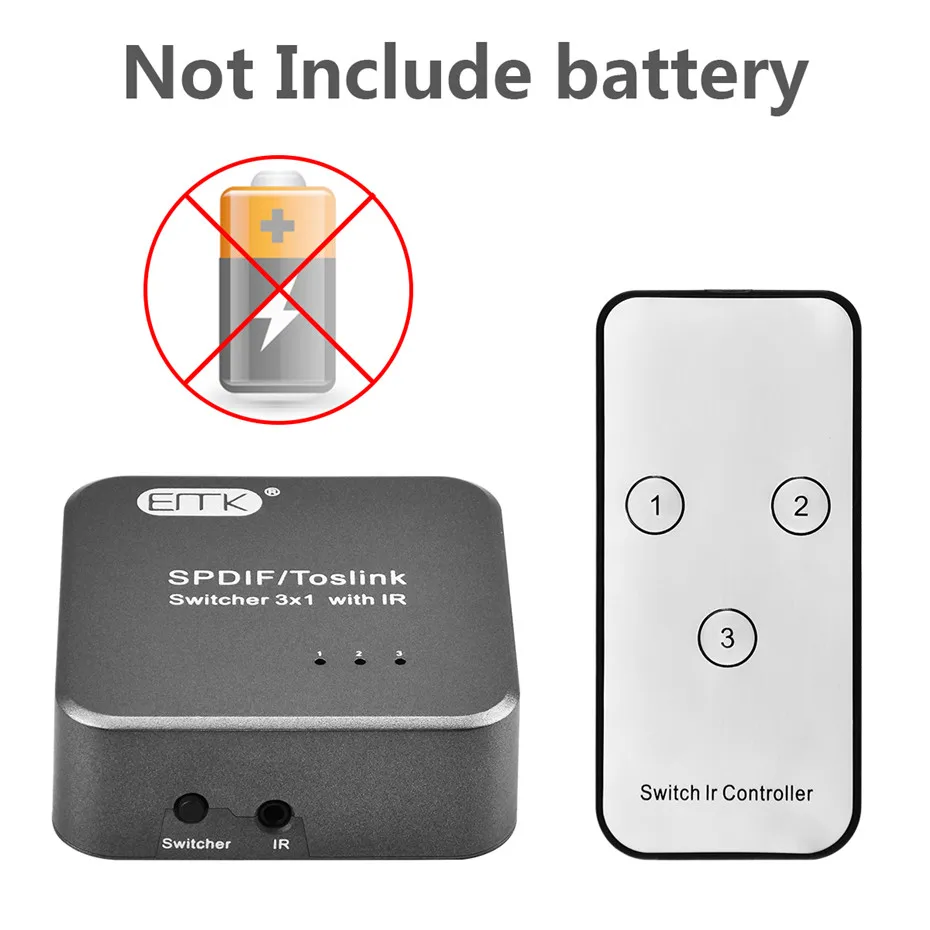

4. Remote-control unit(lithium battery[CR2025] not included)
5. IR extender Cable

6. 1pcs OD6.0mm Toslink Cable or 2pcs OD2.2mm Toslink Cable

Set A

Set B

Set C
