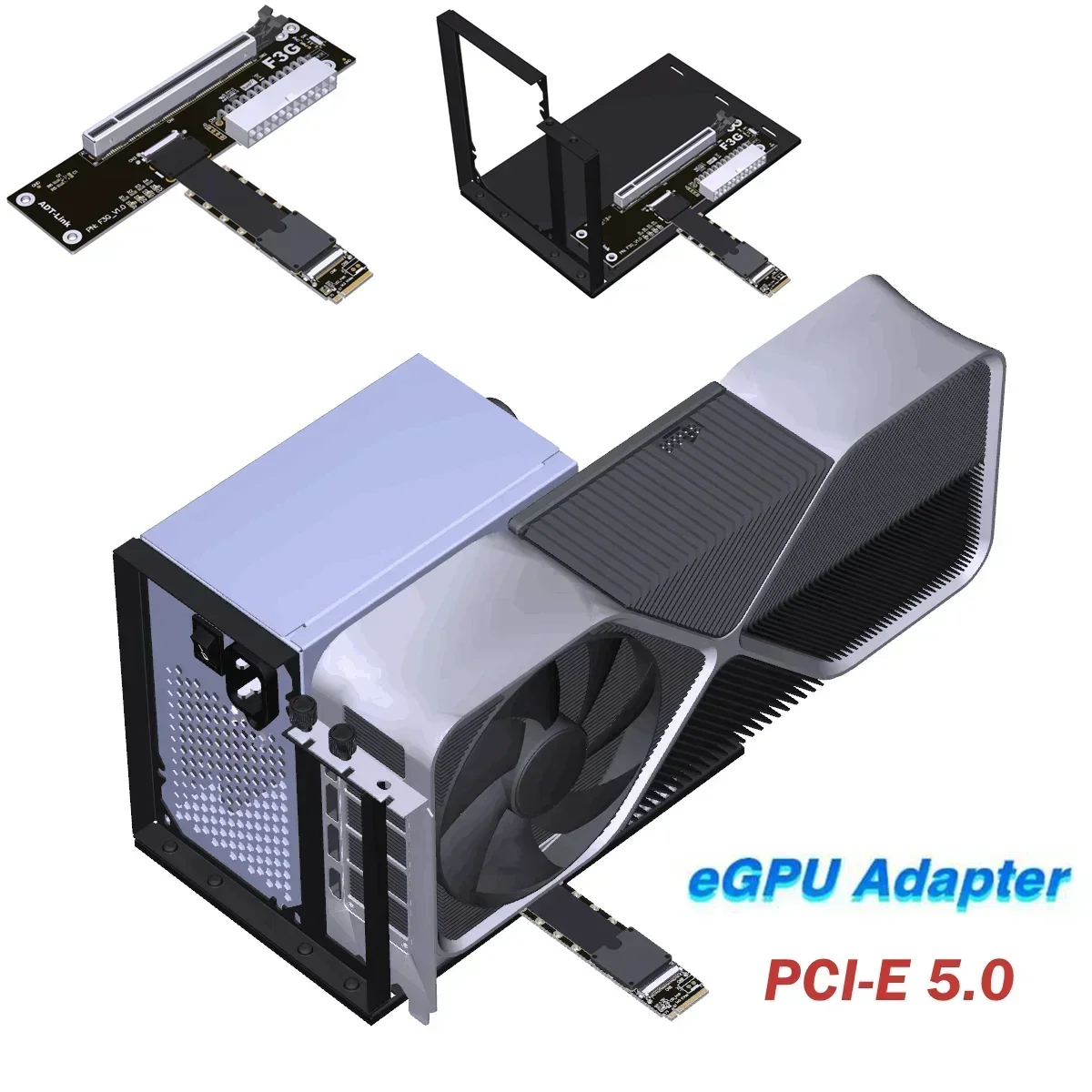

EGPU M.2 portátil F43SG 5,0 M.2 Key M para NVMe tarjeta de vídeo externa adaptador eGPU Gen5 PCIe 5,0x16 GPU Dock ITX STX NUC Notebook PC

ADT-Link PCIe 5.0 x16 to M.2 NVMe M Key eGPU Adapter

Brand name: ADT-LINK

Product name: PCIe 5.0 x16 to M.2 M-key extension cable

Product model: F43SG

Transfer speed: PCIe 5.0 x4, Gen5 128G/bps (Max.)

Wire length: 25cm, 50cm

Application: eGPU for NUC / ITX / STX / Notebook PC

Application: eGPU for Intel NUC / ITX / STX / Notebook PC(Only supports M.2 NVMe interface, does not support M.2 SATA / M.2 WiFi / M.2 WWAN / USB interface)

Graphics card compatibility:

Motherboard compatibility:

Power Description:

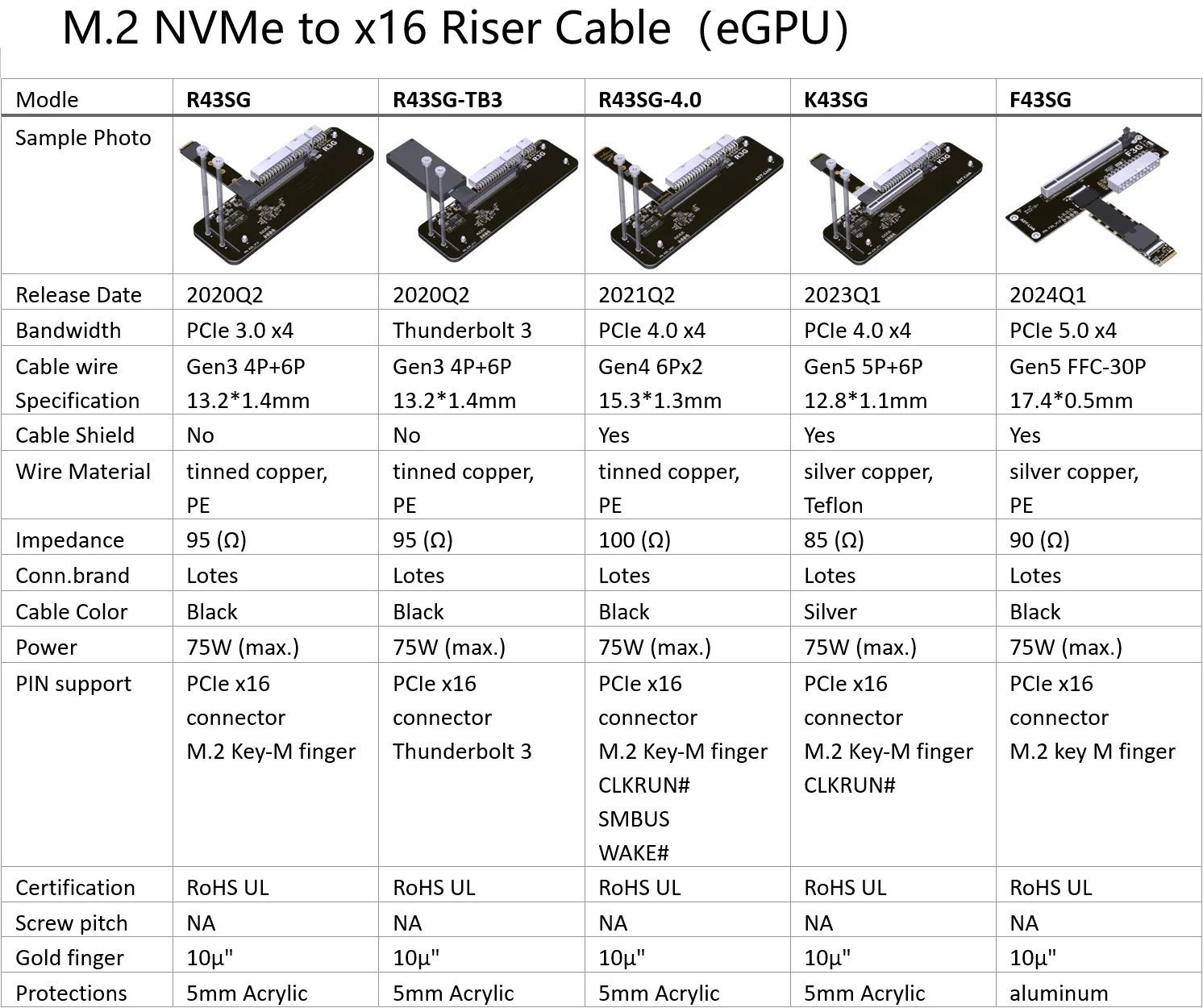

ADT F43SG series Part-Number Description:

included 80cm USB4 type-c cable

Cable Length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

应用场景图:

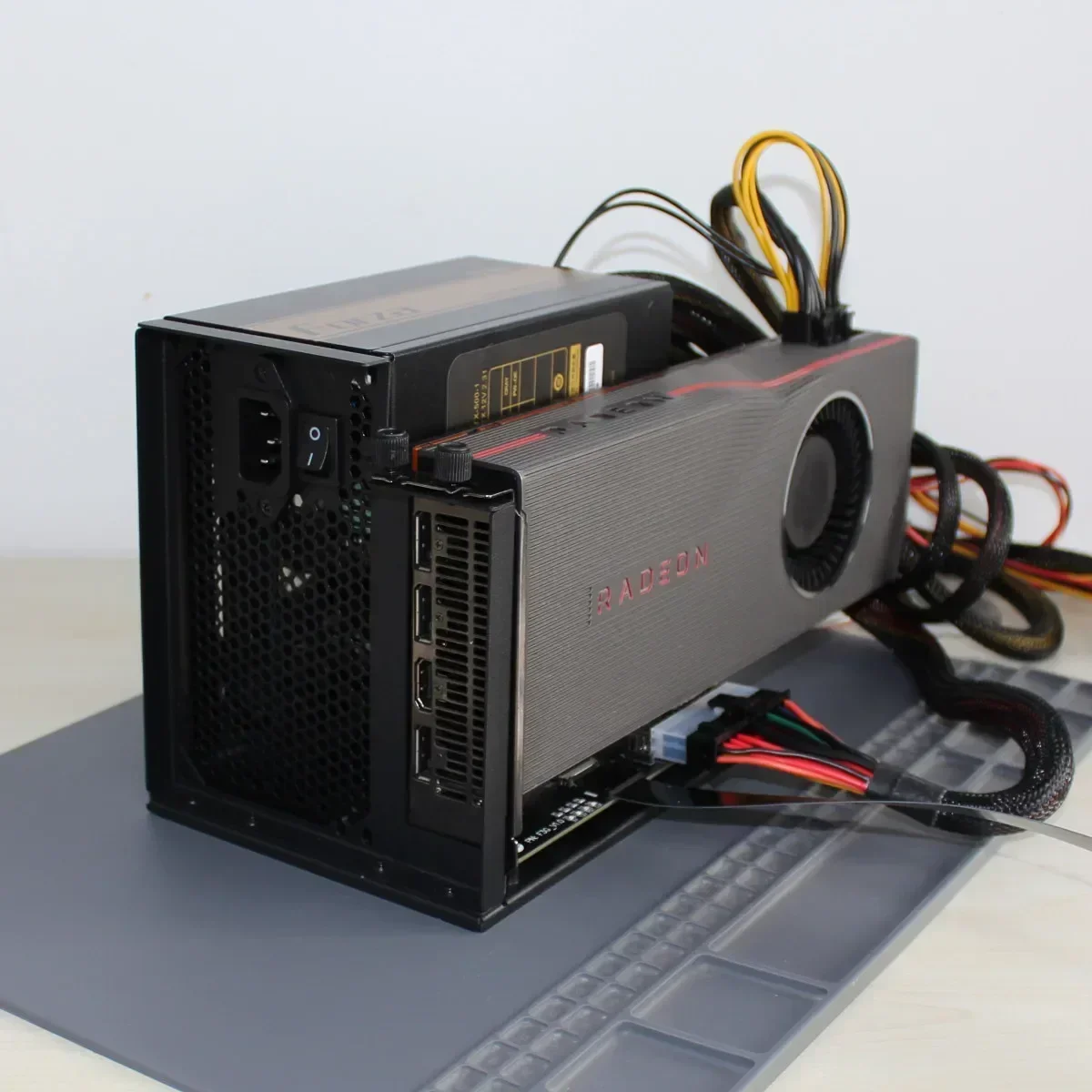

无界S R7-7840H+RX7800XT+F43SG-BK7+鑫谷全模650W电源,展示如下:

无界S R7-7840H+RX7800XT+F43SG-BK7+USB4盒子+鑫谷全模650W电源,展示如下:

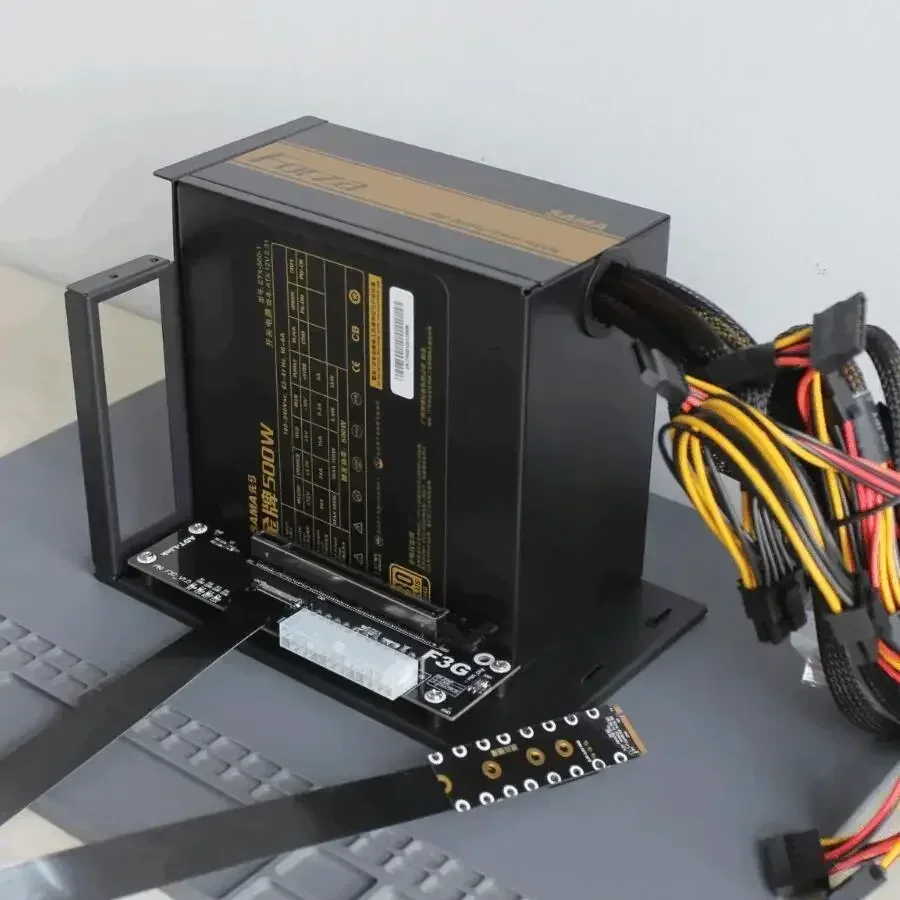

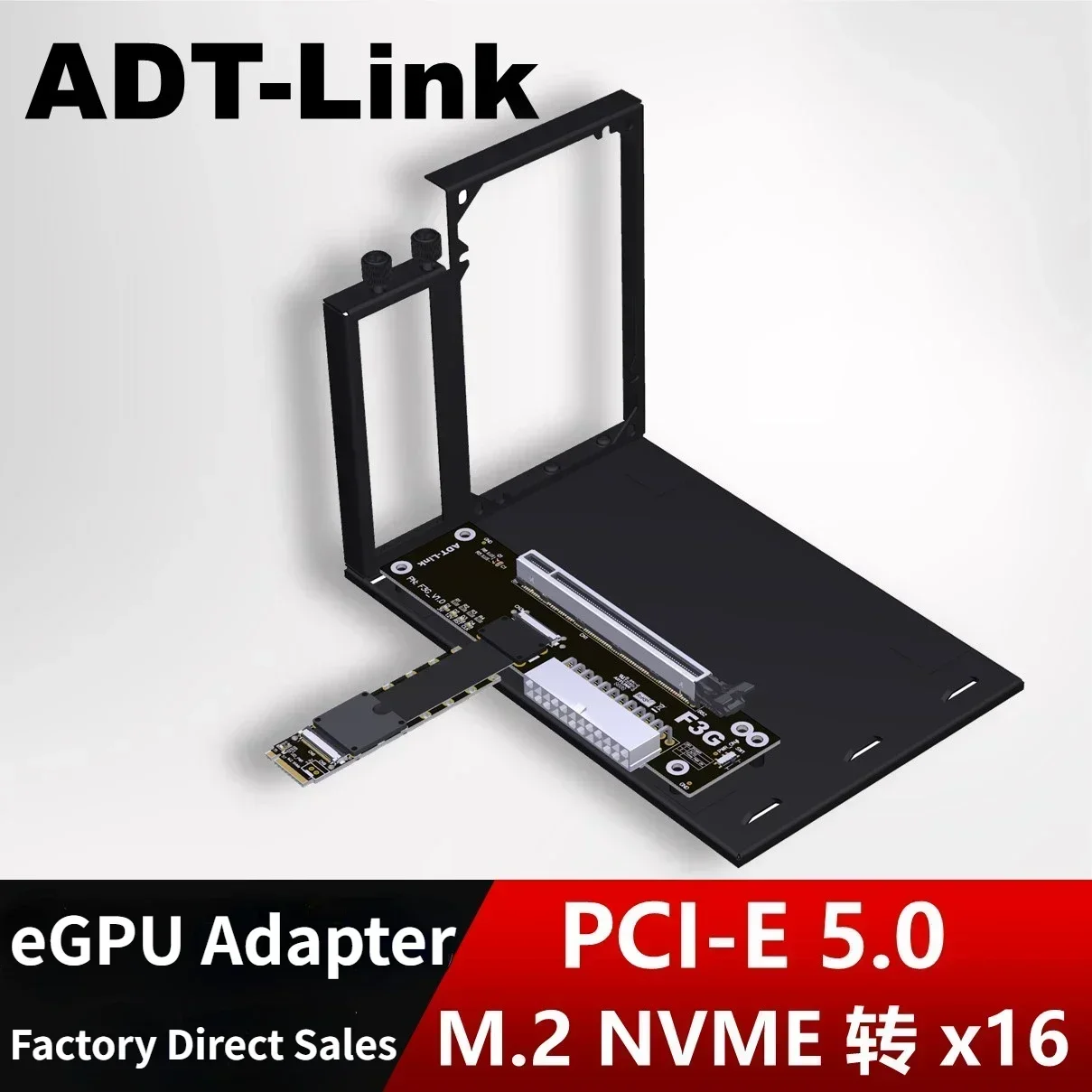

Installation renderings

Can F43SG Support PCIe 5.0?

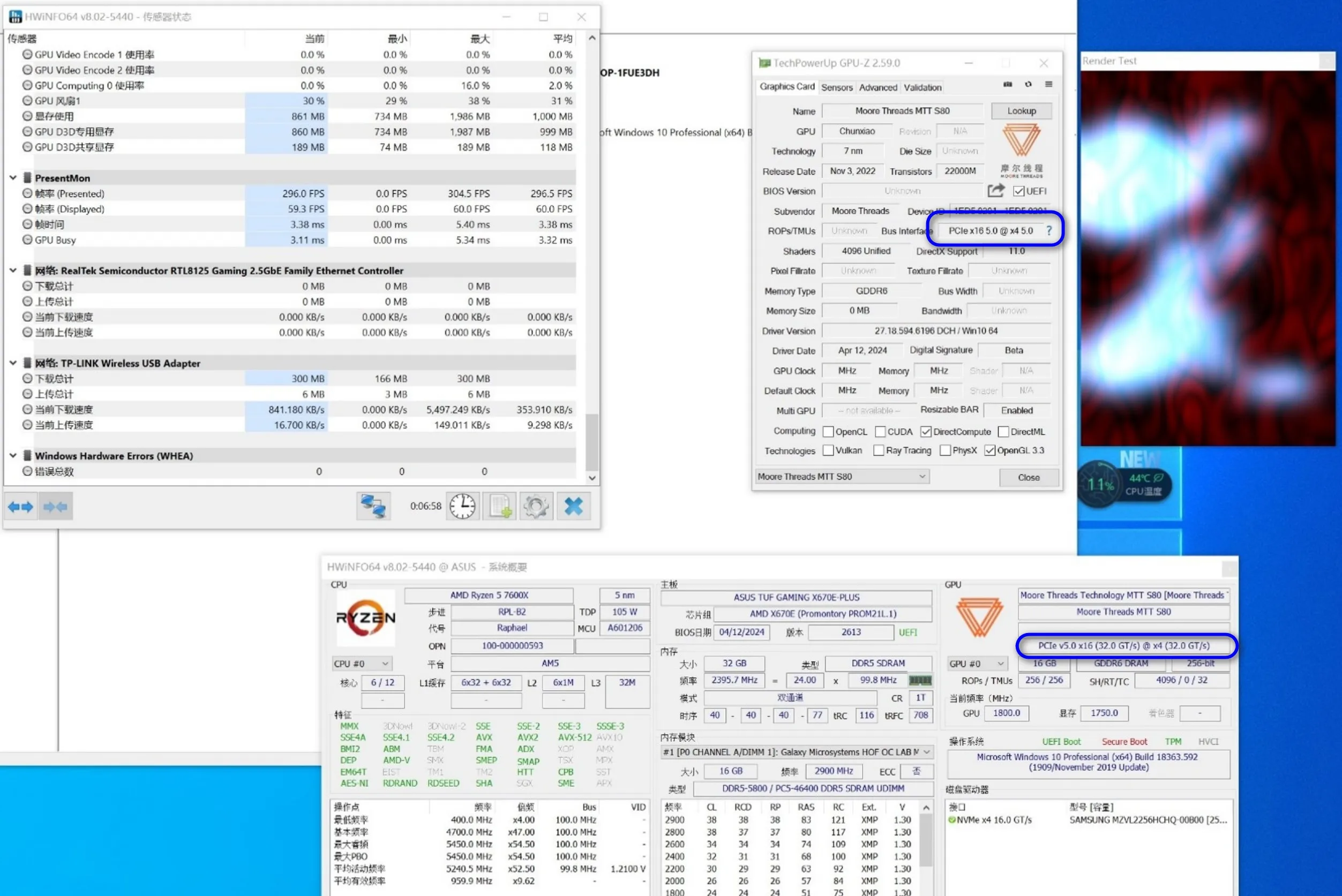

The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result of F43SG-50cm

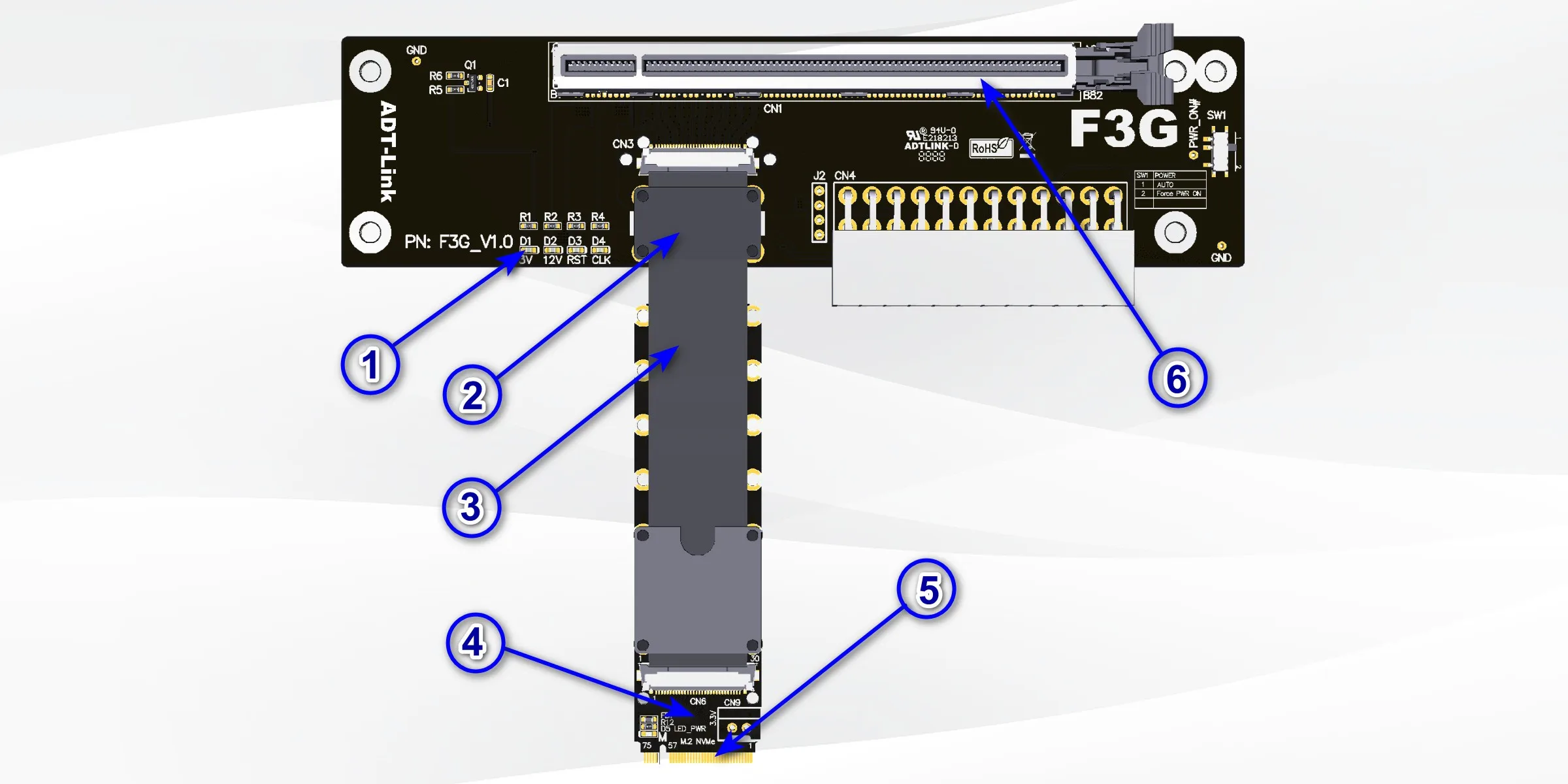

Product advantages

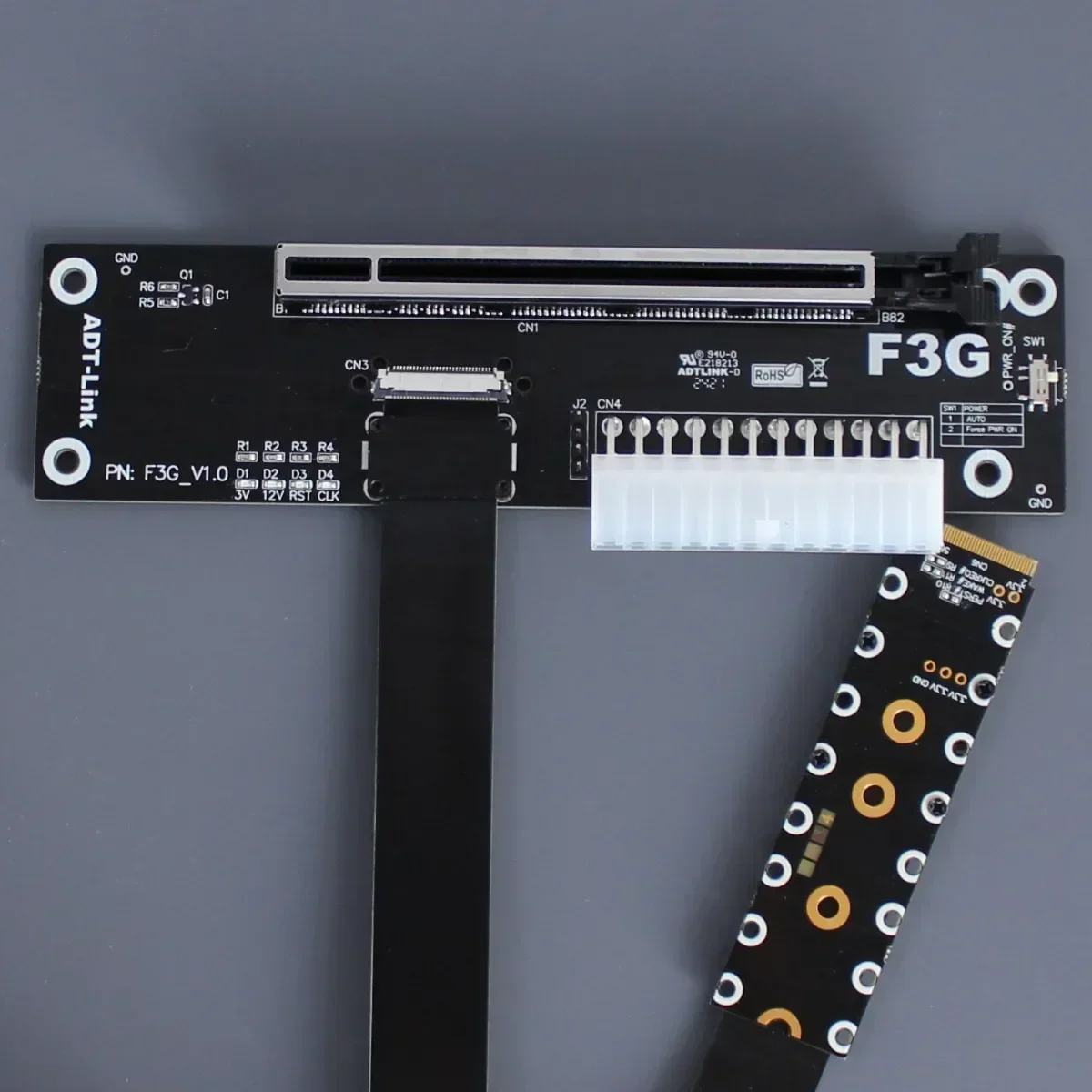

1.Four LED indicators: CLK, RST, 12V and 3V

2.Using aluminum alloy gaskets, it can effectively block interference and noise, making it strong and durable.

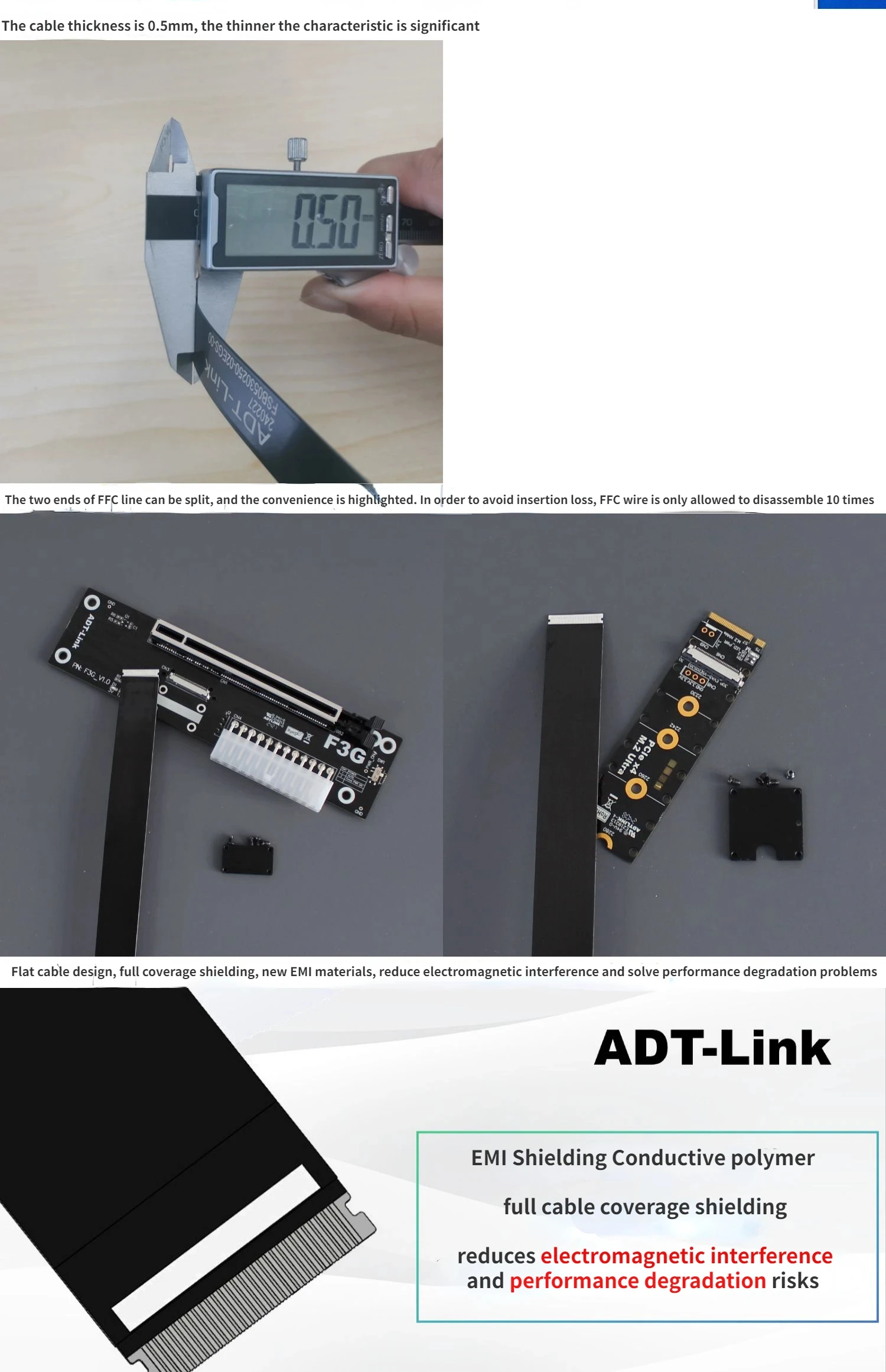

3.FFC wire, flat cable design with full coverage and shielding, thickness only 0.5mm, ultra-soft and ultra-thin.

4.The PCB uses a four-layer high-frequency impedance board with advanced design, exquisite workmanship, stable and fast signals, excellent wiring, good isolation, and can reach the PCIe 5.0 standard.

5.The gold finger is 10µ" gold-plated, resistant to plugging and unplugging, and has better stability.

6.The connector is from Amphenol, the shell material is PA10T/LCP, the socket has a durability of 50 Cycles, supports high frequency and complies with RoHS/Free (HF) requirements.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 0.5mm, so the wire is softer and can be bent or folded.

How to solve the problem that the CLKREQ signal light of ADT F3G is not on?

This is because there is a problem with the hardware design of the graphics card. Some parts of the graphics card 5 years ago do not support CLKREQ signals. If the CLKREQ signal light is not on, you can turn off the PCIE power saving function in the system or BIOS.

Can F43SG Support PCIe 5.0?

The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result of F43SG-50cm
