DIYUSER-Módulo de aumento DC-DC, convertidor de impulso de corriente constante, controlador LED, cargador de voltaje de 400-50V a 10-60V, 8,5 W, 15A
3,29 € 9,97 €
Con la garantía de
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.

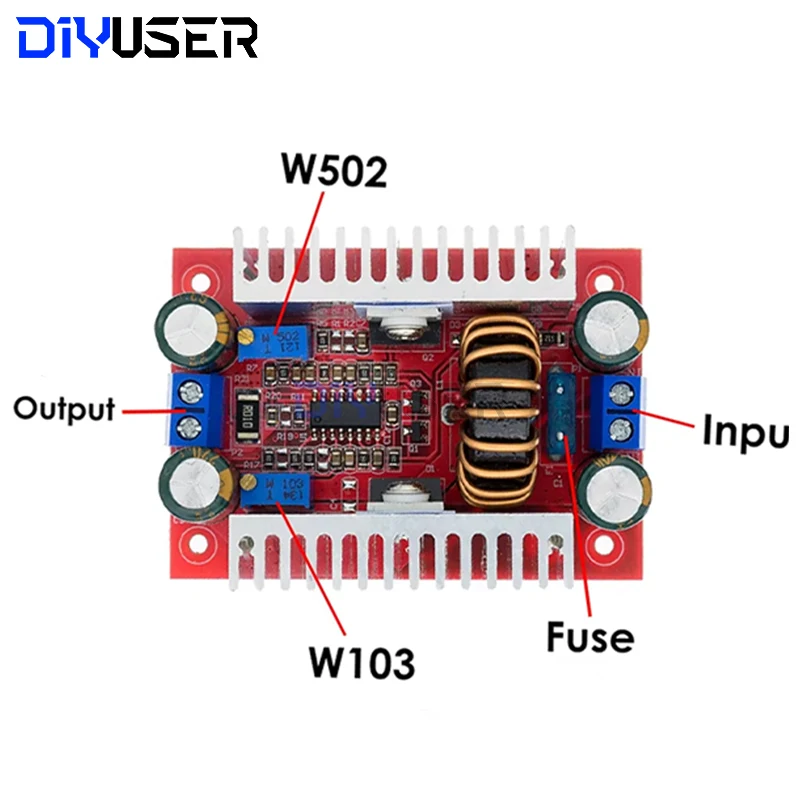

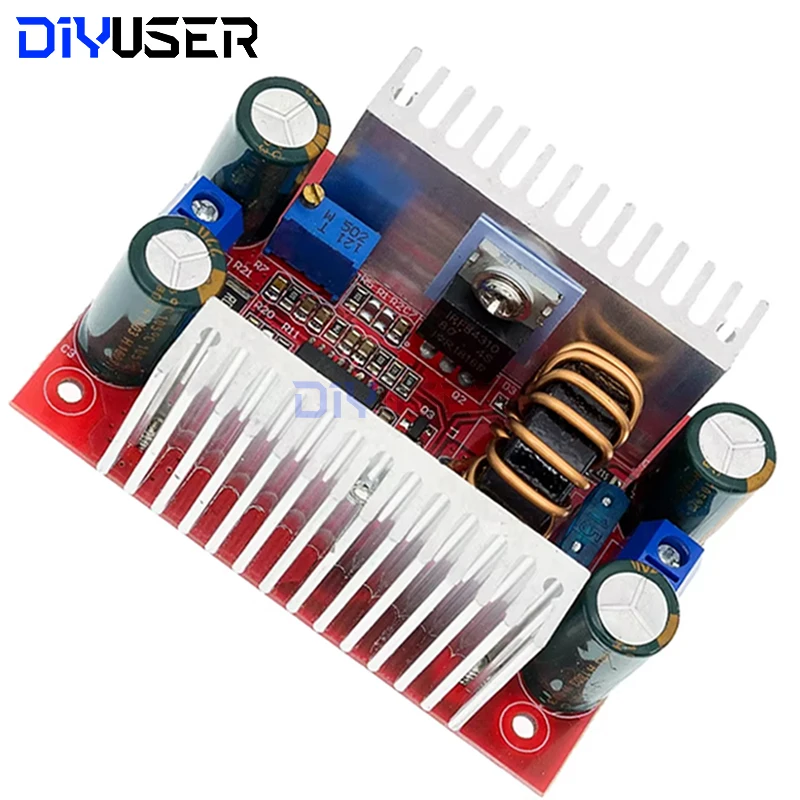

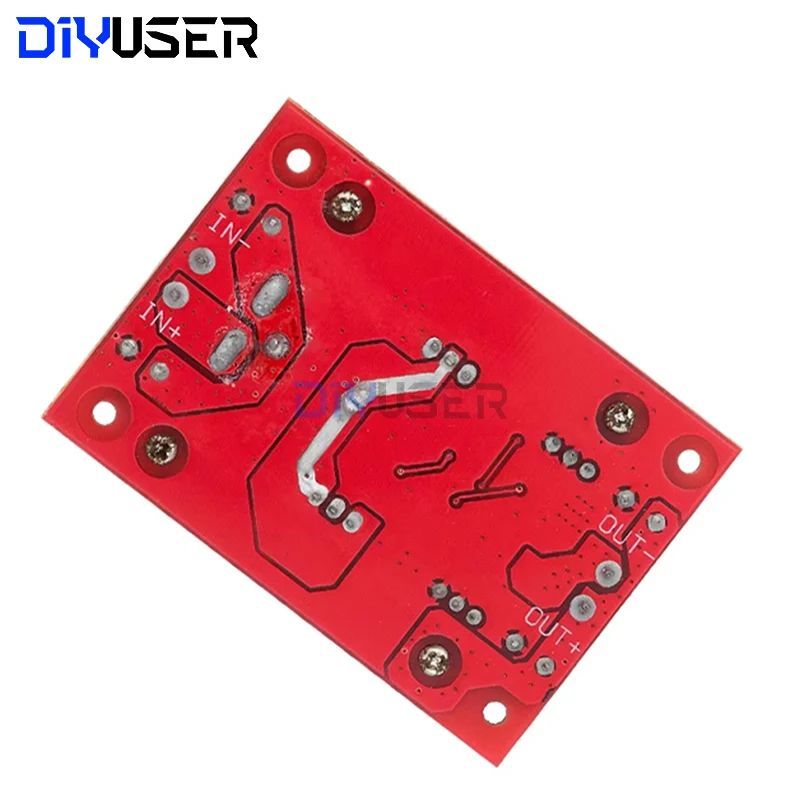

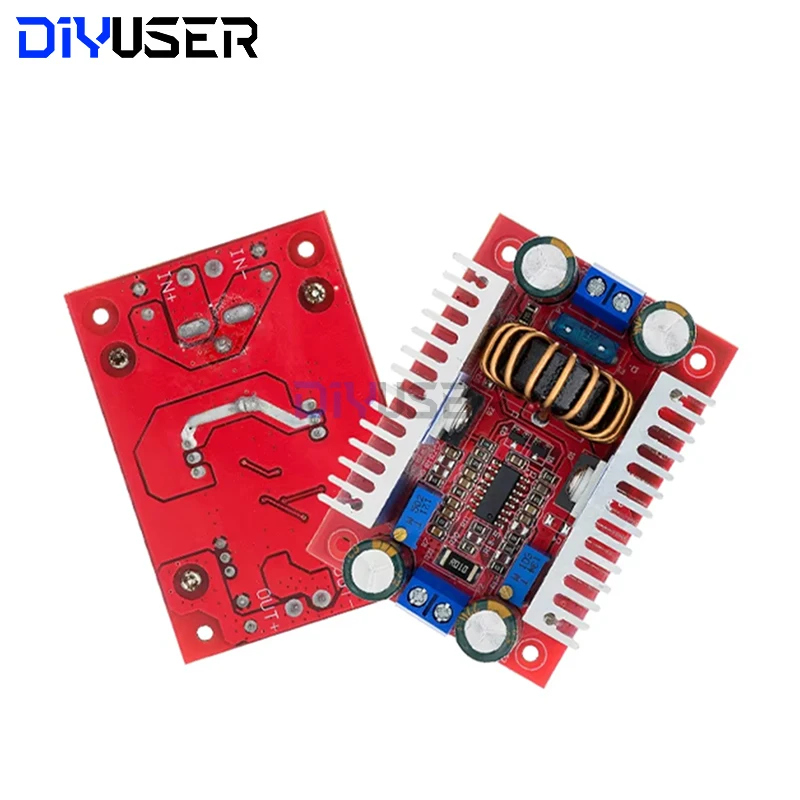

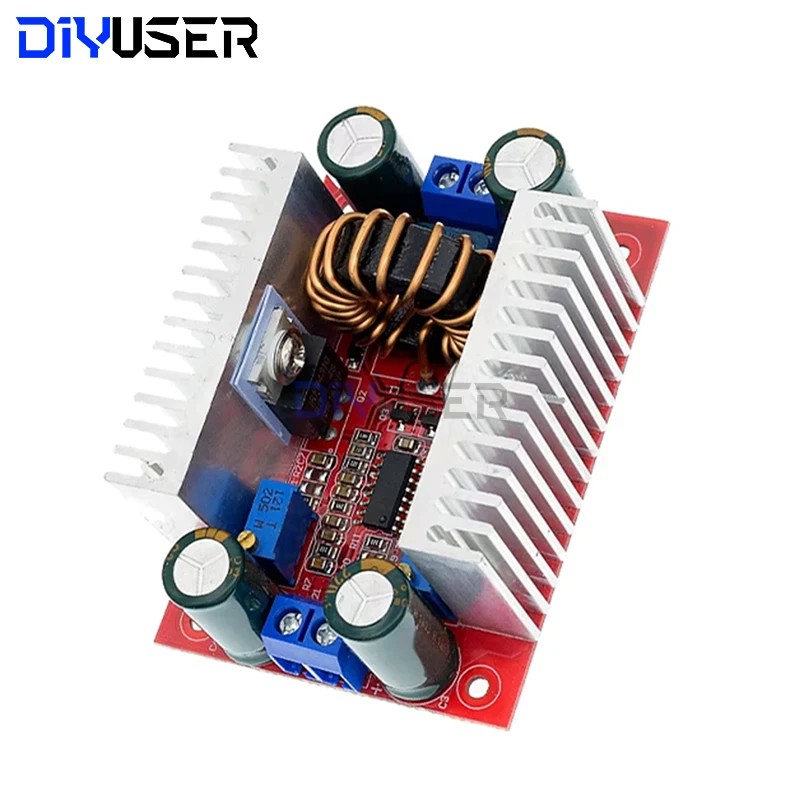

Description:Module name :400W boost constant current moduleModule properties: non-isolated step-up module (BOOST)Input voltage: DC8.5V-50VInput current: 15A (MAX) exceeds 8A please enhance heat dissipationQuiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)Output voltage: 10-60V continuously adjustableConstant] range: 0.2-12ATemperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)Operating frequency: 150KHzConversion efficiency: up to 96%Overcurrent protection: yesInput reverse polarity protection: noInstallation: 4 2.55mm screw holesConnection method: Connection OutputModule size: 67mm X48mm X 28mm (LxWxH)Single module: 60 gApplications:1. DIY a power supply, 12V can input and output can 12-50V adjustable.2. the power supply for your electronic device, according to your system can set the output voltage value.3. as the car power supply for your laptop, PDA or a variety of digital products supply.4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.5; solar panel regulator.6 to the battery, rechargeable lithium batteries.7. driving high-power LED lights.
Comprar DIYUSER-Módulo de aumento DC-DC, convertidor de impulso de corriente constante, controlador LED, cargador de voltaje de 400-50V a 10-60V, 8,5 W, 15A
