8 PCS FBT splitter LC/APC Abs box dual window 30/70 90/10 80/20 ratio optical fused coupler for FTTH 1310/1550nm free shipping

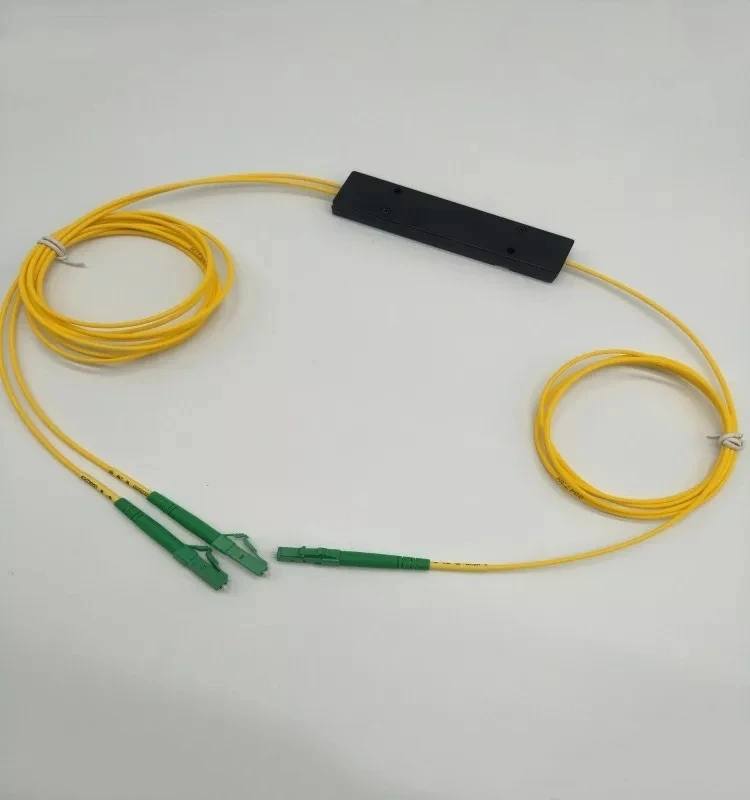

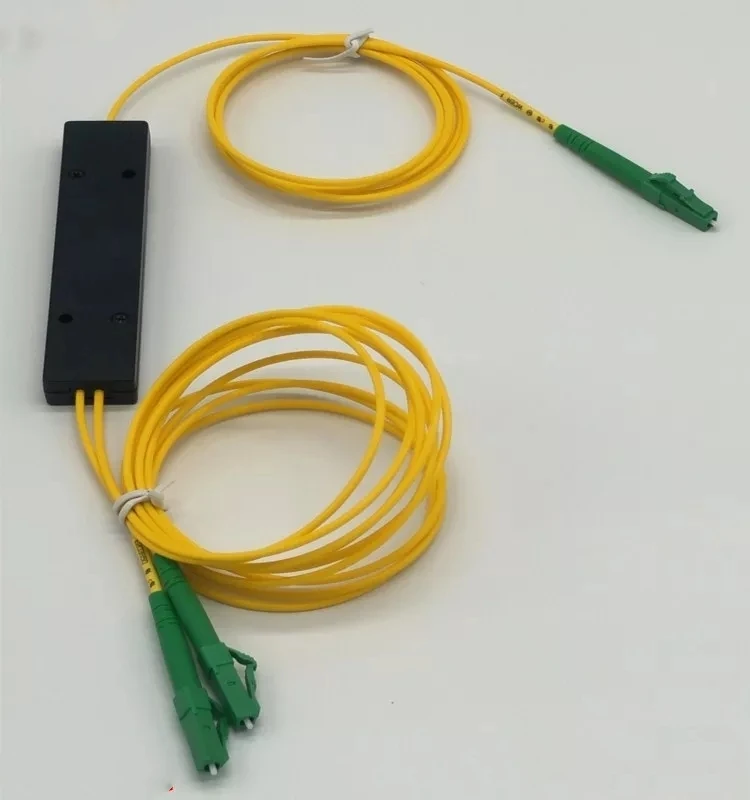

PIC SHOW:

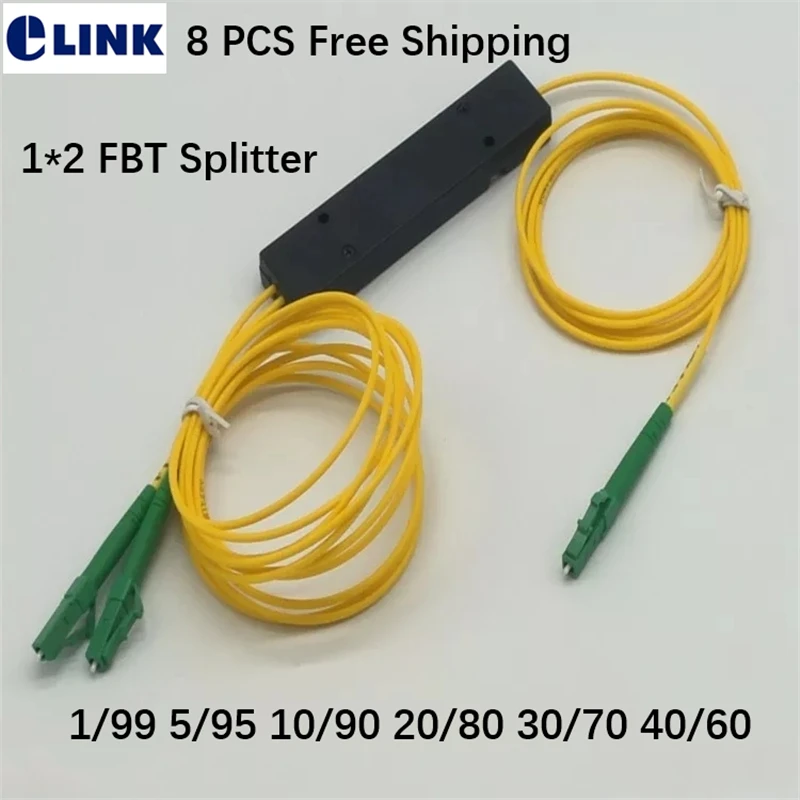

Fused fiber splitter 1X2 FBT fiber optic Splitter for FTTH
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. High Reliability
4. High Uniformity
5. Outstanding Optical Performance
6. Low Polarization Sensitivity
7. Excellent Environmental Stability and Widely Used
1. FTTx Deployments (FTTP,FTTH,FTTN,FTTC)
2. Cable Television (CATV)
3. Local Aerial Networks (LAN)
4. Passive Optical Networks (PON)
5. Test Equipment
Parameter
1x2
Operating Wavelength (nm)
1310/1490/1550nm
Operating bandwidth (nm)
±40
Grade
P
A
Insert Loss
(dB)
Coupling ratio:
1/99
≤22.5/0.25
≤23.5/0.35
2/98
≤18.8/0.3
≤19.5/0.4
3/97
≤17.0/0.35
≤17.8/0.45
5/95
≤14.6/0.4
≤15.5/0.5
10/90
≤11.2/0.75
≤12.0/0.8
20/80
≤7.9/1.3
≤8.4/1.4
30/70
≤6.0/1.9
≤6.3/2.1
40/60
≤4.7/2.7
≤4.9/2.9
50/50
≤3.6
≤3.8
Excess Loss(dB)
0.07
0.1
PDL(dB)
≤0.15
≤0.20
Return Loss(dB)
50
Directivity(dB)
≥55
Operating Temperature(ºC)
-40~85
Storage Temperature(ºC)
-40~85
Add Connector
SC, FC, LC or customerized
Notes: The values are all tested at +23ºC without connector
