Product Description
1. 50 times larger surface area than traditional heatsinks, allowing for better heat dissipation performance

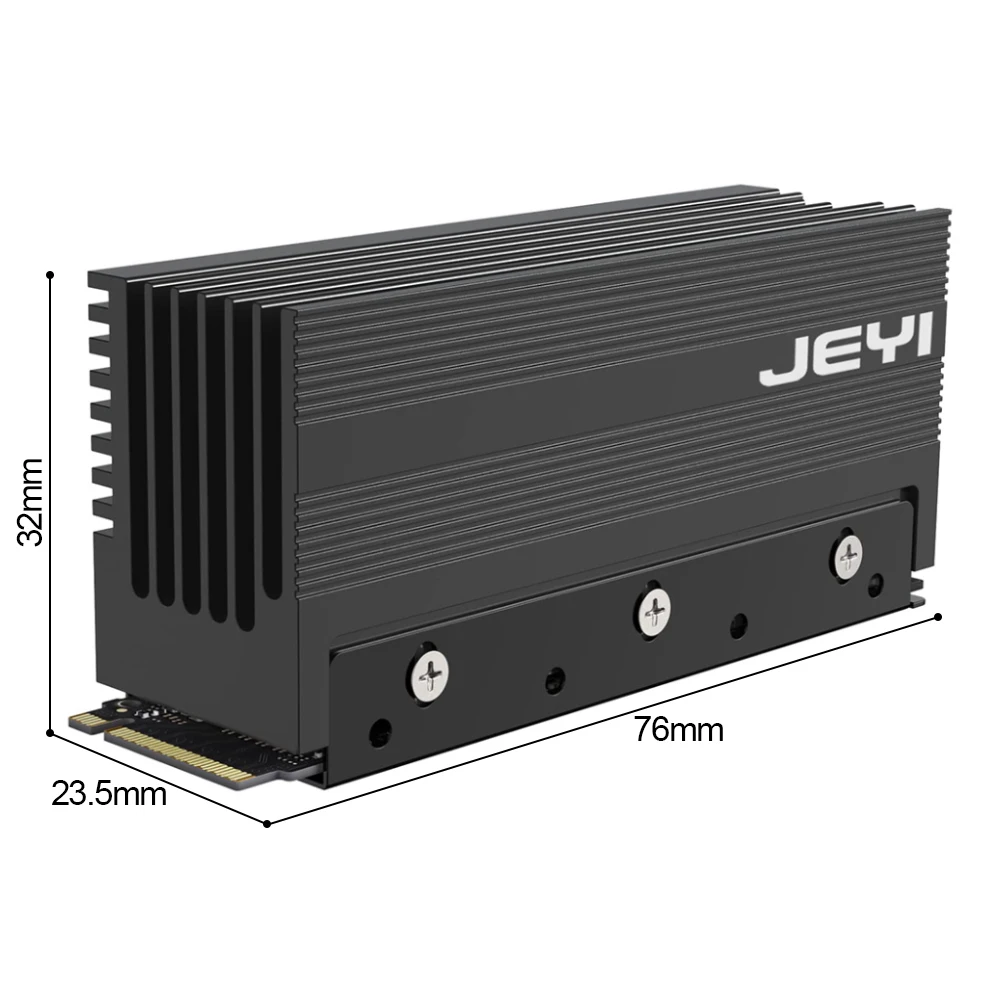

2. After the product is installed on the motherboard, the width is 23.5mm/1", the height is about 32mm/1.3", under normal situations will not affect the use of CPU heatsinks or graphics cards, but please pay attention to whether your motherboard has enough space to install this heat sink
3. The heat sink has a screw-fixed frame and included two high-conductivity thermal compound pads that can fill the contact gap of the SSD. When the screws are tightened, the heat dissipation of the SSD will be faster, and the soft thermal compound pads can make the solid heat sink base gently touches the SSD without damaging it
4. Support all types of M.2 SSD ( NVME SSD and NGFF SATA SSD ). Tightening the screws and stick the thermal pad on the chips and the back, it will works, especially for the Samsung 980 EVO series which is really hot. According to JEYI's experiment, it can be reduced At least 10°C-30°C
5. Package Contents:
1 X M.2 SSD Heatsink
3 X Thermal compound pad
6 X Screws

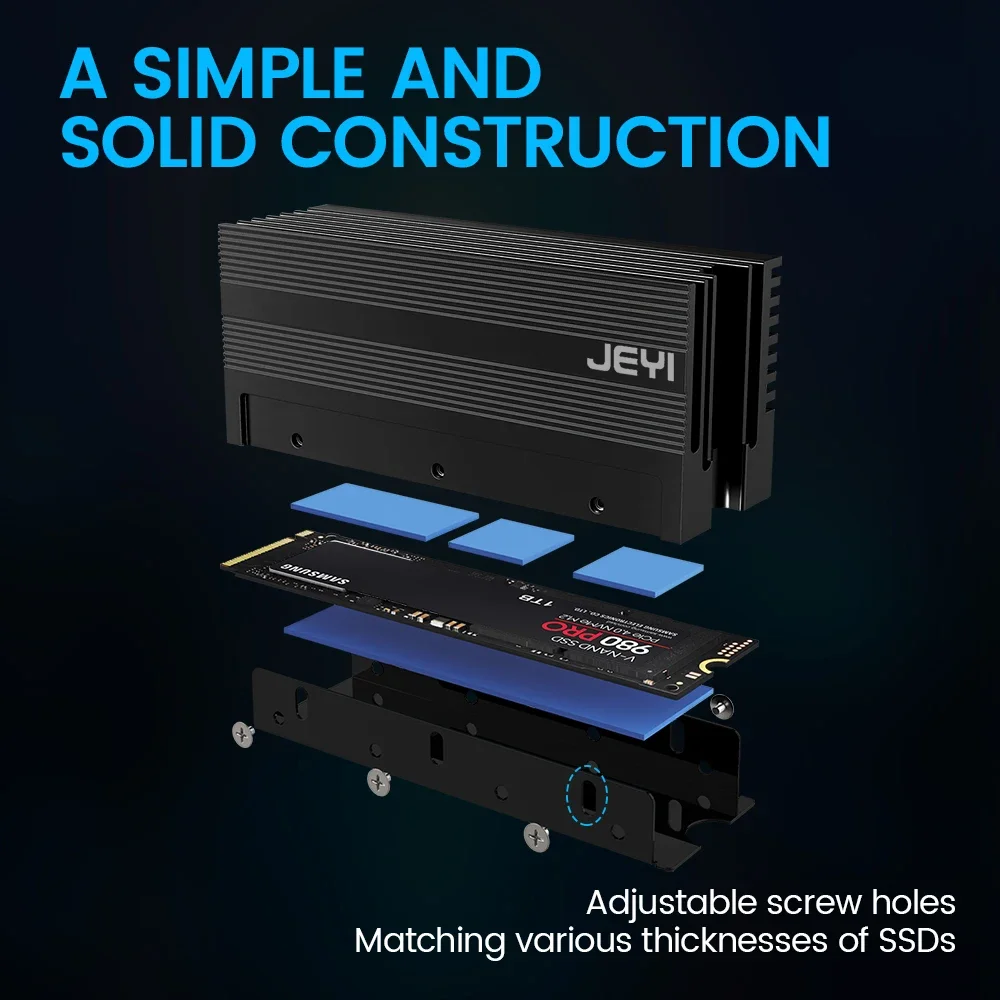

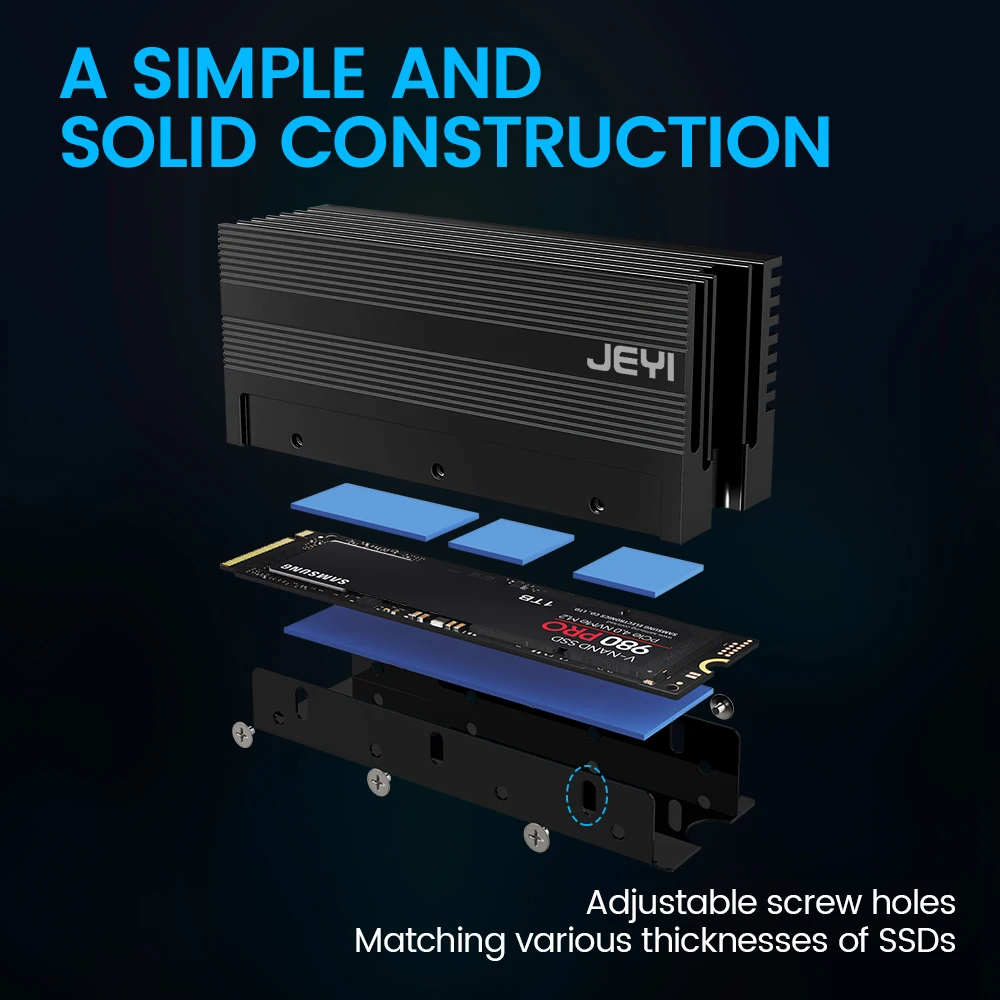

A simple and solid construction

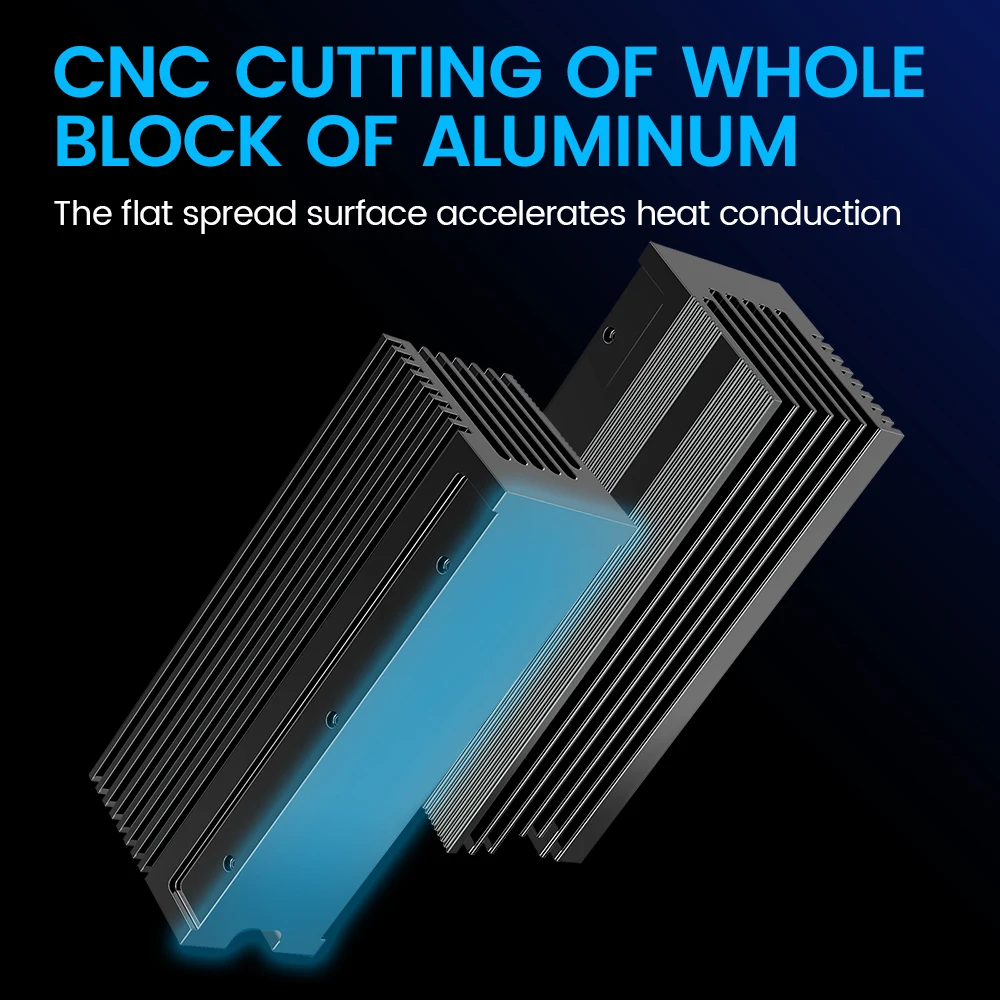

CNC cutting of whole block of aluminum
The flat spread surface accelerates heat conduction

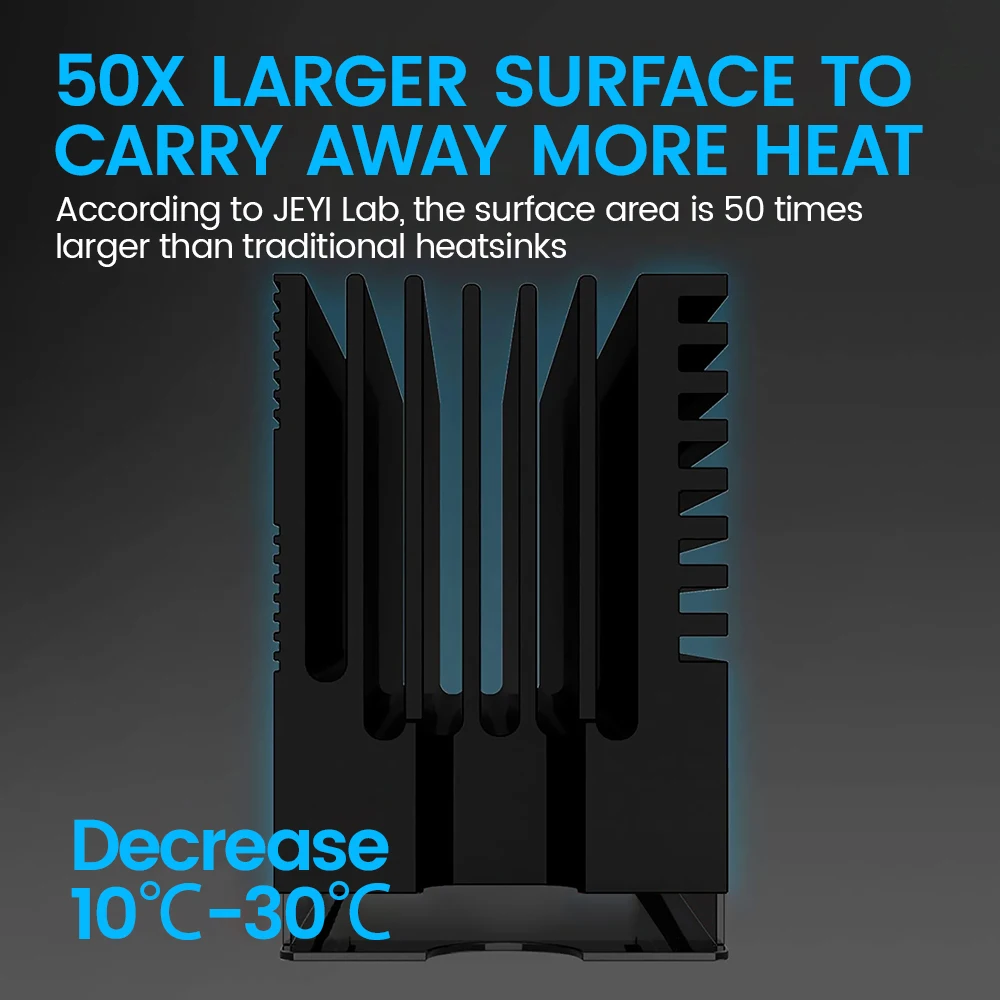

50X LARGER surface to carry away more heat
According to Lab, the surface area is 50 times larger than traditional heatsinks

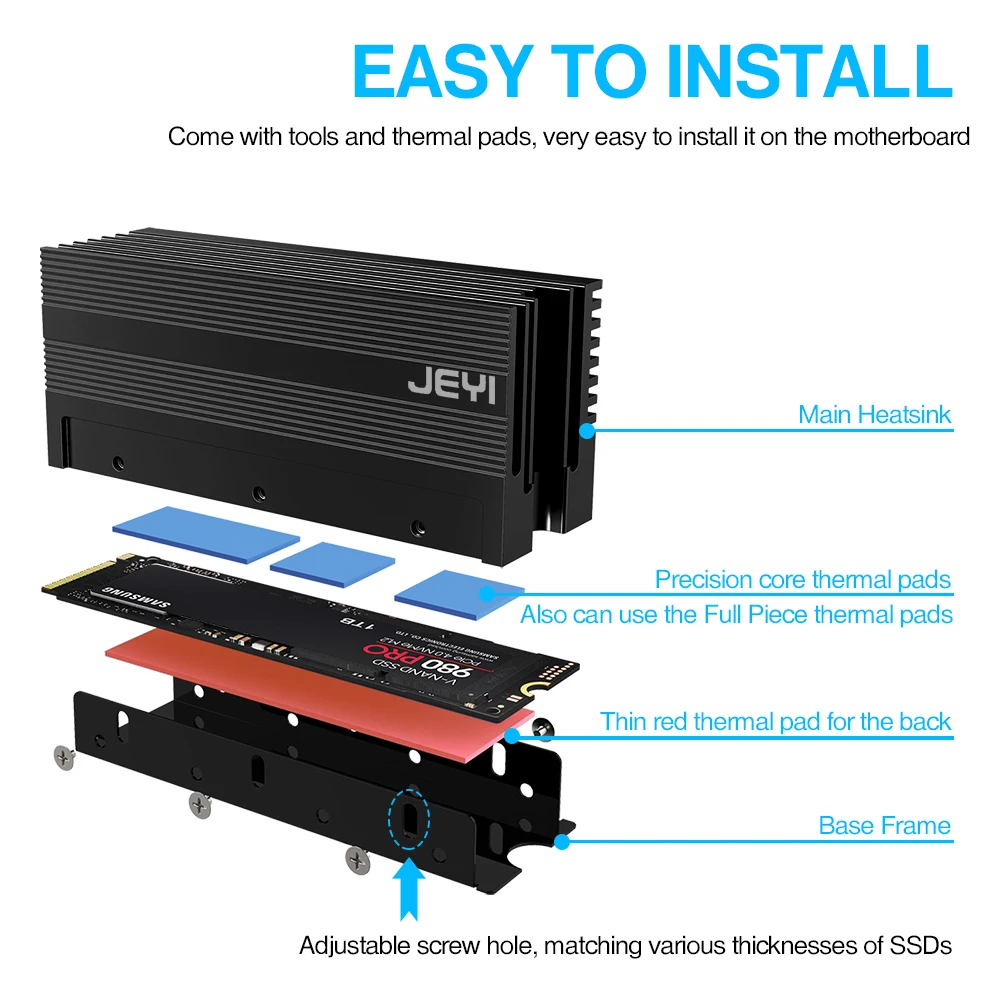

Easy to install

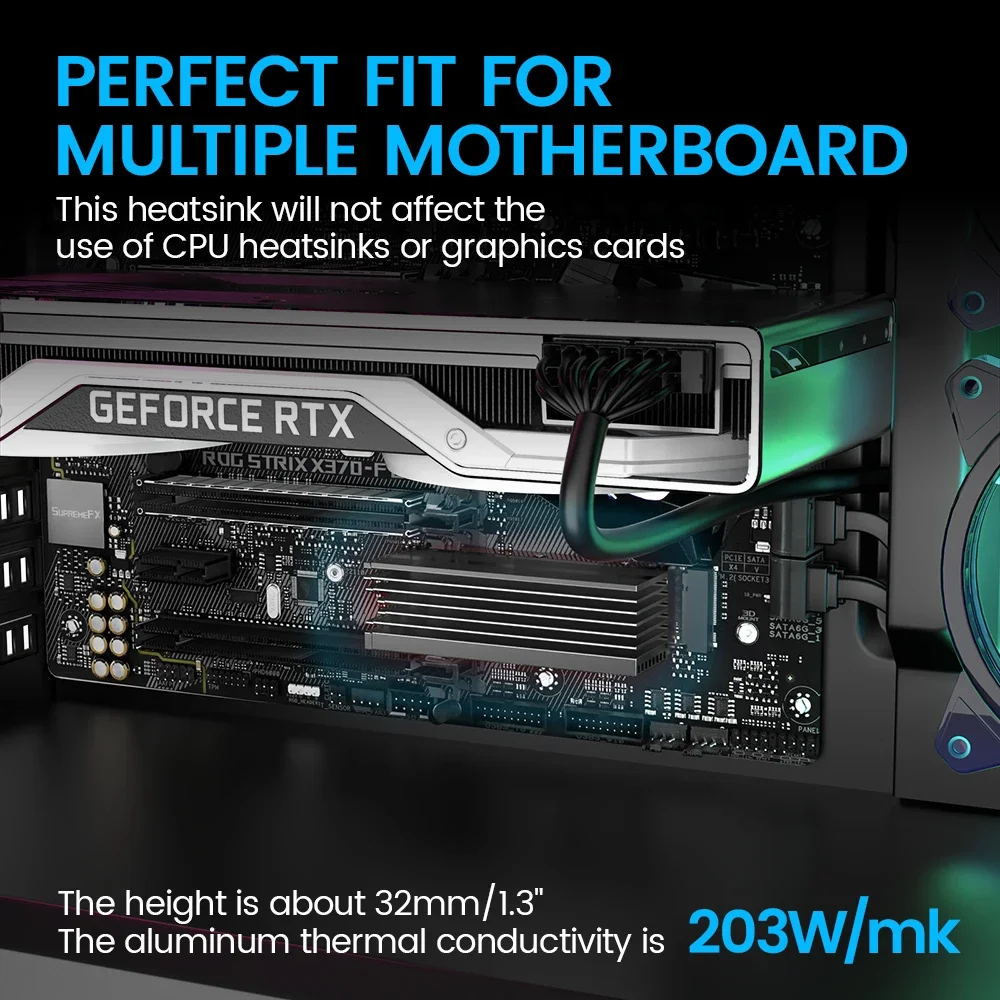

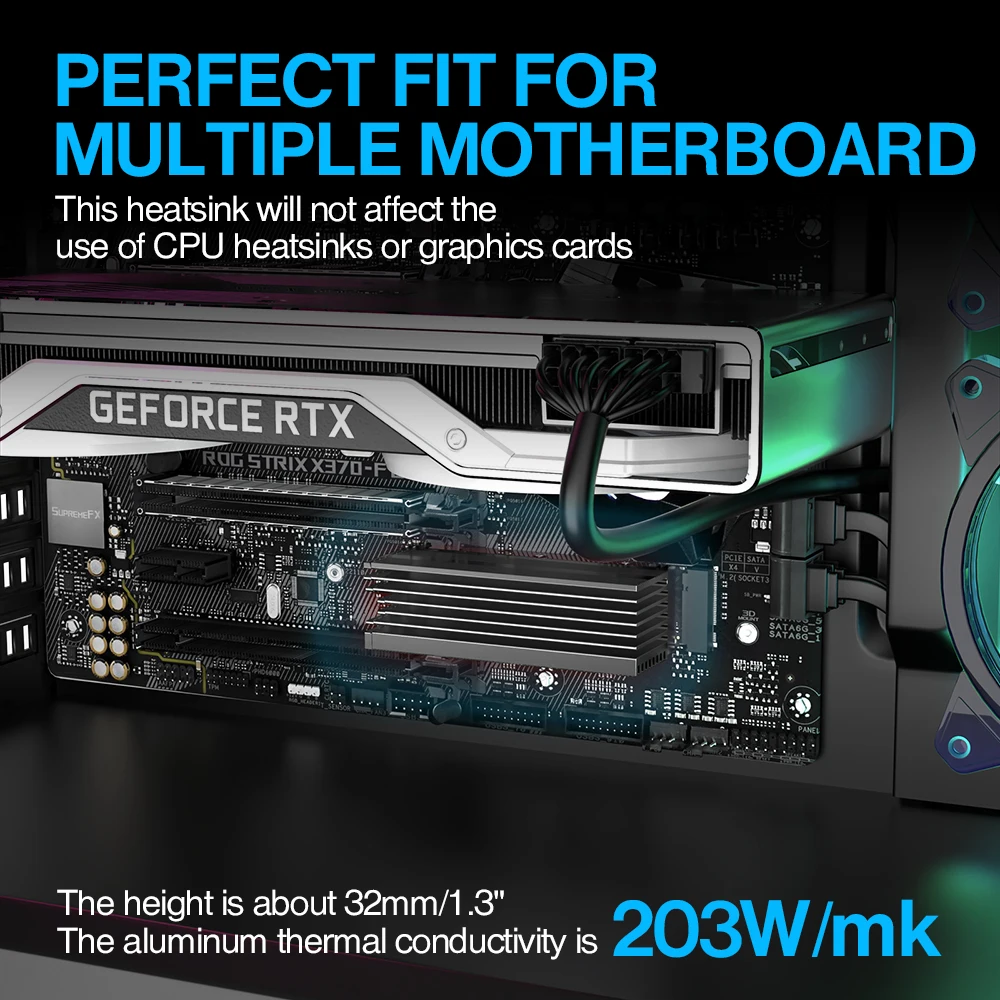

PERFECT FIT FOR MULTIPLE MOTHERBOARD
This heatsink will not affect the use of CPU heatsinks or graphics cards
The height is about 32mm/1.3"
The aluminum thermal conductivity is 203W/mk

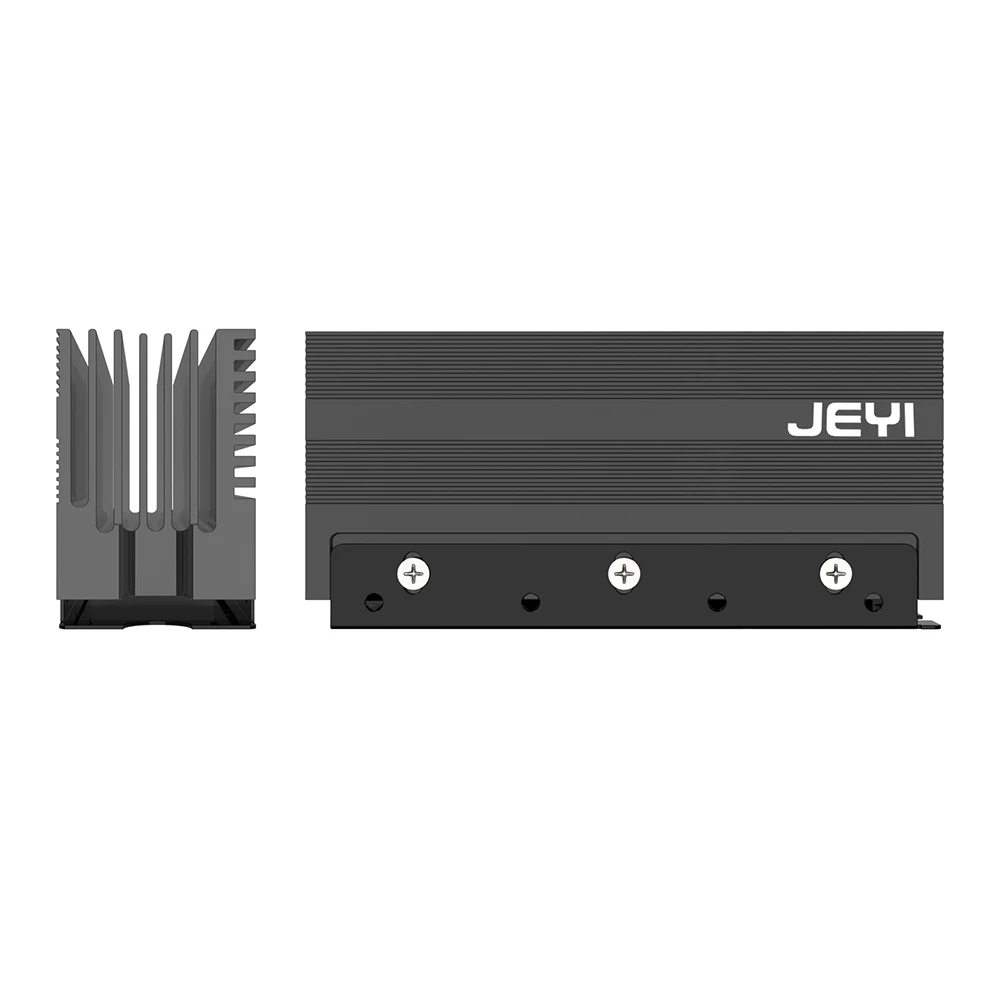

More fins and a whole piece of aluminum
1.50 times larger surface area than traditional heatsinks, allowing for better heat dissipation performance

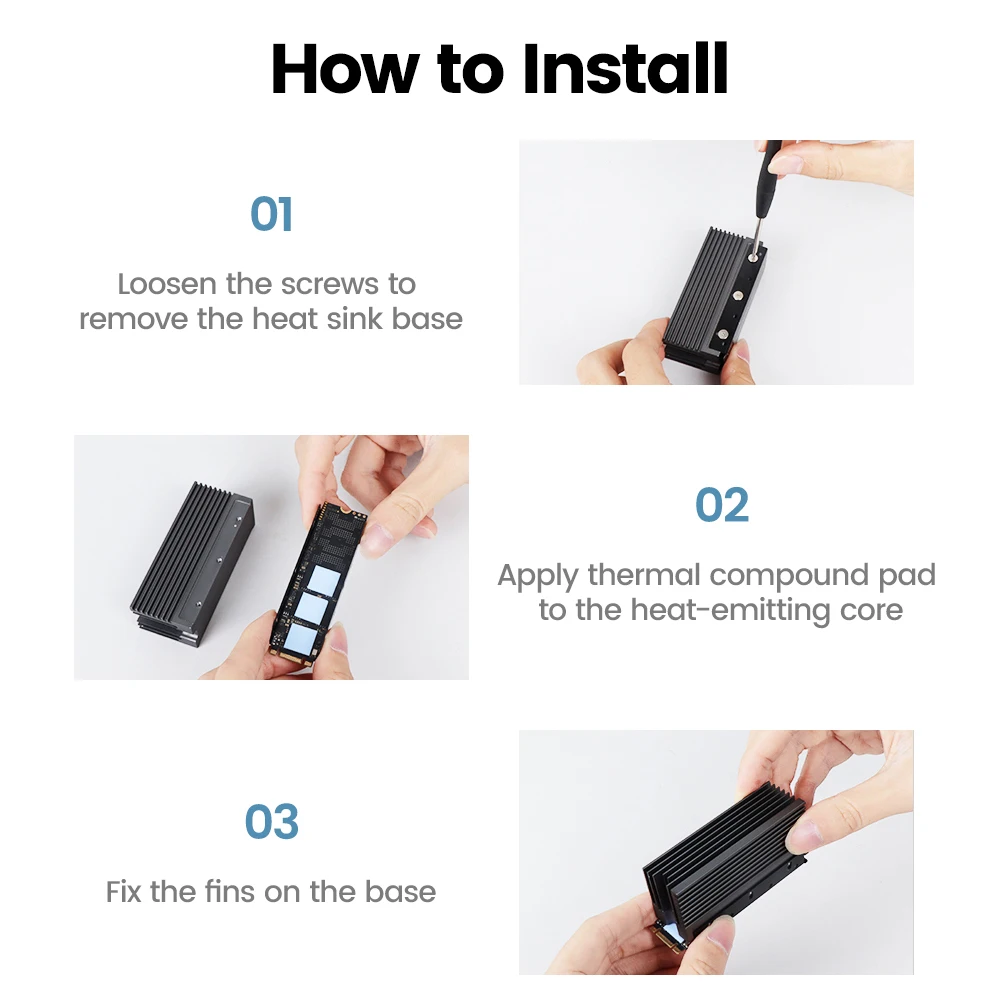

Steps to Install the Heatsink
1. Loosen the screws to remove the heat sink base
2. Apply thermal compound pad to the heat-emitting core
3. Fix the fins on the base

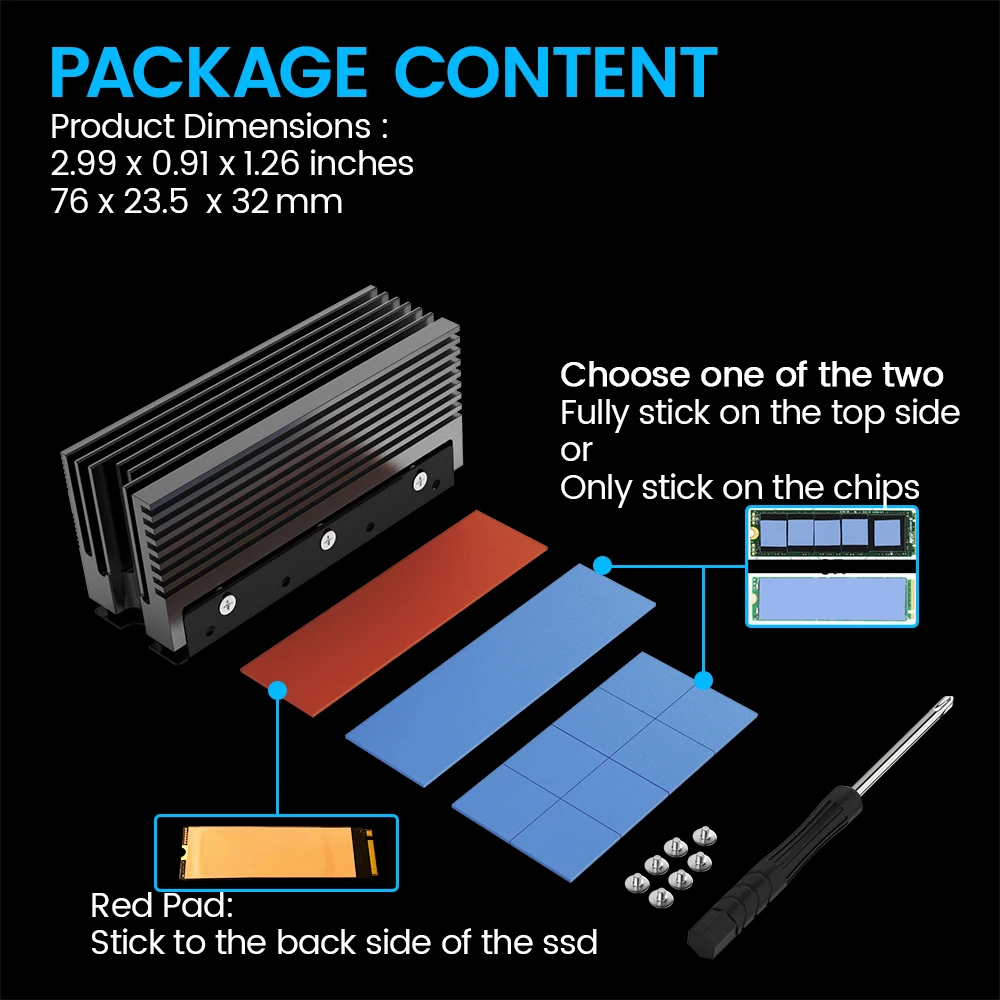

Package contents
1 X M.2 SSD Heatsink
3 X Thermal compound pad
6 X Screws
Features:
Designed for desktop computers.
Aluminum body, Anodic Oxidation Surface Treatment.
Aluminum alloy-Groove design, greatly increase the heat dissipation area, with 10°C - 30°C cooling effect.
Compatible with Sing/Double sided M.2 2280 SSDs.
Easy to install, and not damage the hard disk.
Supports all M.2 SSD, such as Samsung 970 EVO/950Pro/960EVO/XP941/PM951/PM961/SM951/SM961, Intel SSD6/7 Plextor M6e Series, Kingston HyperX Predator M.2 SSD and so on.
